USER MANUAL CLIMA19 CLIMADIFF

• CLIMA18 / CLIMA19 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. CLIMADIFF SA 143 Boulevard Pierre Lefaucheux 72230 Arnage – FRANCE http://www.climadiff.com/ Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventative care on your part can save you a great deal of time and money over the life of your air conditioner. Before operating this product, please read the instructions carefully and save this manual for future use. CONTENTS Read This Manual Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner. You'll find many answers to common problems in the chart of troubleshooting tips. If you review our chart of Troubleshooting Tips first, you may not need to call for service at all. SOCIABLE REMARK Sociable remark p. 2
• SAFETY PRECAUTIONS Safety rules p. 3
• Operating condition p. 3
• Electrical information p. 4

CAUTION Contact the authorised service technician for repair or maintenance of this unit. Contact the installer for installation of this unit. The air conditioner is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the air conditioner. If the power cord is to be replaced, replacement work shall be performed by authorised personnel only. Installation work must be performed in accordance with the national wiring standards by authorised personnel only. When there are wide differences between USER S MANUAL and Remote controller Illustration on function description, the description on USER S MANUAL shall prevail. Accessories .......................................................................................................................................4 Names of parts...................................................................................................................................5

Care and maintenance ....................................................................................................................14 TROUBLESHOOTING TIPS Trouble shooting ..............................................................................................................................15 NOTE The rating data indicated on the energy label is based on the testing condition of installing the un-extended air exhaust duct without adaptor A & B (The duct and the adaptor A & B are listed in the accessories chart of the Instruction Manual). See the right figure. At the same time, the unit must be operate on the COOL MODE and HIGH FAN SPEED by remote controller.

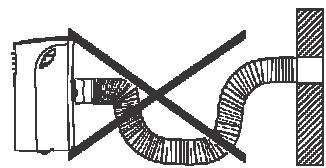

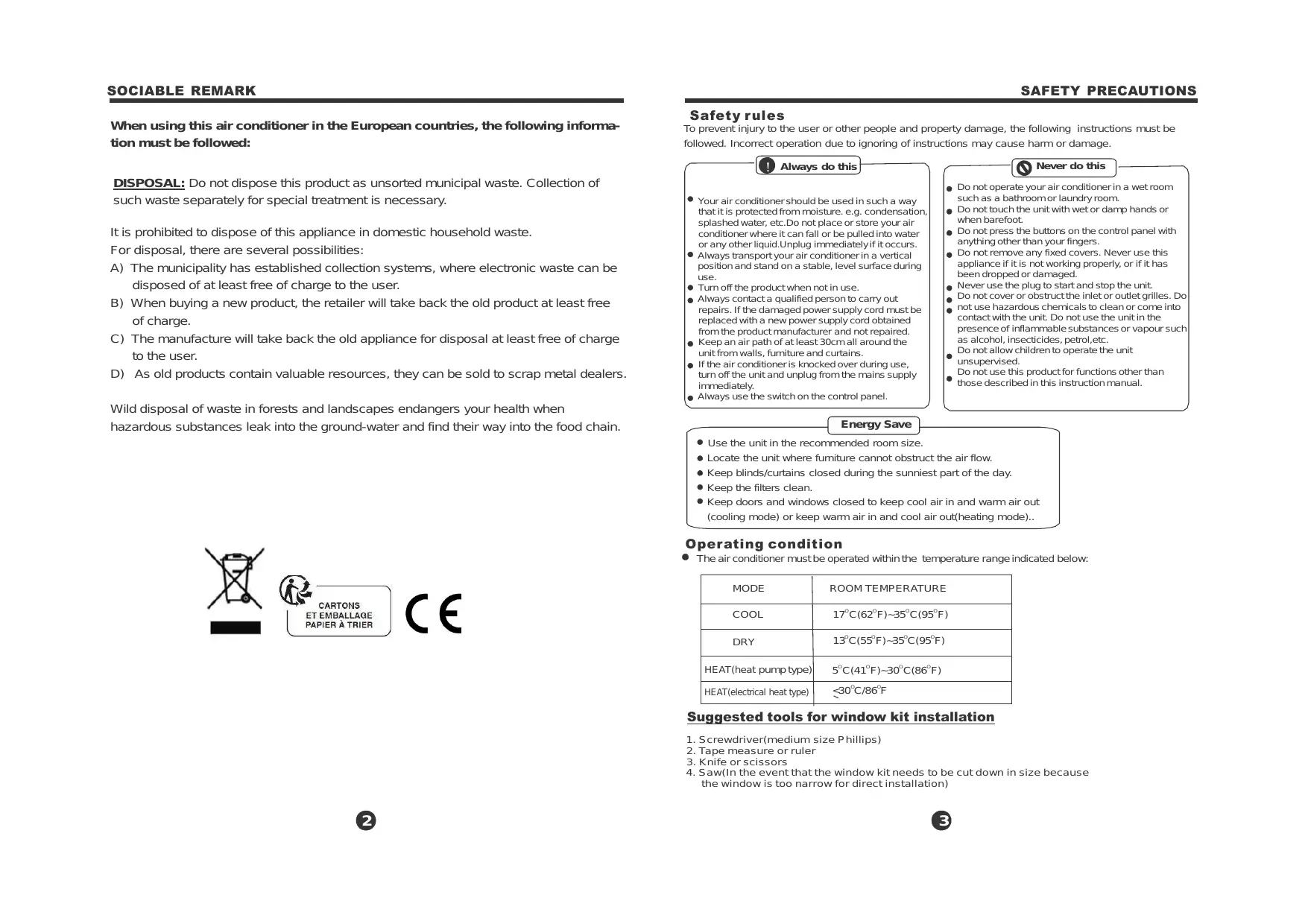

SOCIABLE REMARK SAFETY PRECAUTIONS When using this air conditioner in the European countries, the following information must be followed: Safety r ules To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. It is prohibited to dispose of this appliance in domestic household waste. For disposal, there are several possibilities: A) The municipality has established collection systems, where electronic waste can be disposed of at least free of charge to the user. B) When buying a new product, the retailer will take back the old product at least free of charge. C) The manufacture will take back the old appliance for disposal at least free of charge to the user. D) As old products contain valuable resources, they can be sold to scrap metal dealers. Never do this Always do this Do not operate your air conditioner in a wet room such as a bathroom or laundry room. Do not touch the unit with wet or damp hands or when barefoot. Do not press the buttons on the control panel with anything other than your fingers. Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it has been dropped or damaged. Never use the plug to start and stop the unit. Do not cover or obstruct the inlet or outlet grilles. Do not use hazardous chemicals to clean or come into contact with the unit. Do not use the unit in the presence of inflammable substances or vapour such as alcohol, insecticides, petrol,etc. Do not allow children to operate the unit unsupervised. Do not use this product for functions other than those described in this instruction manual. Your air conditioner should be used in such a way that it is protected from moisture. e.g. condensation, splashed water, etc.Do not place or store your air conditioner where it can fall or be pulled into water or any other liquid.Unplug immediately if it occurs. Always transport your air conditioner in a vertical position and stand on a stable, level surface during use. Turn off the product when not in use. Always contact a qualified person to carry out repairs. If the damaged power supply cord must be replaced with a new power supply cord obtained from the product manufacturer and not repaired. Keep an air path of at least 30cm all around the unit from walls, furniture and curtains. If the air conditioner is knocked over during use, turn off the unit and unplug from the mains supply immediately. Always use the switch on the control panel. Wild disposal of waste in forests and landscapes endangers your health when hazardous substances leak into the ground-water and find their way into the food chain. Energy Save Use the unit in the recommended room size. Locate the unit where furniture cannot obstruct the air flow. Keep blinds/curtains closed during the sunniest part of the day. Keep the filters clean. Keep doors and windows closed to keep cool air in and warm air out (cooling mode) or keep warm air in and cool air out(heating mode).. Oper ating condition The air conditioner must be operated within the temperature range indicated below: MODE ROOM TEMPERATURE COOL 17OC(62OF)~35OC(95OF) DRY 13OC(55OF)~35OC(95OF) HEAT(heat pump type) 5OC(41OF)~30OC(86OF) HEAT(electrical heat type) <30OC/86OF Suggested tools for window kit installation

1. Screwdriver(medium size Phillips)

2. Tape measure or ruler

3. Knife or scissors

4. Saw(In the event that the window kit needs to be cut down in size because

the window is too narrow for direct installation)

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor plug. Do not remove any prong from the power cord.

Be sure the electrical service is adequate for the model you have chosen. This information can be found on the serial plate, which is located on the side of the cabinet and behind the grille. Be sure the air conditioner is properly grounded. To minimize shock and fire hazards, proper grounding is important. The power cord is equipped with a three-prong grounding plug for protection against shock hazards. Your air conditioner must be used in a properly grounded wall receptacle. If the wall receptacle you intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker, have a qualified electrician install the proper receptacle. Ensure the receptacle is accessible after the unit installation. Fig.1

Remote Signal Receptor

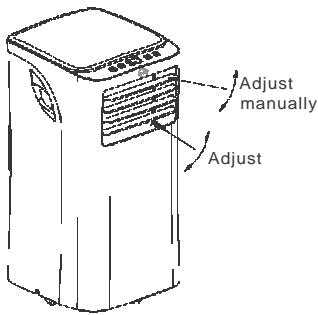

Vertical Louver Control Lever (adjust manually)

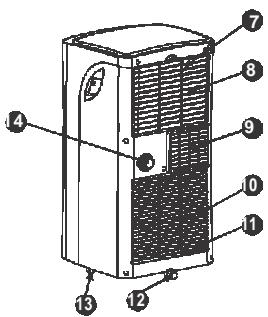

Carrying Handle (both sides) Accessories PARTS : PARTS NAME : Exhaust hose(supplied), adapter B(round

QUANTITY : 1 set Rear mouth or flat month:depending on models) and Window Slider Kit and bolt (? ) 7 Upper Air Filter (Behind the grille) Adaptor B(round mouth) (? ) Wall Exhaust Adaptor A( ? ) 8 Air Intake 1 set

Expansion Plug and wooden screw(? ) Foam seal (? ) 4/ pc 12 Bottom tray drain outlet

FO L L O W SET TEMPERATURE( C) AUTO COOL DRY HEAT ION MODE SWING Remote Controller and Battery (For remote control models only) 1set Drain hose 1pc 14 Drain Outlet

Fig.2 NOTE: Optional parts( ), some models without. Check all the accessories are included in the package and please refer to the installation instructions for their usage. NOTE: All the illustrations in this manual are for explanation purpose only. Your air conditioner may be slightly different. The actual shape shall prevail.

E LE CT RONI C CONT ROL OP E RATI NG INS T RUCT I ONS Before you begin, thoroughly familiarize yourself with the control panel and remote controller and all its functions, then follow the symbol for the functions you desire. The unit can be controlled by the unit control panel alone or with the remote controller . NOTE: This manual does not include Remote Controller Operations, see the <<Remote Controller Instruction>> packed with the unit for details.

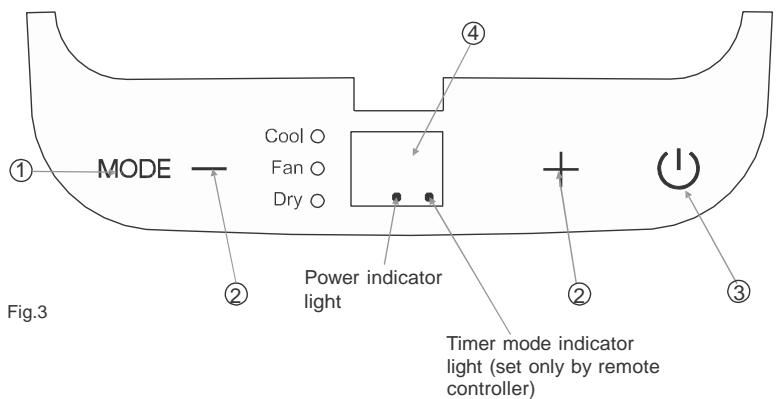

OPERATION PANEL OF THE AIR CONDITIONER

Operating Instructions COOL operation - Press the "MODE" button until the "COOL" indicator light comes on. The unit will operate the auto fan speed automatically. - Press the ADJUST buttons "▲" or " " to select your desired room temperature. The temperature can be set within a range of 17OC-30OC/62OF-88OF(or 86OF). - Press the "FAN" button on the remote controller to choose the fan speed. 2 UP( ) and DOWN( ) button Used to adjust (increasing/decreasing) temperature settings in 1O C/2OF(or 1OF) increments in a range of 17OC/62OF to 30OC/88OF (or 86OF).

NOTE: The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius. To convert from one to the other, press and hold the Up and Down buttons at the same time, for 3 seconds.

Fig.3 1 MODE select button Selects the appropriate operating mode. Each time you press the button, a mode is selected in a sequence that goes from COOL, FAN and DRY .The mode indicator light illuminates under the different mode setting. NOTE: On above modes, the unit operates the auto fan speed automatically. You can set fan speed only by the remote controller on COOL and FAN modes.

Power indicator light Timer mode indicator light (set only by remote controller)

Press the "MODE" button until the "DRY" indicator light comes on. Under this mode, you cannot select a fan speed or adjust the temperature. Keep windows and doors closed for the best dehumidifying effect. Do not put the duct to window. FAN operation

4 LED Display Shows the set temperature while on cool mode. While on DRY and FAN modes, it shows the room temperature. Press the "MODE" button until the "FAN " indicator light comes on. The unit will operate the auto fan speed automatically. The temperature cannot be adjusted on fan mode. Press the "FAN" button on the remote controller to choose the fan speed. Do not put the duct to window. SLEEP operation Error codes: E1- Room temperature sensor errorUnplug the unit and plug it back in. If error repeats, call for service. E2- Evaporator temperature sensor errorUnplug the unit and plug it back in. If error repeats, call for service. E4- Display panel communication errorUnplug the unit and plug it back in. If error repeats, call for service. This feature can be activated from the remote control ONLY. To activate SLEEP feature, the set temperature

will increase by 1 C/2 F(or 1 F) in 30 minutes. The set temperature will then increase by

another 1 C/2 F(or 1 F) after an additional 30 minutes. This new temperature will be maintained for 7 hours before it returns to the originally selected temperature. This ends the Sleep mode and the unit will continue to operate as originally programmed. NOTE: This feature is unavailable under FAN or DRY mode. Protection codes: P1- Bottom tray is full - Connect the drain hose and drain the collected water away. If error repeats, call for service.

INSTALLATION INSTRUCTIONS (optional) OPERATING INSTRUCTIONS INSTALLATION INSTRUCTIONS Other features Location Auto-Restart If the unit breaks off unexpectedly due to the power cut,it will restart with the previous function setting automatically when the powe resumes.. Wait 3 minutes before resuming operation After the unit has stopped, it cannot be restarted operation in the first 3 minutes. This is to protect the unit. Operation will automatically start after 3 minutes. POWER MANAGEMENT feature When the ambient temperature is lower than the setting temperature for a period of time, the unit will be automatically operate power management feature. The compressor and fan motor stop. When the ambient temperature is higher than the setting temperature, the unit will be automatically quit the power management feature. The compressor and (or) fan motor run. Air flow direction adjustment Adjust manually Adjust (Fig.4): The louver can be set to the desired position manually. Do not place any heavy objects or other loads on the louver, doing so will cause damage to the unit. Ensure the louver is fully opened under

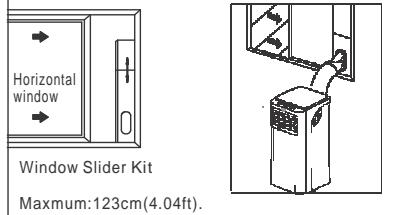

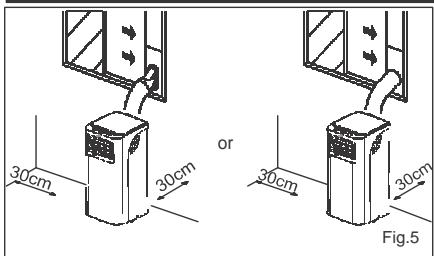

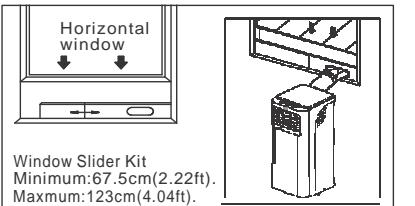

Fig.5 Horizontal window Window Slider Kit Minimum:67.5cm(2.22ft). Maxmum:123cm(4.04ft). The air conditioner should be placed on a firm foundation to minimize noise and virbration. For safe and secure positioning, place the unit on a smooth, level floor strong enough to support the unit. The unit has casters to aid placement, but it should only be rolled on smooth, flat surfaces. Use caution when rolling on carpet surfaces. Do not attempt to roll the unit over objects. The unit must be placed within reach of a properly rated grounded socket. Never place any obstacles around the air inlet or outlet of the unit. Allow at least 30cm of space from the wall for efficient air-conditioning. Window Slider kit Installation

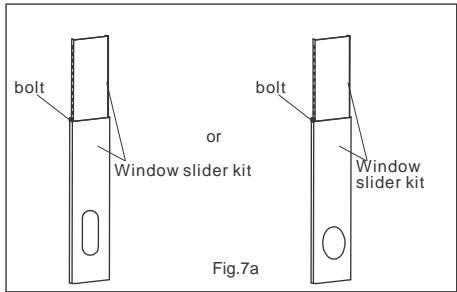

Your window slider kit has been designed to fit most standard "Vertical" and "horizontal"window applications, However, it may be necessary for you to improvise/modify some aspects of the installation procedures for certain types of window. Please refer to Fig. 6& Fig.7 for minimum and maximum window openings.Window slider kit can be fixed with a bolt (see Fig.7a). Note: If the window opening is less than the mentioned minimum length of the window slider kit, cut that one Horizontal window Window Slider Kit Minimum:67.5cm(2.22ft). Maxmum:123cm(4.04ft). Keep the louver fully opened during operation. never cut out the hole in window slider kit. Horizontal window bolt Fig.4 Window Slider Kit bolt

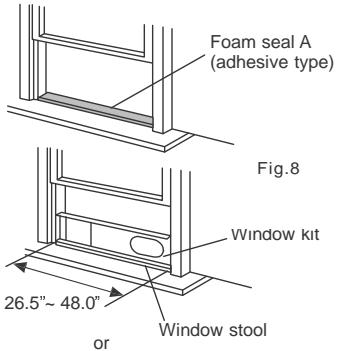

Window slider kit INSTALLATION INSTRUCTIONS (optional) Foam seal A (adhesive type) Fig.8 Window kit

INSTALLATION INSTRUCTIONS (optional) Installation in a double-hung sash window Installation in a sliding sash Foam seal A (adhesive type)

1. Cut the foam seal(adhesive type) to the proper

length and attach it to the window stool. Fig.8

1. Cut the foam seal(adhesive type) to the proper

length and attach it to the window frame,Fig.12. Fig.12

2. Attach the window slider kit to the window stool.

Adjust the length of the window slider kit according to the width of window, shorten the adjustable window kit if the width of window is less than 26.5 inches. Open the window sash and place the window slider kit on the window stool. See Fig.9. window Window panel

of slider the window slider kit according 2.Adjust Attachthe thelength window kit to the window stool. to the width of window, shorten the adjustable window kit if the width of window is less than 26.5 inches. Open the window sash and place the window slider kit on the window stool. See Fig.13. Window stool

3. Cut the foam seal(adhesive type) to the proper

length and attach it on the top of the window. Shown as in Fig.10. Window kit

3. Cut the foam seal(adhesive type) to the proper

length and attach it on the top of the window. Shown as in Fig.14.

4. Close the sliding sash securely against the window.

4. Close the window sash securely against the

5. Cut the foam seal to an appropriate length and

seal the open gap between the top window sash and outer window sash. Shown as in Fig.15.

5. Cut the foam seal to an appropriate length and

seal the open gap between the top window sash and outer window sash. Shown as in Fig.11. Fig.13 Window kit

INSTALLATION INSTRUCTIONS (optional) INSTALLATION INSTRUCTIONS Exhaust hose installation: Fig.16 Water drainage: The exhaust hose and adaptor must be installed or removed in accordance with the usage mode. Fig.17 COOL, AUTO mode Remove the drain plug

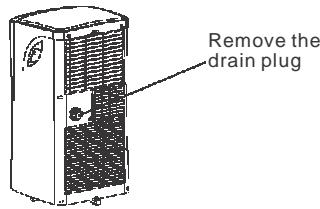

During dehumidifying modes, remove the drain plug from the back of the unit, install the drain Install connector(5/8 universal female mender) with FAN,DEHUMIDIIFY mode 3 4 hose(locally purchased). For the models Remove without drain connector, just attach the drain hose to the hole. Place the open end of the

1. Install the window Exhaust adaptor B onto the exhaust

hose as shown in Fig.16. or Fig.17. Refer to the previous pages for window kit installation.

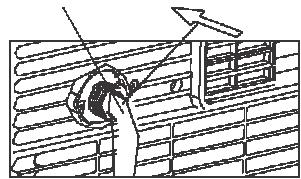

2. Push the Exhaust hose into the airoutlet opening along the

the arrow direction(See Fig.18). The exhaust hose can be installed into the wall (Not applicable to the units without adaptor A, expansion plugs and wooden screws of Accessories ).

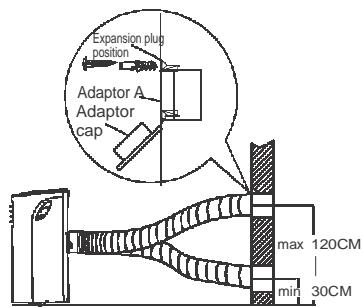

1. Prepare a hole in the wall. Install the wall Exhaust adaptor A

onto the wall(outside) by using 4 expansion plugs and wooden screws, be sure to fix thoroughly. (See Fig.19) Fig.18 hose directly over the drain area in your Fig.21 basement floor. Please refer to Fig.21 & 22.

the digital display area shows "P1". At this time Continuous drain hose the air conditioning/dehumidification process will immediately stop. However, the fan motor will continue to operate(this is normal). Carefully move the unit to a drain location, to wall Exhaust adaptor A. Note: Cover the hole using the adaptor cap when not in use. remove the bottom drain plug and let the water drain away (Fig.23). Re-install the bottom drain plug and Restart the machine until the "P1" The duct can be compressed or extended moderately according to the installation requirement, but it is desirable to keep the duct length to a minimum. Expansion plug position Adaptor A Adaptor cap When the water level of the bottom tray reaches a predetermined level, the unit beeps 8 times, symbol disappears. If the error repeats, call for Fig.22 service. IMPORTANT: NOTE: Be sure to reinstall the bottom drain plug DO NOT OVER BEND THE DUCT (SEE Fig.20) before using the unit. CAUTION: max 120CM Bottom drain plug Make sure that there is no obstacle around the air outlet of the exhaust hose (in the range of 500mm) in order to the exhaust system works properly. min 30CM Fig.19 Fig.23 Fig.20

CARE AND MAINTENANCE

Air filter (take out) Fig.24 Air filter (install) IMPORTANT:

1) Be sure to unplug the unit before cleaning or servicing.

2) Do not use gasoline, thinner or other chemicals to clean

3) Do not wash the unit directly under a tap or using a hose.

It may cause electrical danger.

4) If the damaged power supply cord must be replaced with

a new power supply cord obtained from the product manufacturer and not repaired. TROUBLE SHOOTING TROUBLES POSSIBLE CAUSES SUGGEST REMEDIES

- P1 appears in the display window Drain the water in the bottom tray. Start when Pressing on/off Button - Room temperature is lower than the set temperature.(Cooling mode) - The windows or doors in the room

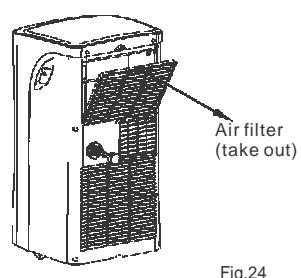

- Clean the air filter at least once every two weeks to prevent inferior fan operation because of dust. - Removal Take the air filter out along the arrow direction (Fig.24). - Cleaning Wash the air filter by immersing it gently in warm water (about 40OC/104OF) with a neutral detergent. Rinse the filter and dry it in a shady place. - Mounting Install the air filter after cleaning (see Fig.25). are not closed.

- There are heat sources inside the blocked.

Remove the heat sources if possible. room. Connect the duct and make sure it can function properly. - Temperature setting is too high. Decrease the set temperature. - Air filter is blocked by dust. Clean the air filter. - The ground is not level or not flat Place the unit on a flat, level ground if possible. enough. NOTE: The grill and the air filter are connected and can be separated. Make sure all the windows and doors are closed. - Exhaust air duct is not connected or

4. Noisy or vibration

Fig.25 Reset the temperature. - The sound comes from the flowing It is normal. of the refrigerant inside the

- Use a lint-free cloth soaked with neutral detergent to clean the unit enclosure. Finished by a dry clean cloth.

3. Unit idle for a long time

Remove the rubber plug at the back of the unit and attach a hose to drain outlet. Place the open end of the hose air-conditioner.

6. Power shut off at

Heating mode - The automatic over heat protection function. When the temperature at the air outlet exceed 70 OC/158 O F,the device wi ll stop. directly over the drain area in your basement floor

(See Fig.22 & 23). Remove the plug from the bottom drain outlet, all the water in the bottom tray would drain out (See Fig.24). Keep the appliance running on FAN mode for half a day in a warm room to dry the appliance inside and prevent mold forming. Stop the appliance and unplug it, wrapped the cord and bundle it with the tape. Remove the batteries from the remote controller. Clean the air filter and reinstall it.

Switch on again after the unit has cool down.
