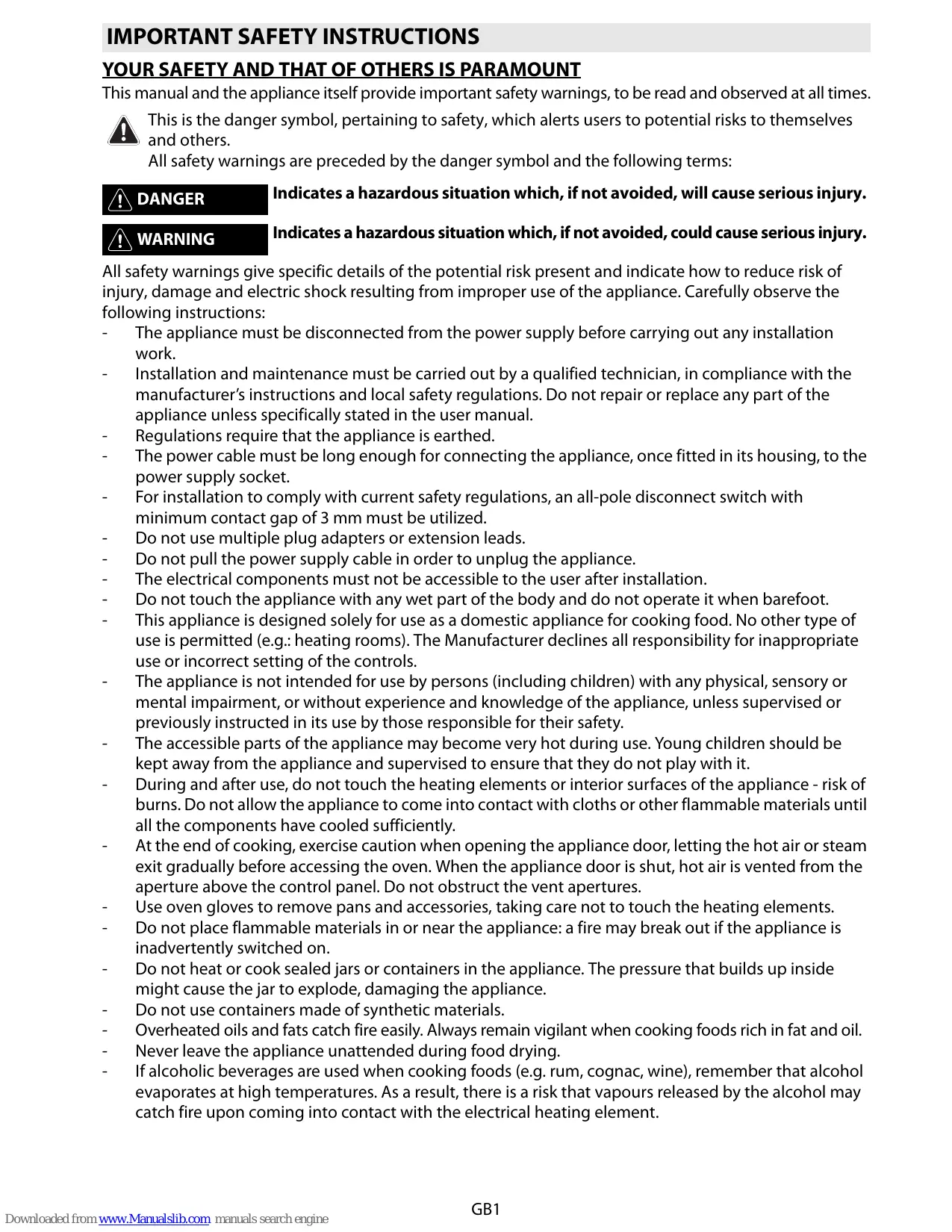

IMPORTANT SAFETY INSTRUCTIONS

YOUR SAFETY AND THAT OF OTHERS IS PARAMOUNT

This manual and the appliance itself provide important safety warnings, to be read and observed at all times.

This is the danger symbol, pertaining to safety, which alerts users to potential risks to themselves and others.

All safety warnings are preceded by the danger symbol and the following terms:

DANGER

WARNING

Indicates a hazardous situation which, if not avoided, will cause serious injury.

Indicates a hazardous situation which, if not avoided, could cause serious injury.

All safety warnings give specific details of the potential risk present and indicate how to reduce risk of injury, damage and electric shock resulting from improper use of the appliance. Carefully observe the following instructions:

• The appliance must be disconnected from the power supply before carrying out any installation work.
• Installation and maintenance must be carried out by a qualified technician, in compliance with the manufacturer's instructions and local safety regulations. Do not repair or replace any part of the appliance unless specifically stated in the user manual.
• Regulations require that the appliance is earthed.
• The power cable must be long enough for connecting the appliance, once fitted in its housing, to the power supply socket.
• For installation to comply with current safety regulations, an all-pole disconnect switch with minimum contact gap of 3 mm must be utilized.
• Do not use multiple plug adapters or extension leads.
• Do not pull the power supply cable in order to unplug the appliance.
• The electrical components must not be accessible to the user after installation.
• Do not touch the appliance with any wet part of the body and do not operate it when barefoot.
• This appliance is designed solely for use as a domestic appliance for cooking food. No other type of use is permitted (e.g.: heating rooms). The Manufacturer declines all responsibility for inappropriate use or incorrect setting of the controls.
• The appliance is not intended for use by persons (including children) with any physical, sensory or mental impairment, or without experience and knowledge of the appliance, unless supervised or previously instructed in its use by those responsible for their safety.
• The accessible parts of the appliance may become very hot during use. Young children should be kept away from the appliance and supervised to ensure that they do not play with it.
• During and after use, do not touch the heating elements or interior surfaces of the appliance - risk of burns. Do not allow the appliance to come into contact with cloths or other flammable materials until all the components have cooled sufficiently.
• At the end of cooking, exercise caution when opening the appliance door, letting the hot air or steam exit gradually before accessing the oven. When the appliance door is shut, hot air is vented from the aperture above the control panel. Do not obstruct the vent apertures.
• Use oven gloves to remove pans and accessories, taking care not to touch the heating elements.
• Do not place flammable materials in or near the appliance: a fire may break out if the appliance is inadvertently switched on.
• Do not heat or cook sealed jars or containers in the appliance. The pressure that builds up inside might cause the jar to explode, damaging the appliance.
• Do not use containers made of synthetic materials.
• Overheated oils and fats catch fire easily. Always remain vigilant when cooking foods rich in fat and oil.
• Never leave the appliance unattended during food drying.
• If alcoholic beverages are used when cooking foods (e.g. rum, cognac, wine), remember that alcohol evaporates at high temperatures. As a result, there is a risk that vapours released by the alcohol may catch fire upon coming into contact with the electrical heating element.

Scrapping of household appliances

• This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. Before scrapping, cut off the power supply cable.
• For further information on the treatment, recovery and recycling of household electrical appliances, contact your competent local authority, the collection service for household waste or the store where you purchased the appliance.

INSTALLATION

After unpacking the oven, make sure that it has not been damaged during transport and that the oven door closes properly. In the event of problems, contact the dealer or your nearest After-sales Service. To prevent any damage, only remove the oven from its polystyrene foam base at the time of installation.

PREPARING THE HOUSING UNIT

• Kitchen units in contact with the oven must be heat resistant (min 90°C).
- Carry out all cabinet cutting work before fitting the oven in the housing and carefully remove all wood chips and sawdust.
• After installation, the bottom of the oven must no longer be accessible.
- For correct appliance operation, do not obstruct the minimum gap between the worktop and the upper edge of the oven.

ELECTRICAL CONNECTION

Make sure the power voltage specified on the appliance dataplate is the same as the mains voltage. The dataplate is on the front edge of the oven (visible when the door is open).

• Power cable replacement (type H05 RR-F 3 x 1.5 mm ^2 ) must be carried out by a qualified electrician. Contact an authorized service centre.

GENERAL RECOMMENDATIONS

Before use:

• Remove cardboard protection pieces, protective film and adhesive labels from accessories.
• Remove the accessories from the oven and heat it at 200^ for about an hour to eliminate the smell and fumes from the insulating materials and protective grease.

During use:

• Do not place heavy objects on the door as they could damage it.
• Do not cling to the door or hang anything from the handle.
• Do not cover the inside of the oven with aluminium foil.
• Never pour water into the inside of a hot oven; this could damage the enamel coating.
• Never drag pots or pans across the bottom of the oven as this could damage the enamel coating.
• Make sure that the electrical cables of other appliances do not touch hot parts of the oven or become trapped in the door.
• Do not expose the oven to atmospheric agents.

SAFEGUARDING THE ENVIRONMENT

Disposal of packing material

The packing material is 100% recyclable and is marked with the recycle symbol ( ). The various parts of the packing must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

Scrapping the product

• This appliance is marked in compliance with European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).
• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
• The symbol ☒ on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection centre for the recycling of electrical and electronic equipment.

Energy saving

• Only pre-heat the oven if specified in the cooking table or your recipe.
• Use dark lacquered or enamelled baking moulds as they absorb heat far better.
• Switch the oven off 10/15 minutes before the set cooking time. Food requiring prolonged cooking will continue to cook even once the oven is switched off.

DECLARATION OF CONFORMITY (€)

- This oven, which is intended to come into contact with foodstuffs, complies with European Regulation ( c ) n.1935/2004 and has been designed, manufactured and sold in conformity with the safety requirements of the “Low Voltage” directive 2006/95/CE (which replaces 73/23/CEE and subsequent amendments), the protection requirements of “EMC” 2004/108/CE.

TROUBLESHOOTING GUIDE

The oven does not work:

• Check for the presence of mains electrical power and if the oven is connected to the electrical supply.
  • Turn off the oven and restart it to see if the fault persists.

AFTER-SALES SERVICE

Before calling the After-Sales Service:

1. See if you can solve the problem yourself with the help of the suggestions given in the "Troubleshooting guide".
2. Switch the appliance off and back on again it to see if the fault persists.

If after the above checks the fault still occurs, get in touch with the nearest After-sales Service.

Always specify:

• a brief description of the fault;
• the type and exact model of the oven;
- the service number (number after the word Service on the rating plate), located on the right hand edge of the oven cavity (visible when the oven door is open). The service number is also indicated on the guarantee booklet;
- your full address;
- your telephone number.

SERVICE

0000 000 00000

If any repairs are required, please contact an authorised After-sales Service (to guarantee that original spare parts will be used and repairs carried out correctly).

CLEANING

WARNING

• Never use steam cleaning equipment.
• Only clean the oven when it is cool to the touch.
• Disconnect the appliance from the power supply.

Oven exterior

IMPORTANT: do not use corrosive or abrasive detergents. If any of these products accidentally comes into contact with the appliance, clean immediately with a damp cloth.

- Clean the surfaces with a damp cloth. If it is very dirty, add a few drops of washing up detergent to the water. Finish off with a dry cloth.

Oven interior

IMPORTANT: do not use abrasive sponges or metallic scrapers or scourers. Over time, these can ruin enamelled surfaces and the oven door glass.

• After every use, allow the oven to cool then clean it preferably while it is still warm in order to remove built-up dirt and stains caused by food residues (e.g. food with a high sugar content).
- Use proprietary oven detergents and follow the manufacturer's instructions to the letter.
- Clean the door glass with a suitable liquid detergent. The oven door can be removed to facilitate cleaning (see MAINTENANCE).
- The top heating element of the grill (see MAINTENANCE) can be lowered (some models only) to clean the roof of the oven.

N.B.: during prolonged cooking of foods with a high water content (e.g. pizza, vegetables, etc.) condensation may form on the inside of the door and around the seal. When the oven is cold, dry the inside of the door with a cloth or sponge.

Accessories:

• Soak the accessories in water with washing up detergent immediately after use, handling them with oven gloves if still hot.
  • Food residues can be easily removed using a brush or sponge.

MAINTENANCE

WARNING

• Use protective gloves.
• Ensure the oven is cold before carrying out the following operations.
• Disconnect the appliance from the power supply.

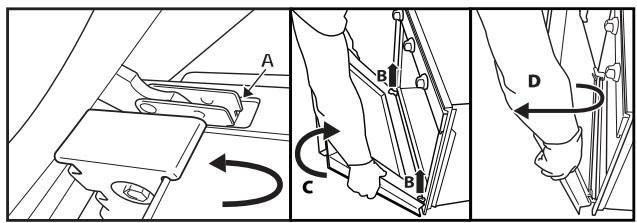

REMOVING THE DOOR

To remove the door:

1. Open the door fully.
2. Lift the catches and push them forwards as far as they will go (Fig. 1).
3. Close the door as far as it will go (A), lift it up (B) and turn it (C) until it is released (D) (Fig. 2).

To refit the door:

1. Insert the hinges in their seats.
2. Open the door fully.
3. Lower the two catches.
4. Close the door.

Mechanical assembly diagram showing a lever mechanism with a rotating arrow (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with rotating arrow (no text or symbols)

B B C

Fig. 1
Fig. 2

MOVING THE TOP HEATING ELEMENT (SOME MODELS ONLY)

1. Remove the side accessory holder grilles (Fig. 3).
2. Pull the heating element out a little (Fig. 4) and lower it (Fig. 5).
3. To reposition the heating element, lift it up, pulling it slightly towards you, making sure it comes to rest on the lateral supports.

Illustration of a hand inserting a stack of books into a device, with a circular icon showing sound waves (no text or symbols)

Fig. 3

Line drawing of a hand pressing down on a device panel with a circular sensor icon (no text or symbols)

Fig. 4

Line drawing of a hand holding a device inside a vehicle, with no visible text or symbols

Fig. 5

REPLACING THE OVEN LAMP

To replace the rear lamp (if present):

1. Disconnect the oven from the power supply.
2. Unscrew the lamp cover (Fig. 6), replace the lamp (see note for lamp type) and screw the lamp cover back on.
3. Reconnect the oven to the power supply.

To replace the side lamp (if present):

1. Disconnect the oven from the power supply.
2. Remove the side accessory holder grilles, if present (Fig. 3).
3. Use a screwdriver to prise off the lamp cover (Fig. 7).
4. Replace the lamp (see note for lamp type) (Fig. 8).
5. Reposition the lamp cover, pushing it on firmly until it snaps into place (Fig. 9).
6. Refit the side accessory holder grilles.
7. Reconnect the oven to the power supply.

Line drawing of a person's head in a vehicle cabin with an arrow indicating rotation (no text or symbols)

Fig. 6

Line drawing of a hand holding a small object inside a vehicle or cabin, with no visible text or symbols.

Fig. 7

Line drawing of a hand inserting an electrical outlet into a vehicle (no text or symbols)

Fig. 8

Line drawing of a hand holding a smartphone inside a vehicle (no text or symbols)

Fig. 9

N.B.:

• Only use 25-40W/230V type E-14, T300°C incandescent lamps, or 20-40W/230 V type G9, T300°C halogen lamps.
• Lamps are available from our After-sales Service.

IMPORTANT:

• If using halogen lamps, do not handle with bare hands since fingerprints can damage them.
• Do not use the oven until the lamp cover has been repositioned.

INSTRUCTIONS FOR OVEN USE

FOR ELECTRICAL CONNECTION, SEE THE PARAGRAPH ON INSTALLATION

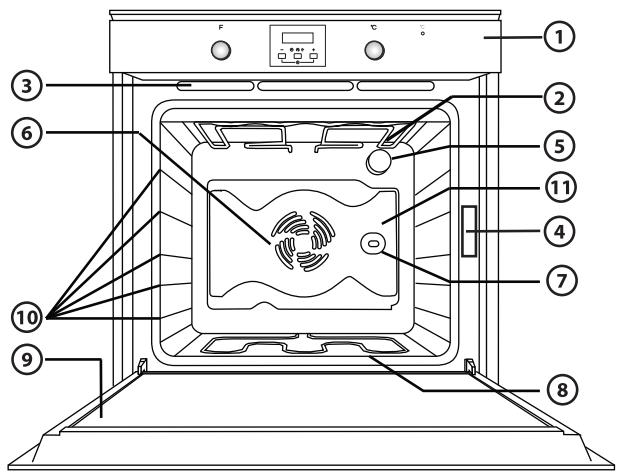

Labeled diagram of an oven with numbered parts for identification

1. Control panel
2. Upper heating element/grill
3. Cooling fan (not visible)
4. Dataplate (not to be removed)
5. Light
6. Fan
7. Turnspit (if present)
8. Lower heating element (hidden)
9. Door

10. Rear wall

11. Position of shelves (the number of shelves is indicated on the front of the oven)

N.B.:

• During cooking, the cooling fan may switch on at intervals in order to minimise energy consumption.
• At the end of cooking, after the oven in switched off, the cooling fan may continue to run for a while.
• When the oven door is opened during cooking, the heating elements switch off.

ACCESSORIES SUPPLIED

Line drawing of a rectangular grid structure with no text or symbols

Fig. A

Simple line drawing of a square electronic component with mounting holes (no text or symbols)

Fig. B

Fig. C

Fig. D

Fig. E

A. WIRE SHELF (1): the wire shelf can be used to grill food or as a support for pans, cake tins and other ovenproof cooking receptacles.
B. DRIP TRAY (1): the drip tray is designed to be positioned under the wire shelf in order to collect fat or as an oven tray for cooking meat, fish, vegetables, focaccia, etc.
C. BAKING TRAY (2): for cooking all bread and pastry products, but also roasts, fish en papillotte, etc.
D. CATALYTIC PANELS (2): for easier and more thorough cleaning of the oven walls.
E. SLIDING RUNNERS: to facilitate insertion and removal of accessories.

ACCESSORIES NOT SUPPLIED

Other accessories can be purchased separately from the After-sales Service.

INSERTING WIRE SHELVES AND OTHER ACCESSORIES IN THE OVEN

The wire shelf and other accessories are provided with a locking mechanism to prevent their accidental removal.

Illustration of hands installing a grating into an oven with a labeled tray (no text or symbols)

Fig. 1

1. Insert the wire shelf horizontally, with the raised part "A" upwards (Fig. 1).
2. Angle the wire shelf when it reaches the locking position "B" (Fig. 2).

B

Fig. 2

Technical line drawing of a mechanical component with labeled part 'C' (no text or symbols beyond label)

Fig. 3

1. Return the wire shelf to the horizontal position and push it in fully to "C" (Fig. 3).
2. To remove the wire shelf proceed in reverse order.

The other accessories, like the drip tray and baking tray, are inserted in exactly the same way. The protrusion on the flat surface enables the accessories to lock in place.

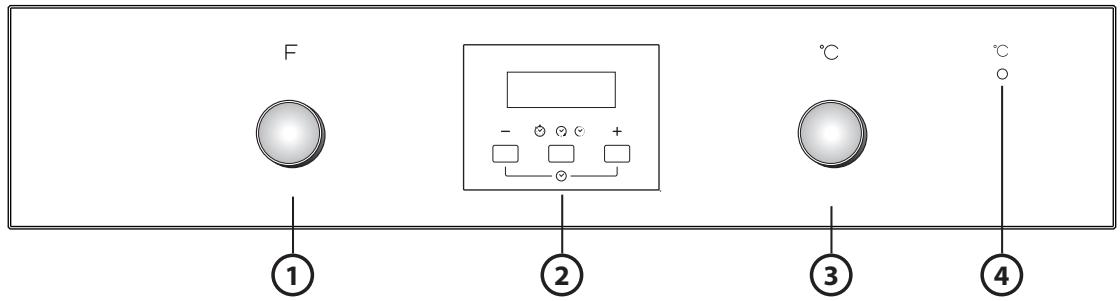

CONTROL PANEL DESCRIPTION

F ① ② - + + ③ ④ ℃ ℃

1. Function selector knob
2. Electronic programmer
3. Thermostat knob

N.B.: the knobs are retractable. Press the knobs in the middle and they pop up.

1. Thermostat led

• Turn the selector knob to the required function.
The oven light switches on.
• Turn the thermostat knob clockwise to the required temperature.

The thermostat led lights up, switching off again when the oven reaches the selected temperature. At the end of cooking, turn the knobs to "0".

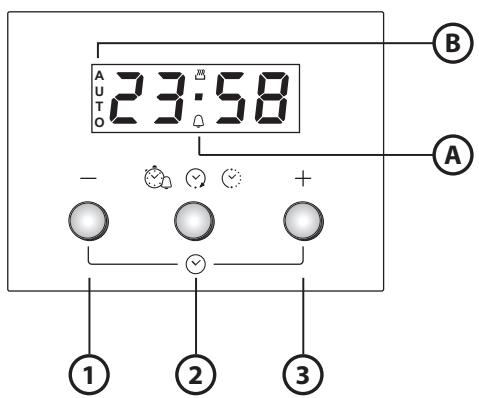

USING THE ELECTRONIC PROGRAMMER

AUTO 23:58 - + A B 1 2 3

1. Button - : to decrease the value shown on the display
2. Button ⏻️ ⏻️ ⏻️ : for selecting the various settings:

a. Timer
b. Cooking time
c. Cooking end time setting

1. Button + : to increase the value shown on the display

A. The symbol ⏱ indicates that the timer function is in operation
B. The AUTO symbol confirms the setting has been made

Using the oven for the first time

Setting the time of day and the tone of the acoustic signal.

Upon connection of the oven to the mains power supply, AUTO and 0.00 flash on the display. To set the time of day, press buttons - and + at the same time: the two central dots flash. Set the time of day using the buttons + and -. Having selected the desired value, press the middle button. The display shows "ton 1". To select the desired tone, press button -. Having selected the preferred tone, press the middle button. To change the time of day, proceed as described above.

Setting the timer

To set the timer, keep the middle button pressed for about 2 seconds: the display shows 0.00 and the bell symbol flashes. Set the timer using the button + (the maximum programmable value is 23 hours and 59 minutes). The countdown begins after a few seconds. The display shows the time of day and the bell remains lit, confirming the timer has been set. ToDo display the countdown status and change it if necessary, press the middle button again for 2 seconds.

Setting cooking time

After selecting the cooking mode and temperature using the knobs, press the middle button for 2 seconds: the display shows 0.00 and the bell symbol flashes. Press the middle button again: on the display dur and 0.00 appear in sequence and AUTO flashes. Set cooking time using the buttons + and - (the maximum programmable value is 10 hours). After a few seconds the display shows the time of day and AUTO remains lit, confirming the setting. To view the remaining cooking time and change it if necessary, press the middle button for 2 seconds and then press it again a second time. At the end of the set time, the symbol >> switches off, the alarm sounds and AUTO flashes on the display. Press any button to deactivate the alarm. Return the functions and temperature knob to zero and press the middle button for two seconds to end cooking.

Delaying cooking end time

After selecting cooking time, press the middle button: the display shows E_nd , cooking end time and AUTO flashing in sequence. Press the button + to view the desired cooking end time (cooking can be delayed by a maximum of 23 hours and 59 minutes). After a few seconds the display shows the time of day, the symbol switches off and AUTO remains lit, confirming the setting. To display the cooking end time and change it if necessary, press the middle button for 2 seconds and then press it again twice. At the end of the countdown, the symbol lights up and the oven proceeds with the selected cooking mode.

FUNCTION DESCRIPTION TABLE

FUNCTIONS KNOB
0	OFF	To stop cooking and switch off the oven.
	LAMP	To switch the oven interior light on/off.
	CONVENTIONAL	To cook any kind of dish on one shelf only. Use the 2nd shelf. Preheat the oven to the required temperature. The thermostat led turns off when the oven is ready and food can be placed in it.
	CONVECTION BAKE	To cook meat and pies with liquid filling (savoury or sweet) on a single shelf, and pizzas on one or two shelves. This function delivers an even, golden, crisp top and base. When cooking on two levels, switch the position of the dishes halfway through cooking to cook food more evenly. Use the 2nd shelf to cook on one shelf only. To cook on two shelves, use the 1st and 3rd shelves. Preheat the oven to the required temperature and place the food in it when the set temperature is reached.
	GRILL	To grill steak, kebabs and sausages; to cook vegetables au gratin and toast bread. Place food on the 4th shelf. When grilling meat, use the drip tray to collect the cooking juices. Position it on the 3rd shelf, adding approx. half a litre of water. Preheat the oven for 3 - 5 min. During cooking the oven door must remain closed.
	TURBO GRILL	To roast large joints of meat (legs, roast beef, chickens). Position the food on the middle shelves. Use the drip tray to collect the cooking juices. Position it on the 1st/2nd shelf, adding approx. half a litre of water. It is advisable to turn the meat over during cooking for more even browning. The oven does not have to be preheated. During cooking the oven door must remain closed.
	DEFROST	To speed up defrosting of food. Place food on the middle shelf. Leave food in its packaging in order to prevent it from drying out on the outside.
	TURBOFAN	For food with a crisp base and soft top. Ideal for cooking cakes with liquid filling and no precooked base (e.g. tarts, plum cakes, ricotta cakes as well as pizzas with abundant topping) on a single shelf. Place food on the 2nd shelf. Preheat the oven before cooking.This function is also ideal for frozen convenience foods (e.g. pizzas, chips, strudel, lasagna). Follow the instructions on the product packaging.
	FORCED AIR	To cook a variety of food requiring the same cooking temperature on a maximum of two shelves at the same time (e.g.: fish, vegetables, cakes). This function can be used to cook different foods without odours being transferred from one food to another. Use the 2nd shelf to cook on one shelf only. To cook on two shelves, use the 1st and 3rd shelves, preheating the oven first.
	BOTTOM HEATING ELEMENT + FAN	To finish cooking food with a very liquid consistency and to obtain crisp, golden bases. Also useful for thickening sauces. Place food on the 2nd shelf. The oven does not have to be preheated.
	BOTTOM HEATING	For browning the base of dishes at the end of cooking. Place food on the 1st/2nd shelf. This function can also be used for slow cooking, e.g. meat or vegetable stews; in this case, use the 2nd shelf. The oven does not have to be preheated.

COOKING TABLES

Recipe	Function	Pre-heating	Shelf (from bottom)	Temp. (°C)	Time (min)	Accessories and notes
Leavened cakes		Yes	2	150-175	35-90	Cake tin on wire shelf
		Yes	1-3	150-170	30-90	Shelf 3: cake tin on wire shelf
						Shelf 1: cake tin on wire shelf
Filled pies (cheesecake, strudel, apple pie)	[WCBW]	Yes	2	150-190	30-85	Drip tray/ baking tray or cake tin on wire shelf
		Yes	1-3	150-190	35-90	Shelf 3: cake tin on wire shelf
						Shelf 1: cake tin on wire shelf
Biscuits/Tartlets		Yes	2	160-175	20-45	Drip tray / baking tray
	[2G3T]	Yes	1-3	150-175	20-45	Shelf 3: wire shelf
						Shelf 1: drip tray / baking tray
Choux buns		Yes	2	175-200	30-40	Drip tray / baking tray
		Yes	1-3	170-190	35-45	Shelf 3: oven tray on wire shelf
						Shelf 1: drip tray / baking tray
Meringues		Yes	2	100	110-150	Drip tray / baking tray
		Yes	1-3	100	130-150	Shelf 3: oven tray on wire shelf
						Shelf 1: drip tray / baking tray
Bread / Pizza / Focaccia		Yes	2	225-250	12-50	Drip tray / baking tray
	[SAY6]	Yes	1-3	225-250	25-50	Shelf 3: oven tray on wire shelf
						Shelf 1: drip tray / baking tray
Frozen pizza		Yes	2	250	10-15	Shelf 2: drip tray / baking tray or wire shelf
		Yes	1-3	250	10-20	Shelf 3: oven tray on wire shelf
						Shelf 1: drip tray / baking tray
Savoury pies (vegetable pie, quiche)		Yes	2	175-200	40-50	Cake tin on wire shelf
	[8ZZG]	Yes	1-3	175-190	55-65	Shelf 3: cake tin on wire shelf
						Shelf 1: cake tin on wire shelf
Vols-au-vent / Puff pastry crackers		Yes	2	175-200	20-30	Drip tray / baking tray
		Yes	1-3	175-200	25-45	Shelf 3: oven tray on wire shelf
						Shelf 1: drip tray / baking tray
Lasagne / Baked pasta / Cannelloni / Flans		Yes	2	200	45-55	Oven tray on wire shelf
Lamb / Veal / Beef / Pork 1 Kg		Yes	2	200	80-110	Drip tray or oven tray on wire shelf
Chicken / Rabbit / Duck 1 Kg		Yes	2	200	50-100	Drip tray or oven tray on wire shelf
Turkey / Goose 3 Kg		Yes	1/2	200	80-130	Drip tray or oven tray on wire shelf
Baked fish / en papillote (fillet, whole)		Yes	2	175-200	40-60	Drip tray or oven tray on wire shelf
Stuffed vegetables (tomatoes, courgettes, aubergines)		Yes	2	175-200	50-60	Oven tray on wire shelf
Toast	[YS6W]	Yes	4	200	3-5	Wire shelf
Fish fillets / steaks		Yes	4	200	20-30	Shelf 3: wire tray (turn food halfway through cooking)
						Shelf 2: drip tray with water
Sausages / Kebabs / Spare ribs / Hamburgers		Yes	4	200	30-40	Shelf 4: wire shelf (turn food halfway through cooking)
						Shelf 3: drip tray with water
Roast chicken 1-1.3 Kg		-	2	200	55-70	Shelf 2: wire shelf (turn food two thirds of the way through cooking if necessary)
						Shelf 1: drip tray with water
Roast Beef rare 1 Kg		-	2	200	35-45	Oven tray on wire shelf (turn food two thirds of the way through cooking if necessary)
Leg of lamb / Shanks		-	2	200	60-90	Drip tray or oven tray on wire shelf (turn food two thirds of the way through cooking if necessary)
Roast potatoes		-	2	200	45-55	Drip-tray / baking tray (if necessary, turn food two thirds of the way through cooking)
Vegetable gratin		-	2	200	20-30	Oven tray on wire shelf
Lasagna & Meat		Yes	1-3	200	50-100	Shelf 3: oven tray on wire shelf
						Shelf 1: drip tray or oven tray on wire shelf
Meat & Potatoes		Yes	1-3	200	45-100	Shelf 3: oven tray on wire shelf
						Shelf 1: drip tray or oven tray on wire shelf
Fish & Vegetables		Yes	1-3	175	30-50	Shelf 3: oven tray on wire shelf
						Shelf 1: drip tray or oven tray on wire shelf

The times given in the table are for cooking done with delayed start mode (if available). Cooking times may be longer, depending on the dish.

How to read the cooking table

The table indicates the best function to use for any given food, to be cooked on one or more shelves at the same time. Cooking times start from the moment food is placed in the oven, excluding pre-heating (where required). Cooking temperatures and times are purely for guidance and will depend on the amount of food and type of accessory used. Use the lowest recommended values to begin with and, if the food is not cooked enough, then move on to higher values. Use the accessories supplied and preferably dark coloured metal cake tins and oven trays. You can also use pans and accessories in pyrex or stoneware, but bear in mind that cooking times will be slightly longer. To obtain best results, carefully follow the advice given in the cooking table for the choice of accessories (supplied) to be placed on the various shelves.

Cooking different foods at the same time

Using the "FORCED AIR" function, you can cook different foods which require the same cooking temperature at the same time (for example: fish and vegetables), using different shelves. Remove the food which requires less cooking time and leave food which requires longer cooking time in the oven.

Desserts

• Cook delicate desserts with the conventional function on one shelf only. Use dark coloured metal cake tins and always position them on the wire shelf supplied. To cook on more than one shelf, select the forced air function and stagger the position of the cake tins on the shelves, aiding optimum circulation of the hot air.
• To check whether a raising cake is cooked, insert a wooden toothpick into the centre of the cake. If the toothpick comes out clean, the cake is ready.
• If using non-stick cake tins, do not butter the edges as the cake may not rise evenly around the edges.
• If the cake "sinks" during cooking, set a lower temperature the next time, perhaps reducing the amount of liquid in the mixture and mixing more gently.
• For sweets with moist fillings (cheesecake or fruit pies) use the "CONVECTION BAKE" function". If the base of the cake is soggy, lower the shelf and sprinkle the bottom of the cake with breadcrumbs or biscuit crumbs before adding the filling.

Meat

• Use any kind of oven tray or pyrex dish suited to the size of the piece of meat being cooked. For roast joints, it is best to add some stock to the bottom of the pan, basting the meat during cooking for added flavour. When the roast is ready, let it rest in the oven for another 10-15 minutes, or wrap it in aluminium foil.
• When you want to grill meat, choose cuts with an even thickness all over in order to achieve uniform cooking results. Very thick pieces of meat require longer cooking times. To prevent the meat from burning on the outside, lower the position of the wire shelf, keeping the food farther away from the grill. Turn the meat two thirds of the way through cooking.

To collect the cooking juices it is advisable to place a drip-tray with half a litre of water directly under the grill on which the meat is placed. Top-up when necessary.

Turnspit (if present)

Use this accessory to evenly roast large pieces of meat and poultry. Place the meat on the spit rod, tying it with string if chicken, and check that it is secure before inserting the rod in the seat located on the front wall of the oven and resting it on the respective support. To prevent smoke and to collect cooking juices, it is advisable to place a drip-tray with half a litre of water on the first level. The rod has a plastic handle which must be removed before starting to cook, and used at the end of cooking to avoid burns when taking the food out of the oven.

Pizza

Lightly grease the trays to ensure the pizza has a crispy base. Scatter the mozzarella over the pizza two thirds of the way through cooking.

INSTRUKCJA OBSŁUGI PIEKARNIKA

Labeled diagram of an oven with numbered parts for identification

Line drawing of a rectangular grid structure with side handles (no text or symbols)

Rys. A

Simple line drawing of a square frame with side notches (no text or symbols)

Rys. B

Rys. C

Rys. D

Rys. E

Illustration of hands installing or removing a grating into an oven (no text or symbols visible)

Rys. 1

Technical line drawing of a mechanical component with labeled section C (no text or symbols beyond label)

Rys. 3

Diagram of a mechanical assembly with a rotating component (no text or symbols)

Rys. 1

Technical diagram of a mechanical clamp or bracket assembly with labeled component A and rotational arrow (no text or symbols beyond labels)

Rys. 2

B B C

PRZESUNIĘCIE GÓRNEJ GRZAŁKI (TYLKO W NIEKTÓRYCH MODELACH)

Diagram showing a hand interacting with a stack of books and a circular icon with signal waves, likely illustrating a physical or educational concept.

Rys. 3

Line drawing of a hand inserting a device into a rack, with no visible text or symbols

Rys. 4

Illustration of a hand holding a device with an arrow indicating rotation (no text or symbols)

Rys. 5

WYMIANA ŻARÓWKI

Line drawing of a hand gripping a car trunk, with an arrow indicating rotation (no text or symbols)

Rys. 6

Line drawing of a hand holding a small object near a window (no text or symbols)

Rys. 7

Line drawing of a hand inserting an electrical outlet into a vehicle (no text or symbols)

Rys. 8

Line drawing of a hand holding a smartphone inside a vehicle (no text or symbols)

Rys. 9

UWAGA:

TÖRKEOTSINGU JUHISED

Ahi ei tööta:

Mechanical assembly diagram showing a lever mechanism with a rotating arrow (no text or symbols)

Joon. 1

Mechanical assembly diagram showing a clamping mechanism with rotating arrow (no text or symbols)

Joon. 2

B B C

ÜLEMISE KÜTTEELEMENDI LIIGUTAMINE (SÖLTUVALT MUDELIST)

Diagram showing a hand inserting a stack of books into a device with a circular icon containing sound waves.

Joon. 3

Line drawing of a hand holding a device with an antenna and signal icon (no text or symbols)

Joon. 4

Line drawing of a hand holding a device with an arrow indicating rotation (no text or symbols)

Joon. 5

LAMBIPIRNI VÄLJAVAHETAMINE

Line drawing of a hand inserting a hair into a wall, showing the number of fingers (no text or symbols present)

Joon. 6

Line drawing of a hand holding a small object near a window, with an arrow indicating rotation (no text or symbols)

Joon. 7

Line drawing of a hand inserting an electrical outlet into a wall (no text or symbols)

Joon. 8

Line drawing of a hand holding a smartphone inside a vehicle (no text or symbols)

Joon. 9

MÄRKUS:

Labeled diagram of an oven with numbered parts for identification

Line drawing of a rectangular grid structure with side handles (no text or symbols)

Joon. A

Simple line drawing of a square plate with side notches (no text or symbols)

Joon. B

Joon. C

Joon. D

Joon. E

Line drawing of hands installing or removing a grating into an oven (no text or symbols present)

Joon. 1

Technical line drawing of a mechanical component with labeled part 'C' (no text or symbols beyond label)

Joon. 2
Joon. 3

Mechanical assembly diagram showing a lever mechanism with a rotating arrow (no text or symbols)

1 pav.

Technical diagram showing three mechanical assembly steps with labeled components A, B, C, D and directional arrows indicating rotation or movement.

2 pav.

VIRŠUTINIO KAITINAMOJO ELEMENTO ATITRAUKIMAS (TIK KAI KURIUOSE

MODELIUOSE)

Diagram showing a hand interacting with a stack of books and a circular object with radial lines (no text or symbols)

3 pav.

Line drawing of a hand pressing down on a device panel with a circular sensor icon (no text or symbols)

4 pav.

Illustration of a hand holding a device with an arrow indicating rotation (no text or symbols)

5 pav.

ORKAITÈS LEMPUTÈS PAKEITIMAS

Galinès lemputès pakeitimas (jei ji yra):

Line drawing of a hand inserting a cable into a car's seat (no text or symbols)

6 pav.

Line drawing of a hand holding a small object inside a vehicle (no text or symbols)

7 pav.

Line drawing of a hand inserting a small electrical outlet into a car (no text or symbols)

8 pav.

Line drawing of a hand holding a smartphone inside a vehicle (no text or symbols)

9 pav.

PASTABA:

Labeled diagram of an oven with numbered parts for identification

Line drawing of a rectangular grid structure with no text or symbols

A pav.

Simple line drawing of a square electronic component or tray (no text or symbols)

B pav.

C pav.

D pav.

E pav.

Illustration of hands installing a grating into an oven with a labeled tray (no text or symbols)

1 pav.

Technical line drawing of a mechanical component with labeled part 'C' (no text or symbols beyond label)

3 pav.

Technical line drawing of a mechanical assembly with a rotating component (no text or symbols)

1 att.

Mechanical assembly diagram showing a lever mechanism with labeled component A and rotational motion arrow (no text or symbols beyond labels)

2 att.

B B C

AUGŠEJO SILDELEMENTU PÄRVIETOŠANA (TIKAI DAŽOS MODELOS)

Illustration of a hand inserting a stack of books into a CD with sound waves (no text or symbols)

3 att.

Line drawing of a hand holding a device with an antenna and signal icon (no text or symbols)

4 att.

Line drawing of a hand holding a device with an arrow indicating rotation (no text or symbols)

5 att.

CEPEŠKRĀSNS SPULDZES MAINA

Line drawing of a hand inserting a component into a wall, with no text or symbols present

6 att.

Line drawing of a hand holding a small object near a window, with an arrow indicating rotation (no text or symbols)

7 att.

Line drawing of a hand inserting an electrical outlet into a wall (no text or symbols)

8 att.

Line drawing of a hand holding a smartphone inside a vehicle (no text or symbols)

9 att.

PIEZİME:

Labeled diagram of an oven with numbered parts for identification

Line drawing of a rectangular grid structure with side handles (no text or symbols)

A att.

Simple line drawing of a square frame with side notches (no text or symbols)

B att.

C att.

D att.

E att.

Illustration of hands installing a grating into an oven with a fan (no text or symbols)

1 att.
