USER MANUAL V6 CORDFREE DYSON

ASSEMBLY ASSEMBLAGE clik WASH FILTERS Wash filters with cold water at least every month.

BEFORE USING THIS APPLIANCE READ ALL INSTRUCTIONS AND CAUTIONARY MARKINGS IN THIS MANUAL AND ON THE APPLIANCE When using an electrical appliance, basic precautions should always be followed, including the following: WARNING

These warnings apply to the appliance, and also where applicable, to all tools, accessories, chargers or mains adaptors. TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY: This Dyson appliance is not intended for use by young children or infirm persons with reduced physical, sensory or reasoning capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction by a responsible person concerning use of the appliance to ensure that they can use it safely. Do not allow to be used as a toy. Close attention is necessary when used by or near children. Children should be supervised to ensure that they do not play with the appliance. Use only as described in this Dyson Operating Manual. Do not carry out any maintenance other than that shown in this manual, or advised by the Dyson Helpline. Suitable for dry locations ONLY. Do not use outdoors or on wet surfaces. Do not handle any part of the plug or appliance with wet hands. Do not use with a damaged cord or plug. If the supply cord is damaged it must be replaced by Dyson, its service agent or similarly qualified persons in order to avoid a hazard. If the appliance is not working as it should, has received a sharp blow, has been dropped, damaged, left outdoors, or dropped into water, do not use and contact the Dyson Helpline. Contact the Dyson Helpline when service or repair is required. Do not disassemble the appliance as incorrect reassembly may result in an electric shock or fire. Do not stretch the cable or place the cable under strain. Keep the cable away from heated surfaces. Do not close a door on the cable, or pull the cable around sharp edges or corners. Arrange the cable away from traffic areas and where it will not be stepped on or tripped over. Do not run over the cable. Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord. The use of an extension cord is not recommended. Do not use to pick up water. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they or their vapours may be present. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes. Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts. Do not point the hose, wand or tools at your eyes or ears or put them in your mouth. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow. Use only Dyson recommended accessories and replacement parts. Do not use without the clear bin and filters in place. Unplug when not in use for extended periods and before maintenance or servicing. Use extra care when cleaning on stairs. Do not install, charge or use this appliance outdoors, in a bathroom or within 3 metres (10 feet) of a pool. Do not use on wet surfaces and do not expose to moisture, rain or snow. Use only Dyson chargers for charging this Dyson appliance. Use only Dyson batteries: other types of batteries may burst, causing injury to persons and damage. Do not incinerate this appliance even if it is severely damaged. The battery may explode in a fire. Always turn ‘OFF’ the appliance before connecting or disconnecting the motorized brush bar.

READ AND SAVE THESE INSTRUCTIONS

Do not use near open flames. Do not store near heat sources. Do not pick up water or liquids. Do not pick up burning objects.

11.11.2014 11:09 - C67726_GENE_OPMAN_CA_X480-SV09-V6-ABSOLUTE-OPMAN-67726.indd_15_4c0s

Do not put hands near the brush bar when the appliance is in use.

Soft roller cleaner head instructions

Looking for blockages

Ensure the appliance is disconnected from the charger before looking for blockages. Be careful not to pull the ‘ON’ trigger. Do not operate while checking for blockages as doing so could result in personal injury. Beware of sharp objects when checking for blockages. To gain access to blockages in the floor tool, remove the base plate by using a coin to loosen the screw marked with a padlock. If you cannot clear an obstruction you may need to remove the brush bars, please refer to the 'Washing the brush bars' section for instructions on how to do this. Remove the obstruction and replace the brush bars as shown in the 'Washing the brush bars' section. Ensure that the fastener is fully turned and the base plate and brush bars are secure before operating the appliance. This appliance has carbon fibre brushes. Take care if coming into contact with them, as they may cause minor skin irritation. Wash your hands after handling the brushes. Refit all parts securely before using. Clearing blockages is not covered by your warranty.

Turn the cleaner head upside down so the underside of the cleaner head is facing you. Use a coin to turn the fastener one quarter anti-clockwise to the unlocked position. Rotate the end cap to the open position. Gently slide the large brush bar away from the cleaner head. Remove the end cap from the large brush bar. Lift out the small brush bar from the octagonal end and pull away from the cleaner head. Hold the brush bars under running water and gently rub to remove any lint or dirt. Stand both brush bars upright. Ensure the large brush bar is stood upright as shown. Leave to dry completely for a minimum of 24 hours. Before replacing, check that the brush bars are completely dry. Refit the small brush bar before the large one. Insert the round end of the small brush bar into place. Push down the octagonal end until it clicks into place. Reattach the end cap to the brush bar. Slide the large brush bar back onto the cleaner head, around the motor. The end cap should be in the open position as shown. Once in place, rotate the end cap back into the closed position. Close the fastener by turning a quarter turn clockwise. Ensure that the fastener is fully turned and the base plate and the brush bars are secure.

WASHING THE BRUSHBARS

Your appliance has two washable brush bars, check and wash these regularly according to the following instructions to maintain performance. Ensure the appliance is disconnected from the charger before removing the brush bar. Be careful not to pull the 'ON' trigger.

TO REMOVE, WASH AND REPLACE BRUSHBARS:

Please refer to the 'Washing the Brushbars' illustrations alongside the instructions below. Clearing brush bar obstructions Élimination des obstructions sur la brosse rotative

Direct drive cleaner head instructions Looking for blockages

Ensure the appliance is disconnected from the charger before looking for blockages. Be careful not to pull the ‘ON’ trigger. Do not operate while checking for blockages as doing so could result in personal injury. Beware of sharp objects when checking for blockages. To gain access to blockages in the floor tool, remove the base plate by using a coin to loosen the screw marked with a padlock. If you cannot clear an obstruction you may need to remove the brush bar. Use a coin to unlock the fastener marked with a padlock. Remove the obstruction. Replace the brush bar and secure it by tightening the fastener. Ensure it is fixed firmly before operating the appliance. This appliance has carbon fibre brushes. Take care if coming into contact with them, as they may cause minor skin irritation. Wash your hands after handling the brushes. Refit all parts securely before using. Clearing blockages is not covered by your warranty.

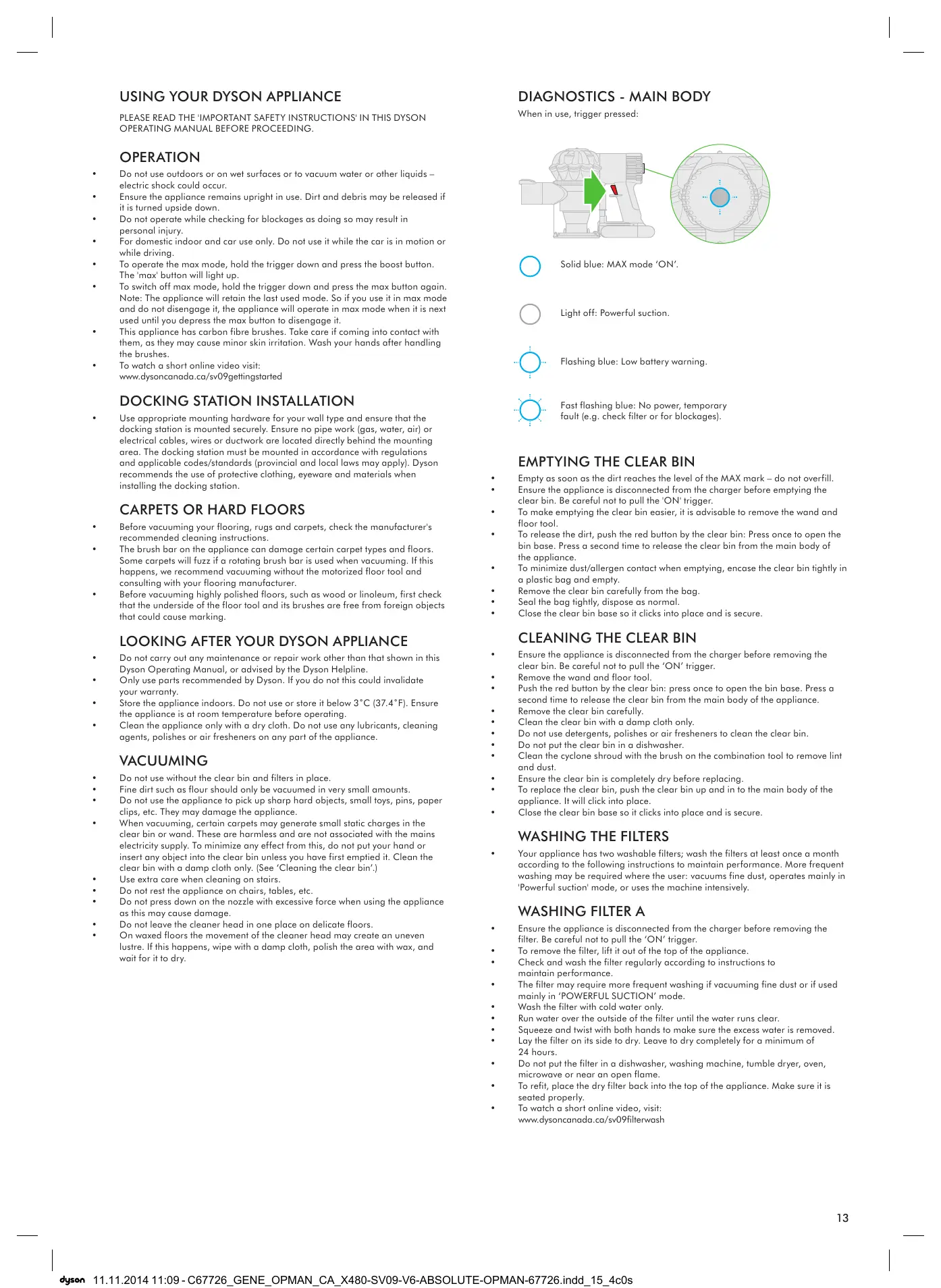

USING YOUR DYSON APPLIANCE

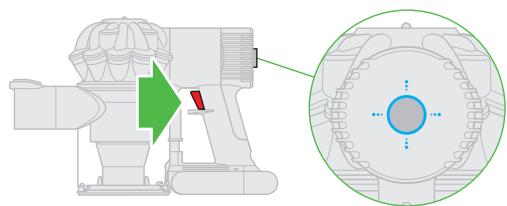

Diagnostics - main body Please read the 'Important Safety Instructions' in this Dyson Operating Manual before proceeding. When in use, trigger pressed: Operation

Do not use outdoors or on wet surfaces or to vacuum water or other liquids – electric shock could occur. Ensure the appliance remains upright in use. Dirt and debris may be released if it is turned upside down. Do not operate while checking for blockages as doing so may result in personal injury. For domestic indoor and car use only. Do not use it while the car is in motion or while driving. To operate the max mode, hold the trigger down and press the boost button. The 'max' button will light up. To switch off max mode, hold the trigger down and press the max button again. Note: The appliance will retain the last used mode. So if you use it in max mode and do not disengage it, the appliance will operate in max mode when it is next used until you depress the max button to disengage it. This appliance has carbon fibre brushes. Take care if coming into contact with them, as they may cause minor skin irritation. Wash your hands after handling the brushes. To watch a short online video visit: www.dysoncanada.ca/sv09gettingstarted Solid blue: MAX mode ‘ON’. Light off: Powerful suction. Flashing blue: Low battery warning.

CARPETS OR HARD FLOORS

Before vacuuming your flooring, rugs and carpets, check the manufacturer's recommended cleaning instructions. The brush bar on the appliance can damage certain carpet types and floors. Some carpets will fuzz if a rotating brush bar is used when vacuuming. If this happens, we recommend vacuuming without the motorized floor tool and consulting with your flooring manufacturer. Before vacuuming highly polished floors, such as wood or linoleum, first check that the underside of the floor tool and its brushes are free from foreign objects that could cause marking.

LOOKING AFTER YOUR DYSON APPLIANCE

Do not carry out any maintenance or repair work other than that shown in this Dyson Operating Manual, or advised by the Dyson Helpline. Only use parts recommended by Dyson. If you do not this could invalidate your warranty. Store the appliance indoors. Do not use or store it below 3˚C (37.4˚F). Ensure the appliance is at room temperature before operating. Clean the appliance only with a dry cloth. Do not use any lubricants, cleaning agents, polishes or air fresheners on any part of the appliance. VACUUMING

Fast flashing blue: No power, temporary fault (e.g. check filter or for blockages). Use appropriate mounting hardware for your wall type and ensure that the docking station is mounted securely. Ensure no pipe work (gas, water, air) or electrical cables, wires or ductwork are located directly behind the mounting area. The docking station must be mounted in accordance with regulations and applicable codes/standards (provincial and local laws may apply). Dyson recommends the use of protective clothing, eyeware and materials when installing the docking station. Do not use without the clear bin and filters in place. Fine dirt such as flour should only be vacuumed in very small amounts. Do not use the appliance to pick up sharp hard objects, small toys, pins, paper clips, etc. They may damage the appliance. When vacuuming, certain carpets may generate small static charges in the clear bin or wand. These are harmless and are not associated with the mains electricity supply. To minimize any effect from this, do not put your hand or insert any object into the clear bin unless you have first emptied it. Clean the clear bin with a damp cloth only. (See ‘Cleaning the clear bin’.) Use extra care when cleaning on stairs. Do not rest the appliance on chairs, tables, etc. Do not press down on the nozzle with excessive force when using the appliance as this may cause damage. Do not leave the cleaner head in one place on delicate floors. On waxed floors the movement of the cleaner head may create an uneven lustre. If this happens, wipe with a damp cloth, polish the area with wax, and wait for it to dry. Emptying the clear bin

Empty as soon as the dirt reaches the level of the MAX mark – do not overfill. Ensure the appliance is disconnected from the charger before emptying the clear bin. Be careful not to pull the 'ON' trigger. To make emptying the clear bin easier, it is advisable to remove the wand and floor tool. To release the dirt, push the red button by the clear bin: Press once to open the bin base. Press a second time to release the clear bin from the main body of the appliance. To minimize dust/allergen contact when emptying, encase the clear bin tightly in a plastic bag and empty. Remove the clear bin carefully from the bag. Seal the bag tightly, dispose as normal. Close the clear bin base so it clicks into place and is secure. Cleaning the clear bin

Ensure the appliance is disconnected from the charger before removing the clear bin. Be careful not to pull the ‘ON’ trigger. Remove the wand and floor tool. Push the red button by the clear bin: press once to open the bin base. Press a second time to release the clear bin from the main body of the appliance. Remove the clear bin carefully. Clean the clear bin with a damp cloth only. Do not use detergents, polishes or air fresheners to clean the clear bin. Do not put the clear bin in a dishwasher. Clean the cyclone shroud with the brush on the combination tool to remove lint and dust. Ensure the clear bin is completely dry before replacing. To replace the clear bin, push the clear bin up and in to the main body of the appliance. It will click into place. Close the clear bin base so it clicks into place and is secure.

Your appliance has two washable filters; wash the filters at least once a month according to the following instructions to maintain performance. More frequent washing may be required where the user: vacuums fine dust, operates mainly in 'Powerful suction' mode, or uses the machine intensively.

Ensure the appliance is disconnected from the charger before removing the filter. Be careful not to pull the ‘ON’ trigger. To remove the filter, lift it out of the top of the appliance. Check and wash the filter regularly according to instructions to maintain performance. The filter may require more frequent washing if vacuuming fine dust or if used mainly in ‘POWERFUL SUCTION’ mode. Wash the filter with cold water only. Run water over the outside of the filter until the water runs clear. Squeeze and twist with both hands to make sure the excess water is removed. Lay the filter on its side to dry. Leave to dry completely for a minimum of 24 hours. Do not put the filter in a dishwasher, washing machine, tumble dryer, oven, microwave or near an open flame. To refit, place the dry filter back into the top of the appliance. Make sure it is seated properly. To watch a short online video, visit: www.dysoncanada.ca/sv09filterwash

To remove the filter, twist anti clockwise to the open position and pull away from the appliance. Wash the inside of the filter under cold running water, rotating the filter to ensure all pleats are covered. Gently tap the filter against the side of the sink several times to remove any debris. Repeat this process 4-5 times until the filter is clean. Place the filter upright, with the Max button facing upwards, and leave to dry completely for a minimum of 24 hours. To refit, return the filter to the open position and twist clockwise until it clicks into place. To watch a short online video, visit: www.dysoncanada.ca/sv09filterwash Battery safety instructions

This appliance is fitted with an automatic cut-out. If any part becomes blocked the appliance may automatically cut out. This will happen after the motor pulses a number of times (i.e switches on and off in quick succession). Leave to cool down before looking for blockages. Ensure the appliance is disconnected from the charger before looking for blockages. Failure to do so could result in personal injury. Clear any blockage before restarting. Refit all parts securely before using. Clearing blockages is not covered by your warranty. If the battery needs replacing please contact the Dyson Helpline. Use only Dyson chargers for charging this Dyson appliance. The battery is a sealed unit and under normal circumstances poses no safety concerns. In the unlikely event that liquid leaks from the battery do not touch the liquid and observe the following precautions: Skin contact – can cause irritation. Wash with soap and water. Inhalation – can cause respiratory irritation. Expose to fresh air and seek medical advice. Eye contact – can cause irritation. Immediately flush eyes thoroughly with water for at least 15 minutes. Seek medical attention. Disposal – wear gloves to handle the battery and dispose of immediately, following local ordinances or regulations. The battery used in this device may present a risk of fire or chemical burn if mistreated. Do not disassemble, short contacts, heat above 60°C (140°F), or incinerate. Keep away from children. Do not disassemble and do not dispose of in fire. DISPOSAL INFORMATION

Dyson products are made from high grade recyclable materials. Recycle where possible. The battery should be removed from the product before disposal. Dispose of the battery in accordance with local ordinances or regulations.

This appliance will switch ‘OFF’ if the battery temperature is below 3°C (37.4°F). This is designed to protect the motor and battery. Do not charge the appliance and then move it to an area with a temperature below 3˚C (37.4°F) for storage purposes. To help prolong battery life, avoid recharging immediately after a full discharge. Allow to cool for a few minutes. Avoid using the appliance with the battery flush to a surface. This will help it run cooler and prolong battery run time and life. THANK YOU FOR CHOOSING TO BUY A DYSON APPLIANCE Diagnostics – battery

PLEASE REGISTER AS A DYSON APPLIANCE

OWNER If you have a question about your Dyson appliance, call the Dyson Helpline with your serial number and details of where and when you bought the appliance. Most questions can be solved over the phone by one of our Dyson Helpline staff. If your Dyson appliance needs service, call the Dyson Helpline so we can discuss the available options. If your Dyson appliance is under warranty, and it is a covered repair, it will be repaired at no cost. Your serial number can be found on your rating plate which is on the main body of the appliance. When in use, trigger pressed:

Solid blue: 'ON'. TERMS AND CONDITIONS OF THE DYSON 2 YEAR LIMITED WARRANTY Flashing blue: No power, charge battery. Flashing amber: No power, temporary fault (e.g. too hot/cold).

Solid amber: Fault, if persists contact Dyson Helpline. Flashing red: Fault (contact Dyson Helpline). When charging battery: To help us ensure you receive prompt and efficient service, please register as a Dyson appliance owner. There are three ways to do this: Online at www.dysoncanada.ca Telephone the Dyson Helpline at 1-877-397-6622. Complete the enclosed Warranty Form and mail it to us. This will confirm ownership of your Dyson appliance in the event of an insurance loss, and enable us to contact you if necessary.

Your Dyson appliance is warranted against original defects in material and workmanship for a period of 2 years from the date of purchase, when used for normal domestic purposes in accordance with the Dyson Operating Manual. Please retain your proof of purchase. If you do not have your proof of purchase, your warranty will start 90 days after the date of manufacture, according to Dyson’s records. This warranty provides, at no extra cost to you, all labour and parts necessary to ensure your appliance is in proper operating condition during the warranty period. The replacement of any part of your appliance under warranty will not extend the period of warranty. Any parts which are returned to Dyson will become the property of Dyson. Please call the Dyson Helpline at 1-877-397-6622 for more information. This limited warranty is subject to the following terms:

Solid blue: Charging. Flashing blue – Not charging – Re-fit charger or try another socket. If persists, contact Dyson Helpline.

Lights off: Charging complete. Solid amber: Not charging, temporary fault (e.g. too hot/cold). Flashing red: Fault (contact Dyson Helpline).

Dyson Canada Limited shall not be liable for costs, damages or repairs incurred as a result of, due to, or from: Purchases of appliances from unauthorized dealers. Careless operation or handling, misuse, abuse and/or lack of maintenance or use not in accordance with the Dyson Operating Manual. Use of the appliance other than for normal domestic purposes within Canada, e.g. for commercial or rental purposes. Use of parts not in accordance with the Dyson Operating Manual. Use of parts and accessories other than those produced or recommended by Dyson Canada Limited. External sources such as weather, electrical outages or power surges. Repairs or alterations carried out by unauthorized parties or agents. Clearing blockages from your appliance or washing of the filter. Normal wear and tear, including normal wearing parts, such as clear bin, filter, brush bar, and power cord (or where external damage or abuse is diagnosed), carpet or floor damage due to use not in accordance with Dyson's Operating Manual or failure to turn the brush bar off when necessary. Reduction in battery discharge time due to battery age or use (where applicable). Damage as a result of use not in accordance with the rating plate. Use of this appliance on rubble, ash, plaster, drywall, liquids, or wet surfaces. Additionally, this limited warranty does not apply to any appliance that has had the serial number altered or removed.

WARRANTY LIMITATIONS AND EXCLUSIONS

Any implied warranties relating to your appliance including but not limited to warranty of merchantability or warranty of fitness for a particular purpose, are limited to the duration of this warranty. This limitation is not allowed by some Provinces and/or Territories and so this limitation may not apply to you. This limited warranty gives you specific legal rights. You may also have other rights which vary by Province and/ or Territory. This limited warranty is not transferable. This limited warranty is only available in Canada. WARRANTY SERVICE

Please fill out and return the Warranty Form or register online at www. dysoncanada.ca Before service can take place, the terms of the warranty require that you contact the Dyson Helpline with your model name/number, serial number, date and place of purchase. Please keep your purchase receipt in a safe place to ensure you have this information. All work will be coordinated by Dyson Canada Limited or its authorized agents. Any replaced defective parts will become property of Dyson. Service under this warranty will not extend the period of this warranty. If your appliance is not functioning properly, please call the Dyson Helpline at 1-877-397-6622. Most issues can be rectified over the telephone by our trained customer care staff.

If you choose to opt-in to receive communications from us, your details will be held by Dyson Canada Limited or others on behalf of Dyson Canada Limited so that we can assist you more quickly with our Dyson Helpline. From time to time, Dyson Canada Limited may send you special offers and news of our latest innovations. For more information about our data collection practices, please refer to the Dyson Canada Limited privacy policy at www.dysoncanada.ca DISPOSAL INFORMATION

Dyson products are made from high grade recyclable materials. Recycle where possible. The battery should be removed from the product before disposal. Dispose of the battery in accordance with local ordinances or regulations. CONFORMITY INFORMATION This Class B digital apparatus complies with Canadian ICES-003.
