| Brand | De'Longhi |
| Model | EO2431.BK |
| Product type | Electric oven |
| Power supply | 220-240 V ~ 50/60 Hz, max 16 A |
| Power consumption | 1800 W or 2000 W |
| Dimensions (W × H × D) | 485 × 305 × 430 mm |
| Weight | 10 kg |
| Functions | Gratin, Grill, Conventional oven, Defrost, Convection heat, Delicate cooking, Keep warm |
| Included accessories | Grill rack, Drip tray, Crumb tray |
| Internal light | Yes (depending on model) |
| Heating elements | Upper and lower |

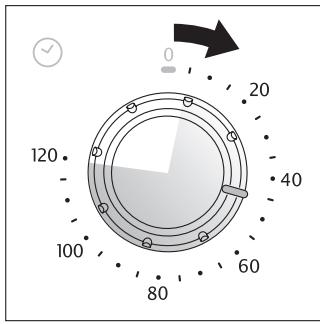

| Timer | Yes (timer knob) |

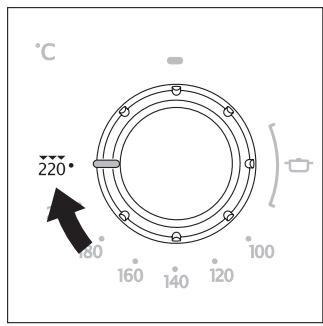

| Thermostat | Adjustable (thermostat knob) |
| Indicators | Green light (temperature reached), red light (power on) |
| Door | Glass |
| Safety | Do not use near heat sources, do not immerse, unplug before cleaning |

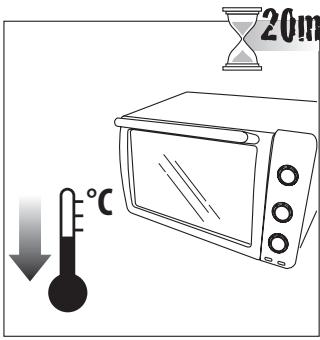

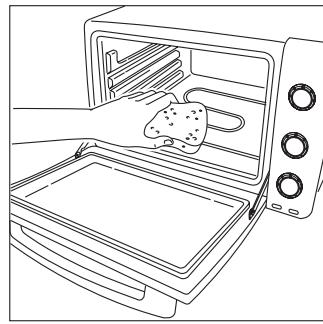

| Maintenance | Unplug, allow to cool, clean with a damp cloth |
| Disposal | Do not dispose of with household waste, take to a selective collection center |
| Compliance | EU directives: Low Voltage 2006/95/EC, EMC 2004/108/EC, Food regulation EC 1935/2004 |
Frequently Asked Questions - EO2431.BK DELONGHI
User questions about EO2431.BK DELONGHI
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric oven in PDF format for free! Find your manual EO2431.BK - DELONGHI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. EO2431.BK by DELONGHI.
USER MANUAL EO2431.BK DELONGHI
Instructions for use
Instruction for use
Mode d'emploi
Bedienungsanleitung
Gebruiksaanwijzingen
Instrucciones para el uso
Instruções de utilização
General instructions
Operating instructions
Használati útmutató
ELECTRIC OVEN
ELECTRIC OVEN
ELECTRIC OVEN
ELECTRIC OVEN
ELECTRIC OVEN
Electric oven
Electric oven
Electric oven
Electric oven
Electric oven
User manual
User manual
User manual
User manual
User manual
User manual
User manual
User manual
User manual
User manual
Instructions for use
Instructions for use
ELECTRIC OVEN
ELECTRIC OVEN
ELECTRIC OVEN
ELECTRIC OVEN
ELECTRIC OVEN
ELECTRIC OVEN
ELECTRIC OVEN
ELECTRIC OVEN
ELECTRIC OVEN
ELECTRIC OVEN
ELECTRIC OVEN
ELECTRIC OVEN
Appliance description

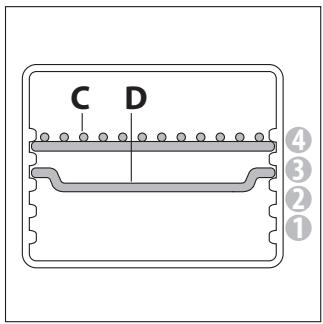

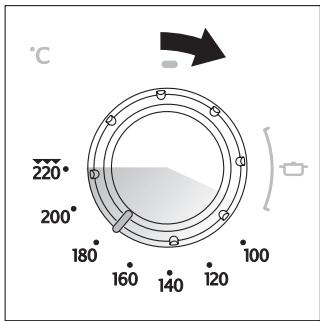

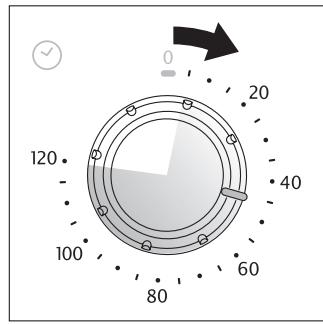

A Top heating element B Internal light (only on certain models) C Grill (only on certain models) D Drip tray (only on certain models) E Thermostat knob F Timer knob G Function selector knob H Green indicator light I Red indicator light ON L Glass door M Bottom heating element N Crumb tray
Technical characteristics
Voltage: 220-240 V ~ 50/60 Hz max 16 A
Power consumption: 1800 W or 2000 W
Dimensions LxHxP: 485 x 305 x 430
Weight: 10 kg

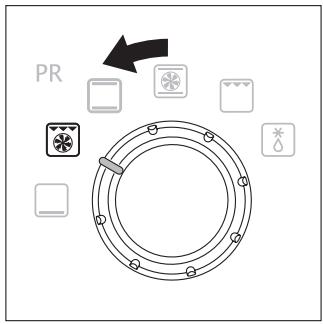

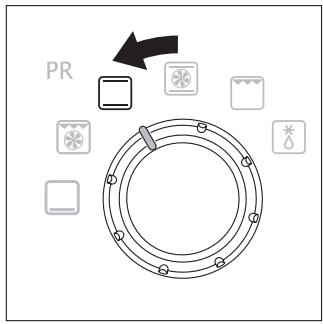

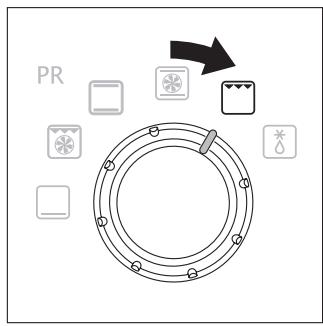

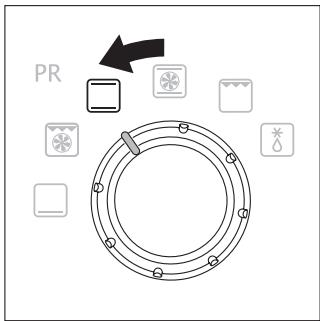

Functions
GRATIN FUNCTION ideal for gratinating food (only on certain models)
GRILL FUNCTION ideal for grilling food

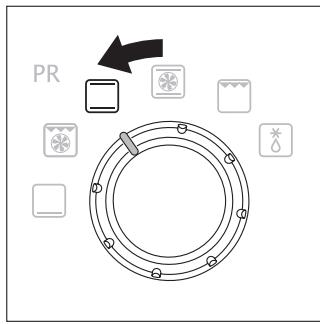

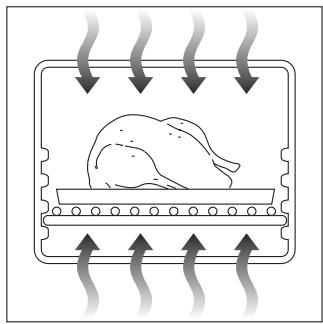

TRADITIONAL OVEN FUNCTION ideal for all traditional cooking

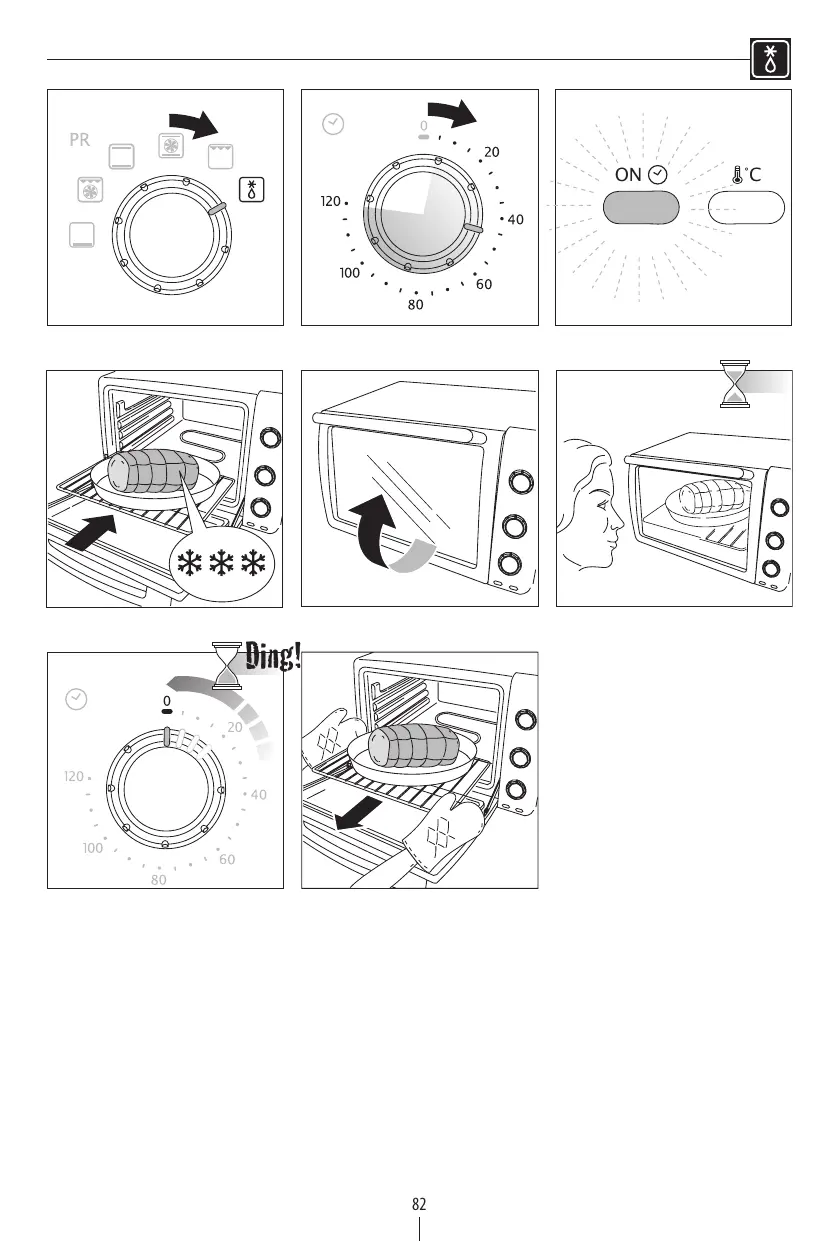

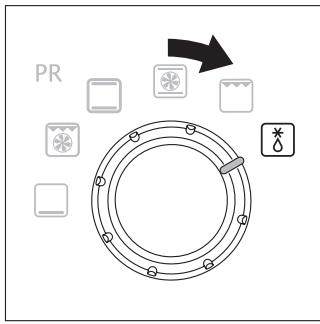

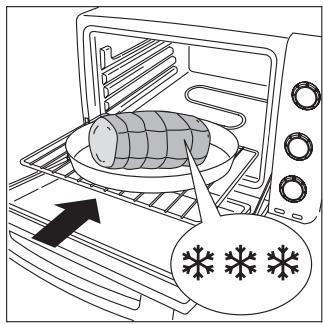

DEFROST FUNCTION ideal for defrosting all products (only on certain models)

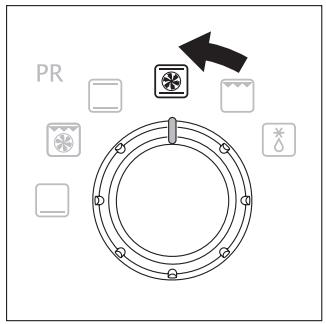

CONVECTION HEAT ideal for faster and more even cooking (only on certain models)

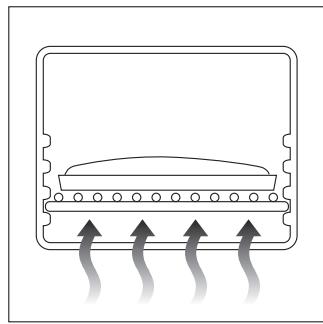

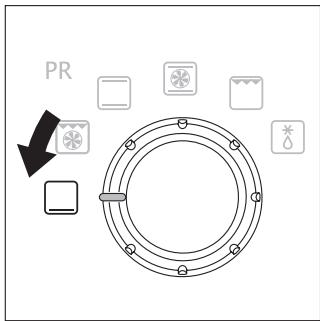

DELICATE COOKING FUNCTION ideal for cooking the underside of food
KEEP WARM
Indicator lights
the red ON indicator light comes on when the oven is turned on

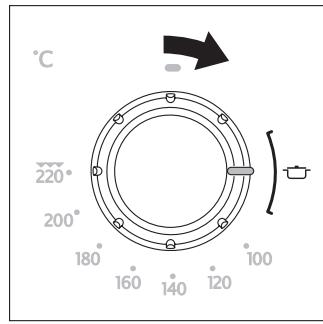

the green °C indicator light comes on when the oven reaches the set temperature
Safety instructions
Read this manual carefully before using the appliance. Keep this manual
Note:
This symbol highlights advice and important information for the user.

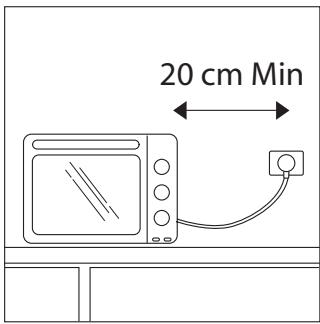

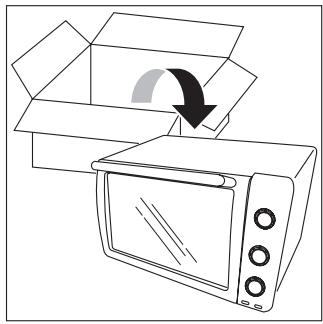

- Before first use, remove all papers, protective cardboard, booklets, plastic bags, etc. from inside the oven. The appliance must be placed at least 20 cm away from the electrical outlet it is plugged into.

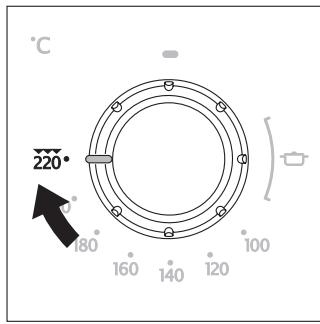

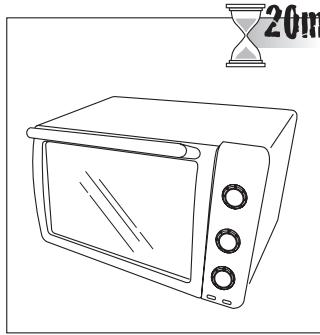

- Before first use, run the appliance empty at maximum thermostat for at least 15 minutes to eliminate the new smell and any smoke due to protective grease applied to the heating elements before transport.
During this operation, ventilate the room.

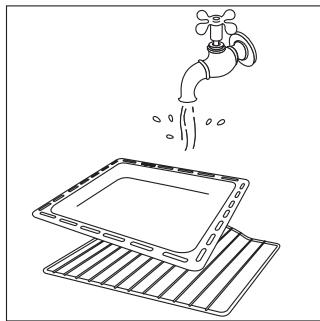

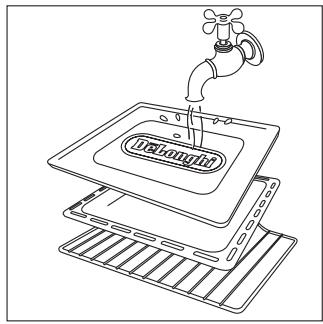

- Wash all accessories thoroughly before use.
Warning!
Failure to comply may cause injury or damage to the appliance.

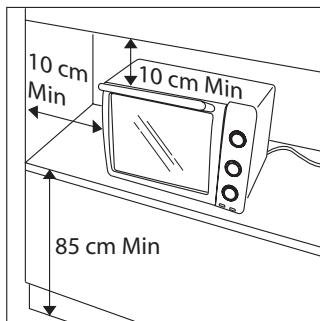

This oven is intended for cooking food. It must not be used for any other purpose and must not be modified or transformed in any way. After unpacking the appliance, check that the door is not damaged. The door is made of glass and is therefore fragile. It is advisable to have it replaced if it is chipped, cracked, or scratched. During use, cleaning, and moving of the appliance, avoid slamming the door, hitting it violently, and pouring cold liquids on the hot glass of the appliance. Place the appliance on a horizontal surface at a height of at least 85 cm, out of reach of children. The appliance can be used by children over 8 years of age and by persons with reduced mental, physical, and sensory capabilities, or with insufficient experience or knowledge, provided they are carefully supervised, they know how to use it safely, and they are informed of the dangers it entails.
Supervise children to ensure they do not play with the appliance. Cleaning and maintenance must not be performed by children unless they are over 8 years old and are constantly supervised.
- Do not leave the appliance and its cord within reach of children under 8 years of age.
- Do not move the appliance while it is in operation. Do not use the appliance if:
- Its power cord is defective. The appliance has fallen or shows visible damage or operational anomalies.
If necessary, to avoid any risk, have it checked by the nearest After-Sales Service Center.
- Do not install the appliance near heat sources. Do not use the appliance as a heat source.
- Never put paper, cardboard, or plastic in the oven and never place anything on top of it (utensils, racks, or other objects). Do not insert anything into the ventilation openings. Make sure not to obstruct them. This oven is not designed to be built-in.

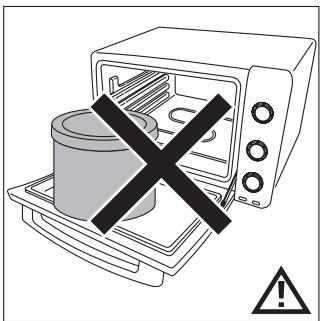

- Once the door is open, never lean heavy objects, pots, or hot containers against it.
Do not pull the handle downward.
The manufacturer's liability will not be incurred in case of professional use, inappropriate use, or use not in accordance with the instructions, and the warranty will be voided. This appliance is intended for exclusively domestic use.
It is not intended for use in staff kitchens of shops, offices, and other professional environments, nor in
rural cottages, hotels, motels, and other accommodation facilities, bed and breakfasts, or guest rooms.

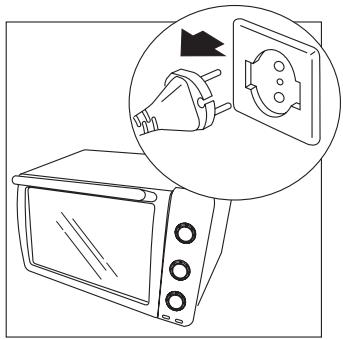

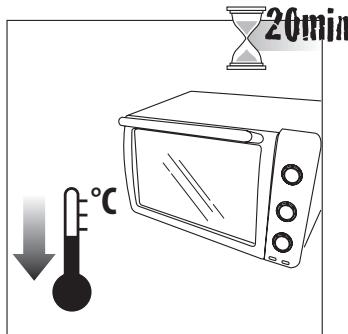

- Always unplug the appliance before cleaning it and when you are not using it.
- Do not operate the appliance using an external timer or a separate remote control system. The appliance must be installed on the wall.
- Avoid cleaning the kneading bowl with sharp or pointed metal objects.

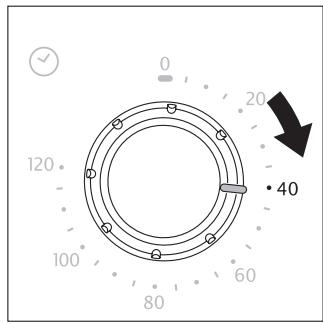

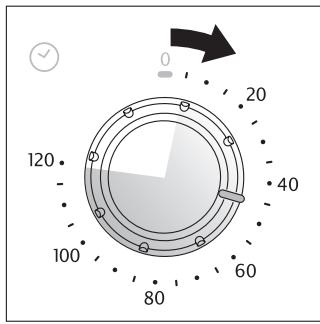

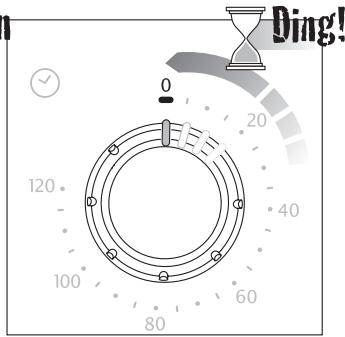

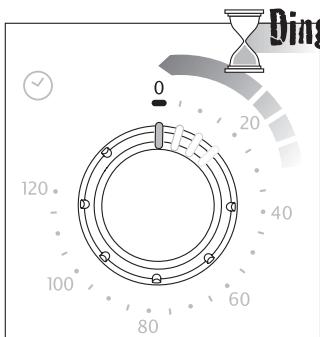

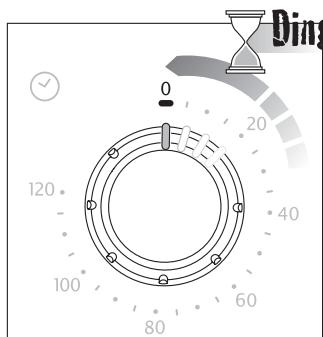

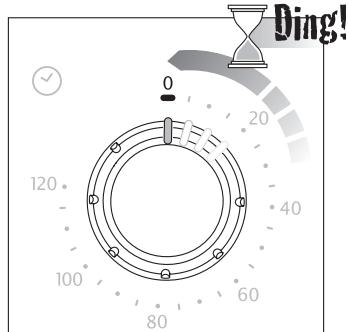

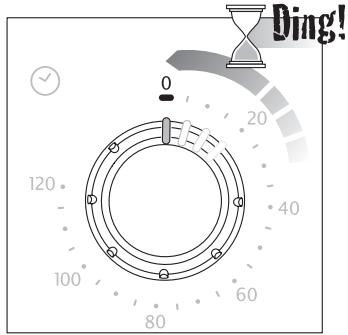

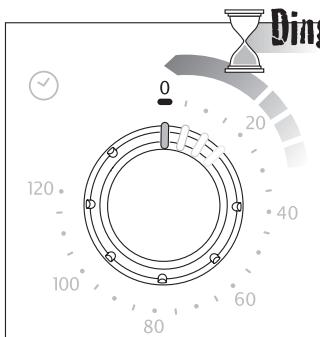

- Always turn off the appliance by setting the timer to "0" and unplug it from the outlet after use and before cleaning.
Danger: Burns!
Risk of burns.

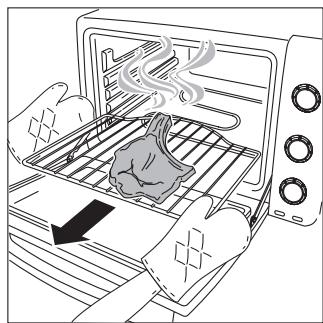

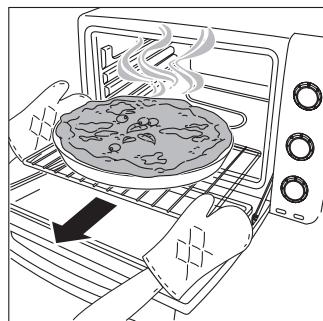

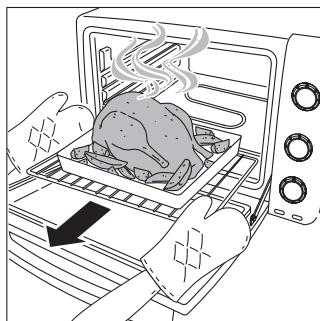

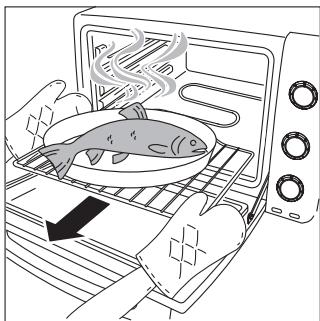

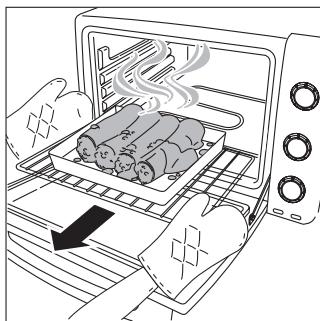

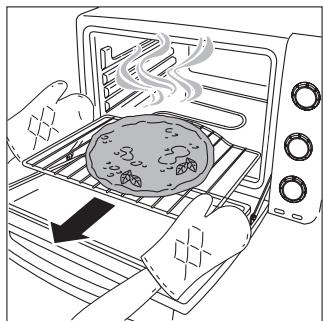

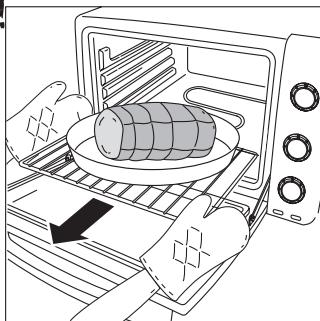

- When the appliance is in operation, the temperature of the door and the body can be very high. Only touch the buttons, handles, and keys. Never touch the metal parts or the oven glass. Use insulating gloves if necessary.
- This electrical appliance operates at high temperatures that can cause burns.
- Never store flammable products near the oven or under the cabinet on which it is placed.
- Never operate the appliance under a hanging cabinet or shelf, or near flammable materials (curtains, drapes, etc.). If food or other parts of the oven catch fire, do not attempt to extinguish the flames with water.
Keep the door closed, unplug the appliance, and smother the flames with a damp cloth.
Danger!
Failure to comply may cause or is the cause of injuries from electric shock with risk of death.
Before plugging in the appliance, check that: - The mains voltage corresponds to that indicated on the rating plate. - The power outlet can support 16 A and is equipped with a ground connection. The manufacturer declines all responsibility if the installation does not comply with safety standards. - Do not let the power cord hang and ensure it does not come into contact with hot surfaces of the oven.
Never pull on the cord to unplug the appliance.
- If you must use an extension cord, make sure it is in good condition, its plug is grounded, and the conductor cross-section is at least equal to that of the power cord supplied with the appliance.

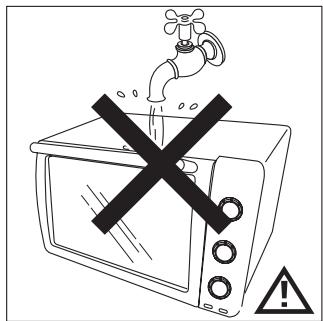

- To avoid any risk of electric shock, never immerse the power cord, plug, or appliance in water or any other liquid. If the power cord is damaged, have it replaced by the manufacturer, an authorized service center, or a qualified professional to avoid any risk. For your personal safety, never disassemble the appliance yourself; always contact an authorized service center.
The appliance complies with the following EC directives
Low Voltage Directive 2006/95/EC and its subsequent modifications. EMC Directive 2004/108/EC and its amendments. - Materials and objects intended to come into contact with food products comply with European Regulation (EC) No. 1935/2004.
Disposal
In accordance with European Directive 2002/96/EC, do not dispose of the appliance with household waste, but take it to a selective/authorized collection center.
| kg | 301 | PR 图 图 图 | F | ||
| 700g | 1 | 180℃ | 45-50 min | ||
| 30-35 min | |||||
| 750g | 1 | 200℃ | 25-30 min | ||
| *** | 450g | 2 | 200℃ | 20-22 min | |
| 15-17 min | |||||
| 500g | 1 | 180℃ | 35-40 min | ||
| 1500g | 1 | 180℃ | 35-40 min | ||
| 200℃ | 30-35 min | ||||
| 1300g | 1 | 190℃ | 100-105 min | ||
| 80-85 min | |||||
| 700g | 1 | 190℃ | 65-70 min | ||
| 50-55 min | |||||
| 1000g | 1 | 190℃ | 90-95 min | ||
| 75-80 min | |||||
| 1200g | 1 | 180℃ | 55-60 min | ||
| 750g | 4 | 220℃ | 25-30 min | ||
| 1000g | 1 | 200℃ | 25-30 min | ||
| *** | 1000g | 2 | 200℃ | 65-70 min | |
| 45-50 min | |||||
| 1000g | 2 | 200℃ | 55-60 min | ||
| 45-50 min | |||||
| 1000g | 1 | 220℃ | 15-20 min | ||
| 300g | 2 | 180℃ | 15-20 min | ||
| *** | 6 | 1 | 180℃ | 20-22 min | |
| 13-15 min | |||||
| 850g | 2 | 180℃ | 40-45 min | ||
| 30-35 min | |||||
| 850g | 2 | 180℃ | 40-45 min | ||
| 30-35 min | |||||
| 900g | 2 | 180℃ | 35-40 min | ||
| 25-30 min | |||||
| 12 | 2 | 170℃ | 20-25 min | ||
| 900g | 2 | 160℃ | 85-90 min | ||
