USER MANUAL 1CFFY BARAZZA

Symbols used in these instructions 3

Letters in brackets 3

Troubleshooting and repairs 3

SAFETY 3

Fundamental safety warnings. 3

Designated use 4

Instructions 4

DESCRIPTION 5

Description of the appliance . 5

Description of the control panel. 5

PRELIMINARY CHECKS 5

Controls after transport 5

Installing the appliance 5

Connecting the appliance 5

USING THE APPLIANCE FOR THE FIRST TIME .. 6

TURING ON AND HEATING UP 6

MAKING COFFEE USING COFFEE BEANS .......6

CHANGING THE QUANTITY OF COFFEE IN THE CUP 7

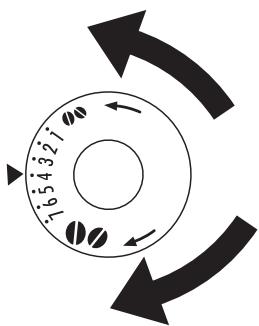

ADJUSTING THE COFFEE MILL 8

MAKING ESPRESS COFFEE WITH PREGROUND COFFEE (INSTEAD OF BEANS) ...... 8

DELIVERING HOT WATER 8

CHANGING THE QUANTITY OF HOT WATER ... 8

MAKING CAPPUCCINO (USING THE STEAM FUNCTION) 9

CLEANING 9

Cleaning the coffee maker 9
Cleaning the waste coffee container 9
Cleaning the drip tray 9
Cleaning the water tank 10
Cleaning the spouts 10
Cleaning the pre-ground coffee funnel 10
Cleaning the inside of the coffee maker 10

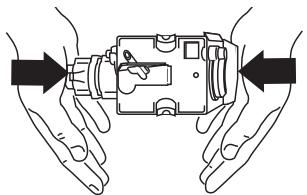

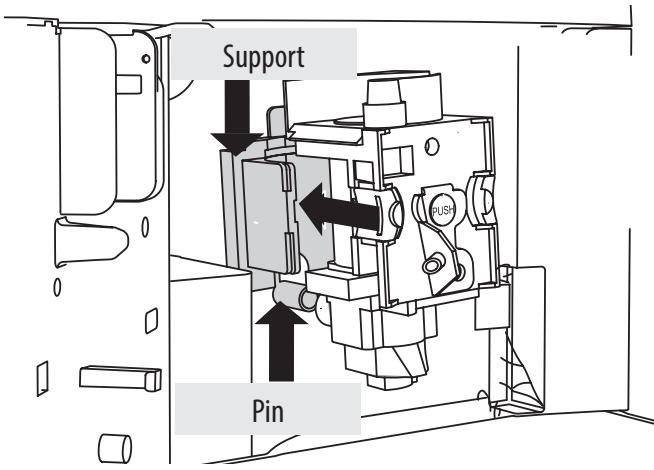

Cleaning the brewing unit 10

CHANGING AND SETTING MENU PARAMETERS

11

Setting the language 11
Rinsing 11
Changing the length of time the appliance remains on .11
Setting the clock 11
Setting auto-start time 11
Changing coffee temperature 12
Setting water hardness 12
Programming coffee 12
Programming water. 12
Descale 12
Resetting default values (reset) 13
Statistics 13
Buzzer 13
Adjusting contrast. 13

TURNING THE APPLIANCE OFF 13

TECHNICAL SPECIFICATION 13

DISPLAYED MESSAGES 14

TROUBLESHOOTING 15

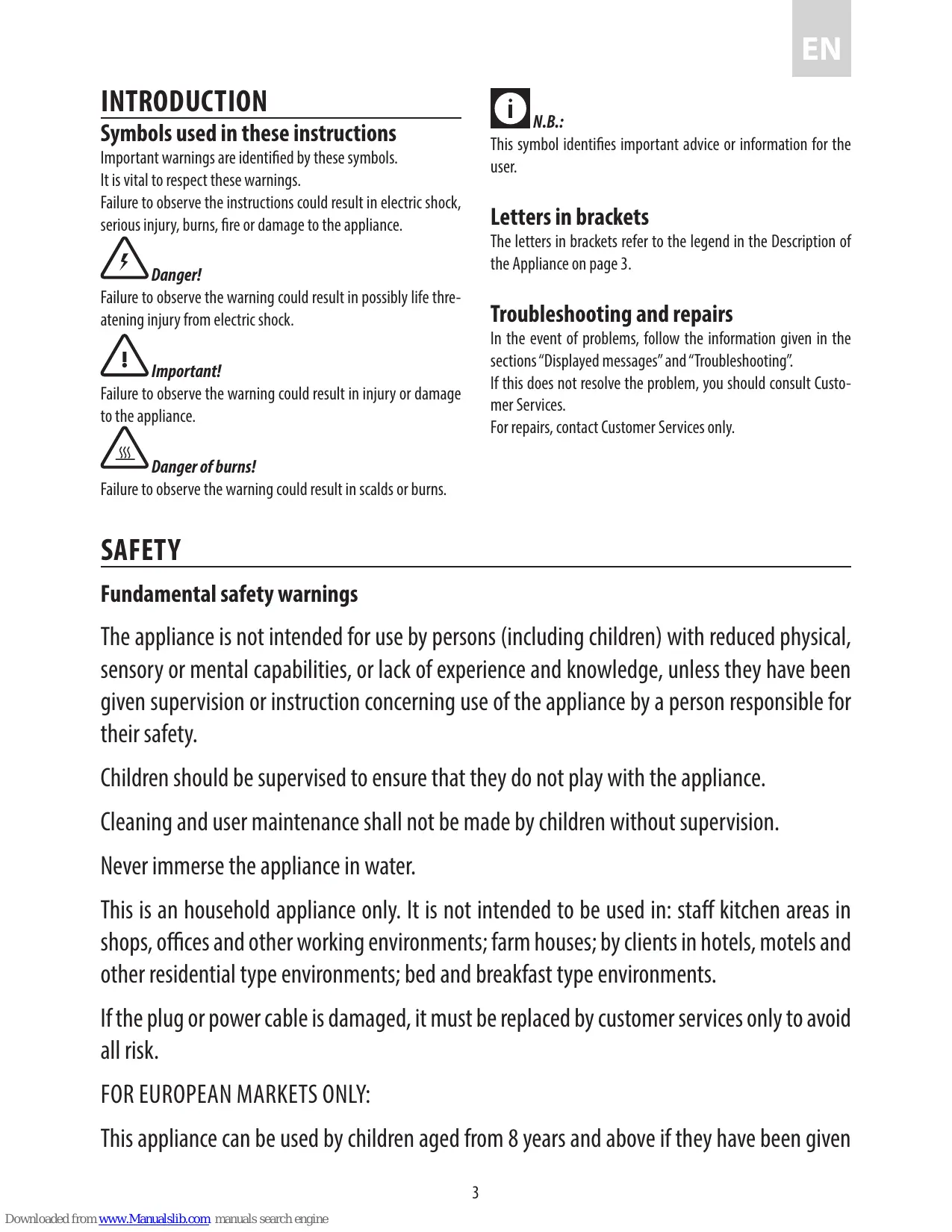

INTRODUCTION

Symbols used in these instructions

Important warnings are identified by these symbols. It is vital to respect these warnings.

Failure to observe the instructions could result in electric shock, serious injury, burns, fire or damage to the appliance.

Danger!

Failure to observe the warning could result in possibly life threatening injury from electric shock.

Important!

Failure to observe the warning could result in injury or damage to the appliance.

Danger of burns!

Failure to observe the warning could result in scalds or burns.

N.B.:

This symbol identifies important advice or information for the user.

Letters in brackets

The letters in brackets refer to the legend in the Description of the Appliance on page 3.

Troubleshooting and repairs

In the event of problems, follow the information given in the sections "Displayed messages" and "Troubleshooting".

If this does not resolve the problem, you should consult Customer Services.

For repairs, contact Customer Services only.

SAFETY

Fundamental safety warnings

The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Never immerse the appliance in water.

This is an household appliance only. It is not intended to be used in: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

If the plug or power cable is damaged, it must be replaced by customer services only to avoid all risk.

FOR EUROPEAN MARKETS ONLY:

This appliance can be used by children aged from 8 years and above if they have been given

supervision or instruction concerning use of the appliance in a safe way and if they understand the hazard involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of the reach of children aged less than 8 years.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

When not in use and before cleaning, always unplug the appliance.

Surfaces marked with this symbol become hot during use (the symbol is present in certain models only).

Danger! This is an electrical appliance, it is therefore

important to respect the following safety warnings:

• Never touch the appliance with damp hands.
• Never touch the plug with damp hands.
  Make sure the socket used is freely accessible at all times, enabling the appliance to be unplugged when necessary.
• Unplug directly from the plug only. Never pull the power cable as you could damage it.
• To disconnect the appliance completely, place the main switch (A23) on the side of the appliance in the 0 position.
• If the appliance is faulty, do not attempt to repair. Turn it off using the main switch (A23), unplug from the mains socket and contact Customer Services.

Important! Keep all packaging (plastic bags,

polystyrene foam) away from children.

Danger of burns! This appliance produces hot water

and steam may form while it is in operation.

Avoid contact with splashes of water or hot steam.

Use knobs and handles.

Important! Do not grasp the coffee maker when it is

out of the cabinet.

Do not rest recipients containing liquids or inflammable or corrosive materials on top of the appliance. Place the accessories required to make the coffee (the measure for example) in the

special holder.

Do not rest large objects which could obstruct movement or unstable objects on the appliance.

Important! Do not use the appliance when extracted.

Make sure the appliance is inactive before extracting it.

The only exception is adjusting the coffee mill which must be done with the machine out (see the section "Adjusting the coffee mill").

N.B.: Use original or manufacturer recommended acces

sories and spare parts only.

Designated use

This appliance is designed and made to prepare coffee and heat drinks.

All other use is considered improper.

This appliance is not suitable for commercial use.

The manufacturer is not liable for damage deriving from improper use of the appliance.

This appliance can be installed over a built-in oven if the latter is fitted with a cooling fan at the rear (maximum microwave power: 3kW ).

Instructions

Read these instructions carefully before using the appliance.

• Keep these instructions
• Failure to respect these instructions may result in burns or

damage to the appliance.

The manufacturer is not liable for damage deriving from failure to respect these instructions.

N.B.: The appliance has a cooling fan.

This comes on whenever coffee, steam or hot water is delivered.

After several minutes, the fan goes off automatically.

DESCRIPTION

Description of the appliance

(page 3 - A)

A1. Cup tray
A2. Service door
A3. Coffee guide
A4. Waste coffee container
A5. Brewing unit
A6. Cup tray lights
A7. On/OFF/stand-by button
A8. Control panel
A9. IEC connector
A10. Cappuccino maker (removable)
A11. Cappuccino maker nozzle
A12. Water tank
A13. Coffee spout (adjustable height)
A14. Drip tray
A15. Bean container lid
A16. Bean container
A17. Grinding adjustment knob
A18. Pre-ground coffee funnel door
A19. Measure
A20. Compartment for measure
A21. Pre-ground coffee funnel
A22. Power cable
A23. Main switch
A24. Tray

Description of the control panel

(page 3-B)

N.B.: On the control panel will illuminate only the icons

B6, B7, B8, B9 and B14 for the commands enabled.

N.B.: A light touch is enough to activate the icon.

B1. Display: guides the user in using the appliance.
B2. SET icon to activate or deactivate menu parameter setting mode

B3. icon to turn lights A6 on and off
B4. icon to select the coffee taste
B5. icon to select the type of coffee (espresso, small cup, medium cup, large cup, mug)
B6. icon to exit the selected mode
B7-B8. + — icons to scroll forwards or backwards through the menu and display the various modes
B9. OK icon to confirm the selected function
B10. icon to deliver a cup of coffee
B11. icon to deliver two cups of coffee
B12. icon to deliver steam
B13. ① icon to deliver hot water

PRELIMINARY CHECKS

Controls after transport

After removing the packaging, make sure the product is complete and undamaged and that all accessories are present.

Do not use the appliance if it is visibly damaged.

Contact Customer Services.

Installing the appliance

Important!

• Installation must be performed by a qualified professional in compliance with legislation in force in the country of installation (see Built-in installation).
• The packing elements (plastic bags, polystyrene foam, etc.) should be kept out of reach of children.
• Do not install the appliance in rooms where the temperature may drop to 0^ C or lower.
• Customise the water hardness as soon as possible following the instructions in the "Setting water hardness" section.

Connecting the appliance

Danger! Check that the mains power supply voltage

corresponds to the value indicated on the rating plate on the bottom of the appliance.

Connect the appliance to an efficiently earthed and correctly installed socket with a minimum current rating of 10A only.

If the power socket does not match the plug on the appliance, have the socket replaced with a suitable type by a qualified professional.

To comply with safety directives, an omnipolar switch with a minimum contact distance of 3mm must be installed.

Do not use multiple sockets or extensions.

Important! Safety cutout devices must be included

in the mains power supply in compliance with the installation regulations in the country concerned.

Disposing of the appliance

The appliance must not be disposed of with household waste, but taken to an authorised waste separation and recycling centre.

USING THE APPLIANCE FOR THE FIRST TIME

• Coffee has been used to factory test the appliance and it is therefore completely normal for there to be traces of coffee in the mill.
• Customise water hardness as soon as possible following the instructions in the "Setting water hardness" section.
• Connect the appliance to the mains supply. Press the ON/stand-by button (A7). Set the required language.
• To set the language, use the + - icons (B7 and B8) to choose the required language (fig. 2). When the message "PRESS OK TO CHOOSE ENGLISH" is displayed, press the OK icon (B9) (fig. 3) for 3 seconds until "ENGLISH INSTALLED" is displayed. If you set the wrong language, follow the instructions in the "Setting the language" section. If your language is not available, select one from those displayed. The instructions refer to the English version. Then follow the instructions displayed:
• After 5 seconds, the appliance displays "FILL TANK". Extract the water tank (fig. 4), rinse and fill with fresh water without exceeding the MAX line. Replace and push as far as it will go.
• Place a cup under the cappuccino maker (fig. 5). The appliance displays: "HOT WATER PRESS OK". Press the OK icon (B9) (fig. 3) and after a few seconds a little water comes out of the spout.
• The machine now displays "TURNING OFF... PLEASE WAIT" and goes off.
• Extract the appliance by pulling it out using the handles (fig. 6). Open the lid and fill the container with coffee beans, then close the lid and push the appliance in. The coffee maker is now ready for normal use.

Important! Never introduce pre-ground coffee, freeze

dried coffee, caramelised beans or anything else which could damage the appliance.

N.B.: When using the appliance for the first time, you do make 4-5 cups of coffee and 4-5 cappuccinos before the once gives satisfactory results.

N.B.: Each time you turn the coffee maker on by the ON/

OFF switch (A23), it performs a SELF-DIAGNOSIS cycle and then goes off. To turn it on again, press the ON/OFF button (A7) (fig. 1)

TURNING ON AND HEATING UP

Each time the appliance is turned on, it performs an automatic preheat and rinse cycle which cannot be interrupted.

The appliance is ready for use only after completion of this cycle.

Danger of burns! During rinsing, a little hot water

flows from the coffee spouts.

To turn the appliance on, press the ON/OFF/stand-by button (A7) (fig. 1). The message "HEATING UP... PLEASE WAIT" is displayed. When heating is complete, the message changes to "RINSING"; The appliance is at temperature when the message "MEDIUM CUP NORMAL TASTE" is displayed.

If no icon is pressed within about 2 minutes, the time (if set, see the "Setting the clock" section) is displayed.

If the time has not been set, the appliance displays the last functions set.

When any icon is pressed, "MEDIUM CUP NORMAL TASTE" is displayed again. The appliance is ready to make coffee again.

MAKING COFFEE USING COFFEE BEANS

1. The appliance is preset to make coffee with a normal taste. You can also choose coffee with an extra-mild, mild, strong or extra-strong taste. There is also a pre-ground coffee option. To choose the required taste, press the icon (B4) (fig. 7) a number of times. The required coffee taste is displayed.
2. Place 1 cup under the spouts to make 1 coffee (fig. 9) or 2 cups for 2 coffees (fig. 8). Lower the spouts as near as possible to the cup for a creamier coffee (fig. 10).
3. Press the icon (B5) (fig. 11) to select the type of coffee: espresso, small cup, medium cup, large cup, mug. Now press the icon (B10) (fig. 12) if you want to make a coffee and the icon (B11) (fig. 13) if you want to make

2 coffees.

The appliance now grinds the beans and starts delivering the coffee into the cup. Once the set amount of coffee has been delivered, the machine stops delivery automatically and expels the exhausted waste coffee into the waste coffe container.

1. After a few seconds, the appliance is ready for use again.
2. To turn the appliance off, press the ON/OFF/stand-by button (A7) (fig. 1).

(Before going off, the appliance performs an automatic rinse cycle. Take care to avoid scalds).

NOTE 1: If the coffee is delivered a drop at a time or not at all, see the "Adjusting the coffee mill" section.
NOTE 2: If the coffee is delivered too fast and the cream is not satisfactory, see the "Adjusting the coffee mill" section.

NOTE 3: Tips for a hotter coffee:

• Proceed as described in the section "Changing and setting menu parameters", "Rinse" function.
  Unless preheated, do not use excessively thick cups as they will absorb too much heat.
  Preheat the cups by rinsing them with hot water.

NOTE 4: Coffee delivery can be interrupted at any moment by re-pressing the previously selected icon which remains lit during the operation.

NOTE 5: As soon as delivery is finished, to increase the quantity of coffee in the cup, just keep pressing the previously selected icon within 3 seconds after delivery has finished.

NOTE 6: When the appliance displays "FILL TANK", fill the tank with water or the appliance will not deliver coffee.

(It is normal for there to be a little water left in the tank).

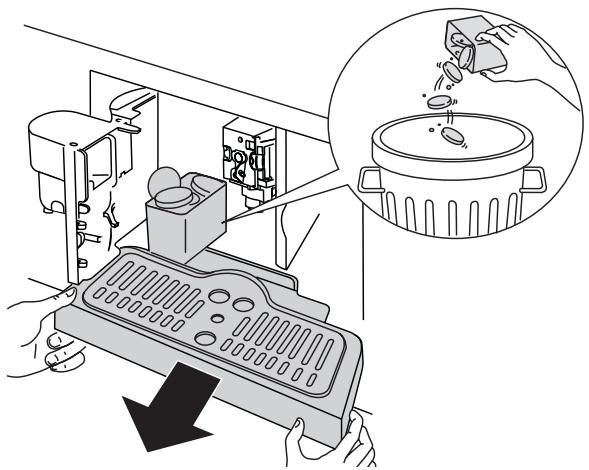

NOTE 7: After about 14 single (or 7 double) coffees, the appliance displays "EMPTY WASTE COFFEE CONTAINER".

Even if not full, the empty waste coffee container message is displayed 72 hours after the first coffee has been delivered. For the 72 hours to be calculated correctly, the machine must never be turned off with the main switch in the 0 position.

To clean, open the service door on the front of the appliance by pulling the spout (fig. 16), extract the drip tray (fig. 17) and clean.

When cleaning, always extract the drip tray completely.

!

Important! When extracting the drip tray, the waste ntainer MUST always be emptied.

If this is not done, the machine may be clogged.

NOTE 8: Never extract the water tank while the machine is delivering coffee.

If it is removed, it will not be possible to make the coffee and the appliance will display "GROUND TOO FINE ADJUST MILL AND PRESS OK" and then "FILL TANK". Check the level of water in the tank and replace in the appliance.

To turn the appliance back on, press the OK icon (B9). "HOT WATER PRESS OK" is displayed.

Press the OK icon (B9) within a few seconds and deliver water from the cappuccino maker for about 30 seconds. When delivery stops, the basic modes are displayed again.

D

N.B.: The coffee maker may request the operation to be rated a number of times until the air is completely eliminated in the hydraulic circuit.

O

N.B.: if this operation is not performed correctly or if chine is turned off, the basic modes may be displayed, though the problem is in fact still present.

CHANGING THE QUANTITY OF COFFEE IN THE CUP

The appliance is set by default to automatically make the following types of coffee:

-presso
small cup
medium cup
large cup
mug

To change the quantity, proceed as follows:

• Press the SET icon (B2) to enter the menu (fig. 15). Press the + icons (B7) and (B8) (fig. 2) until "PROGRAM COFFEE" is displayed.
  Press the OK icon (B9).
• Select the type of coffee you want to change by pressing the + - icons (B7) and (B8).
• Press the OK icon (B9) to confirm the type of coffee you want to make.
  Use the + - icons (B7) and (B8) to change the quantity of coffee. The progress bar shows the quantity of coffee selected.
• Press the OK icon (B9) again to confirm (or the icon (B6) to cancel the operation).
  Press the icon (B6) (fig. 18) twice to exit the menu.

The appliance is now reprogrammed with the new settings and is ready.

The coffee mill is preset in the factory and should not require adjusting. However, if after making the first few coffees you find that delivery is either too fast or too slow (a drop at a time), this can be corrected by adjusting the grinding adjustment knob (fig. 14).

Important! The grinding adjustment knob must only

be turned when the coffee mill is in operation.

For slower delivery and creamier coffee, turn one click anticlockwise (finer pre-ground coffee).

For faster delivery (not a drop at a time), turn one click clockwise (coarser pre-ground coffee).

PREPARED COFFEE WITH PREGROUND COFFEE (INSTEAD OF BEANS)

• Press the icon (B4) (fig. 7) and select the pre-ground coffee function.

• Extract the machine by pulling it outwards using the handles

• Lift the central lid, place one measure of pre-ground coffee in the funnel (fig. 19), push the appliance in then proceed as described in the section "Making coffee using coffee beans". N.B.: You can make just one coffee at a time by pressing the icon (B10) (fig. 12).
  After using the machine with pre-ground coffee, to go back to making coffee using beans, deactivate the pre-ground coffee function by pressing the icon (B4) (fig. 7).

NOTE 1: Never introduce pre-ground coffee when the machine is off or it could spread through the inside of the appliance.
NOTE 2: Never add more than 1 measure, otherwise the appliance will not make the coffee.
NOTE 3: Use the measure provided only.
NOTE 4: Introduce only pre-ground coffee for espresso coffee machines into the funnel.
NOTE 5: If more than one measure of pre-ground coffee is used and the funnel clogs, push the coffee down with a knife (fig. 21) then remove and clean the brewing unit and machine as described in the "Cleaning the brewing unit" section.

DELIVERING HOT WATER

Always make sure the appliance is ready.
- Turn the cappuccino maker outwards and place a container underneath (fig. 5).
Press the icon (B13) (fig. 20).

Press the OK icon (B9) again and hot water is delivered from the cappuccino maker into the container underneath. You should not deliver hot water for more than 2 minutes at a time.

To interrupt, press the icon (B13) or the icon (B6). The appliance stops delivery once the set quantity is reached.

CHANGING THE QUANTITY OF HOT WATER

The machine is set by default to automatically delivery 200 ml of hot water.

To change these quantities, proceed as follows:

• Place a container underneath the cappuccino maker (fig. 3).
• Press the SET icon (B2) to enter the menu (fig. 15) or press the + - icons (B7) and (B8) (fig. 2) until "PROGRAM HOT WATER" is displayed.
  Press the OK icon (B9) to confirm.

• Select the required quantity of water by pressing the

• • icons (B7) and (B8). The progress bar shows the quantity of water selected.

• Press the OK icon (B9) to confirm (or the icon (B6) to cancel the operation.
  Press the icon (B6) (fig. 18) twice to exit the menu.
  The appliance is now reprogrammed with the new settings and is ready.

MAKING CAPPUCCINO (USING THE STEAM FUNCTION)

• Turn the cappuccino maker towards the centre (fig. 5).
  Take a container, fill it with about 100g of milk for each cappuccino to be made and place it under the cappuccino maker. In choosing the size of the recipient, bear in mind that the milk doubles or triples in volume.

You are recommended to use partially skimmed milk at refrigerator temperature.

• Immerse the cappuccino maker in the milk container (fig. 23), taking care not to immerse it for more than half its length.
  Press the icon (B12) (fig. 22) (take care to avoid scalds). "STEAM PRESS OK" is displayed.
  Press the OK icon (B9).
  To interrupt steam delivery, press the icon (B12) again or the icon (B6).

Steam comes out of the cappuccino maker. For a creamier froth, immerse the cappuccino maker in the milk and move the container with slow upward movements. You should not deliver steam for more than 2 minutes at a time.

• When the required froth is reached, interrupt steam delivery by pressing the icon (B12) again or the icon (B6).
• Make the coffee as described above using sufficiently large cups, then fill them with the frothed milk prepared previously.

IMPORTANT: always clean the cappuccino system immediately after use. Proceed as follows:

• Press the icon (B12) and then press the OK icon (B9) to discharge a small amount of steam for a few seconds. This empties the steam spout of all traces of milk.
  IMPORTANT: to ensure the hygiene of the appliance, you are recommended to carry out this procedure each time you make cappuccino to avoid stale milk remaining in the circuit.
• Wait for the cappuccino maker to cool down, then holding the cappuccino maker lever firmly in one hand, unscrew the cappuccino maker itself with the other, turning it an

ticlockwise and removing it downwards (fig. 24).

• Remove the cappuccino maker nozzle by pulling it downwards.
• Wash the cappuccino maker and nozzle thoroughly in hot water.
• Make sure the two holes shown in figure 25 are not blocked. If necessary, clean with a pin.
• Replace the nozzle by inserting it upwards into the cappuccino maker.
• Replace the cappuccino maker by pushing it upwards and rotating it anticlockwise.

CLEANING

Cleaning the coffee maker

Do not use solvents or abrasive detergents to clean the coffee maker. A soft damp cloth will suffice.

Never wash any of the components of the coffee maker in the dishwasher.

The following parts of the machine must be cleaned regularly:

• Waste coffee container (A4).
  Drip tray (A14).
  Water tank (A12).
• Coffee (A13), hot water (A11) and cappuccino maker spouts (A10).
• Pre-ground coffee funnel (A21).
• Inside of the machine, accessible after opening the service door (A2).
• Brewing unit (A5).

Cleaning the waste coffee container

When "EMPTY WASTE COFFEE CONTAINER" is displayed, the waste coffee container must be emptied and cleaned.

To clean:

open the service door on the front of the appliance (fig. 16), extract the drip tray (fig. 17) and clean.
Clean the waste coffee container thoroughly.

Important! When extracting the drip tray, the waste

coffee container must always be emptied.

Cleaning the drip tray

Important! If the drip tray is not emptied the water

might overflow.

This could damage the machine.

The drip tray is fitted with a level indicator (red) showing the

level of water it contains (fig. 27).

Before the indicator protrudes from the cup tray, the drip tray must be emptied and cleaned.

To remove the tray:

1. Open the service door (fig. 16).
2. Remove the drip tray and the waste coffee container (fig. 17).
3. Clean the drip tray and waste coffee container (A4).
4. 1. Replace the drip tray and waste coffee container (A4).
5. Close the service door.

Cleaning the water tank

1. Clean the water tank (A12) regularly (about once a month) with a damp cloth and a little mild washing up liquid.
2. Remove all traces of washing up liquid.

Cleaning the spouts

1. Clean the nozzles periodically using a sponge (fig. 28).
2. Check regularly that the holes in the coffee spout are not blocked.

If necessary, remove coffee deposits with a toothpick (fig. 26).

Cleaning the pre-ground coffee funnel

• Check regularly (about once a month) that the pre-ground coffee funnel is not blocked (fig. 21).

Danger! Before performing any cleaning operations,

the machine must be turned off by pressing the main switch (A23) and unplugged from the mains power supply.

Never immerse the coffee maker in water.

Cleaning the inside of the coffee maker

1. Check regularly (about once a week) that the inside of the appliance is not dirty.

If necessary, remove coffee deposits with a sponge.

1. Remove the residues with a vacuum cleaner (fig. 29).

Cleaning the brewing unit

The brewing unit must be cleaned at least once a month.

Important! The brewing unit (A5) must not be remo

ved when the appliance is on.

Do not use force to remove the brewing unit.

1. Make sure the machine is correctly turned off (see "Turning

the appliance off").

1. Open the service door (fig. 16).
2. Remove the drip tray and waste coffee container (fig. 17);
3. Press the two red release buttons inwards and at the same time pull the brewing unit outwards (fig. 30).

Important! Do not use washing up liquid to clean the unit. It would remove the lubricant applied to the inside ston.

1. Soak the brewing unit in water for about 5 minutes, then rinse.
2. After cleaning, replace the brewing unit (A5) by sliding it onto the internal support and pin at the bottom, then push the PUSH symbol fully in until it clicks into place.

N.B.: If the brewing unit is difficult to insert, you must

first adapt it to the right dimensions by pressing it forcefully from the bottom and top as shown in the figure.

1. Once inserted, make sure the two red buttons have snapped out.

1. Replace the drip tray and waste coffee container.

9. Close the service door.

CHANGING AND SETTING MENU PARAMETERS

When the appliance is ready, you can use the internal menu to modify the following parameters and functions:

Choose language
Rinsing
- Shut-off time
Set clock
Start time
Auto-start
Temperature
Water hardness
Program coffee
Program water
- Descale
Reset to default
Statistics
Buzzer
- Contrast

Setting the language

To change the language on the display, proceed as follows:

• Press the set icon (B2) to enter the menu. "CHOOSE LANGUAGE" is displayed.
  Press the OK icon (B9).
• Press the + — icons (B7) and (B8) until the required language is displayed.
  Press the OK icon (B9) to confirm.

Press the icon (B6) to exit the menu.

N.B.: If you choose the wrong language, you can access

the menu directly to modify the parameter.

• Press the SET icon (B2) for at least 7 seconds until the appliance displays the various languages.
• Choose the required language as described in the section "Using the appliance for the first time".

Rinsing

This function enables you to obtain hotter coffee.

Proceed as follows:

• When you turn the appliance on, if you want to make a small cup of coffee (less than 60~cc ), preheat the cup by rinsing it with hot water.
  If on the other hand more than 2/3 minutes have passed

since the last coffee was made, before requesting another coffee, you must preheat the brewing unit by first pressing the SET icon (B2) to enter the menu then the + - icons (B7) and (B8) to select the "RINSING" function.

Press the OK icon (B9).

"RINSING... PLEASE CONFIRM" is displayed.

Press the OK icon (B9) again.

Deliver the water into the underlying drip tray or alternatively use this water to fill (and then empty) the cup to be used for the coffee to preheat it.

Changing the length of time the appliance remains on

The appliance is set by default to go off automatically 30 minutes after the last coffee has been made.

To change this interval (max. 120 min), proceed as follows:

• Press the SET icon (B2) to enter the menu and then the + - icons (B7) and (B8) until "SHUT-OFF TIME" is displayed.
  Press the OK icon (B9) to confirm.
• Press the + -icons (B7) and (B8) to set the time after which the appliance will go off (after 1/2 hour, 1 hour, 2 hours).
  Press the OK icon (B9) to confirm.
  Press the icon (B6) to exit.

Setting the clock

• Press the SET icon (B2) to enter the menu and then the +--- icons (B7) and (B8) until "SET CLOCK" is displayed.
  Press the OK icon (B9).
  Use the + - icons (B7) and (B8) to set the hour, then press the OK icon (B9) to confirm.
  Use the + - icons (B7) and (B8) to set the minutes, then press the OK icon (B9) to confirm.
  Press the icon (B6) to exit the menu.

Setting auto-start time

This function programmes the time the machine will come on automatically.

Make sure the clock on the appliance has been set.
- Press the SET icon (B2) to enter the menu and then the +— icons (B7) and (B8) until "START TIME" is displayed.
Press the OK icon (B9).
Use the + -icons (B7) and (B8) to set the auto-start time, then press the OK icon (B9) to confirm.
Use the + - icons (B7) and (B8) to set the minutes, then press the OK icon (B9) to confirm.

• Press the e+ — icons (B7) and (B8) to activate the auto-start function until "AUTO START" is displayed.
• Press the OK icon (B9) to confirm. "AUTO START PLEASE CONFIRM" is displayed. Press the OK icon (B9). The symbol appears on the display.
  Press the icon (B6) to exit the menu.
  To disable auto-start, press the SET icon (B2), then the +— icons (B7) and (B8) until "AUTO START" is displayed. Press the OK icon (B9). "PLEASE CONFIRM" is displayed. Press (B6) to disable, the symbol disappears.

Changing coffee temperature

To change coffee temperature, proceed as follows:

• Press the SET icon (B2) to enter the menu and then the + - icons (B7) and (B8) until "TEMPERATURE" is displayed.
  Press the OK icon (B9).
• Press the + - icons (B7) and (B8) to select the required coffee temperature from low, medium and high.
  Press the OK icon (B9) to confirm the temperature selected.
  Press the icon (B6) to exit the menu.

Setting water hardness

The operating period can be extended if required, making descending less frequent by programming the machine on the basis of the real lime content in the water used. Proceed as follows:

remove the "Total Hardness Test" strip (attached to page 2) from its packaging then dip it fully in the water for a few seconds,
Then remove and wait about 30 seconds (until it changes colour and forms red squares).
- turn the appliance on by pressing the ON/OFF/stand-by button (A7).
Press the SET icon (B2) to enter the menu and then the +- icons (B7) and (B8) until "WATER HARDNESS" is displayed.
Press the OK icon (B9).
- Press the + - icons (B7) and (B8) until the number coincides with the number of red squares on the test strip (for example, if there are 3 red squares on the test strip, select the message "WATER HARDNESS 3".
- Press the OK icon (B9) to confirm. The coffee maker is now programmed to provide the descal-le warning when actually necessary.

Programming coffee

For instructions on programming coffee, see the "CHANGING THE QUANTITY OF COFFEE IN THE CUP" section.

Programming water

For instructions, see the "CHANGING THE QUANTITY OF HOT WATER" section.

Dscaling

! Important! Descaler contains acids.

Respect the safety warnings provided by the manufacturer and given on the descaler pack.

N.B.: Use the descaler recommended by the manufac-. nly.

Use of other descalers invalidates the guarantee.

Failure to descale the appliance as described also invalidates the guarantee.

When "PLEASE DESCALE!" is displayed, the machine requires descending.

Proceed as follows:

make sure the machine is ready;
Press the SET icon (B2) to enter the menu and then the +— icons (B7) and (B8) until “DESCALE” is displayed.
- Premere l'icona OK (B9) e la macchina visualizza il messaggio "DECALCIFICAZIONE CONFERMARE".
- Press the OK icon (B9) and the appliance displays "DESCALE PLEASE CONFIRM".
- Press the OK icon (B9). The message "ADD DESCALER PLEASE CONFIRM" is displayed.
- Empty the tank of water, pour the contents of the descaler bottle into the tank respecting the instructions given on the descaler pack, then add water. Position a container with a capacity of about 2 litres under the hot water spout.
- Press the OK icon (B9). Descaler flows out of the hot water spout into the container below.

The appliance displays: "DESCALING".

The descale programme automatically performs a series of deliveries and pauses.
After about 30 minutes "DESCALE COMPLETE PLEASE CONFIRM" is displayed.
Press the OK icon (B9). "RINSING FILL TANK" is displayed.
- Empty the water tank, rinse to eliminate descaler residues, then fill with clean water.
- Replace the tank full of clean water.

"RINSING PLEASE CONFIRM" is displayed again.

Press the OK icon (B9) again.
Hot water flows out of the spout into the container below and "RINSING" is displayed.
- Wait until "RINSING COMPLETE PLEASE CONFIRM" is displayed.
- Press the OK icon (B9). "DESCALE COMPLETE" is displayed, then "FILL TANK!". Fill the tank again with clean water.
The descale programme is now terminated and the appliance is ready to make coffee again.

NOTE: If descending is interrupted before completion, the process must be begun again from the beginning.

Important! FAILURE TO DESCALE THE APPLIANCE RE-

GULARLY INVALIDATES THE GUARANTEE.

Resetting default values (reset)

If you change the original values, the default values can be reset as follows:

• Press the SET icon (B2) to enter the menu and then the +--- icons (B7) and (B8) until "RESET TO DEFAULT" is displayed.
• Press the OK icon (B9) and the appliance displays "RESET TO DEFAULT PLEASE CONFIRM".
• press the OK icon (B9) to reset the default values;

Statistics

This displays statistics relating to the machine. To display, proceed as follows:

• Press the SET icon (B2) to enter the menu and then the + - icons (B7) and (B8) until "STATISTICS" is displayed.
  Press the OK icon (B9).
  Press the + - icons (B7) and (B8) to verify:
  How many coffees and cappuccinos have been made.
  How many times the machine has been descale
  The total number of litres of water delivered.
• Press the icon (B6) once to exit the function or twice to exit the menu.

Buzzer

This activates or deactivates the buzzer emitted by the machine each time an icon is pressed or an accessory is inserted/removed.

N.B.: The buzzer is active by default.

Press the SET icon (B2) to enter the menu and then the + - icons (B7) and (B8) until "BUZZER" is displayed.
Press the OK icon (B9). "BUZZER PLEASE CONFIRM" is displa

yed.

• Press the icon (B6) to disable or the OK icon (B9) to enable the buzzer.
  Press the icon (B6) to exit the menu.

Adjusting contrast

To increase or reduce the contrast of the display, proceed as follows:

• Press the set icon (B2) to enter the menu and then the + - icons (B7) and (B8) until "CONTRAST" is displayed.
  Press the OK icon (B9).
• Press the + — icons (B7) and (B8) until the required display contrast is reached. The progressive bar indicates the level of contrast selected.
  Press the OK icon (B9) to confirm.
• Press the (B6) icon (B6) once to exit the function or twice to exit the menu.

TURNING THE APPLIANCE OFF

Each time the appliance is turned off, it performs an automatic rinse cycle which cannot be interrupted.

Danger of burns! During rinsing, a little hot water

flows from the coffee spouts.

Avoid contact with splashes of water.

To turn the appliance off, press the ON/OFF button (A7).

The appliance performs the rinse cycle then goes off.

N.B.: If the appliance is not used for an extended pe

riod, place the main switch on the back of the appliance in the 0 position (A23).

TECHNICAL SPECIFICATION

Voltage: 220 - 240V 50 / 60Hz max.10A

Absorbed power: 1350W

Pressure: 15 bars

Water tank capacity: 1.8 litres

Size LxHxD: 594x 378/460x398

Weight: 23 / 24kg

The appliance complies with the following EC directives:

EC Regulation 1275/2008 for standby

Materials and accessories coming into contact with food

conform to European regulation (EC) no. 1935/2004.

DISPLAYEDMESSAGE	POSSIBLE CAUSE	REMEDY
FILL TANK!	The water tank is empty or positioned incorrectly.	Fill the tank with water and/or insert it correctly, pushing it as far as it will go.
GROUND TOO FINE ADJUST MILL AND (alternating with) PRESS OK	The grinding is too fine and the coffee is delivered too slowly.The machine cannot make coffee as there is air in the hydraulic circuitPossible cause: the filter has not been installed correctly.	Turn the grinding adjustment knob one click clockwise towards "7".Make sure the filter (A26) is properly insta- led and that the installation has been carried out correctly.
GROUND TOO FINE ADJUST MILL AND (alternating with) PRESS OK(then)FILL TANK!	The tank has been removed during delivery.	Insert the tank and press the OK icon (B9). "HOT WATER PRESS OK" is displayed.Press the OK icon (B9) again.The appliance is once again ready for use.
EMPTY WASTE COFFEE CONTAINER	The waste coffee container (A4) is too full or more than 3 days have passed since you last made coffee (this guaranteees correct hygiene of the machine).	Empty the waste coffee container and clean, then replace.Important: when removing the drip tray, the waste coffee container MUST be emptied, even if it is not completely full.If this is not done, when you make the next coffees, the waste coffee container may fill up more than expected and clog the machine.
INSERT WASTE COFFEE CONTAINER	After cleaning, the waste coffee container has not been replaced.	Open the service door and insert the waste coffee container.
ADD PRE-GROUND COFFEE	The "pre-ground coffee" function has been selected without placing any pre-ground coffee in the funnel.The funnel (A21) is blocked.	Extract the appliance and place pre-ground coffee in the funnel.Email the funnel with the help of a knife as described in the section "Cleaning the pre-ground coffee funnel".
PLEASE DESCALE!	The machine must be descaled.	The descaling procedure described in the "Descaling" section needs to be performed as soon as possible.
LESS COFFEE	Too much coffee has been used.	Select a milder taste or reduce the quantity of pre-ground coffee, then make the coffee again.
FILL BEAN CONTAINER	The coffee beans have run out.	Fill bean container
INSERT BREWING UNIT	The brewing unit has not been repl- ced after cleaning.	Insert the brewing unit as described in the section "Cleaning the brewing unit".
CLOSE DOOR	The service door is open	Close the service door.
GENERALALARM	The inside of the appliance is very dirty.	Clean the inside of the appliance thoroughly, as described in the section “Cleaning and maintenance”. If the message is still displayed after cleaning, contact a customer services.

TROUBLESHOOTING

Below is a list of some of the possible malfunctions. If the problem cannot be resolved as described, contact Customer Services.

PROBLEM	POSSIBLE CAUSE	REMEDY
The coffee is not hot	The cups were not preheated. The brewing unit has cooled down because 2/3 minutes have elapsed since the last coffee was made. The temperature set is too low.	Warm the cups by rinsing them with hot water. Before making coffee, preheat the brewing unit by selecting the RINSING function in the menu. Change the set temperature (see paragraph “Chang-ging coffee temperature”).
The coffee is not creamy enough	The coffee is ground too coarsely. Wrong type of coffee	Turn the grinding adjustment knob one click anticlockwise towards “1” while the coffee mill is in operation (fig. 11). Use a type of coffee for espresso coffee makers.
The coffee is delivered too slowly or a drop at a time.	The coffee is ground too finely.	Turn the grinding adjustment knob one click clockwise towards “7” while the coffee mill is in operation (fig. 11). Continue one click at a time until coffee delivery is satisfactory. The effect is only visible after delivering two coffees.
The coffee is delivered too quickly.	The coffee is ground too coarsely.	Turn the grinding adjustment knob one click anticlockwise towards “1” while the coffee mill is in operation (fig. 11). Avoid turning the grinding adjustment knob excessively when you select 2 cups, the coffee may be delivered a drop at a time. The effect is only visible after delivering two coffees.
Coffee does not come out of one of the spouts.	The spouts are blocked.	Clean the spouts with a toothpick (fig. 23).
The coffee does not come out of the spouts, but from around the service door (A2).	The holes in the spouts are clogged with dry coffee dust. The coffee guide (A3) inside the service door is blocked and cannot swing.	If necessary, remove coffee deposits with a toothpick, sponge or stiff bristled kitchen brush (fig. 23). Thoroughly clean the coffee guide (A3), particularly near the hinges.
Water comes out of the spouts instead of coffee.	The pre-ground coffee may be blocked in the funnel (A21).	Clean the funnel (A21) with a wooden or plastic fork, clean the inside of the machine.

TABLE DES MATIÈRES

INTRODUCTION 3

PREPARATION DU CAFÉ (AVEC DU CAFÉ EN

GRAINS) 7

MODIFICATION DE LA QUANTITÉ DE CAFÉ EN

TASSE 8

RéGLAGE DU MOULIN À CAFÉ............ 8

PREPARATION DU CAFÉ EXPRESSO AVEC DU

CAFÉ PREMOLU (À LA PLACE DES GRAINS) . 8

SORTIE D'EAU CHAUBE 9

MODIFICATION DE LA QUANTITÉ D'EAU CHAU

DE. 9

PREPARATION DU CAPPUCCINO

(AVEC LA FONCTION VAPEUR) 9

PREPARATION DE PLUSIEURS TASSES DE CAFÉ

NETTOYAGE 9

Nettoyage de la machine 10
