User Manual TuneCast™ Auto for Samsung T9/K3

User Manual TuneCast™ Auto for Samsung T9/K3

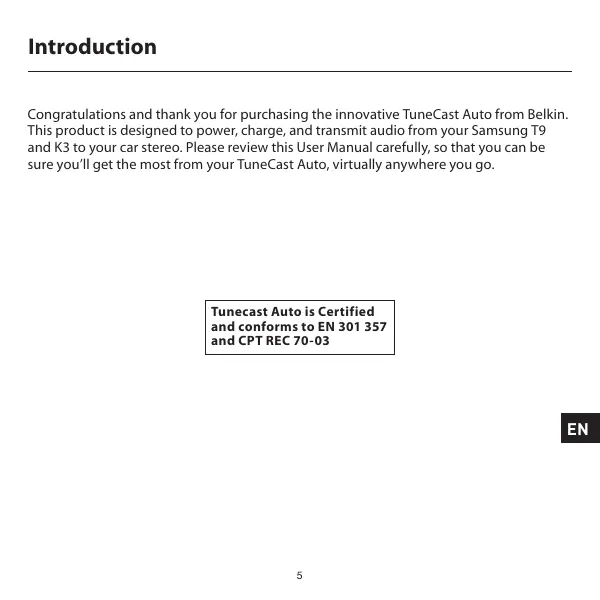

Introduction Congratulations and thank you for purchasing the innovative TuneCast Auto from Belkin. This product is designed to power, charge, and transmit audio from your Samsung T9 and K3 to your car stereo. Please review this User Manual carefully, so that you can be sure you’ll get the most from your TuneCast Auto, virtually anywhere you go. Tunecast Auto is Certified and conforms to EN 301 357 and CPT REC 70-03

1. For AUDIO and POWER: Plug the dock connector into your Samsung and the

cigarette-lighter adapter into your car’s cigarette-lighter outlet. Press the I or II button to activate when the transmitter goes into sleep mode.

2. For MOUNTING: Use multi-mount socket and mount with adhesive backing to

attach your TuneCast Auto to any smooth surface. Note: To conserve power, the TuneCast Auto will automatically turn off when there is no input audio signal for approximately 30 seconds.

3. Tune your car stereo frequency to a channel with a

weak broadcast signal. The ideal channel is one that is not picking up a signal from a radio station, or is doing so weakly.

4. Press the or button on the TuneCast Auto to select

the transmission frequency chosen in step 3, on your car for broadcast. Press and hold either button for fast-forward or backward tuning.

5. Your TuneCast Auto can memorize up to two different frequencies so you can

recall them quickly later. a. Select the desired frequency using the or buttons. b. Press and hold the MI or MII button for two seconds. When the MI or MII icon blinks, release the button.

6. Adjust the volume on your Samsung to a medium level.

7. Adjust the volume of your FM radio to the desired listening level.*

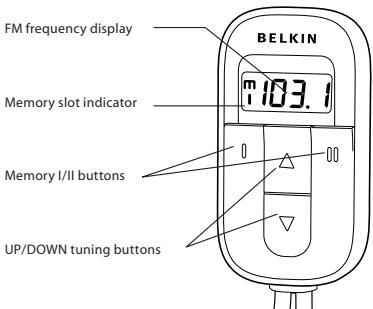

*Due to characteristics of FM transmission, you will experience better sound quality by adjusting the volume on your car stereo when necessary, and by leaving your Samsung volume at a medium level. FM frequency display Free Tech Support* You can find additional support information on our website www.belkin.com through the tech-support area. If you want to contact technical support by phone, please call the number you need from the list below*. *Local rates apply Country AUSTRIA BELGIUM CZECH REPUBLIC DENMARK FINLAND FRANCE GERMANY GREECE HUNGARY ICELAND IRELAND ITALY LUXEMBOURG Information This equipment has been tested and found to be compliant with the requirements of the R&TTE Directive. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help European Standards Compliance Statement This product complies with the following standards: EN 60065, EN 300 320 and EN 301

489. For the full Declaration of Conformity please follow the following link:

www.belkin.com/doc This product complies to the WEEE directive. For recycling information please follow the following link: www.belkin.com/environmental

Belkin International, Inc. Limited 3-Year Product Warranty What this warranty covers. Belkin International, Inc. warrants to the original purchaser of this Belkin product that the product shall be free of defects in design, assembly, material or workmanship. What the period of coverage is. Belkin International, Inc. warrants the Belkin product for three years. What will we do to correct problems? Product Warranty. Belkin will repair or replace, at its option, any defective product free of charge (except for shipping charges for the product). What is not covered by this warranty? All above warranties are null and void if the Belkin product is not provided to Belkin International, Inc. for inspection upon Belkin’s request at the sole expense of the purchaser, or if Belkin International, Inc. determines that the Belkin product has been improperly installed, altered in any way, or tampered with. The Belkin Product Warranty does not protect against acts of God (other than lightning) such as flood, earthquake, war, vandalism, theft, normal-use wear and tear, erosion, depletion, obsolescence, abuse, damage due to low voltage disturbances (i.e. brownouts or sags), non-authorized program, or system equipment modification or alteration.

Warranty How to get service. To get service for your Belkin product you must take the following steps:

1. Contact Belkin Customer Service (see details on page 8), within 15 days of the Occurrence. Be

prepared to provide the following information: a. The part number of the Belkin product. b. Where you purchased the product. c. When you purchased the product. d. Copy of original receipt.

2. Your Belkin Customer Service Representative will then instruct you on how to forward your receipt

and Belkin product and how to proceed with your claim. Belkin International, Inc. reserves the right to review the damaged Belkin product. All costs of shipping the Belkin product to Belkin International, Inc. for inspection shall be borne solely by the purchaser. If Belkin determines, in its sole discretion, that it is impractical to ship the damaged equipment to Belkin International, Inc., Belkin may designate, in its sole discretion, an equipment repair facility to inspect and estimate the cost to repair such equipment. The cost, if any, of shipping the equipment to and from such repair facility and of such estimate shall be borne solely by the purchaser. Damaged equipment must remain available for inspection until the claim is finalized. Whenever claims are settled, Belkin International, Inc. reserves the right to be subrogated under any existing insurance policies the purchaser may have. How state law relates to the warranty. THIS WARRANTY CONTAINS THE SOLE WARRANTY OF BELKIN INTERNATIONAL, INC., THERE ARE NO OTHER WARRANTIES, EXPRESSED OR, EXCEPT AS REQUIRED BY LAW, IMPLIED, INCLUDING THE IMPLIED WARRANTY OR CONDITION OF QUALITY, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND SUCH IMPLIED WARRANTIES, IF ANY, ARE LIMITED IN DURATION TO THE TERM OF THIS WARRANTY. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. IN NO EVENT SHALL BELKIN INTERNATIONAL, INC. BE LIABLE FOR INCIDENTAL, SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR MULTIPLE DAMAGES SUCH AS, BUT NOT LIMITED TO, LOST BUSINESS OR PROFITS ARISING OUT OF THE SALE OR USE OF ANY BELKIN PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. This warranty gives you specific legal rights, and you may also have other rights, which may vary from state to state. Some states do not allow the exclusion or limitation of incidental, consequential, or other damages, so the above limitations may not apply to you.
