USER MANUAL SCD535/00 PHILIPS AVENT

Register your product and get support at www.philips.com/welcome SCD535 EN User manual

NL Gebruiksaanwijzing

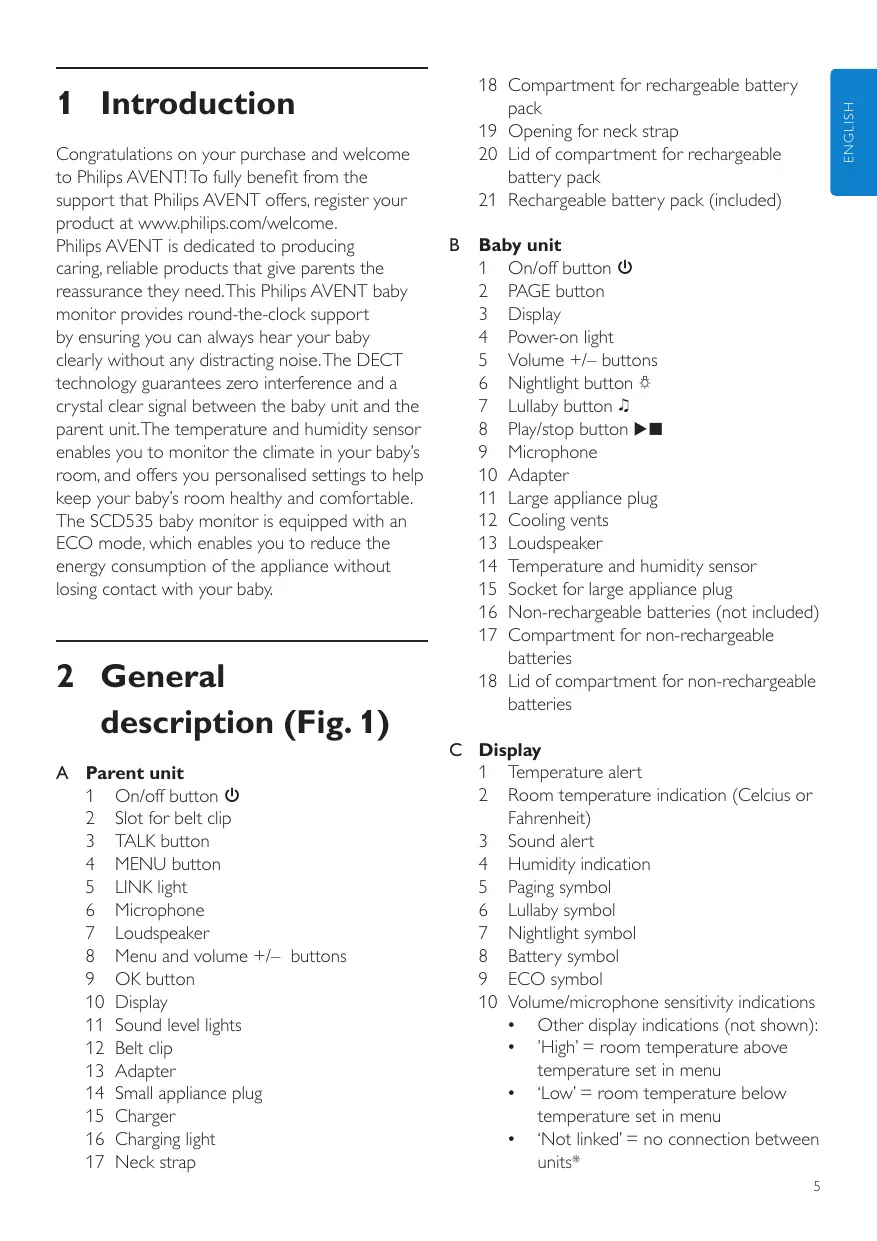

Congratulations on your purchase and welcome to Philips AVENT! To fully benefit from the support that Philips AVENT offers, register your product at www.philips.com/welcome. Philips AVENT is dedicated to producing caring, reliable products that give parents the reassurance they need. This Philips AVENT baby monitor provides round-the-clock support by ensuring you can always hear your baby clearly without any distracting noise. The DECT technology guarantees zero interference and a crystal clear signal between the baby unit and the parent unit. The temperature and humidity sensor enables you to monitor the climate in your baby’s room, and offers you personalised settings to help keep your baby’s room healthy and comfortable. The SCD535 baby monitor is equipped with an ECO mode, which enables you to reduce the energy consumption of the appliance without losing contact with your baby. 2 General description (Fig. 1) A Parent unit 1 On/off button 3 2 Slot for belt clip   3 TALK button 4 MENU button 5 LINK light 6 Microphone 7 Loudspeaker   8 Menu and volume +/–  buttons 9 OK button 10 Display 11 Sound level lights 12 Belt clip 13 Adapter 14 Small appliance plug 15 Charger 16 Charging light 17 Neck strap E nglish 18 Compartment for rechargeable battery pack 19 Opening for neck strap 20 Lid of compartment for rechargeable battery pack   21 Rechargeable battery pack (included) 1 Introduction

Baby unit 1 On/off button 3 2 PAGE button 3 Display 4 Power-on light    5 Volume +/– buttons 6 Nightlight button Q 7 Lullaby button K 8 Play/stop button E 9 Microphone 10 Adapter   11 Large appliance plug 12 Cooling vents 13 Loudspeaker 14 Temperature and humidity sensor 15 Socket for large appliance plug 16 Non-rechargeable batteries (not included) 17 Compartment for non-rechargeable batteries 18 Lid of compartment for non-rechargeable batteries C Display 1 Temperature alert 2 Room temperature indication (Celcius or Fahrenheit) 3 Sound alert 4 Humidity indication 5 Paging symbol    6 Lullaby symbol 7 Nightlight symbol 8 Battery symbol 9 ECO symbol 10 Volume/microphone sensitivity indications

• • Other display indications (not shown):
• • ’High’ = room temperature above temperature set in menu
• • ‘Low’ = room temperature below temperature set in menu
• • ‘Not linked’ = no connection between units*

• • ’Paused’ = lullaby is paused
• • ‘Searching’ = units are searching for connection*
• • ‘Linked’ = units are linked*
• • ’Talk’ = talk function is active
• This is only shown on the display of the parent unit. D Travel pouch 3 Important Read this user manual carefully before you use the appliance and save it for future reference.

3.0.1 Danger

• • Never immerse any part of the baby monitor in water or any other liquid.
• • Do not place the appliance where water or any other liquid can drip or splash onto it.
• • Never put any object containing liquid on top of the baby unit.

3.0.2 Warning

• • Check if the voltage indicated on the adapters of the baby unit and the charger corresponds to the local mains voltage before you connect the appliance.
• • Only use the adapter supplied to connect the baby unit to the mains.
• • Only use the charger and adapter supplied to charge the parent unit.
• • The adapters contain a transformer. Do not cut off the adapters to replace them with other plugs, as this causes a hazardous situation.
• • If the adapters are damaged, always have them replaced with one of the original type in order to avoid a hazard. For the correct type, see chapter ‘Replacement’.
• • If the charger of the parent unit is damaged, always have it replaced with one of the original type.
• • Never use the baby monitor in moist places or close to water.

• • Except for the battery compartments, do not open the housing of the baby unit and parent unit in order to prevent electric shock.
• • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• • Children should be supervised to ensure that they do not play with the appliance.

3.0.3 Caution

• • Use and store the appliance at a temperature between 7°C and 40°C.
• • Do not expose the baby unit and parent unit to extreme cold or heat or to direct sunlight. Do not put the baby unit and the parent unit close to a heating source.
• • Make sure the baby unit and the cord are always out of reach of the baby (at least 1 metre/3 feet away).
• • Never place the baby unit inside the baby’s bed or playpen.
• • Never cover the parent unit and the baby unit with anything (e.g. a towel or blanket). Always make sure the cooling vents of the baby unit are free.
• • If you place the parent unit next to a transmitter or other DECT appliance (e.g. a DECT telephone or wireless router for the internet), the connection with the baby unit may be lost. Move the baby monitor further away from the other wireless appliances until the connection is restored.
• • Switched-on mobile phones in the vicinity of the baby monitor may cause interference with the baby monitor.
• • Radio interference is inevitable and may have an effect on the sound quality of the baby monitor.

3.0.4 General

• • This baby monitor is intended as an aid. It is not a substitute for responsible and proper adult supervision and should not be used as such.

3.0.5 Important information about nonrechargeable batteries and the

rechargeable battery pack

• • Non-rechargeable batteries and the rechargeable battery pack may explode if exposed to sunshine, fire or high temperatures due to other causes.
• • Always place a rechargeable battery pack of the correct type in the parent unit to avoid the risk of explosion. Do not use nonrechargeable batteries to avoid the risk of explosion.
• • Always place non-recheargeable batteries of the correct type in the baby unit to avoid the risk of explosion. The baby unit does not have a charging function.
• • Make sure that your hands are dry when you insert or replace non-rechargeable batteries or the rechargeable battery pack.
• • To avoid damage due to leakage of nonrechargeable batteries or the battery pack: 1 Do not expose the appliance to temperatures higher than 35°C. 2 Remove the rechargeable battery pack of the parent unit and the non-rechargeable batteries of the baby unit if you are not going to use the appliance for one month or more. 3 Do not leave empty non-rechargeable batteries in the baby unit.
• • Dispose of non-rechargeable batteries and the rechargeable battery pack properly (see chapter ‘Environment’). This Philips AVENT appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today. 4 Preparing for use E nglish

• • Take every precaution to make sure that your baby can sleep safely .
• • The humidity and temperature sensor only measures the temperature and humidity in the baby room. It cannot be used to control or adjust the temperature and humidity in the baby room.

4.1 Baby unit

You can use the baby unit from the mains or on non-rechargeable batteries. Even if you are going to use the unit from the mains, we advise you to insert non-rechargeable batteries. This guarantees automatic back-up in case of mains failure.

4.1.1 Mains operation

Put the large appliance plug in the baby unit and put the adapter in a wall socket (Fig. 2).

4.1.2 Operation on non-rechargeable

batteries The baby unit runs on four 1.5V R6 AA batteries (not included). We strongly advise you to use Philips LR6 PowerLife batteries. Do not use rechargeable batteries, as the baby unit does not have a charging function. Place batteries in the baby unit if you do not want to use it from the mains or if you want to be sure of backup power in case of mains failure. Replace the batteries when the baby unit indicates that the batteries are low (the empty battery symbol flashes on the display and the text ‘Battery low’ appears). B Warning: Unplug the baby unit and make sure your hands and the unit are dry when you insert the nonrechargeable batteries. 1 Remove the lid of the compartment for nonrechargeable batteries (Fig. 3). 2 Insert four non-rechargeable batteries (Fig. 4).

D Note: Make sure the + and - poles point in the right direction. Reattach the lid (Fig. 5).

4.2 Parent unit

4.2.1 Operation on rechargeable battery

pack The parent unit comes with a rechargeable Li-ion 1000mAh battery pack. Charge the parent unit before you use it for the first time or when the parent unit indicates that the battery is low (the empty battery symbol flashes on the display and the parent unit beeps). The parent unit starts indicating that the battery pack is low 30 minutes before the battery pack is completely empty. D Note: If the rechargeable battery pack is completely empty, the parent unit automatically switches off and loses contact with the baby unit. 1 Remove the lid of the compartment for the rechargeable battery pack (Fig. 6). 2 Insert the rechargeable battery pack (Fig. 7). 3 Reattach the lid (Fig. 8). 4 Insert the small appliance plug into the charger, put the adapter in a wall socket and place the parent unit in the charger (Fig. 9).

• • The charging light on the charger goes on.
• • The display shows a charging battery symbol to indicate that the parent unit is charging. 5 Leave the parent unit in the charger until the battery pack is fully charged.
• • During charging, the charging light on the charger lights up continuously.
• • When the battery pack is fully charged, the display of the parent unit shows a full battery symbol T.
• • When you charge the parent unit for the first time or after a long period of disuse, switch it off and let it charge continuously for at least 10 hours.
• • Charging normally takes 4 hours, but it takes longer when the parent unit is switched on while charging. To keep the charging time as short as possible, switch off the parent unit during charging.
• • When the battery pack is fully charged, the parent unit can be used cordlessly for up to 24 hours.

D Note: When the parent unit is charged for the first time, the operating time is less than 24 hours. The battery pack only reaches its full capacity after you have charged and discharged it four times. D Note: When the parent unit is not in the charger, the battery pack gradually discharges, even when the parent unit is switched off. 5 Using the appliance

Place the parent unit and the baby unit in the same room to test the connection (Fig. 10). Make sure the baby unit is at least 1 metre/3 feet away from the parent unit. Press and hold the on/off button 3on the baby unit until the green power-on light goes on. (Fig. 11) D Note: The power-on light always lights up green, even when there is no connection with the parent unit.

• • The nightlight lights up briefly and then fades out again.
• • The display lights up and the battery symbol appears on the display (Fig. 12).
• • After 2 seconds the temperature and humidity values are shown on the display (Fig. 13). Press and hold the on/off button 3on the parent unit until the sound level lights light up briefly. (Fig. 14)
• • The display goes on and the battery symbol appears on the display (Fig. 15).
• • The LINK light flashes red and the message ‘Searching’ appears on the display (Fig. 16).
• • The LINK light on the parent unit turns green and lights up continuously when a connection has been established between the baby unit and parent unit. The message ‘Linked’ appears on the display (Fig. 17).

5.1 Positioning the baby

Place the baby unit at least 1 metre/3 feet away from your baby (Fig. 21). Place the parent unit within the operating range of the baby unit. Make sure it is at least 1 metre/3 feet away from the baby unit to avoid acoustic feedback (Fig. 10). For more information on the operating range, see section ‘Operating range’ below.

5.1.1 Operating range

The operating range of the baby monitor is 330 metres/1000 feet in open air. Depending on the surroundings and other factors that may cause interference, this range may be smaller. Indoors the operating range is up to 50 metres/150 feet. D Note: If the ECO mode is switched on, the operating range of the baby monitor is also smaller. See section ‘ECO mode’ in chapter ‘Menu options’. Dry materials Material Loss of thickness range Wood, plaster, cardboard,< 30cm/12in 0-10% glass (without metal, wires or lead) Brick, plywood < 30cm/12in 5-35% Reinforced concrete < 30cm/12in 30-100% Dry materials Metal grilles or bars Metal or aluminium sheets Material Loss of thickness range < 1cm /0.4in 90-100% < 1cm/0.4in 100% E nglish

• • After 2 seconds the message ‘Linked’ disappears and the temperature and humidity values are shown on the display. (Fig. 18)
• • The first time you switch on the parent unit, the message ‘Language’ appears on the display. Select the desired language (see chapter ‘Menu options, section ‘Setting display language’) (Fig. 19).
• • If no connection is established, the LINK light on the parent unit flashes red. The parent unit beeps from time to time and the message ‘Searching’ appears on the display, followed by the message ‘Not Linked’ (Fig. 20). For wet and moist materials, the range loss may be up to 100%. 6 Features The following features are described in chapter ‘Menu options’, as they can only be operated in the menu of the parent unit:
• • Adjusting microphone sensitivity
• • Sound alert on/off
• • Setting room temperature range (minimum and maximum temperature)
• • Temperature alert on/off
• • Vibration alert on/off
• • Setting temperature scale (Fahrenheit or Celcius)

6.1 Adjusting loudspeaker

Press the volume + or – button on the baby unit until the desired loudspeaker volume for the baby unit has been reached (Fig. 22). Press the volume + or – button on the parent unit until the desired loudspeaker volume for the parent unit has been reached (Fig. 23).

• • The displays give visual feedback on the volume settings of the units: (Fig. 24) 1  minimum volume (parent unit and baby unit) 2  maximum volume (parent unit and baby unit) D Note: If the volume is set to the lowest level, the display shows ‘OFF’.

D Note: If the volume is set to a high level, the units consume more power. You can use the TALK button on the parent unit to talk to your baby (e.g. to comfort your baby). 1 Press and hold the TALK button and talk clearly into the microphone from a distance of 15-30cm (Fig. 25).

• • The green LINK light starts flashing and the message ‘Talk’ appears on the display. 2 Release the TALK button when you have finished talking.

6.3 Sound level lights

The parent unit continuously monitors the sound level in your baby´s room and the sound level lights let you know if there is any activity. If your baby cries, you see the sound level lights light up on the parent unit.

• • As long as the baby unit does not detect a sound, all sound level lights on the parent unit are out.
• • When the baby unit picks up a sound, one or more sound level lights on the parent unit go on. The number of lights that go on is related to the loudness of the sound picked up by the baby unit.

6.4 Nightlight

D Note: You can also switch the nightlight on and off in the menu of the parent unit (see chapter ‘Menu options’, section ‘Nightlight’). 1 Press the nightlight button Qon the baby unit to switch on the nightlight. (Fig. 26)

• • Q appears on the display of the parent unit. 2 Press the nightlight button Qagain to switch off the nightlight.
• • The nightlight dims gradually before it goes out completely.
• • Qdisappears from the display of the parent unit.

E Tip: Switch off the nightlight when you operate the baby unit on non-rechargeable batteries. This saves power.

6.5 Paging the parent unit

If you have misplaced the parent unit, you can use the PAGE button on the baby unit to locate the parent unit. D Note: The paging function only works when the parent unit is switched on. 1 Press the PAGE button on the baby unit (Fig. 27).

• • The message ‘Paging’ and the paging symbol appear on the displays of the baby unit and parent unit.
• • The parent unit produces a paging alert tone. 2 To stop the paging alert tone, press the PAGE button again or press any button on the parent unit.

6.6 Lullaby function

D Note: You can also operate the lullaby function in the menu of the parent unit (see chapter ‘Menu options’, section ‘Lullaby function’). 1 Press the play/stop button Eon the baby unit to play the currently selected lullaby. (Fig. 28) 2 To select another lullaby, press the lullaby button Kon the baby unit within 2 seconds to toggle through the list of lullabies. (Fig. 29) D Note: If you do not press the lullaby button Kfor more than 2 seconds, the lullaby shown on the display starts to play.

• • The number of the lullaby appears on the display together with the lullaby symbol K.
• • The selected lullaby is repeated 5 times in a row.
• • When you select ‘play all’, all 5 lullabies are played once.

To stop the lullaby, press the play/stop button E on the baby unit again. (Fig. 28) To select another lullaby when a lullaby is playing:

• • Press the lullaby button K on the baby unit within 2 seconds to toggle through the list of lullabies. D Note: If you do not press the lullaby button Kfor more than 2 seconds, the lullaby shown on the display starts to play.

6.7 Humidity

When there is a connection between the baby unit and the parent unit, the humidity level is shown on the display of both units. The optimal humidity level is between 40% and 60%. It is very important to maintain the correct humidity level as it helps to protect your baby from irritation of the mucous membranes, dry and itchy skin, chapped lips and a dry, sore throat. When the mucous membranes do not function optimally, they cannot give your baby full protection from all kinds of germs. This increases the chance of your baby catching a cold or the flu, and reduces its resistance to infections from mould and bacteria. The Philips AVENT Ultrasonic Humidifier can help you improve the air quality and maintain a comfortable humidity level in your baby’s room. Contact your local Philips Consumer Care Centre for stockists. D Note: The message ‘Not Linked’ also appears on the display of the parent unit when the baby unit is switched off. 7 Menu options All functions can be operated on the parent unit, but some functions can also be operated on the baby unit.

7.1 Menu operation - general

explanation D Note: Menu functions can only be operated when a connection has been established between the baby unit and the parent unit. 1 Press the MENU button to open the menu (Fig. 30).

• • The first menu option appears on the display. 2 Use the – and + buttons to select the desired menu option (Fig. 31).

D Note: The baby monitor only measures the humidity level. You cannot adjust the humidity level with the baby monitor.

6.8 Out of range alert

D Note: The arrow indicates in which direction you can navigate. Press the OK button to confirm (Fig. 32). Use the + and - buttons to select the desired setting. Press the OK button to confirm.

• • The new setting flashes once. The message ‘saved’ also flashes once and then disappears from the display. Press the MENU button again to exit the menu. When the parent unit is out of range of the baby unit, the parent unit beeps from time to time and the messages ‘Searching’ and ‘Not linked’ appear on the display. The LINK light on the parent unit flashes red.

7.2 ECO mode

D Note: You can only switch the ECO mode on and off in the menu of the parent unit. You can use the ECO mode to reduce the energy consumption of the appliance. Monitoring your baby from a small distance requires less transmission power and less electrical power than monitoring your baby from a large distance. When you monitor your baby from a small distance, you can activate the ECO mode. In the ECO mode, the appliance consumes less energy, but still ensures that you can always hear your baby clearly without any distracting noise. Using the baby monitor in the ECO mode helps you to preserve the environment.

7.3 Nightlight on/off

7.4 Lullaby function

7.4.1 Selecting a lullaby

D Note: The operating range of the baby monitor when it is operated in the ECO mode is 260 meters in open air. Depending on the surroundings and other factor that may cause interference, this range may be smaller. 1 Select ‘ECO mode’ with the + and buttons (Fig. 31). 2 Press the OK button to confirm (Fig. 32). 3 If the ECO mode is off, the display shows ‘On?’. Press the OK button to switch on the ECO mode. If the ECO mode is on, the display shows ‘Off?’. Press the OK button to switch off the ECO mode.

• • If you have set the ECO mode to ‘on’, the parent unit switches off and on again. The ECO mode symbol appears on the display of the baby unit and the parent unit to indicate that both units now operate in ECO mode. D Note: The connection between parent and baby unit may be lost when the ECO mode is switched on. If this happens, the operating range may be too large for the ECO mode. In this case, either reduce the operating range or switch off the ECO mode.

Select ‘Light’ with the + and - buttons. Press the OK button to confirm. If the nightlight is off, the display shows ‘On?’. Press the OK button to switch on the nightlight. If the nightlight is on, the display shows ‘Off?’. Press the OK button to switch off the nightlight. Select ‘Lullaby’ with the + and - buttons. Press the OK button to confirm. Press the + button once or several times to select one of the five lullabies from the list or to select ‘Play All’. Press the OK button to confirm. When you have selected one of the five lullabies, it is played 5 times in a row. When you select ‘play all’, all 5 lullabies are played once.

7.4.2 Switching to another lullaby

Press the + button to choose another lullaby from the list. Press the OK button to confirm. Press the OK button.

• • The message ‘Paused’ appears on the display. Press the OK button again to resume the lullaby. If you do not resume the lullaby within 30 seconds, the lullaby function switches off automatically. The message ‘Paused’ and the lullaby symbol disappear from the display.

7.4.4 Stopping a lullaby

Press the + button to select ‘Stop’ from the list. Press the OK button to confirm. D Note: You can only adjust the microphone sensitivity in the menu of the parent unit. You can set the microphone sensitivity of the baby unit to the desired level. You can only change the microphone sensitivity when a connection between the baby unit and the parent unit has been established, i.e. when the LINK light on the parent unit lights up green continuously. 1 Select ‘Sensitivity’ with the + and - buttons. 2 Press the OK button to confirm. 3 Select the desired microphone sensitivity level for the baby unit with the + and buttons. (Fig. 24) 1 Minimum sensitivity level 2 Maximum sensitivity level 4 Press the OK button to confirm.

• • The message ‘Saved’ appears on the display. D Note: When the microphone sensitivity of the baby unit is set to a high level, it picks up more sounds and therefore transmits more often. As a result, the units consume more power and the operating time of the battery is shorter.

7.6 Sound alert on/off

D Note: You can only switch the sound alert on and off in the menu of the parent unit. This feature allows you to monitor your baby silently. It enables you to switch off the volume on your parent unit and still be alerted if your baby cries. If the sound alert is switched on, the parent unit beeps as soon as the fourth sound level light lights up while the volume is switched off. In addition, the backlight of the parent unit display goes on and the sound alert symbol ( g) flashes on the display. 1 Select ‘Alert settings’ with the + and - buttons. 2 Press the OK button to confirm. 3 Select ‘Sound alert’ with the + and - buttons. 4 Press the OK button to confirm.

If the alert is off, the display shows ‘On?’. Press the OK button to switch on the alert. If the alert is on, the display shows ‘Off?’. Press the OK button to switch off the alert.

• • If you have set the sound alert to ‘on’, the sound alert symbol ( g) appears on the display of the parent unit.

7.7 Setting room temperature

range D Note: You can only adjust the temperature range in the menu of the parent unit. A baby will sleep comfortably in a room heated to a temperature between 16°C and 20°C. This is important, since a baby cannot regulate its body temperature as well as an adult. A baby needs more time to adjust to temperature changes. If you do not set a temperature range, the baby monitor alerts you when the temperature in your baby’s room drops below 14°C or rises above 35°C. In this case, the backlight of the parent unit display goes on and ‘High’ or ‘Low’ appears on the display. To change the default minimum and maximum temperature, follow the instructions below. D Note: The temperature of the baby’s room is shown on the display of both units when they are linked. 1 Select ‘Temperature’ with the + and - buttons. 2 Press the OK button to confirm. 3 Select ‘Range’ with the + and - buttons. 4 Press the OK button to confirm. 5 Set the desired minimum temperature with the + and - buttons. 6 Press the OK button to confirm. 7 Set the desired maximum temperature with the + and - buttons. 8 Press the OK button to confirm.

• • The message ‘Saved’ appears on the display.

7.5 Adjusting microphone

7.8 Temperature alert on/off

D Note: You can only switch the temperature alert on and off in the menu of the parent unit. D Note: If the temperature alert is activated too often, reduce the set minimum temperature and/or increase the set maximum temperature (see ‘Setting room temperature range’). If the temperature alert is switched on, the parent unit beeps if the actual room temperature exceeds the set maximum temperature or drops below the set minimum temperature. In addition, the backlight of the parent unit display goes on, the temperature alert symbol ( t) flashes and ‘High’ or ‘Low’ appears on the display. If no minimum and maximum temperatures have been set, the temperature alert is given when the room temperature drops below 14°C or rises above 35°C. 1 Select ‘Temperature’ with the + and - buttons. 2 Press the OK button to confirm. 3 Select ‘Alert’ with the + and - buttons. 4 Press the OK button to confirm. 5 If the alert is off, the display shows ‘On?’. Press the OK button to switch on the alert. If the alert is on, the display shows ‘Off?’. Press the OK button to switch off the alert.

7.9 Vibration alert on/off

D Note: You can only switch the vibration alert on and off in the menu of the parent unit. If the vibration alert is switched on, the parent unit vibrates as soon as the fourth sound level light lights up while the volume is switched off. 1 Select ‘Alert settings’ with the + and - buttons. 2 Press the OK button to confirm. 3 Select ‘Vibration’ with the + and - buttons. 4 Press the OK button to confirm. 5 If the vibration alert is off, the display shows ‘On?’. Press the OK button to switch on the vibration alert. If the vibration alert is on, the display shows ‘Off?’. Press the OK button to switch off the vibration alert.

Select ‘Settings’ with the + and - buttons. Press the OK button to confirm. Select ‘Language’ with the + and - buttons. Press the OK button to confirm. Select the desired language with the + and buttons. Press the OK button to confirm.

7.11 Setting temperature scale

D Note: You can only set the temperature scale in the menu of the parent unit. You can set the temperature scale either to Celsius (C) or Fahrenheit (F). 1 Select ‘Settings’ with the + and - buttons. 2 Press the OK button to confirm. 3 Select ‘Temp scale’ with the + and - buttons. 4 Press the OK button to confirm. 5 Select ‘Celsius’ or ‘Fahrenheit’ with the + and buttons. This function in the menu of the parent unit allows you to reset both the parent unit and the baby unit to the default settings at the same time. You can use this function if problems occur that you cannot solve by following the suggestions in chapter ‘Frequently asked questions’. 1 Select ‘Settings’ with the + and - buttons. 2 Press the OK button to confirm. 3 Select ‘Reset’ with the + and - buttons. 4 Press the OK button to confirm.

• • The message ‘Confirm?’ appears on the display of the parent unit. 5 Press the OK button to confirm.
• • The parent unit switches off and then switches on again.
• • The units have now both been reset to the default factory settings. Parent unit
• • Vibration alert: off
• • Loudspeaker volume: 1
• • Microphone sensitivity: 5
• • Temperature alert: off
• • ’Temperature low’ alert: 14°C
• • ’Temperature high’ alert: 35°C
• • Temperature scale: Celsius
• • ECO mode: off Baby unit
• • Loudspeaker volume: 3
• • Lullaby: off 9 Cleaning and maintenance B Warning: Do not immerse the parent unit or the baby unit in water and do not clean them under the tap. B Warning: Do not use cleaning spray or liquid cleaners. 1 Unplug the baby unit if it is connected to the mains and take the parent unit out of the charger. 2 Clean the parent unit and the baby unit with a damp cloth. 8 Accessories

8.1 Belt clip and neck strap

If the battery pack of the parent unit is sufficiently charged, you can take the unit with you inside and outside the house if you attach the unit to your belt or waistband with the belt clip or if you hang it around your neck with the neck strap. This allows you to monitor your baby while you are moving around.

8.1.1 Connecting the belt clip

Snap the belt clip onto the parent unit (Fig. 33).

8.1.2 Disconnecting the belt clip

Pull the belt clip off the parent unit. E nglish B Warning: Make sure the parent unit is dry before you put it back into the plugged-in charger. Clean the charger with a dry cloth. Clean the adapters with a dry cloth. 10 Storage

• • You can use the travel pouch to store the baby monitor while you travel.
• • When you are not going to use the baby monitor for some time, remove the nonrechargeable batteries from the baby unit and remove the rechargeable battery pack from the parent unit. Store the parent unit, the baby unit, the charger of the parent unit and the adapters in the travel pouch supplied.

8.1.3 Connecting the neck strap

Insert the end loop of the neck strap through the hole behind the strap post. Thread the neck strap through the end loop and pull the neck strap tight (Fig. 34).

8.1.4 Disconnecting the neck strap

Pass the neck strip through the end loop and pull the end loop out of the hole behind the strap post.

Only replace the non-rechargeable batteries of the baby unit with four 1.5V R6 AA batteries. D Note: We strongly advise you to use Philips nonrechargeable batteries.

11.1.2 Adapter

Only replace the adapter of the baby unit with an adapter of the original type.You can order a new adapter from your dealer or a Philips service centre.

• • UK only: SSA-5W-09 UK 075040F
• • Other countries: SSA-5W-09 EU 075040F

11.2 Parent unit

11.2.1 Battery pack

Only replace the battery pack of the parent unit with a Li-ion 1000mAh battery pack.

11.2.2 Adapter

Only replace the adapter of the parent unit charger with an adapter of the original type. You can order a new adapter from your dealer or a Philips service centre.

• • UK only: SSA-5W-09 UK 075050F
• • Other countries: SSA-5W-09 EU 075050F

• • Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment (Fig. 35).
• • Non-rechargeable batteries and battery packs contain substances that may pollute the environment. Do not throw away nonrechargeable batteries and battery packs with the normal household waste, but hand them in at an official collection point. Always remove non-rechargeable batteries and battery packs before you discard and hand in the appliance at an official collection point. (Fig. 36) 13 Guarantee and service If you need service or information or if you have a problem, please visit the Philips AVENT website at www.philips.com/welcome or contact the Philips Consumer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer. This chapter lists the questions most frequently asked about the appliance. If you cannot find the answer to your question, contact the Consumer Care Centre in your country. What is ECO mode? How does this mode help the environment?
• The ECO mode has been developed to enable you to reduce your energy consumption. Monitoring your baby from a small distance requires less power than monitoring your baby from a large distance. When you monitor your baby from a small distance, you can activate the ECO mode. By switching on the ECO mode, your baby monitor uses less energy and is therefore more enviornment-friendly. Why don’t the power-on light of the baby unit and the LINK light of the parent unit come on when I press the on/off buttons of the units?
• • Perhaps the rechargeable battery pack of the parent unit is empty and the parent unit is not in the plugged-in charger. Insert the small appliance plug into the charger, put the adapter of the charger in a wall socket and place the parent unit in the charger. Then press the on/ off button to establish connection with the baby unit.
• • Perhaps the non-rechargeable batteries of the baby unit are empty and the baby unit is not connected to the mains. Replace the nonrechargeable batteries or connect the baby unit to the mains. Then press the on/off button to establish connection with the parent unit.
• • If the LINK light on the parent unit still does not start to flash, use the reset function to reset the units to their default settings. Why does the LINK light on the parent unit light up red continuously and why is the message ‘Searching’ shown on the display?
• • The baby unit and the parent unit are out of range of each other. Move the parent unit closer to the baby unit.
• • The baby unit may be switched off. Switch on the baby unit.
• • The ECO mode is switched on, but the operating range is too large. Move the parent unit closer to the baby unit or switch off the ECO mode. Why does the battery symbol flash on the display of the baby unit?
• The non-rechargeable batteries of the baby unit are running low. Replace the non-rechargeable batteries or connect the baby unit to the mains (see chapter ‘Preparing for use’). Why does the parent unit beep?
• If the parent unit beeps while the LINK light lights up red continuously and the message ‘Searching’ is shown on the display, the connection with the baby unit is lost. Move the parent unit closer to the baby unit.
• If the parent unit beeps and the battery symbol on the display is empty, the rechargeable battery pack of the parent unit is running low. Recharge the rechargeable battery pack.
• If you have switched off the volume while the sound alert is on, the parent unit beeps whenever the fourth sound level light lights up because the baby unit has picked up a sound.
• If you have set the room temperature range on the parent unit and the temperature alert is on, the parent unit beeps when the temperature drops below the set level or below 14°C or when the temperature rises above the set level or above 35°C.
• • The baby unit may be switched off. Switch on the baby unit.

E nglish 14 Frequently asked questions Why does the appliance produce a high-pitched noise?

• • The units may be too close to each other. Make sure the parent unit and the baby unit are at least 1 metre/3 feet away from each other.
• • The volume of the parent unit may be set too high. Decrease the volume of the parent unit. Why don’t I hear a sound/Why can’t I hear my baby cry?
• • The volume of the parent unit may be set too low or may be switched off. Increase the volume of the parent unit.
• • The microphone sensitivity level of the baby unit may be set too low. Set the microphone sensitivity level to a higher level in the menu of the parent unit.
• • The baby unit and the parent unit may be out of range of each other. Reduce the distance between the units. Why does the parent unit react too quickly to other sounds?
• • The baby unit also picks up other sounds than those of your baby. Move the baby unit closer to the baby (but observe the minimum distance of 1 metre/3 feet).
• • The microphone sensitivity level of the baby unit may be set too high. Decrease the microphone sensitivity level in the menu of the parent unit. Why does the parent unit react slowly to the baby’s crying?
• The microphone sensitivity level of the baby unit may be set too low. Increase the microphone sensitivity level of in the menu of the parent unit.

Why do the non-rechargeable batteries of the baby unit run low quickly?

• • The microphone sensitivity level of the baby unit may be set too high, which causes the baby unit to transmit more often. Decrease the microphone sensitivity level in the menu of the parent unit.
• • The volume on the baby unit may be set too high, which causes the baby unit to consume a lot of energy. Decrease the volume of the baby unit.
• • You may have set a maximum room temperature that is lower than the actual room temperature or a minimum room temperature that is higher than the actual room temperature. In this case the display is lit all the time, which increases the power consumption of the baby unit. This causes the non-rechargeable batteries of the baby unit to run low quickly.
• • Perhaps you have switched on the nightlight. If you want to use the nightlight, we advise you to run the baby unit on mains power. Why does the charging time of the parent unit exceed 4 hours?
• The parent unit may be switched on during charging. Switch off the parent unit during charging. The specified operating range of the baby monitor is 330 metres/1000 feet. Why does my baby monitor manage a much smaller distance than that?
• • The specified range is only valid outdoors in open air. Inside your house, the operating range is limited by the number and type of walls and/ or ceilings in between. Inside the house, the operating range is up to 50 metres/150 feet.
• • The ECO mode is switched on. When you operate the baby unit in ECO mode, the operating range is 260 meters/800 feet in open air. Inside your house, the operating range is limited by the number and type of walls and/or ceilings in between. Move the parent unit closer to the baby unit or switch off the ECO mode. Why doesn’t the battery symbol appear on the display of the parent unit when I start to recharge the parent unit?
• It may take a few minutes before the battery symbol appears on the display of the parent unit when you charge the parent for the first time or after a long period of disuse. E nglish Why is the connection lost every now and then? Why are there sound interruptions?
• • The baby unit and the parent unit are probably close to the outer limits of the operating range. Try a different location or decrease the distance between the units. Please note that it takes about 30 seconds each time before a connection between the units is established.
• • You may have placed the parent unit next to a transmitter or other DECT appliance, such as a DECT telephone or other 1.8GHz/1.9GHz baby monitor. Move the parent unit away from the other appliances until the connection is re-established. What happens during a power failure?
• If the parent unit is sufficiently charged, it continues to operate during a power failure, both inside and outside the charger. If there are batteries in the baby unit, it also continues to operate during a power failure. Is my baby monitor secure from eavesdropping and interference?
• The DECT technology of this baby monitor guarantees no interference from other equipment and no eavesdropping. The operating time of the parent unit is supposed to be up to 24 hours. Why is the operating time of my parent unit shorter?
• • When the rechargeable battery pack of the parent unit has been charged for the first time, the operating time is less than 24 hours. The rechargeable battery pack only reaches its full capacity after you have charged and discharged it at least four times.
• • The volume of the parent unit may be set too high, which causes the parent unit to consume a lot of energy. Decrease the volume of the parent unit
• • The microphone sensitivity level of the baby unit may be set too high, which causes the parent unit to consume a lot of energy. Decrease the microphone sensitivity level in the menu of the parent unit.

7.12.1 Standardinnstillinger

6.2 Função “Talk” (Conversar)
