USER MANUAL ROBOT CUISEUR VAPEUR/MIXEUR PHILIPS AVENT

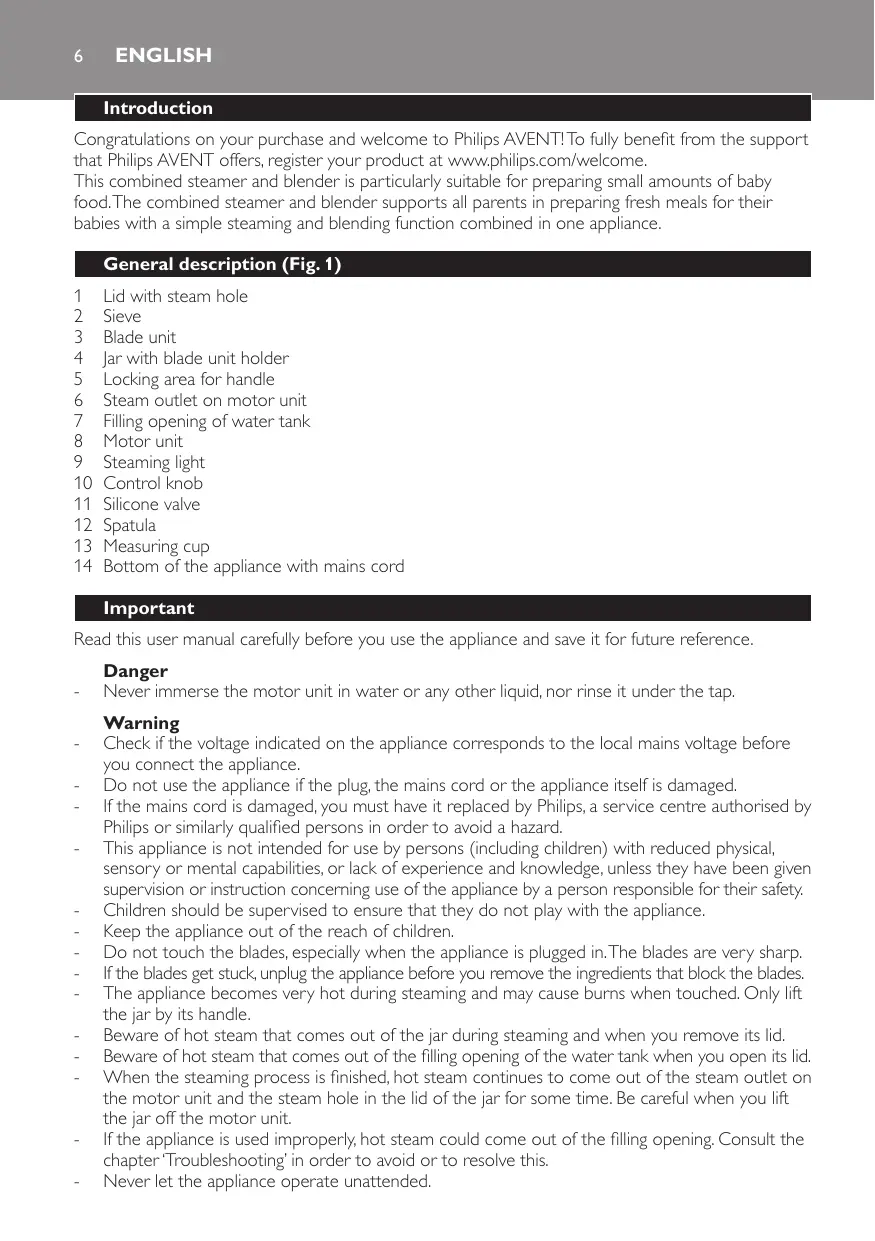

Congratulations on your purchase and welcome to Philips AVENT! To fully benefit from the support that Philips AVENT offers, register your product at www.philips.com/welcome.
This combined steamer and blender is particularly suitable for preparing small amounts of baby food. The combined steamer and blender supports all parents in preparing fresh meals for their babies with a simple steaming and blending function combined in one appliance.
General description (Fig. 1)
1 Lid with steam hole
2 Sieve
3 Blade unit
4 Jar with blade unit holder
5 Locking area for handle
6 Steam outlet on motor unit
7 Filling opening of water tank
8 Motor unit
9 Steaming light
10 Control knob
11 Silicone valve
12 Spatula
13 Measuring cup
14 Bottom of the appliance with mains cord
Important
Read this user manual carefully before you use the appliance and save it for future reference.
Danger
- Never immerse the motor unit in water or any other liquid, nor rinse it under the tap.
Warning
- Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
- Do not use the appliance if the plug, the mains cord or the appliance itself is damaged.
If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard. - This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- Keep the appliance out of the reach of children.
- Do not touch the blades, especially when the appliance is plugged in. The blades are very sharp.
- If the blades get stuck, unplug the appliance before you remove the ingredients that block the blades.
The appliance becomes very hot during steaming and may cause burns when touched. Only lift the jar by its handle. - Beware of hot steam that comes out of the jar during steaming and when you remove its lid.
- Beware of hot steam that comes out of the filling opening of the water tank when you open its lid.
- When the steaming process is finished, hot steam continues to come out of the steam outlet on the motor unit and the steam hole in the lid of the jar for some time. Be careful when you lift the jar off the motor unit.
- If the appliance is used improperly, hot steam could come out of the filling opening. Consult the chapter 'Troubleshooting' in order to avoid or to resolve this.
- Never let the appliance operate unattended.
Caution
- Never use any accessories or parts from other manufacturers or that Philips does not specifically recommend. If you use such accessories or parts, your guarantee becomes invalid.
- Do not place the appliance on or near an operating or still hot stove or cooker.
- Always unplug the appliance before you assemble or disassemble any of the parts and before you clean it.
Always unplug the appliance and let it cool down before you clean it. - Never use the jar or any other part of the appliance in a microwave, as the metal parts of the jar handle and blade unit are not suitable for this use.
- Never sterilise the jar or any other part of the appliance in a steriliser or in a microwave, as the metal parts of the jar handle and blade unit are not suitable for this use.
- This appliance is intended for household use only. If the appliance is used improperly or for professional or semi-professional purposes or if it is not used according to the instructions in the user manual, the guarantee becomes invalid and Philips refuses any liability for damage caused.
- Place the appliance on a stable, horizontal and level surface. Make sure there is enough free space around it to prevent damage to e.g. cabinets or other objects, as the appliance emits hot steam during use.
- Do not use the appliance if it has fallen or is damaged in any way. Take it to an authorised Philips service centre for repair.
- Never use the steaming function without water.
- Make sure that you do not overfill the water tank (max. 200ml). Do not exceed the maximum level indicated on the measuring cup.
- When you steam ingredients, make sure that you do not overfill the jar. Make sure that the top edge of the green blade unit is not covered with food.
- When you blend liquids, do not exceed the maximum level indicated on the jar (450ml).
- Do not lift and move the appliance while it is operating.
- Do not insert any object into the filling opening or the steam outlet.
- Never refill the water tank during the steaming process, as hot water and steam may come out of the appliance as a result.
Always make sure that the lid has cooled down after steaming before you open it to add more ingredients for blending, if necessary. - Never connect this appliance to a timer switch or remote control system in order to avoid a hazardous situation.
- Always check the temperature of the baby food on the back of your hand before you feed your baby.
Always check the consistency of the baby food. Make sure there are no chunks in the food. - When the steaming process (max. 20 minutes) is finished, do not steam or reheat the baby food again.
- Only use the spatula supplied to take the food out of the jar.
- Regular descending prevents damage to the appliance.
- Noise level: Lc = 89 dB(A).
Safety system
The appliance is equipped with a built-in safety lock. The appliance only functions if you have properly assembled all parts on the motor unit. If all parts are assembled correctly, the built-in safety lock will be unlocked.
The appliance is also equipped with overheat protection. Overheating could occur if the time between two steaming processes is too short, if the blending function is used too long or if there are too much ingredients in the jar. If the overheat protection switches off the appliance during use, set the control knob to 0 and let the appliance cool down for a few minutes. After this, you can use the appliance again.
Electromagnetic fields (EMF)
This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.
Before first use
1 Remove all packaging material from the appliance.
2 Clean all parts except the motor unit (see chapter 'Cleaning and maintenance').
Using the appliance
Always check the temperature of the baby food on the back of your hand before you feed your baby.
Always make sure that the lid has cooled down after steaming before you open it to add more ingredients for blending, if necessary. Do not exceed the maximum level indicated on the jar.
Empty the water tank before you refill it to start a new steaming process.
Always make sure the that the top edge of the green blade unit is not covered with food when you start steaming.
Do not exceed the maximum level indicated on the jar (450ml) when you blend liquids.
This appliance is intended for steaming fresh solid ingredients and then blending them to obtain baby food. See the recipe booklet for some examples. Normally you would first steam the ingredients and then blend them. However, you can also use the appliance for steaming or blending only. When you use the appliance for blending only, skip the sections 'Filling the water tank' and 'Steaming' and only follow the instructions in section 'Blending'. After blending, never steam already blended food. Never steam the same batch of ingredients for longer than 20 minutes or more than once.
This appliance is NOT intended for:
- Defrosting food
- Steaming frozen food
- Steaming already blended food
- Steaming the same ingredients for more than 20 minutes
- Cooking rice and pasta
- Blending ingredients first and then steaming them
Heating up fluids, e.g. soup or water - Keeping food warm for several hours
Reheating food
Filling the water tank
1 Fill the measuring cup with water up to the required level.
The measuring cup shows millilitres and the corresponding steaming time in minutes. See the separate recipe booklet for the recommended quantities of the recipes.
Note: Do not exceed the maximum level indicated on the measuring cup (200ml) to make sure that you do not overfill the water tank.
Note:We advise you not to use mineral water, as the minerals contained in this type of water cause scale to build up inside the water tank.
Pour the water into the filling opening and close the lid.
Note: Never put anything else than water in the water tank.
Steaming
If certain vegetables and fruits are steamed gently, they are perfect for babies who start to eat solid food. Steaming is the healthiest way of preparing food, as the food retains lots of vitamins and other healthy nutrients.
Note: You can find recipes and the cooking times required for these recipes in the separate recipe booklet. Note that the recipes are related to the age of the child.
Note: Do not steam frozen ingredients because the appliance cannot heat up frozen food to the temperature required for steaming. Always defrost frozen solid ingredients before you steam them in this appliance. Shake off any excess water from the defrosted ingredients before you put them in the jar.
1 Put the blade unit on the blade unit holder in the jar.
Cut solid ingredients into small pieces (cubes not bigger than 2-3cm) before you put them in the jar.
Note: Do not process a large quantity of solid ingredients at the same time. Process these ingredients in a series of small batches instead.
3 Put the ingredients in the jar.
Note: Do not exceed the top edge of the green blade unit.
Note: Never put water or any other liquid in the jar for steaming, to avoid damage to the appliance.
4 Put the silicone valve on the lid.
Note: Make sure the valve is fixed properly.
5 Put the sieve in the lid of the jar ('click').
6 Place the lid on the jar and turn it clockwise to fix it. The small projections on the lid have to slide into the grooves in the jar. Make sure that the large projection of the lid is placed exactly over the handle of the jar.
7 Place the jar upside down on the motor unit, i.e. with the lid downwards. Make sure the handle is on the right-hand side and that it is attached properly.
Note:The appliance does not start steaming if the jar and handle are not in the correct position.
8 Turn the control knob to the steaming position.
The steaming light lights up orange to indicate that the appliance is steaming.
Hot steam or hot water could burn your fingers. Do not touch and never let children touch hot parts and steam, as this may cause scalds.
The steaming time depends on the amount of water you have put in the water tank. See the table in chapter 'Ingredients and steaming times' and the recipe booklet.
- When the steaming process is finished, the appliance produces a buzzing sound and the steaming light goes out.
9 Set the control knob to the off position. Wait 2 minutes until no more steam comes out of the steam outlet, to avoid scalding by hot steam.
If you want to serve the steamed baby food without blending it, test the food on the back of your hand to make sure it is at a safe temperature for your baby.
Note: If you want to steam another batch of ingredients, let the appliance cool down for 10 minutes before you start steaming again.
10 If you want to proceed with blending the steamed food, follow the instructions in section 'Blending after steaming' below.
11 Under normal conditions, no water remains in the water tank after steaming. However, in some situations (e.g. in case of scale build-up inside the water tank, interruption of the steaming process or unintended use), some water could remain in the water tank. In this case, empty the water tank completely after use to avoid bacterial growth. To descale the water tank, see chapter 'Cleaning and maintenance'.
Blending after steaming
1 Grab the jar handle and lift the jar off the motor unit. Turn the jar around and shake it so that the food falls down onto the blade unit.
Only touch the jar handle. The lid, bottom and outer surface of the jar are hot.
2 If necessary, remove the lid and add additional ingredients for blending (e.g. water or oil).
Always make sure that the lid has cooled down after steaming before you open it to add more ingredients (do not exceed the maximum level indication) or to remove the remaining water from the water tank.
After you have put liquids in the jar, never put the jar in the steaming position.
3 Place the jar upright on the motor unit, i.e. with the lid upwards. Make sure the handle is on the right-hand side and positioned between the two ridges of the locking area.
4 Turn the control knob to the blending position. Hold the knob in this position until the food is properly blended.
Do not let the appliance blend for more than 30 seconds at a time. If you have not finished blending after 30 seconds, switch off the appliance and wait a few seconds before you continue. If the appliance becomes hot, let it cool down for a few minutes before you continue.
Note: If the ingredients stick to the wall of the jar, switch off the appliance and loosen them with the spatula or add some liquid.
Note: Make sure that the blended baby food has the right consistency (e.g. no lumps) before you serve it.
Note: If the baby food is still too solid add some fluid (e.g. water) until the baby food is soft and smooth.
5 When you have finished blending, simply release the control knob.
The knob automatically returns to the off position.
6 Remove the blended food from the jar. If necessary, use a spatula.
Make sure that the baby food is at a safe temperature for your baby.
7 Unplug the appliance.
Under normal conditions, no water remains in the water tank after steaming. However, in some situations (e.g. in case of scale build-up inside the water tank, interruption of the steaming process or unintended use), some water could remain in the water tank. In this case, empty the water tank completely after use to avoid bacterial growth. To descale the water tank, see chapter 'Cleaning and maintenance'.
Blending without steaming
The appliance is intended for:
- – pureeing steamed and cooked ingredients for baby food
- blending fluids and fruits for baby drinks
The appliance is not intended for chopping hard ingredients such as ice cubes and sugar cubes.
After you have put liquids in the jar, never put the jar in the steaming position.
Note: When you blend fluids, make sure you do not fill the jar beyond the maximum level indication on the jar.
Note: Never steam baby food after you have blended it.
1 Put the blade unit on the blade unit holder in the jar.
Cut solid ingredients into small pieces (cubes not bigger than 2-3cm) before you put them in the jar.
Tip: Do not process a large quantity of solid ingredients at the same time. Process these ingredients in a series of small batches instead.
3 Put the ingredients in the jar.
Note: Do not exceed the top edge of the green blade unit.
Put the silicone valve on the lid.
Note: Make sure the valve is fixed properly.
5 Put the sieve in the lid of the jar ('click').
6 Place the lid on the jar and turn it clockwise to fix it. The small projections on the lid have to slide into the grooves in the jar. Make sure that the large projection of the lid is placed exactly over the handle of the jar.
7 Place the jar upright on the motor unit, i.e. with the lid upwards. Make sure the handle is on the right-hand side and positioned between the two ridges of the locking area.
8 Turn the control knob to the blending position. Hold the knob in this position for as long as you need but for not more than 30 seconds.
Note: If the ingredients stick to the wall of the jar, switch off the appliance and loosen them with the spatula or add some liquid. Do not exceed the maximum level indication on the jar.
Note: Make sure that the blended baby food has the right consistency (e.g. no lumps) before you serve it.
Note: If the baby food is still too solid add some fluid (e.g. water) until the baby food is soft and smooth.
Do not exceed the maximum level indication on the jar.
Note: Never steam baby food after you have blended it.
Do not let the appliance blend for more than 30 seconds at a time. If you have not finished blending after 30 seconds, switch off the appliance and wait a few seconds before you continue. If the motor unit becomes hot, let it cool down for a few minutes before you continue.
9 When you have finished blending, simply release the control knob.
The knob automatically returns to the off position.
10 Remove the blended food from the jar. If necessary, use a spatula.
Make sure that the baby food is at a safe temperature for your baby.
11 Unplug the appliance.
Ingredients and steaming times
| Type of food | Ingredient | Approximate steaming time* |
| Fruit | Apple | 5 min |
| Oranges | 10 min | |
| Peach | 10 min | |
| Pear | 5 min | |
| Pineapple | 15 min | |
| Plum | 10 min | |
| Vegetables | Asparagus | 10 min |
| Broccoli | 20 min | |
| Carrot | 15 min | |
| Cauliflower | 15 min | |
| Celery | 15 min | |
| Courgette | 15 min | |
| Fennel | 15 min | |
| French beans | 20 min | |
| Leek | 15 min | |
| Onion | 15 min | |
| Peas | 20 min | |
| Pepper | 15 min | |
| Potato | 20 min | |
| Pumpkin | 15 min | |
| Spinach | 15 min | |
| Swede | 15 min | |
| Sweet potato | 15 min | |
| Tomato | 15 min | |
| Meat | Chicken, beef, lamb, pork etc. | 20 min |
| Fish | Salmon, sole, cod, trout etc. | 15 min |
- All food has to be cut in small cubes, no bigger than 2-3cm.
Cleaning and maintenance
Clean the appliance after every use.
Never immerse the motor unit in water.
Never use bleach or chemical sterilising solutions/tablets in the appliance.
Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol, acetone or alcohol to clean the appliance.
1 Unplug the appliance and remove the jar from the motor unit.
2 Remove the lid from the jar and turn the lid upside down.
3 Remove the sieve and the silicone valve from the lid.
4 Clean the silicone valve in hot water with some washing-up liquid and rinse it under the tap.
5 Remove the blade unit from the jar.
6 Clean the blade unit under the tap thoroughly, immediately after use. Make sure you also rinse the inside of the tube of the blade unit.
Handle the blade unit very carefully. The cutting edges are very sharp.
Note: If you want to clean the blade unit more thoroughly, you can also place it in the dishwasher after you have rinsed it.
7 Clean the other parts that have come into contact with food in hot water with some washing-up liquid immediately after use.
Note: All parts, except the motor unit, can also be cleaned in the dishwasher.
8 If necessary, clean the motor unit with a moist cloth.
9 Check if any food particles have entered the water tank. You can do this by looking into the filling opening to see if there are any food particles in it or by checking if the water has an unusual colour and by smelling if the water tank produces an unpleasant or a burnt smell. If this is the case, clean the water tank (see section 'Cleaning the water tank' in this chapter).
10 Leave the lid of the filling opening open to prevent bacterial growth.
Dscaling the water tank
If food particles enter the water tank, they may get stuck to the heating element in the water tank during the next steaming processes. These particles cannot be removed by just rinsing the water tank.
In addition, you have to descale the appliance every four weeks to ensure it continues to work 100% effectively. To reduce scale build-up, it is helpful to use pre-boiled or filtered water in the appliance.
To remove food particles inside the water tank and to descale the appliance, follow the descending instructions below.
1 Make sure the appliance is switched off.
2 Add one sachet of citric acid (10g) to 200ml of warm water.
Note:You can also use a solution of 150ml water and 50ml white vinegar (8% acetic acid).
3 Fill the water tank with the solution of citric acid (or vinegar) and water.
4 Close the lid of the filling opening.
5 Place the empty jar (without any food inside) fully assembled with blade unit and lid on the motor unit in steaming position (i.e. with the lid pointing downwards).
6 Turn the control knob to steaming position.
The steaming light lights up orange to indicate that the appliance is steaming.
7 Switch off the appliance after 5-6 min of steaming and unplug it.
Pour the used solution of citric acid (or vinegar) and water out of the water tank.
9 Rinse the water tank and the jar thoroughly with fresh water several times.
10 Fill the tank with 200ml water and let the appliance complete a steaming process of 20 minutes with the empty jar before you use the appliance with food again.
11 Leave the lid of the filling opening open to prevent bacterial growth.
Environment
- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.
Storage
1 Empty the water tank before you store the appliance.
2 Make sure all parts are clean and dry before you store the appliance (see chapter 'Cleaning').
3 Store the appliance with the blade unit in the jar to prevent damage.
4 Do not place the lid on the jar and leave the lid of the filling opening open to avoid bacterial growth.
Guarantee and service
If you need service or information or if you have a problem, please visit the Philips AVENT website at www.philips.com/AVENT or contact the Philips Consumer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer.
Troubleshooting
This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, contact the Consumer Care Centre in your country.
| Problem | Possible cause | Solution |
| The appliance does not work. | The appliance is equipped with a safety lock. If the parts have not been assembled properly onto the motor unit, the appliance does not work. | Assemble all parts properly. See chapter 'Using the appliance'. |
| The steaming light does not go on. | The appliance is not connected to the mains. | Put the plug in the wall socket. |
| The jar is not properly placed on the motor unit. | Place the jar properly on the motor unit. | |
| You want to start a second steaming process just after one has finished. | Switch off the appliance and allow it to cool down for a few minutes before you start a second steaming process. | |
| The ingredients are not heated up completely. | The pieces in the jar are too big, there is too much food in the jar or you have not steamed the food long enough. | Cut the food into smaller pieces (2-3cm), decrease the amount of food in the jar or select a longer steaming time (max. 20 minutes). Check the recipe booklet and/or the table in chapter 'Ingredients and steaming times' to make sure that you select the correct steaming time for the ingredients you want to steam or the recipe you want to prepare. |
| The appliance does not steam. | You have not put water in the appliance. | Switch off the appliance and put the right amount of water in the appliance. |
| You have not put the jar on the motor unit in the correct position. | Place the jar on the appliance in the correct position (see section 'Steaming' in chapter 'Using the appliance'). | |
| Steaming takes too long or the steam function does not work at all. | There is too much scale in the water tank. | Descale the water tank. See chapter 'Cleaning and maintenance', section 'Dscaling'. |
| Steam is coming out of the filling opening. | The lid of the filling opening is not closed properly. | Close the lid of the filling opening properly ('click'). |
| The steam outlet on the motor unit is blocked by food or by scale. | Clean the steam outlet with a pointy object without damaging the seal and follow the descaling instructions in the future. See chapter 'Cleaning and maintenance', section 'Dscaling'. | |
| The steam hole in the lid is blocked. | Remove the silicone valve and clean the steam hole in the lid properly. | |
| The steaming light goes on again after the steaming process is finished. After some time, the appliance buzzes again. | You have accidentally left the jar on the base for more than 10 minutes without switching off the appliance. | Switch off the appliance within 10 minutes after the steaming process is finished and then blend the food or remove it from the jar. |
| The blade unit or motor unit is blocked. | There is too much food in the jar. | Switch off the appliance and process a smaller quantity. Do not fill the jar beyond the top edge of the green blade unit. |
| The motor unit gives off an unpleasant smell during the first few times of use. | This is normal. | If the appliance continues to give off this smell after you have used it a few times, check whether the processing quantity and processing time are correct. See chapter 'Ingredients and steaming times'. |
| The appliance continues to give off an unpleasant smell after I used it a few times. | You put too much food in the jar or you let the appliance blend too long. | Process smaller quantities and do not let the appliance blend for more than 30 seconds at a time. |
| The appliance makes a lot of noise, produces an unpleasant smell, feels hot to the touch, emits smoke, etc. | There is too much food in the jar. | Switch off the appliance and process a smaller quantity. |
| You let the appliance operate too long without interruption. | Do not let the appliance blend for more than 30 seconds at a time. | |
| The lid of the jar leaks. | You have not assembled the lid on the jar properly. | Assemble the lid on the jar properly. See chapter 'Using the appliance'. |
| There is too much food in the jar. | Switch off the appliance and process a smaller quantity. | |
| There are white spots on the filling opening and/or on the jar; sieve and lid. | Scale has built up on these parts. | This is normal. Remove the scale periodically. See chapter 'Cleaning and maintenance', section 'Descaling'. |
| The appliance produces a lot of noise while it is blending. | The sieve is not attached to the lid of the jar. | Make sure that the sieve is attached to the lid of the jar. |
| The water in the water tank has an unusual colour when you pour it out of the water tank or when it enters the jar during steaming, or the water in the water tank has an unpleasant smell. | Food particles have entered the water tank during use. | Clean the water tank according to the instructions in chapter 'Cleaning and maintenance, section 'Cleaning the water tank'. Use the appliance strictly according to the instructions. Make sure you do not overfill the water tank with water (max 200ml) and that you do not overfill the jar with food (do not fill the jar beyond the top edge of the green blade unit). Do not steam the same ingredients for more than 20 minutes and do not put water for steaming directly in the jar. Also make sure that the valve is fixed in the lid. |
| A smell of grilled or burnt food comes out of the water tank | Food particles have entered the water tank during use and have caked onto the heating element. | Clean the water tank according to the instructions in chapter ‘Cleaning and maintenance, section ‘Cleaning the water tank’. Use the appliance strictly according to the instructions. Make sure you do not overfill the water tank with water (max 200ml) and that you do not overfill the jar with food (do not fill the jar beyond the top edge of the green blade unit). Do not steam the same ingredients for more than 20 minutes and do not put water for steaming directly in the jar. Also make sure that the valve is fixed in the lid. |
| There are dark spots in the baby food or the water in the jar has an unusual colour. | Food particles have entered the water tank during use and have caked onto the heating element. This causes residues of these food particles to enter the jar during steaming. | Clean the water tank according to the instructions in chapter ‘Cleaning and maintenance, section ‘Cleaning the water tank’. Use the appliance strictly according to the instructions. Make sure you do not overfill the water tank with water (max 200ml) and that you do not overfill the jar with food (do not fill the jar beyond the top edge of the green blade unit). Do not steam the same ingredients for more than 20 minutes and do not put water for steering directly in the jar. Also make sure that the valve is fixed in the lid. |
Technical specifications
Voltage/wattage: see type plate on the bottom of the appliance.
Maximum capacity of water tank: 200ml.
Maximum capacity of jar, solid ingredients: 800ml.
Maximum capacity of jar, liquids: 450ml.
Usage temperature: 10^ to 40^
- Protection: temperature-controlled heating system and safety lock.
Uvod
IpeaHa aom npiroTOBaeHna y6eHTecb, cTo BepxHn Kpa3eAeHOro HOKeBOrO 6aoka He NOKpbl TPOdyKTAMN.
CmeuBaJxKIOCTn,He 3aNoAHyTe pN6Op BbIe MaKcMaIbHOJ OTMeTKN,yKa3aHHoHa KByuHHe (450 m).
UcTpoiCTBO ppeHa3HaueHNO dA npiroTOBVAeHn Ha napy CBexKnx TbePbIx INHpreDAeHTOB nIX NocAeDyUoSeIHO3MeAubHeHn INoAyHeHn AetCKO rNtAHn. PpimepbI peuENTOB MOXHO NOCMOTPeTB B6yKAE, KOTOpBn NOCTabAAETCB MecTe C UcTPOIcTBOM. IOnpa3ymEbaeTc, YTO CHaHaI INHpreDAeHnBI rTOBATCn HA napy, a 3aTeM IN3MeAubAIOCTc. OdHaKO pnp6Op MOxHO TaKHe NCPOA3OBaTb ANo TObKO dA npiroTOBVAeHn pOAdyKTOB Ha napy, Ano 3MeAubHeHn. ECAI
yctpoCTBO NcnoA3yeTcB KaueCTBe 6aHepa, npOpyCTnTe pa3AeIb "3aNoAHene pe3epByapa
Ara BOaI" n "PpuroTOBAAHene Ha napy", cAeMyTe INCTpyKUmR B pa3AeAE "13MeAUYehne".
Hikorda He pa3OrpeBaIte 3MEmbUeHHbIe npOdykTbI. HIKoRa He roTOBbTe INHrpeAeHTbI 60Able
20 MInHTn He o6pa6aTbIbAIte npOdykTbI NOBtOPHO.
Pn6op HE npedHa3Nauehen
pa3MOP03KN npOyKTOB;
-пригOTOBаеня на napу заиморожених прдуктов;
- npnroTOBaeHna npaHy n3MeIbueHHbIX B 6eHpepe npOdyKToB;
- pInrTOBVAeHnOAnxNTEXJeePPOyKToBHa npay OaIbwe 20 MInHyT;
- PnIroTOBVAHnPAuMaKaPOHHbIX N3eAIA;
- I3MeAByeHn INIgpeAnEHTOB INIOcAeDyUOSeI Ox INPiNTOBAnEHHa NaPpy;
- NOOOrpeBa KnAkoCTeN,HaNPIMep CyIOB N BOaIbI;
- NOДержаня TempepaTpyb IpoDyKTOB B TeueHne HeckoBknx YacOB;
pa3OrpeBa npOaYkTOB.
3aNoAHeHne pe3epByapa AIA BOAbI
1 HanoHnTe MehBb CTaKaH BDOa DO Heo6xoAMoTO yPoBHa.
Ha mepHom cTaKaHe yka3aH yPoBeHb MmMmHTpax H Heo6xOaHmoe BpeMa BapKn BmHyTax. CbeEHH O peKomeHdyeom KOAnyCteB IpOaYKTOB CM. B OTaIbHOM 6yKaTe CpeeNTamn.
Примочан He Зларнояше Мернь смахь Виш Мaksmaь Hoу ommekn (200 m), Emno nO3BOAMn 36eKamb nepenoAnenpeepByapa gA BObl.
PnmueyHne Ncnoa30BaHne MNhepaBhoBogbi He peKoMeHgyemcra, nockoAky MnHepaBbl, cogepkauneCBA makoBoge, npBogam K o6pa30BaHnO Haknn B pe3epByape.
3aene Te BOy B HAANBHOe OTBepCTne N 3akpoTe KpbIky.
PpmeaHne HnKorga He HaunBaime B pe3epByap HnUero, Kpome Boqbl.
PnroTOBaeHne Ha npay
HeKoTOpbIe p k_T I OBOUH, cAIN IX PpeABaprTeMbHO NODBeprHyTb 7aAraeJn o6pa6OTke napom, npeKpacHO IOxOaJr TcTAM, KOTOpbIM MOJHX eCTb TBepayIO NIIu. O6pa6OTka napom — Han60aee 3dopOBbI CNOC6 npriTOBaeHnRA NIIuN, B pe3yTaTe KOtOPOro COxPaHReTc8oAusbHCTBO BNTAmHOB IN DpyTNX NOAE3HbIX BESeCTB.
PnmeuHne Peenmbu Hbem npurromoAeHna Kkgo 6aoga yka3aHb B omgeabHom 6yKaeme.
Obpaime BnmaHne,mo Kaqgb peuen coombemcmyem onpegeAehHom Bo3pacmy pe6hka.
PnmeuHne He 3aRpykaime B np603amopoxeHHbIe HrpegnHeMbI, np60 he npega3HaueH gA harpeBaHna 3amopoxeHHbIX npogykmoB go Hyxho memnpamypbl gA o6pa6omKn napom. Ipeg o6pa6omKo napOM BCerga pa3mopaxHBaIme 3amopoxeHHbIe npogykmbI. Ipeg mem Ka noaoJmm npogykmbI b KByuHN, ygaIIme C HNX n3AnuHIO JngKocmb.
1 Tomecntte HOKeBOI 6oK Ha aepKaTeaH HOKeBOI 6oKa B KByuHe.
2 Ipejke Ye mnooKntb TBepeBte INHrpeAneHTbI B KyBunH, nopeXbTe Hx Ha MeAKe NcOuyKn (ky6nKn pa3MePOM He 60aee 2-3 cm).
Pnmeyane He n3Meaayme 60aIbOe KOAnuecMBO mBepgblx HnRpegnHeMOB ogHOBpeMeHHo.
N3Meaayme makne HnRpegnHeMbI He6oAaHmN nopuaMn.
3 POMeCTHTe HnHPeaHEnTbI B EMKoCTb.
PpmeaHne He 3arpykaime npogykmbI bIIwe Bepxero kpa 3eAehoro HOKeBoro 6oka.
Pnmuemayne 4m06bni36exkamb nobpexgehna ycmpoicmba, HNKorga He hauhbaime Bogy nHgpyyIO Kngkocmb BVuBHN nepeg anycKom npouceca npriromobAeHH.
4 YcTaHOBInTe CAnIOHOBOHbI KAnPah Na KpbIiKy.
PpmeaHne 6egmecb, ymo Kaanah HageKHO 3aΦnKcnpoBaH.
5 YcTaHOBnTe ΦnMbTp B KpbIuKy KyBUnHa (pa3dactcIeauok).
6 3aKpOJIe KByIINH KpbIJKoN, NOBepHInTe KpbIJKy NO YacOBo CTpeAke AIA ΦNKCaUN. He6oAusbIe BbICTynbHa KpbIJKe DOAnXHbI COBnactb C Na3Amn Ha KByIINHe. Y6eAnTEcb, yTO 6oAusbOu BbICTynHa KpbIJKe HxOAnTCr HENOCpeACTBeHHO Ha dpyKO KByIINHa.
7 IomeCTHe KByuHn Ha 6Ank 3AeKtpoDburTaTea OCHOBAHm BBePx, a KpbIshkoB — BHn3. Y6eAnTeCb, yTO pyuKa npabunbHO yCTaHOBaHa n HaxOAnTcra c npabO CTOpOHbl.
Примачане Пибор He 6ygem pa6omamb, ecn Kpbilka n Kyblin ycmahOBaHbI HenpaBnAbHO.
8 IpebeAHTe peekauoateb pexKIMOB BIOAOxHne 6pa6OTKn napom.
HnKaTOp BapKn 3aRopntc OpaHKeBbIM, yKa3bIBa, yTo np6Op HaxoNTcB 3TOM peXmE.
Tognyn nap HAN BOa MOrTy O6xuey PbAubcI. N36eraIte KOHTAKTa C TOpryuMn DeTaAMN np6opaa nnapom n He No3BOaYIte 3TO DeLaTb DeTAM. 3TO MoXET pINBecTn K OKoRAM.
Bpem npirotoBaeHn Ha npy 3aBnCt OT KOAnHeCTBa BOdbi, 3aAHTOBpe3epByap. Cm. Ta6Anu y BraBe "PpOdykTbI H BPem npirotoBaeHn Ha npy" n 6yKaET c peUeNTAMn.
3aBepueHne npoucecca npnroTOBaeHna COnpOBoXdaeTcraCnHaAOM N BbIKAOUeHHeM HAnKaTopa BapKn.
9 YCTaHOBHTe nepeKIAOHTe b peXHMOB B NOAOKeHne BbIKAOUeHn. Yo6bI n36eKaTb OxOROB, NDOXKAHTe 2 MInHytbl, NOKa nap nepeCTaHET NOBARbCRN 3 OTBepCTnAra BBIXOda npa.
Ecam O6pa6oTaHHoe Napom AetCKOE NHTAHne He HynXHO CMeUNBaTb B 6aEHDepe, nPoBepbTe TEMpePaTy PNTAHnY TBIAHOn CTOPHOH AAODHN, UTO6bI y6eAnTbcR, UTO TEMpePaTypA 6e3OpanaHa PpeBeka.
PpmeaHne Ean Heo6xogmo npromobmb Ha napy eue ogHy nopuzio npogykmoB, nepeg 3anyckom Cagyuioero uKna npromobae hna gaime npb6opy ocmblb B meyeHne 10 Mmhym.
10 Ecan Heo6xOaHMo H3MeAubnTb npiroTOBaeHHbIe Ha napy npOaYkTbI, CaeayTe NHCTpyKcIaM B pa3deae "V3meAueHne nocae npiroTOBaeHna napy".
11 Pn npabHOBn 3KcNpyaTunnoe pnpiroTOBaeHna npay B pe3epByape He doJXHO OCTaTbCRABObl. OHaKO B HekOTOpBX CAYAax (HaNPmep, pnpckOaEHn HAKINB pe3epByape, pn nppepbBaHn INpocecca Hn npn HCNOb3OBAHN INp6opa He nO h3NaueHHo) B pe3epByape cKaANBaETc HekOTOpoe KOAnYeCTBO BObl. B 3tOM CAYae AAn npdeOTBpaSeHn pa3MHOxHn 6akTePn BblAEte OCTaTKn BObl n3 pe3epByapa. HnctpykUnn OOnCTKe pe3epByapa OT HAKIN CN.B rAabe "OOnCTKa uYxoA".
N3meAByeHne nOcAe npnroTOBaeHHa npay
1 Bo3bMnte KByuHn 3a pyKy n CHmTe erO c 6oKa 3eKtpoDburTaTeA. IOBepHnTe KByuHn n BCTpXHnTe, UTO6bl Niua Pnonaa B pexyui 6oK.
Bepnte kyBunn ToaBko 3a pyuKy. HxHra yacTb KpbIuKn N BHeuHra NOBepxHOCTb KyBunHa ropaune.
2 Pn Heo6xOAMOCTN CHMNTe KpbIbKy I O6aBbTe AONOAHTeAhbIe INHPeAnEHTbl dA CMeuBaHna (HaPnMpE, BOa HAN MaCAo).
PpeKdE qem O6abNTb INHrpeAneHTbl (He IpeBbIaJte MaKcImaIbHO DOyCTMbI yPOBeHb) HnCANTb BOy H3 pe3epByapa, y6eAnTeCb, yTO KpbIka OCTbla.
IocAe Oo6aBHeHn JnKoCTn B KyBUnH, HNKoTa He BKIoUaYtepeXm npiroTOBHeHna napy.
3IocTabBe KByBnH BepTnKaA bHO Ha 6AoK 3eKToPdABnIaTeAe (KpbIiKa DOAnXHa 6bITb HApBaAeHa HabePx).Y6eAnTeCb, yTO pyKa HaxoAnTCs CnpBaN paCnOAnKeHa MeKdy ABympe6pamn O6AACTn 6AoKnPOBaHN.
4 NopBepHnTe nepeKluOaTeAb peKHMOB B NOAOKeHne H3MeAueHnry. YdepKbaiTe nepeKluOaTeAb B TAKOM NOAOKeHnD O Tex IOp, POKa IPOdYkTbI He 6ydyT H3MeAueHbI DO HxHHoN KOHCnCTeHnN.
3aIpeaaetcHneppebIBHOe nCIOAb3OBAHHe np6oBa B kaueeB 6aHepa 6oae 30 ckyHa.
Ecam dA CMeuINBaHn Tpe6yeTc 6oae DAnTeABHOe Bpem, BbIKAOHTe np6op uee3
30 ckyHa, IOdoXaNTe HeCKoABKO ckyHa, 3aTem IPOdoAAkaTe CMeuINBaHne. Ecam np6op
Harpeetc, IOdoXaNTe HeCKoABKO MInyT, Ioka OH He OCTbIHET, 3aTem IPOdoAAkaTe
CmeuINBaHne.
PpmeaHne Ean nhrpegnHeMbI npAnnaiom K cmeHKAM KyBwnHa 6aehgepa, BbIKIOUHme np6op n CHMMme nx C nomoiy Oonamkn nn goababe HmHoro KngKocmn.
Примачаиме Пег кормaelем убогимсь,чmo Cmeшанhoe gemckoe nimahne nmeem npabnabHyokHCNCmehuO (B yacmHocmN, He cogeJxim kOMKOB).
Примочане Eси gemckoe nimанe He pa3mraaemcga6abme hemhoro kngkocm (hanpimep, Bogb) noka niiua He cmahem mrkoi nghopoghoi.
5 Tocae CmeuBaHnI pOcTo OTNcyTHe nepeKaIOuTeAbepeKIMOB.
- Pepekaouatea bABTOMaTHueckn BepHeTcB NIOAOKeHne Off (BbIKA.).
6 N3BIAeKInTe H3MeAByeHHbI eP0aYkTbI n3 KyBwHnA. Pn HEO6XoAnMoCTn BOCNoA3yI TeCb AONATOuKoN.
Y6eAnTeScb,yTO TempepaTpa NnN 6e3oNaCha AЯ pe6eHka.
OTKAIOHTe np6op OT 3AEKTPocetH.
8 Pn npabHOBn 3KcPiyaTauu nocLe npiroTOBaeHna napy B pe3epByape He doAaHOb octaTbCBAdb. OHaako B HeKOToPbIX CAYaX (HaNPmEp, pnp CKoIaEHn HAKIN B pe3epByape, pn nppepbBaHn INpocecca nn pnp NcNoABOaHn INp6opa He no Ha3NaueHIO) B pe3epByape cKaANBaETcR HeKOToPOe KOAnYeCTBO BOdb. B 3TOM cAyae AAn npdeOTBpaSeHn pa3MHOKeHn 6aKTePn BblAEte OCTaTK BoDb n3 pe3epByapa. Hnctpykunno OOnCTKe pe3epByapa OT HAKIN cm. B rAabe "OUnCTka uYxoA".
H3MeIbUeHHe 6e3 npEaBapHTeAho rnpHroTOBaeHna npay
PpIbOp npeHa3NaueH DAn CLeAyoUnx UeAeI:
-ПригOTOBанец ПIOpe ДЯДЕТСКОГ ПИТАнЯ ИЗ OБразТаньIX napOM И ВарЕнBX INHрдУ entTOB
- CmEwBbAHe JxNkOcTeHn OpyKToB DAnpe6eHka
Pn6op He npEHa3HaueH dA H3MeAueHn TBeApbIX INHpeAneHTOB,HaNPmep Ky6Kn Aba n caxap-paHnHa.
Iocne OobAeHn JnKoCTn B KByuH HnKOrda He BkUoyaTe peJxM npuroToBaeHna napy.
Причмачане Пис mсшвани кngкocmeубegimecь,уmo кngkocmb B KyBшинe He npebblaem MAKcmaabHyO omMemky.
PpMueaHne HnKorga He romoBme Ha napy gemckoe nmaHne noae N3MeAByeHna B 6aHgepe.
1 Tomecntte HOKeBOH 6aOK Ha aepXaTeAb HOKeBOrO 6aOKa KBYUNHe.
2 IpeKdye HEm IIOAOKHTb TBePbIe INHrpeAneHTbI B KByBUnH, IOpexkTe IHx Ha MeAKe HkyCooKn (Ky6nKn pa3MePOM He 6oAee 2-3 cm).
Cobem. He n3Meaayme 60aBwoe KOANuecMBO mBepgbIX INrpegeHmoB ogHOBPemHo.
U3MeaBuaime makne HrpegnHeMbI He6oAubmN nopuaMn.
3 IomeCTHTe HnHpeAneHtBi B EMKoCTb.
PpmeaHne He 3arpykaime npogykmbb BIIe Bepxero Kpa 3eAehoro HOKeBoro 6oka.
4 YCTaHOBInTe CnIKoHObBk KAnaHa KpbilKy.
PpmeaHne 6egmecb,mo Kaanah HageKHO 3aΦnKupoBaH.
5 YcTaHOBnTe ΦnMbTp B KpbIuKy KyBUnHa (pa3dactcIeauok).
6 3aKpOJIe KByUH N KpbIJKoN, NOBepHInTe KpbIJKy NO YacOB O CTpeAke AAn KcAun. He6oAusbIe BbICTynbHa KpbIJKe DOAnXHbI COBnactb C nAsAmn Ha KyBUnHe. Y6eAnTEcb, yTo 6oAusbOu BbICTyn Ha KpbIJKe HxOAnTcH enocpeActBeHHo HAd pyKoN KyBUnHa.
7 IocTabTe KByuHbVepTnKaIbHO Ha 6AoK 3AeKTPODIBrAteTAE (KpbIiHa DOAnXHa 6bITb HApRaBHeHa HabePx).Y6eAnTEcB, yTO pyUka HaxoANTcR cnpBaN paCnOAnKeHa MeKdY AByMpe6pamN O6laCTn 6AoKnpoBaHn.
8IpepeBcHTEpekeAouaTeAbpeKIMOB BIOAOKeHne CMEuBaHnO.OctabTe pepeKaIOUaTeAbB3TOMIOAOKeHHnHa Heo6xoAMoe Bpem,HOHe 6oAee Yem Ha 30 ckyHd.
Примочанecan npogykmbl npannan K cmehkam kvywnha, omkaiohme ycmpoimcbo n, goabn HEMHoro Bogby n anncnoa3y aonamoyky, chmime npogykmbl co cmehok. He hanoahme kybun Bblwe MAKcmaAbHO gonycmmmoro ypOBH.
Примочаимпег кормаленем убигимсь,чmo Смшанhoe gemckoe nimане Имeel npabnabHyokHCSCmehuO (B yacmHocmN, He cogePkm KOMKOB).
PpmeaHne Ean gemckoe nmaHne noayuAocb CAnIbKOM rycmbim, goabbme hemHoro JnqKocm (Hanpmep, Bogby) go oba3oBaHnna MraKoO ghopogHO MaCCbl. He HanoAhnme KByuHn Bbiue MAkCmAbHo gonycmmo omMemkn.
PnmeuHne Hkorga He romobme Ha napy gemckoe nmahe nocae n3MeIbueHnB 6AeHgepe.
3aπpeaaetcHnpepbBHOe HcnoA3OBaHne np6oBa KaueCTbe 6aHepa 6oae 30 ckyHAcn IaI N3MeaBChHn Tpe6yETc 6oae AAnTeaBHO Bpem, BbIKaIOHTe np6Op uee3 30 ckyHApOdoXaNTe HeCKoAko CekyHa, 3aTe mpoAoXnTe n3MeaBChHe. Ecan np6Op HarpeeTc, nOdoXaNTe HeCKoAko MmHT, nOKa OH OCTbIHET, 3aTe npOdoXaKe Te pa6oty.
9 Pocae CmeunBaHnI pOcTo OTNcyTHepeKauaTeB peKmOB. PeekauaTeAb TOMaTHueckn BPOAOxHne Off (Bbik
10 N3BIAeKInTe I3MeIaBueHHbIe PPOADyKTbI IN3 KYBUnHa. Pn HEO6XoAnMOCTN BOCNoA3yIITecb AOJATOUKOi.
Y6eNTecb,yTO TempepaTpa NnN 6e0nacHa Aa pe6eHaKa.
10TKAHOHTe npH6Op OT 3AEKTPocetn.
HrpeaentbI bPema 06pa60TK npom
Ponck nyctpaHene HncnpaBHOCTe
AaHna rIaBa nocBraIeHa HnboIe paCnpocTpaHeHHbIM npo6AmM, Bo3NkaiOuIM npi Ncno3OBaHm npi6opa. ECan camocToarTeaHo CnpaBtbcr C BO3NkUIMM npo6AmM He ydaetc, obaTntecb B cHTp NoDaePckn Notpe6nteEe B Bawe cTpaHe.
3miiuyu npiDHH, He HAnOBHIOte rAek Bnue MAKcMaIbHOoi N03HaUKN (450 m).
Lcienpncptpi npn3naeHOno6p6kn npaoHneNoaip6HeHnx cbixnx npOdykTib i3 noaAubmm nOaip6HeHHm ix IAn npiroTOyBaHHn dntyoi iXi. V 6kyaiTe nOaHO KIAbKa peuentTIB.3aBnuay iKx cIa, cpepy o6p6HTn npaoU, a Notim noaip6HnTu. Ipote, pncptpi moKHa taKoB BVKOPNCOTyBaTHn Iwse IAn npo6Kn npaoU abo Iwse IAn npaip6HeHHa. KoN Bu BVKOPNCOTyBEte npocptpi Iwse IAn npaip6HeHHn, npoynctItb po3diN "HanOBHeHHpe3epByapa IAA BOaN" Ta "O6p6ka npaoU" i BvKoHaIte Iwse BkazBKn po3dAiY "Piop6HeHHa".PiCxA npo6HeHHn HikoN He o6p6AanTe iKy npaoU. HikoN He o6p6AanTe npaoU oDHy i Ty camy npouio npOdykTib noHaad 20 XBVHNH a6bue Ondoro pa3y.
Ppncptpi HE npn3naeHn ABy BnKlaDeHnx HnKne di:
- Po3MOPOxKyBaHHa iKi
- O6po6ka 3amOpokHeoHoi iKi
- O6po6ka noΔpiδHeHoi'ixi
- O6po6ka oDHnx i Tnx camnx iHrpeJeHTiB IOBHe, hIX 20 xBNH
-Пиг罗ТуВань рису i мakapоннх ВиробИ - Cnepuy noaipi6HenHH iHrpeiaeHTIB,ToDi ix o6p06ka
- P03irpiBaHHn PiAnH, HApriKkAaCynu YN BODn
- PiДТРИМАнгя ṅКi TЕΝΑΟΥ ΠΝΡΤΑΓΟ KIΛΚΟΧ ΓΟДΗ
- P03irpiBaHHH iKi
HanoBHeHHpe3epByapaABoAn
1 HanobHtB mIpHy aawky do notpi6Horo pibHa.
Ha mipniu qauii no3haeHoi miiaiTpi i BiIIOBIDn uac o6pO6Kn npoIo y XbunHax. ABy Bn3HaueHHpeKOMeHNDoBaHOi KIAbKOCTi npOyKTIB ABy peueNTIB OKpemy 6poUpy 3peuenTaMn.
Приимима: He HanobHIOme MIPHy yauKy Bnue MaKcMaIbHoI no3HaUKN (200 Ma), 1o6 He nepenOBHMn pe3epByap gA Bogn.
Pnimima: Pagmo He BnkopncmoybammihepaHy Bogy, okiabkn mihepaan, 0o micmtbcB maikn Bogi, moKymb ymbopuBamn haknn BCEpegni pe3epByapa gA BOH.
2 HaHnTe BOy B OTBip AaBoa i HApnTe KpnuKOIO.
Плиммka: Hikоан He заловиюme pe3epyap gя BOgИHiIM ИИWIIM, OKpIM BOgI.
O6po6ka napoIO
TpoXn 6pO6AeHi npaoIO deaIK OBOH i fpyKTH iIdeaBHO nIXoAorTB IAr IATei, kI NOuHaOTb ICTN TBepy Iky. 6pO6Ka npaoIO - ce Hau3doPoboiu cnocic npiroToBaHHia KI, kIN DO3BOARe 36peertn 6barato BITamih Ta BaKunBnx NoKunBnX peOBNH.
Ппиммka: Peцentmma уac npriromybaHHЯ cmpab 3a zmm peцentmammoЖнЗаймВ okpeMi 6poшурi 3 peцentmamn. Памямаime, lo peцentm nogaiombca 3 ypaxybaHHaBikgumHn.
Ппиммкa: He obpo6ьдime Заморожени npogykmn, ockiaьн npncmpiNe He може harpimn Заморожени npogykmn go memnepaун, nompi6hoig gla npruromybaHn.3abxgnp03mopoknyime Заморожени mberghi npogykmn, nepш nixk obpo6ьд'mix y zubomy npncmpoi: Перш nixk klaacmnp03mopokeweni npogykmn B rAek, 3Anime 3 nix Bogy.
1 BctaHObitpixyuHn 6AOK Ha TpMauchipixyOro 6AokaHa rAky.
2 Ipea TmR knoKlaCTn y rAek TBepAi npOaYKTn, nopixTe ix Ha dpi6Hi 1MaTKn (ky6uKN, po3Mipomdo 2-3 cm).
ПримIMКа: He obpo6aIme ogHouacHO BeANky KIAbKICMb mBepgx npogykmib. Kaagimb iX y 6AeHgep HeBEAnkMn nopizmN.
3 POKAAaITb npOaYkTN yIaek.
Ппиммka: He HanobHIOmme Bnue pibHb BepxHix KpaIB 3eAeHOro pIXyHOrO 6aoka.
Ппиммка: HikoAn He haAnBaIme Bogy a6o 6ygb-ky iHsu pigHy y Iaek gAЯ o6po6Kn npOIO, IIOb He nowKogmnpncmpi.
4 BctaHObitcnaikoHOBNKaanHa KpnuKy.
Прииммк:Зафikсуime Каланн НалжнМУнOM.
5 BctaHObit citoKyu Ha Kpnsu ta 3afoikyte ii.
6 Hakpnite Ie Kpnikoio i Nobepiht ii 3a roHHNKoIO CTPIKOIO, 0o6 3aikcybaTH. MaI BnCTyHn Ha Kpnuiz MaiOTb 3axoAnTu y JxOAO6Kn Ha Iaeky. CaiKyTe, 1o6 IOAOBKeHHKpnkN 3HaXoAIAOCb Ha pyuiz IeKa.
7 BctaHObitb Iaek Ha 6aoi DnHyHa DOropu HOM,TO6TO KpnKoIO DOHn3y.Pyka MaE 6ytN cnpaba i BCTaHOBAeHa HAAeXHM YINHOM.
Ppimka: Pnncpii He po3noue o6po6ky npoio, kko rke i pyka He 3haxogmcby npabnAbHomy noAoKeHHi.
8Поверпь рergyгуpoшняобркни пою.
IhAnkaTOp 6pO6Kn npoIO 3acBiuyeTbcra OpaHKeBIM KOAbOpOM, NOBIOMAHOUH nPo 6pO6Ky npoIO.
Tapya napa a6o BOda MOjCyb o6NeKTn paIbci. He TopkaTec cami i He O3BOaIte dITAM TopKaTncb rapaunx qactnTa yHnKaIe KOHTaKTy i3 npAO, 0o6 He o6NeKTncs.
Yac o6p6Kn 3aaleKntb BiA KIAIbKOci BOAn y pe3epByapi. AnB. Ta6Anu B po3di "PiOaKyTn Ta Yac o6p6Kn npoio" i KHNry 3 peuenTamn.
Picra 3aBepenHnO6pOKn npoIO npCTpiI rye,a iHAnkATOp BmNkAeTbCra.
9 BctaHObitperyATopt ynoAoXeHHBnMKHeHH.3aueKaIte 2 XBnHn, nOKn npa He nepeCTaHe BVxOAnTu 3 OTbOpY nnapn, uo6 He o6NeKTHcB rapaoyo npaoio.
Ku Bo 6aKaTe DaBAtn AnTHi Obo6LeHy npoIO iKy 6e3 noApi6HeHHN,peBcIpe, YI TEMpePaTypa iKi 63neUHa AAn DTHN, pniKlAusbH II DO 3OBHIshBoI CTOpOH DoAoH.
Плиммka:Якшо nompiбно npruromybamn hacmynhy npucio npogykmb, nepeg nozmopHM npruromybaHHam gaime npncmpoEBi oxoaohymnpomrGM 10xbuAHN.
10 Jkuo Bn 6aKaTe 3MiwaTH No6pO6AeHny npoIO iKy, BNKOHaIte NODaHI HIXKHe Ii Po3AiY "3MiUyBaHHra NiCIA O6pO6Kn npoIO".
11 3a HopmaIbHnX yMOB, nICIA o6pO6Kn npoIO y pe3epByapi IAA BOAn II He NOBHHO 3aNNHTncb. ODAHak, 3a NeBHnx OcCTaBHn (HaPnKIAA, B p3i YTbOpEHn HaKNy BCEpaHNIpe3epByapa DAA BOAn, IIA qac BTPuHaHHB INPOUCs O6pO6Kn YN BIKOpNCtAHNHe 3a npH3aueHNAM) He3NaHua KIAbKiCTb BOAn MOKe 3aNNHTncB Pe3epByap IA BOAn. Y TaKOMY BINaACKy, nICIA BHKOpNCtAHN IOBHICTIO CNPOOXHITb pe3epByap, IIO6 YNHKNHTy NT bTbOpEHn 6aKTEpi.IHΦopMaIIO IIOAO BnAaENHn HAKNpy dN.B. y PO3dAI "UHcHn Ta AOJAA".
PnOApi6Hennn nicn 06po6Kn npao
1 Bi3bmitb 3a pyky rkei 3HimtB rak i3 6Aoka ABnryHa. POKpyTITb rakom i ctpycitb noTo k, uO6 iKa BnaHa npixyhn 6Aok.
Bepitb rke Anwe 3a pyky. Kpiuka, Hn3 i 0BHiHn NOBepxHra rapayi.
2 3a Heo6xiIaHocTi 3HIMiTb KPNiKy i OoAaTe IpoAkyTn AIA 3MiUyBaHHa (HaNP., BOy uOaiio).
Picra 6p6kn npoIO KPNska MaOxOAnHTN, nCIAy OTO II MOKHa BiAKnBaTN i DOaBAuTn PPOyKTn (He nepEBnIyIte 3a3NaueHm MaKcMaIbHn pIBeH) a6o BnAHTn 3 pe3epByapa BOdy, 30aMNIaCra.
3aAIBuPiAnHy B IAEK, HikoAN He BCTaHOBIAIOJTe IAEK y NIOLOXeHNy O6pO6Kn npoIO.
BCTaHOBITIeKyBePTnKaIbHOMyNoIOXeHHiHa6oKDbIgYHa,io6KpNtkaBiAKnBaIaC AOrOpn.PuKaMa3HaxOAnTcncCnpabaimixABOMaBnCTynamn06laacti oikcaii.
4 Поверніт bpeуялгocу ролхеньдяпошбнень.Tрmaite peуялгocу уц Bomу похжehнhi,doONOKI pnoodykTиdo6pe He 3MiuaHtbc.
He 3miuyte npnctroem DOBwe, HIX 30 cekyHa. RaKIO npOaYKTn HeoCTaTHbO 3miuaAHCs 3a 30 cekyHa, nepeT TmJ RnPNOAOBXyBaTH, BmMKHtB npCtpi Ha KIAbKa cekyHa. RaKIO npCtpi HarpicTBcA, daTe IOMY OXoAoHYTu KIAbKa XBnAHN nepeT TmJ, RA npOaOBxByaTH.
Ipymimka: Jaio npogykm npnnaomb go cmioK rAeKa, BmKhimb npncpi ma noucmimb ix 3a gonomoroIo aonamkn abo gogabun mpox npinn.
Ппиммka: Ппег м immягавam gumnhi icmni, nepebipme, уnpruromobana gummaia ika ma e haalekny konchcmeuio (hanp., 6e3 rpygoovok).
Пиммка:Якso gunmaяka Bce ue 3ahagmo mbepga, goanbaime pignH (hanp., bogn), nokn BOHa He h6yge Halexhoi KOHCNCmeHui.
5 Iicra 3miuyaBaHH npocTo BiAnyctiB peryAToP.
PeryAToP aBtOMaTHNo BmNkaEtbcra.
6 BnMItb 3miwahi npOdykTN 3 rKeA. kIoo nOTpiBHO, CKOpNCaTteCra IOnaTkoIO.
Caikyute,io6 tempeatapya antyoi iKi 6yla 6e3neuHa AAnTHHH.
7 BiA'εΔhaɪTe npɪcʌptiː BiA mɛpeksi.
8 3a HopmaIbHnx yMOB, nICaI o6pO6Kn npoIO y pe3epByapi IAA BOAn II He NOBHHO 3aIuINTncb. OdHak, 3a NeBHx OcCTaBnH (HaPnKIAA, B p3i YTbOpEHNa HAKIny BCEpeAnHi pe3epByapa DAA BOAn, nIa Yac BTPUayHnB B Ipooc E o6pO6Kn uN BkOpNCtAHnHe 3a Ipu3NaueHHM) He3NaHu HA KICTb BOAn MOKe 3aIuINTncs B pe3epByap i ABA BoAn. Y TakOMy BnIaNky, nICaI BnKOpNCtAHn NOBHcTIO CNPOJXHITb pe3epByap, Ioo bYhNKHyTN yTBOpEHn6 BakTepi. IHΦopMauiio SuOo BVuaENHn HAKIny dNB. y po3AIi "YNuEHH Ta AOgAA".
Poiapi6HenH8 6e3 o6po6kn npao10
PpncTpi npn3HaueHo Da:
- nprirotybaHHn oIope i3 o6pOBeHnx npoIO i BapeHnx npOdyKTIB dAЯ npriroTybaHHn dNtTcOi iK;
3MiUyBaHHpIiHnI pOyKtB dA npIrTOyBaHHdTReHx HanoiB.
Pnctpi He np3Haeho AIA NOpi6HeHH TaepAnx PpOyKtIB, HApNkAa, KByKiv Aboy u cykp.
3aAIBuPiAnHy B Ie, HikoAe He BCTaHOBauIte Ie K y PNOLOXeHn Aa O6pO6Kn npoIO.
Ппимимka: 3miiуюн pigHH, He HanOBHIOme Iaek Bnue MaKcIMaIbHOi no3HauchN, lo 3a3HaueHa HbOMy.
Ipimimka: Hiko an He o6o6aime napo y ixy nica mo, k noqpi6HnAn ii.
1 BctaHObitpixyuHn 6AOK Ha TpMauch pixyUoro 6AokaHa rAky.
2 Ipea TmR JIKoKlaCTHy rAek TBepAi npOaYKTn, nopixTe ix Ha dpi6Hi mMaTKn (ky6uKn, po3Mipom 2-3 cm).
Iopaga: He o6p06aIme ogHouacHO BeAky KIAbKICMb mBepgx npogykmib. Kaigmb ix y 6aehgep HeBEaIKMn nopuiMn.
3 TpoklaaItb npOdykTnyraek.
Ппиммкa: He HanobHIOme Bnue pIBHЯ BepxHIX kpaIb 3eAeHOro pixyUro 6IoKA.
4 BctaHObitcnaIKHOBOHn KAnHa KaMnky.
Пиммік:aФikсуime Kaanah HAneKHM YHOM.
5 BctaHObit citoKyu Ha Kpnsu ta 3afoicyTe ii.
6 NaKpInTe Ie KpIuKIO i NOBepHITb II 3a RoAUNHHKOIO CTPIAOIO, 0o6 3aOikCyBaTH. MaI BnCTyn Ha KpIuLiMaIOb 3axoAnTu y JxOAO6Kn Ha IaeKy. CaiKyTe, 1o6 NooDBKeHHa KpIuKN 3HaXoAINOCb Ha pyuCi IaeKa.
7 BctaHObit rAek y BepTnKaIbHOMy NIOAOKeHHi Ha 6AoK ABINyHa, IIO6 KpNtka BiAKnBaIaCn AOROpn. PyuKa MaE 3hAxOAnTcnc Cnpaba i MIX ABOMa BnCTynamn O6laacti oikcaui.
8 ПовернithуperyaTOp y noLoXeHHaMH. TpMaIte peryaTOp y cBOMy noLoXeHHi notpi6Hn nepioA, aye He 6iaBwe 30 cekyHd.
Прииммka:Як soo npogykmn npmaanaiomb go cmihok rake, BmKhimnb npncmpi i nepemiawme ix 3a gonomoroio anamkn abo gogaime mpox pignHn. He hanobhnoime rak Bnue maKcmaabhoi no3Haquk.
Ппмимka: Пеger м immяг gabamngumnhi icmni,nepebipme,ч npriromobha gummaia ma e Naalekny konchncmeniio (hanp.,6e3 rpygoovok).
Прииммka:Якsto gunmaчаixka Bce ue gyke mbepga,goanbaime pignH (hanpknlaag,Bogn),noKN BOHa He na6yge halexhoi konchcmehu. He hanOBHIOme rAeB KIe MAKcMaAbHOi no3HaKn.
Прииммka: Hikoан He obpo6aime napoio gumay iky nica moro,як nogpi6HmAn ii.
He BnKOpNCtOByIte pncTpiJ Aa IooPi6HeHna 6e3nepePBHO DOBwe, HIX 30 cekyHa. JkIo npOdyKTn HeoCTaTHbO NpOpi6HnAmsc 3a 30 cekyHa, nepeA TmJ KpOdoBXkyBaTH, BmMKHiTb npCtpi Ha KaIbKa CekyHa. RaKIo 6LoK ABuRgamma HargiEbCra, DaIte My OXoAoHyTN KiIbKa XbAHN NepeA TmJ, AY PNOoBxkyBaTH.
9 Iicra 3miuyaBaHH npocTo BiAnyctiB peYyAToP.
PeryAToP aBtOMaTHUOBuMnKaeTbcra.
10 BnmiTb 3MiwaHIpOaYKTn 3 rAeKa. Jkso nOTpiHo, cOKpncTaItec AonatkoIO.
Caikyute,io6 tempepaTpaAHTaOoi iKi 6yla 6e3neuHa AAnTHHn.
11 BiA'εΔhaɪte npɪncɪpɪr BiA MEpeksi.
PpoAkykTu Ta Yac o6po6kn npoio
| Тип пюдьтіВ | Ингелді ent | Проблемы час объбкіnpароу* |
| Фруktи | Ясыka | 5xb. |
| Альсinihi | 10xb. | |
| Персiniки | 10xb. | |
| Г ршi | 5xb. | |
| Ананас | 15xb. | |
| Слви | 10xb. | |
| Овочi | Сларжа | 10xb. |
| Брokколì | 20xb. | |
| Моркba | 15xb. | |
| Цытна калystsa | 15xb. | |
| Селera | 15xb. | |
| Молоді кабчki | 15xb. | |
| Фенхeilb | 15xb. | |
| Кbacоля | 20xb. | |
| Цныүлүл-порей | 15xb. | |
| Цныүлү | 15xb. | |
| Тиц п骄傲уктiv | Ингreediennent | Проблеменчес обroduемпарою* |
| Горox | 20х. | |
| Перень | 15х. | |
| Картоля | 20х. | |
| Гарбуз | 15х. | |
| Шимат | 15х. | |
| Бруковa | 15х. | |
| Союда Картоля | 15х. | |
| Помiodори | 15х. | |
| M'ясо | Кураяпа, яковychа, баранна, сенина точо | 20х. |
| Риба | Аlosocь, камбала, ТPICа, Форейы точо | 15х. |
- Yci npoaykTN ciai pi3aTN MaAeHbKIMM Ky6nKAMN Do 2-3 cm.
UHnTaA0rAA
3aBxAnuNCTiB npnctpi niCai KOxHOro BnKOpNCtAHn.
HikoAn He 3aHypOJTe 6LoK ABnryHa y BOy.
HikoAn He KaAidby npncptpi Bi6iaobaayi a60 ximuiHPO3uHH/ta6aETKn dAa Ctepuaiaaii.
HikoH He BnKOpNCTOBuIte AaYnUeHNHa PnICTpoIO JxOpCTKnx r6ok, a6pa3NBHX 3ac06iB uPiAn HAA YnUeHNHa, TaNX Ja BeH3IN, aueToH uCnpt.
1 Bnimitb npncptpi i3 po3etkn i 3Himtbr IeK i3 6LoKa ABnryHa.
2 3HimItb KpIshky 3 Iaekai npepebpHtB ii DOrOpn dHom.
3HimiTb cHTo i cHaiKHOBn Klaapani 3KpnuKN.
4 Tomite CnikoHOBNI Klaan HapayoBOAOIO 3 MIOUHIM 3aO6OM Ta CNOAOCHITb Ioro NiA npOTouHO BOAOIO.
5 3HimItb pixyui6oik i3 rka.
6 PeTeaBHO uNCTiB pIXyuH N 6AOK nIa KpaHOM BiAp3y NiCIA BnKOpNCtAHn. He 3a6yBaIte TAKoX CNOAOCHyTH BHyTpIHU cactHnY Tpy6Kn pIXyUro 6Aoka.
Ynctitb piKyuH 6AoK dyKe o6epeXHo. Ae3a dyKe roctpi.
Ppimikka:Ka:KkoBnXoHeme Kpaae noocmmnpiKyyuN 6AoK,nicA cnOaickyBaHHya Ioro MoKHa maKoK nommynocygomnnmaunHi.
IHHJI YACTINH,IO KOHTAKTYIOB 3 IJKeIO,MnIte y rapii BOi 3 OoBaAHm MIOUOFO 3aco6y Biapa3y nicaB NKOpncTahnn.
Пиммка:Уci acmни,КрIMбLoKa gBnryHa,Можнma kaoK МmN y nocygomnHi MaunH.
83a Heo6xiHocTi 6AOK ABnryHa YnCTiTb BOAnOHO raHypKOIO.
9IpepeBipTe, uH cactnHKn iKHe nontpannn y pe3epByap Aa BOAn. Lc moXHa 3po6nTn, 3a3nHyBUny epe3 OTBip Aa BOAn; npo HaeBHicTh iKx TaKox CbiAChTb He3BnuaHmN KoAp BOAn YHepnemHn 3anax a60 3anax ropiAo 3 pe3epByapa. Y TakOMy BnnaAky nouchitb pe3epByap AAA BOAn (INB.niAPo3dI"UHneHHa pe3epByapa Aa BOAn" yCbomY pO3dI).
10 3aHnTe KpnKy OTbOpY AAB BOAn BiAKnToHO Aa 3anO6irAHN yTBOpEHn6aKTepi.
BndaenHnHaKIny3pe3epByapaABoaH.
JaKIO y pe3epByap AIA BODI NOtpanAITb YactHKn iKi, BOHN MOKyTb npnMnHyTN DO
HaRpIBaBHO r eAeMeHTa NiA cac HactynHO rpoecy o6pO6Kn napoIO. LJI qactHKn He BdAcTbcr
BIDAAHTN 3BvayAHMM NIOCKaHHrpe3epByapa.
KpIM TOrO, dAra 3a6e3neueHn 100% efeKTNBHOCTi po60Tu pncTPOU BIDAAJrTe hAKIN KOxHORO
MICaYr. AIA 3MeHSeHnY TBOpEHn HaKNpy paAMo HAIBaTI y npNCptpi KIN'ayehy a6o
phiABTOPAbHY BDOy.
AIA BIDAALEHn YactHnOK iKi 3 pe3epByapa DRA BODI i OCHuEHHn pncTPOU BiD HAKINy
DOTPmMyTEcB HabeDeHnx HNKye IHCTpykui 5Odo BIDAALEHHaKIny.
1ПиuctpiMa€6yTHBIMKHeHO.
2 OaainTe 200 Ma Teao BoAn OAn H NaKeTHK AAmOHHOI KNCLOTn (10r).
Пдиммka: Можн мakож вкорсмовьамп рози 150 мвоги i 50 м npozoporo oumy (8% рози ошюои КСаоми).
3 HanoBHitb pe3epByap dA BODn PO3HINOM AMOHHOI KNCLOTn (a6o ouTu) i BOAOIO.
3aKpnIte OTBip AAR BOAN KPNsKOIO.
5 BctaHObitnopoXHiI rAEK (6e3 6yAb-RAKOi iXi BCEpeAnHi) 3 pIXyUM 6AOKOM i KPNIOHO Ha 6AOK ABnryBa NIOAOKeHHA DAA O6pO6Kn npAoIO (Uo6 KpnuKa 6yA cnpMBOHa DOHN3Y).
6 Поверніт bpeугяТОР y noLoXeHnHa oБробк napoiJ.
IHaKaTOp 6pO6Kn npoIO 3acBiYcTbcra opaHKeBm KOAbOpOM, NOBIOMAIOH npo 6pO6Ky npoIO.
7 Picra 6p06kn npoIO npOTaROM 5-6 XBnIH BmKHiTb npHcTpi i BiA'EAHaIte Ioro BiD pO3eTKN.
8 BnHmTe BnKOpncTaHn po3uH NAMOHHOI KNCaOTn (a6o Otu) i BOAn 3 pe3epByapa.
9 Dó6pe kiIbka pa3iB npOMnIte pe3epByap IAA BOAn i rAek.
HaHnTe y pe3epByap 200 Ma BOAn i, npea Tm JK 3HOBy KOpNCTyBaTHcR npNCtPOeM dAAN pInrOToYBaHHIi, daHte NOMy NOnpaUOBaTN OAnH DOBn IcKl O6pO6Kn npoH (20 XB.) i3 npOxHIM rAekom.
13aannste Kpnkky OTbopy dA BODN BiAKnToHO dA 3ano6iraHn yTBOpEHn6aKTepi.
HabkoAmnHe cepeOboNze
- He BnKuIaIe TnpIcTpi pa30 3I 3BuaHIMM NObYTOBMN BiXoAaMn, a 3aBaIte NOrO B ophiuiHm IyHKT npInOMy dAЯ NOBTOHOI nepepO6Kn. TaKIM YINHom Bn DOIpOMoxKeTe 3axICTNTn DOBkIIAA.
36epiraHHa
1 Ipepa TmK BiKaactn npucptpi Ha 36epiraHHa, cnpoXHiB pe3epByap AAn.
2 Ipea TmM, k BIAKAACTn npncTpiHa 36epiraHHa, nouHCTiB i BucyuiTb yci uactHH (AIB. po3dIa "UHsEHHA").
3 Aa 3ao6irAHn IOwkoXeHHIO 36epiraTe npctpi i3 pixyum 6AOKom rAeky.
4 3aIIO6irAHn PO3BHTky 6aKTePi He CTABTe KpNkU Ha rAe i 3aAnuTe BiKpntOo KpNkU OTBOPy AAR BOAn.
TapaHTia Ta 06cAYROByBaHHa
JaKIo 6aKaJaTe cKnOpNcTaTnCn HaaHmN NocLyramn, a6o, JaKIo y Bac BnHnKHa npObAema, BiDiBaJTe Be6-caN TbBnO6iB AVENT KOMPnHi Philips www.philips.com/AVENT a6o 3BepHiTc8 Do LcHTpy O6cLyroBvBaHN HkIeHTIB KOMPaHII Philips y Bauii KpaiHi (TeaΦoH MoJHa 3NaHTn Ha rapaHTiHOMy TaHO). JaKIo y Bauii KpaHl HemaE LcHTpy o6cLyroBvBaHN HkIeHTIB, 3BepHiTc8 Do MicueBoTo Dnape Philips.
YcyhenHHHeCnPabHOcte
V cybomy po3diAi 3BedeH0 OCHBHI np6bAmn, kI MOKytB BHNKHHTN iIac BVNKOPCTaHH npncTPOIO. AkiO Bn He B 3Mo3i BnpiuTHn np6bAmy 3a DOnomoroIO iHΦopMaui, IoAHOi HIKHe, 3BepHITBCaDo LcHTpy o6cayroByBaHn KIAENTIB y Bauii KpaHl.
clalg (Joll g) daiyol Jgljocall jz cay yog
aiiaill aie euez yal 8
gagall aeg 1e 15211 g jaiuul aeg eo Jolal yeaon (dlaL plab gjng) gll algell .(Jtall Jw Jc Jawl JI eblal bayy) JsBll g
y 7
jlll jlll jlll jlll jlll jlll jlll
y
(15) 100
a 9
e 1
"abill" Jj 100000000000000000000000000000
.ellll cglll gcll aalldg eog ojgl j
yjgl gai jilgao aieill aic bclg yjlg cglll 8
aillg Jall
laalalalalalalalalgogglllalall
aagaae aie aaeol oosaiol .elgll oogbglal plebll yog
dIabJe IaIwJIabIyIpebOgS
yIyIyIyIyIyIyIyIyIy
| *العربية بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس بعس |
| العربية بعس بعس بعس بعس بعس بعس بعس بعس |
| العربية بعس بعس بعس بعس بعس بعس |
| العربية بعس بعس بعس بعس بعس |
| العربية بعس بعس بعس بعس |
| العربية بعس بعس بعس |
| العربية بعس بعس |
| العربية بعس |
| العربية |
| العربية |
| العربية |
| العربية |
| العربية |
| العربية |
| العربية |
| العربية |
| العربية |
| العربية |
| العربية |
| العربية |
| العربية |
| العربية |
| العربية |
| العربية |
| العربية |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| Al |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| al |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AR |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| A |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| B |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AB |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| BL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| AL |
| ALL |
a aalol g aalol plasuLy lgljg jlell Jaa yogag cglg cglgall all : abso .jilall
aai jia (jlll) 15000000000000000000000000000000000000000000000000000
Lilwgl (cll) (ll) (1) (1) (1) (1) (1) (1) (1) (1) (1)
(1) (2)
laalll al! g 1 jiaall
aajyall iic aao yooiiu. cglg no bglssall plebll alljy yog
dIabJe IstwJlAbIy pIeB o crSsT
V
a) aalgall g oag lal y gabll all jz scl aln jz scl alalal gbyll (jlll lss lce aasall g jy gpluswgl jz sll y gblal aao gl all jz sll ssll plssxll se lalajell aljz gag aag aag cll jz scl all aay
bbl bbl
:joljai oia jpluiuswll poao jyssll
Jablplpabaxjlllgloll
Jlajbsi jgrsia Jgssd gallgwlbls
.5lll 10000000000000000000000000000000000000
gblxjlcjllglb gog cclgl ycog lglg wog
eagll gssai loll sssuoo lo hclgll aeepe so ssb, jslglall bbs ic: abso
. abla sally ljiab'plab yba yogaa: abdo
.0Jw) clgll 1jaiial aag Jolc jiaial aeg
eagllg aegog jg (pwr r r r e gaoa y caiyfo) aedae bll aall uolSall
Jcclgoll oio Joo: yogd d0 08. aolgl aoll aall cllgoll no aes scls Joo: yogaa
02
.（7J）eGgll 1sglSoll
cijssll jssss s0g 0gall aall jssx : abdo
(VJ) cbll lccuLll plw
. p5 > p 100dall c++ 30 555 : ab
(△J)("a")clegllcbz aalall
aaggagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagag
(9 J5) cglg 2aa 1e aee bll lgl 100 gll 100 g1 .cglg 1aaggall aalbll
y
.17 Jaa Jaaaiia 0g jg
a 1
(IV J.
a aalolgl aaloll plaslyl gylgll jaiy yogagclgall glall all
eagll jzssssssssssssssssssssssssssss
.aaai jie (Jtoll Jusw Jc aes 2) cull plgall logslal llabxl plab o so sxts: abdo
(VJ) eIbll Ie ngSLLl pla 20
. pIy plalll cttti y ssli: abdo
. (A J) ("jai") eIgll llbe a dlaall
aaggall aegll glj j y. aaii tcll wlae daj g aayyogag eagll lcbll 7
(9 Jcui) cglll aaoJe aBbell gill egiil 100 ayuL .eagll aaggall aygbll aiaial 4 cbll
J no sbl.Jtall Jss Jc JawX bIgall uoygall agg 100 ygao ge gag cglll 6 V
.(1 Jw) pJw Jxuyg 200
aee aee eae ae aee aee
jlll jll l jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jell
alglall" JdJgJgll gbl. clll alj s g lqagog gll clall aas IcIyI ygbll gall agll .aagll "JyIyI ygbll aolg 1 jdl bll aolg jdaig jgalld oos wos gssaaai jdyI ygalac glil ic
g jao o no yj g jy (r) n aal y j. "off" Jauuall al! g o g j e Jauu Jauo 9 .(1J) Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu Jauu
auii i 11111111111111111111111111111111
blll" paa aagoll clall yaiy jall yball plall blaaia 1.
11
11
bbl bll
aag aiee bll jii iia aeg cagll g yg gall aed g ae eag gag 1. (16 J)
(10 J) aisw elegll jilll bawll gaiill ciall gaiell o ale. elegll qao 5
.（cjjllgcll lio）blll aololololglso ydofo llalall j
wgo jss 2) clgoll no uall aolx axie jjlll glll ljl clll o no tll lc s! .clll no gaioll clll alljgl (wai
jIbXJLcJlly, jllgblg gag cglg gag X cglg gag JIgllg
Jai jai aai 1000000000000000000000000000000000000000000000000000000000
(IV Jii) pIaII JcII Iebl bI i g oIg lia .bI aII .blsI g oIg .pI aII .JzI y
Jzll JzIu uag .aI r. uB .blssl no uu uu .aI g .aI aII .uq x bIsly poay jao Jx
.aaIaII Jgaiu euiu uuiy dSrl jajauu uuuu uu .g Lg .aIaII Jgaiu g u
| .(r J#w) wglbll gsiuall jz clally aylall w#e yog# 1 |
| Je #j#ill llaiall clawgll u#i Je #albl. gla#lll b##ll ##lll p#lll c#lll g#og gcllall ##d#y a#yall w#l l# |
| cl#glll a#u#ll l# yog# gilllral all |
| J#j J#w clall j#s a#epeo no slll (llo r…). aylall w#l Je c#ogall o#ll all g#w #s#ss x: ab#do |
| p#j#u#u#u#u# no d#ll no e#ll li# ale g#is# lo ## ## ## #all pl#u#l p#e #d#ss: ab#do |
| clall j#s l#l u#ll |
| .(ε J#w) c#lll gl# yog# a#eill ax# # clall ## |
| clall j#s # clall ## # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # |
Jbll
| glial cell glial cell glial cell glial cell glial cell glial cell glial cell glial cell glial cell glial cell glial cell glial cell glial cell glial cell glial cell glial cell glial cell glial cell glial cell glial cell glial cell glial cell glial cell glial cell glial cell glial cell |
aaiill jg gjzll no g jg gl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggtg cagll aaiio ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaII CIUCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL L GLLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG llg. 1234567890000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
Loo1 p53
all jgagall aegll Jlally lljx1 jglal Jao x. looll Jla Jao jyogjll lias 1sall jolai jao yu w, gwlal Jlally lljx1 jgsa
jll qialac Jn jaiell cill laj uagwll ao jayd jaywll agwll no alalw ayayl wj yogjll
lJ .eigll gclgall no adijgag all g fll abg abg plaxiwll gl giljzdojll
gjll jzlg jlc sll clao bawl pluxwll Jus jxpll Jus jxpll Jus jxpll Jus jxpll Jus jxpll Jus jxpll Jus jxpll Jus jxpll
(EMF) aublioggJgall
li liTjgl iie plssu (EMF) auioloo gll jgaiy aaleoiall y es golb Philips no jgali li . pgl aegoll aolll sllig, lia puaull jg aajll claeill w
dyJgJ pluJxJ
jIeJ100 aLeill algo 8o aga alljy yog
.("aIallg aaiill" Jaiyjai)gagll auiuuiuui jx
jglll pluwr
Jabll plab Jd dya qab lc Jlabplab aJr a 00 gaxill lc laa
iic 1sill cllgoll no uoll aolox adio jy jly llll ljly o hlll
cagll Jc aall sall aall sse 2. agall
douao
Philips AVENT aodai gdl pcu no alol d aiaaill !Philips AVENT pLc gdu bly yogjld slw le ddo y Luey lao aio oie bslg jauy agao x .wW.philips.com/welcomr je ddo yoo Jauo 1aaglln aou gle lq eon pcull bsllg jauy agao x ygi lo .JlabX pleb no ayadall cull 1g jge aao bslg jauy gab abaa aabg go pllabx axj ball
(1)
1
dololl 2
3
juaaill dgloljugjo clog 4
aall jaoiaio 5
（）jgagall jgagjgl 6
clll jxj xj aizill 7
gagall a.89
9
xill 10
11
aello 12
oooll 13
14
P
.aaall aal gglll a blaaiXg jgal pluaiiul laa liia puiuaill lla oclj
shu
ylllglialllcfoi jiaai gjgjf jilw ggloll a ljjgall oog yae
y
jglg jglg jglg jglg g glg jglg jglg jglg jglg jglg
laii jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jali jali jali jali jali jali jali jali jali jali jali
abwglg lqio aiao ailogjS g jn g Philips gjB n logdallw w y cagglllw gdd all
aag aal al aal aal aal aal aal aal
aai aaii iiaai iiaai iiaai iiaai iiaai iiaai iiaai iiaai
jGy jzj yj 1j001 Jiaaiui iaii g jg jglg po laaag aaiu aaiu (Jabll
pplios 2gim
julily puee pur no till jabiiaq y
Jlalzjgljioocjjjla jbi
aill aJl s, lglu 1o go jLg oI yloic aoLg g,bolll ayaw
.1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
a aal plxuwl xgl gjx . wal all jgwrall jn sagjlybll lgs
aillj jicg jlll jlls cglg 0 g jll llll llll
- -
jll jg jgi gall jll jia o clai j slw lal yaiy bglal aac sic
gagall agagagcll gagacgagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagag
ailll l 1
ggl gdlal alil
aJg joojoojol 5jx
