USER MANUAL BPA, ROBOT CUISEUR VAPEUR/MIXEUR, SCF870/23 PHILIPS AVENT

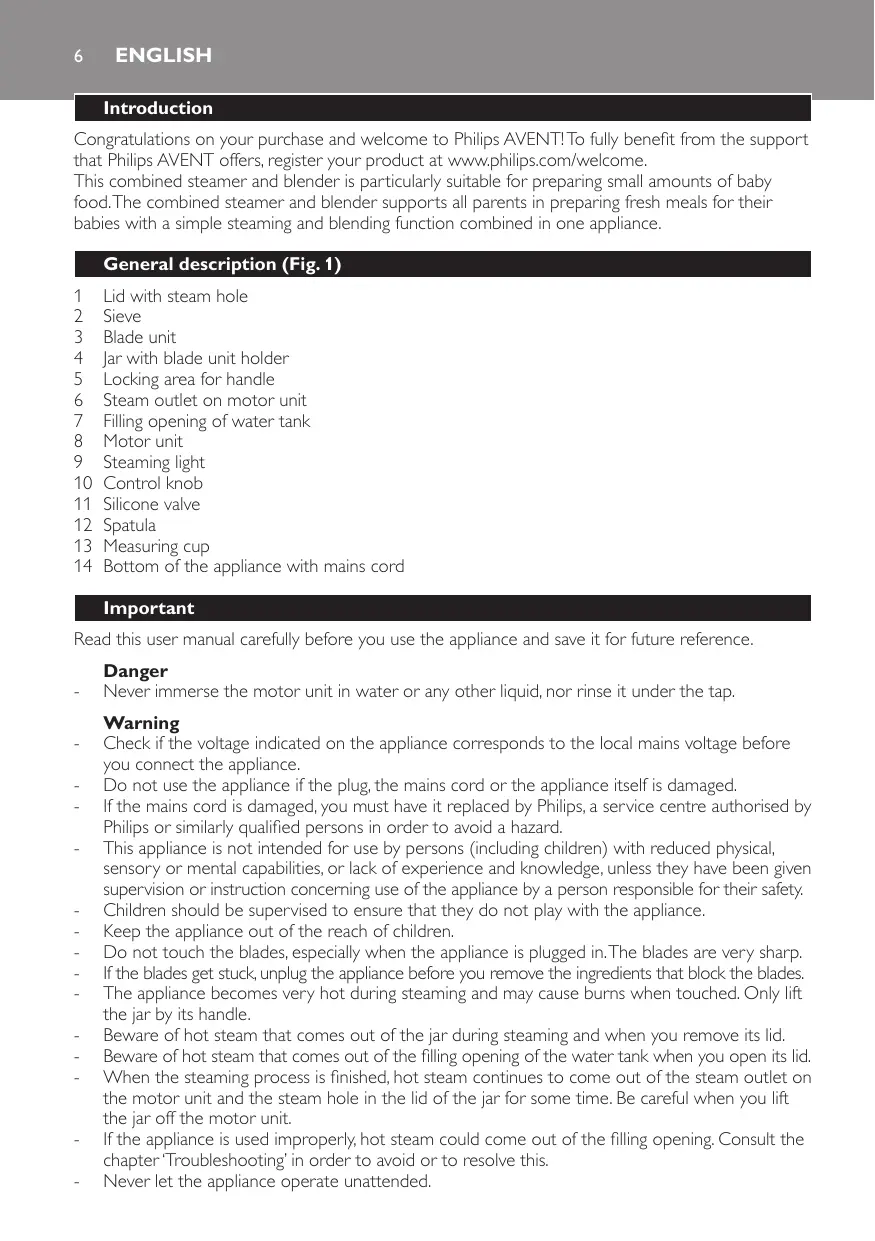

Congratulations on your purchase and welcome to Philips AVENT! To fully benefit from the support that Philips AVENT offers, register your product at www.philips.com/welcome.

This combined steamer and blender is particularly suitable for preparing small amounts of baby food. The combined steamer and blender supports all parents in preparing fresh meals for their babies with a simple steaming and blending function combined in one appliance.

General description (Fig. 1)

1 Lid with steam hole
2 Sieve
3 Blade unit
4 Jar with blade unit holder
5 Locking area for handle
6 Steam outlet on motor unit
7 Filling opening of water tank
8 Motor unit
9 Steaming light
10 Control knob
11 Silicone valve
12 Spatula
13 Measuring cup
14 Bottom of the appliance with mains cord

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

• Never immerse the motor unit in water or any other liquid, nor rinse it under the tap.

Warning

• Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
• Do not use the appliance if the plug, the mains cord or the appliance itself is damaged.
• If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep the appliance out of the reach of children.
• Do not touch the blades, especially when the appliance is plugged in. The blades are very sharp.
  If the blades get stuck, unplug the appliance before you remove the ingredients that block the blades.
  The appliance becomes very hot during steaming and may cause burns when touched. Only lift the jar by its handle.
• Beware of hot steam that comes out of the jar during steaming and when you remove its lid.
• Beware of hot steam that comes out of the filling opening of the water tank when you open its lid.
• When the steaming process is finished, hot steam continues to come out of the steam outlet on the motor unit and the steam hole in the lid of the jar for some time. Be careful when you lift the jar off the motor unit.
• If the appliance is used improperly, hot steam could come out of the filling opening. Consult the chapter 'Troubleshooting' in order to avoid or to resolve this.
• Never let the appliance operate unattended.

Caution

• Never use any accessories or parts from other manufacturers or that Philips does not specifically recommend. If you use such accessories or parts, your guarantee becomes invalid.
• Do not place the appliance on or near an operating or still hot stove or cooker.
• Always unplug the appliance before you assemble or disassemble any of the parts and before you clean it.
  Always unplug the appliance and let it cool down before you clean it.
• Never use the jar or any other part of the appliance in a microwave, as the metal parts of the jar handle and blade unit are not suitable for this use.
• Never sterilise the jar or any other part of the appliance in a steriliser or in a microwave, as the metal parts of the jar handle and blade unit are not suitable for this use.
• This appliance is intended for household use only. If the appliance is used improperly or for professional or semi-professional purposes or if it is not used according to the instructions in the user manual, the guarantee becomes invalid and Philips refuses any liability for damage caused.
• Place the appliance on a stable, horizontal and level surface. Make sure there is enough free space around it to prevent damage to e.g. cabinets or other objects, as the appliance emits hot steam during use.
• Do not use the appliance if it has fallen or is damaged in any way. Take it to an authorised Philips service centre for repair.
• Never use the steaming function without water.
• Make sure that you do not overfill the water tank (max. 200ml). Do not exceed the maximum level indicated on the measuring cup.
• When you steam ingredients, make sure that you do not overfill the jar. Make sure that the top edge of the green blade unit is not covered with food.
• When you blend liquids, do not exceed the maximum level indicated on the jar (450ml).
• Do not lift and move the appliance while it is operating.
• Do not insert any object into the filling opening or the steam outlet.
• Never refill the water tank during the steaming process, as hot water and steam may come out of the appliance as a result.
  Always make sure that the lid has cooled down after steaming before you open it to add more ingredients for blending, if necessary.
• Never connect this appliance to a timer switch or remote control system in order to avoid a hazardous situation.
• Always check the temperature of the baby food on the back of your hand before you feed your baby.
• Always check the consistency of the baby food. Make sure there are no chunks in the food.
• When the steaming process (max. 20 minutes) is finished, do not steam or reheat the baby food again.
• Only use the spatula supplied to take the food out of the jar.
• Regular descending prevents damage to the appliance.
• Noise level: Lc = 89 dB(A).

Safety system

The appliance is equipped with a built-in safety lock. The appliance only functions if you have properly assembled all parts on the motor unit. If all parts are assembled correctly, the built-in safety lock will be unlocked.

The appliance is also equipped with overheat protection. Overheating could occur if the time between two steaming processes is too short, if the blending function is used too long or if there are too much ingredients in the jar. If the overheat protection switches off the appliance during use, set the control knob to 0 and let the appliance cool down for a few minutes. After this, you can use the appliance again.

Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

Before first use

1 Remove all packaging material from the appliance.
2 Clean all parts except the motor unit (see chapter 'Cleaning and maintenance').

Using the appliance

Always check the temperature of the baby food on the back of your hand before you feed your baby.

Always make sure that the lid has cooled down after steaming before you open it to add more ingredients for blending, if necessary. Do not exceed the maximum level indicated on the jar.

Empty the water tank before you refill it to start a new steaming process.

Always make sure the that the top edge of the green blade unit is not covered with food when you start steaming.

Do not exceed the maximum level indicated on the jar (450ml) when you blend liquids.

This appliance is intended for steaming fresh solid ingredients and then blending them to obtain baby food. See the recipe booklet for some examples. Normally you would first steam the ingredients and then blend them. However, you can also use the appliance for steaming or blending only. When you use the appliance for blending only, skip the sections 'Filling the water tank' and 'Steaming' and only follow the instructions in section 'Blending'. After blending, never steam already blended food. Never steam the same batch of ingredients for longer than 20 minutes or more than once.

This appliance is NOT intended for:

• Defrosting food
• Steaming frozen food
• Steaming already blended food
• Steaming the same ingredients for more than 20 minutes
• Cooking rice and pasta
• Blending ingredients first and then steaming them
  Heating up fluids, e.g. soup or water
• Keeping food warm for several hours
  Reheating food

Filling the water tank

1 Fill the measuring cup with water up to the required level.
The measuring cup shows millilitres and the corresponding steaming time in minutes. See the separate recipe booklet for the recommended quantities of the recipes.
Note: Do not exceed the maximum level indicated on the measuring cup (200ml) to make sure that you do not overfill the water tank.
Note:We advise you not to use mineral water, as the minerals contained in this type of water cause scale to build up inside the water tank.
Pour the water into the filling opening and close the lid.

Note: Never put anything else than water in the water tank.

Steaming

If certain vegetables and fruits are steamed gently, they are perfect for babies who start to eat solid food. Steaming is the healthiest way of preparing food, as the food retains lots of vitamins and other healthy nutrients.

Note: You can find recipes and the cooking times required for these recipes in the separate recipe booklet. Note that the recipes are related to the age of the child.

Note: Do not steam frozen ingredients because the appliance cannot heat up frozen food to the temperature required for steaming. Always defrost frozen solid ingredients before you steam them in this appliance. Shake off any excess water from the defrosted ingredients before you put them in the jar.

1 Put the blade unit on the blade unit holder in the jar.
Cut solid ingredients into small pieces (cubes not bigger than 2-3cm) before you put them in the jar.

Note: Do not process a large quantity of solid ingredients at the same time. Process these ingredients in a series of small batches instead.
3 Put the ingredients in the jar.

Note: Do not exceed the top edge of the green blade unit.

Note: Never put water or any other liquid in the jar for steaming, to avoid damage to the appliance.
Put the silicone valve on the lid.

Note: Make sure the valve is fixed properly.

5 Put the sieve in the lid of the jar ('click').
6 Place the lid on the jar and turn it clockwise to fix it. The small projections on the lid have to slide into the grooves in the jar. Make sure that the large projection of the lid is placed exactly over the handle of the jar.
7 Place the jar upside down on the motor unit, i.e. with the lid downwards. Make sure the handle is on the right-hand side and that it is attached properly.

Note:The appliance does not start steaming if the jar and handle are not in the correct position.
8 Turn the control knob to the steaming position.

The steaming light lights up orange to indicate that the appliance is steaming.

Hot steam or hot water could burn your fingers. Do not touch and never let children touch hot parts and steam, as this may cause scalds.

The steaming time depends on the amount of water you have put in the water tank. See the table in chapter 'Ingredients and steaming times' and the recipe booklet.
- When the steaming process is finished, the appliance produces a buzzing sound and the steaming light goes out.
9 Set the control knob to the off position. Wait 2 minutes until no more steam comes out of the steam outlet, to avoid scalding by hot steam.

If you want to serve the steamed baby food without blending it, test the food on the back of your hand to make sure it is at a safe temperature for your baby.

Note: If you want to steam another batch of ingredients, let the appliance cool down for 10 minutes before you start steaming again.

10 If you want to proceed with blending the steamed food, follow the instructions in section 'Blending after steaming' below.

11 Under normal conditions, no water remains in the water tank after steaming. However, in some situations (e.g. in case of scale build-up inside the water tank, interruption of the steaming process or unintended use), some water could remain in the water tank. In this case, empty the water tank completely after use to avoid bacterial growth. To descale the water tank, see chapter 'Cleaning and maintenance'.

Blending after steaming

1 Grab the jar handle and lift the jar off the motor unit. Turn the jar around and shake it so that the food falls down onto the blade unit.
Only touch the jar handle. The lid, bottom and outer surface of the jar are hot.
2 If necessary, remove the lid and add additional ingredients for blending (e.g. water or oil).

Always make sure that the lid has cooled down after steaming before you open it to add more ingredients (do not exceed the maximum level indication) or to remove the remaining water from the water tank.

After you have put liquids in the jar, never put the jar in the steaming position.

3 Place the jar upright on the motor unit, i.e. with the lid upwards. Make sure the handle is on the right-hand side and positioned between the two ridges of the locking area.
4 Turn the control knob to the blending position. Hold the knob in this position until the food is properly blended.

Do not let the appliance blend for more than 30 seconds at a time. If you have not finished blending after 30 seconds, switch off the appliance and wait a few seconds before you continue. If the appliance becomes hot, let it cool down for a few minutes before you continue.

Note: If the ingredients stick to the wall of the jar, switch off the appliance and loosen them with the spatula or add some liquid.

Note: Make sure that the blended baby food has the right consistency (e.g. no lumps) before you serve it.

Note: If the baby food is still too solid add some fluid (e.g. water) until the baby food is soft and smooth.

5 When you have finished blending, simply release the control knob.
The knob automatically returns to the off position.
6 Remove the blended food from the jar. If necessary, use a spatula.

Make sure that the baby food is at a safe temperature for your baby.

7 Unplug the appliance.
Under normal conditions, no water remains in the water tank after steaming. However, in some situations (e.g. in case of scale build-up inside the water tank, interruption of the steaming process or unintended use), some water could remain in the water tank. In this case, empty the water tank completely after use to avoid bacterial growth. To descale the water tank, see chapter 'Cleaning and maintenance'.

Blending without steaming

The appliance is intended for:

• – pureeing steamed and cooked ingredients for baby food
• blending fluids and fruits for baby drinks

The appliance is not intended for chopping hard ingredients such as ice cubes and sugar cubes.

After you have put liquids in the jar, never put the jar in the steaming position.

Note: When you blend fluids, make sure you do not fill the jar beyond the maximum level indication on the jar.

Note: Never steam baby food after you have blended it.

1 Put the blade unit on the blade unit holder in the jar.
Cut solid ingredients into small pieces (cubes not bigger than 2-3cm) before you put them in the jar.

Tip: Do not process a large quantity of solid ingredients at the same time. Process these ingredients in a series of small batches instead.

3 Put the ingredients in the jar.

Note: Do not exceed the top edge of the green blade unit.

Put the silicone valve on the lid.

Note: Make sure the valve is fixed properly.

5 Put the sieve in the lid of the jar ('click').

6 Place the lid on the jar and turn it clockwise to fix it. The small projections on the lid have to slide into the grooves in the jar. Make sure that the large projection of the lid is placed exactly over the handle of the jar.

7 Place the jar upright on the motor unit, i.e. with the lid upwards. Make sure the handle is on the right-hand side and positioned between the two ridges of the locking area.

8 Turn the control knob to the blending position. Hold the knob in this position for as long as you need but for not more than 30 seconds.

Note: If the ingredients stick to the wall of the jar, switch off the appliance and loosen them with the spatula or add some liquid. Do not exceed the maximum level indication on the jar.

Note: Make sure that the blended baby food has the right consistency (e.g. no lumps) before you serve it.

Note: If the baby food is still too solid add some fluid (e.g. water) until the baby food is soft and smooth.

Do not exceed the maximum level indication on the jar.

Note: Never steam baby food after you have blended it.

Do not let the appliance blend for more than 30 seconds at a time. If you have not finished blending after 30 seconds, switch off the appliance and wait a few seconds before you continue. If the motor unit becomes hot, let it cool down for a few minutes before you continue.

9 When you have finished blending, simply release the control knob.
The knob automatically returns to the off position.
10 Remove the blended food from the jar. If necessary, use a spatula.
Make sure that the baby food is at a safe temperature for your baby.
11 Unplug the appliance.

Ingredients and steaming times

Type of food	Ingredient	Approximate steaming time*
Fruit	Apple	5 min
	Oranges	10 min
	Peach	10 min
	Pear	5 min
	Pineapple	15 min
	Plum	10 min
Vegetables	Asparagus	10 min
	Broccoli	20 min
	Carrot	15 min
	Cauliflower	15 min
	Celery	15 min
	Courgette	15 min
	Fennel	15 min
	French beans	20 min
	Leek	15 min
	Onion	15 min
	Peas	20 min
	Pepper	15 min
	Potato	20 min
	Pumpkin	15 min
	Spinach	15 min
	Swede	15 min
	Sweet potato	15 min
	Tomato	15 min
Meat	Chicken, beef, lamb, pork etc.	20 min
Fish	Salmon, sole, cod, trout etc.	15 min

• All food has to be cut in small cubes, no bigger than 2-3cm.

Cleaning and maintenance

Clean the appliance after every use.

Never immerse the motor unit in water.

Never use bleach or chemical sterilising solutions/tablets in the appliance.

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol, acetone or alcohol to clean the appliance.

1 Unplug the appliance and remove the jar from the motor unit.
2 Remove the lid from the jar and turn the lid upside down.
3 Remove the sieve and the silicone valve from the lid.
4 Clean the silicone valve in hot water with some washing-up liquid and rinse it under the tap.
5 Remove the blade unit from the jar.
6 Clean the blade unit under the tap thoroughly, immediately after use. Make sure you also rinse the inside of the tube of the blade unit.

Handle the blade unit very carefully. The cutting edges are very sharp.

Note: If you want to clean the blade unit more thoroughly, you can also place it in the dishwasher after you have rinsed it.
7 Clean the other parts that have come into contact with food in hot water with some washing-up liquid immediately after use.

Note: All parts, except the motor unit, can also be cleaned in the dishwasher.

8 If necessary, clean the motor unit with a moist cloth.
9 Check if any food particles have entered the water tank. You can do this by looking into the filling opening to see if there are any food particles in it or by checking if the water has an unusual colour and by smelling if the water tank produces an unpleasant or a burnt smell. If this is the case, clean the water tank (see section 'Cleaning the water tank' in this chapter).
10 Leave the lid of the filling opening open to prevent bacterial growth.

Dscaling the water tank

If food particles enter the water tank, they may get stuck to the heating element in the water tank during the next steaming processes. These particles cannot be removed by just rinsing the water tank.

In addition, you have to descale the appliance every four weeks to ensure it continues to work 100% effectively. To reduce scale build-up, it is helpful to use pre-boiled or filtered water in the appliance.

To remove food particles inside the water tank and to descale the appliance, follow the descending instructions below.

1 Make sure the appliance is switched off.
2 Add one sachet of citric acid (10g) to 200ml of warm water.

Note:You can also use a solution of 150ml water and 50ml white vinegar (8% acetic acid).
3 Fill the water tank with the solution of citric acid (or vinegar) and water.
4 Close the lid of the filling opening.
5 Place the empty jar (without any food inside) fully assembled with blade unit and lid on the motor unit in steaming position (i.e. with the lid pointing downwards).
6 Turn the control knob to steaming position.
The steaming light lights up orange to indicate that the appliance is steaming.
7 Switch off the appliance after 5-6 min of steaming and unplug it.
Pour the used solution of citric acid (or vinegar) and water out of the water tank.

9 Rinse the water tank and the jar thoroughly with fresh water several times.
10 Fill the tank with 200ml water and let the appliance complete a steaming process of 20 minutes with the empty jar before you use the appliance with food again.
11 Leave the lid of the filling opening open to prevent bacterial growth.

Environment

• Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Storage

1 Empty the water tank before you store the appliance.
2 Make sure all parts are clean and dry before you store the appliance (see chapter 'Cleaning').
3 Store the appliance with the blade unit in the jar to prevent damage.
4 Do not place the lid on the jar and leave the lid of the filling opening open to avoid bacterial growth.

Guarantee and service

If you need service or information or if you have a problem, please visit the Philips AVENT website at www.philips.com/AVENT or contact the Philips Consumer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, contact the Consumer Care Centre in your country.

Problem	Possible cause	Solution
The appliance does not work.	The appliance is equipped with a safety lock. If the parts have not been assembled properly onto the motor unit, the appliance does not work.	Assemble all parts properly. See chapter 'Using the appliance'.
The steaming light does not go on.	The appliance is not connected to the mains.	Put the plug in the wall socket.
	The jar is not properly placed on the motor unit.	Place the jar properly on the motor unit.
	You want to start a second steaming process just after one has finished.	Switch off the appliance and allow it to cool down for a few minutes before you start a second steaming process.
The ingredients are not heated up completely.	The pieces in the jar are too big, there is too much food in the jar or you have not steamed the food long enough.	Cut the food into smaller pieces (2-3cm), decrease the amount of food in the jar or select a longer steaming time (max. 20 minutes). Check the recipe booklet and/or the table in chapter 'Ingredients and steaming times' to make sure that you select the correct steaming time for the ingredients you want to steam or the recipe you want to prepare.
The appliance does not steam.	You have not put water in the appliance.	Switch off the appliance and put the right amount of water in the appliance.
	You have not put the jar on the motor unit in the correct position.	Place the jar on the appliance in the correct position (see section 'Steaming' in chapter 'Using the appliance').
Steaming takes too long or the steam function does not work at all.	There is too much scale in the water tank.	Descale the water tank. See chapter 'Cleaning and maintenance', section 'Dscaling'.
Steam is coming out of the filling opening.	The lid of the filling opening is not closed properly.	Close the lid of the filling opening properly ('click').
	The steam outlet on the motor unit is blocked by food or by scale.	Clean the steam outlet with a pointy object without damaging the seal and follow the descaling instructions in the future. See chapter 'Cleaning and maintenance', section 'Dscaling'.
	The steam hole in the lid is blocked.	Remove the silicone valve and clean the steam hole in the lid properly.
The steaming light goes on again after the steaming process is finished. After some time, the appliance buzzes again.	You have accidentally left the jar on the base for more than 10 minutes without switching off the appliance.	Switch off the appliance within 10 minutes after the steaming process is finished and then blend the food or remove it from the jar.
The blade unit or motor unit is blocked.	There is too much food in the jar.	Switch off the appliance and process a smaller quantity. Do not fill the jar beyond the top edge of the green blade unit.
The motor unit gives off an unpleasant smell during the first few times of use.	This is normal.	If the appliance continues to give off this smell after you have used it a few times, check whether the processing quantity and processing time are correct. See chapter 'Ingredients and steaming times'.
The appliance continues to give off an unpleasant smell after I used it a few times.	You put too much food in the jar or you let the appliance blend too long.	Process smaller quantities and do not let the appliance blend for more than 30 seconds at a time.
The appliance makes a lot of noise, produces an unpleasant smell, feels hot to the touch, emits smoke, etc.	There is too much food in the jar.	Switch off the appliance and process a smaller quantity.
	You let the appliance operate too long without interruption.	Do not let the appliance blend for more than 30 seconds at a time.
The lid of the jar leaks.	You have not assembled the lid on the jar properly.	Assemble the lid on the jar properly. See chapter 'Using the appliance'.
	There is too much food in the jar.	Switch off the appliance and process a smaller quantity.
There are white spots on the filling opening and/or on the jar; sieve and lid.	Scale has built up on these parts.	This is normal. Remove the scale periodically. See chapter 'Cleaning and maintenance', section 'Descaling'.
The appliance produces a lot of noise while it is blending.	The sieve is not attached to the lid of the jar.	Make sure that the sieve is attached to the lid of the jar.
The water in the water tank has an unusual colour when you pour it out of the water tank or when it enters the jar during steaming, or the water in the water tank has an unpleasant smell.	Food particles have entered the water tank during use.	Clean the water tank according to the instructions in chapter 'Cleaning and maintenance, section 'Cleaning the water tank'. Use the appliance strictly according to the instructions. Make sure you do not overfill the water tank with water (max 200ml) and that you do not overfill the jar with food (do not fill the jar beyond the top edge of the green blade unit). Do not steam the same ingredients for more than 20 minutes and do not put water for steaming directly in the jar. Also make sure that the valve is fixed in the lid.
A smell of grilled or burnt food comes out of the water tank	Food particles have entered the water tank during use and have caked onto the heating element.	Clean the water tank according to the instructions in chapter ‘Cleaning and maintenance, section ‘Cleaning the water tank’. Use the appliance strictly according to the instructions. Make sure you do not overfill the water tank with water (max 200ml) and that you do not overfill the jar with food (do not fill the jar beyond the top edge of the green blade unit). Do not steam the same ingredients for more than 20 minutes and do not put water for steaming directly in the jar. Also make sure that the valve is fixed in the lid.
There are dark spots in the baby food or the water in the jar has an unusual colour.	Food particles have entered the water tank during use and have caked onto the heating element. This causes residues of these food particles to enter the jar during steaming.	Clean the water tank according to the instructions in chapter ‘Cleaning and maintenance, section ‘Cleaning the water tank’. Use the appliance strictly according to the instructions. Make sure you do not overfill the water tank with water (max 200ml) and that you do not overfill the jar with food (do not fill the jar beyond the top edge of the green blade unit). Do not steam the same ingredients for more than 20 minutes and do not put water for steering directly in the jar. Also make sure that the valve is fixed in the lid.

Technical specifications

Voltage/wattage: see type plate on the bottom of the appliance.
Maximum capacity of water tank: 200ml.
Maximum capacity of jar, solid ingredients: 800ml.
Maximum capacity of jar, liquids: 450ml.
Usage temperature: 10^ to 40^
- Protection: temperature-controlled heating system and safety lock.

Uvod

IpeaHa aom npiroTOBaeHna y6eHTecb, cTo BepxHn Kpa3eAeHOro HOKeBOrO 6aoka He NOKpbl TPOdyKTAMN.

CmeuBaJxKIOCTn,He 3aNoAHHTe pH6Op BbIe MaKcMmaBHOJ OTMeTKN,yKa3aHHoHa KByuHe (450Ma).

YcTPOINCTBO ppeHa3NaHueHO dA npIrTOBVAeHn Ha nApy CBexKnx TBePbIX INHrpeAeHToB INx NocAeUOSeI rM3MeIbUeHn I NOvUeHn IAETCKOIOITAHN.I PpIMepbl peCENTOB MOXHO NOCMTPeTB B6yKAE, KOTOpbl NoCTabAAeTCB MecTe C yCTPOINCTBOM. IOnpa3ymEbaeTc, YTO CHaHaI INHrpeDAeHbI rTOBAtcR Ha npA, a 3aTeM IN3MeIbuaIOTc. OdHaKO pInbOp MOXHO TaKHe NCNoA3OBaTb AIO TObKO dA npIrTOBVAeHn IPOAdyKTOB Ha npA, Ano 3MeMaJIbUeHn. ECAI

yctpoCTBO nCNOa3yeTcB KaueCTBe 6aHepa, npOpyCTnTe pa3aDeIb "3aONHeHne pe3epByapa
Ara BOaI" n "PpuroTOBaeHne Ha napy", cAeMyTe INCTpyKUmaR B pa3aDeIe "13MeaUeHne".
HnkOrda He pa3oRpeBaIte N3MeaUeHHbIe npOdykTbI. HnkOrda He roTOOBtbe INHrpeAeHTbI 60aLbIe
20 MInHyT Ne O6pa6aTbIbAte npOdykTbI NOBTOPOHO.

Pn6op HE npedHa3Nauehen

pa3MOP03KN npOyKTOB;
-пригOTOBаеня на пapy заиморожених пpoДуКТOB;
- npnroTOBaeHna npaHy n3MeIbueHHbIX B 6eHpepe npOdyKToB;
- pInrTOBVAeHnOAnxNTEXJeePPOyKToBHa npay OaIbwe 20 MInHyT;
- PnIroTOBVAHnPAuMaKaPOHHbIX N3eAIA;
- I3MeAByeHn INIgpeAnEHTOB INIOcAeDyUOSeI Ox INPiNTOBAnEHHa NaPpy;
- NOOOrpeBa KnAkoCTeN,HaNPIMep CyIOB N BOaI;
- NOДержаня TempepaTpyb IpoDyKTOB B TeueHne HeckoBknx YacOB;
pa3OrpeBa npOaYkTOB.

3aNoAHeHne pe3epByapa AIA BOAbI

1 HanoHnTe MehBb CTaKaH BDOa DO Heo6xoAMOro yPoBHa.
Ha mepHom cTaKaHe yka3aH yPoBeHb MmMmHTpax H Heo6xOaHmoe BpeMa BapKn BmHyTax. CbeEHH O peKomeHdyeom KOAnyCteB IpOaYkTOB CM. B OTaIbHOM 6yKaTe CpeeNTamn.
Примочан He Зларнояше Мернь смахь Виш Мaksmaь Hoу ommekn (200 m), Emno nO3BOAMn 36eKamb nepenoAnenpe3epByapa gA BObl.
PnmueyHne Ncnoa30BaHne MNhepaBhoBogbi He peKoMeHgyemcra, nockoAky MnHepaBbl, cogepkauneCBAkOBoge, npBogam K o6pa30BaHnHO Haknn B pe3epByape.
3aene Te BOy B HAANBHOe OTBepCTne N 3akpoTe KpbIky.
Ppimeyane HnKorga He HaunBaime B pe3epByap HnHero, Kpome Boqbl.

PnroTOBaeHne Ha npay

HeKoTOpbIe p k_T I OBOUH, cAIN IX PpeABaprTeMbHO NODBeprHyTb 7aAraeJn o6pa6OTke napom, npeKpacHO IOxOaJr TcTAM, KOTOpbIM MOJHX eCTb TBepayIO NIIu. O6pa6OTka napom — Han60aee 3dopOBbI CNOC6 npriTOBaeHnRA NIIuN, B pe3yTaTe KOtOPOro COxPaHReTc8oAusbHCTBO BNTAmHOB IN DpyTNX NOAE3HbIX BESeCTB.

PnmeuHne Peenmbu Hbem npurromoAeHna Kkagoro 6aoga yka3aHb B omgeabHom 6yKaeme.
Obpamme BnmaHne,mo Kaqgb peuen coombemcmyem onpegeAehHom Bo3pacmy pe6hka.

PnmeuHne He 3aRpykaime B np603amopoxeHHbIe HrpegnHeMbI, np60 he npega3HaueH gA harpeBaHna 3amopoxeHHbIX npogykmoB go Hyxho memnpamypb gaOnbpa6omKn napOM. Ipeg o6pa6omKo napOM BCerga pa3mopaxHBaIme 3amopoxeHHbIe npogykmbI. Ipeg mem Ka noaoJmm npogykmbI b KByuHN, ygaIIme C HNX n3AnuHIO JngKocmb.

1 Tomecntte HOKeBOI 6oK Ha aepKaTeaH HOKeBOI 6oKa B KByuHe.
2 Ipejke Ye mnooKntb TBepeBte INHrpeAneHTbI B KyBunH, nopeXbTe Hx Ha MeAKe NcOuyKn (ky6nK pa3MePOM He 60aee 2-3 cm).

Pnmeyane He n3Meaayme 60aIbOe KOAnuecMBO mBepgblx HrpegnHeMOB ogHOBpeMeHHo.
N3Meaayme makne HrpegnHeMbI He6oAaHmN nopuaaMn.
3 IomeCTHTe HnHpeAneHtBb EMKoCTb.

PpmeaHne He 3arpykaime npogykmbI bIIe BepxHero Kpa3eAeHoro HOKeBOrO 6LoKa.

Pnmuemayne 4m06bni36exkamb nobpexgehna ycmpoicmba, HNKorga He hauhbaime Bogy nHgpyyIO Kngkocmb BVuBHN nepeg anycKom npouceca npriromobAeHH.

4 YcTaHOBInTe CAnIOHOBOHbI KAnPah Na KpbIiKy.

PpMueaHne 6egmecb, ymo Kaanah HageKHO 3aΦnKcnpoBaH.

5 YcTaHOBnTe ΦnMbTp B KpbIuKy KyBUnHa (pa3dactcIeauok).

6 3aKpOJIe KByIinH KpbIJKoN, NOBepHInTe KpbIJKy No YacOBo CTpeAke AAn KcAun. He6oAusbIe BbICTynbHa KpbIJKe DOAnXHbI COBnactb C nAsAmn Ha KByUHe. Y6eAnTEcb, yTo 6oAusbOu BbICTynHa KpbIJKe HxOAnTcH enocpeActBeHHo Ha dpyKo KyBUnHa.

7 IomeCTHe KByuHn Ha 6Ank 3AeKtpoDburTaTea OCHOBAHm BBePx, a KpbIshkoB — BHn3. Y6eAnTeCb, yTO pyuKa npabunbHO yCTaHOBaHa n HaxOAnTcra n paBOH CTOpOHbl.

Примачане Пибор He 6ygem pa6omamb, ecn Kpbilka n Kyblin ycmahOBaHbI HenpaBnAbHO.

8 IpepeBcHTe nepeKIOUaTeAb pexKIMOB B IOAOxHeHne 6pa6OTKn napOM.

HdkaTOp BapKn 3aTOpNTcOpaHexeBbIM, yKa3bIBa, yTO np6Op HaxoNTcB TOM peXnme.

Tognyn nap HAN BOa MOryt O6xuey b naBcI. N36eayte KOHTAKTa C TOpRyUMN DeTaAMN np6opar nnapom n He No3BOaYte 3TO DeLaTb DeTAM. 3TO MoXET pINBECTN K OKORAm.

Bpem npirotoBaeHn Ha npy 3aBnCt OT KOAnHeCTBa BOdbi, 3aAHTOBpe3epByap. Cm. Ta6Anu y BraBe "PpOdykTbI H BPem npirotoBaeHn Ha npy" n 6yKaET c peUeNTAMn.

3aBepueHne npoucecca npnroTOBaeHnaCnpoBOXdaeTcraHnAOM N BbIKAOUeHnEM HDAKATopa BapKn.

9 YCTaHOBHTe nepeKIAOHTe b peXHMOB B NOAOKeHne BbIKAOUeHn. Yo6bI n36eKaTb OxOROB, NDOXKAHTe 2 MInHytbl, NOKa nap nepeCTaHET NOBARbCRN 3 OTBepCTnAABYbIXOda npa.

Ecam O6pa6oTaHHoe Napom AetCKOE NHTAHne He HynXHO CMeUNBaTb B 6aEHDepe, PNOBepbTe TEMpePaTy PNTAHN TaIbHOIN CTOPHOH AAoHn, YTObbl y6eAnTbcra, YTO TEMpePaTpa 6e3Opancha DAppeHka.

PpmeaHne Ean Heo6xogmo npromobmb Ha napy eue ogHy nopuzio npogykmoB, nepeg 3anyckom Cagyioe oikla npromobae hna gaime npb6opy ocmbimb meehen 10 Mmym.

10 Ecan Heo6xOaHMo H3MeAubnTb npiroTOBaeHHbIe Ha napy npOaYkTbI, CaeayTe NHCTpyKcIaM B pa3deae "V3meAueHne nocae npiroTOBaeHna napy".

11 Pn npabHOBn 3KcNpyaTunnoe pnpiroTOBaeHna npay B pe3epByape He doJXHO OCTaTbC8 BObl. OHaKO B HeKOTOpBX Cuyax (HaNPmep, pnpckOaEHn Haknn B pe3epByape, pn nppepbBaHn Ipouceca nn pnpncOa3oBaHn np6opa He n0 Ha3NaueHHo) B pe3epByape ckanBaetc HekOTOpoe KoAnyecTBo BObl. B 3tOM cayae AAp npdeOTBpaSeHn pa3MHOxHn 6aKTePn BblAeIte OCTaTKn BObl n3 pe3epByapa. HnctpykUnn oOnCTKe pe3epByapa OT HAKUNn CM. B rAabe "OuNCTka uYxoA".

N3meAbyehne nocae npnroTOBaeHHa napy

1 Bo3bMnTe KByuHn 3a pyKU n CHmnte erO c 6oKa 3AeKtpoDburTaTeA. IOBepHnTe KByuHn H BCTpXHnTe, UTO6bl Niua Pnonaa B pexyui 6oK.

Bepnte kyBunH ToAbyko 3a pyuKy. HxNnay cactb KpbIuKn N BHeunry NOBepxHOCTb KyBunHa ropaune.

2 Pn Heo6xOAMOCTN CHMNTe KpbIbKy I O6aBbTe AONOAHTeAhbIe INHPeAnEHTbl dA CMeuBaHna (HaPnMpE, BOa HAN MaCAo).

PpeKdE qem O6abNTb INHrpeAneHTbl (He IpeBbIaJte MaKcImaIbHO OOnyCTmbl yPOBeHb) HnCANTb BOdy n3 pe3epByapa, y6eAnTeCb, yTO KpbIka OCTblA.

IocAe Oo6aBHeHn KUbHn, HKOrHa He BkIoUaHtepeXm npuroToBHeHn Ha napy.

3IocTabBe KByBnH BepTnKaA bHO Ha 6AoK 3eAeKTPoABnIaTeAe (KpbIiKa DOAnXHa 6bITb HApBaAeHa HabePx).Y6eAnTeCb, yTO pyuKa HaxOAnTCs CnpBaN paCnOAnKeHa MeKdY ABympe6pamn O6AACTn 6AoKnPOBaHN.
4 NopBepHnTe nepeKluOaTeAb peKHMOB B NOAOKeHne H3MeAueHnry. YdepKbaiTe nepeKluOaTeAb B TAKOM NOAOKeHnD O Tex IOp, POKa IPOdYkTbI He 6ydyT H3MeAueHbI DO HxHHoN KOHCnCTeHcN.

3aIpeaaetcHneppebIBHOe nCIOAb3OBAHHe np6oBa B kauee 6aHepa 6oae 30 ckyHa.
Ecam dA CMeuINBaHn Tpe6yeTc 6oae DAnTeABHOe Bpem, BbIKAOHTe np6op uee3
30 ckyHa, IOdoXaNTe HeCKoABKO ckyHa, 3aTem IPOdoAAkaTe CMeuINBaHne. Ecam np6op
HaRpeeTc, IOdoXaNTe HeCKoABKO MInyT, Ioka OH He OCTbIHET, 3aTem IPOdoAAkaTe
CMeuINBaHne.

PpmeaHne Ean nhrpegnHeMbI npAnnaiom K cmeHKAM KyBwnHa 6aehgepa, BbIKIOUHme np6op n CHMMme nx C nomoiy Oonamkn nn goababe HmHoro KngKocmn.

Примачаиме Пег кормaelем убогимсь,чmo Cmeшанhoe gemckoe nimahne nmeem npabnabHyokHCNCmehuO (B yacmHocmN, He cogeJxim kOMKOB).

Примочане Eси gemckoe nimанe He pa3mraaemcga6abme hemhoro kngkocm (hanpimep, Bogb) noka niiua He cmahem mrkoi nghopoghoi.

5 Tocae CmeunBaHnI pOcTo OTNcyCTHe nepeKaIOuTeAbepeKIMOB.
- PepekaouateIb aBTOMaTHueCKN BepHeTcB NIOAOKeHne Off (BbIKA.).
6 N3BIAeKInTe H3MeAByeHHbI IPOADyKTbI IN3 KYBUnHa. PnHEO6XoAMOCTH BOCNoAbyTEcB ANaTOUkOi.
Y6eAnTeScb,yTO TempepaTpa NnN 6e3oNaCha Aa pe6eHka.
OTKAIOHTe np6op OT 3AEKTPocetH.
8 Pn npabHOBn 3KcPiyaTauu nocLe npiroTOBaeHna napy B pe3epByape He doAaHObOCTaTbCBAdb. OHaako B HeKOToPbIX CAYaX (HaNPmEp, pnp CKoIaEHn HAKIN Bpe3epByape, pn nppepbBaHn INpocecca nn pnp NcNoABoAHn np6opa He noHa3NaueHIO) B pe3epByape cKaANBaETcR HeKOToPOe KOAnYeCTBO BOdb. B 3TOM cAyae AApnpDeOTBpaSeHn pa3MHOKeHn 6aKTePn BblAEte OCTaTK BoDb n3 pe3epByapa. Hnctpykunno OOnCTKe pe3epByapa OT HaKNiN cm. B rAabe "OUnCTka uYxoA".

H3MeIbUeHHe 6e3 npEaBapHTeAho rnpHroTOBaeHna npay

PpIbOp npeHa3NaueH DAn CLeAyoUnx UeAeI:

-ПригOTOBALEне ПIOpe ДдЕТСКОгпИТаHЯ ИЗ OБразТаньIX napOM И ВарЕнBX INHрEDNeHTOB

• CMEUINBaHNe KnDKOCTeN I ΦpyKTOB AIA pe6eHaKa

Pn6op He npEaHa3HaueH dAe H3MeAueHn TBeApbIX INrpeAneHTOB,HaNPmep Ky6Kn Ada n caxap-paHnHa.

Iocne OobAeHn JnKoCTn B KyBUn HNKoTa He BKIoUaTe peJxm npiroTOBHeHa npay.

Причмачане Пис mсшвани кngкocmeубegimecь,уmo кngkocmb B KyBшинe He npebblaem MAKcmaabHyO omMemky.

PpmeaHne Hkorga He romobme Ha napy gemckoe nmaHne noCae N3MeAbyeHnB 6aIengepe.

1 Tomecntte HOKeBOI 6oK Ha dePxaTeAb HOKeBOI 6oKa B KByuHHe.
2 Ipejke Yem IIOAOKntb TBePbIe INHrpeAneHTbI B KByBUnH, IOpexkTe Hx Ha MeAKe HkyCooKn (Ky6nKn pa3MePOM He 6oAee 2-3 cm).

Cobem. He n3Meaayme 60aBwoe KOAnuecMBO mBepgbIX nHrgpeHmOB ogHOBpeMeHHO.

U3MeaBauime makne HnrgpegnHeMbI He6oAubmN nopuaMn.
3 IomeCTHTe HnHpeaHEnTbI B EMKoCTb.
PpmeaHne He 3arpykaime npogykmbb BIIe Bepxero Kpa 3eAehoro HOKeBoro 6oka.
4 YCTaHOBInTe CnIKoHObBk KAnaHa KpbIiKy.
Примочану 68egumecb,уmo Kaanah HagekeHNo 3aФИКИСИРОВА.
5 YcTaHOBnTe ΦnMbTp B KpbIuKy KyBUnHa (pa3dactcIeauok).
6 3aKpOJIe KByUH N KpbIJKoN, NOBepHInTe KpbIJKy NO YacOBo CTpeAke AAn KcAun. He6oAusbHe BbCTynbHa KpbIJKe DOAnXhbl COBnactb C nAsAmn Ha KyBUnHe. Y6eAnTEcb, yTo 6oAusbWbICTyn Ha KpbIJKe HxOAnTcH enocpeActBeHHo HAd pyKoN KyBUnHa.
7 IocTabTe KByBnH BepTnKaIbHO Ha 6AoK 3AeKTPODIBrAteTAE (KpbIiKa DOAnKHa 6bITb HApRaBHeHa HabePx).Y6eAnTEcB, yTO pyuKa HaxoNTcR CnpBaN paCnOAnKeHa MeKdY AByMpe6pamn O6laCTn 6AoKnpoBaHn.
8IpepeBcHTEpekeAouaTeAbpeKIMOB BIOAOKeHne CMEuBaHnO.OCtABbTe pepeKaIOUaTeAbB3TOMIOAOKeHHnHa Heo6XoAMoe Bpem,HOHe 6oAee Yem Ha 30 cekyHa.

Примочанecan npogykmbl npannan K cmehkam kbywnha, omkaiohme ycmpoimcbo n, goabn HEMHoro Bogbi n anncnoa3y aonamoyky, chmime npogykmbl co cmehok. He hanoahme kybun Bblwe MAKcmaAbHo gonycmmo ro ypObHa.
Примочаимпег кормаленем убигимсь,чmo Смшанhoe gemckoe nimане Имeel npabnabHyokHCSCmehuO (B yacmHocmN, He cogePkm KOMKOB).
PpmeaHne Ean gemckoe nmaHne noayuAocb CAnIbKOM rycmbim, goabbme hemHoro JnqKocm (Hanpmep, Bogby) go oba3oBaHnna MraKoN ogHopogHO Maccbl. He HanoAhnme KyBunn Bbiue MaKcMaAbHo gonyCmmO omMemKn.
PnmeuHne Hkorga He romobme Ha napy gemckoe nmahe nocae n3MeIbueHnB 6AeHgepe.
3aIpeaaetcHnpepbBHOe HcnoA3OBaHHe np6oBa KaueCTBe 6aHepa 6Oaee 30 ckyHa. Ean IaI n3MeaBChHn Tpe6yETc 6Oaee AAnTebHO BpMa, BbIKAOHTe np6Op uee3 30 ckyHa, POdoXaNTe HeCKoAko CekyHa, 3aTe mpoAoXnTe n3MeaBchHe. Ecan np6Op HarpeeTc, POdoXaNTe HeCKoAko MmHT, NOKa OH OCTbIHet, 3aTe mpoAoXaKe Te pa6oty.
9 Pocae CmeunBaHnI pOcTo OTNcyTHepeKauaTeB peKmOB. PeekauaTeAb TOMaTHueckn BPOAOxHne Off (Bbik
10 N3BIAeKInTe I3MeIaBueHHbIe PPOADyKTbI IN3 KYBUnHa. Pn HEO6XoAnMOCTN BOCNoA3yIITecb AONaTOUkOi.
Y6eNTecb,yTO TempepaTpa NnN 6eONaChA pe6eHa.
10TKAHOHTe npH6Op OT 3AEKTPocetn.

HrpeaentbI bPema 06pa60TK npom

HikoH He BnKOpNCTOBuIte AaY uHSeHH npNCTpoIO JxOpctKnx r6ok, a6pa3NBHX 3ac06ib YPiAn HAA uHSeHHaTakNX JaBcH3IN, aUeTOH uCnPT.

1 Bnimitb npncptpi i3 po3etkn i 3Himtbr IeK i3 6LoKa ABnryHa.
2 3HimItb KpIshky 3 Iaekai npepebpHtB ii DOrOpn dHom.
3HimiTb cHTo i cHaiKHOBn Klaapani 3KpnuKN.
4IOMnTe CNIaIKOHOBNI KlaanH rapyIO BOAOIO 3 MNIOHM 3aco6OM Ta CNOAOCHITb Ioro NiA npOTouHO BOAOIO.
5 3HimItb pixyui6oik i3 rka.
6 PeTeaBHO qHCTiB pIXyUH 6AOK nIa KpaHOM BiAp3y NiCIA BnKOpNCtAHN. He 3a6yBaIte TAKOX CNOAOCHyTH BHyTpIHU OacTHNY Tpy6Kn pIXyUO 6Aoka.

Ynctitb piKyuH 6IoK dyKe o6epeXHo. Ae3a dyKe roctpi.

Ppimimka:KaIO Bn xOyeme Kpaae noocmm npKyuN 6AoK, nica cnoAickyBaHna Ioro moKHa maKoX nomm y nocygomnHi MaunHi.

IHHJI YACTINH,IO KOHTAKTYIOB 3 IJKeIO,MnIte y rapii BOi 3 OoBaAHm MIOUOFO 3aco6y Biapa3y nicaB NKOpncTahnn.
Пиммка:Уci acmни,КрIMбLoKa gBnryHa,Можha makox МmN y nocygOMnHi MaunHi.
83a Heo6xiHocTi 6AOK ABnryHa YnCTiTb BOAnOHO raHypKOIO.

9 IpebeipTe, uu cactHKn iKi He notpann y pe3epByap Aa BOAn. Lc moKHa 3po6bHTN, 3a3npHyBwn Ype3 OTBIP Aa BOAn; npo HaaBHCTb iKi TaKoX CbiAunbHe3BnuaHnn KoAp BOAn u HnepnemHn 3anax a6o 3anax ropiAo 3 pe3epByapa. Y taKOMy BnnaAky nouchitb pe3epByap Aa BOAn (AIN. NiApO3dI "UHneHHn pe3epByapa Aa BOAn" yCbOMy p03dI).
10 3aannste Kpnuky OTbopy dA BODn BiKpntoIO dA 3anO6irHn yTBOpEHn6akTepi.

BndaenHn haKny 3 pe3epByapa AaBoAn.

JaKIO y pe3epByap dA BODI NOTpAIArTb YactHKn iKi, BOHN MOKyTb pNAMnHyTN DO
HaRPIBaHBO eAEMeHTa Ni, uac HAcTyHOrO IpOecy 6oPobKn npaoi. LiJ YactHKn He BdAcTbcra
BIDAAHTN 3BuaaHIM NIOACKaHHaM pe3epByapa.
Kpim TOrO, dA 3a6e3neuHHe 100% efeKTNBHOcTi po6Ot npiCTpoU BIDAAJIte HaKN KoxHoro
MICaYra. AAn 3MeHSeHHaYTBOpEHNaHKnpy paNMo HANBaTu y npicTpri KN'ayehy a6o
fIbTPOBaHy BOy.
AAn BIDAALEHHaCTINOK iKi 3 pe3epByapa dA BODi oOnuEHHaPNCTOPO BiD HAKIny
DOtpmMyTEcb HabeDeHHx HNKYe IHCTpykui 5OO BIDAALEHHaKIny.

1Пистрий Ma€ 6уTN BIMKHeHO.
2 OdaaiTe 200Ma TeIaOIO BOAn OAnH NaKeTHK AImOHHO KNCLOTn (10r).

Плимимда: Можнамakож Викорсмовувarmп рози 150 м воги i 50 м npозоро очму (8% розин ошюой ксалом).

3 HanoBHitb pe3epByap ABA BOAn PO3UnHom ANMOHHOI KNCaOTn (a6o ouTu) i BOAOIO.
3aKpnIte OTBip AAR BOAN KPNsKOIO.
5 BctaHObitnopoXhni rAek (6e3 6yAb-RAKOi iXi BCEpeAnHi) 3 pIXyUm6 AOKOM i KPNKIO Ha 6AOK ABnHyBa NIOAOKeHHA DAA O6pO6Kn npoIO (Uo6 KPNska 6yA cIprMOBaHa DOHN3Y).
6 Поверпь рergyтор у паложенна обрбкни пою.
IHaNkaTOp 6pO6Kn npoIO 3acBiyEYbC8 OpaHKeBm KOaBOpOM, NOBIaOMAIOH npo 6pO6Ky npoIO.
7 Picra o6p6kn npoio npotrom 5-6 XBnH BmKHiB npncpti i BiA'ehaHte Noro BiD pO3eTKN.
8 BnHmTe BnKOpncTaHn pO3uH NAMOHHOI KNCaOTn (a6o OTu) i BOAn 3 pe3epByapa.
9 Dó6pe kɪbka pa3iB πɒmniTe pe3epByap ἀλν Bɔdɪn i rʌek.
HaHnTe y pe3epByap 200 Ma BOAn i, npea Tm Jk 3HOby KOpCTyBaTncr npIcTPOeM dAa npriToTyBaHn Ixi, daTe NOMy NoppaIOBAtu OAn H DoBn O6pO6Kn npoIo (20 XB.) i3 npoXHIM rAekom.
13aannste Kpnkky OTbopy AAn BOAn BiKpntoIO AAn 3ano6iraHHy TBOpEHHIO 6akTepi.

HabkoAmhnecepeoBnue

He BnKuaTe npncTpi pa3om 3i 3BnuaHmN nO6yTOBmN BiXoamN, a 3daBaTe Ioro BV oiciHn nyHK T npHOMy AIA NOBtOpHoI nepepO6Kn. TaKIM YHOM Bn DOnomOKeTe 3axNCHTn DOBkM

36epirahnn

1 Ipeed Tmik Bixklaactn pncptpi Ha 36epiraHH, cnpooxHtB pe3epByap ABAOM.
2 Ipea TmM, k BIAKAACTn npncTpiHa 36epiraHHa, nouHCTiB i BucyuiTb yci uactHH (AIB. po3dIa "UHsEHHA").

3 Aa 3ao6irAHn IOwkoXeHHIO 36epiraTe npctpi i3 pixyum 6aokom y rAeky.
4 3aIIO6irAHn PO3BHTky 6aKTePi He CTABTe KpNkU Ha rAe i 3aAnuTe BiKpntOo KpNkU OTBOPy AAR BOAn.

TapaHTia Ta 06cAYROByBaHHa

JaKIo 6aKaJaTe cKnOpNcTaTnCn HaaHmN NocLyramn, a6o, JaKIo y Bac BnHnKHa npObAema, BiDiBaJTe Be6-caN TbBnO6iB AVENT KOMPnHi Philips www.philips.com/AVENT a6o 3BepHiTc8 Do LcHTpy O6cLyroBvBaHN HkIeHTIB KOMPaHII Philips y Bauii KpaiHi (TeafoH MoXHa 3NaHTn Ha rapaHTiHOMy TaHO). JaKIo y Bauii KpaHl HemaE LcHTpy o6cLyroBvBaHN HkIeHTIB, 3BepHiTc8 Do MicueBoTo Dnape Philips.

YcyhenHHHeCnPabHOcte

Ycbomy po3dai 3BedeHO OCHBNI pO6AEMN, Aki MOKytB BHNKHHTn iIac BVNKOPCTaHH npncTPOIO. AkiTO Bn He B 3MO3i BnpiHNTn pO6AEMy 3a DOnomoroIO iHΦopMaui, IoAAHOi HIKHe, 3BepHITbCdo LcHTpy o6cayroByBaHNR KIAENTIB y Bauii kpaHni.

jlll jlll jlll jlll jlll jlll

y

(15) 10 all jj gllg (jillg) puiuall duiu wai jao Jgdo

a aal al lall lglg all

e 1

.5j1 3o plabll go jlaill plssaill

yjglg jgiol giao aieil axe e 11

aill glblal

aay aai abai jll aalw y 5g ao sLg oai wul ay iaai jic ay bll adjiall ayall go jyall no alss . (ro J) aiill lbcnll g jx liq plall Jds no caii. agwi alex

#

.（eJ）jglll jcll jg

"abilll]jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz

.ellll cglll gcll aagg egogjglll j

yjgl goi jilgai gao aieill a cblg yjlg egl gl bell

aillg Jall

(9 J) cglg aao jle aee blll yllc gll lcl o 5 .cglg aaggall aalbll alaill

y

.17 Jaa Jaaaiiaio 0g3

a 1

(IV J.

a aalolgl aaloll plaslyl gjg jll jaiy yogagclgall glall all

eagll jzssssssssssssssssssssssssssss

.aaai jie (Jtoll Jusw Jc aes 2) cull plgall logslal llabxl plab o so sxts: abdo

(VJ) 1eell Jc jgLswll plw

.pl5y plaoal cui yoo cui: abdo

AJw) (jai) cglll 6

aagagall aegllg jj yj .aill aeell jae alj galyogag cgll 1e eall 7 (9 Jw) cglll aao le aay bll lll gull w! o s u. elegll agagall aalglll aiall

J 100000000000000000000000000000000000000000000000000000000

Cswll gogll gaoaolglggl sall liljlsally gbal gai x jgsal:abso

yll yell gallgol sll lioy

(11J)jI jI JJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJI

Jlabill 2g Jlsll g aissll clj 1 ywals .clalol g jnssll cll gl nssll jll sas

aigall Jgolal ybil .clll jgs 1g200 gill clall aosl jglly gblall gblall agll

aagllgglg"JyIyIyIyIyIyIy

jlll jol jai jil jil jil jil jil jil jil jil jil jil jil jil jil jil

jiao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jao jae

(1)

aai aai 5iill dyl yab lplbl gusl dlals jnsy jall Jlabxl pleb paas

. dlab jle liisw

a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a

S_ OBC = 12 · AO · BC = 12 × 2t × 5

pbllll"psaagolallalglllgallpallbllaeio

.duJ"JdJ

psj alls) aolgall gag goggagll yglal all jz scls

(1)lll 11111111111111111111111111111111111111111

"."i111111111111111111111111111

bllll lll

aag aieeall jj y i d aeg aglgl y gaiy oogg aag aeg aeg gaaegg

(18)

.1o 1

.(cu jll gl all Jio) bllall aolol! cugo aagagglg jil

2)olgoll no yoll aol xie jy lglall 15jy clll jy sll

cllll jss no gaiial lclll aljx gl (waiy) w

jIb21 JcJcJIy, gall oog 6eag cclgll qo2x, eagll jilglw gog

y 1 y

(17 J) Jaall aabio gnn

.1V JsJ) pIaII JcIy IpaII bI i y jg oogll lio 200000000000000000000000000000

jglll jaiu aagil, qit r. se blll no guii pi ljlg. aulgl oall g aillr. no jzbsly pajlglll

aill jg gaiy yj 1gaiy w all y laig aill lgi g

.(r Jus) wglball gsiwll jis clally ayjleall wls fclj yog#1

Jc yjell Jiaiall clawgll jis lc yjbl. glaally lcsll yjbl pwlal ciagll cngg cjlilally cjc yjaleall wls

clawgll auiuily pjo yogy jil yjall

..jnl clall ijss aiqes pur no slll (jlo r.) ayjleall wls lc zogall wsll all gsiw obsii x abso

pylj bjjn no dall no egill liae gsiy lo jc yjialell olall plstiwl pao dossi: abso

..clll ijss jls uill

.(ε Jus) elball glcy yogg aiizill axia g clall w

..clll ijss g clall jsc yjw g ogj lalbo yogai x abso

jisll yjll aybjd aib

Jglil#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

Jglil#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

Jlgl#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

#

aaiill jg gjzll no g jg gl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggl ggtg cagll aaiio ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiai ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaii ciuiaII CIUCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UCLI UGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL LGLL L GLLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLL GLLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG LLG llg. 1234567890000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Lolololololololololololololololololololololololololololololololololololololololololololololol

aill j. gagall aegl lal lally cgl 15 geasj yjgll jae x. glll jai jao jajll lii .glall jol jai jy paaew, gacall jclll ygeas
gall nssn jayell cull s ldi ayjdl aigswll snn j fayd ayjdl aigswll no aylaal ayjdy ayjdy ayjdy ayjdy
lglc gll g llgall no ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy ayjdy

(EMF) aublioggJgall

1i liTjgl iie plssu (EMF) auiolooagll jgaiy aaleoiallleal 5 go gajy Philips no jgal li
p gill agogoll aolll jxll w dlig iia puiuoll jg aigll claeill w

ayjg2 pluusx1 j

jIeJ10 co aieleill algo eao alljy yog

.("aIallg aaiill" Jaiyjai)gagll auiuuiuui jx

jglll pluwr

Jabll plab Jd dya qab lc Jlabplab aJr a 00 gaxill lc laa

iic 1ill cllgoll no uoll aolox adie jy llyl yllall lly lcllln no slll

.egll Jc aall 5gall aall sae 2 .dgall

douao

Philips AVENT aodai gdl pcu no alol d aiaaill !Philips AVENT pLc gdu bly yogjld slw le ddo y Luey lao aio oie bslg jauy agao x .wW.philips.com/welcomr je ddo yoo Jauo 1aaglln aou gle lq eon pcull bsllg jauy agao x ygi lo .JlabX pleb no ayadall cull 1g jge aao bslg jauy gab abaa aabg go pllabx axj ball

(1)

1

dololl 2

3

Jyduill dglolj yjo clog 4

aall jaoiaio 5

（）jgagall jgagjgl 6

clll jxj xj aizill 7

jggall 8

9

xill 10

11

aello 12

oooll 13

14

P

.aaall aal gglll a blaaiXg jgal pluaiiul laa liia puiuaill lla oclj

shu

ylllglialllcfoi jiaai gjgjf jilw ggloll a ljjgall oog yae

y

jglg jglg jglg jglg g glg jglg jglg jglg jglg jglg

lalduawjglwllgclylllglwlj

abwglg lqio aiao ailogjS g jn g Philips gjB n logdallw w y cagjlll w gdd all

aegg aall lallln nnnnnae

a la) aalgl aasll g aasssol oall o aaa no gao jgaleo josl aowj qabn o plasssll yao xay jyell lia

jll jg jgi gall jll jia o clai j slw lal yaiy bglal aac sic

gagall agagagcll gagacgagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagag

ailll l 1

ggl gdlal alil

aJg joojoojol 5jx

#

1jL JyJn Philips aJyJg yJg jyJg gJg JyJg JyJg JyJg JyJg JyJg JyJg JyJg JyJg JyJg JyJg JyJg JyJg JyJg JyJg JyJg JyJg JyJg

iX 1

.1wJjxgdlalolalljlgigllglgallgall
