HC5750 - Hair clippers REMINGTON - Free user manual and instructions

Product type	Hair clipper
Brand	Remington
Model	HC5750
Power supply	Rechargeable (NiMH battery) or mains
Charger input voltage	100-240 V ~ 50/60 Hz
Charging time	14 to 16 hours
Runtime	30 minutes
Blade type	Stainless steel and ceramic blades
Cutting guides	2 combs (short: 3-21 mm, long: 24-42 mm)
Length settings	1 mm (without comb) to 42 mm
Charge indicator	LED light
Operation	Cordless and corded (mains operation)
Cleaning	Soft brush provided, oiling blades
Dimensions (L x W x H)	17 x 4 x 4 cm (approx.)
Weight	200 g (approx.)
Housing material	Durable plastic
Safety	Do not immerse, unplug before cleaning
Included accessories	Charger, 2 combs, brush, oil
Warranty	Manufacturer's warranty, subject to purchase at an authorized store
Repairability	Removable blades and battery
Recycling	NiMH battery, do not throw away with household waste

Frequently Asked Questions - HC5750 REMINGTON

How to charge the clipper for the first time?

Before first use, charge the clipper for 14 to 16 hours. Make sure it is switched off. Connect the charger to the device and then to the mains. The charge indicator lights up.

How long does the runtime last after a full charge?

The runtime is approximately 30 minutes in cordless use. This time may decrease over time. To extend battery life, let them fully discharge every 6 months and then recharge for 14-16 hours.

How to install and remove the cutting combs?

To install, hold the comb with teeth facing up and slide it along the two sides of the housing until it snaps firmly onto the blades. To remove, hold the clipper with the blades away from you and push the comb firmly upward.

How to clean the clipper blades?

Make sure the clipper is switched off and unplugged. Use the provided soft brush to remove accumulated hair. Do not rinse with water. The blades can be removed using a screwdriver for deep cleaning. Apply a few drops of special blade oil after cleaning.

What to do if the clipper does not cut well?

Check that the blades are not blocked by hair. Clean and oil the blades. Make sure the comb is correctly installed and that the blades are not damaged. If the problem persists, contact customer service.

Can I use the clipper plugged into the mains?

Yes, you can use the clipper plugged in by connecting the charger. However, prolonged use on mains reduces battery life. It is recommended to use it cordless after a full charge.

What are the tips for a successful cut?

Start with the longest comb. Work from the nape upward. Use slow and steady movements. For finishing, remove the comb for an ultra-short cut. Use the ear guides for clean lines.

How to remove the battery at end of life?

Make sure the clipper is discharged and unplugged. Remove the screw from the rear compartment and open the housing. Cut the battery tabs on the circuit board and remove it. Dispose of the battery at an appropriate collection point.

What to do if the clipper falls into water?

Do not retrieve it before unplugging the charger from the mains. Then remove it and dry it thoroughly. Do not use it if it has been immersed. Contact a service center.

Which oil to use for the blades?

Use exclusively the light oil supplied with the product or sewing machine oil. Apply a few drops and wipe off excess. Do not use other lubricants.

USER MANUAL HC5750 REMINGTON

10/INT/HC5150 Version 05/10 Part No. T22-29490

REIMINGTON® is a Registered Trade Mark of

Spectrum Brands, Inc., or one of its subsidiaries

VARTA Consumer Batteries GmbH & Co. KGaA

Alfred-Krupp-Str.9

73479 Ellwangen

Germany

www.remington-europe.com

© 2010 SBI

C

HC5150

REmInGtOn

PRO POWER

HAIR CLIPPER

REMINGTON

3.

5.

GERMANY

BENELUX
FRANCE
DENMARK
ITALY
SCANDINAVIA
AUSTRIA
SWITZERLAND
PORTUGAL
GREECE
SPAIN
MALTA

Central Europe

00800/821700821

Mo.-Fr. 9 a.m.-5 p.m. Central European Time (free call)
E-Mail: [e-mail]
www.remington-europe.com

Tel. [phone] (free call)

UNITED KINGDOM
Rayovac Europe Ltd, Watermans House, Kingsbury Crescent, The Causeway, Staines, Middlesex, TW18 3BA, UNITED KINGDOM, www.remington.co.uk
CESKA REPUBLIKA

VARTA Baterie spo. s r.o., Jindficha z Lipé 108, 470 01 Ceska Lipa, CESKA REPUBLIXA, www.cz.remington-europe.com

IRELAND

MAGYARORSZÁG

POLSKA

POCCNA
TÜRKIYE

U.A.E.
HRVATSKI JEZIK/ SRPSKI JEZIK
CYPRUS

ROMANIA
TKFexpert SRL, 4th, Drumul Taberei St., sector 6, Bucharest, Romania, www.remington-europe.com
SLOVENIA 8 Tel.[phone]

VRR d.o.o., Tržaška cesta 132, 1000 LJUBLJANA,

www.remington-europe.com

ENGLISH

REMINGTON

Thank you for choosing Remington. Our products are designed to meet the highest standard of quality, functionality and design. We hope you enjoy using your new Remington® appliance. Please read the instructions for use carefully and keep in a safe place for future reference.

CAUTION

Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by Remington.
Do not use this product if it is not working correctly, if it has been dropped or damaged, or dropped into water.

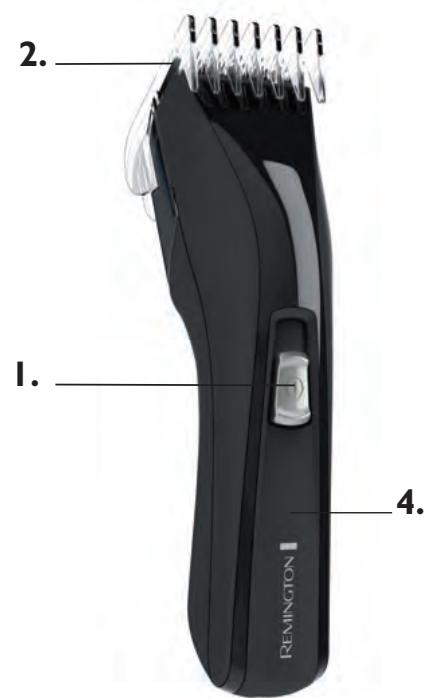

DESCRIPTION

I. On/Off Switch
2. Blade set
3.2 attachment guide combs
4. Charging indicator light
5. Charging adaptor

GETTING STARTED

CHARGING YOUR HAIRCLIPPER

Before using your hair clipper for the first time, charge for 14-16 hours.

Ensure the product is switched off.
Connect the charging adaptor to the product and then to the mains.
- When the cord is connected to the mains, the charging indicator light will light up.

Your hair clipper cannot be overcharged. However, if the product is not going to be used for an extended period time (2-3 months), unplug it from the mains and store. Fully recharge your hair clipper when you would like to use it again.

To preserve the life of your batteries, let them run out every six months then recharge for 14-16 hours

ENGLISH

CORDEDUSE

Connect the charging adaptor to the product and then to the mains.
- When the cord is connected to the mains, the charging indicator light will light up.
CAUTION: Extended mains only use will result in the reduction of the battery life.

CORDLESS USE

• When the unit is switched on and fully charged, the product will provide you with a usage time of 30 minutes which will decrease during usage.

HOW TO USE

BEFORE STARTING THE CUT

1. Inspect the clipper making sure that it is free from hair and dirt.
2. Seat the person so that their head is approximately at your eye level.
3. Before cutting, always comb the hair so it is tangle free and dry.

TO ATTACH A COMB

Hold the comb with its teeth upward.
Slide it onto and along the track of left and right side of the housing unit, the front of the combs firmly sits against the clipper blade.

Comb position	Short comb	Long comb
1	3 mm	24 mm
2	6 mm	27 mm
3	9 mm	30 mm
4	12 mm	33 mm
5	15 mm	36 mm
6	18 mm	39 mm
7	21 mm	42 mm

Imm length is achieved without any combs.

TO REMOVE THE COMB

Holding the clipper with the blades facing away from you, firmly push the comb upward and away from the blades.
The comb attachment is marked accordingly on its outside middle surface. (3-21mm & 24-42mm)

INSTRUCTIONS FOR HAIR CUTTING

NOTE: For even cutting, allow the comb attachment/blade to cut its way through the hair. Do not force it through quickly. If you are cutting for the first time, start with the maximum comp attachment.

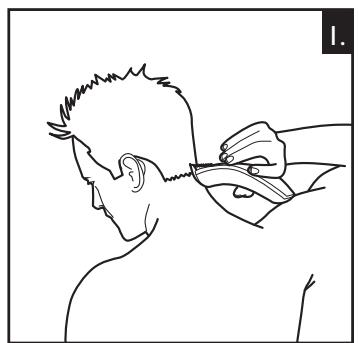

STEP I - Nape of the neck - PICTURE I

Set the comb attachment to 3mm or 6mm.
Hold the clipper with the blade teeth pointing upwards. Begin starting at the centre of the head at the base of the neck.
Slowly lift the clipper, working upwards and outwards through the hair, trimming just a little at a time.

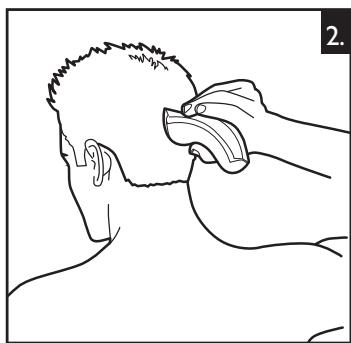

STEP 2 - Back of the head - PICTURE 2

With the comb attachment set on 12mm or 18mm, cut the hair at the back of the head.

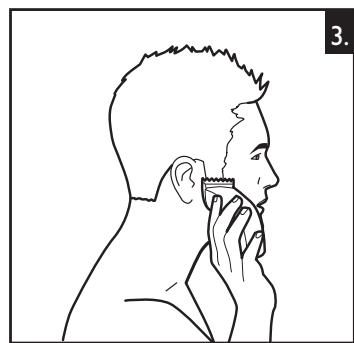

STEP 3 - Side of the head - PICTURE 3

• Set the comb attachment to 3mm or 6mm guide to trim sideburns. Then change the setting to 9mm and continue to cut to the top of the head.

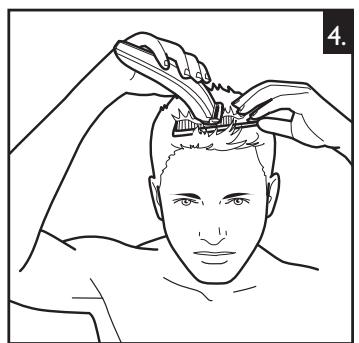

STEP 4 - Top of the head - PICTURE 4

Use the longer length comb attachment and set it to 24mm or 27mm then cut hair on top of the head against the direction in which the hair normally grows.
For longer hair on top, use the longer length comb attachment (24-42mm) to achieve desired style.
Always work from the back of the head.

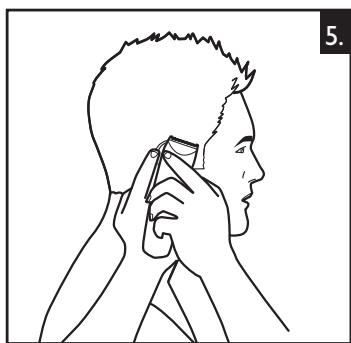

STEP 5 - The finishing touches - PICTURE 5

• Use the clipper without an attachment comb for close trimming around the base and sides of the neck. Use the ear comb guides to get a clean line around each ear. For the required ear comb guide, angle the clipper and lightly stroke around each ear to the back of the neck.
  To produce a clean straight line at the sideburns, reverse the hair clipper. Place the reversed clipper at right angles to the head, tips of the blades lightly touching the skin and then work downwards.

SHORT TAPERED STYLES - "FLAT TOPS" & SHORT CUTS

Starting with the longest comb attached (24mm-42mm), cut from the back of the neck to the crown. Hold the guide comb flat against the head and slowly move the clipper through the hair, as shown. (PICTURE 1)
- Use the same procedure from the lower side to the upper side of the head, as illustrated. Then cut the hair against the direction in which it grows and level with the sides. (PICTURE 3)
To give a "flat top" look, the hair on top of the head must be cut over the top of a flat comb.
Use a closer guide comb to taper the hair down to the neckline as desired.

ENGLISH

CARE FOR YOUR HAIRCLIPPER

Your clipper is fitted with high quality blades. To ensure long lasting performance of your clipper, clean the blades and unit regularly. Always keep the attachment guide comb on the trimmer blade.

AFTER EACH USE

Ensure the clipper is switched off and disconnected from the mains.
Brush the accumulated hair from the blades. Do not submerge the clipper in water.
To clean the unit, wipe with a damp cloth and dry immediately.
Gently brush the remaining hairs away from the trimmer comb and trimmer blade.
Do not rinse the cutter assembly under water.

NOTE: Ensure that the clipper is turned off when cleaning.

CLEANING CAUTIONS

Only the adjustable trimmer comb and cutter assembly may be removed from the trimmer for cleaning.
Cleaning should only be done with a soft brush, such as the brush supplied with the product.
Only use the light-grade oil supplied or sewing machine oil on the blades.
Do not use harsh or corrosive cleaners on the units or their cutters.
Do not apply pressure or hard objects to cutters.
Do not disassemble cutter assembly.
Do not submerge in water as damage will occur.

NOTE: Ensure that the hair clipper is turned off when cleaning.

EVERY SIX MONTHS

At regular intervals the Blade Set should be removed and cleaned.

Remove the 2 screws retaining the fixed blade with a screwdriver. Do not remove bladeset.
Brush out hairs from between the blades with soft cleaning brush. Do not remove the lubricating grease from the blades. It is not necessary to remove the small moving blade from the unit.
If the moving blade has been removed this can be re-fitted by slotting the coated blade holder over the pin in the centre of the interior product head. The groove on the coated blade, just below the teeth, rests on a metal plate at the opposite side to the screw holes. The fixed blade is fitted with the raised profile pointing outwards and fixed with the 2 screws.
Note that if the blades are not correctly aligned then cutting efficiency will be impaired.
Place a few drops of cutter or sewing machine oil onto the blades. Wipe off excess oil.

CAUTION:

Do not use liquid cleaners on the blades or harsh or corrosive chemicals on the bladecasing. Always use a soft brush to remove the accumulated hairs.
Unplug the charge adaptor from the power outlet when fitting or removing attachments, or while cleaning the product.
Always store this appliance and cord in a moisture-free area.
Do not wrap the cord of the charging adaptor around the appliance.

STOP

IMPORTANT SAFETY INSTRUCTIONS

WARNING - TO REDUCE THE RISK OF BURNS, ELECTROCUTION, FIRE, OR INJURY TO PERSONS:

An appliance should never be left unattended when plugged into a power outlet.
- Keep the power plug and cord away from heated surfaces.
Make sure the power plug and cord do not get wet.
Do not unplug the product with wet hands.
Do not use the product with a damaged cord. A replacement can be obtained via the nearest Remington Service Centre.
Charge, use and store the product at a temperature between 15^ and 35^ .
Always unplug from the mains when cleaning.
Only use the parts supplied with the appliance.
The trimmer is not washable. If it falls into water, ensure the power outlet is switched off before removing.
Keep this product out of reach of children. The use of this appliance by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety should give explicit instructions or supervise the use of the appliance.

ENGLISH

PROTECT THE ENVIRONMENT

The product contains a Nickel Metal Hydride cell unit. Do not dispose of the trimmer in household waste at the end of its useful life. Disposal can take place at our service centres or appropriate collection sites.

CAUTION:

Do not put in fire or mutilate your battery packs as they may burst or release toxic materials.

For further information on recycling see www.remington-europe.com

BATTERY REMOVAL

The battery must be removed from the appliance before it is scrapped.
The appliance must be disconnected from the supply mains when removing the battery.
Ensure the clipper is discharged of all power and disconnected from the mains.
Lift or pry the screw cover and unscrew I screw located on the back housing of the clipper.
Life or pry the clipper halves apart, exposing the battery on the printed circuit board.
Cut the tabs on both ends of the battery and remove it from the printed circuit board.
The battery is to be disposed of safety.

SERVICE AND WARRANTY

This product has been checked and is free of defects. We warrant this product against any defects that are due to faulty material or workmanship for a 3 year period from the original date of consumer purchase. If the product should become defective within the warranty period, we will repair any such defect or elect to replace the product or any part of it without charge provided there is proof of purchase. This does not mean an extension of the warranty period.

In the case of a warranty simply call the REMINGTON® Service Center in your region.

This warranty is offered over and above your normal statutory rights.

The warranty shall apply in all countries in which our product was sold via an authorised dealer.

This warranty does not include cutters which are consumable parts. Also not covered is damage to the product by accident or misuse, abuse, alteration to the product or use inconsistent with the technical and/or safety instructions required. This warranty shall not apply if the product has been dismantled or repaired by a person not authorised by us.

DEUTSCH

PASO I - NUCA - IMAGEN I

KORT AVSMALNANDE STIL - "PLATT TOPP" OCH KORTKLIPPNING

PASSO I - BASE DA NUCA - FIGURA I

KAZDYCH SEST MESIACOV

Čepele treba v pravidelnych intervaloch vybrat' a yčistit.

IPEDA HauAOM CTPNXKIN

1. y6eHNTecb B TOM, YTO MaSHINKHe He 3aqrpa3HeHa H He 3acopeHa.
2. IocAHTDE TOPO, KOMY BbI GoBpAteCebc STPnHb BOACbTAK, TOTb6I erO rAOBA HAXOANAcBb PnHsABETHBOHa yBaOpBE Baunx IIa3.
3. Pereda HauaOM TpuKkN TuaTeAbH OpaChEINTE BOAOcB. OHn DOAOKhbl 6bTb CYHMn I He CNYTAHBMHN.

CHRTHE HACADKNI-PTPBHRA

AepkMaHmHKyAe3BHeMOTc68,3HEPRINHOHaaBaHTeCH3yHa rpe6eHb HnapBaEHHNtO Ae3Bh.
B CENTHe NaHUYKOH CTOPOHE KAKDOH HACADKN-PaCecKYN YK3AHA COOTBETCTBYIOUAANAHBOAO NOCE CTPNKHK (3-21 MMN 24-42 MM)

HHCTPYKUINIPOCTPNXKEBOAOC

PfIHMeAHNE: DA BOHNI CTpIKHX NIE6XDAHMO, YTObI HacaIKA-paeeKcA/HOKn CAMN pPOXDAH NCKO3B BOALoC. He npHaIarTE yUCAH I CaeIbY yckOpHTN XnpOABJHeHene. ECaN BNoCTpHrAteBOAOLCb I nepBb pa3, INCIObA3yIte PRe6EH DAA KAKMCHAAHOBANHBo ABOAC.

PyCCKN

I -ANHNAEN-PNCYHOKI

YcTaHOBnTe HacaKy-paCyeCKy B IIOAOXeHne 3 MM HAN 6 MM.
DepeKHTe MaunHky 3y6zamn Ae3Bna HabePx. HaHNTe B ueHTpe rOAnobbl y OCHOBaHNs
MeAeHNOPONEtATE MAUNHIOK NOAOCLAM HABEPX NOT CEPEAHNb13aTbIAKA,KAKDbIpa3 COPTPRAA HbIe HeoBaOte KOAHECTBO AOAC.

UAR2-3ATbIAOK-PNCYHOK2

VctaHOBHTHacaKy-pacChecy BnOAneHne 12 MM Hn 18 MM nIOCTpHnTe BOACbHa 3aTbIaKe.

IIAF3-IO BOKAMTOAOBbl-PNCYHOK3

VctaHOBHte HAcAky-paceeKy B NOAOJEHHe 3 MM NIA 6 MM DAA NOpABnBnAHn8 BaKeHbAp.
Piocae TTOrO YCTaHOBHte HAcAky-paceeKy B NOAOJEHHe 9 MM N IpoOJaKaIte cTPhKKy No
hapabAEHN K MakuJHKe.

UAR4-BEPXTOAOBbl-PNCYHOK4

Bocnoa3bYIEeAaHnHMAACaHPO-PAeCKeHc, YcTahOBHe BEE bOAnoXeHBe 24 MM HnA 27 MM, AaCTKHNBOAOC HA BEPXHEI cAHyTOAOJI. CcoTPhrAIte BOaCBI pNTOHB HANpABAEHIN XpOCA.
Aa 39KTHPKG 60AE8 DAHHHIX BOAC, pactuiXHx HBXPEH ACTIN ROABBI, hCNOA3BTE AAMHYIO HAcAky-pacChecky (24-42 MM), KOTOPAR NO3BOAHT NQYHTH JEAEAMOY MoDAEBt CTHPKH.
CTpnKky BceTa NaHnHaTe C 3aHeu Yactn rOAObl.

UAR5-3ABEPWAAIOUNE WTPNXN-PNCYHOK5

MaaHHKO63eRb6H KOPOTK NOACTPRHTE BOLOcby OCHOBAHN u NO 6OKAM WIE. IcnoAbyte Haca4y AAR CTPNKHXI BOKPY UYSE AAR NOAYEHNA POBHORO KOHTpy.AepkNTe MaunHKY NOA yLOM u, npAAarai MNNHM YCNIH, NOCTPRHTE BOLOcby BOKpy UYSE, ABINrABcB HnpaBaeHN 3aHEJ qactn WIE.
Tc06bl kkypatno IOAPOBHb7 6kno,NOBEPHNTe MAuHHKy AADCTPNKHOAOC H8O rpaAcob. Pnctabte NOBEPHYKO MaMHKny NOA pNtBMYI YIOM KTOAOE.PnI3 TOM KOHNJI Ae3BNIOALKnH bAmCb TaPKa nPnHKACbTa C KOKE. POACTPNHTe BOAOCb CBxpy BHN3.

KOPOTKMA CTYIENHATbIE IPINQUEKIN - «ПАOCKИВЕРХ» И KOPOTKAR CTIPNXKA

VCTAHOBHBAANHYKO HACaKy-pacChecy (24-42 MM) COCTPHTAeTOBOcbl, DBNARcB 03aHEn qaTHEN WEN KMAkyIke. CAEbHtze 3e TAm, YTObHs HAcKa-pacChecka pabHOmePHO npHaerlaa K rOBoAE, nMeDAEHNO pOABHArte MauHHky HEPEB OAOCHNI POKOB, KAKoTAA3a HA PCHC/YKE I.
CaeyBn bIeHNpBNBEAENHBM KcOpeMHaUINM,CoCTPNHTe BOACbH a BEpxHxN cTAHn FOAOBb, ABnraBc b OTO A k MakyuSyce (cm. PHCYHK).3aTe m cTcPHTe BOACb, paTcyne No 60kam FOAOBb. POCTPRiAte BOACb pnoTb napBaEHH x npctA. (PNCVHOK 3)
AaO3aAnnPnIeCKn《TIOCKN Bepx》NOAcTPrHnTE BOAOcb HA MaKyuKe HAA YApEkn-BAeMOI NpAImu pAcHECKo.
PnI NOMOUIO 0oEe KOPOTKORO rpe6Hr CTyENHATO NOCTPRHTE BOAOcI NO HApRbAE-HNIO BH3K AHHNIU

yXoA 3A MAUHHKOI AIA CTPNKKN BOLOC

Maunnka Cha6kena BbICOKAKeCTBeHbIMN HOKAM. Yo6bl npOAMtB cPOK CAYK6bl MaunHHK, He6xoMMo PeyAraHPO OCHuATte ee HOxN HOPcYnc. He CHImaTHe HacaKy-pacYeCKy C HoJA TPhMMEpa.

IPOCAKAKDOFOHCIOAb3OBAHNA

6e_ nTecbbTom,TO npH6Op BbIKAOueH N OTcoeAHHeH OT cETn nepemehoro Toka.
C NOMOJIbU ⅢeTOUKN ydaIaHTe C HOKeI OCTaTKN BOIoC. He nOrpyJxaiTe MaunHky B YoAy.
PpTpe KOpnyc MaunHKn BAAxHoN TpnoOyKo N HEmeAenHO BbITpTe erO hacyo.
C NOMOJIbIO UeToUKN aKKyPaTHo YdaANTE OCTaTKI BOLOC C HacaKn-paCheckN HOKa TpIMMepa.
3aPpeHNO pombBaTb HOKeBOB 6AOK IOA CTpye BOAbI.

Прмочи:О6Я3aTeMbHO BbIaUChte MaunHky nepea nCTKoI.

MEPbI PEPDOCTOPOXHOCTH PPN YNCTKE

PbOuCHTE OTHMMEPO MOXHO OTOEADNHTB TOIko peyAHypeMyo HacaKy-pacCheky NHOKBJE 6AOk.
UCTAOKA DAHOHBAHRCN KAOIOHTAEBO MNGKOH IETOCHKOI,NOAO6HO TOI, KOTOPAR BXOAMT B KOMPTAKE.
HaHOCHTe HAOKTHO TaBko CBETAOE MCAO,IOCTABAREMOE B KOMIAEKTAE,AMBO MACAO AAR IUBeHbIX MAUHH.
He IcNbaIyTt cHaBHOaEHTbOuHn HAn EaKHe UcCTraUe CpeACTBa AAR OcHTKN YCTPOINCTBA HAN HOEBOGO 5oKa.
He NyockaIte KOHTAKTA HOXeBOO 6oKA O C TBEApBIMN PpeAMETAMn H He npHaarAte K Hemy Upe3MeHOPHO DAABAHy.
He pa36bpaTte HOxKoB 6AoK.
Bo n36ekannne noBpeKdEHN He nOrgpyKaIte npI6Op B vOy.

PnmeaHHe: nepea OunchKo MaunHKy AaCTPNKKBOAoc Heo6xOAnMO BbIKHOHTb.

PA3B IIOAODA

PeyarpoCHIMaHTe IN PPOUHuaTe 6AOK Ae3Bn.

OTBnHTTE npn NOMOOn OTBePTKn 2 BnHTa, KcNpyUoXx Ae3BHe. He ChnMaIte 6AOK ae3BnI.
CMA3HOHE M4KIOI 50EHO HOAOBcO, OABTUBIEMC KEMDy AEAEBHMI. He ydaAaJIe C aEAE-BI m3AOHOE BEECTBO. The HEO6XoAHMOCTH CINMHT ABALEHKO NOBAXIBHO AE3BE N cPiHObA.
HbHTyBn HOK MOHO YCTAHOBH Na HcE, NOmTEbH DEpKATEb HOK C NOKPbTHEM Ha 1uTbPEk, HXAOADJIaCNo IeHTpy BHYPrn TOBOIKN. T3a HONKe c NOKpblTHm HXAOAIIuHHe HENOCpeAcTBeHHo No pexkyue NoBEpEXHoCTbO, a3aHKnCpYETcHa metaaHauecko nAactHne co CTOpHb, PTOBbMOAOHOHOr OTEbCPrrm AAR BHOT. HoK bCARe kPnHOdHTOM oAoJxEHm INPOCoHNHTcR K MaUHInke HnKnIPcyETc C nMOUb2 BHTHO.
ECANHOKIN6ydyT yCTaHOBAEHbI CnepeKOcOM,3ofoeKTMBHOCTb pe3KNyxydUNTCa.
HaHECHTE HeCKaBko KAneBa MacaA AAn HOKe HAnu Hau BHeHou MaSHINKn HAe3Bn. COTpIte NAmUHeE MCAO.

BHIMAHNE:

He Noa3bYtceB XHdKHMn YHCTaHMM CpeAeTBAMn AAA OHCTKN HOXKe HAN CbHDoEeHByoHMM, EaKMn XHMKAtaMn AAA UcTKn KOpTyCa. OctaTKN BOLOC BcERa YAaALTe MfKOn IeToHKOH.

PyCCKN

PnY cTAHOBKIE HN CHRTHN HACAOK IN OCHCTE YCtPOHCTBA OTKAIOHTe AaADTep AAR 3AP8AKNOT CETH.
XpaHnTe np6Op n3AeKtpoWHyp B cyxom IomeuEHHN.
He 6MaTbIaIte uHyp aAanTepa AaA zapAKN BOKpy yCTPOcTBA.

INHCTPyKUINIIOBE3OPIACHOCTNI

BHMANHE! -JAR CHINKEMHNI PHCKA OXKOTOB, YDAPA 3AEKTPNECKMOKTOKOMB3OTOPAHNI IAN TPABMbI?

Hikorda He octabAte NOcoaHEHbK 3eKtpocTe np6op 6e3 npncmOtpa.
He KlaaNTe WTeNceAByIO BnAky N uHyp Ha ropnyne NOBepxHOCTN.
He no3BOAry Te wTeNCEaBHOH BnAke HhHyp HAMOKHyTb.
He noAkuayTe np6op K 3eKtpocetn H He oTcoeAnHyTe erO OT Hee MOKpbIM pyKaMn.
He IIOAOB3YJE TcYOPCITBO, ECAN HYP NOPBEXDAH. 3aMeHNHTb NOPBEXDAHNNI SHYNP NITAHIA MOKH, O B6HKJHM ECEBPCHCN UENTe Remington
3apkaite,ncnoab3yte n xpaHnTe np6op npn Tempepatye 15^ - 35^
Pn uCTKe BcERda OTcoeHNHnTe np6Op ot 3AekTPOCeTn.
Vcnoab3yIte NCKAIOHTeABHO BXO4JHNE B KOMTAEtAH.
HMMNepHe3MaBtB.EcAnOH CAYaHIO OKAKETC B BOAE,NEpeA HBAeHemEM YCTPOCTBAY6EADHTCB,TOO OHOTKAOJIOT OF CETI PHNTAHIA.
XpaHnB B HeOAcTyNHOM AIA AeTe MeMe. NcIOaMb3OBaHHe 3TOO pNb6OpA IaAMC n YMeHNbHEHBMf HINHCckHM, YCBCTBeTbAeBHIMN hAmYMCETBEHBMi CIOOCbHOCTMm HAn HHexBAKoI ONbTa I HA NHANMOEeBbTbONaChBM.IaUa, OTBETcBHeHbIe 3AHX 6e3OanCHOCTb, DOAXHBd AaTt cHTKNE IHNCTpykUnn MAn HOHTpOMPBOATb IcNOb3OBaHHe anApata.

3AUHTA OKPYXKAIOUCEI CPEAbI

UcypoBTOO cHsEHO NHEKb- metAAA-NHApAHOH AKyMAYOPHOB 6aTepeR...IO nCTeHEmn CpOKA clyKbI TpMMepa He bIbpaCbIABaIte rO EBMctc c 6bltobmN OTOxAMn V3dAme MOKHOYTmH3HPoBAT B HauHX eCEBNCbX cTcPAX hCtceAAH3HPoBAHbIX pHmEHbIX pNYHKtX.

PPEADYIPEXKAEHNE:

3aepuaetae6bocatB OBOH MAn DeOpmPBOA8b GatapereHbIe 6oKm, NOKOABky 30 MOKET pNBECTB K BbByu Hn BbOPcy TOKcHMHX BEUCECTB.

3a OAnOAnHTeBAHbN HnFOpMAuEH NOBTOPOM HcNoAob3BOAHm MATEpRAoOB 6ObpaauaTecb, noXaYCTbHa, naCaWf www.remington-europe.com

ИЗВALEΥЕНИЕ БАТAPЕN

IpepeA yTHnH3aUneH Heo6xoAMMo N3BaeCb aKKyMyAToPHyO 6aTapeHO n3 yCTpoiCTBa.
Pn H3BaeHnn 6aTapeu yCTpOJCTBO DOAxAHO 6bITb OTCOeAHHeHO OT CETN 3AEKTPOINTaHH.
6e_山 nTecb, yTo MaunHka dA CTPNKKN NHOHOCTbO pa3pXKeHa OTKIOUoHea OT cETn NTaHna.
ПОДИМНТЕ ИПОДАБЛТЕ КБИЧКУ ВИТHA I OTKPYTHTE BIVHT, PACNOAOXEGHBNI HA TbIbHONCTOPOK KOPNYCA MAIMKHINDA AATCPRHKH...
PnnoaHmMHTe HnAoAeBteOaHy cTbMaNNKc, OaTeAae eOT APyOr, YTO6bl NaoytBu DocTy K AkyMMaTAROpH Batapee, pacoAONooHb HA neeathOH naATE.
PelepekBeTe KOHTAKTbHa 06OHX KOUHx AKKyMAYATOPHo 8aTaPeN i CHMnTE ee c neaTHOH PIAbTb.
YTHH3aUIO 6aTapeIN CAEyET IPOBOAHTb C CO6IOAeHNEM IpaBn 6e3ONaCHOCTN.

CEPBNUCHOE OBCAYKINBAHNE I TAPAHTNA

PnB6op npOBepen H nDeeKToB He NMeET. Mbl rapaHTnpyem OTCYCTBNE B npBope AeEeKTOB, BO3NHkAIOUHxN 13-3A NECAEUTBEHNO MATpeNAH NHEKAHECTBEHNO CbOPKn, B TeYehENe rapaHTnHOro cpoKa co DnH NOyKTHN pnpOba. Ecl B TceHNe rapaHTnHOro cpoKa BaW npB6p BlBtET NcTPOB, Mbl - PnH AAMHN YeHa - BeCnATHO OTPEMOHTNpye ERO nAm3aEMHM HA HOBBi.

Cpok rapaHTn TEM cMbIM He npOdaeBaetc.

B CAYAe IOAMOKN pRb6Opa CBKHTeCb NO TEaEOHy C cEBINbIM cENTPOM Remington B BaWEM perHOE.

Aaepca n Teaeohbi CepBCHbIX IeNtPOB MoXHO 3HbTb NO 6eCnlaTHOM TeaeOHy OropAHN H8-100-1001* (EBOHNc 6eCnlaTHIO N TEPPHTOnP DPH)

AaHnra rapaTna npeOCTaBAeTcB D OonoAHeHne K BaIIM 3aKOHbIM npabAM nOTpe6nteA.

IAPHTNArEAECTBtAeBbBA BO CECTBx CTpAHax, B KOTOpbIx Bbl pno6peHn pnp6Op y hauero ABotPBOAHHO DAhepa.

IapantnHe paCnpocptpaHreTcHa AeEeKtbl, Bo3NHKUme H3-3a HenpabInbHOk cKnlyatauIm npH6opa, IcNObTaobAnr Ero He No Ha3HuEnO, HmEHeHn KOHCTpyKUnn HmEcoBLOdHn HnCTpyKUnn NO TExNHueckOn KcNlAytaunn N/Hm Mepam pNeTOcTOPOXHOCTn. TaHnTHn NCTkaet, eCm np6Op 6bl Pa3o6bApn OIN TpeMOHTPOBaHn Be ATOTp3OBAHbHM HAmn AHOM.

Cpok cayx6bni 3deAna 3 roda c daTbi npoDAaKn.

TAPAHNTHbI TALOH

MoAeAb REMINGTON HC5150

Aata npoDAxN

PpoABeu

（noaNcB,neuatb）

H3eAne npOBepeno. PpeTeH3n He Hmeo.

C yCAOBHn rapaHTn O3HaKOMaeh n corlaaceH.

nokynataeM.I.

TÜRKÇE

ADIM I - ENSE TRASI - RESIM I

PASUL I - CEIFA - IMAGINEA I

Fixati pieptenele ataabil la 3mm Sau 6mm.
Tinei aparatul de tuns cun dintii lamei orientaitsin sus. Incepi sa tundetei din centrul capului de la baza gatalu.
Ridicatu incet aparatul de tuns,deplasandu-va in sus si catre exterior prin parr,tunzand putin cate putin.

PASUL 2 - PARTEA DIN SPATE A CAPULUI - IMAGINEA 2

IPIN APX'IZETE TO KO'YPEMA

TIA NA NPOZAPT'HSETE MIA XT'ENA

KpatnoTe Tn XtEv aE Ta bovia Tnc npoc ta navw.
ToOeHTnOte nTtEVA tOu aauAkyoNpy apatepKn Tn deEia nEupa Tou nepiBAAJnoC kai eTakivnte tn kata uKoc tw auAkiw, n npooTiv nEupa TNC tXeVAC epapUcSe OaTebpA oTn Aenla Oa mXnuhVc.

MET'A AN'O K'AOE XP'HsH

Beaaiweite otE xete anevepyoiooei Tnv koupeutikn uxavkai Tnv exetexybaea anot npia.
Kαρισίμε τη μαβούται τι πίχες Μου ὄχουν μαζευτι Πτις λεπιδές, Μη βιθιζε τήν κουρεική μχανή εόνρο.
Tov kai 0aioo n ovoa, xpoiaonoiote ev a vno navi kai katouk oouniote neu aoeow.
Bouptioate ana tic unoloinec troxc ano Tt xteva kai Tn Iaia Ta Koupetuihnc mxvachc.
Mny EeIeVETn dataeKn kornc e vepo.

VAŽNE SIGURNOSNE UPUTE

UPOZORENJE - KAKO BISTE SMANJILI RIZIK OD OPEKLINA, UDARA STRUJE, POZARA IILI OZLJEDA OSoba:

Uredaj nikada ne smijete ostaviti bez nadzora kada je ukljucen u strujnu uticnicu.
Strujni utikač i kabel držite dalje od zagrijanih povrsina.
Uvjerite se da strujni utikač i kabel nisu vlžni.
Ne isklučujte proizvod mokrim rukama.
Uredaj se ne smje rabiti ako je kabel ostecen. Zamjenski mozte dobiti u servisnom centru poduzeca Remington.
Rabite i cuvaje proizvod na temperature izmedu 15^ i 35 ^ C
Uvijek odspojite iz struje kada ciscenje
Koristite samo dijelove koje ste dobili s uredajem.
Sisac se ne pere. Ako upadne u vodu, prije vadenja izvucite njegov utiack iz uticnice.
Drzite ovaj proizvod izvan domasaja djece. Ako ovaj uredaj koriste osope smanjenih fizichik, perceptivni信息系统 mentalinai posbosnosti ili osi kobe jone nemaju iskustva, moze doci do opasosti. Osobe koje nadziru nijhovu signormst trebaju im dati jasne upute ili nagdgelati uporabu uredaja.

ZASTITA OKOLISA

Proizvod sadzi poniklanu metalnu hidridnu celiju. Sišač ne bacajte u kuci otpad po isteku njegov radnog vijeka. Odložite ga u našem servisnom centru ili na previdenim sabirnim mestima.

OPREZ:

Ne stavljaje u vatu i ne unistavaje pakiranja baterija jer ona mogu izazvati plamen ili ispustiti steţne tvari.

Daljnje informacije o reciklaranju vidjeti na: www.remington-europe.com

Izjava o sukladnosti nalazi se na nasoj web stranici www.remington-europe.com

HRVATSKI JEZIK / SRPSKI JEZIK

VADENJE BATERIJE

Bateriju morate izvaditi iz uredaja prije odlaganja na sabirno mjesto.
Urej mora biti iskljuen iz struje kada uklanjate bateriju.
Provjerite je li baterija sišačispražnjena te je li šišac iskopćan iz struje.
- PodignitePoklopacvija pa odvjte I vijak sa straznje strane kuciesta sišača.
Odovite polovice sisača kako biste dosl od baterije na tiskanoj ploci.
Odrezite jezičke s oba kraja baterije te je uklonite s tiskane pločice.
Bateriju treba sigurno odloziti na optrad.

SERVIS I JAMSTVO

oLo 9] oLo r gai I aai I paxiwi

JJIJI JIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJ

.

J 15 Jg j 15

011 a11a05 1p9a3

2a

11gol 1f gdl hwl plw wgl qdl sfl jwq

3a- -3

j0galei jaiw gai wlgloa aagll huiu

J

4a-g-ωj11 a-e-4a,ogb31

pssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss

100 100

Jgbl jy jlln no plasuiu L gell s Jgbl y jll

m = 311

1

Lg 15

aJ111 aJIaI aJIaI aJIaI aJIaI aJIaI

gglgllglaal 5j j Jllo yo yol y

.

aagbll no jIg JSLg aillu

jLgJgJgJgJgJgJgJgJg

Joo

STOP

j 1

jIySJI JILJILIgOgOgSOLOIO SOO OgOgOgJg

aLwll 1Jg

aall g JSLJ dLg no sLi

aill 5y sls8Jc qill Jaa

Jg 1511

. Remington

g 10 g jgljjj jg jlgjgjg jg

.

jLg 20 oogjdl jg 1aas po

Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc

ai a ai 分母最小值为 k .

jgl1iipnniJg2. JIabJgJI giliOe 11111111

gai gaiiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaia

52gdoLwIcJnaiIJI IcU. JbIoo

jIg31 Iia piai wglc gai aai lLaieil agai

AaJI Lc BbIe

g 1

gjy jgio yaii li c. lgIeoiwia xo igijie iiyaii

aLiliee gglgol aoljSlo

:

g jai a 1 gj i a b u c gai g jui y

.aoLw slgo Lgio

JJIJI JJIJIJIc guiai jolc! Jg-Logleu no jui jui

www.remington-europe.com

J

A.5.5ai jj jgl no aJbJI gji

aJlJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJ

1 1
