ITI E 408 - Gps MAPPY - Free user manual and instructions

Product type	Car navigation GPS
Brand	MAPPY
Model	ITI E 408
Screen	Touch screen (dimension not specified, estimated 4.3 inches)
Power supply	Built-in rechargeable battery, charging via USB cable or cigarette lighter
Battery life	Approximately 2 to 3 hours in use (estimate)
GPS receiver	High sensitivity, satellite reception
Navigation functions	Route calculation, voice guidance, address search, points of interest
Map updates	Free lifetime updates via mappyPlus software (after activation)
Speed camera detection	Radar update via mappyPlus (optional)
Connectivity	USB (mini-USB), 3.5mm headphone jack
Included accessories	Car mount with suction cup, USB cable, cigarette lighter cable, stylus, CD-ROM with manual
Management software	mappyPlus for update and synchronization (download from support-gps.com)
Warranty	12 months from the date of purchase
Operating temperature	Not specified; avoid extreme temperatures
Maintenance	Clean with a soft, dry cloth; avoid moisture
Installation	Attach the suction cup to the windshield, connect the cigarette lighter
Safety	Do not obstruct the driver's vision or airbag deployment
Compatibility with athermic windshield	May affect GPS reception
First use	Activation after driving 20 km for updates

Frequently Asked Questions - ITI E 408 MAPPY

How to turn on and off my MAPPY ITI E 408?

To turn on, press and hold the Power button for about 3 seconds. To turn off, press and hold the button for 5 seconds, then choose Standby (quick resume) or Shutdown (complete shutdown).

Why does my GPS take time to catch satellites?

The first use or after long inactivity, reception may take 5 to 10 minutes. Make sure you are outside or behind a window. If the vehicle has an athermic windshield, reception may be affected.

How to install the car mount?

Assemble the suction cup on the mount, clean the glass, attach the suction cup and lock it. Place the GPS on the lower part of the mount, then push back to snap it in. Connect the cigarette lighter for power.

Can I use my GPS in a vehicle with an athermic windshield?

GPS reception may be affected by athermic windshields. MAPPY does not guarantee optimal operation under these conditions. Check with the car manufacturer.

How to set up my first route?

Turn on the device, click on Navigation > Navigate > Address. Enter the city name, then the street and number. Select the destination and click OK. Wait for the GPS to calculate the route and acquire the signal.

How to update the maps?

Download and install the mappyPlus software from www.support-gps.com. Connect your GPS to the PC, launch the software, log in, then click on My products and Synchronize. Activation of free lifetime updates requires having driven 20 km.

What is the warranty period and how to use it?

The warranty is 12 months from the date of purchase. In case of a problem, return the product to your dealer with proof of purchase. First consult the FAQ on www.support-gps.com. The manufacturer is not responsible for data loss.

What to do if my GPS does not turn on?

Check that the battery is charged by plugging in the USB cable or cigarette lighter. Press and hold the Power button for 3 seconds. If the device still does not respond, contact customer service.

Can I use headphones with my GPS?

Yes, the device has a headphone jack. To protect your hearing, avoid using maximum volume and do not exceed one hour of use per day at medium volume.

How to back up data from my GPS?

Connect the GPS to the computer via the USB cable. It appears as a removable disk. Copy and paste the entire content to your computer to back up your data.

USER MANUAL ITI E 408 MAPPY

Support vehicule comple (2 parties)

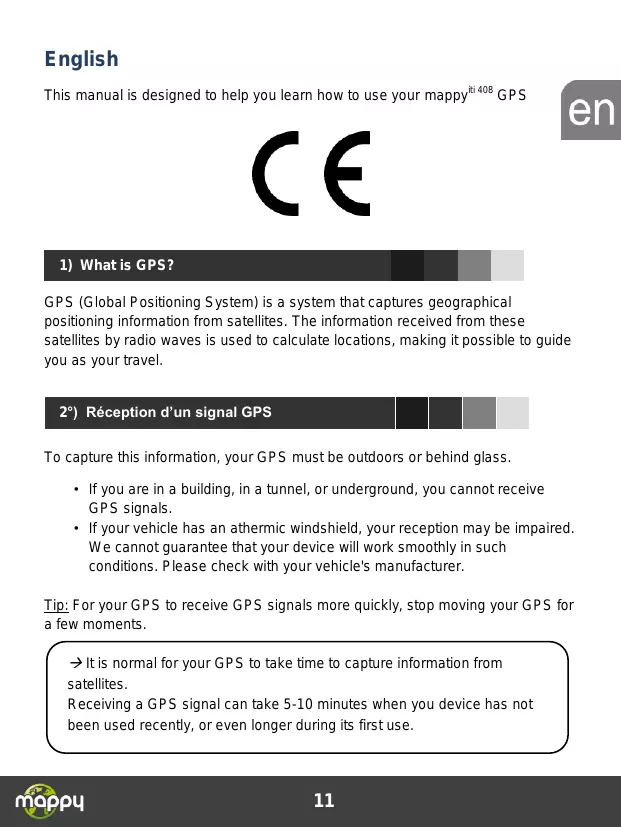

This manual is designed to help you learn how to use your mappy^{ii 408} GPS

CE

en

1) What is GPS?

GPS (Global Positioning System) is a system that captures geographical positioning information from satellites. The information received from these satellites by radio waves is used to calculate locations, making it possible to guide you as your travel.

To capture this information, your GPS must be outdoors or behind glass.

• If you are in a building, in a tunnel, or underground, you cannot receive GPS signals.
• If your vehicle has an athermic windshield, your reception may be impaired. We cannot guarantee that your device will work smoothly in such conditions. Please check with your vehicle's manufacturer.

Tip: For your GPS to receive GPS signals more quickly, stop moving your GPS for a few moments.

It is normal for your GPS to take time to capture information from satellites.

Receiving a GPS signal can take 5-10 minutes when you device has not been used recently, or even longer during its first use.

a) Package contents

Cable for the cigarette

Full vehicle support (2 parts)

CD-ROM With complete user guide

USB Cable

Your Quick Start guide

Stylus

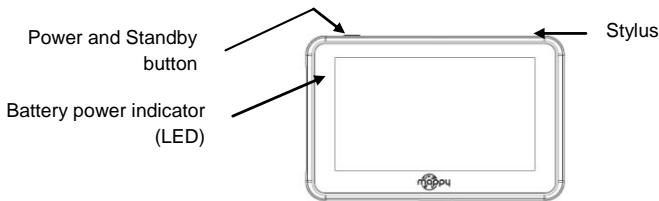

b) Product overview

Headphone jack
PC and battery charge connection
Micro SD port (card not provided)
Reset

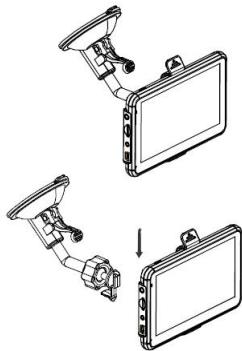

4) First use of mappy¹⁰

1

First, start up your vehicle. (If the device has been used for a long time with the engine turned off, the vehicle's battery may be drained.)

2

Attached the suction cup to the windshield and lock it into its base. For a stronger hold, clean the glass before attaching the suction cup.

3

Place the product on the lower part of its holder. Next, as shown in the illustration, push the device back into the car holder.

4

Connect one end of the car charger to your device and the other end to the cigarette lighter.

5

Push the lever toward your car's windshield to attach it.

6

Press the power button on the device. When te device turns on, you are brought to a home screen where you can access various functions.

Warning: Install the car holder where it does not interfere with driving, obstruct the driver's vision, or deploy the airbags.

5^ ) How do I set up my first itinerary?

Once your mappy GPS has started up:

1 Click on "Navigation"

2 Click on "Navigate"

3 Next, click on "Address"

4 Enter the name or postal code for the Town, and then select your destination in the list of results.

(optional) Enter the name of your destination street name, and then select the street you want.

(6 optional) Enter the house number for your destination.

7 Click on "OK" and Go

8 Wait a few moments for your mappy¹⁰ to receive the GPS signal, and then let it guide you.

Power and Standby button

en

Turning on your device

To turn on the device, hold down the power button for a few seconds (about 3 seconds)

Turning off your device

To power off the device, hold down the button for a few seconds (about 5 seconds). You have two options for turning off your device: putting it in standby mode (when you turn on the device, it will restart at the same location) or powering it off completely (the device will completely restart). You have 10 seconds to decide. Otherwise, the device will automatically go to OFF mode. To cancel this operation, touch the screen (not any icons).

Note: When charging the battery, you can only put your device in standby mode, even if you click on the Off button.

07	Number of seconds remaining before the device goes into automatic standby mode.
Standby	For standby mode
Off	The power down the device

en

Terms and Conditions :

You have an unlimited updates after activating your GPS on mappyPlus, you may update mappy maps for FREE.

Installation :

1. Install mappyPlus** on your PC. It is available at: www.support-gps.com into the involved section
2. Connect your GPS with the provided cable
3. Wait for the software to recognize your GPS and for the server to finish analyzing the contents of your mappy GPS
4. Log in and then go to "My Products", located on the left menu bar
5. Once the Ready to be installed" message appears, click on "Synchronize". Do not disconnect your GPS during the installation.

Warning: You are strongly advised to back up your mappy GPS before starting the installation.

**MappyPlus is providing into the CD.

Important:

It is advisable to make a backup of your memory in case of data loss, so you can recover the original content in order to avoid intervention service.

• Connect your GPS mappy⁴⁰⁸ to your computer via the supplied USB cable. Then check if the equipment is recognized on the user's computer as a Removable Disk.
  Make a copy and paste the entire contents of removable disk to your computer.

The manufacturer guarantees that this product is free of assembly and material defects under normal conditions of use.

Warranty Period

The warranty takes effect on the date of purchase. The certificate of warranty and the invoice, indicating the date on which the device was purchased, are proof of warranty. This product comes with a warranty of twelve (12) months from the date of purchase.

Warranty and Returns Assistance

If you have any problems with your product during the warranty period, you must return the product to your local dealer.

A dated proof of purchase is required. Please have the following information available before contacting customer service:

1. The serial number
2. The description of the problem

If the customer finds a defect or malfunction on the device due to an assembly or material defect (see "Restrictions") during the warranty period under normal use, the customer must return the device to the local dealer. The device must be packaged properly in order to be safely transported. The proof of purchase must be attached (the attached certificate of warranty and the invoice). If you have to send it by mail, it is recommended to send the product using a service that includes package tracking. The manufacturer shall not be held responsible for loss or damage to the device before the device is received.

Before Returning the Device under Warranty

en

The customer should first consult the Frequently Asked Questions (FAQ) on the www.support-gps.com website to see if there is already a solution to the problem. The customer should save all of their data and erase any information from the device that may be considered to be confidential, personal, or relating to intellectual property. The manufacturer is not responsible for damage or loss of any software or data saved on a device that is sent to customer service for repair.

Restrictions

The manufacturer accepts no responsibility if, upon receipt of the product for repair, texts and examinations of the device reveal that the alleged defect or malfunction does not exist or that it was caused by the customer or a third party, particularly in the following situations: breakage, misuse, negligence, improper maintenance, unauthorized attempts to open, repair, or modify the product, incorrect installation or use of software added by the user, a virus, or any cause unrelated to its originally intended use, an accident, fire, lightning, short circuits, power outage, or any other incident, exposure to moisture, or exposure to excessive temperatures.

The warranty does not apply if:

1. The device has been tampered with or repairs have been made by unauthorized personnel.
2. The device's serial number has been modified or removed.
3. The warranty seal has been altered or damaged or if the warranty has expired.
