ULTI 507 - Gps MAPPY - Free user manual and instructions

Product type	Automotive GPS navigation
Brand	MAPPY
Model	ULTI 507
Power supply	Rechargeable battery via USB cable or cigarette lighter (12V)
Main functions	GPS navigation, route calculation, mapping with free updates, touch screen, car mount with suction cup
Map update	4 free updates over 2 years via mappyPlus software at www.support-gps.com
GPS reception	Works outdoors or behind glass; first acquisition time 5-10 min
Package contents	GPS, cigarette lighter cable, USB cable, CD-ROM, quick guide, stylus, car mount with suction cup
Care and cleaning	Clean the screen with a soft, dry cloth; avoid liquid products
Safety	Install the mount without obstructing the view or airbag deployment; do not use the GPS while driving
Spare parts and repairability	Accessories available at www.support-gps.com; 12-month manufacturer warranty
General information	Compliant with European R&TTE directives; CE declaration by Logicom, 55 rue de Lisbonne, 75008 Paris

Frequently Asked Questions - ULTI 507 MAPPY

How to turn on and off the MAPPY ULT 507?

To turn on, press and hold the Power button for about 3 seconds. To turn off, press and hold the same button for about 5 seconds: a menu appears offering Standby or Shut down. If you do nothing, the device turns off automatically after 10 seconds.

How to install the car mount?

Assemble the suction cup onto the mount. Clean the window, attach the suction cup and lock it. Place the GPS on the lower part of the mount, then push back to lock it in. Ensure the mount does not hinder driving or airbag deployment.

How to set a first route?

Turn on the GPS and click on Navigate. Choose Address, enter the city, street, then the number. Select the destination from the list. Wait for calculation and GPS signal reception (5 to 10 minutes outdoors). Follow the voice instructions.

Why is my GPS not picking up satellites?

The GPS must be outdoors or behind glass. Avoid tunnels, buildings, or underground areas. If your vehicle has an athermic windshield, reception may be affected. Leave the device stationary for a few minutes to speed up acquisition.

How to update the map?

Download the mappyPlus software from www.support-gps.com. Connect the GPS to your computer with the USB cable. Launch the software, log in, go to My products, then click Synchronize. Do not disconnect during installation. You have 4 free updates over 2 years.

How to back up GPS data?

Connect the GPS to the computer via USB. It appears as a removable disk. Perform a copy-paste of all content to your computer. This backup allows restoring data in case of loss.

What to do in case of a problem under warranty?

The warranty is 12 months from the purchase date. In case of defect, return the product to your retailer with proof of purchase. Before any return, check the FAQ at www.support-gps.com and back up your personal data. The device must be properly packaged.

How to contact technical support?

For usage questions, call 01 48 63 67 94 or 01 48 63 67 95. For map or radar updates, visit www.support-gps.com, Contact section. Complete guides are also available for download.

Can I use the GPS with an athermic windshield?

Athermic windshields may affect GPS reception. MAPPY does not guarantee optimal performance in these conditions. Check with your car manufacturer for the optimal placement.

How long does it take for the GPS to pick up satellites after long inactivity?

On first use or after long inactivity, reception may take 5 to 10 minutes. To speed it up, keep the device stationary outdoors. This delay is normal.

USER MANUAL ULTI 507 MAPPY

Support vehicule comple (2 parties)

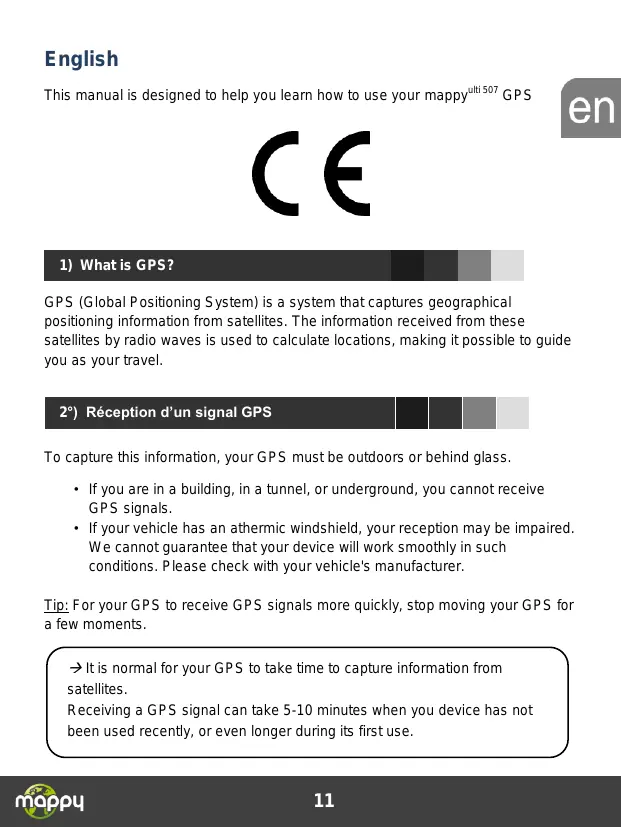

This manual is designed to help you learn how to use your mappy^{ulti 507} GPS

CE

en

1) What is GPS?

GPS (Global Positioning System) is a system that captures geographical positioning information from satellites. The information received from these satellites by radio waves is used to calculate locations, making it possible to guide you as your travel.

To capture this information, your GPS must be outdoors or behind glass.

• If you are in a building, in a tunnel, or underground, you cannot receive GPS signals.
• If your vehicle has an athermic windshield, your reception may be impaired. We cannot guarantee that your device will work smoothly in such conditions. Please check with your vehicle's manufacturer.

Tip: For your GPS to receive GPS signals more quickly, stop moving your GPS for a few moments.

It is normal for your GPS to take time to capture information from satellites.

Receiving a GPS signal can take 5-10 minutes when you device has not been used recently, or even longer during its first use.

a) Package contents

Cable for the cigarette

Full vehicle support (2 parts)

CD-ROM With complete user guide

USB Cable

Your Quick Start guide

Stylus

b) Product overview

Power and Standby button

Battery power indicator (LED)

Headphone jack

PC and battery charge connection

Micro SD port (card not provided)

Reset

4) First use of mappy

en

1

First, start up your vehicle. (If the device has been used for a long time with the engine turned off, the vehicle's battery may be drained.)

2

Attached the suction cup to the windshield and lock it into its base. For a stronger hold, clean the glass before attaching the suction cup.

3

Place the product on the lower part of its holder. Next, as shown in the illustration, push the device back into the car holder.

4

Connect one end of the car charger to your device and the other end to the cigarette lighter.

5

Push the lever toward your car's windshield to attach it.

6

Press the power button on the device. When te device turns on, you are brought to a home screen where you can access various functions.

Warning: Install the car holder where it does not interfere with driving, obstruct the driver's vision, or deploy the airbags.

5^ ) How do I set up my first itinerary?

en

Once your mappy GPS has started up:

1 Click on "Navigation"

2 Click on "Navigate"

3 Next, click on "Address"

4 Enter the name or postal code for the Town, and then select your destination in the list of results.
(optional) Enter the name of your destination street name, and then select the street you want.
(optional) Enter the house number for your destination.
7 Click on "OK" and Go
Wait a few moments for your mappy^{Ulti 507} to receive the GPS signal, and then let it guide you.

Power and Standby button

en

Turning on your device

To turn on the device, hold down the power button for a few seconds (about 3 seconds)

Turning off your device

To power off the device, hold down the button for a few seconds (about 5 seconds). You have two options for turning off your device: putting it in standby mode (when you turn on the device, it will restart at the same location) or powering it off completely (the device will completely restart). You have 10 seconds to decide. Otherwise, the device will automatically go to OFF mode. To cancel this operation, touch the screen (not any icons).

Note: When charging the battery, you can only put your device in standby mode, even if you click on the Off button.

07	Number of seconds remaining before the device goes into automatic standby mode.
Standby	For standby mode
Off	The power down the device

en

Terms and Conditions :

You have 4 updates in 2 years after activating your GPS on mappyPlus, you may update mappy maps for FREE.

Installation :

1. Install mappyPlus** on your PC. It is available at: www.support-gps.com into the involved section
2. Connect your GPS with the provided cable
3. Wait for the software to recognize your GPS and for the server to finish analyzing the contents of your mappy GPS
4. Log in and then go to "My Products", located on the left menu bar
5. Once the Ready to be installed" message appears, click on "Synchronize". Do not disconnect your GPS during the installation.

Warning: You are strongly advised to back up your mappy GPS before starting the installation.

**MappyPlus is providing into the CD.

Important:

It is advisable to make a backup of your memory in case of data loss, so you can recover the original content in order to avoid intervention service.

• Connect your GPS mappy^{ulti 507} to your computer via the supplied USB cable. Then check if the equipment is recognized on the user's computer as a Removable Disk.
  Make a copy and paste the entire contents of removable disk to your computer.

The manufacturer guarantees that this product is free of assembly and material defects under normal conditions of use.

Warranty Period

The warranty takes effect on the date of purchase. The certificate of warranty and the invoice, indicating the date on which the device was purchased, are proof of warranty. This product comes with a warranty of twelve (12) months from the date of purchase.

Warranty and Returns Assistance

If you have any problems with your product during the warranty period, you must return the product to your local dealer.

A dated proof of purchase is required. Please have the following information available before contacting customer service:

1. The serial number
2. The description of the problem

If the customer finds a defect or malfunction on the device due to an assembly or material defect (see "Restrictions") during the warranty period under normal use, the customer must return the device to the local dealer. The device must be packaged properly in order to be safely transported. The proof of purchase must be attached (the attached certificate of warranty and the invoice). If you have to send it by mail, it is recommended to send the product using a service that includes package tracking. The manufacturer shall not be held responsible for loss or damage to the device before the device is received.

Before Returning the Device under Warranty

The customer should first consult the Frequently Asked Questions (FAQ) on the www.support-gps.com website to see if there is already a solution to the problem. The customer should save all of their data and erase any information from the device that may be considered to be confidential, personal, or relating to intellectual property. The manufacturer is not responsible for damage or loss of any software or data saved on a device that is sent to customer service for repair.

Restrictions

The manufacturer accepts no responsibility if, upon receipt of the product for repair, texts and examinations of the device reveal that the alleged defect or malfunction does not exist or that it was caused by the customer or a third party, particularly in the following situations: breakage, misuse, negligence, improper maintenance, unauthorized attempts to open, repair, or modify the product, incorrect installation or use of software added by the user, a virus, or any cause unrelated to its originally intended use, an accident, fire, lightning, short circuits, power outage, or any other incident, exposure to moisture, or exposure to excessive temperatures.

The warranty does not apply if:

1. The device has been tampered with or repairs have been made by unauthorized personnel.
2. The device's serial number has been modified or removed.
3. The warranty seal has been altered or damaged or if the warranty has expired.
