ITI E408ND - Gps MAPPY - Free user manual and instructions

Brand	MAPPY
Model	ITI E408ND
Product type	Car navigation GPS
Power supply	Cigarette lighter (12V) and built-in rechargeable battery
Connectivity	USB port for PC connection and charging, headphone jack
Package contents	Cigarette lighter cable, USB cable, CD-ROM, quick guide, stylus, car mount with suction cup
Main features	GPS navigation with route calculation, map and radar updates via mappyPlus software, file backup
Screen	Touchscreen (size not specified)
Dimensions (estimated)	Approximately 120 x 80 x 15 mm
Weight (estimated)	Approximately 150 g
Warranty	12 months from the date of purchase
Standards and certifications	CE compliant (R&TTE 1999/5/EC, EN 301 489-1, EN 301 489-3, EN 300 440-2)
Maintenance and cleaning	Clean the windshield before attaching the suction cup; avoid moisture and excessive temperatures
Safety	Do not obstruct the driver's vision or airbag deployment; do not use at full volume for extended periods
Spare parts / accessories	Replacement suction cup, cables, case (available at www.support-gps.com)

Frequently Asked Questions - ITI E408ND MAPPY

How to turn the MAPPY ITI E408ND GPS on and off?

To turn on, press and hold the Power button for about 3 seconds. To turn off, press and hold the same button for 5 seconds: you have 10 seconds to choose between Standby (quick resume) or Complete shutdown. After this time, the device shuts down automatically.

How to install the GPS in the car?

Assemble the suction cup on the car mount, clean the windshield, attach the suction cup and lock it. Place the GPS on the mount by pushing it backward. Connect the cigarette lighter, then turn on the device. Make sure the mount does not obstruct driving or airbag deployment.

How to plan a route?

On the home screen, click on Navigation then Navigate. Choose Address, enter the city, street, and number. Confirm with OK after calculation. Wait for the GPS to acquire the signal and follow the instructions.

Why does the GPS take time to acquire satellites?

GPS reception can take 5 to 10 minutes after a long period of inactivity, and longer on first use. To speed up, place the GPS outdoors or behind a window. Athermal windshields may affect reception.

How to update maps and speed cameras?

Download the mappyPlus software from www.support-gps.com. Connect the GPS to the computer via USB, launch the software, log in, go to My products. Available updates are displayed, click Synchronize. It is recommended to back up your data beforehand.

How to back up GPS files?

Connect the GPS to the computer via USB. It appears as a removable drive. Copy and paste all content to your computer. This allows data restoration in case of loss.

What is the warranty period and how to use it?

The warranty is 12 months from the date of purchase. In case of a problem, return the product to your dealer with proof of purchase (receipt or invoice). Pack it properly for transport. First consult the FAQ at www.support-gps.com.

What to do if GPS reception is poor?

Check that you are outdoors or behind a window. Avoid tunnels, underground passages, and buildings. If your windshield is athermal, reception may be affected. Leave the GPS stationary for a few moments to speed up acquisition.

Can I use the GPS without the cigarette lighter?

Yes, the GPS has a built-in rechargeable battery. You can charge it via USB on a computer or wall charger. The battery allows limited portable use.

Where to find additional accessories like a case?

Accessories (cases, replacement suction cups, cables) are available at www.support-gps.com.

USER MANUAL ITI E408ND MAPPY

Support vehicule comple (2 parties)

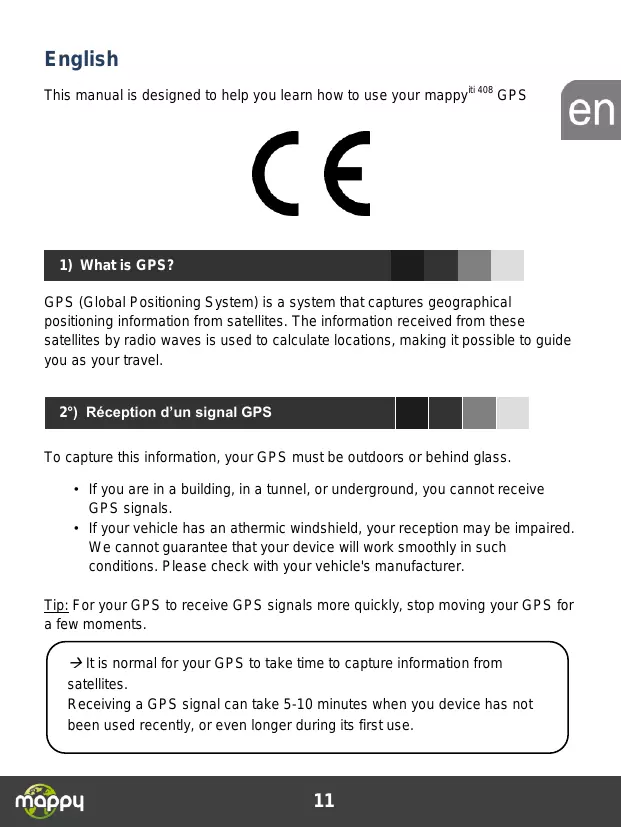

This manual is designed to help you learn how to use your mappy^{ii 408} GPS

CE

en

1) What is GPS?

GPS (Global Positioning System) is a system that captures geographical positioning information from satellites. The information received from these satellites by radio waves is used to calculate locations, making it possible to guide you as your travel.

To capture this information, your GPS must be outdoors or behind glass.

• If you are in a building, in a tunnel, or underground, you cannot receive GPS signals.
• If your vehicle has an athermic windshield, your reception may be impaired. We cannot guarantee that your device will work smoothly in such conditions. Please check with your vehicle's manufacturer.

Tip: For your GPS to receive GPS signals more quickly, stop moving your GPS for a few moments.

It is normal for your GPS to take time to capture information from satellites.

Receiving a GPS signal can take 5-10 minutes when you device has not been used recently, or even longer during its first use.

a) Package contents

Cable for the cigarette

Full vehicle support (2 parts)

CD-ROM With complete user guide

USB Cable

Your Quick Start guide

Stylus

b) Product overview

Headphone jack
PC and battery charge connection
Micro SD port (card not provided)
Reset

4) First use of mappy¹⁰

1

First, start up your vehicle. (If the device has been used for a long time with the engine turned off, the vehicle's battery may be drained.)

2

Attached the suction cup to the windshield and lock it into its base. For a stronger hold, clean the glass before attaching the suction cup.

3

Place the product on the lower part of its holder. Next, as shown in the illustration, push the device back into the car holder.

4

Connect one end of the car charger to your device and the other end to the cigarette lighter.

5

Push the lever toward your car's windshield to attach it.

6

Press the power button on the device. When te device turns on, you are brought to a home screen where you can access various functions.

Warning: Install the car holder where it does not interfere with driving, obstruct the driver's vision, or deploy the airbags.

5^ ) How do I set up my first itinerary?

Once your mappy GPS has started up:

1 Click on "Navigation"

2 Click on "Navigate"

3 Next, click on "Address"

4 Enter the name or postal code for the Town, and then select your destination in the list of results.
(optional) Enter the name of your destination street name, and then select the street you want.
(6 optional) Enter the house number for your destination.
7 Click on "OK" and Go
8 Wait a few moments for your mappy to receive the GPS signal, and then let it guide you.

Power and Standby button

en

Turning on your device

To turn on the device, hold down the power button for a few seconds (about 3 seconds)

Turning off your device

To power off the device, hold down the button for a few seconds (about 5 seconds). You have two options for turning off your device: putting it in standby mode (when you turn on the device, it will restart at the same location) or powering it off completely (the device will completely restart). You have 10 seconds to decide. Otherwise, the device will automatically go to OFF mode. To cancel this operation, touch the screen (not any icons).

Note: When charging the battery, you can only put your device in standby mode, even if you click on the Off button.

07	Number of seconds remaining before the device goes into automatic standby mode.
Standby	For standby mode
Off	The power down the device

en

Terms and Conditions :

You have an unlimited updates after activating your GPS on mappyPlus, you may update mappy maps for FREE.

Installation :

1. Install mappyPlus** on your PC. It is available at: www.support-gps.com into the involved section
2. Connect your GPS with the provided cable
3. Wait for the software to recognize your GPS and for the server to finish analyzing the contents of your mappy GPS
4. Log in and then go to "My Products", located on the left menu bar
5. Once the Ready to be installed" message appears, click on "Synchronize". Do not disconnect your GPS during the installation.

Warning: You are strongly advised to back up your mappy GPS before starting the installation.

**MappyPlus is providing into the CD.

Important:

It is advisable to make a backup of your memory in case of data loss, so you can recover the original content in order to avoid intervention service.

• Connect your GPS mappy⁴⁰⁸ to your computer via the supplied USB cable. Then check if the equipment is recognized on the user's computer as a Removable Disk.
  Make a copy and paste the entire contents of removable disk to your computer.

The manufacturer guarantees that this product is free of assembly and material defects under normal conditions of use.

Warranty Period

The warranty takes effect on the date of purchase. The certificate of warranty and the invoice, indicating the date on which the device was purchased, are proof of warranty. This product comes with a warranty of twelve (12) months from the date of purchase.

Warranty and Returns Assistance

If you have any problems with your product during the warranty period, you must return the product to your local dealer.

A dated proof of purchase is required. Please have the following information available before contacting customer service:

1. The serial number
2. The description of the problem

If the customer finds a defect or malfunction on the device due to an assembly or material defect (see "Restrictions") during the warranty period under normal use, the customer must return the device to the local dealer. The device must be packaged properly in order to be safely transported. The proof of purchase must be attached (the attached certificate of warranty and the invoice). If you have to send it by mail, it is recommended to send the product using a service that includes package tracking. The manufacturer shall not be held responsible for loss or damage to the device before the device is received.

Before Returning the Device under Warranty

en

The customer should first consult the Frequently Asked Questions (FAQ) on the www.support-gps.com website to see if there is already a solution to the problem. The customer should save all of their data and erase any information from the device that may be considered to be confidential, personal, or relating to intellectual property. The manufacturer is not responsible for damage or loss of any software or data saved on a device that is sent to customer service for repair.

Restrictions

The manufacturer accepts no responsibility if, upon receipt of the product for repair, texts and examinations of the device reveal that the alleged defect or malfunction does not exist or that it was caused by the customer or a third party, particularly in the following situations: breakage, misuse, negligence, improper maintenance, unauthorized attempts to open, repair, or modify the product, incorrect installation or use of software added by the user, a virus, or any cause unrelated to its originally intended use, an accident, fire, lightning, short circuits, power outage, or any other incident, exposure to moisture, or exposure to excessive temperatures.

The warranty does not apply if:

1. The device has been tampered with or repairs have been made by unauthorized personnel.
2. The device's serial number has been modified or removed.
3. The warranty seal has been altered or damaged or if the warranty has expired.
