Table des matieres

Security (Securite) 3-5

3.4 Menu Ai Tweaker 3-7

2.2.3 Central Processing Unit (CPU)

Configurations mémoire

Code	Description
00	Not used
01	Power on. Reset type detection (soft/hard).
02	AP initialization before microcode loading
03	System Agent initialization before microcode loading
04	PCH initialization before microcode loading
05	Initialization before microcode loading
06	Microcode loading
07	AP initialization after microcode loading
08	System Agent initialization after microcode loading
09	PCH initialization after microcode loading
0A	Initialization after microcode loading
0B	Cache initialization
OC - 0D	Reserved for future AMI SEC error codes
OE	Microcode not found
OF	Microcode not loaded
10	PEI Core is started
11 - 14	Pre-memory CPU initialization is started
15 - 18	Pre-memory System Agent initialization is started
19 - 1C	Pre-memory PCH initialization is started
1D - 2A	Pre-memory initialization codes
2B - 2F	Memory initialization
30	Reserved for ASL (see ASL Status Codes section below)

Code	Description
31	Memory Installed
32 – 36	CPU post-memory initialization
37 – 3A	Post-Memory System Agent initialization is started
3B – 3E	Post-Memory PCH initialization is started
3F – 4E	Post memory initialization codes
4F	DXE IPL is started
50 – 53	Memory initialization error. Invalid memory type or incompatible memory speed
54	Unspecified memory initialization error
55	Memory not installed
56	Invalid CPU type or Speed
57	CPU mismatch
58	CPU self test failed or possible CPU cache error
59	CPU micro-code is not found or micro-code update is failed
5A	Internal CPU error
5B	Reset PPI is not available
5C – 5F	Reserved for future AMI error codes
E0	S3 Resume is stared (S3 Resume PPI is called by the DXE IPL)
E1	S3 Boot Script execution
E2	Video repost
E3	OS S3 wake vector call
E4 – E7	Reserved for future AMI progress codes
E8	S3 Resume Failed
E9	S3 Resume PPI not Found
EA	S3 Resume Boot Script Error
EB	S3 OS Wake Error
EC – EF	Reserved for future AMI error codes
F0	Recovery condition triggered by firmware (Auto recovery)
F1	Recovery condition triggered by user (Forced recovery)
F2	Recovery process started
F3	Recovery firmware image is found
F4	Recovery firmware image is loaded
F5 – F7	Reserved for future AMI progress codes
F8	Recovery PPI is not available
F9	Recovery capsule is not found
FA	Invalid recovery capsule
FB – FF	Reserved for future AMI error codes
60	DXE Core is started
61	NVRAM initialization
62	Installation of the PCH Runtime Services

Code	Description
63-67	CPU DXE initialization is started
68	PCI host bridge initialization
69	System Agent DXE initialization is started
6A	System Agent DXE SMM initialization is started
6B-6F	System Agent DXE initialization (System Agent module specific)
70	PCH DXE initialization is started
71	PCH DXE SMM initialization is started
72	PCH devices initialization
73-77	PCH DXE Initialization (PCH module specific)
78	ACPI module initialization
79	CSM initialization
7A-7F	Reserved for future AMI DXE codes
80-8F	DXE initialization codes
90	Boot Device Selection (BDS) phase is started
91	Driver connecting is started
92	PCI Bus initialization is started
93	PCI Bus Hot Plug Controller Initialization
94	PCI Bus Enumeration
95	PCI Bus Request Resources
96	PCI Bus Assign Resources
97	Console Output devices connect
98	Console input devices connect
99	Super IO Initialization
9A	USB initialization is started
9B	USB Reset
9C	USB Detect
9D	USB Enable
9E-9F	Reserved for future AMI codes
A0	IDE initialization is started
A1	IDE Reset
A2	IDE Detect
A3	IDE Enable
A4	SCSI initialization is started
A5	SCSI Reset
A6	SCSI Detect
A7	SCSI Enable
A8	Setup Verifying Password
A9	Start of Setup
AA	Reserved for ASL (see ASL Status Codes section below)
AB	Setup Input Wait

Code	Description
AC	Reserved for ASL (see ASL Status Codes section below)
AD	Ready To Boot event
AE	Legacy Boot event
AF	Exit Boot Services event
B0	Runtime Set Virtual Address MAP Begin
B1	Runtime Set Virtual Address MAP End
B2	Legacy Option ROM Initialization
B3	System Reset
B4	USB hot plug
B5	PCI bus hot plug
B6	Clean-up of NVRAM
B7	Configuration Reset (reset of NVRAM settings)
B8- BF	Reserved for future AMI codes
C0- CF	BDS initialization codes
D0	CPU initialization error
D1	System Agent initialization error
D2	PCH initialization error
D3	Some of the Architectural Protocols are not available
D4	PCI resource allocation error. Out of Resources
D5	No Space for Legacy Option ROM
D6	No Console Output Devices are found
D7	No Console Input Devices are found
D8	Invalid password
D9	Error loading Boot Option (LoadImage returned error)
DA	Boot Option is failed (StartImage returned error)
DB	Flash update is failed
DC	Reset protocol is not available

Code	Description
0x01	System is entering S1 sleep state
0x02	System is entering S2 sleep state
0x03	System is entering S3 sleep state
0x04	System is entering S4 sleep state
0x05	System is entering S5 sleep state
0x10	System is waking up from the S1 sleep state
0x20	System is waking up from the S2 sleep state
0x30	System is waking up from the S3 sleep state
0x40	System is waking up from the S4 sleep state
0xAAC	System has transitioned into ACPI mode. Interrupt controller is in PIC mode.
0xAA	System has transitioned into ACPI mode. Interrupt controller is in ASIC mode.

(4-pin CPU_FAN; 4-pin CPU_OPT; 4-pin CHA_FAN1/2/3/4)

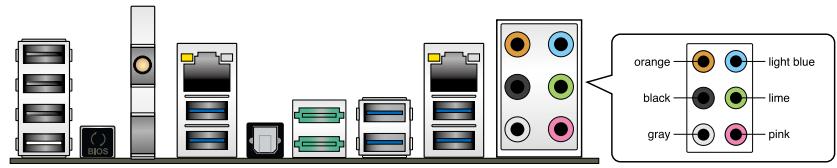

Rear panel connectors

Port	Casque 2 canaux	4 canaux	6 canaux	8 canaux
Bleu clair	Line In	Line In	Line In	Line In
Vert	Line Out	Front Speaker Out	Front Speaker Out	Front Speaker Out
Rose	Mic In	Mic In	Mic In	Mic In
Orange	-	-	Center/Subwoofer	Center/Subwoofer
Noir	-	Rear Speaker Out	Rear Speaker Out	Rear Speaker Out
Gris	-	-	-	Side Speaker Out

2.3.13 Connexions audio

Connexions audio

BCLK Frequency (Frequence BCLK) [XXX]

Options de configuration : [Auto] [100MHz] [125MHz] [166MHz] [250MHz]

[By All Cores (Can Adjust in OS)]

[By Per Core (Cannot Adjust in OS)]

By All Cores (Can Adjust in OS) [Auto]

Memory Frequency [Auto]

DRAM CAS# Latency [Auto]

DRAM RAS# to CAS# Delay [Auto]

Secondary Timings (Minutages secondaires)

DRAM RAS# to RAS# Delay [Auto]

DRAM FOUR ACT WIN Time [Auto]

DRAM WRITE to READ Delay [Auto]

DRAM WRITE Latency [Auto]

Latency Timings (Minutages de latence)

DRAM RTL (CHA D0 R0) [Auto]

Options de configuration : [Auto] [Advance 14 Clock] [Advance 12 Clock] [Advance 10 Clock] [Advance 8 Clock] [Advance 6 Clock] [Advance 4 Clock] [Advance 2 Clock] [Normal] [Delay 2 Clock] [Delay 4 Clock] [Delay 6 Clock] [Delay 8 Clock] [Delay 10 Clock] [Delay 12 Clock] [Delay 14Clock]

DRAM IOL (CHA D0 R0) [Auto]

Configuration options: [Auto] [Advance 14 Clock] [Advance 13 Clock] [Advance 12Clock] [Advance 11Clock] [Advance 10Clock] [Advance 9Clock] [Advance 8Clock] [Advance 7Clock] [Advance 6Clock] [Advance 5Clock] [Advance 4Clock] [Advance 3Clock] [Advance 2Clock] [Advance 1Clock] [Normal] [Delay 1Clock] [Delay 2Clock] [Delay 3Clock] [Delay 4Clock] [Delay 5Clock] [Delay 6Clock] [Delay 7Clock] [Delay 8Clock] [Delay 9Clock] [Delay 10Clock] [Delay 11Clock] [Delay 12Clock] [Delay 13Clock] [Delay 14Clock]

DRAM RTL (CHA D0 R1) [Auto]

Options de configuration : [Auto] [Advance 14 Clock] [Advance 12 Clock] [Advance 10 Clock] [Advance 8 Clock] [Advance 6 Clock] [Advance 4 Clock] [Advance 2 Clock] [Normal] [Delay 2 Clock] [Delay 4 Clock] [Delay 6 Clock] [Delay 8 Clock] [Delay 10 Clock] [Delay 12 Clock] [Delay 14 Clock]

DRAM IOL (CHA D0 R1) [Auto]

Configuration options: [Auto] [Advance 14 Clock] [Advance 13 Clock] [Advance 12Clock] [Advance 11Clock] [Advance 10Clock] [Advance 9Clock] [Advance 8Clock] [Advance 7Clock] [Advance 6Clock] [Advance 5Clock] [Advance 4Clock] [Advance 3Clock] [Advance 2Clock] [Advance 1Clock] [Normal] [Delay 1Clock] [Delay 2Clock] [Delay 3Clock] [Delay 4Clock] [Delay 5Clock] [Delay 6Clock] [Delay 7Clock] [Delay 8Clock] [Delay 9Clock] [Delay 10Clock] [Delay 11Clock] [Delay 12Clock] [Delay 13Clock] [Delay 14Clock]

DRAM RTL (CHA D1 R0) [Auto]

Options de configuration : [Auto] [Advance 14 Clock] [Advance 12 Clock] [Advance 10 Clock] [Advance 8 Clock] [Advance 6 Clock] [Advance 4Clock] [Advance 2Clock] [Normal] [Delay 2Clock] [Delay 4Clock] [Delay 6Clock] [Delay 8Clock] [Delay 10Clock] [Delay 12Clock] [Delay 14Clock]

DRAM IOL (CHA D1 R0) [Auto]

[Auto] [Advance 14 Clock] [Advance 13 Clock] [Advance 12Clock] [Advance 11Clock] [Advance 10Clock] [Advance 9Clock] [Advance 8Clock] [Advance 7Clock] [Advance 6Clock] [Advance 5Clock] [Advance 4Clock] [Advance 3Clock] [Advance 2Clock] [Advance 1Clock] [Normal] [Delay 1Clock] [Delay 2Clock] [Delay 3Clock] [Delay 4Clock] [Delay 5Clock] [Delay 6Clock] [Delay 7Clock] [Delay 8Clock] [Delay 9Clock] [Delay 10Clock] [Delay 11Clock] [Delay 12Clock] [Delay 13Clock] [Delay 14Clock]

DRAM RTL (CHA D1 R1) [Auto]

Options de configuration : [Auto] [Advance 14 Clock] [Advance 12 Clock] [Advance 10 Clock] [Advance 8 Clock] [Advance 6 Clock] [Advance 4 Clock] [Advance 2 Clock] [Normal] [Delay 2 Clock] [Delay 4 Clock] [Delay 6 Clock] [Delay 8 Clock] [Delay 10 Clock] [Delay 12 Clock] [Delay 14 Clock]

DRAM IOL (CHA D1 R1) [Auto]

[Auto] [Advance 14 Clock] [Advance 13 Clock] [Advance 12Clock] [Advance 11Clock] [Advance 10Clock] [Advance 9Clock] [Advance 8Clock] [Advance 7Clock] [Advance 6Clock] [Advance 5Clock] [Advance 4Clock] [Advance 3Clock] [Advance 2Clock] [Advance 1Clock] [Normal] [Delay 1Clock] [Delay 2Clock] [Delay 3Clock] [Delay 4Clock] [Delay 5Clock] [Delay 6Clock] [Delay 7Clock] [Delay 8Clock] [Delay 9Clock] [Delay 10Clock] [Delay 11Clock] [Delay 12Clock] [Delay 13Clock] [Delay 14Clock]

DRAM RTL (CHB D0 R0) [Auto]

Options de configuration : [Auto] [Advance 14 Clock] [Advance 12 Clock] [Advance 10 Clock] [Advance 8 Clock] [Advance 6 Clock] [Advance 4 Clock] [Advance 2 Clock] [Normal] [Delay 2 Clock] [Delay 4 Clock] [Delay 6 Clock] [Delay 8 Clock] [Delay 10 Clock] [Delay 12 Clock] [Delay 14 Clock]

DRAM IOL (CHB D0 R0) [Auto]

[Auto] [Advance 14 Clock] [Advance 13 Clock] [Advance 12Clock] [Advance 11Clock] [Advance 10Clock] [Advance 9Clock] [Advance 8Clock] [Advance 7Clock] [Advance 6Clock] [Advance 5Clock] [Advance 4Clock] [Advance 3Clock] [Advance 2Clock] [Advance 1Clock] [Normal] [Delay 1Clock] [Delay 2Clock] [Delay 3Clock] [Delay 4Clock] [Delay 5Clock] [Delay 6Clock] [Delay 7Clock] [Delay 8Clock] [Delay 9Clock] [Delay 10Clock] [Delay 11Clock] [Delay 12Clock] [Delay 13Clock] [Delay 14Clock]

DRAM RTL (CHB D0 R1) [Auto]

Options de configuration : [Auto] [Advance 14 Clock] [Advance 12 Clock] [Advance 10 Clock] [Advance 8 Clock] [Advance 6 Clock] [Advance 4 Clock] [Advance 2 Clock] [Normal] [Delay 2 Clock] [Delay 4 Clock] [Delay 6 Clock] [Delay 8 Clock] [Delay 10 Clock] [Delay 12 Clock] [Delay 14 Clock]

DRAM IOL (CHB D0 R1) [Auto]

[Auto] [Advance 14 Clock] [Advance 13 Clock] [Advance 12Clock] [Advance 11Clock] [Advance 10Clock] [Advance 9Clock] [Advance 8Clock] [Advance 7Clock] [Advance 6Clock] [Advance 5Clock] [Advance 4Clock] [Advance 3Clock] [Advance 2Clock] [Advance 1Clock] [Normal] [Delay 1Clock] [Delay 2Clock] [Delay 3Clock] [Delay 4Clock] [Delay 5Clock] [Delay 6Clock] [Delay 7Clock] [Delay 8Clock] [Delay 9Clock] [Delay 10Clock] [Delay 11Clock] [Delay 12Clock] [Delay 13Clock] [Delay 14Clock]

DRAM RTL (CHB D1 R0) [Auto]

Options de configuration : [Auto] [Advance 14 Clock] [Advance 12 Clock] [Advance 10 Clock] [Advance 8 Clock] [Advance 6 Clock] [Advance 4 Clock] [Advance 2 Clock] [Normal] [Delay 2 Clock] [Delay 4 Clock] [Delay 6 Clock] [Delay 8 Clock] [Delay 10 Clock] [Delay 12 Clock] [Delay 14Clock]

DRAM IOL (CHB D1 R0) [Auto]

[Auto] [Advance 14 Clock] [Advance 13 Clock] [Advance 12Clock] [Advance 11Clock] [Advance 10Clock] [Advance 9Clock] [Advance 8Clock] [Advance 7Clock] [Advance 6Clock] [Advance 5Clock] [Advance 4Clock] [Advance 3Clock] [Advance 2Clock] [Advance 1Clock] [Normal] [Delay 1Clock] [Delay 2Clock] [Delay 3Clock] [Delay 4Clock] [Delay 5Clock] [Delay 6Clock] [Delay 7Clock] [Delay 8Clock] [Delay 9Clock] [Delay 10Clock] [Delay 11Clock] [Delay 12Clock] [Delay 13Clock] [Delay 14Clock]

DRAM RTL (CHB D1 R1) [Auto]

Options de configuration : [Auto] [Advance 14 Clock] [Advance 12 Clock] [Advance 10 Clock] [Advance 8 Clock] [Advance 6 Clock] [Advance 4 Clock] [Advance 2 Clock] [Normal] [Delay 2 Clock] [Delay 4 Clock] [Delay 6 Clock] [Delay 8 Clock] [Delay 10 Clock] [Delay 12 Clock] [Delay 14Clock]

DRAM IOL (CHB D1 R1) [Auto]

[Auto] [Advance 14 Clock] [Advance 13 Clock] [Advance 12Clock] [Advance 11Clock] [Advance 10Clock] [Advance 9Clock] [Advance 8Clock] [Advance 7Clock] [Advance 6Clock] [Advance 5Clock] [Advance 4Clock] [Advance 3Clock] [Advance 2Clock] [Advance 1Clock] [Normal] [Delay 1Clock] [Delay 2Clock] [Delay 3Clock] [Delay 4Clock] [Delay 5Clock] [Delay 6Clock] [Delay 7Clock] [Delay 8Clock] [Delay 9Clock] [Delay 10Clock] [Delay 11Clock] [Delay 12Clock] [Delay 13Clock] [Delay 14Clock]

DRAM RTL (CHC D0 R0) [Auto]

Options de configuration : [Auto] [Advance 14 Clock] [Advance 12 Clock] [Advance 10 Clock] [Advance 8 Clock] [Advance 6 Clock] [Advance 4Clock] [Advance 2Clock] [Normal] [Delay 2Clock] [Delay 4Clock] [Delay 6Clock] [Delay 8Clock] [Delay 10Clock] [Delay 12Clock] [Delay 14Clock]

DRAM IOL (CHC D0 R0) [Auto]

[Auto] [Advance 14 Clock] [Advance 13 Clock] [Advance 12Clock] [Advance 11Clock] [Advance 10Clock] [Advance 9Clock] [Advance 8Clock] [Advance 7Clock] [Advance 6Clock] [Advance 5Clock] [Advance 4Clock] [Advance 3Clock] [Advance 2Clock] [Advance 1Clock] [Normal] [Delay 1Clock] [Delay 2Clock] [Delay 3Clock] [Delay 4Clock] [Delay 5Clock] [Delay 6Clock] [Delay 7Clock] [Delay 8Clock] [Delay 9Clock] [Delay 10Clock] [Delay 11Clock] [Delay 12Clock] [Delay 13Clock] [Delay 14Clock]

DRAM RTL (CHC D0 R1) [Auto]

Options de configuration : [Auto] [Advance 14 Clock] [Advance 12 Clock] [Advance 10 Clock] [Advance 8 Clock] [Advance 6 Clock] [Advance 4 Clock] [Advance 2 Clock] [Normal] [Delay 2 Clock] [Delay 4 Clock] [Delay 6 Clock] [Delay 8 Clock] [Delay 10 Clock] [Delay 12 Clock] [Delay 14Clock]

DRAM IOL (CHC D0 R1) [Auto]

[Auto] [Advance 14 Clock] [Advance 13 Clock] [Advance 12Clock] [Advance 11Clock] [Advance 10Clock] [Advance 9Clock] [Advance 8Clock] [Advance 7Clock] [Advance 6Clock] [Advance 5Clock] [Advance 4Clock] [Advance 3Clock] [Advance 2Clock] [Advance 1Clock] [Normal] [Delay 1Clock] [Delay 2Clock] [Delay 3Clock] [Delay 4Clock] [Delay 5Clock] [Delay 6Clock] [Delay 7Clock] [Delay 8Clock] [Delay 9Clock] [Delay 10Clock] [Delay 11Clock] [Delay 12Clock] [Delay 13Clock] [Delay 14Clock]

DRAM RTL (CHC D1 R0) [Auto]

Options de configuration : [Auto] [Advance 14 Clock] [Advance 12 Clock] [Advance 10 Clock] [Advance 8 Clock] [Advance 6 Clock] [Advance 4 Clock] [Advance 2 Clock] [Normal] [Delay 2 Clock] [Delay 4 Clock] [Delay 6 Clock] [Delay 8 Clock] [Delay 10 Clock] [Delay 12 Clock] [Delay 14 Clock]

DRAM IOL (CHC D1 R0) [Auto]

[Auto] [Advance 14 Clock] [Advance 13 Clock] [Advance 12Clock] [Advance 11Clock] [Advance 10Clock] [Advance 9Clock] [Advance 8Clock] [Advance 7Clock] [Advance 6Clock] [Advance 5Clock] [Advance 4Clock] [Advance 3Clock] [Advance 2Clock] [Advance 1Clock] [Normal] [Delay 1Clock] [Delay 2Clock] [Delay 3Clock] [Delay 4Clock] [Delay 5Clock] [Delay 6Clock] [Delay 7Clock] [Delay 8Clock] [Delay 9Clock] [Delay 10Clock] [Delay 11Clock] [Delay 12Clock] [Delay 13Clock] [Delay 14Clock]

DRAM RTL (CHC D1 R1) [Auto]

Options de configuration : [Auto] [Advance 14 Clock] [Advance 12 Clock] [Advance 10 Clock] [Advance 8 Clock] [Advance 6 Clock] [Advance 4 Clock] [Advance 2 Clock] [Normal] [Delay 2 Clock] [Delay 4 Clock] [Delay 6 Clock] [Delay 8 Clock] [Delay 10 Clock] [Delay 12 Clock] [Delay 14Clock]

DRAM IOL (CHC D1 R1) [Auto]

[Auto] [Advance 14 Clock] [Advance 13 Clock] [Advance 12Clock] [Advance 11Clock] [Advance 10Clock] [Advance 9Clock] [Advance 8Clock] [Advance 7Clock] [Advance 6Clock] [Advance 5Clock] [Advance 4Clock] [Advance 3Clock] [Advance 2Clock] [Advance 1Clock] [Normal] [Delay 1Clock] [Delay 2Clock] [Delay 3Clock] [Delay 4Clock] [Delay 5Clock] [Delay 6Clock] [Delay 7Clock] [Delay 8Clock] [Delay 9Clock] [Delay 10Clock] [Delay 11Clock] [Delay 12Clock] [Delay 13Clock] [Delay 14Clock]

DRAM RTL (CHD D0 R0) [Auto]

Options de configuration : [Auto] [Advance 14 Clock] [Advance 12 Clock] [Advance 10 Clock] [Advance 8 Clock] [Advance 6 Clock] [Advance 4 Clock] [Advance 2 Clock] [Normal] [Delay 2 Clock] [Delay 4 Clock] [Delay 6 Clock] [Delay 8 Clock] [Delay 10 Clock] [Delay 12 Clock] [Delay 14Clock]

DRAM IOL (CHD D0 R0) [Auto]

[Auto] [Advance 14 Clock] [Advance 13 Clock] [Advance 12Clock] [Advance 11Clock] [Advance 10Clock] [Advance 9Clock] [Advance 8Clock] [Advance 7Clock] [Advance 6Clock] [Advance 5Clock] [Advance 4Clock] [Advance 3Clock] [Advance 2Clock] [Advance 1Clock] [Normal] [Delay 1Clock] [Delay 2Clock] [Delay 3Clock] [Delay 4Clock] [Delay 5Clock] [Delay 6Clock] [Delay 7Clock] [Delay 8Clock] [Delay 9Clock] [Delay 10Clock] [Delay 11Clock] [Delay 12Clock] [Delay 13Clock] [Delay 14Clock]

DRAM RTL (CHD D0 R1) [Auto]

Options de configuration : [Auto] [Advance 14 Clock] [Advance 12 Clock] [Advance 10 Clock] [Advance 8 Clock] [Advance 6 Clock] [Advance 4 Clock] [Advance 2 Clock] [Normal] [Delay 2 Clock] [Delay 4 Clock] [Delay 6 Clock] [Delay 8 Clock] [Delay 10 Clock] [Delay 12 Clock] [Delay 14Clock]

DRAM IOL (CHD D0 R1) [Auto]

[Auto] [Advance 14 Clock] [Advance 13 Clock] [Advance 12Clock] [Advance 11Clock] [Advance 10Clock] [Advance 9Clock] [Advance 8Clock] [Advance 7Clock] [Advance 6Clock] [Advance 5Clock] [Advance 4Clock] [Advance 3Clock] [Advance 2Clock] [Advance 1Clock] [Normal] [Delay 1Clock] [Delay 2Clock] [Delay 3Clock] [Delay 4Clock] [Delay 5Clock] [Delay 6Clock] [Delay 7Clock] [Delay 8Clock] [Delay 9Clock] [Delay 10Clock] [Delay 11Clock] [Delay 12Clock] [Delay 13Clock] [Delay 14Clock]

DRAM RTL (CHD D1 R0) [Auto]

Options de configuration : [Auto] [Advance 14 Clock] [Advance 12 Clock] [Advance 10 Clock] [Advance 8 Clock] [Advance 6 Clock] [Advance 4 Clock] [Advance 2 Clock] [Normal] [Delay 2 Clock] [Delay 4 Clock] [Delay 6 Clock] [Delay 8 Clock] [Delay 10 Clock] [Delay 12 Clock] [Delay 14 Clock]

DRAM IOL (CHD D1 R0) [Auto]

Options de configuration : [Auto] [Advance 14 Clock] [Advance 13 Clock] [Advance 12 Clock] [Advance 11 Clock] [Advance 10 Clock] [Advance 9Clock] [Advance 8Clock] [Advance 7Clock] [Advance 6Clock] [Advance 5Clock] [Advance 4Clock] [Advance 3Clock] [Advance 2Clock] [Advance 1Clock] [Normal] [Delay 1Clock] [Delay 2Clock] [Delay 3Clock] [Delay 4Clock] [Delay 5Clock] [Delay 6Clock] [Delay 7Clock] [Delay 8Clock] [Delay 9Clock] [Delay 10Clock] [Delay 11Clock] [Delay 12Clock] [Delay 13Clock] [Delay 14Clock]

DRAM RTL (CHD D1 R1) [Auto]

Options de configuration : [Auto] [Advance 14 Clock] [Advance 12 Clock] [Advance 10 Clock] [Advance 8 Clock] [Advance 6 Clock] [Advance 4 Clock] [Advance 2 Clock] [Normal] [Delay 2 Clock] [Delay 4 Clock] [Delay 6 Clock] [Delay 8 Clock] [Delay 10 Clock] [Delay 12 Clock] [Delay 14Clock]

DRAM IOL (CHD D1 R1) [Auto]

[Auto] [Advance 14 Clock] [Advance 13 Clock] [Advance 12 Clock] [Advance 11 Clock] [Advance 10 Clock] [Advance 9Clock] [Advance 8Clock] [Advance 7Clock] [Advance 6Clock] [Advance 5Clock] [Advance 4Clock] [Advance 3Clock] [Advance 2Clock] [Advance 1Clock] [Normal] [Delay 1Clock] [Delay 2Clock] [Delay 3Clock] [Delay 4Clock] [Delay 5Clock] [Delay 6Clock] [Delay 7Clock] [Delay 8Clock] [Delay 9Clock] [Delay 10Clock] [Delay 11Clock] [Delay 12Clock] [Delay 13Clock] [Delay 14Clock]

Others (Autres)

DRAM CLK Period [Auto]

Options de configuration : [Auto] [1] [2] [3] [4] [5] [6] [7]

Enhanced Training (CHA) [Auto]

Options de configuration : [Auto] [Disabled] [Enabled]

Enhanced Training (CHB) [Auto]

Options de configuration : [Auto] [Disabled] [Enabled]

Enhanced Training (CHC) [Auto]

Options de configuration : [Auto] [Disabled] [Enabled]

Enhanced Training (CHD) [Auto]

Options de configuration : [Auto] [Disabled] [Enabled]

MCH Duty Sense (CHA) [Auto]

CPU Power Duty Control [T.Probe]

Long Duration Maintained [Auto]

Short Duration Power Limit [Auto]

Additional Turbo Voltage [Auto]

CPU Core Current Limit [Auto]

CPU VCCSA Voltage (Voltage VCCSA) [Offset Mode]

Hyper-threading [Enabled]

SATA Mode (Mode SATA) [AHCI Mode]

Determine le mode de configuration SATA.

Legacy USB Support (Support USB hérié) [Enabled]

Onboard Devices Configuration

Bluetooth and WiFi Controller

Chassis 1/2/3/4 Fan Speed Low Limit [600 RPM]

Anti Surge Support (Support Anti Surge) [Enabled]

Discard Changes & Exit

Launch EFI Shell from filesystem device (Lancer l'application EFI Shell)

Lancer Sensor Recorder

Lancer USB 3.0 Boost

WARNING ALL DATA ON SELECTED SITES WILL BE LOST. Are you sure you want to create this volume? (Y/N):

Responsible Party Name: Asus Computer International

Address: 800 Corporate Way, Fremont, CA 94539.

Phone/Fax No: [phone]/[phone]

hereby declares that the product

Product Name : Motherboard

Model Number : P9X79 DELUXE

Conforms to the following specifications:

FCC Part 15, Subpart B, Unintentional Radiators

FCC Part 15, Subpart C, Intentional Radiators

FCC Part 15, Subpart E, Intentional Radiators

Supplementary Information:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Representative Person's Name: Steve Chang / President

Sep. 13, 2011

Signature :

Year to begin affixing CE marking:2011

Manufacturer:	ASUSTek COMPUTER INC.
Address, City:	No. 150, LI-TE RD., PEITOU, TAIPEI 112, TAIWAN R.O.C.
Country:	TAIWAN
Authorized representative in Europe:	ASUS COMPUTER GmbH
Address, City:	HARKORT STR. 21-23, 40880 RATINGEN
Country:	GERMANY

declare the following apparatus:
Product name :	Motherboard
Model name :	P9X79 DELUXE

conform with the essential requirements of the following directives:

2004/108/EC-EMC Directive

EN 5502.22.2006+A1.2007	EN 5502.4:1998+A1.2001+A2.2003
EN 6161.00.2006+A2.2009	EN 6161.00.2006+A2.2009
EN 55013.2001+A1.2003+A2.2006	EN 5502.2007

1999/5/EC-R &TTE Directive

EN 300 328 V1.7.1 (2006-10)	EN 301 489-1 V1.8.1(2008-04)
EN 301 440-1 V1.4.1 (2008-05)	EN 301 489-3 V1.4.1(2002-08)
EN 301 440-2 V1.2.1 (2008-03)	EN 301 489-4 V1.3.1(2002-08)
EN 301 511 V9.0.2 (2003-03)	EN 301 489-7 V1.3.1(2005-11)
EN 301 908-1 V3.2.1 (2007-05)	EN 301 489-9 V1.4.1(2007-11)
EN 301 908-2 V3.2.1 (2007-07)	EN 301 489-17 V2.1.1(2009-05)
EN 301 908-1 V3.2.1 (2005-03)	EN 301 489-3 V2.1.1(2007-09)
EN 302 544-2 V1.1.1 (2009-01)	EN 302 326-2 V1.2.1(2007-06)
EN 50306:2001	EN 302 326-3 V1.3.1(2007-09)
EN 50307:21.2002	EN 301 357-2 V1.3.1(2006-05)
EN 50308:2002	EN 301 326 2 V1.1.1(2009-01)

2006/95/EC-LVD Directive

EN 60950-1:2006	EN 60065:2002+A1:2006+A11:2008
EN 60950-1:2006+A11:2009

2009/125/EC-ErP Directive

Regulation (EC) No. 1275/2008	Regulation (EC) No. 278/2009
EN 62301:2005	EN 62301:2005
Regulation (EC) No. 642/2009
EN 62301:2005	Ver. 110101

Regulation (EC) No. 1275/2008

(EC conformity marking)

Position: CEO

Name: Jerry Shen

Signature :

CE marking
