BOSCH PKS66 - Circular saw
📄 149 pages English EN ⬇ Download 💬 AI Question ❓ 13 questions ⚙️ Specs

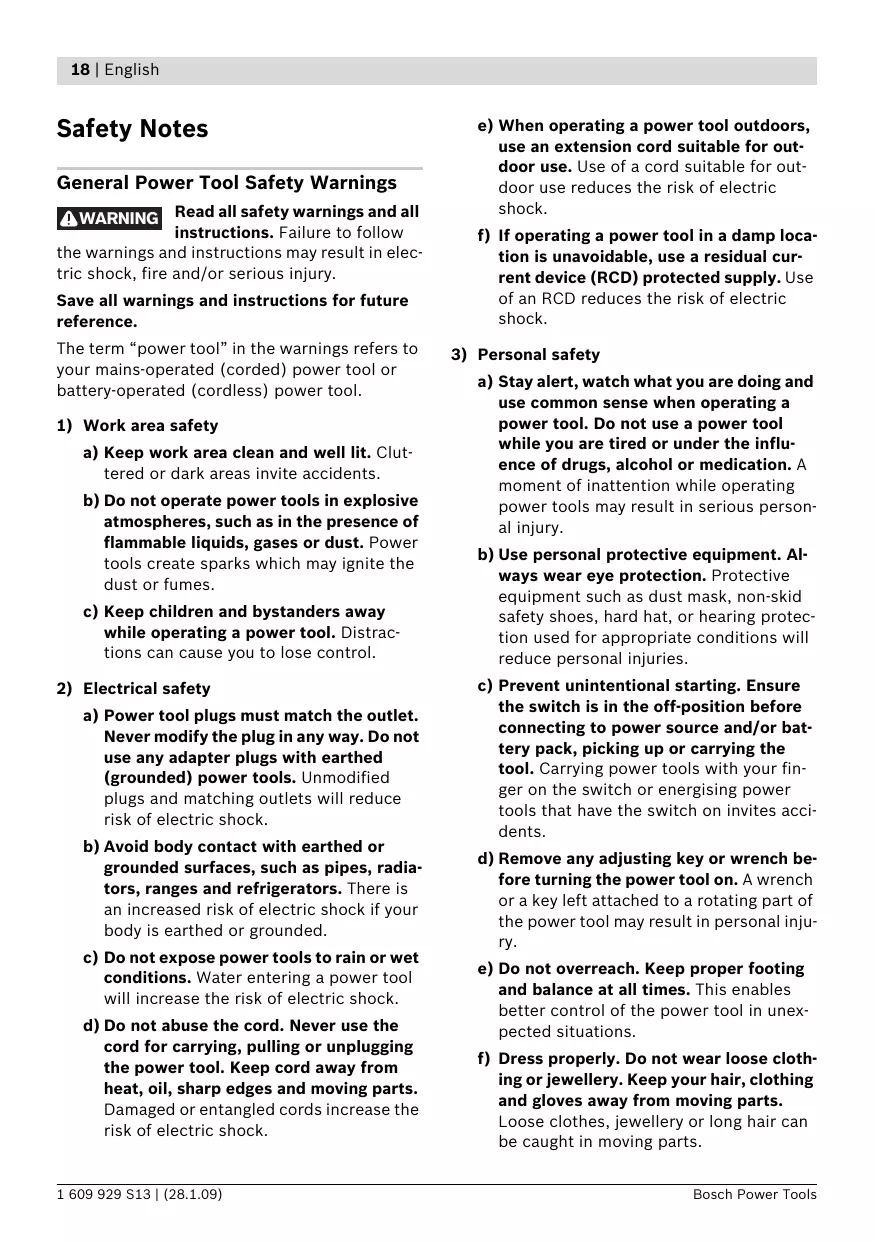

Notice BOSCH PKS66 - page 18
18 / 149
Pick your language and provide your email: we'll send you a specifically translated version.
Product TypeCircular Saw
BrandBOSCH
ModelPKS66
Rated Power1600 W
Max Cutting Depth (90°)66 mm
Max Cutting Depth (45°)46 mm
Blade Diameter190 mm
Blade Arbor30 mm
No-Load Speed5000 rpm
Power SupplyMains 230 V ~ 50 Hz
Weight5.7 kg
Cable Length2.5 m
Dimensions (L x W x H)395 x 210 x 255 mm
Main FunctionsRip and cross cuts, angle adjustment up to 45°, parallel guide, spindle lock
Maintenance and CleaningRegularly dust ventilation slots, clean blade with a dry cloth
SafetyMovable blade guard, on/off switch with safety, depth stop, lower blade guard
Spare Parts and RepairabilityBlades, carbon brushes, parallel guide available online
General InformationUser manual available for download, IP20 protection rating

Frequently Asked Questions - PKS66 BOSCH

How to change the blade on the BOSCH PKS66 circular saw?
Unplug the saw, insert the Allen key into the spindle lock, unscrew the center screw, remove the outer flange and blade, then install the new blade respecting the rotation direction.
What is the maximum cutting depth at 90°?
The maximum cutting depth at 90° is 66 mm.
How to adjust the cutting angle?
Unlock the angle adjustment knob located at the front of the base, tilt the saw head to the desired angle (up to 45°), then lock the knob.
Does the saw have an anti-restart feature?
Yes, the switch has a restart safety preventing the saw from restarting after a power cut.
Can I use different diameter blades?
Only blades with a diameter of 190 mm and an arbor of 30 mm are recommended. Using other diameters may compromise safety.
How to maintain the parallel guide?
Clean the guide with a dry cloth and check that it slides freely. If necessary, lightly lubricate the slides with silicone oil.
Where to find the wiring diagram for the BOSCH PKS66?
The wiring diagram is in the user manual available for free download on the website notice-facile.com.
The saw blows the fuse: what to do?
Check that the cable is not damaged and that the blade rotates freely. If the problem persists, the carbon brushes may be worn; it is advisable to have them replaced by a professional.
What type of blade to use for cutting tiles?
For cutting tiles, a diamond or carbide-tipped blade is necessary. Ensure it is suitable for the material.
How to store the saw after use?
Unplug it, clean the blade and surfaces, set the depth to minimum, and store in a dry place away from dust.

User questions about PKS66 BOSCH

3 questions about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

What can I use to replace the Allen key provided with the BOSCH PKS66?
Frequently Asked Questions - 1 d
Response Notice-Facile

The BOSCH PKS66 comes with an Allen key to lock the spindle when changing the blade. If you have lost it, you can replace it with a standard Allen key.

Although the manual for your PKS66 does not specify the exact size of the Allen key, the most common sizes for this type of circular saw are 3 mm, 4 mm, or 5 mm. To find the right one:

  • Test progressively - Start with a 3 mm Allen key, then try 4 mm, and finally 5 mm until you find the one that fits perfectly into the spindle lock hole (located on the side of the saw head).
  • Never force - The key should fit in easily. Forcing it could damage the locking mechanism.

Once the correct size is identified, you can obtain a replacement Allen key from:

  • An authorized BOSCH dealer (they have original spare parts)
  • A specialized spare parts website (make sure the size matches your measurement)
  • A tool accessory supplier (hardware store, specialized tool shop)
Respond (be the first)
How to lock the blade of the BOSCH PKS66 with the spindle lock?
Frequently Asked Questions - 1 d
Response Notice-Facile

To lock the blade of your BOSCH PKS66 circular saw before unscrewing it, you need to use the spindle lock provided with the tool.

Locking procedure:

  • Unplug the saw from the electrical outlet before any intervention
  • Locate the spindle lock on the side of the saw head
  • Insert the provided Allen key into the spindle lock
  • The blade is now locked and cannot rotate
  • You can then safely unscrew the central screw

Important: Only use blades with a diameter of 190 mm and a bore of 30 mm, as specified in the manual. Using other sizes may compromise your safety and damage the tool.

Respond (be the first)
How to change the blade of the BOSCH PKS66 circular saw?
Frequently Asked Questions - 1 d
Response Notice-Facile

Before you begin: Make sure to unplug the saw from the power supply.

Steps to change

  • Insert the provided Allen key into the spindle lock
  • Unscrew the central screw
  • Remove the outer flange and the used blade
  • Install the new blade, checking the direction of rotation (indicated on the blade)
  • Re-tighten the central screw and ensure that the flange is securely fixed

Compatible blades

Use exclusively blades with a diameter of 190 mm and 30 mm bore. Using other dimensions may compromise your safety and damage the saw.

Replacement blades are available commercially or from your BOSCH dealer.

Respond (be the first)
