Product description and specifications

Intended Use

The Bluetooth® Low Energy Module GCY 42 enables the personalisation and status checking of a power tool and the transfer of settings and data based on Bluetooth® wireless technology. The data transfer must be approved by the user.

Information about the connectivity functions offered can be found in the Bosch Toolbox application (app) or in the operating manual of the power tool you are using.

Product Features

The numbering of the components shown refers to the illustrations on the graphic pages.

(1) Button cell (2) Bluetooth® Low Energy Module GCY 42 (3) Placeholder ^a) (4) Cover for the Bluetooth® Low Energy Module GCY 42 ^a) a) Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.

Technical Data

Bluetooth® Low Energy Module

Article number

GCY 42

1 600 A01 ZE2

1 600 A01 3WF

Bosch Power Tools 1 609 92A 6RX | (21.02.2022)

28 | English

Bluetooth®Low Energy Module	GCY 42
	1 600 A01 6NH1 600 A01 L2W
Operating temperature -20 °C to +50 °C
Storage temperature -20 °C to +70 °C
Dimensions 7 x 30 x 30 mm
Weight according to EPTA-Procedure 01:2014	0.01 kg
Data transfer
Bluetooth® Bluetooth® 4.2 (Low Energy)	A)
Signal range Max. 30 m	B)
Frequency range used 2402–2480 MHz
Output power < 1 mW
Power supply
Battery Coin cell (3 V lithium battery, CR	2032)

1 609 92A 6RX | (21.02.2022) Bosch Power Tools

English | 29

Bluetooth® Low Energy Module

GCY 42

Battery life approx. 24 months

A) The mobile terminal devices must be compatible with Bluetooth® Low Energy devices (version 4.2) and support the Generic Access Profile (GAP). B) The signal range may vary greatly depending on external conditions, including the receiving device used. The Bluetooth® range may be significantly weaker inside closed rooms and through metallic barriers (e.g. walls, shelving units, cases, etc.).

System Requirements GCY 42

Mobile device (tablet, smartphone)	Android 6.0 (and newer)
	iOS 11 (and newer)

Assembly and Operation

Power Supply

Remove the cover for the Bluetooth® Low Energy Module GCY 42 on the power tool, e.g. using a screwdriver or a

large coin. Using unsuitable objects can damage the electronics or the cover.

- To start using the product after purchasing it or to change the battery (1), follow the illustrations on the graphics pages. Observe the following advice when doing so.

Initial Starting Operation

(see figures A1-A5)

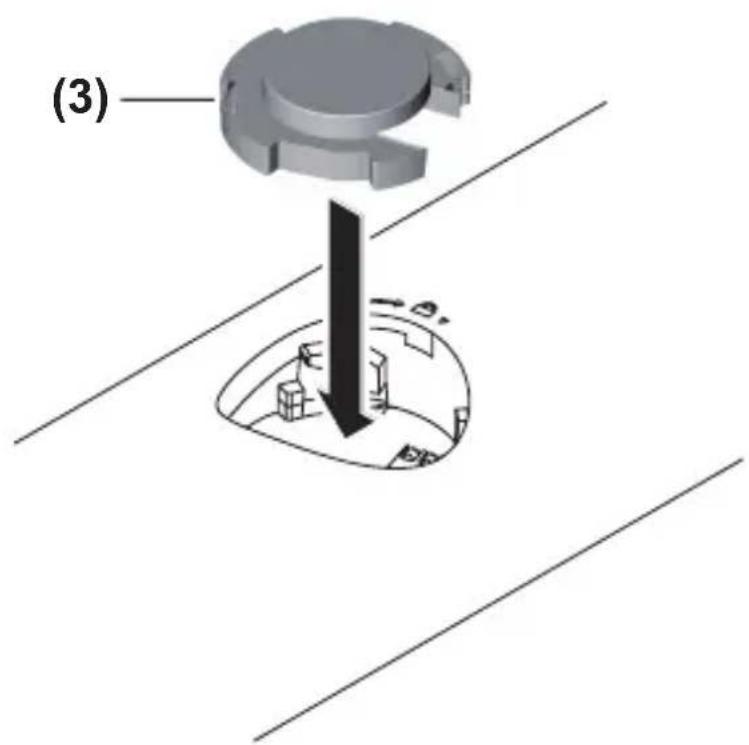

Note: Store the placeholder (3) of the GCY 42 in a safe place. Refit the placeholder when passing the power tool on without the GCY 42.

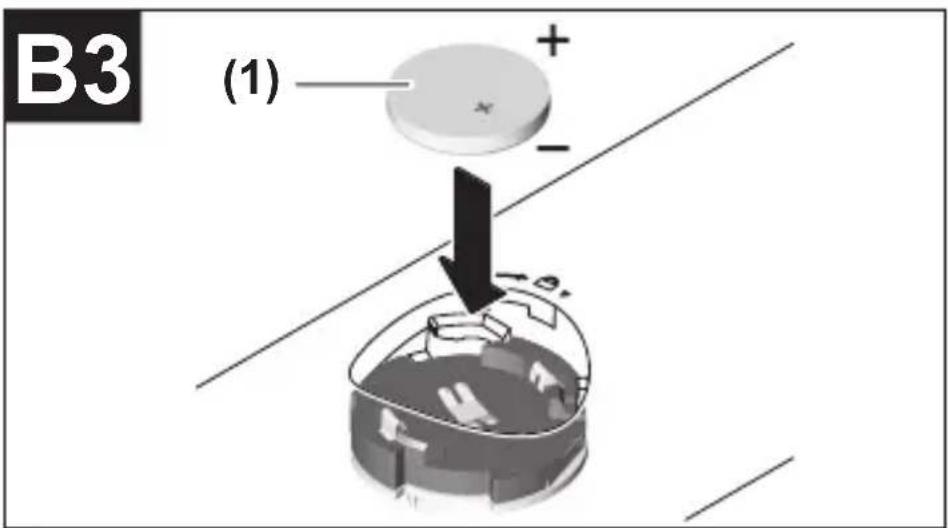

Place the battery (1) in the GCY 42 (2) with the plus terminal facing upwards. You do not need to push the battery in as the battery does not engage. It is simply secured in the correct position when you close the cover.

To initialise the GCY 42 after inserting the battery, press the on/off switch of the power tool.

Changing the Battery

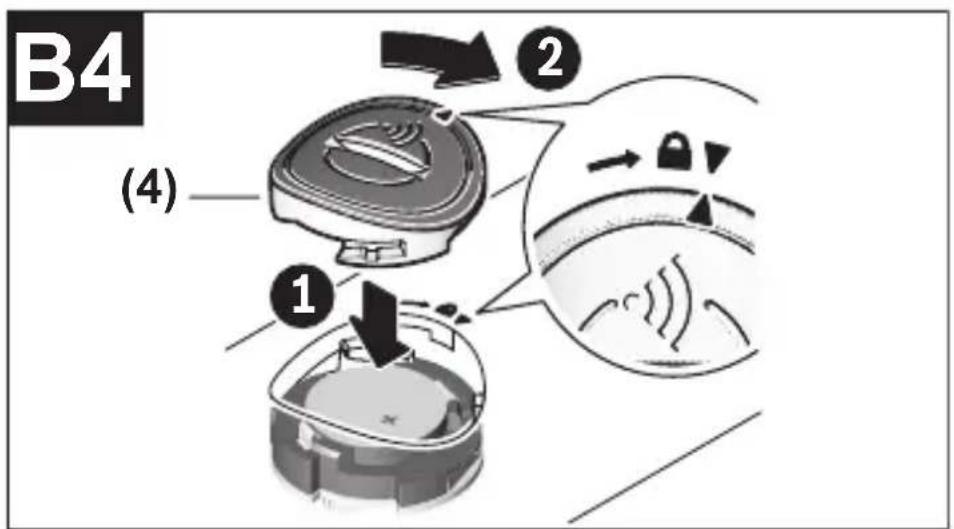

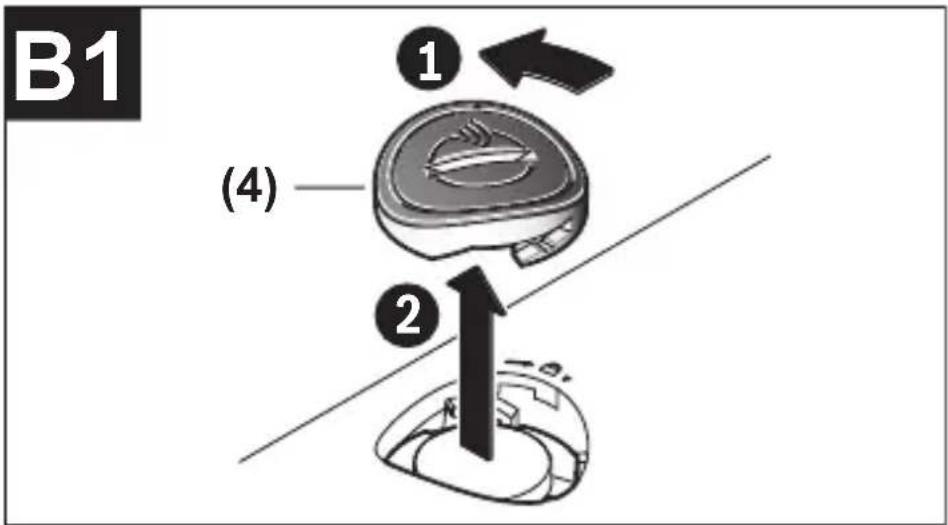

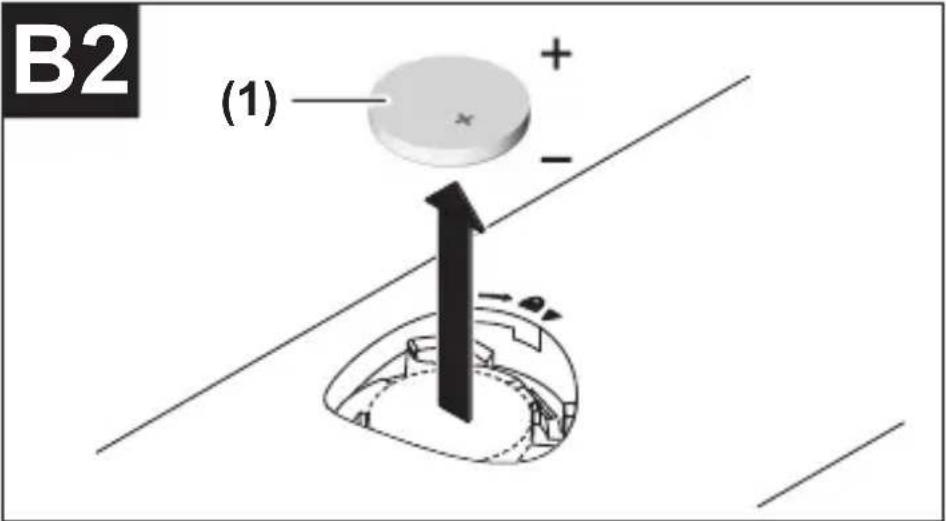

(see figures B1-B4)

Only remove the used battery (1) with your fingers.

A warning will be displayed in the app before the battery is fully used up.

English | 31

Removing the GCY 42

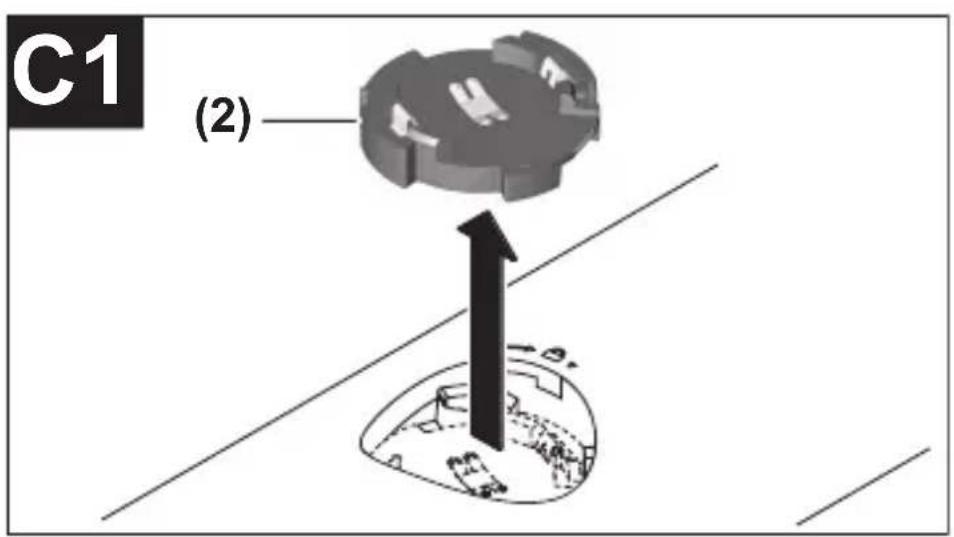

(see figures C1-C2)

Do not use force to remove the GCY 42 (2). Do not use any sharp or pointed tools.

Note: Turning the power tool over may make it easier to remove the GCY 42.

Starting operation

Once you have inserted the battery (1) and pressed the on/off switch on the power tool, the GCY 42 will transmit a signal continuously. The Bluetooth® signal will only stop when the battery is drained or faulty, or if the battery is removed.

You can find further information directly in the app from Bosch.

Installing and Setting up the App

You will need to install the Bosch Toolbox app before you can use the GCY 42.

- Download the Bosch Toolbox app from the relevant app store (Apple App Store, Google Play Store).

Note: You will need to have a user account with the relevant app store to do this.

• Then select the MyTools sub-item in the app.
• The display of your mobile terminal device will show you all subsequent steps required to connect the power tool to the terminal device.

Note: Work through the app tutorial in full first. This will give you a better overview of how the connection is made and how the connectivity functions are used.

Data Transfer via Bluetooth®

The GCY 42 transmits a signal at regular intervals. The ambient conditions may mean it takes several transmission intervals for the GCY 42 to be detected. If the GCY 42 is not detected, check the following:

• Is the distance to the mobile terminal device too great? Reduce the distance between the mobile device and the GCY 42.
• Is the battery too low or drained? Change the battery.
• Switch Bluetooth® off and on again on your mobile device. Check whether the GCY 42 has now been detected.

Maintenance and Service

Maintenance and Cleaning

Remove any dirt using a brush. Do not use any detergents or solvents.
