USER MANUAL AHS 54-20 II BOSCH

OBJ_DOKU-16809-003.fm Page 1 Tuesday, June 30, 2009 1:39 PM Robert Bosch GmbH Power Tools Division 70745 Leinfelden-Echterdingen Germany www.bosch-pt.com

F 016 L70 590 (2009.07) O / 165 WEU

AHS 54-20 LI OBJ_BUCH-948-003.book Page 2 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 3 Tuesday, June 30, 2009 2:04 PM

F 016 L70 590 | (30.6.09) Bosch Power Tools OBJ_BUCH-948-003.book Page 4 Tuesday, June 30, 2009 2:04 PM

F 016 L70 590 | (30.6.09) Bosch Power Tools OBJ_BUCH-948-003.book Page 5 Tuesday, June 30, 2009 2:04 PM

Ø 20 mm Ø 25 mm F 016 L70 590 | (30.6.09) Bosch Power Tools OBJ_BUCH-948-003.book Page 6 Tuesday, June 30, 2009 2:04 PM 6 | Deutsch Sicherheitshinweise

Bosch Power Tools OBJ_BUCH-948-003.book Page 7 Tuesday, June 30, 2009 2:04 PM OBJ_BUCH-948-003.book Page 8 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 9 Tuesday, June 30, 2009 2:04 PM OBJ_BUCH-948-003.book Page 10 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 11 Tuesday, June 30, 2009 2:04 PM Deutsch | 11 Geräusch-/Vibrationsinformation Montage Technische Unterlagen bei: Bosch Lawn and Garden Ltd., PT-LG/EAE, Stowmarket, Suffolk IP14 1EY, England Leinfelden, den 29.06.2009 Dr. Egbert Schneider Senior Vice President Engineering Dr. Eckerhard Strötgen Head of Product Certification Bosch Power Tools OBJ_BUCH-948-003.book Page 12 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 13 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools F 016 L70 590 | (30.6.09) OBJ_BUCH-948-003.book Page 14 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 15 Tuesday, June 30, 2009 2:04 PM Deutsch | 15 Bosch Power Tools F 016 L70 590 | (30.6.09) OBJ_BUCH-948-003.book Page 16 Tuesday, June 30, 2009 2:04 PM 16 | Deutsch Symptome Mögliche Ursache Abhilfe Bosch Power Tools OBJ_BUCH-948-003.book Page 17 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 18 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 19 Tuesday, June 30, 2009 2:04 PM English | 19 General Power Tool Safety Warnings WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. Explanation of symbols Read instruction manual. Do not use the machine in the rain or leave it outdoors when it is raining. Remove battery before adjusting or cleaning, and before leaving the machine unattended for any period.

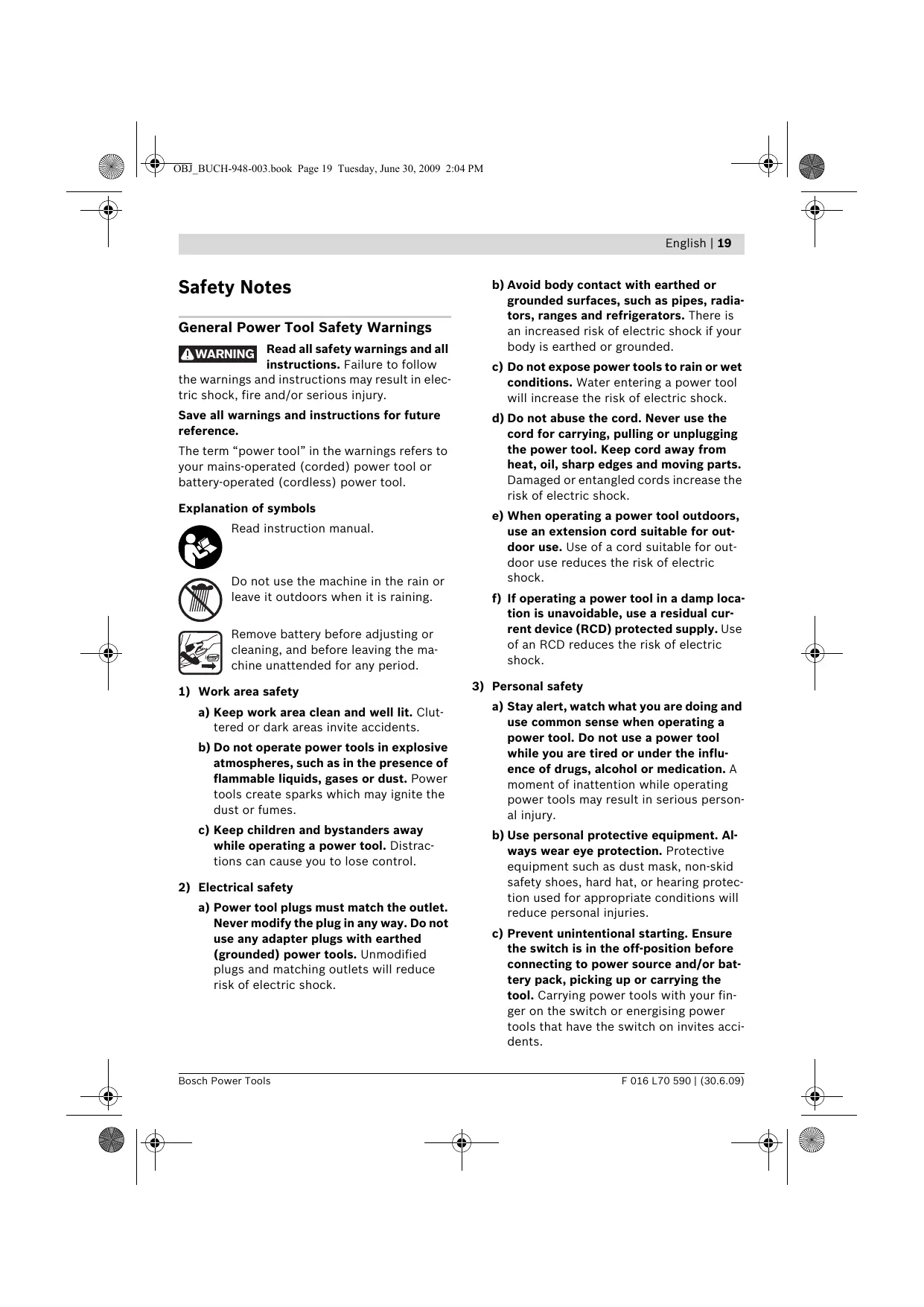

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Bosch Power Tools b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. F 016 L70 590 | (30.6.09) OBJ_BUCH-948-003.book Page 20 Tuesday, June 30, 2009 2:04 PM 20 | English d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. F 016 L70 590 | (30.6.09) e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Bosch Power Tools OBJ_BUCH-948-003.book Page 21 Tuesday, June 30, 2009 2:04 PM English | 21 Hedge trimmer safety warnings f Keep all parts of the body away from the cutter blade. Do not remove cut material nor hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury. f Carry the hedge trimmer by the handle with the cutter blade stopped. When transporting or storing the hedge trimmer always fit the cutting device cover. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades. f Hold power tool by insulated gripping surfaces only, because the cutter blade may contact hidden wiring. Cutting blades contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. Additional safety warnings f This tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. f When working with the machine, always hold it firmly with both hands and provide for a secure stance. The power tool is guided more secure with both hands. f Always ensure all handles and guards are fitted when using the machine. Never attempt to use an incomplete machine or one fitted with an unauthorized modification. f Wait until the machine has come to a standstill before placing it down. f Do not open the battery. Danger of shortcircuiting. f In case of damage and improper use of the battery, vapours may be emitted. Provide for fresh air and seek medical help in case of complaints. The vapours can irritate the respiratory system. f When the battery is defective, liquid can escape and come into contact with adjacent components. Check any parts concerned. Clean such parts or replace them, if required. f Use the battery only in conjunction with your Bosch power tool. This measure alone protects the battery against dangerous overload. Safety Warnings for battery chargers Keep the battery charger away from rain or moisture. Penetration of water in the battery charger increases the risk of an electric shock. f Do not charge other batteries. The battery charger is suitable only for charging Bosch lithium ion batteries within the listed voltage range. Otherwise there is danger of fire and explosion. f Keep the battery charger clean. Contamination can lead to danger of an electric shock. f Before each use, check the battery charger, cable and plug. If damage is detected, do not use the battery charger. Never open the battery charger yourself. Have repairs performed only by a qualified technician and only using original spare parts. Damaged battery chargers, cables and plugs increase the risk of an electric shock. f Do not operate the battery charger on easily inflammable surfaces (e. g., paper, textiles, etc.) or surroundings. The heating of the battery charger during the charging process can pose a fire hazard. f Children should be supervised to ensure that they do not play with the battery charger. Protect the battery against heat, e. g., also against continuous sun irradiation and fire. There is danger of explosion. Bosch Power Tools F 016 L70 590 | (30.6.09) OBJ_BUCH-948-003.book Page 22 Tuesday, June 30, 2009 2:04 PM 22 | English Products sold in GB only: Your product is fitted with an BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere. Products sold in AUS and NZ only: Use a residual current device (RCD) with a rated residual current of 30 mA or less. Product Features The numbering of the garden product features refers to the illustration of the garden product on the graphics page. 1 Cutting blade 2 Blade guard 3 Front handle guard 4 Front handle with On/Off switch lever 5 Ventilation slots 6 Rear handle with On/Off switch 7 Battery unlocking button 8 Battery 9 Charging compartment Functional Description Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. 10 Battery charger 11 Red LED indicator on the battery charger 12 Green LED indicator on the battery charger 13 Power plug ** 14 Serial number 15 Button for charge-control indicator 16 Battery charge-control indicator Intended Use 17 Temperature control indicator The machine is intended for cutting and trimming hedges and bushes in domestic use. ** country specific Delivery Scope Carefully remove the garden product from its packaging and check if the following parts are complete:

Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program. Hedgecutter Blade guard Battery Battery Charger Operating instructions When parts are missing or damaged, please contact your dealer. F 016 L70 590 | (30.6.09) Bosch Power Tools OBJ_DOKU-16823-003.fm Page 23 Wednesday, July 1, 2009 10:09 AM English | 23 Technical Data Cordless Hedgecutter

AHS 54-20 LI

Article number 3 600 H4A 100 min-1

No-load stroke rate Weight according to EPTA-Procedure 01/2003

See serial number 14 (type plate) on the machine Battery Li-Ion Article number Rated voltage Capacity Charging period (battery discharged)

Number of battery cells Run time per battery charge

Battery Charger AL 3640 CV Article number Allowable charging temperature range

0– 45 Weight according to EPTA-Procedure 01/2003

Noise/Vibration Information Declaration of Conformity Measured values determined according to 2000/14/EC and EN 60745. We declare under our sole responsibility that the product described under “Technical Data” is in conformity with the following standards or standardization documents: EN 60745 (battery powered product) and EN 60335 (battery charger) according to the provisions of the directives 2006/95/EC, 2004/108/EC, 98/37/EC (until 28 Dec 2009), 2006/42/EC (from 29 Dec 2009), 2000/14/EC. 2000/14/EC: Measured sound power level 84 dB(A). Conformity assessment procedure according to Annex V. Typically the A-weighted noise levels of the product are: Sound pressure level 69 dB(A); Guaranteed sound power level lower than 89 dB(A). Uncertainty K =3 dB. Vibration total values (triax vector sum) determined according to EN 60745: Vibration emission value ah =2.5 m/s2, Uncertainty K =1.5 m/s2. Bosch Power Tools F 016 L70 590 | (1.7.09) OBJ_BUCH-948-003.book Page 24 Tuesday, June 30, 2009 2:04 PM 24 | English Technical file at: Bosch Lawn and Garden Ltd., PT-LG/EAE, Stowmarket, Suffolk IP14 1EY, England Leinfelden, 29.06.2009 Dr. Egbert Schneider Senior Vice President Engineering Dr. Eckerhard Strötgen Head of Product Certification Assembly For Your Safety f Warning: Switch off and remove battery from machine before adjusting or cleaning. f The blades continue to move for a fraction of a second after the hedgecutter is switched off. f Do not touch the moving blades. Removing the Battery (see figure A) The battery 8 is equipped with two locking levels that should prevent the battery from falling out when pushing the battery unlocking button 7 unintentionally. As long as the battery is inserted in the garden product, it is held in position by means of a spring. Note: The garden product will not operate unless both locking levels are engaged. To remove the battery 8: noPush the battery against the base of the garden product and at the same time press the battery unlocking button 7. p Pull the battery out of the garden product until a red stripe becomes visible. q Press the battery unlocking button 7 again and pull out the battery completely. F 016 L70 590 | (30.6.09) Battery Charging (see figure A) f Do not use other battery chargers. The supplied battery charger is designed for the Lithium-Ion battery in your garden product. f Observe the mains voltage! The voltage of the power supply must correspond with the data given on the nameplate of the battery charger. Battery chargers marked with 230 V can also be operated with 220 V. The battery is equipped with temperature monitoring that allows charging only in the temperature range between 0 °C and 45 °C. In this manner, a high battery service life is achieved. Note: The battery is supplied partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time. The lithium ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery. The “Electronic Cell Protection (ECP)” protects the lithium ion battery against deep discharging. When the battery is run down or discharged, the garden product is shut off by means of a protective circuit: The blade no longer moves. Do not continue to press the On/Off switch after the garden product has been automatically switched off. The battery can be damaged. WARNING Charging Procedure The charging procedure starts as soon as the mains plug of the battery charger is plugged into the socket outlet and the battery 8 is inserted into the charging compartment 9. Due to the intelligent charging method, the charging condition of the battery is automatically detected and the battery is charged with the optimum charging current, depending on battery temperature and voltage. This gives longer life to the battery and always leaves it fully charged when kept in the charger for storage. Bosch Power Tools OBJ_BUCH-948-003.book Page 25 Tuesday, June 30, 2009 2:04 PM English | 25 Meaning of the Indication Elements No charging procedure possible Control of the charging procedure is indicated via the charge control LEDs 11 and 12: If a different malfunction of the charging procedure is present, this will be indicated through flashing of the red charge control LED 11. Rapid-charging Procedure The rapid-charging procedure is indicated by flashing of the green charge control LED 12. During the charging procedure, the three green LEDs light up one after the other and briefly go out. The battery is fully charged when the three green LEDs light up continuously. The three LEDs go out again approx. 5 minutes after the battery has been fully charged. Note: The rapid-charging procedure is only possible when the battery temperature is within the allowable charging temperature range, see section “Technical Data”. Battery Charged Continuous lighting of the green charge control LED 12 signals that the battery is fully charged. Additionally, a signal tone sounds for approx. 2 seconds, which acoustically indicates that the battery is fully charged. Afterwards, the battery can be removed for immediate use. With no battery inserted, continuous lighting of the green charge control LED 12 indicates that the mains plug is plugged into the socket and that the battery charger is ready for operation. Battery Temperature below 0 °C and above 45 °C Continuous lighting of the red LED 11 indicates that the battery temperature is not within the rapid-charging temperature range of 0 °C – 45 °C. As soon as the allowable temperature range is reached, the battery charger automatically switches to rapid charging. When the battery is not within the allowable temperature range, the red battery LED lights up when inserting the battery into the battery charger. Bosch Power Tools The charging procedure can not be started and the battery cannot be charged (see “Troubleshooting”). Charging Advice With continuous or several repetitive charging cycles without interruption, the charger can warm up. This is not meaningful and does not indicate a technical defect of the battery charger. A significantly reduced working period after charging indicates that the battery is used and must be replaced. Battery Cooling (Active Air Cooling) The fan control integrated in the battery charger controls the temperature of the inserted battery. When the battery temperature is above 30 °C, a fan cools down the battery to the optimal charging temperature. The switched-on fan produces a fan noise. The battery temperature is within the optimal charging temperature range when the fan is not running, or the fan may possibly be defective. In this case, the charging time of the battery extends. Operation Initial Operation Inserting the Battery (see figure A) Insert the charged battery 8 from the rear into the handle of the garden product. Push the battery completely into the handle until the red stripe can no longer be seen and the battery is securely locked. Note: The garden product will not operate unless both locking levels are engaged. F 016 L70 590 | (30.6.09) OBJ_BUCH-948-003.book Page 26 Tuesday, June 30, 2009 2:04 PM 26 | English Switching On (see figure B) Anti Blocking n Press and hold the On/Off switch 6 on the rear handle. The garden product has a patented feature which works as follows: If the blade stalls on a tough material, the load of the motor increases. The intelligent microelectronics senses this overload condition and repeatedly reverses the motor, in order to prevent stalling and to cut the material through. This audible reversing cut action continues for up to 3 s. After cutting through, the garden product continues in its normal mode, or in case the overload condition continues the blades automatically stop in the open position (e. g. in case a piece of metal fence accidentally blocks the garden product). o Then press the front On/Off switch 4. Switching Off Release the front 4 or rear 6 On/Off switch. Working Advice (see figures C–E) f Warning: Hold the hedgecutter away from yourself using both hands. Stand in a secure and stable position. Cuts stems up to 20 mm in thickness (max.), up to 25 mm in thickness (max.) at the tip end of the blade. When cutting, move steadily along the line of cut, so that stems are fed directly into the cutter blades. The double edge cutting blade enables cutting in either direction, or with a side to side motion. Sawing Function (see figure F) Although the blade gap allow wood to be cut upto Ø 20 mm, the tip of the blade is designed to cut wood up to Ø 25 mm. Cut the sides of the hedge first, then the top. Battery Charge-control Indication To cut the sides straightly, we recommend cutting from bottom to top in the direction of growth. Younger stems tend to move outwards when cutting them from top to bottom, resulting in shallow patches or holes in the hedge. The battery 8 is equipped with a charge-control indicator 16 which indicates its charge condition. The charge-control indicator 16 consists of 3 green LEDs. To reach a level finish, fasten a piece of string along the length of the hedge at the required height and use as an alignment guide. Cut the hedge just above the string. In order to encourage strong, healthy growth of your hedge, it is recommended when trimming the top, to use the Collecto “clippings-collection” device (accessory). This accessory conveniently gathers the clippings as you cut, allowing them to be easily tipped into a bag or sheet placed alongside the hedge, and thus preventing cut clippings from falling into the hedge. Always take care to avoid cutting into objects such as wire, which could cause damage to the cutting blades and the drive. Press the button 15 to actuate the charge-control indicator 16. After approx. 5 seconds, the charge-control indicator goes out automatically. The charge condition can also be checked when the battery is removed. LED Indicators Battery Capacity Continuous lighting of 3 green LEDs ≥ 2/3 Continuous lighting of 2 green LEDs ≥ 1/3 Continuous lighting of 1 green LED ≤ 1/3 Flashing of 1 green LED Reserve When no LED lights up after actuating the button 15, the battery is defective and must be replaced. For safety reasons, the charge condition of the battery can only be checked when the garden product is at a standstill. F 016 L70 590 | (30.6.09) Bosch Power Tools OBJ_BUCH-948-003.book Page 27 Tuesday, June 30, 2009 2:04 PM English | 27 During the charging procedure, the three green LEDs light up one after the other and briefly go out. The battery is fully charged when the three green LEDs light up continuously. The three LEDs go out again approx. 5 minutes after the battery has been fully charged. Temperature Control of the Battery Temperature Control Indicator The battery switches off at a temperature above 70 °C until the optimum temperature range is reached again. The red LED 17 signals that the battery or the electronics of the garden product (with battery inserted) are not within the optimum temperature range. When this occurs the garden product will not operate or not at full capacity. The red LED 17 flashes when pushing button 15 or pressing the On/Off switch 6 (when the battery is inserted): The battery is not wihin the temperature range for operation of –10 °C to +60 °C. Temperature Control of the Garden Product Electronics The red LED 17 lights up continuously when pressing the On/Off switch 6: The temperature of the garden product electronics is below 5 °C or above 75 °C. At a temperature above 90 °C, the electronics of the garden product switch off until the temperature is within the allowable temperature range again. Troubleshooting The following chart lists problem symptoms, possible causes and corrective action, if your garden product does not operate properly. If these do not identify and correct the problem, contact your service agent. f Warning: Switch off and remove the battery prior to any troubleshooting. Problem Possible Cause Corrective Action Hedgecutter does not operate Battery discharged Recharge battery; also see “Battery Charging” Battery not fully connected Ensure both locking levels are engaged Hedgecutter operates intermit- Internal wiring of garden prodtently uct damaged On/Off switch defective Contact Service Agent Contact Service Agent Motor reverses repeatedly then see “Working Advice” (Anti stalls after 3 s. Blocking) Motor runs but blades remain stationary Internal fault Contact Service Agent Cutting blade hot Cutting blade dull Have blade sharpened Cutting blade has dents Have blade inspected/overhauled Too much friction, due to lack of lubricant Apply lubricant spray Bosch Power Tools F 016 L70 590 | (30.6.09) OBJ_BUCH-948-003.book Page 28 Tuesday, June 30, 2009 2:04 PM 28 | English Problem Possible Cause Corrective Action Blade will not move Battery discharged Recharge battery; also see “Battery Charging” Garden product defective Contact Service Agent Excessive vibrations/noise Garden product defective Contact Service Agent Cutting time per battery charge too low Too much friction, due to lack of lubricant Apply lubricant spray Blade needs cleaning Clean blade Poor cutting technique see “Working Advice” Battery not fully charged Recharge battery; also see “Battery Charging” Battery not (properly) inserted Properly insert battery into battery charger No charging procedure possible Battery contacts contaminated Clean the battery contacts (e.g. by inserting and removing the battery several times) or replace the battery Continuous lighting of the battery charge indicator 12 Battery defective Replace the battery The blades are running slow or the anti blocking feature is not functioning Battery discharged Recharge battery; also see “Battery Charging” Battery stored outside of battery temperature Allow battery to warm naturally to room temperature (within battery operating temperature 0 – 45 °C) Battery charge indicator 12 does not light up Mains plug of battery charger not plugged in (properly) Insert mains plug (fully) into the socket outlet Socket outlet, mains cable or battery charger defective Check the mains voltage; have the battery charger checked by an authorised after-sales service agent for Bosch power tools Maintenance and Service Maintenance and Cleaning f Warning: Switch off and remove battery from machine before adjusting or cleaning. f For safe and proper working, always keep the garden product clean. Note: To ensure long and reliable service, carry out the following maintenance regularly. F 016 L70 590 | (30.6.09) Regularly check for obvious defects such as loose fixings, and worn or damaged components. Check that covers and guards are undamaged and correctly fitted. Carry out necessary maintenance or repairs before using. When the battery is no longer operative, please refer to an authorised after-sales service agent for Bosch power tools. Bosch Power Tools OBJ_BUCH-948-003.book Page 29 Tuesday, June 30, 2009 2:04 PM English | 29 If the replacement of the supply cord is necessary, this has to be done by Bosch or an authorized Bosch service agent in order to avoid a safety hazard. If the garden product should happen to fail despite the care taken in manufacture and testing, repair should be carried out by an authorised customer service agent for Bosch garden products. In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the garden product. After Use/Storage f Warning: Switch the machine off and remove the battery. Ensure battery is removed before storage. Clean the exterior of the machine thoroughly using a soft brush and cloth. Do not use water, solvents or polishes. Remove all debris, especially from the ventilation slots 5 of the motor. Always lubricate the cutting blade with protective spray before storage. Store the hedgecutter in a secure, dry place out of the reach of children. Do not place other objects on top of the machine. The battery should be stored between 0 °C and 45 °C. After-sales Service and Customer Assistance Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under: www.bosch-pt.com Our customer service representatives can answer your questions concerning possible applications and adjustment of products and accessories. Bosch Power Tools Great Britain Robert Bosch Ltd. (B.S.C.) P.O. Box 98 Broadwater Park North Orbital Road Denham Uxbridge UB 9 5HJ Tel. Service: +44 (0844) 736 0109 Fax: +44 (0844) 736 0146 E-Mail: SPT-Technical.de@de.bosch.com Ireland Origo Ltd. Unit 23 Magna Drive Magna Business Park City West Dublin 24 Tel. Service: +353 (01) 4 66 67 00 Fax: +353 (01) 4 66 68 88 Australia, New Zealand and Pacific Islands Robert Bosch Australia Pty. Ltd. Power Tools Locked Bag 66 Clayton South VIC 3169 Customer Contact Center Inside Australia: Phone: +61 (01300) 307 044 Fax: +61 (01300) 307 045 Inside New Zealand: Phone: +64 (0800) 543 353 Fax: +64 (0800) 428 570 Outside AU and NZ: Phone: +61 (03) 9541 5555 www.bosch.com.au Republic of South Africa Customer service Hotline: +27 (011) 6 51 96 00 Gauteng – BSC Service Centre 35 Roper Street, New Centre Johannesburg Tel.: +27 (011) 4 93 93 75 Fax: +27 (011) 4 93 01 26 E-Mail: bsctools@icon.co.za F 016 L70 590 | (30.6.09) OBJ_BUCH-948-003.book Page 30 Tuesday, June 30, 2009 2:04 PM 30 | English KZN – BSC Service Centre Unit E, Almar Centre 143 Crompton Street Pinetown Tel.: +27 (031) 7 01 21 20 Fax: +27 (031) 7 01 24 46 E-Mail: bsc.dur@za.bosch.com Western Cape – BSC Service Centre Democracy Way, Prosperity Park Milnerton Tel.: +27 (021) 5 51 25 77 Fax: +27 (021) 5 51 32 23 E-Mail: bsc@zsd.co.za Bosch Headquarters Midrand, Gauteng Tel.: +27 (011) 6 51 96 00 Fax: +27 (011) 6 51 98 80 E-Mail: rbsa-hq.pts@za.bosch.com Disposal The machine, accessories and packaging should be sorted for environmental-friendly recycling. Only for EC countries: Do not dispose of power tools into household waste! According the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally correct manner. Battery packs/batteries: Li-ion: Please observe the instructions in section “Transport”, page 30. Transport The battery is tested according to UN document ST/SG/AC.10/11/Rev.3 Part III, subsection 38.3. It has effective protection against internal overpressure and short circuiting as well as devices for the prevention of violent rupture and dangerous reverse current flow. The lithium-equivalent content in the battery is below applicable limit values. Therefore, the battery is not subject to national or international regulations pertaining to dangerous mediums, neither as an individual component nor when inserted into a machine. However, the regulations governing dangerous goods may be relevant when transporting several batteries. In this case, it can be necessary to comply with special conditions (e.g., concerning the packaging). For more information, please refer to the instruction sheet (in English) under the following Internet address: http://purchasing.bosch.com/en/ start/Allgemeines/Download/index.htm. Do not dispose of battery packs/batteries into household waste, fire or water. Battery packs/ batteries should be collected, recycled or disposed of in an environmental-friendly manner. Only for EC countries: Defective or dead out battery packs/batteries must be recycled according the guideline 91/157/EEC. Batteries no longer suitable for use can be directly returned at: Great Britain Robert Bosch Ltd. (B.S.C.) P.O. Box 98 Broadwater Park North Orbital Road Denham Uxbridge UB 9 5HJ Tel. Service: +44 (0844) 736 0109 Fax: +44 (0844) 736 0146 E-Mail: SPT-Technical.de@de.bosch.com Subject to change without notice. F 016 L70 590 | (30.6.09) Bosch Power Tools OBJ_DOKU-17424-003.fm Page 31 Tuesday, June 30, 2009 4:30 PM Français | 31 Bosch Power Tools OBJ_DOKU-17424-003.fm Page 32 Tuesday, June 30, 2009 4:30 PM OBJ_DOKU-17424-003.fm Page 33 Tuesday, June 30, 2009 4:30 PM Bosch Power Tools OBJ_DOKU-17424-003.fm Page 34 Tuesday, June 30, 2009 4:30 PM Bosch Power Tools OBJ_DOKU-17424-003.fm Page 35 Tuesday, June 30, 2009 4:30 PM Français | 35 Bosch Power Tools F 016 L70 590 | (30.6.09) OBJ_DOKU-17424-003.fm Page 36 Tuesday, June 30, 2009 4:30 PM 36 | Français Dr. Eckerhard Strötgen Head of Product Certification Bosch Power Tools OBJ_DOKU-17424-003.fm Page 37 Wednesday, July 1, 2009 9:50 AM Bosch Power Tools OBJ_DOKU-17424-003.fm Page 38 Tuesday, June 30, 2009 4:30 PM Bosch Power Tools OBJ_DOKU-17424-003.fm Page 39 Tuesday, June 30, 2009 4:30 PM Bosch Power Tools OBJ_DOKU-17424-003.fm Page 40 Tuesday, June 30, 2009 4:30 PM 40 | Français Bosch Power Tools OBJ_DOKU-17424-003.fm Page 41 Wednesday, July 1, 2009 9:56 AM Français | 41 Problème Cause possible Remède Bosch Power Tools OBJ_DOKU-17424-003.fm Page 42 Tuesday, June 30, 2009 4:30 PM Bosch Power Tools OBJ_DOKU-17424-003.fm Page 43 Tuesday, June 30, 2009 4:30 PM Français | 43 Bosch Power Tools F 016 L70 590 | (30.6.09) OBJ_BUCH-948-003.book Page 44 Tuesday, June 30, 2009 2:04 PM 44 | Español Bosch Power Tools OBJ_BUCH-948-003.book Page 45 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 46 Tuesday, June 30, 2009 2:04 PM OBJ_BUCH-948-003.book Page 47 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 48 Tuesday, June 30, 2009 2:04 PM 48 | Español Bosch Power Tools OBJ_BUCH-948-003.book Page 49 Tuesday, June 30, 2009 2:04 PM Español | 49 Dr. Eckerhard Strötgen Head of Product Certification Bosch Power Tools OBJ_BUCH-948-003.book Page 50 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 51 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools F 016 L70 590 | (30.6.09) OBJ_BUCH-948-003.book Page 52 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 53 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools F 016 L70 590 | (30.6.09) OBJ_BUCH-948-003.book Page 54 Tuesday, June 30, 2009 2:04 PM 54 | Español Síntomas Posible causa Solución Bosch Power Tools OBJ_BUCH-948-003.book Page 55 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 56 Tuesday, June 30, 2009 2:04 PM 56 | Español Bosch Power Tools OBJ_BUCH-948-003.book Page 57 Tuesday, June 30, 2009 2:04 PM Português | 57 Bosch Power Tools F 016 L70 590 | (30.6.09) OBJ_BUCH-948-003.book Page 58 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 59 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools F 016 L70 590 | (30.6.09) OBJ_BUCH-948-003.book Page 60 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 61 Tuesday, June 30, 2009 2:04 PM Português | 61 Bosch Power Tools F 016 L70 590 | (30.6.09) OBJ_BUCH-948-003.book Page 62 Tuesday, June 30, 2009 2:04 PM 62 | Português Dr. Eckerhard Strötgen Head of Product Certification Bosch Power Tools OBJ_BUCH-948-003.book Page 63 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 64 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 65 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 66 Tuesday, June 30, 2009 2:04 PM 66 | Português Bosch Power Tools OBJ_BUCH-948-003.book Page 67 Tuesday, June 30, 2009 2:04 PM Português | 67 Sintomas Possível causa Solução Bosch Power Tools OBJ_BUCH-948-003.book Page 68 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 69 Tuesday, June 30, 2009 2:04 PM Português | 69 Bosch Power Tools F 016 L70 590 | (30.6.09) OBJ_BUCH-948-003.book Page 70 Tuesday, June 30, 2009 2:04 PM 70 | Italiano Bosch Power Tools OBJ_BUCH-948-003.book Page 71 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 72 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_DOKU-17427-003.fm Page 73 Wednesday, July 1, 2009 9:58 AM Bosch Power Tools OBJ_BUCH-948-003.book Page 74 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 75 Tuesday, June 30, 2009 2:04 PM Italiano | 75 OBJ_BUCH-948-003.book Page 76 Tuesday, June 30, 2009 2:04 PM 76 | Italiano Leinfelden, lì 29.06.2009 Dr. Egbert Schneider Senior Vice President Engineering Dr. Eckerhard Strötgen Head of Product Certification Bosch Power Tools OBJ_BUCH-948-003.book Page 77 Tuesday, June 30, 2009 2:04 PM OBJ_BUCH-948-003.book Page 78 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 79 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 80 Tuesday, June 30, 2009 2:04 PM 80 | Italiano Bosch Power Tools OBJ_BUCH-948-003.book Page 81 Tuesday, June 30, 2009 2:04 PM Italiano | 81 Problema Possibili cause Rimedi OBJ_BUCH-948-003.book Page 82 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 83 Tuesday, June 30, 2009 2:04 PM Italiano | 83 OBJ_BUCH-948-003.book Page 84 Tuesday, June 30, 2009 2:04 PM 84 | Nederlands Veiligheidsvoorschriften

Bosch Power Tools OBJ_BUCH-948-003.book Page 85 Tuesday, June 30, 2009 2:04 PM OBJ_BUCH-948-003.book Page 86 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 87 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 88 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 89 Tuesday, June 30, 2009 2:04 PM Nederlands | 89 Leinfelden, 29.06.2009 Dr. Egbert Schneider Senior Vice President Engineering Dr. Eckerhard Strötgen Head of Product Certification Bosch Power Tools F 016 L70 590 | (30.6.09) OBJ_BUCH-948-003.book Page 90 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 91 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools F 016 L70 590 | (30.6.09) OBJ_BUCH-948-003.book Page 92 Tuesday, June 30, 2009 2:04 PM Continu brandt 1 groene LED ≤ 1/3 Bosch Power Tools OBJ_BUCH-948-003.book Page 93 Tuesday, June 30, 2009 2:04 PM Nederlands | 93 Bosch Power Tools OBJ_BUCH-948-003.book Page 94 Tuesday, June 30, 2009 2:04 PM 94 | Nederlands Symptomen Mogelijke oorzaak Oplossing Stopcontact, netsnoer of oplaadapparaat defect Bosch Power Tools OBJ_BUCH-948-003.book Page 95 Tuesday, June 30, 2009 2:04 PM Nederlands | 95 OBJ_BUCH-948-003.book Page 96 Tuesday, June 30, 2009 2:04 PM 96 | Dansk Sikkerhedsinstrukser

Bosch Power Tools OBJ_BUCH-948-003.book Page 97 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 98 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 99 Tuesday, June 30, 2009 2:04 PM Dansk | 99 Bosch Power Tools OBJ_BUCH-948-003.book Page 100 Tuesday, June 30, 2009 2:04 PM 100 | Dansk Teknisk dossier hos: Bosch Lawn and Garden Ltd., PT-LG/EAE, Stowmarket, Suffolk IP14 1EY, England F 016 L70 590 | (30.6.09) Bosch Power Tools OBJ_BUCH-948-003.book Page 101 Tuesday, June 30, 2009 2:04 PM Dansk | 101 Leinfelden, 29.06.2009 Dr. Egbert Schneider Senior Vice President Engineering Dr. Eckerhard Strötgen Head of Product Certification OBJ_BUCH-948-003.book Page 102 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 103 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools F 016 L70 590 | (30.6.09) OBJ_BUCH-948-003.book Page 104 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 105 Tuesday, June 30, 2009 2:04 PM Dansk | 105 Symptom Mulig årsag Afhjælpning OBJ_BUCH-948-003.book Page 106 Tuesday, June 30, 2009 2:04 PM 106 | Dansk Bosch Power Tools OBJ_BUCH-948-003.book Page 107 Tuesday, June 30, 2009 2:04 PM Svenska | 107 Säkerhetsanvisningar

Bosch Power Tools OBJ_BUCH-948-003.book Page 108 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 109 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 110 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 111 Tuesday, June 30, 2009 2:04 PM Svenska | 111 Bosch Power Tools F 016 L70 590 | (30.6.09) OBJ_BUCH-948-003.book Page 112 Tuesday, June 30, 2009 2:04 PM 112 | Svenska

Bosch Power Tools OBJ_BUCH-948-003.book Page 119 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 120 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 121 Tuesday, June 30, 2009 2:04 PM Norsk | 121 Bosch Power Tools OBJ_BUCH-948-003.book Page 122 Tuesday, June 30, 2009 2:04 PM 122 | Norsk Tekniske underlag hos: Bosch Lawn and Garden Ltd., PT-LG/EAE, Stowmarket, Suffolk IP14 1EY, England F 016 L70 590 | (30.6.09) Bosch Power Tools OBJ_BUCH-948-003.book Page 123 Tuesday, June 30, 2009 2:04 PM Norsk | 123

Bosch Power Tools OBJ_BUCH-948-003.book Page 130 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 131 Tuesday, June 30, 2009 2:04 PM OBJ_BUCH-948-003.book Page 132 Tuesday, June 30, 2009 2:04 PM 132 | Suomi Bosch Power Tools OBJ_BUCH-948-003.book Page 133 Tuesday, June 30, 2009 2:04 PM Suomi | 133 Tekninen tiedosto kohdasta: Bosch Lawn and Garden Ltd., PT-LG/EAE, Stowmarket, Suffolk IP14 1EY, England Bosch Power Tools F 016 L70 590 | (30.6.09) OBJ_BUCH-948-003.book Page 134 Tuesday, June 30, 2009 2:04 PM 134 | Suomi

Leinfelden, 29.06.2009 Dr. Egbert Schneider Senior Vice President Engineering Dr. Eckerhard Strötgen Head of Product Certification Bosch Power Tools OBJ_BUCH-948-003.book Page 135 Tuesday, June 30, 2009 2:04 PM OBJ_BUCH-948-003.book Page 136 Tuesday, June 30, 2009 2:04 PM 136 | Suomi Bosch Power Tools OBJ_BUCH-948-003.book Page 137 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools F 016 L70 590 | (30.6.09) OBJ_BUCH-948-003.book Page 138 Tuesday, June 30, 2009 2:04 PM 138 | Suomi Vian oire Mahdolliset vikalähteet Korjaus Bosch Power Tools OBJ_BUCH-948-003.book Page 139 Tuesday, June 30, 2009 2:04 PM Suomi | 139 Bosch Power Tools OBJ_BUCH-948-003.book Page 140 Tuesday, June 30, 2009 2:04 PM 140 | Eλληνικά Bosch Power Tools OBJ_BUCH-948-003.book Page 141 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 142 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_DOKU-17436-003.fm Page 143 Wednesday, July 1, 2009 11:07 AM Bosch Power Tools F 016 L70 590 | (1.7.09) OBJ_BUCH-948-003.book Page 144 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 145 Tuesday, June 30, 2009 2:04 PM Eλληνικά | 145 Bosch Power Tools F 016 L70 590 | (30.6.09) OBJ_BUCH-948-003.book Page 146 Tuesday, June 30, 2009 2:04 PM 146 | Eλληνικά Τεχνικός φάκελος από: Bosch Lawn and Garden Ltd., PT-LG/EAE, Stowmarket, Suffolk IP14 1EY, England Leinfelden, στις 29.06.2009 Dr. Egbert Schneider Senior Vice President Engineering Dr. Eckerhard Strötgen Head of Product Certification Bosch Power Tools OBJ_BUCH-948-003.book Page 147 Tuesday, June 30, 2009 2:04 PM OBJ_BUCH-948-003.book Page 148 Tuesday, June 30, 2009 2:04 PM 148 | Eλληνικά Bosch Power Tools OBJ_BUCH-948-003.book Page 149 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools F 016 L70 590 | (30.6.09) OBJ_BUCH-948-003.book Page 150 Tuesday, June 30, 2009 2:04 PM 150 | Eλληνικά Bosch Power Tools OBJ_BUCH-948-003.book Page 151 Tuesday, June 30, 2009 2:04 PM Eλληνικά | 151

OBJ_BUCH-948-003.book Page 152 Tuesday, June 30, 2009 2:04 PM OBJ_BUCH-948-003.book Page 153 Tuesday, June 30, 2009 2:04 PM Eλληνικά | 153 Bosch Power Tools F 016 L70 590 | (30.6.09) OBJ_BUCH-948-003.book Page 154 Tuesday, June 30, 2009 2:04 PM 154 | Türkçe Bosch Power Tools OBJ_BUCH-948-003.book Page 155 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 156 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 157 Tuesday, June 30, 2009 2:04 PM Türkçe | 157 Bosch Power Tools OBJ_BUCH-948-003.book Page 158 Tuesday, June 30, 2009 2:04 PM 158 | Türkçe Bosch Power Tools OBJ_BUCH-948-003.book Page 159 Tuesday, June 30, 2009 2:04 PM Türkçe | 159 Teknik belgelerin bulunduğu merkez: Bosch Lawn and Garden Ltd., PT-LG/EAE, Stowmarket, Suffolk IP14 1EY, England Leinfelden, 29.06.2009 Dr. Egbert Schneider Senior Vice President Engineering Dr. Eckerhard Strötgen Head of Product Certification Bosch Power Tools F 016 L70 590 | (30.6.09) OBJ_BUCH-948-003.book Page 160 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 161 Tuesday, June 30, 2009 2:04 PM Türkçe | 161 OBJ_BUCH-948-003.book Page 162 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools OBJ_BUCH-948-003.book Page 163 Tuesday, June 30, 2009 2:04 PM Türkçe | 163 Hata göstergesi Olas neden Giderilme yolu OBJ_BUCH-948-003.book Page 164 Tuesday, June 30, 2009 2:04 PM Bosch Power Tools
