| Product type | SUV |
| Brand | Hyundai |
| Model | IX35 2010 |
| Dimensions (L x W x H) | 4410 x 1820 x 1660 mm (without roof rack) / 1690 mm (with roof rack) |
| Wheelbase | 2640 mm |
| Fuel tank capacity | 58 liters |
| Fuel type | Unleaded gasoline (octane rating 95 RON) or Diesel (cetane index >52) |
| Transmission | Manual or automatic (depending on version) |
| Drivetrain | Front-wheel drive or 4-wheel drive (4x4) depending on version |
| Tires | 225/55R18, 225/60R17 or 215/70R16 |
| Tire pressure (normal load) | Front: 2.3 bar, Rear: 2.3 bar |
| Engine oil (gasoline) | 4.1 L, ACEA A3/A5 |
| Engine oil (diesel with DPF) | 8.0 L, ACEA C3 |
| Engine oil (diesel without DPF) | 8.0 L, ACEA B4 |
| Coolant (gasoline) | 6.7 L |
| Coolant (diesel) | 8.5 L |
| Braking system | Power brakes, ABS, ESP (Electronic Stability Control) |
| Safety | Front, side and curtain airbags; pretensioner seat belts; ISOFIX system for child seats |
| Main equipment | Heated seats, panoramic sunroof, automatic climate control, cruise control |
| Routine maintenance | Engine oil change, air filter replacement, fuel filter replacement (diesel), fluid level checks |
| Spare parts | Use genuine Hyundai parts to preserve warranty and safety |
Frequently Asked Questions - IX35 2010 HUNDAI
What type of fuel to use for the Hyundai IX35 2010?
Use unleaded gasoline with a research octane number of 95 RON (91 RON minimum accepted but reduced performance) or diesel with a cetane index above 52. Never use leaded gasoline or fuel containing methanol.
What is the recommended tire pressure?
The recommended cold pressure is 2.3 bar (33 psi) for front and rear tires under normal load. At maximum load, increase to 2.6 bar front and 2.7 bar rear. See the label on the driver's door pillar.
What engine oil to use for the gasoline IX35?
For the 2.0L gasoline engine, use SAE 5W-30 or 5W-40 viscosity oil meeting ACEA A3/A5 standard. The oil change capacity is approximately 4.1 liters. Recommended brands include Shell Helix, SK ZIC, Total Quartz.
How to break in the vehicle?
No strict break-in period is required, but during the first 1000 kilometers, follow these tips: start gently, keep the engine speed between 2000 and 4000 rpm, avoid prolonged constant speeds, avoid sudden stops (except in emergencies), do not tow a trailer for the first 2000 km.
Can I install a child seat in the front?
It is strongly advised against installing a rear-facing child seat on the front passenger seat due to the risk of airbag deployment. Always install child seats on the rear seat. For forward-facing seats, move the front seat back as far as possible.
How to use the ISOFIX system?
ISOFIX anchors are located between the cushion and backrest of the rear side seats (marked with the logo). Engage the child seat connectors into the anchors until they click. Also secure the top tether strap to the corresponding point. Do not install an ISOFIX seat in the middle.
What to do if the engine malfunction indicator blinks (diesel DPF)?
This indicates that the diesel particulate filter (DPF) needs regeneration. Drive at a speed above 60 km/h for about 25 minutes, in second or third gear at 1500-2000 rpm. If the light continues to blink, consult a Hyundai dealer.
What types of fuel to avoid?
Never use leaded gasoline, gasohol containing more than 10% ethanol, fuel containing methanol, or high-sulfur diesel (>50 ppm) for vehicles with DPF. These fuels can damage the engine and emission control system.
How to adjust the headrest height?
To raise the headrest, pull it up. To lower it, press the button at the base of the headrest while pushing down. The ideal height places the center of the headrest at the center of gravity of the head (above the eyes). Never drive without the headrest.
Where to find the Vehicle Identification Number (VIN)?
The VIN is located on the floor under the front passenger seat (visible by opening the hood) and also on a plate on top of the dashboard visible through the windshield. It is also indicated on the certification label on the driver's side center pillar.
User questions about IX35 2010 HUNDAI
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your SUV in PDF format for free! Find your manual IX35 2010 - HUNDAI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IX35 2010 by HUNDAI.
USER MANUAL IX35 2010 HUNDAI
m = 311 ;
(P, R, N-D et mode sports)
Check steering wheel lock

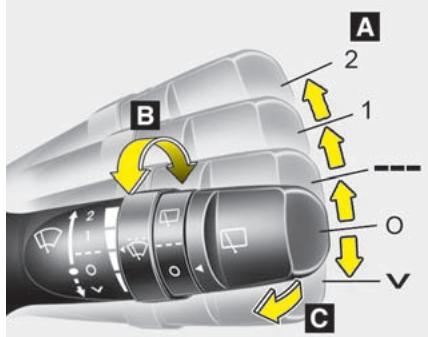

Essuie-glace/lave-glace

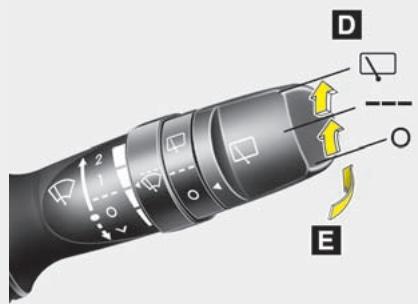

Essuie-glace/lave-glace arrriere
OXM049230L/OAM049048L
Position air recycle
Commande BASS (BASSES)
Commande TREBBLE (AIGUS)

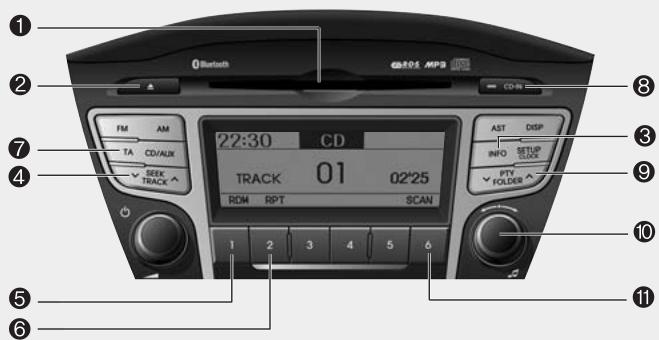

CDP, CDC, AUX (EUROPE_RDS)
- Dites " Dial Number " (Composer le numéro)
- Dites " Dial
"
N (Neutral/Point mort)
- Temoin Cruise
- Temoin Cruise SET
9~11 kg.m (65~79 liv.pied)
Liquide lave-glace / 7-19
Compartment moteur (diesel)
Liquide lave-glace 7-19
Liquide lave-glace 7-19
Liseuse 4-88
