80B HELIUM - Tablet ARCHOS - Free user manual and instructions

Product type	Tablet
Brand	ARCHOS
Model	80B Helium
Operating system	Android
Connectivity	WiFi 802.11 b/g/n, Bluetooth, GPS, 3G
Front camera	Webcam
Rear camera	Camera with flash
Battery	Rechargeable via included USB charger
Ports	1x micro-USB, 1x 3.5mm audio jack
Supported cards	1x SIM card, 1x microSD memory card (TIF slot)
Speakers	2 built-in speakers
Microphone	Built-in
Buttons	ON/OFF, volume +/-, Reset (via hole)
Main functions	Internet browsing, Android apps, 3G telephony, multimedia, GPS
Care and cleaning	Clean with a soft dry cloth. Avoid moisture.
Security	Screen lock by pattern, PIN code or password
Spare parts and repairability	Reset button accessible. Non-removable battery. Removable back cover for card access.
General information	Manual available at archos.com. Product registration recommended.

Frequently Asked Questions - 80B HELIUM ARCHOS

How to activate mobile data (3G)?

Swipe down the status bar, then enable the Mobile data icon. If connection fails, contact your operator for APN settings.

How to connect the tablet to WiFi?

In settings, enable WiFi, select your network and enter the password. Check Show password to avoid typing errors.

What to do if the tablet does not turn on?

Charge it for at least 10 minutes, then press the ON/OFF button for 10 seconds. If nothing happens, use the Reset button with a paperclip.

How to insert a SIM card or memory card?

Turn off the tablet, remove the back cover using the notch. Insert the SIM card into the SIM slot and the memory card into the TIF slot, magnetic side down. Close the back cover.

Why does the tablet display 'No service'?

Move to an area with better network coverage. Check that Mobile data is enabled and the SIM card is properly inserted. Contact your operator if the issue persists.

How to lock the screen with a code?

Go to Settings > Security > Screen lock. Choose Pattern, PIN or Password. Enter your code to unlock the screen at each activation.

What to do if an app stops responding?

Press and hold the ON/OFF button for 10 seconds to force restart, or use the Reset button. You can also close the app from the recent apps menu.

How to take a photo?

Open the Camera app. Use the viewfinder to frame, then press the shutter. The flash can be enabled if necessary.

How to change the wallpaper?

Press and hold on an empty space on the home screen, then select Wallpapers. Choose an image from galleries or default wallpapers.

How to reset WiFi settings?

Go to Settings > Wireless & networks > WiFi, forget the problematic network by tapping on it and selecting Forget. Then reconnect by entering the password.

USER MANUAL 80B HELIUM ARCHOS

Package contents. 2 Getting started. 3 Description of the device. 4 Inserting SIM & Micro-SD cards. 5 3G & WiFi connection. 6 The AndroidTM interface. 8 Getting familiar with AndroidTM 12 Troubleshooting. 14

For more information, please consult the FAQs on www.archos.com. Make sure to read them before considering any product return. Your deal may be no big deal. As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide.

Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html

Package Contents

ARCHOS 8ob Xenon

QSG booklet

Warranty, legal & safety booklet

USB cable

Charger

2

Getting Started

Charging

1. Charge your device by plugging your power cable into the micro-USB port. The ARCHOS device will start charging.
2. Press the Power button to turn on the device.
3. You can use your ARCHOS whilst it charges.
4. Let your device charge completely the first time you use it.
5. Use only the supplied charger.

When your device is completely discharged, you need to charge it for at least 10 minutes before the charging battery icon can be displayed.

TIP:

To receive more complete service, please register your product.

From a computer, go to www.archos.com/register.

Description of the device

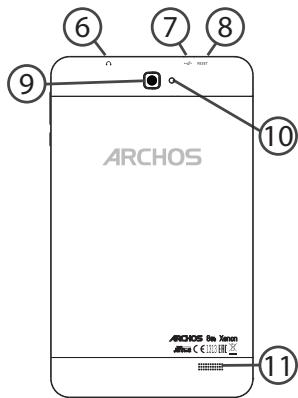

① Webcam ON/OFF button ② Loudspeaker ③ Microphone ④ Headphone jack ⑤ Micro-USB port ⑥ Volume buttons ⑦ Hardware reset

⑨ Camera ⑩ Flash ⑪ Loudspeaker

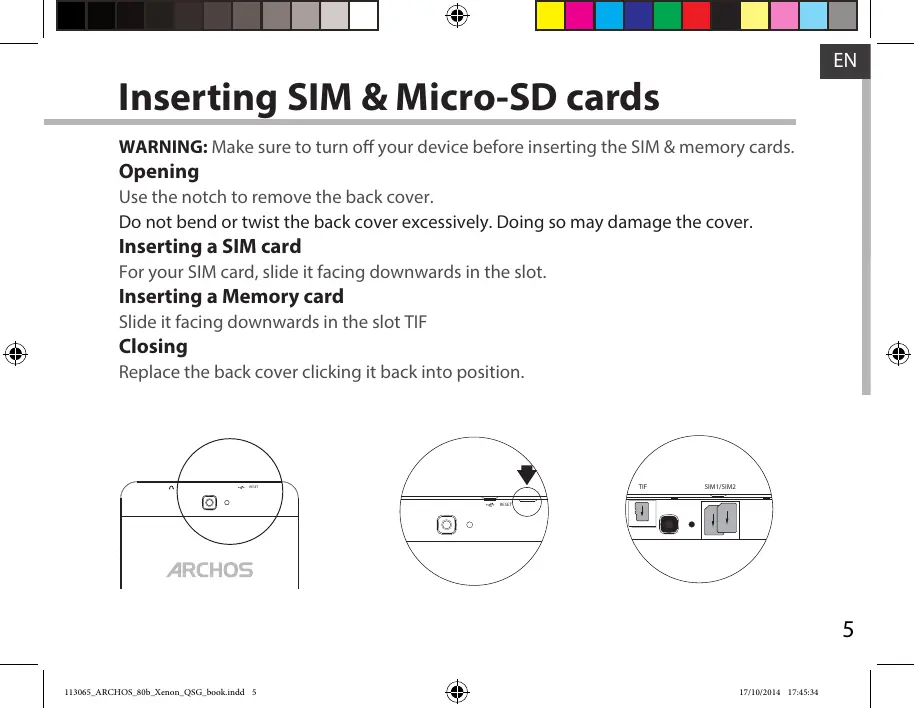

Inserting SIM & Micro-SD cards

WARNING: Make sure to turn off your device before inserting the SIM & memory cards.

Opening

Use the notch to remove the back cover.

Do not bend or twist the back cover excessively. Doing so may damage the cover.

Inserting a SIM card

For your SIM card, slide it facing downwards in the slot.

Inserting a Memory card

Slide it facing downwards in the slot TIF

Closing

Replace the back cover clicking it back into position.

3G & WiFi connection

3G connection

To be able to access Internet, the mobile data icon must be activated.

Activating the mobile data

1. Touch and hold the time & battery icons to reveal the status bar.
2. Pull the white line down to display the status dashboard.
3. Touch the mobile data icon to activate it.

When the mobile data is activated, it turns blue.

If your device does not connect to your 3G provider's network: Contact your 3G provider to obtain the connection parameters. On your device, tap Settings.

Select Wireless & networks > More... > Mobile networks. In Network operators, select your operator. In Access Point Names, select the correct access point name and enter the exact connection parameters.

TIP:

When you encounter connection problems, see the FAQs on www.archos.com or contact your 3G network connection provider.

WiFi connection

WARNING: Make sure that you are in a WiFi zone.

1. Touch and hold the time & battery icons to reveal the status bar.
2. Pull the white line down to display the status dashboard.
3. Touch the "Settings" icon to open the settings menu.
4. In the "Wireless & networks" section, if the WiFi is off, slide the WiFi switch to the "ON" position. Once the WiFi is on, the ARCHOS will scan for WiFi networks in range.
5. Touch "WiFi" to display available networks.
6. Touch the name of the network you want to connect to.

Private networks are shown with a lock icon and will require you to enter your password.

TIPS:

• When entering a WiFi password, we recommend that you select "Show password" so you can see the characters you are typing. To get the correct WiFi password (or settings) for the network, contact the WiFi network provider.
• To keep your WiFi connection ON when the device is on sleep, select the Menu icon in the "WiFi" page. Then, select Advanced > Keep WiFi on during sleep > Always.

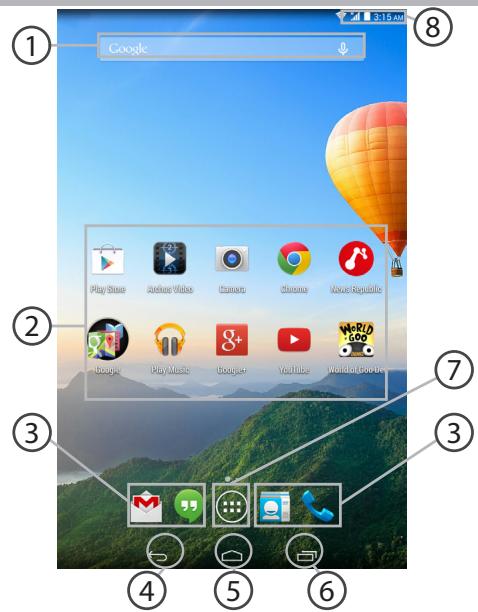

The Android™ Interface

Back button

Home button

Recent apps buttons

7 All Apps button

GoogleTM Search

Touch "Google" for text search or touch the microphone icon for voice search. 2 AndroidTM apps shortcuts Touch to start an application. 3 Permanent Android™ apps shortcuts Touch to start an application

Touch this icon to show all the applications and widgets installed on your ARCHOS. All your downloaded applications are here.

The status bar

Displays notifications and quick settings

The Android™ Interface

(1)New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device. (2)You can share movies, YouTube videos, and anything that's on your screen on an HDTV. You need to connect a wireless

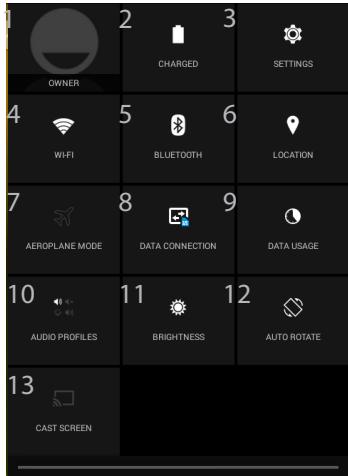

The Quick settings

1 Current user(1) 2 Percentage of battery remaining 3 To access all your settings. 4 To turn on/off your WiFi connection. 5 To turn on/off your Bluetooth connection. 6 To activate/deactivate your GPS location system. 7 To activate/deactivate all wireless connections, especially when flying. 8 To activate/deactivate the data connection. 9 To see how much data have been used. 10 To set an audio profile. 11 To adjust the screen brightness. 12 To activate/deactivate automatic screen orientation as you turn your ARCHOS. 13 To enable wireless display(2)

display adapter to any HDMI-enabled TV to mirror what's on your screen quickly and easily.

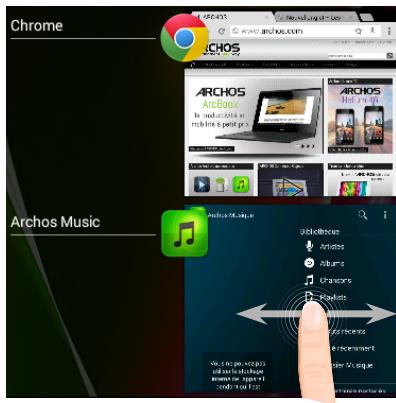

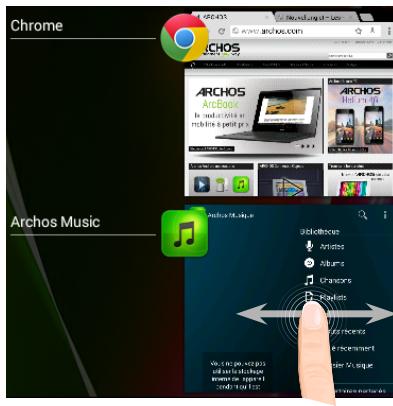

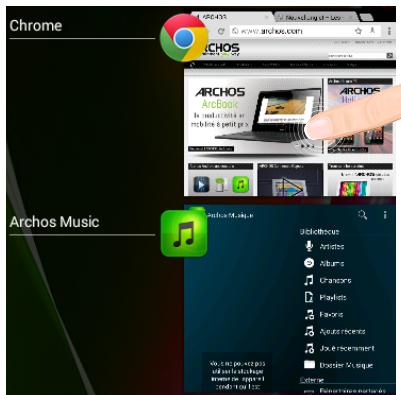

The Recent Apps

Opens a list of thumbnail images of apps you've worked with recently:

Touch: to open an app.

Hold down: to display options

Swipe up or down: to close an app.

Getting familiar with Android™

The extended home screen:

Navigate between different home screen panels by swiping left and right.

Moving a home screen item:

Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item:

Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon.

Uninstalling an item:

From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.

Creating application folders:

Drop one app icon over another on a home screen and the two icons will be combined.

Widgets:

Hold your finger on a home screen at an empty location, then choose from the list: Widgets.

Changing your wallpaper:

Hold your finger on a home screen at an empty location, then choose from the list: Wallpaper.

Locking the touchscreen:

In Settings, scroll down and touch security. Touch Screen lock. Touch the type of lock you would like to use. After you set a lock, a lock screen is displayed whenever your screen wakes up, requesting the pattern, PIN or other specified key.

Troubleshooting

If your device is frozen:

Press the ON/OFF button for 10 seconds or use the reset button. To use the reset button, press the "pinhole reset" button by using a sharp object such as a toothpick.

If your device doesn't turn on:

1. Charge your device.
2. Press the ON/OFF button for 10 seconds or use the reset button. To use the reset button, press the "pinhole reset" button by using a sharp object such as a toothpick.

My tablet cannot connect to a network or "No service" is displayed

Try connecting in another location. Verify the network coverage with your operator.

Unable to make outgoing calls

Make sure your phone is connected to a network, and the network is not overloaded or unavailable.

Unable to receive incoming calls

Make sure your phone is switched on and connected to a network (check for overloaded or unavailable network).

SIM card PIN locked

Contact your network operator to obtain the PUK code (Personal Unblocking Key).

If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot.

Update the firmware of the device: http://www.archos.com/support.

Reset and redefine your connection parameters.

Contact your WiFi connection provider.

security	Choose screen host
None
Slide
Pattern
PN
Password

Security - Drive screen lock

None

Slide

Pattern

PIN

Password

Lock the touchscreen:

WiFi network connection

3G connection

Declaration of conformity at http://www.archos.com/products/declaration_conformity.html

Package contents

ARCHOS 8ob Xenon

Quick start guide

Warranty and safety instructions

USB cable

Charger

Getting started

Charging

1. Charge your device by connecting the power cable to the micro-USB port. The ARCHOS device will start charging.
2. Press the power button to turn on the device. You can use your ARCHOS device while it is charging.

-Before first use, the device must be fully charged. -Only use the charger provided in the package.

If your device is completely discharged, it must be charged for at least 10 minutes before the charging indicator appears.

TIP:

To get a more comfortable volume, use the headphones. When using the computer, go to www.archos.com/register.

Device description

①Webcam

5Power button

9Camera

②Speaker

6Headphone jack

10

③Microphone

7Micro-USB port

11Speaker

(4)Volume buttons

8Reset button

Insert SIM card & Insert memory card

WARNING: Disconnect the power before performing any procedure.

1. CHIMMITEaHIOIOKpbIiKy.

Do not bend or twist the cover too much. This may cause damage.

Inserting the SIM card

To install the SIM card, insert it with the gold contacts facing down into the SIM slot.

Inserting the memory card

Insert the memory card into the TIF slot.

Closing

Install the battery cover so that it clicks into place.

Holding: Displaying parameters

Press the top and bottom: Close the application.

Getting to know AndroidTM

Extended home screen:

You can switch between different home screen panels by swiping left and right.

Move the widget:

Security	Choose Open Lock
None
Slide
Pattern
PIN
Password

The device does not include:

1. Charge the device for at least 10 minutes. 2. Press the On/Off button and hold it for 10 seconds, or use the Reset button.

Cannot turn on the phone, or it cannot connect to the network, or the message "No service" is displayed.

Make sure that the phone is connected to the network, and that the network is available and not overloaded.

Cannot receive incoming calls

Make sure that the phone is turned on and connected to the network (check that the network is available and not overloaded).

The PIN code of the SIM card is blocked

Contact your mobile operator to obtain the PUK code (Personal Unblocking Key).

If the received Wi-Fi signal is too weak:

Make sure you are not too far from the Wi-Fi access point.

Update the device's built-in firmware: http://www.archos.com/support.

Reset and re-enter the connection parameters.

112 Contact your Wi-Fi provider.
