UIAA10FI - Fridge Freezer INDESIT - Free user manual and instructions

Brand	INDESIT
Model	UIAA10FI
Product type	Combined fridge-freezer
Dimensions (approx.)	Width 60 cm, Height 185 cm, Depth 65 cm
Weight (approx.)	65 kg
Power supply	220-240 V ~ 50 Hz, 150 W
Climate class	Ambient temperature 16-38 °C
Freezing capacity	4 kg/24h
Power failure autonomy	9-14 hours
Door reversibility	Yes, possible
Super Freeze function	Yes, with indicator
Ice cube tray	Yes, Ice 3* model with lid
Temperature adjustment	Rotary knob (positions: less cold, ECO, more cold)
Indicators	Power (green), Super Freeze (yellow), Alarm (red)
Open door alarm	Yes, after 2 minutes
Cleaning	Warm water and baking soda or neutral soap; vacuum for condenser
Defrosting	Manual, when the ice layer is thick
Installation	Flat floor, 10 cm clearance at top, 5 cm on sides
Spare parts	Original, available via after-sales service
Disposal	Separate collection according to WEEE (crossed-out bin)
Safety standards	Directives 73/23/EEC, 89/336/EEC, 2002/96/EC

Frequently Asked Questions - UIAA10FI INDESIT

How to reverse the door opening direction?

Door reversibility is possible. Refer to the dedicated chapter in the manual for detailed steps. You will need tools and follow the provided instructions.

How to level the refrigerator?

Screw or unscrew the small front feet until the appliance is stable on a flat and rigid floor. Use a level if necessary.

What is the Super Freeze function for?

The Super Freeze button allows quick freezing. Press it 24 hours before introducing fresh food. The yellow indicator lights up and turns off when the optimal temperature is reached.

How to use the Ice 3* ice cube tray?

Remove the tray, fill it through the opening without exceeding the MAX WATER LEVEL, close the lid, put it back in the freezer compartment. After at least 8 hours, tap the tray and wet the outside to release the ice cubes.

What to do if the ALARM indicator lights up?

A steady ALARM indicator means the door is open too often or an incorrect setting. If it flashes with an audible signal, there is dangerous warming: discard the affected food. Open and close the door to stop the audible signal, then adjust the temperature.

How to clean the inside of the refrigerator?

Use a sponge soaked in warm water with baking soda or neutral soap. Do not use solvents, abrasives, bleach, or ammonia. Rinse and dry thoroughly.

Is it necessary to defrost the appliance?

Yes, defrost as soon as the ice layer becomes thick. A too thick layer increases energy consumption and reduces efficiency. Follow the procedure in the Maintenance chapter.

The motor does not start, what to do?

The appliance is equipped with a motor protection system that delays start-up by 8 minutes after power-on. Wait this time. If the problem persists, check the plug and power supply.

What is the ideal temperature?

The ECO position offers an optimal temperature with low consumption. Use the adjustment knob to adjust as needed: turn towards 'more cold' to cool further.

Can I freeze already thawed food?

No, do not refreeze thawed food. Cook and consume them within 24 hours. Follow the storage instructions.

USER MANUAL UIAA10FI INDESIT

Operating Instructions

FREEZER

Contents

Operating Instructions, 1

Assistance, 3

Description of the appliance, 7

Installation, 14

Start-up and use, 15

Maintenance and care, 15

Precautions and tips, 16

Troubleshooting, 16

Dansk

Brugervejledning

FRYSEN

Oversigt

Brugervejledning,1

Servicecenter, 3

Before calling for Assistance:

• Check if the malfunction can be solved on your own (see Troubleshooting).
• If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre

Communicating:

type of malfunction
- appliance model (Mod.)
- serial number (S/N)

This information can be found on the data plate located on the bottom left side of the refrigerator compartment.

Never call on unauthorized technicians and always refuse spare parts which are not originals.

DK

Servicecenter

Inden Servicecentret kontaktes:

Description of the appliance

Overall view

The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not directly represent the appliance purchased. For more complex features, consult the following pages.

1 Levelling FEET
2 STORAGE Compartment*
3 Flap FREEZING and STORAGE Compartment
4 SUPER FREEZE Button
5 SUPER FREEZE Indicator light
6 POWER Indicator light
7 WARNING Indicator light
8 TEMPERATUE CONTROL Knob
9 Ice³ice tray

• Varies by number and/or position, available only on certain models.

DK

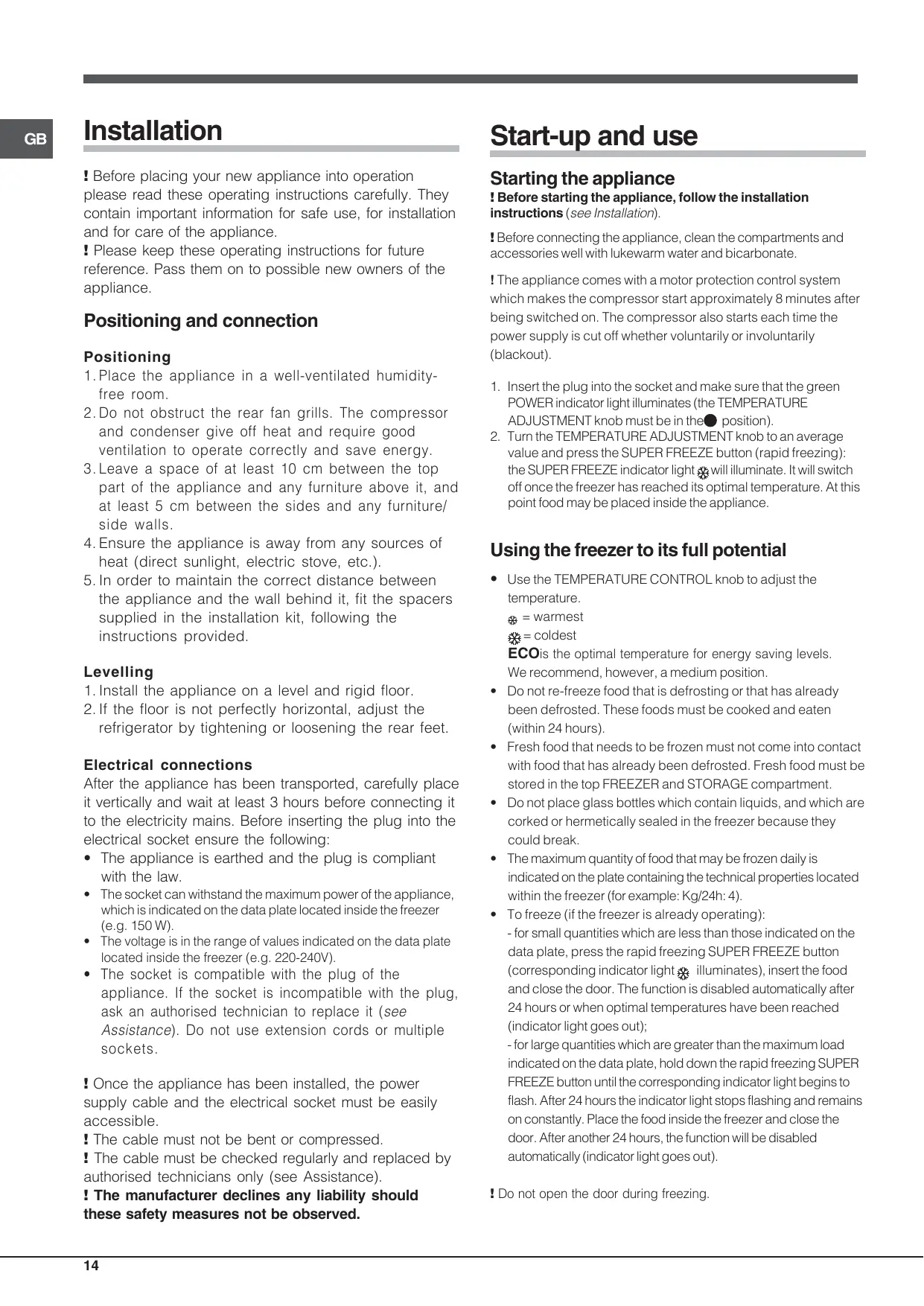

! Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance.
! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Positioning and connection

Positioning

1. Place the appliance in a well-ventilated humidity-free room.
2. Do not obstruct the rear fan grills. The compressor and condenser give off heat and require good ventilation to operate correctly and save energy.
3. Leave a space of at least 10~cm between the top part of the appliance and any furniture above it, and at least 5cm between the sides and any furniture/ side walls.
4. Ensure the appliance is away from any sources of heat (direct sunlight, electric stove, etc.).
5. In order to maintain the correct distance between the appliance and the wall behind it, fit the spacers supplied in the installation kit, following the instructions provided.

Levelling

1. Install the appliance on a level and rigid floor.
2. If the floor is not perfectly horizontal, adjust the refrigerator by tightening or loosening the rear feet.

Electrical connections

After the appliance has been transported, carefully place it vertically and wait at least 3 hours before connecting it to the electricity mains. Before inserting the plug into the electrical socket ensure the following:

• The appliance is earthed and the plug is compliant with the law.
• The socket can withstand the maximum power of the appliance, which is indicated on the data plate located inside the freezer (e.g. 150 W).
• The voltage is in the range of values indicated on the data plate located inside the freezer (e.g. 220-240V).
• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it (see Assistance). Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.
! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced by authorised technicians only (see Assistance).
! The manufacturer declines any liability should these safety measures not be observed.

Start-up and use

Starting the appliance

! Before starting the appliance, follow the installation instructions (see Installation).

! Before connecting the appliance, clean the compartments and accessories well with lukewarm water and bicarbonate.

! The appliance comes with a motor protection control system which makes the compressor start approximately 8 minutes after being switched on. The compressor also starts each time the power supply is cut off whether voluntarily or involuntarily (blackout).

1. Insert the plug into the socket and make sure that the green POWER indicator light illuminates (the TEMPERATURE ADJUSTMENT knob must be in the position).
2. Turn the TEMPERATURE ADJUSTMENT knob to an average value and press the SUPER FREEZE button (rapid freezing): the SUPER FREEZE indicator light will illuminate. It will switch off once the freezer has reached its optimal temperature. At this point food may be placed inside the appliance.

Using the freezer to its full potential

$$ \text {w a r m e s t} = $$

$$ \text {c o l d e s t} = $$

• Use the TEMPERATURE CONTROL knob to adjust the temperature.
  ECOs is the optimal temperature for energy saving levels. We recommend, however, a medium position.
• Do not re-freeze food that is defrosting or that has already been defrosted. These foods must be cooked and eaten (within 24 hours).
• Fresh food that needs to be frozen must not come into contact with food that has already been defrosted. Fresh food must be stored in the top FREEZER and STORAGE compartment.
• Do not place glass bottles which contain liquids, and which are corked or hermetically sealed in the freezer because they could break.
• The maximum quantity of food that may be frozen daily is indicated on the plate containing the technical properties located within the freezer (for example: Kg/24h: 4).
• To freeze (if the freezer is already operating): - for small quantities which are less than those indicated on the data plate, press the rapid freezing SUPER FREEZE button (corresponding indicator light illuminates), insert the food and close the door. The function is disabled automatically after 24 hours or when optimal temperatures have been reached (indicator light goes out);
• for large quantities which are greater than the maximum load indicated on the data plate, hold down the rapid freezing SUPER FREEZE button until the corresponding indicator light begins to flash. After 24 hours the indicator light stops flashing and remains on constantly. Place the food inside the freezer and close the door. After another 24 hours, the function will be disabled automatically (indicator light goes out).
  ! Do not open the door during freezing.

! If there is a power cut or malfunction, do not open the freezer door. This will help maintain the temperature inside the freezer, ensuring that foods are conserved for at least 9 -14 hours.

Ice3 ice tray

The fact that they are situated on the top part of the freezer drawers ensures greater cleanliness: the ice no longer comes into contact with the food placed inside the freezer compartment; furthermore, the dripping of the water during filling is avoided (a lid to cover up the hole after filling with water is also provided).

1. Pull out the tray by pushing it up. Check that the tray is completely empty and fill it with water through the opening provided.
2. Take care not to exceed the level indicated (MAX WATER LEVEL). Excess water prevents the ice cubes from dispensing (if this happens, wait for the ice to melt and empty the tray).
3. Turn the tray 90^ : due to the connected compartments each mould fills with water (see diagram).
4. Close the opening with the lid provided and put the tray back, placing the top part in the corresponding housing and allowing it to drop in again.
5. When the ice has formed (minimum time approximately 8 hours) knock the tray against a hard surface and wet the outside so that the ice cubes come loose and take them out through the opening.

Maintenance and care

Switching the appliance off

During cleaning and maintenance it is necessary to disconnect the appliance from the electricity supply:

It is not sufficient to set the temperature adjustment knobs on (appliance off) to eliminate all electrical contact.

Cleaning the appliance

• The external and internal parts, as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and bicarbonate of soda or neutral soap. Do not use solvents, abrasive products, bleach or ammonia.
• The removable accessories may be soaked in warm water and soap or dishwashing liquid. Rinse and dry them carefully.
• The back of the appliance may collect dust which can be removed by delicately using the hose of a vacuum cleaner set on medium power. The appliance must be switched off and the

plug must be pulled out before cleaning the appliance.

Avoiding mould and unpleasant odours

• The appliance is manufactured with hygienic materials which are odour free. In order to maintain an odour free refrigerator and to prevent the formation of stains, food must always be covered or sealed properly.
• If you want to switch the appliance off for an extended period of time, clean the inside and leave the doors open.

Precautions and tips

! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

This appliance complies with the following Community Directives: - 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments; -89/336/EEC of 03.05.89 (Electromagnetic Compatibility) and subsequent amendments; - 2002/96/CE.

General safety

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must be used to store and freeze food products by adults only and according to the instructions in this manual.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
• Do not touch the appliance with bare feet or with wet or moist hands and feet.
  WARNING: do not damage the refrigerant circuit.
• Do not touch the internal cooling elements: this could cause skin abrasions or frost/freezer burns.
• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.
• Before cleaning and maintenance, always switch off the appliance and disconnect it from the electrical supply. It is not sufficient to set the temperature adjustment knobs on (appliance off) to eliminate all electrical contact.
• In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance.
• Do not use utensils other than the scraper provided, or electrical equipment which is not of the type specified by the manufacturer, inside the frozen food storage compartments.
• Do not put ice cubes taken directly from the freezer into your mouth.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to

• Varies by number and/or position, available only on certain models.

ensure that they do not play with the appliance.

• Keep packaging material out of the reach of children! It can become a choking or suffocation hazard.

Disposal

• Observe local environmental standards when disposing packaging material for recycling purposes.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Respecting and conserving the environment

• Install the appliance in a fresh and well-ventilated room. Ensure that it is protected from direct sunlight and do not place it near heat sources.
• Try to avoid keeping the door open for long periods or opening the door too frequently in order to conserve energy.
• Do not fill the appliance with too much food: cold air must circulate freely for food to be preserved properly. If circulation is impeded, the compressor will work continuously.
• Do not place hot food directly into the refrigerator. The internal temperature will increase and force the compressor to work harder and will consume more energy.
• Defrost the appliance if ice forms (see Maintenance). A thick layer of ice makes cold transference to food products more difficult and results in increased energy consumption.
• Regularly check the door seals and wipe clean to ensure they are free of debris and to prevent cold air from escaping (see Maintenance).

Troubleshooting

If the appliance does not work, before calling for Assistance (see Assistance), check for a solution from the following list.

The green POWER indicator light (1) does not illuminate.

• The plug has not been inserted into the electrical socket, or not far enough to make contact, or there is no power in the house.

The motor does not start.

• The appliance comes with a motor protection control (see Start-up and use).

The ALARM indicator light is illuminated and the buzzer sounds at regular intervals.

a) The temperature in the freezer is too high. Check the quality of the food products and dispose if necessary.
b) The temperature in the freezer has reached a dangerous level. The food must be disposed immediately.

The ALARM indicator light is flashing and the buzzer sounds at regular intervals.

a/b) In both these cases the freezer will maintain a certain temperature so that the food does not re-freeze.

To restore normal operation bring the TEMPERATURE CONTROL knob setting to and turn the appliance on again.

The buzzer sounds at regular intervals.

• The appliance door has been left open for longer than 2 minutes.
  The buzzer will stop sounding when you shut the door.

The ALARM indicator light remains illuminated constantly.

The door has been opened too frequently.
- The TEMPERATURE CONTROL knob is not in the correct position.

The motor runs continuously.

• The SUPER FREEZE button has been pressed: the yellow FAST FREEZE indicator light is on (see Description).
• The door is not closed properly or is continuously opened.
• The outside ambient temperature is very high.

The appliance makes a lot of noise.

• The appliance has not been installed on a level surface (see Installation).
• The appliance has been installed between cabinets that vibrate and make noise.
• The internal refrigerant makes a slight noise even when the compressor is off. This is not a defect, it is normal.

The green POWER indicator light is flashing.

• The appliance is not operating correctly. Contact the Technical Assistance Centre.

Installation
