LI70 FF1 W - LI70 FF1 X - Fridge Freezer INDESIT - Free user manual and instructions

Product type	Fridge-freezer
Brand	Indesit
Models	LI70 FF1 W, LI70 FF1 X
Dimensions (H x W x D)	Approximately 180 x 60 x 65 cm (estimate based on class)
Net weight	Approximately 55 kg (estimate)
Power supply	220-240 V ~ 50 Hz
Climate class	Class 5 (ambient temperature up to 43°C)
Net fridge capacity	Approximately 213 L (according to label)
Net freezer capacity	Approximately 90 L (according to label)
Freezing capacity	2.0 kg/24h
Power failure autonomy	Approximately 12-18 hours
Refrigerant	R600a (62 g)
Temperature adjustment	Thermostat knob with ECO and OFF modes
Special functions	Super Freeze, AIR system, Flexi Use Box, Power failure detector, LED lighting
Door reversibility	Yes (procedure described in the manual)
Cleaning and maintenance	Warm water + baking soda or mild soap; do not use abrasive solvents
Lamp replacement	Standard bulb (LED replaceable by technical service)
Safety	Automatic shutdown in case of failure, child protection (not specified), mandatory grounding
Spare parts and repairability	Original parts available through authorized service
General information	Made in Poland, Warranty according to legal conditions

Frequently Asked Questions - LI70 FF1 W - LI70 FF1 X INDESIT

How to adjust the refrigerator temperature?

Turn the thermostat knob inside the refrigerator. The ECO position is recommended for normal use. For colder, turn towards the ❄️ symbol (colder). To turn off, set to OFF.

What to do if the interior light does not turn on?

Check that the plug is properly inserted and the socket is powered. If the problem persists, check the position of the temperature adjustment knob (should not be on OFF). If necessary, replace the bulb (see manual).

How to clean the interior of the refrigerator?

Clean with a sponge soaked in warm water with baking soda or mild soap. Do not use solvents, bleach or ammonia. Rinse and dry thoroughly.

Why does the motor run continuously?

This may be due to a poorly closed door, too frequent opening, high ambient temperature, or placing hot food inside. Ensure the seals are in good condition and the appliance is not overloaded.

How to reverse the door opening direction?

The manual describes the door reversibility procedure. You will need tools and follow the steps: disassemble the hinges, reverse the handles and reassemble. It is recommended to call an authorized technician if needed.

What does the 'OK' indicator in the refrigerator mean?

The temperature indicator displays OK when the coldest zone is at the correct temperature. If the message does not appear, wait 10 hours after setting a colder temperature, then check again.

How to use the Super Freeze function?

Activate the SUPER FREEZE function 24 hours before placing fresh food to freeze. After placing the food, reactivate the function; it turns off automatically after 24 hours.

Why is there frost in the freezer?

Normal formation due to humidity. Defrost the appliance when the ice layer exceeds 3 mm. Follow the maintenance instructions: unplug, leave the door open and clean after defrosting.

The appliance makes a gas noise, is that normal?

Yes, a slight refrigerant gas noise (even when the compressor is off) is completely normal. If the noise becomes loud or unusual, check that the appliance is level and not vibrating against furniture.

What to do in case of a power failure?

Do not open the freezer door. Frozen food will keep for about 12 to 18 hours. The power failure detector (if present) indicates if the temperature has risen too much. Consult the manual to interpret the test liquids.

USER MANUAL LI70 FF1 W - LI70 FF1 X INDESIT

Operating Instructions

Operating Instructions, 1

Assistance, 3

Description of the appliance, 6

Description of the appliance, 11

Start-up and use, 20

Maintenance and care, 21

Precautions and tips, 22

Troubleshooting, 23

NL

Nederlands

KOEL/DIEPVRIESCOMBINATIE

Inhoud

Before calling for Assistance:

• Check if the malfunction can be solved on your own (see Troubleshooting).
• If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre

Communicating:

• type of malfunction
• appliance model (Mod.)
- serial number (S/N)

This information can be found on the data plate located on the bottom left side of the refrigerator compartment.

Never call on unauthorized technicians and always refuse spare parts which are not originals.

FR

Assistance

Description of the appliance

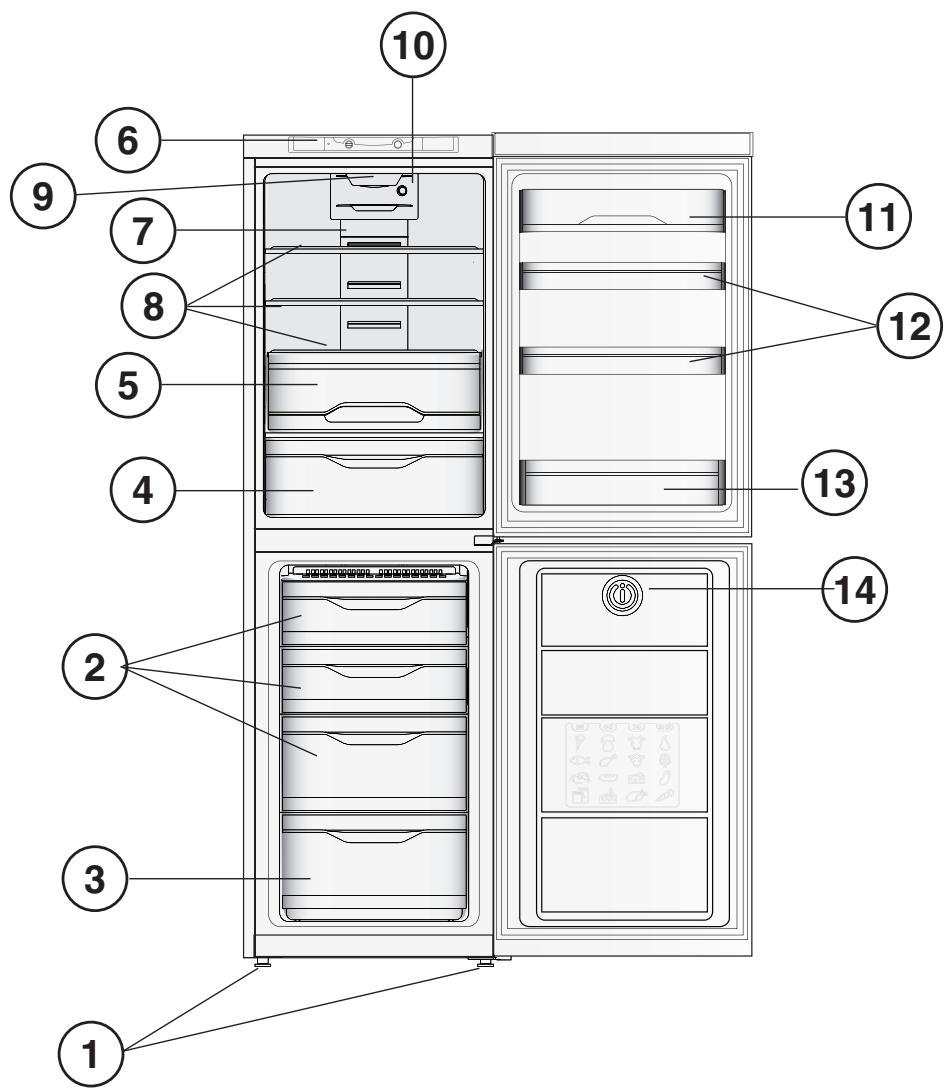

Overall view

The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not directly represent the appliance purchased. For more complex features, consult the following pages.

1 Levelling FEET
2 STORAGE compartment*
3 FREEZER and STORAGE compartment
4 FRUIT and VEGETABLE bin *
5 FLEXI USE BOX Container*
6 TEMPERATURE REGULATING Knob
7 WINE RACK *
8 SHELVES *
9 LAMP (see Maintenance).

10 AIR*

11 Extractable STORAGE shelf WITH COVER*

12 Removable multipurpose SHELVES *

13 BOTTLE shelf

14 BLACK OUT SENSOR*

* Varies by number and/or position, available only on certain models.

1 2 3 4 5 6 7 8 9 10 11 12 13 14

FR

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

PT

Technical line drawing of a rectangular component with a side view showing a 50mm dimension (no text or symbols present)

Livellamento

Simple line drawing of a rectangular object with two horizontal slats and a central circular hole (no text or symbols)

Technical line drawing of a mechanical assembly with three horizontal panels and a central slot (no text or symbols)

Circular warning sign with exclamation mark and curved arrow, no text or symbols present

Simple line drawing of a rectangular box with a circular hole on top (no text or symbols)

3D diagram of a mechanical housing or enclosure with an arrow indicating a component, labeled '3' (no text or symbols on the diagram itself)

! Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance.
! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Positioning and connection

Positioning

1. Place the appliance in a well-ventilated humidity-free room.
2. Do not obstruct the rear fan grills. The compressor and condenser give off heat and require good ventilation to operate correctly and save energy.

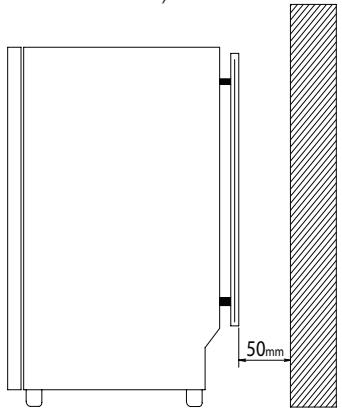

3. Leave a space of at least 10 cm between the top part of the appliance and any furniture above it, and at least 5 cm between the sides and any furniture/side walls.
4. Place the device far from heat sources (direct sun light, electric kitchen etc.)

Technical drawing of a rectangular frame with a vertical side and a 50mm dimension label (no text or symbols beyond the dimension)

Levelling

1. Install the appliance on a level and rigid floor.
2. If the floor is not perfectly horizontal, adjust the refrigerator by tightening or loosening the front feet.

Electrical connections

After the appliance has been transported, carefully place it vertically and wait at least 3 hours before connecting it to the electricity mains. Before inserting the plug into the electrical socket ensure the following:

• The appliance is earthed and the plug is compliant with the law.
• The socket can withstand the maximum power of the appliance,
• The voltage must be in the range between the values indicated on the data plate located on the bottom left side (e.g. 220-240V).
• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it (see Assistance). Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.
! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced by authorised technicians only (see Assistance).
! The manufacturer declines any liability should these safety measures not be observed.

Start-up and use

Starting the appliance

! Before starting the appliance, follow the installation instructions (see Installation).
! Before connecting the appliance, clean the compartments and accessories well with lukewarm water and bicarbonate.
! Electronic versions are provided with a motor protection switch that powers on the compressor only almost 8 minutes after the starting. The compressor also starts each time the power supply is cut off whether voluntarily or involuntarily (blackout).

1. Insert the plug into the socket and make sure that the inside light turns on.

2. Turn the knob to set the temperature on the range ECO. After a few hours you can put food in the refrigerator

Setting the temperature\*

☀️ = warmest

= coldest

The temperature inside the refrigerator compartment is adjusted depending on the position of the thermostat knob.

For environment average temperatures (25 ± 10 °C), in order to get the right balance between performance and power consumption, we recommend using the thermostat positions included in the range ECO.

You turn off the product by setting it on the OFF position.

ECO OFF

AIR\*

Please activate the AIR feature by pressing the suitable button in order to improve the device operation with a room temperature higher than 24^ C, if on the upper shelves there are water drops or high moisture conditions. Do not block the air inlet with foods

Simple line drawing of a rectangular object with two horizontal plates and a circular hole, no text or symbols present.

Using the refrigerator to its full potential

• Place only cold or lukewarm foods in the compartment, never hot foods (See Flexi USE BOX where present)
• Remember that cooked foods do not last longer than raw foods.
• Do not store liquids in open containers: they will increase the level of humidity in the refrigerator and cause condensation to form.

* Varies by number and/or position, available only on certain models.

SHELVES: with or without grill.

They are removable and adjustable in height and depth thanks to the special guides (see the picture), allowing easy storage of large containers and food. Height can be adjusted without complete removal of the shelf.

1 2 3

TEMPERATURE Indicator light*: to identify the coldest area in the refrigerator.

1. Check that OK appears clearly on the indicator light (see diagram).

1. If the word "OK" does not appear it means that the temperature is too high: set the FRIDGE TEMPERATURE on a colder value, and then wait 10 hours until the temperature becomes stable.
2. Check the indicator light again: if necessary, readjust it following the initial process. If large quantities of food have been added or if the refrigerator door has been opened frequently, it is normal for the indicator not to show OK. Wait at least 10 hours before you set the FRIDGE temperature on a colder value.

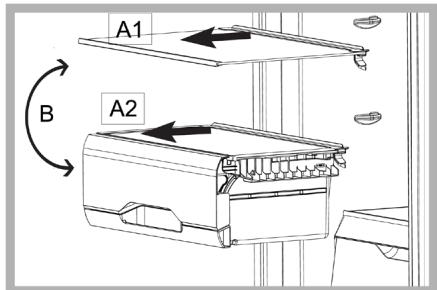

FLEXI USE BOX\* container

This is the new box which offers maximum flexibility in order to stock your food in an excellent way.

If you put in the low section of your fridge compartment, on the crisper box, it becomes CHILLER, and it guarantees a temperature very close to 0°C, which is ideal to:

-store meat, fish and delicate food;

-rapid cooling of hot foods;

-low temperature defrosting (it inhibits the proliferation of microorganisms).

You can get the 0^ C temperature, in standard conditions, when the fridge compartment temperature is at about 4^ C.

By decreasing the fridge temperature you decrease the CHILLER compartment temperature too.

If you put it in the “upper” part of the fridge compartment (A1), it will be suitable to store fruit and vegetables, thus giving you the possibility to have a second crisper box.

A1 B A2

Technical line drawing of a mechanical assembly with three horizontal panels and mounting brackets (no text or symbols)

Using the freezer to its full potential

• Do not re-freeze food that is defrosting or that has already been defrosted. These foods must be cooked and eaten (within 24 hours).
• Fresh food for freezing should not be placed in contact with the one already frozen; it should be placed in the lower FREEZER and STORAGE compartment that provides the best freezing rate.

- To freeze fresh food in the best and safest way possible, activate the SUPER FREEZE function 24 hours before placing the food in the freezer. After placing the food inside, activate the SUPER FREEZE function again; it will be deactivated automatically after 24 hours;

• Do not place glass bottles which contain liquids, and which are corked or hermetically sealed in the freezer because they could break.
• The maximum quantity of food that may be frozen daily is indicated on the plate containing the technical properties located on the bottom left side of the refrigerator compartment (for example: 2Kg/24h).
  ! To avoid blocking the air circulation inside the freezer compartment, it is advisable not to obstruct the ventilation holes with food or containers.
  ! Do not open the door during freezing.
  ! If there is a power cut or malfunction, do not open the freezer door. This will help maintain the temperature inside the freezer, ensuring that foods are conserved for at least 12-18 hours.
  ! To get more space inside your freezer, you can take out any drawers (and flaps, if appropriate), from their slots, by putting your food directly on the provided shelves.

BLACK OUT SENSOR\*

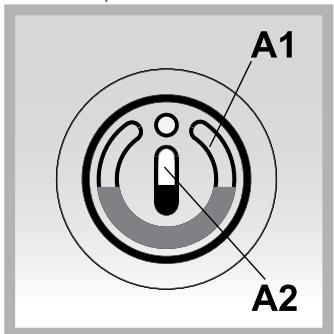

At the first starting of the refrigerator, the black out sensor must be in this position.

A1 A2

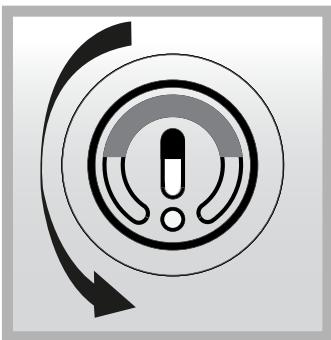

24 hours later, rotate the blackout sensor of 180°.

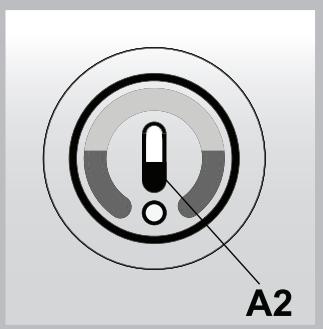

Your food will be safe until the liquids are as shown below.

Circular warning sign with an exclamation mark and curved arrow, symbolizing alert or delay (no text present)

If one or both of the liquids are dissolved, this is an indication of increased temperature in the freezer.

Even the partial melting of one of the two liquids can show an abnormal increase of the internal temperature.

If the liquid A1 melts, food must be eaten in a week. If the liquid A2 melts, food should be thrown away.

A1

A2

• Do not leave the door open for a long period of time. Close the door of the freezer since the blackout sensor detector can give the wrong alarm. Load or unload the freezer as quickly as possible to avoid interventions of the black-out detector sensor. Leaving the door open for a long period of time, the liquid can dissolve on the black-out detector sensor, but the food in the freezer can be still in good condition.
• Check the state of the liquid only in the presence of electricity. The freezer is able to maintain the frozen food properly for xx hours (depending on the outside temperature) in the case of black-out. If the refrigerator is in a condition of black-out for a shorter period, it is recommended not to open the doors and wait.
• Place the hot food on the back of the freezer compartment. The hot food that is close to the detector blackout sensor may dissolve liquids and cause ill-timed interventions.

Maintenance and care

Switching the appliance off

During cleaning and maintenance it is necessary to disconnect the appliance from the electricity supply.

It is not sufficient to set the temperature adjustment knobs on ● (appliance off) to eliminate all electrical contact.

Cleaning the appliance

• The external and internal parts, as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and bicarbonate of soda or neutral soap. Do not use solvents, abrasive products, bleach or ammonia.
• The removable accessories may be soaked in warm water and soap or dishwashing liquid. Rinse and dry them carefully.
• The back of the appliance may collect dust which can be removed by delicately using the hose of a vacuum cleaner set on medium power. The appliance must be switched off and the plug must be pulled out before cleaning the appliance.

Avoiding mould and unpleasant odours

• The appliance is manufactured with hygienic materials which are odour free. In order to maintain an odour free refrigerator and to prevent the formation of stains, food must always be covered or sealed properly.
• If you want to switch the appliance off for an extended period of time, clean the inside and leave the doors open.

Replace LED \* light

The LED lighting, thanks to the powerful diffused light, allows a clear view of each food. If you need to replace the LED light, contact the Technical Service.

Simple line drawing of a rectangular box with a circular hole on top (no text or symbols)

Replacing the light bulb \*

To replace the light bulb in the refrigerator compartment, pull out the plug from the electrical socket. Follow the instructions below. Access the light bulb by removing the cover as indicated in the diagram. Replace it with a similar light bulb within the power range indicated on the cover.

1 2

3D diagram of a mechanical component with an arrow indicating direction, labeled '3' (no text or symbols on the diagram itself)

Precautions and tips

! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

This appliance complies with the following Community Directives: - 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments;

-89/336/EEC of 03.05.89 (Electromagnetic Compatibility) and subsequent amendments;

- 2002/96/CE.

General safety

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must be used to store and freeze food products by adults only and according to the instructions in this manual.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
• Do not touch the appliance with bare feet or with wet or moist hands and feet.
• Do not touch the internal cooling elements: this could cause skin abrasions or frost/freezer burns.

* Varies by number and/or position, available only on certain models.

• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.
• Before cleaning and maintenance, always switch off the appliance and disconnect it from the electrical supply. -It is not enough to turn off the device (with the ● button) to eliminate all electric contacts.
• In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance.
• Do not use any sharp or pointed utensils or electrical equipment - other than the type recommended by the manufacturer - inside the frozen food storage compartments.
• Do not put ice cubes taken directly from the freezer into your mouth.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge unless they have been given Supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be Supervised to ensure that they do not play with the appliance.
• Keep packaging material out of the reach of children! It can become a choking or suffocation hazard.

Disposal

• Observe local environmental standards when disposing packaging material for recycling purposes.
• The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Respecting and conserving the environment

• Install the appliance in a fresh and well-ventilated room. Ensure that it is protected from direct sunlight and do not place it near heat sources.
• Try to avoid keeping the door open for long periods or opening the door too frequently in order to conserve energy.
• Do not fill the appliance with too much food: cold air must circulate freely for food to be preserved properly. If circulation is impeded, the compressor will work continuously.
• Do not place hot food directly into the refrigerator. The internal temperature will increase and force the compressor to work harder and will consume more energy.
• Defrost the appliance if ice forms (see Maintenance). A thick layer of ice makes cold transference to food products more difficult and results in increased energy consumption.

Troubleshooting

If the appliance does not work, before calling for Assistance (see Assistance), check for a solution from the following list.

The internal light does not illuminate.

• The plug has not been inserted into the electrical socket, or not far enough to make contact, or there is no power in the house.
• The TEMPERATURE ADJUSTMENT knob is not in the correct position.

The motor does not start.

- The appliance comes with a motor protection control (see Start-up and use).

The refrigerator and the freezer do not cool well.

• The doors do not close properly or the seals are damaged.
• The doors are opened too frequently.
• The refrigerator or the freezer have been over-filled.

The food inside the refrigerator is beginning to freeze.

- The TEMPERATURE ADJUSTMENT knob is not in the correct position.

The motor runs continuously.

• The door is not closed properly or is continuously opened.
• The outside ambient temperature is very high.

The appliance makes a lot of noise.

• The appliance has not been installed on a level surface (see Installation).
• The appliance has been installed between cabinets that vibrate and make noise.
• The internal refrigerant makes a slight noise even when the compressor is off. This is not a defect, it is normal.

Some of the external parts of the refrigerator become hot.

- These raised temperatures are necessary in order to avoid the formation of condensation on certain parts of the product.

Installation

Technical line drawing of a rectangular frame with a vertical side and a 50mm dimension label (no text or symbols beyond the dimension)

Mise à niveau

Simple line drawing of a rectangular object with two horizontal plates and a central circular hole (no text or symbols)

Technical line drawing of a mechanical assembly with three horizontal panels and mounting brackets (no text or symbols)

Circular warning symbol with exclamation mark and curved arrow, no text or numbers present

3D diagram of a mechanical housing or enclosure with an arrow indicating a component, labeled '3' (no text or symbols on the diagram itself)

Simple line drawing of a rectangular box with a circular hole on top (no text or symbols)

Technical drawing of a rectangular panel with side and top views, showing a 50mm dimension label (no text or symbols beyond the dimension)

Nivellierung

Pure technical diagram of a rectangular component with two horizontal slots and a central circular hole (no text or symbols)

Technical line drawing of a mechanical assembly with three horizontal panels and a central V-shaped component (no text or symbols)

Warning symbol with exclamation mark inside a circular progress ring, no text or numbers present

Simple line drawing of a rectangular container with a circular hole on top (no text or symbols)

Lampenaustausch \*

3D diagram of a mechanical component with an arrow indicating direction, labeled '3' (no text or symbols on the diagram itself)

Technical line drawing of a rectangular frame with a vertical side and a 50mm dimension label (no text or symbols beyond the dimension)

Nivellering

Pure technical diagram of a rectangular component with horizontal lines and a circular hole, no text or symbols present.

Technical line drawing of a mechanical assembly with three horizontal panels and mounting brackets (no text or symbols)

Circular warning sign with exclamation mark and curved arrow, no text or symbols present

3D diagram of a mechanical housing or enclosure with an arrow indicating a component, labeled '3' (no text or symbols on the diagram itself)

Vervang de LED \* lamp

Simple line drawing of a rectangular box with a circular recess and top hole (no text or symbols)

Technical line drawing of a rectangular frame with a side panel and a vertical dimension label (50mm), no readable text or symbols present.

Nivelación

Pure technical diagram of a rectangular component with two horizontal slots and a central circular feature (no text or symbols)

Technical line drawing of a mechanical or architectural component with horizontal and vertical panels (no text or symbols)

Circular warning sign with exclamation mark and curved arrow, no text or symbols present

3D diagram of a rectangular device with internal compartments and an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular box with a circular hole on top (no text or symbols)

E

Technical line drawing of a rectangular frame with a side panel and a vertical dimension label (50mm), no readable text or symbols present.

Nivelamento

Simple line drawing of a rectangular object with two horizontal plates and a circular hole, no text or symbols present.

Technical line drawing of a mechanical assembly with three horizontal panels and mounting brackets (no text or symbols)

Circular warning sign with exclamation mark and curved arrow, no text or symbols present

Simple line drawing of a rectangular box with a circular hole on top (no text or symbols)

3D diagram of a mechanical housing or enclosure with internal components and an arrow indicating direction (no text or symbols)

Technical line drawing of a rectangular frame with a vertical side and a 50mm dimension label (no text or symbols beyond the dimension)

Wypoziomowanie

Pure technical diagram of a rectangular component with two horizontal slots and a central circular hole (no text or symbols)

Technical line drawing of a mechanical assembly with three horizontal panels and a central V-shaped component (no text or symbols)

Circular warning sign with exclamation mark and curved arrow, no text or symbols present

3D diagram of a rectangular container with internal compartments and an arrow indicating rotation (no text or symbols)

Simple line drawing of a rectangular box with a circular hole on top (no text or symbols)

Technical drawing of a rectangular frame with a vertical side and a 50mm dimension label (no text or symbols beyond the dimension)

Punere la nivel

Pure technical drawing of a rectangular component with two horizontal slots and a central circular hole (no text or symbols)

Technical line drawing of a mechanical or architectural component with horizontal and vertical panels (no text or symbols)

Circular warning sign with exclamation mark and curved arrow, no text or symbols present

Simple line drawing of a rectangular box with a circular hole on top (no text or symbols)

Înlocuire bec \*

3D diagram of a mechanical component with an arrow indicating direction, labeled '3' (no text or symbols on the object itself)
