Help Us Help You	13
Parts and Features	14
Important Safety Instructions	15
Installation Instructions	15
Before Using Your Wine Cellar	15
Installation of Your Wine Cellar	15
Electrical Connection	16
Extension Cord	16
Operating Your Wine Cellar	17
Temperature Control	17
Storage Capacity	18
Interior Light	18
Care and Maintenance	18
Cleaning Your Wine Cellar	18
Power Failure	18
Moving Your Wine Cellar	18
Energy Saving Tips	19
Troubleshooting Guide	19
Service for Your Appliance	20
Wiring Diagram	20
Your Cavavin Warranty	21
Instrucciones en Espanol	22 – 24
Registration Information and Registration Card	25 - 26

HELP US HELP YOU...

Read this guide carefully.

It is intended to help you operate and maintain your new Wine Cellar properly.

Keep it handy to answer your questions. If you don't understand something or you need more assistance, please call:

[e-mail]

Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

CAUTION:

THIS WINE CELLAR IS NOT DESIGNED FOR THE STORAGE OF MEDICINE OR OTHER MEDICAL PRODUCTS.

Write down the model and serial numbers.

You'll find them on a plate located on the rear outside wall of the Wine Cellar.

Please write these numbers here:

Date of Purchase

Model Number

Serial Number

Use these numbers in any correspondence or service calls concerning your Wine Cellar.

If you received a damaged Wine Cellar, immediately contact the dealer (or builder) that sold you the Wine Cellar.

Save time and money. Before you call for service, check the Troubleshooting Guide. It lists causes of minor operating problems that you can correct yourself.

IF YOU NEED SERVICE

We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further assistance.

FIRST, contact the people who serviced your Wine Cellar. Explain why you are not pleased. In most cases, this will solve the problem.

NEXT, if you are still not pleased, write all the details, including your telephone number, and send it to:

Customer Service

Cavavin (2000) Inc.

4575 Sir Wilfrid Laurier Blvd.

Saint-Hubert, Quebec J3Y 3X3

Fax: [phone]

E-mail: [e-mail]

PARTS & FEATURES

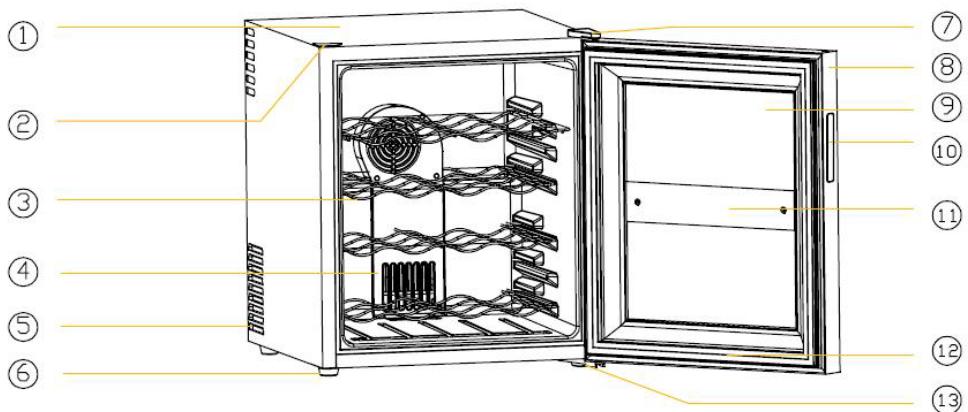

CAVA16SM

1	Cabinet	8	Door Panel
2	Plastic Cover	9	Glass Door
3	Shelf (Total 4)	10	Door Handle
4	Fan Cover	11	Control Panel (Inside view)
5	Ventilation Holes	12	Door Gasket
6	Leveling Legs	13	Lower Door Hinge
7	Upper Door Hinge w/ Cover

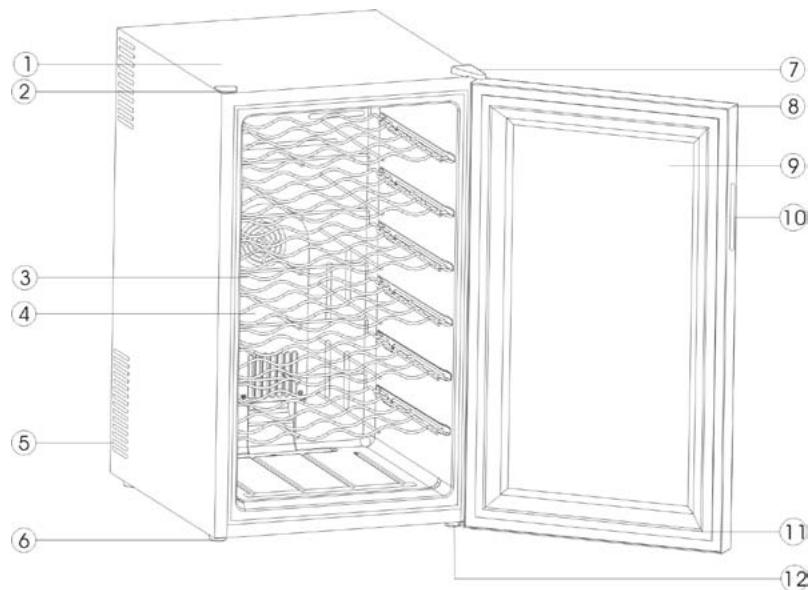

CAVA28SM

1	Cabinet	7	Upper Door Hinge with Cover
2	Plastic Cover	8	Door Panel
3	Shelf (Total 6)	9	Glass Door
4	Fan Cover	10	Door Handle
5	Ventilation Holes	11	Door Gasket
6	Leveling Legs	12	Lower Door Hinge

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

·Read all instructions before using the Wine Cellar. ·DANGER or WARNING: Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous . . . even if they will “just sit in the garage a few days”. ·Before you throw away your old Wine Cellar: Take off the door. Leave the shelves in place so that children may not easily climb inside. ·Never allow children to operate, play with, or crawl inside the appliance. ·Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion. ·Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion. ·Do not repair or replace any part of the refrigerator or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions. Replace the fuse with the same type. -Save these instructions-

INSTALLATION INSTRUCTIONS

> Before Using Your Wine Cellar

• Remove the exterior and interior packing.
• Check to be sure you have all of the following parts:

Model CAVA16SM	Model CAVA28SM
(4) Shelves	(6) Shelves
(2) Instruction Manual	(2) Instruction Manual

• Clean the interior surface with lukewarm water using a soft cloth.

> Installation of Your Wine Cellar

• This Wine Cellar is designed to be free standing installation only, and should not be recessed or built-in (Fully recessed).
• Place your Wine Cellar on a surface that is strong enough to support it when it is fully loaded.
• Allow 5 inches of space between the back and sides of the refrigerator, which allows the proper air circulation to cool the heat sink.
• Locate the Wine Cellar away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.
• This Wine Cellar uses superconductor refrigeration technology (no compressor) and is not designed for storage in hot areas like garages, warehouses or outdoors since it is designed to operate at a maximum of 30 degrees below the ambient temperature.
• Avoid locating the unit in moist areas.
• Plug the Wine Cellar into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Cavavin service center.
  After plugging the Wine Cellar into a wall outlet, allow the unit to cool down for 2-3 hours before placing any items in the compartment.

Electrical Connection

Warning

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Cavavin service center.

This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.

Do not under any circumstances cut or remove the third ground prong from the power cord supplied. For personal safety, this appliance must be properly grounded.

This appliance requires a standard 115 Volt AC / 60Hz electrical ground outlet with three-prong. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury.

The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the appliance, be careful not to damage the power cord.

> Extension Cord

Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an extension cord with this appliance. However, if you must use an extension cord it is absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at least 10 amperes.

OPERATING YOUR WINE CELLAR

It is recommended you install the Wine Cellar in a place where the ambient temperature is between 23^ - 26^/72^ - 78^ . If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate. The range of 8^ - 18^/46^ - 64^ may not be reached.

Recommended Temperatures for Chilling Wine.

Temperature Ranges For Your Wine Cellar

Temperature Range 8 - 18° C 46 - 65° F

CONTROL PANEL

You can select temperature display setting from Fahrenheit to Celsius degree by pushing this button. (Fahrenheit or Celsius indicator will appear in green color) The degrees will appear in blue color in the temperature display window.

SETTING THE TEMPERATURE CONTROL
Push the button for 3 seconds minimum to start your wine cellar.
Push the SET button before setting the temperature.

Your Wine Cellar has been equipped with an "automatic" control panel lock, that will activate 12 minutes after the last time a button has been touched
Push the and button simultaneously for 3 seconds to unlock the control panel. You will hear a "BEEP" sound to alert you that the control panel is now active.
You can set the temperature as you desire by pushing the or button on the control panel for each zone. The temperature that you desire to set will increase 1^ or 1^ if you push the button once, on the contrary the temperature will decrease 1^ or 1^ if you push the button once.
After a power failure, control functions will be locked for up to 5 minutes. To reset, press the "ON" button and start operation as normal. After 5 minutes the unit will automatically turn on and revert to the factory default setting.
When you store mostly red wines, the temperature needs to be set at between 14^ - 18^ C ( 57^ - 65^ F) . The indicator marked with the RED wine glass will light up in red.
When you store mostly white wines, the temperature needs to be set at between 9^ - 14^ ( 49^ - 58^ ). The indicator marked with the WHITE wine glass will light up in blue.

When you store mostly sparkling wines, the temperature needs to be set at between 5^ - 9^ ( 40^ - 49^ ). The indicator marked with the WHITE wine glass will light up in blue.

NOTE:

• When you use the wine Cellar for the first time or restart the wine Cellar after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the wine Cellar is running for a few hours everything will be back to normal.

After a power failure, control functions will be locked for up to 5 minutes. To reset, press the "ON" button and start operation as normal. After 5 minutes unit will automatically turn on and revert to the factory default setting.

Storage Capacity

Model CAVA16SM: You can place 16 standard bottles in this wine Cellar.

Model CAVA28SM: You can place 28 standard bottles in this wine Cellar.

Many bottles may differ in size and dimensions. As such the actual number of bottles you may be able to store may vary. Bottle capacities are approximate maximums when storing traditional Bordeaux 750ml bottles and include bulk storage.

> Interior Light

You can turn the interior light ON or OFF by pushing the button marked with the "Light" symbol The light will be turned off automatically if it remains ON for 10 minutes. You have to push the button marked with the "Light" symbol again and the light will turn back on.

CARE AND MAINTENANCE

> Cleaning Your Wine Cellar

• UNPLUG the Wine Cellar, and remove all items including shelves.
• Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
• Wash the shelves with a mild detergent solution.
• Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.
• Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.
• Do not use steel wool or steel brush on the stainless steel. These will contaminate the stainless steel with steel particles and rusting may occur.

CAUTION

Failure to unplug the Wine Cellar could result in electrical shock or personal injury.

Power Failure

• Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.

> Moving Your Wine Cellar

• Remove all bottles.
• Securely tape down all loose items (shelves) inside your appliance.
• Tape the door shut.
• Protect outside of appliance with a blanket, or similar item.

Energy Saving Tips

• The Wine Cellar should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.
• One characteristic of superconductor units is the length of time it requires to recover from having the door opened and shut frequently. It may be necessary to wait longer for the temperature to return to its former level once the door has been opened for too long. This is normal for this type of unit.
• Superconductor units cost just pennies to operate due to their high efficiency.

PROBLEMS WITH YOUR WINE CELLAR?

You can solve many common Wine Cellar problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE CAUSE
Wine Cellar does not operate.	Not plugged in. The circuit breaker tripped or a blown fuse.
Control panel is locked	Push the ④ and ⑦ button simultaneously for 3 seconds to unlock the control panel.
Wine Cellar is not cold enough.	Check the temperature control setting. External environment may require a higher setting. The door is opened too often. The door is not closed completely. The door gasket does not seal properly. The Wine Cellar does not have the correct clearances. Abnormal voltage.
The light does not work.	Not plugged in. The circuit breaker tripped or a blown fuse. The light button is “OFF”.
Vibrations.	Check to assure that the Wine Cellar is level.
The door will not close properly.	The Wine Cellar is not level. The door was not properly installed. The gasket is dirty. The shelves are out of position.

SERVICE FOR YOUR WINE CELLAR

We are proud of our customer service organization and the network of professional service technicians that provide service on your Cavavin appliances. With the purchase of your Cavavin appliance, you can have the confidence that if you ever need additional information or assistance, the Cavavin Customer Service team will be here for you. Just call us toll-free.

CAVAVIN CUSTOMER SERVICES

Product Information [e-mail] fax [phone]	Whatever your questions are about our products, help is available.
Part Orders [e-mail] fax [phone]	You may order parts and accessories that will be delivered directly to your home by personal check, money order, Master Card, or Visa.

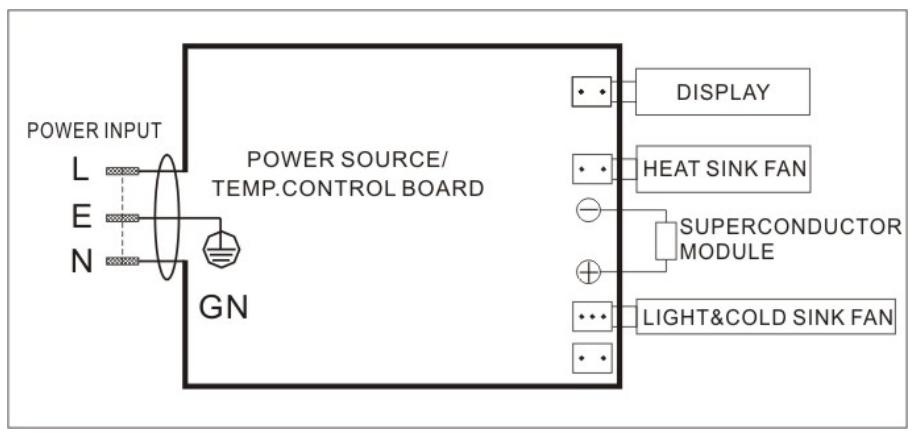

WIRING DIAGRAM

TECHNICAL / ELECTRICAL SPECIFICATIONS

Rated Voltage	115V
Rated Frequency	60Hz
Rated Input Power	83W

CAVAVIN -

Residential Use : One (1) years limited replacement warranty.

Commercial Use : Ninety (90) days limited replacement warranty.

Cavavin guarantees to the original owner of this Product that it is free from defect in material and workmanship. Cavavin will replace the Product during the applicable period, as stated above, subject to the terms and conditions of this Warranty. The replacement, with a comparably featured product of current production, will be provided by the original selling dealer. The owner is responsible for all costs related to transporting the Product to the original selling dealer to obtain the replacement Product.

EXCLUSIONS:

The following damages, parts and costs are excluded from this Warranty.

A) Loss of wine or any other product due to their alteration.

B)Consequential damages, loss of use or delay resulting from the failure of the product or from Cavavin inability or delay to replace the Product under this Warrany.

C)Service calls related to the door inversion procedure or to the installation of the Product.

D)This Warranty applies only to the operation of the Product under conditions for which it was designed. It does not cover loss or damage resulting from external causes such as, but not limited to, defective or inadequate wiring, outages as a result of public utility company action or inaction or a tripped breaker, accident, water, fire, windstorm, hail, lightning, earthquake, theft, misuse or abuse or repair done by an unauthorized repair centre.

E) Springs and the reinforcement of the door, interior panels of door, cross-pieces or supports of door and the plastic lining.

F) Light bulb, fuse or any parts normally designed to be replaced periodically by the Owner during the life of the Product.

G)Periodical cleaning and/or recommended maintenance.

H)Installation costs of a replacement unit.

I) Costs related to the removal or re-installation of a Product that is not easily accessible to the technician.

Thank you for purchasing this fine Cavavin product. Please fill out this form and return it within 100 days of purchase and receive these important benefits to the following address:
