ICM15250 - Coffee maker DELONGHI - Free user manual and instructions

Product type	Drip coffee maker
Model	ICM15250 (also ICM15240, ICM15740, ICM15750)
Brand	De'Longhi
Power supply	220-240 V ~ 50/60 Hz
Power	1000 W
Weight	2.3 kg (for ICM15240/ICM15250)
Tank capacity	Approximately 1.25 L (15 cups)
Carafe	Glass carafe (standard model) or thermal carafe (depending on version)
Filter	Permanent filter (on some models) or paper filter size 1×4
Main functions	Delayed programming (timer), AROMA function for slow extraction, auto shut-off after 40 min (glass carafe)
Display	LED screen with clock and timer (electronic models)
Control	Touch buttons: ON/AUTO/O, SET TIMER, AROMA, SET CLOCK
Keep warm	Hot plate (glass carafe); auto shut-off after 40 min
Safety	Auto shut-off at end of cycle, overheating protection, fixed power cord
Care and cleaning	Descaling recommended every 60 cycles; clean with a damp cloth, do not immerse
Included accessories	Measuring spoon, permanent filter (depending on model), carafe
Dimensions (approx.)	Approximately 25 × 20 × 35 cm (estimate)
Repairability and spare parts	Repair by Authorized Service Center; original parts available

Frequently Asked Questions - ICM15250 DELONGHI

How to set the clock on the De'Longhi ICM15250 coffee maker?

Plug in the appliance, the display shows '0:00'. Press and hold the SET CLOCK (R) button until the desired time appears, then release. The clock can be set at any time.

How to program the automatic start?

First set the time, then press and hold SET TIMER (P) until the desired start time appears. Release, then quickly press ON/AUTO/O (0) twice. The indicator turns red and 'auto' is displayed.

What to do if coffee flows slowly?

This indicates a need for descaling. Use a special drip coffee maker descaler and follow the descaling procedure described in the manual (about every 60 cycles).

How to use the AROMA function?

Press the AROMA (Q) button before or during brewing. The indicator lights up. This function slows down water flow for a richer extraction. Recommended for small quantities.

Is the thermal carafe supplied with the ICM15250?

Depending on the version, the ICM15250 may come with a glass carafe or thermal carafe. Check the packaging. The thermal carafe keeps coffee hot without a hot plate.

How to clean the coffee maker?

Unplug and let cool. Wipe the exterior with a damp cloth. Never immerse the appliance in water. The water tank filter (S) is accessible by opening the lid (T). Clean it if necessary.

Why does the coffee taste acidic?

Probably insufficient rinsing after descaling. Perform at least 3 rinsing cycles with fresh water after descaling to remove residue.

What coffee grind to use?

Use ground coffee with medium grind, specifically for drip coffee makers. Avoid too fine grinds that can clog the filter.

Does the coffee maker shut off automatically?

Yes, for models with glass carafe, the hot plate shuts off automatically after 40 minutes. For the thermal carafe, the appliance turns off at the end of brewing.

Where to find spare parts and get the appliance repaired?

For any repair, contact an Authorized De'Longhi Service Center and request original parts. The power cord can only be replaced by a professional.

USER MANUAL ICM15250 DELONGHI

Instructions for use

A) If your appliance comes fitted with a plug, it will incorporate a 13 Amp fuse. If it does not fit your socket, the plug should be cut off from the mains lead, and an appropriate plug fitted, as below. WARNING: Very carefully dispose of the cut off plug after removing the fuse: do not insert in a 13 Amp socket elsewhere in the house as this could cause a shock hazard. With alternative plugs not incorporating a fuse, the circuit must be protected by a 15 Amp fuse. If the plug is a moulded-on type, the fuse cover must be re-fitted when changing the fuse using a 13 Amp Asta approved fuse to BS 1362. In the event of losing the fuse cover, the plug must NOT be used until a replacement fuse cover can be obtained from your nearest electrical dealer. The colour of the correct replacement fuse cover is that as marked on the base of the plug. B) If your appliance is not fitted with a plug, please follow the instructions provided below:

WARNING - THIS APPLIANCE MUST BE EARTHED

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:

Green and yellow:

Blue:

Brown:

Earth

Neutral

Live

As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The green and yellow wire must be connected to the terminal in the plug marked with the letter E or the earth symbol ≡ or coloured green or green and yellow.

The blue wire must be connected to the terminal marked with the letter N or coloured black.

The brown wire must be connected to the terminal marked with the letter L or coloured red.

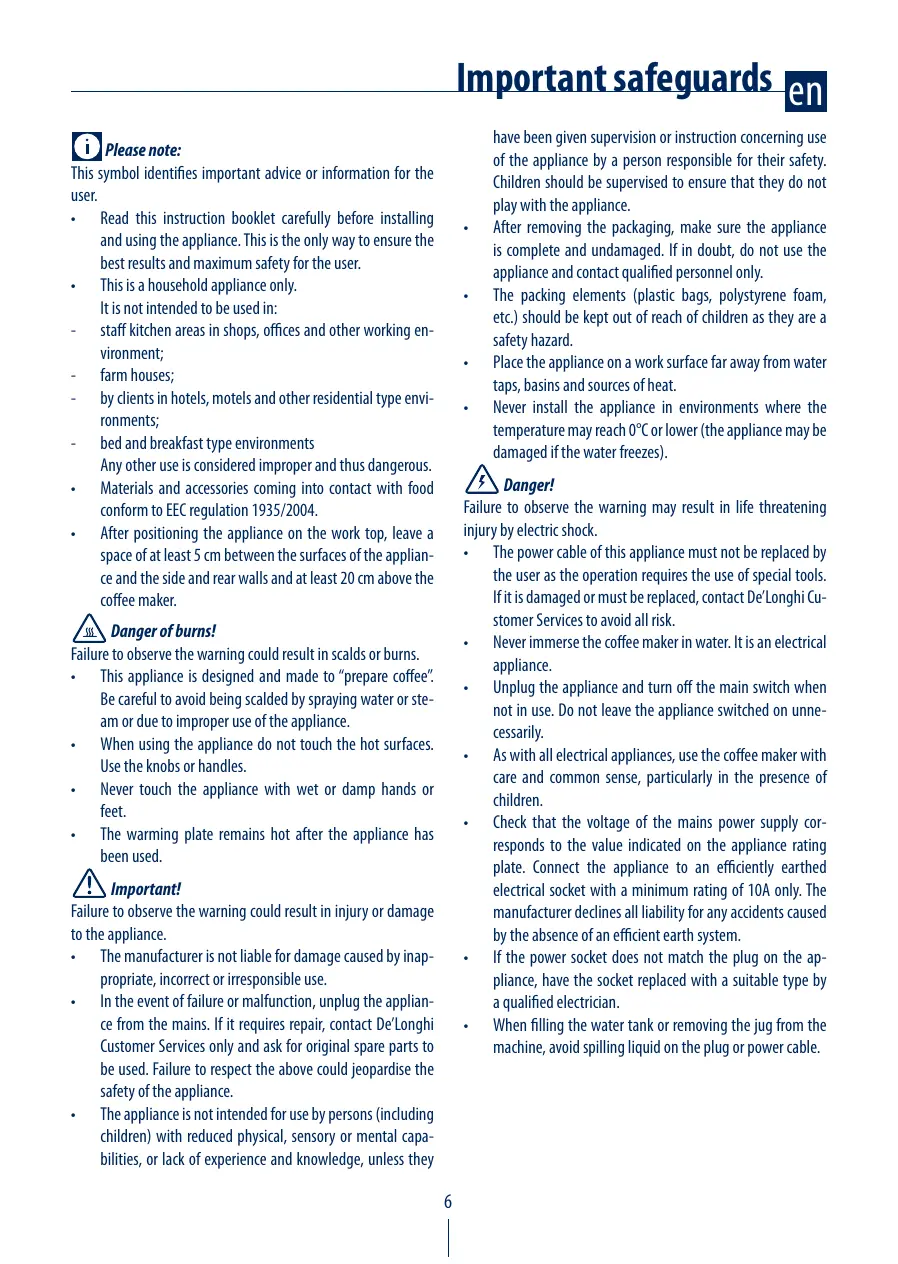

Please note:

This symbol identifies important advice or information for the user.

• Read this instruction booklet carefully before installing and using the appliance. This is the only way to ensure the best results and maximum safety for the user. This is a household appliance only. It is not intended to be used in: staff kitchen areas in shops, offices and other working environments;
• farm houses; by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.
• Any other use is considered improper and thus dangerous. Materials and accessories coming into contact with food conform to EEC regulation 1935/2004. After positioning the appliance on the work top, leave a space of at least 5 cm between the surfaces of the appliance and the side and rear walls and at least 20 cm above the coffee maker.

Danger of burns!

Failure to observe the warning could result in scalds or burns.

This appliance is designed and made to "prepare coffee". Be careful to avoid being scalded by spraying water or steam or due to improper use of the appliance. - When using the appliance do not touch the hot surfaces. Use the knobs or handles. - Never touch the appliance with wet or damp hands or feet. - The warming plate remains hot after the appliance has been used.

Important!

Failure to observe the warning could result in injury or damage to the appliance.

• The manufacturer is not liable for damage caused by inappropriate, incorrect or irresponsible use.
• In the event of failure or malfunction, unplug the appliance from the mains. If it requires repair, contact De'Longhi Customer Services only and ask for original spare parts to be used. Failure to respect the above could jeopardise the safety of the appliance. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

After removing the packaging, make sure the appliance is complete and undamaged. If in doubt, do not use the appliance and contact qualified personnel only. - The packing elements (plastic bags, polystyrene foam, etc.) should be kept out of reach of children as they are a safety hazard. - Place the appliance on a work surface far away from water taps, basins and sources of heat. - Never install the appliance in environments where the temperature may reach 0°C or lower (the appliance may be damaged if the water freezes).

Danger!

Failure to observe the warning may result in life threatening injury by electric shock.

• The power cable of this appliance must not be replaced by the user as the operation requires the use of special tools. If it is damaged or must be replaced, contact De'Longhi Customer Services to avoid all risk.
• Never immerse the coffee maker in water. It is an electrical appliance.
• Unplug the appliance and turn off the main switch when not in use. Do not leave the appliance switched on unnecessarily.
• As with all electrical appliances, use the coffee maker with care and common sense, particularly in the presence of children.
• Check that the voltage of the mains power supply corresponds to the value indicated on the appliance rating plate. Connect the appliance to an efficiently earthed electrical socket with a minimum rating of 10A only. The manufacturer declines all liability for any accidents caused by the absence of an efficient earth system. If the power socket does not match the plug on the appliance, have the socket replaced with a suitable type by a qualified electrician.
• When filling the water tank or removing the jug from the machine, avoid spilling liquid on the plug or power cable.

Description of appliance

A. Glass jug (certain models only) B. Thermal jug (certain models only) C. Measure D. Water level indicator E. Open/extract filter holder handle F. Water fill compartment G. Filter holder for drip coffee H. Permanent filter (if provided) or paper filter I. Plate (hot in models with glass jug only)

Models with switch:

J. "ON/STAND-BY" button K. "ON/STAND-BY" light L. Aroma button M. Aroma light

Electronic models:

N. Display O. ON/AUTO button with light P. Set timer button Q. Aroma button with light R. Set clock button S. Water tank filter T. Inspection door

Setting the clock (certain models only)

Plug the appliance into the mains socket. The first time it comes on, "0:00" appears on the display. To set the exact time, press and hold the SET CLOCK button (R) (fig. 1) until the current time is displayed, then release. The time can be set at any moment.

How to make drip coffee

Please note: the first time the appliance is used, all accessories and the internal circuits must be washed through by making at least two jugs of coffee without using pre-ground coffee.

• Open the door at the front by pulling the handle (E) and use the jug to pour clean cold water into the water fill compartment (F) up to the level indicated for the number of cups of coffee you want to make. Check the level of water in the tank through the level window (D) (fig. 3). You are recommended to use the jug provided as a measure as the maximum capacity of the jug and the tank are the same. Position the permanent filter (H) (if present) in the filter

holder (G) (fig. 4). In versions without permanent filter, use the paper filter (size 1x4). - Place the pre-ground coffee in the filter using the measure (C) provided and level evenly (fig. 5). See the table for recommended quantities. Use good quality, medium pre-ground coffee for drip coffee makers.

Recommended quantities:

No. small cups ☐	No. large cups ☐	No. measures (*)
15	10	10
12	8	8
9	6	6
6	4	4
3	2	2

(^*) 1 level measure = 1 tablespoon (5g)

The quantities given in the table are indicative and should be adapted to your personal taste and the type of coffee. Never exceed the maximum quantity of 10 measures. The type of blend has a considerable influence on the coffee you make. You should therefore try various types of coffee to find the one best suited to your taste.

• Models with glass jug (A): close the door at the front of the appliance and place the closed jug on the plate (fig. 6).
• Models with thermal jug (B): before placing the jug on the plate, make sure the lid is closed (fig. 7).
• Models with electronic controls: press the ON/AUTO/ button (O) (fig. 8). The red light indicates that the coffee maker is operating and "BREW" appears on the display. The appliance emits a beep when delivery begins, then three beeps when it ends. The taste of the coffee can be optimised by pressing the AROMA button (Q). This function enables a process of percolation which releases the water in the filter more slowly. Filtering a little at a time improves the flavour and aroma of the coffee. To enable the function, press the aroma button (the light on the button comes on). To disable the function, press the button again. You are recommended to use the AROMA button when you do not want to make a full jug of coffee.
• Models with switch: Press the button (J) (fig. 9). The light (K) indicates that the coffee maker is operating. Coffee delivery will start after a few seconds. It is completely normal for the appliance to give off steam while the coffee is percolating. The coffee maker emits a beep when delivery begins, then three beeps when it ends. The taste of

The coffee can be optimised by pressing the AROMA button (Q). This function enables a process of percolation which releases the water in the filter more slowly. Filtering a little at a time improves the flavour and aroma of the coffee. To enable the function, press the aroma button (the light on the button comes on). To disable the function, press the button again. You are recommended to use the AROMA button when you do not want to make a full jug of coffee.

In models with glass jug: if you leave the button pressed after percolation has finished, the plate will keep the coffee at the ideal temperature. The appliance goes off automatically 40 minutes after coffee delivery ends. - Models with thermal jug: to pour the coffee, turn the lid to the position shown in fig. 10. To remove the lid completely, turn the lid to the position shown in fig. 11. After percolation has ended, the appliance goes off automatically.

Please note: removing the jug before all the coffee requested has been delivered does not interrupt coffee making, but merely blocks flow into the jug. If you want to pour out a little coffee immediately, you should do so as rapidly as possible in order to avoid the coffee overflowing.

Programming auto-start (models with electronic controls only)

Check that the time is set correctly.

To programme when you want the appliance to make coffee:

• Press the SET TIMER button (P) and hold it down until the time you want the coffee maker to come on is reached.
• Release the SET TIMER button. The time flashes briefly until the setting has been memorised, then the current time is displayed.

Activating the timer function

• Set the time you want the appliance to come on and go off as described in the above paragraph; Prepare the appliance to make coffee. Press the ON/AUTO/ button (0) (fig. 12) rapidly twice. The light becomes red to indicate that the appliance is operating and "AUTO" is displayed.

Cleaning and maintenance

Before maintenance or cleaning of the appliance, turn off, unplug from the mains socket and allow to cool. - Do not use solvents or abrasive detergents to clean the coffee maker. Just wipe with a soft damp cloth.

• Never immerse the coffee maker in water. It is an electrical appliance.
• The water tank filter (S) can be reached through the inspection door (T). Clean when necessary.

Descaling

If the water in your area is hard, limescale builds up over time. These deposits may affect correct operation of the appliance. You are recommended to descale the coffee maker every 60 coffee making cycles.

Models with electronic controls only: When green light flashes on the aroma button (Q), (about every 60 cycles) you have to descale the appliance. To reset the descaling alarm press the two buttons aroma and set clock at the same time. The green light will be power off.

To descale, always use special commercially available descending products for drip coffee makers.

1. Dilute the product in the jug, following the instructions on the descaler pack;
2. Pour the solution into the water fill compartment;
3. Place the jug on the warming plate;
4. Press the ON/AUTO/ / (J) button, percolate the equivalent of one cup then turn the appliance off;
5. Leave the solution to work for 15 minutes, then repeat operations 4 and 5.
6. Turn the appliance on and deliver the water until the tank is completely empty.
7. Rinse by operating the appliance with water only at least 3 times (3 complete tanks of water).

Failure to clean as described above invalidates the guarantee.

Technical data

Mains voltage: 220-240V-50/60Hz

Absorbed power: 1000W

Weight: ICM15240 / ICM15250 2,3 kg

ICM15740/ICM15750 2.63kg

Disposing of the appliance

In compliance with European directive 2002/96/EC, the appliance must not be disposed of with household waste, but taken to an authorised waste separation and recycling centre.

The appliance complies with the following EC directi

ves:

Low Voltage Directive 2006/95/EC and subsequent amendments; EMC Directive 2004/108/EC and subsequent amendments EC Regulation 1275/2008 for standby

Troubleshooting

Problem	Probable cause	Solution
The coffee takes longer to brew.	The coffee maker needs to be descaled.	Descale the machine as described in the section DE-SCALING.
The coffee has an acidic ta-ste.	Insufficient rinsing after descaling.	Rinse the machine as described in the section DE-SCALING.

i Nota Bene:

Setting the clock (only for some models)

Plug into the socket; at first switch-on, the display will show the flashing digits "0:00". To set the time, press and hold the SET CLOCK button, fig. 1, until the desired time value is reached, then release the button. The time can be changed at any moment.

How to prepare coffee with the filter

Note: on first use of the coffee maker, it is necessary to rinse all accessories and the internal system, preparing at least two cups-collectors, without putting ground coffee.

Open the lid, pulling the handle E, fig. 2. Using the cup-collector, pour fresh cold water into the water tank F, fig. 2, up to the level required for the selected amount of coffee: check the water level in the tank against the special indicator D, fig. 3. In any case, for dosing it is recommended to use the supplied cup-collector, as the maximum capacity of the cup corresponds to the capacity of the tank. - Insert the permanent filter H (if provided) into the filter holder, or in models without filter, use a paper filter (size 1x4). Pour ground coffee into the filter, using the measure C, and distribute it evenly, fig. 5. Pay attention to the table of recommended quantities. Use good quality ground coffee, medium grind, in packets for preparing coffee in coffee makers with filter.

Recommended quantities:

The appliance stops working if the above cleaning is not performed regularly.

Technical data

Voltage 220-240V~50/60Hz

Power consumption 1000W

Weight: ICM15240 / ICM15250 2.3 kg

ICM15740/ICM15750 2.63 kg

The product complies with the following directives:

EC:

- Low Voltage Directive 2006/95/EC with subsequent amendments. EMC Directive 2004/108/EC with subsequent amendments. - European regulation on standby mode 1275/2008

Troubleshooting

Brewing filter coffee

Important: before preparing the first coffee, you must remove all accessories and rinse the inside of the machine, then run two full water tanks without adding coffee.

• Open the lid, remove the filter (E), and using the water tank, pour cold water into the reservoir (F) up to the level corresponding to the desired number of cups: check the water level in the reservoir through the special indicator (D) (Fig. 3); it is recommended to use the water tank from the kit as a dispenser, as its maximum capacity corresponds to the capacity of the reservoir. Place the permanent filter (H) (if provided) into the filter holder (G) (Fig. 4), and for versions not equipped with it, use paper filters (size 1x4). Put ground coffee into the filter, using the measuring spoon (C) from the kit and level it evenly (Fig. 5). Refer to the table for recommended quantities. Use quality ground coffee with a medium grind, suitable for filter coffee machines.

Recommended quantities:

Бр. малки чаши БP	Бр. rolемп чаши	Бр. мерітелни пъж. (*)
15	10	10
12	8	8
9	6	6
6	4	4
3	2	2

^* 1 level measuring spoon = 1 spoon (5g)

The quality of the coffee depends on the type and amount of coffee used, and it should be adjusted to your personal taste preferences. Never use more than 10 grams per cup. The type of coffee significantly affects the quality of the resulting coffee: we recommend trying different types of coffee to discover the one that best suits your taste.

Models with a drip-stop valve (A): Close the front flap and place the valve over the cup (Fig. 6). - Models with a thermos (B): Open the lid and place the cup over the cup, making sure the lid is closed (Fig. 7)

Models with electronic control: Press the ON/AUTO/O button (O) (0) (0). The indicator light shows that the coffee maker is working, and the display shows 'BREW'. A beep sounds at the start of brewing, and then three beeps signal the end. The taste of the coffee can be improved by pressing the AROMA button (Q). This function intensifies the brewing process, which makes the water pass through the filter more slowly; the slower filtering gives the coffee a stronger taste and aroma. To activate the function, press the "aroma" button: the indicator light on the button will turn on; to deactivate the function, press the button again. The use of the AROMA button is recommended when you need to prepare a cup of coffee. Models with a thermos: Press the button () (J) (9). The indicator light (K) on the button shows that the coffee maker is working. The coffee will start to brew after a few seconds. It is quite normal for the machine to emit a little steam during the brewing of the coffee. A beep sounds at the start of brewing, and then three beeps signal the end. The taste of the coffee can be improved by pressing the AROMA button (Q). This function intensifies the brewing process, which makes the water pass through the filter more slowly; the slower filtering gives the coffee a stronger taste and aroma. To activate the function, press the AROMA button: the indicator lights will turn on. To deactivate the function, press the button again. The use of the AROMA button is recommended when you need to prepare a cup of coffee. Models with a drip-stop valve: if you keep the button (J) pressed after the brewing of the coffee, the heating plate will keep the ideal temperature of the hot coffee. It will turn off automatically 40 minutes after the brewing of the coffee. Models with a thermos: to pour the coffee, open the lid to the position shown in Fig. 10. To pour the remaining coffee from the thermos, open the lid to the position shown in Fig. 11. When the preparation is finished, the machine will automatically turn off.

Important: when removing the carafe from the machine, the machine must be switched off during the preparation of the desired amount of coffee, the brewing process stops, and only the coffee in the carafe is kept; if you want to continue

If you want a small amount of coffee, it is recommended to make it as quickly as possible to avoid the unpleasant taste of over-extraction.

Programmed start (AUTO) (only for models with electronic control)

The settings are saved.

Removing limescale

Fill the water tank with fresh, cold water up to the MAX mark. The descaling process will take about 60 minutes. It is recommended to remove the scale filter every 60 working cycles.

Models with electronic control: When the green indicator on the AROMA button (Q) lights up (approximately every 60 working cycles), it means that the scale filter needs to be removed.

To start the descaling procedure, press the AROMA and SET CLOCK buttons simultaneously. The green indicator light will go out.

Proceed with the removal of the scale filter, using the special descaling agent recommended by the manufacturer.

Remove the scale filter from the coffee maker for filter coffee.

1. Dissolve the agent in the water, following the instructions on the agent's packaging.
2. Pour the solution into the water reservoir.
3. Place the jug in place.
4. Press the (J) / ON/AUTO/ (O) button, wait for the amount equal to one cup to flow out, then turn off the appliance.
5. Leave the solution to act for 15 minutes; repeat the above operations 4-5 times.
6. Turn on the machine and let it run until the reservoir is completely empty. 7. Turn off the machine, then run it with only water for at least 3 cycles (3 reservoirs of water).

The warranty is not valid if the above cleaning is not performed regularly.

Technical data

Nominal voltage: 220-240V~50/60Hz

Nominal power: 1000W

Terno: ICM15240 / ICM15250 2.3 kg

ICM15740/ICM15750 2.63 kg

According to European Directive 2002/96/EC, this product must not be disposed of with household waste, but must be handed over to a separate collection point for recycling.

This product complies with the relevant EU Directives:

- Directive 2006/95/EC on low voltage equipment and subsequent amendments; Directive 2004/108/EC on electromagnetic compatibility (EMC) and subsequent amendments; - European regulation Stand-by 1275/2008

Troubleshooting
