USER MANUAL EC850 DELONGHI

Safety Symbols used in these instructions The important recommendations have these symbols. These recommendations must be followed.

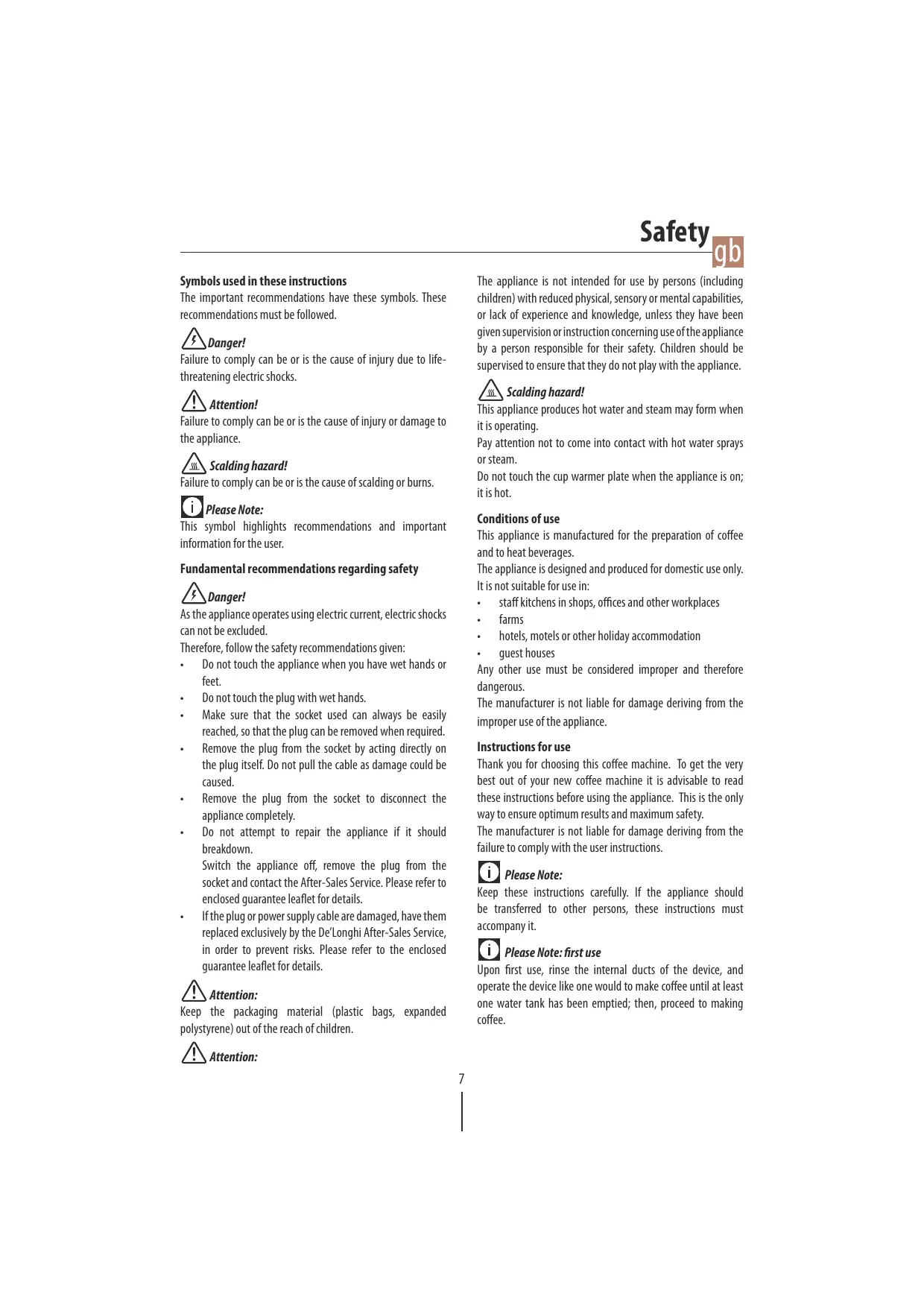

The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Danger! Failure to comply can be or is the cause of injury due to lifethreatening electric shocks. Scalding hazard! This appliance produces hot water and steam may form when it is operating. Pay attention not to come into contact with hot water sprays or steam. Do not touch the cup warmer plate when the appliance is on; it is hot. Attention! Failure to comply can be or is the cause of injury or damage to the appliance. Scalding hazard! Failure to comply can be or is the cause of scalding or burns. Please Note: This symbol highlights recommendations and important information for the user. Conditions of use This appliance is manufactured for the preparation of coffee and to heat beverages. The appliance is designed and produced for domestic use only. It is not suitable for use in: t TUBòLJUDIFOTJOTIPQT PóDFTBOEPUIFSXPSLQMBDFT t GBSNT t IPUFMT NPUFMTPSPUIFSIPMJEBZBDDPNNPEBUJPO t HVFTUIPVTFT Any other use must be considered improper and therefore dangerous. The manufacturer is not liable for damage deriving from the improper use of the appliance. Fundamental recommendations regarding safety Danger! As the appliance operates using electric current, electric shocks can not be excluded. Therefore, follow the safety recommendations given: t %POPUUPVDIUIFBQQMJBODFXIFOZPVIBWFXFUIBOETPS feet. t %POPUUPVDIUIFQMVHXJUIXFUIBOET t .BLF TVSF UIBU UIF TPDLFU VTFE DBO BMXBZT CF FBTJMZ reached, so that the plug can be removed when required. t 3FNPWF UIF QMVH GSPN UIF TPDLFU CZ BDUJOH EJSFDUMZ PO the plug itself. Do not pull the cable as damage could be caused. t 3FNPWF UIF QMVH GSPN UIF TPDLFU UP EJTDPOOFDU UIF appliance completely. t %P OPU BUUFNQU UP SFQBJS UIF BQQMJBODF JG JU TIPVME breakdown. Switch the appliance off, remove the plug from the socket and contact the After-Sales Service. Please refer to enclosed guarantee leaflet for details. t *GUIFQMVHPSQPXFSTVQQMZDBCMFBSFEBNBHFE IBWFUIFN replaced exclusively by the De’Longhi After-Sales Service, in order to prevent risks. Please refer to the enclosed guarantee leaflet for details. Instructions for use Thank you for choosing this coffee machine. To get the very best out of your new coffee machine it is advisable to read these instructions before using the appliance. This is the only way to ensure optimum results and maximum safety. The manufacturer is not liable for damage deriving from the failure to comply with the user instructions. Please Note: Keep these instructions carefully. If the appliance should be transferred to other persons, these instructions must accompany it. Please Note: first use Upon first use, rinse the internal ducts of the device, and operate the device like one would to make coffee until at least one water tank has been emptied; then, proceed to making coffee. Attention: Keep the packaging material (plastic bags, expanded polystyrene) out of the reach of children. Attention:

Description - Techcnical data - Disposal Check after transport After the packaging has been removed, check the integrity of the appliance and the presence of all accessories. Do not use the appliance in the presence of obvious damage. Contact the De’Longhi Customer Services department, please see enclosed leaflet. Technical date Mains voltage: Absorbed power: Dimensions (LxHxD ): Thermoblock: Pressure: Water tank capacity: Cable lenght: Weight: Description of the appliance (page 3 - A ) A1. Cup warmer A2. General switch ON/OFF A3. Power supply cable connector seat A4. Steam/hot water selector A5. Hot water/steam nozzle A6. Cappuccino maker A7. Boiler outlet/Infusion assembly A8. Water tank seat A9. Water tank lid A10. Water tank A11. Water outage indicator A12. Cup tray A13. Indicator for drip tray maximum water level A14. Drip tray

The appliance complies with the following EC directives: t 4UBOECZ%JSFDUJWFOP t -PX 7PMUBHF %JSFDUJWF &$ BOE TVCTFRVFOU amendments; t &.$ %JSFDUJWF &$ BOE TVCTFRVFOU amendments t .BUFSJBMTBOEBDDFTTPSJFTDPNJOHJOUPDPOUBDUXJUIGPPE conform to EEC regulation 1935/2004. Disposal Recommendations for the correct disposal of the product in compliance with the 2002/96/CE European Directive. The product must not be disposed of as urban waste at the end of its working life. It must be taken to appropriate local authority separate waste collection centres or to dealers providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from unsuitable disposal and allows to recover the materials of which it is made in order to make significant savings in energy and resources. The product has the crossed-out wheeled bin mark as a reminder of the obligation to dispose of household appliances separately. Description of control panel (B) (page 3 - B) B1. ON/Stand-by Button B2. Stand-by/energy save light B3. OK steam light B4. OK coffee/hot water light B5. Coffee delivery B6. “STOP”/hot water function position B7. Steam function B8. Function selector Description of the accessories (page 2 - C) C1. Filter-holder cup C2. Cream filter 1 coffee C3. Cream filter 2 coffee C4. Cream filter ESE pods C5. Power supply cable (removable) C6. Dispenser/tamper measure C7. Reactive strip to detect water hardness (Total hardness test) C8. Descaler C9. Water softener filter (*not included, may be purchased in authorised assistance centres)

Operating lights Lights Function selector (B8) Selector (A4)

Meaning of lights Every time the device is turned on, a self-test is automatically activated by pressing the general switch (A2) into I position. The device is heating up to distribute coffee or hot water. The device has reached the ideal temperature to distribute coffee or hot water. COFFEE: turn the B8 selector to HOT WATER: turn the A4 selector to B8 selector is on : the relative light flashes to indicate that the device is heating up to distribute steam. The device has reached the ideal temperature to distribute steam. Turn the A4 selector to to begin distribution. Following steam distribution, the temperature is too high to make coffee: see “OVERHEATING” on page 78 to make coffee at the correct temperature. If instead one wishes to make a cappuccino or hot water, proceed as usual. If the device is not used for 5 minutes, “LOW POWER” (energy saving) automatically activates, reducing energy consumption in compliance with current European regulations. If the device is not used for 75 minutes, it will automatically switch off (stand-by): to switch it back on, press the button.

x 40 L DESCALING and RINSE Rins e Tips (fig. 7-9)

stron The device will not switch on The power supply cable is not inserted correctly Check that the power supply cable connector is fully inserted in the appropriate seat on the back of the device; then, check that the plug is correctly connected to the power outlet The device is switched on, but it does not proceed with the desired function: lights are flashing The selectors are not in the correct position (attention: upon activation, the selectors must both be on ) Turn the selectors into the correct position Espresso coffee does not flow out No water in the tank Fill the water tank The holes in the filter-holder are blocked Clean the holes in the filter-holder spouts The espresso boiler outlet is blocked Clean as indicated in the “Cleaning” paragraph Espresso coffee drips from the edges of The filter-holder is not correctly inserted the filter-holder instead of through the or is dirty holes The espresso boiler gasket has lost elasticity or it is dirty Attach the filter-holder correctly and turn it fully to the right Replace the espresso boiler gasket: contact Customer Services The holes in the filter-holder spout are blocked Clean the holes in the spouts. The filter-holder does not hook onto the device Too much coffee was poured in the filter Use the supplied measure and make sure to use the correct filter for the type of preparation desired (see table on page 70) Loud pump noise The water tank is empty Fill the water tank The tank is inserted incorrectly and the valve on the bottom is not open Press the tank lightly to open the valve on the bottom The coffee cream is light (coffee flows The ground coffee has not been quickly from the spout) sufficiently pressed Tamper the ground coffee more Not enough ground coffee Increase the amount of ground coffee The coffee is not ground finely enough Only use coffee ground specifically for espresso coffee machines Incorrect type of ground coffee Change the quality of the ground coffee

Troubleshooting Problem Possible causes

Solution The coffee cream is dark (the coffee flows The ground coffee is too tightly pressed slowly from the spout) Too much ground coffee Decrease the amount of ground coffee Reduce the quantity of ground coffee The espresso boiler outlet is blocked Clean as indicated in “Cleaning the filter” The filter is blocked Only use coffee ground specifically for espresso coffee machines and it must not be damp The coffee is too finely ground Change the quality of the ground coffee powder The ground coffee is too fine or is damp Only use coffee ground specifically for espresso coffee machines and it must not be damp Incorrect type of ground coffee Change the quality of the ground coffee powder The milk does not froth when making a Milk not cold enough cappuccino Always use milk at refrigerator temperature Cappucccino maker is dirty Carefully clean the holes in the cappuccino nozzle Electrical connection (UK ONLY) As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: - The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol or coloured green or green and yellow. - The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. - The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. When wiring the plug, ensure that all strands of wire are securely retained in each terminal. Do not forget to tighten the mains lead clamp on the plug. If your electricity supply point has only two pin socket outlets, or if you are in doubt, consult a qualified electrician. Should the mains lead ever require replacement, it is essential that this operation be carried out by a qualified electrician and should only be replaced with a flexible cord of the same size. After replacement of a fuse in the plug, the fuse cover must be refitted. If the fuse cover is lost, the plug must not be used until a replacement cover is obtained. The colour of the correct replacement fuse cover is that of the coloured insert in the base of the fuse recess or elsewhere on the plug. Always state this colour when ordering a replacement fuse cover. Only 13amp replacement fuses which are asta approved to B.S. 1362 should be fitted. This appliance conforms to the Norms EN 55014 regarding the suppression of radio interference. Warning - this appliance must be earthed Before using this appliance ensure that the voltage indicated on the product corresponds with the main voltage in your home, if you are in any doubt about your supply contact your local electricity company. The flexible mains lead is supplied connected to a B.S. 1363 fused plug having a fuse of 13 amp capacity. Should this plug not fit the socket outlets in your home, it should be cut off and replaced with a suitable plug, following the procedure outlined below. Note: Such a plug cannot be used for any other appliance and should therefore be properly disposed of and not left where children might find it and plug it into a supply socket - with the obvious consequent danger. Please note: We recommend the use of good quality plugs and wall sockets that can be switched off when the machine is not in use. IMPORTANT: The wires in the mains lead fitted to this appliance are coloured in accordance with the following code: Green and Yellow to Earth Brown to live Cord Clamp
