USER MANUAL 42LM3400 LG

User’s Guide Specification

47LM760S-ZA BEUWLJG BRAND Product Name 47LM760S Printing Specification

1. Trim Size (Format) : 182mm x 257 mm 2 P 2. Printing i ti Colors C l Cover : 1 COLOR (BLACK) Inside : 1 COLOR (BLACK) 3. Stock (Paper) Cover : Coated paper , S/W 150 g/㎡ Inside : Uncoated paper , 백상지 60 g/㎡ 4. Printing Method : Off-set 5. Bindery : Perfect bind 6 L 6. Language : ENG/GER/FRE/ITA/SPA/POR/DUT/GRE(8) 7. Number of pages : 272

“This part contain Eco-hazardous substances (Pb, Cd, Hg, Cr6+, PBB, PBDE, etc.) within LG standard level,

Details should be followed Eco-SCM management standard[LG(56)-A-2524]. Especially, Part should be followed and controlled the following specification. (1)Eco-hazardous substances test report should be submitted when Part certification test and First Mass Production. (2) Especially, Don’t use or contain lead(Pb) and cadmium(Cd) in ink.

Special Instructions

(1) Origin Notification * LGEIN : Printed in Indonesia * LGESP : Printed in Brazil * LGEND G : Printed in C China * LGEMA : Printed in Poland

* LGEWA : Printed in U.K.

* LGEMX : Printed in Mexico * LGEIL G : Printed in India

9 8 7 6 5 4 3 2 1 REV. NO.

MM/DD/YY SIGNATURE CHANGE NO.

CHANGE CONTENTS P/NO. MFL67441704

Total pages : 272 pages

OWNER’S MANUAL LED LCD TV Please read this manual carefully before operating your set and retain it for future reference.

LM62** LM64** LM66** LM67** LM76** LS57** P/NO : MFL67441704 (1202-REV00) Printed in Korea

A-2 TABLE OF CONTENTS TABLE OF CONTENTS A-3 Setting up the TV A-3

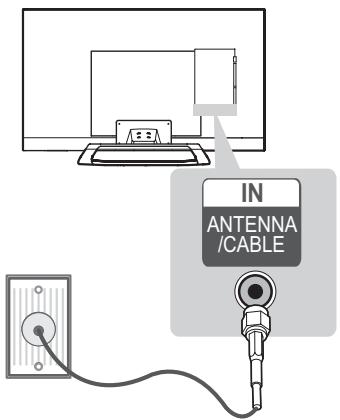

COMMON Antenna connection

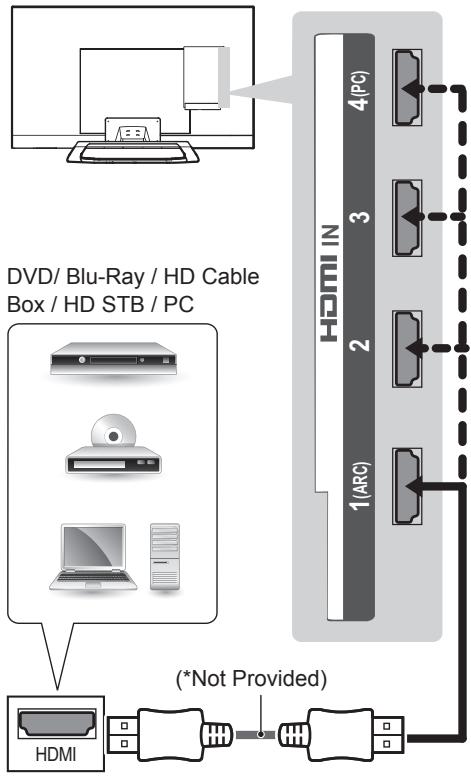

Satellite dish connection HDMI connection DVI to HDMI connection RGB-PC connection Component connection Composite connection Audio connection - Digital optical audio connection USB connection CI module connection Headphone Connection Euro Scart connection

B-29 SPECIFICATIONS COMMON SETTING UP THE TV A-3

Image shown may differ from your TV.

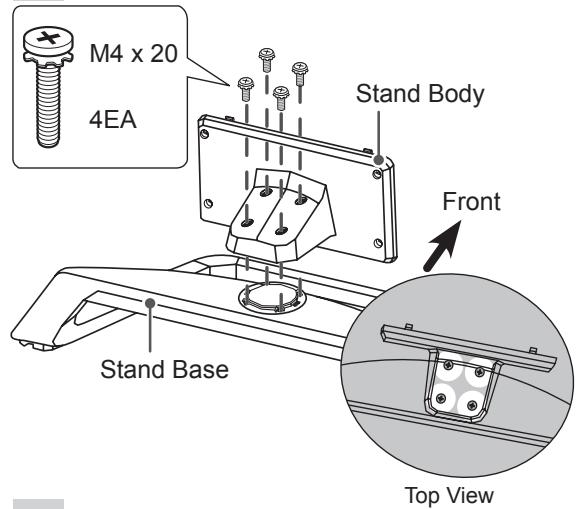

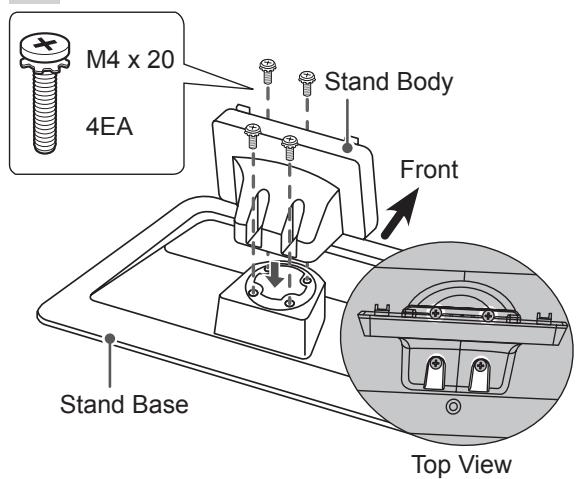

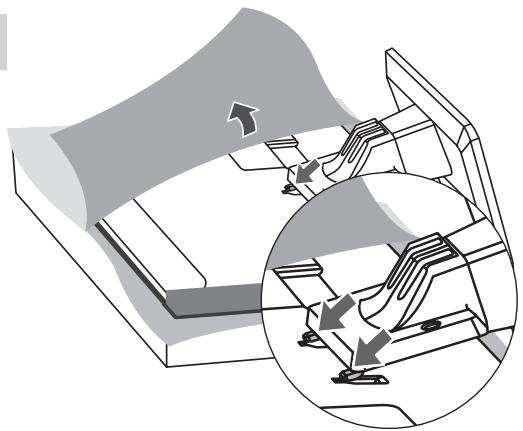

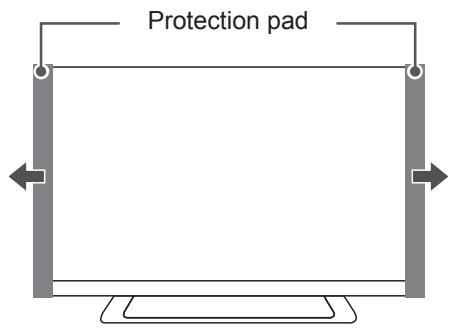

A-4 SETTING UP THE TV Stand Base

SETTING UP THE TV A-5

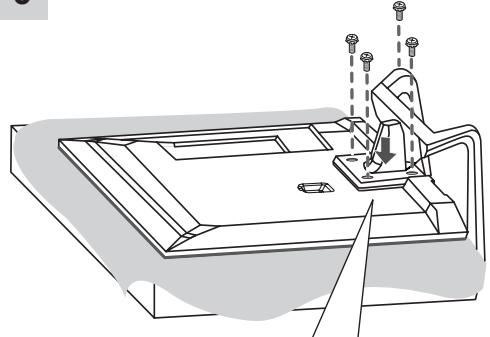

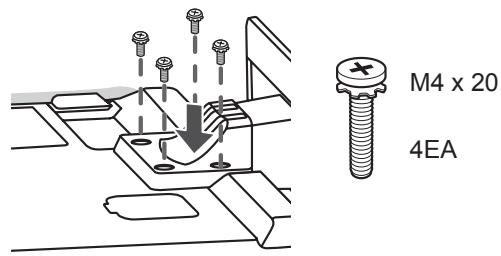

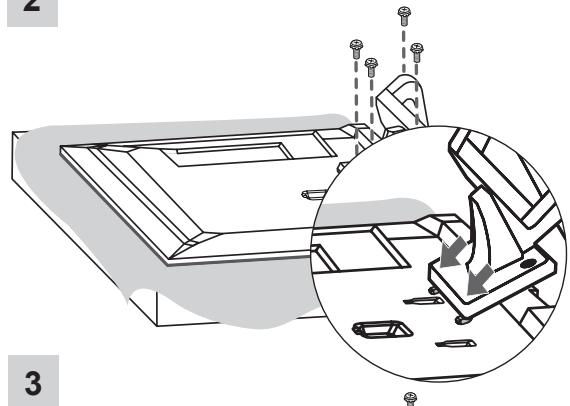

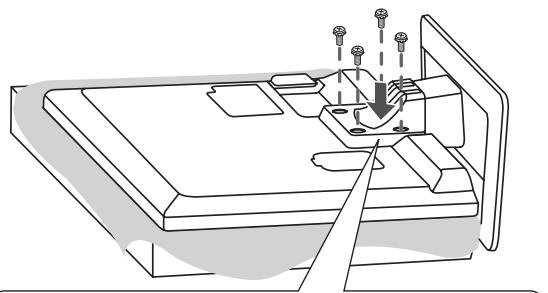

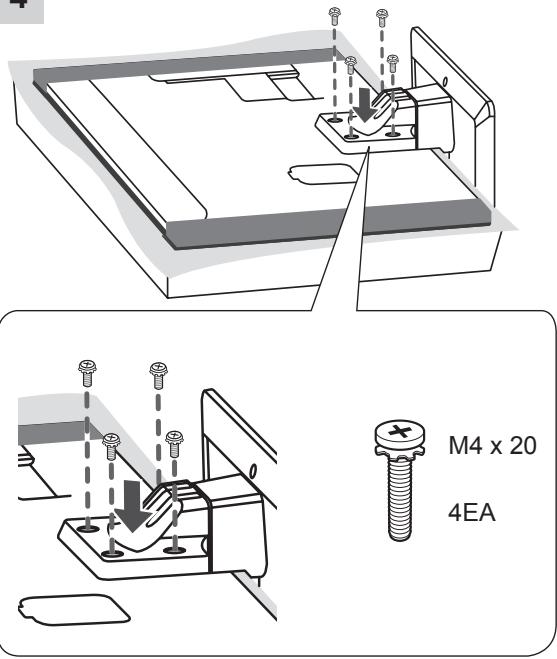

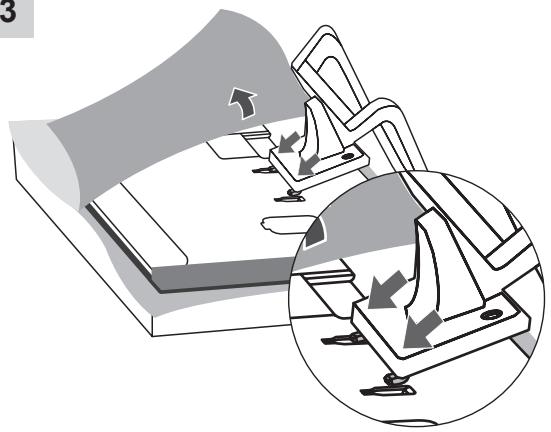

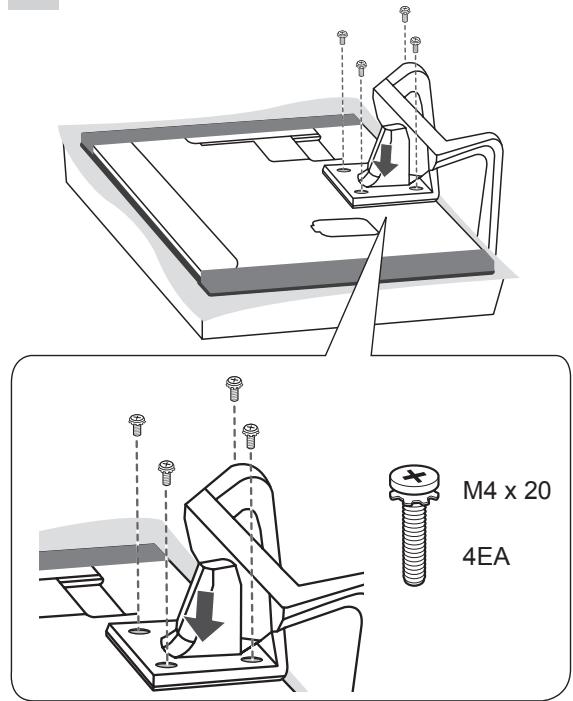

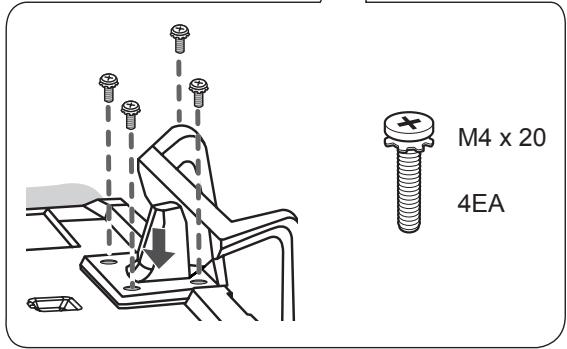

4EA A-6 SETTING UP THE TV CAUTION yy When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches. yy Make sure that the screws are fastened completely. (If they are not fastened securely enough, the TV may tilt forward after being installed.)

Do not fasten the screws with too much force; otherwise they may be worn out and get loosened.

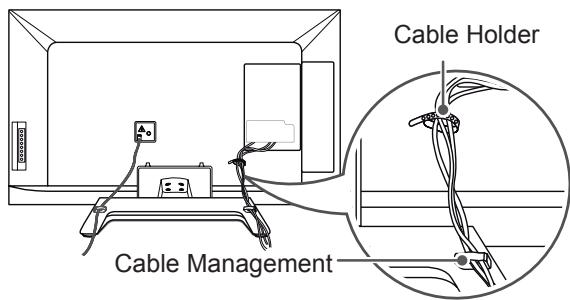

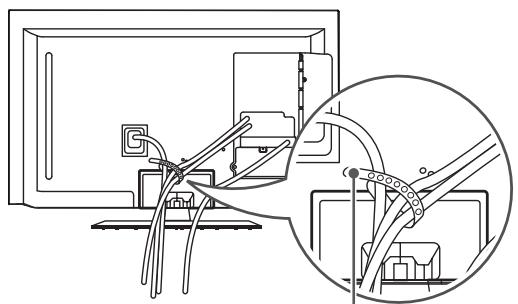

Only 32/37/42LS57**, 65LM62**, 32/42/47LM669* 1 Gather and bind the cables with the Cable Holder.

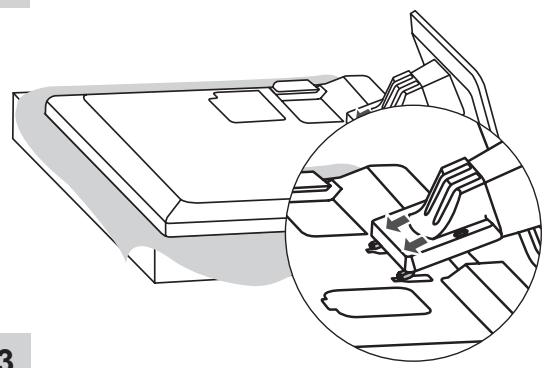

NOTE Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.

Only 32/37/42/47/55LM62**, 32/42/47/55/60LM64**, 32/42/47/55LM660*, 42/47/55LM67**, 42/47/55LM76** 1 Gather and bind the cables with the Cable Management. 2 Fix the Cable Management firmly to the TV. Cable Holder

CAUTION Do not move the TV by holding the cable holders, as the cable holders may break, and injuries and damage to the TV may occur.

OWNER’S MANUAL LED LCD TV Please read this manual carefully before operating your set and retain it for future reference.

TABLE OF CONTENTS ENGLISH ENG TABLE OF CONTENTS

OPEN SOURCE SOFTWARE NOTICE

- Viewing 3D Imaging (Only 3D models)

12 Installation Procedure

ASSEMBLING AND PREPARING

Separate purchase Parts and buttons Lifting and moving the TV Mounting on a table Mounting on a wall

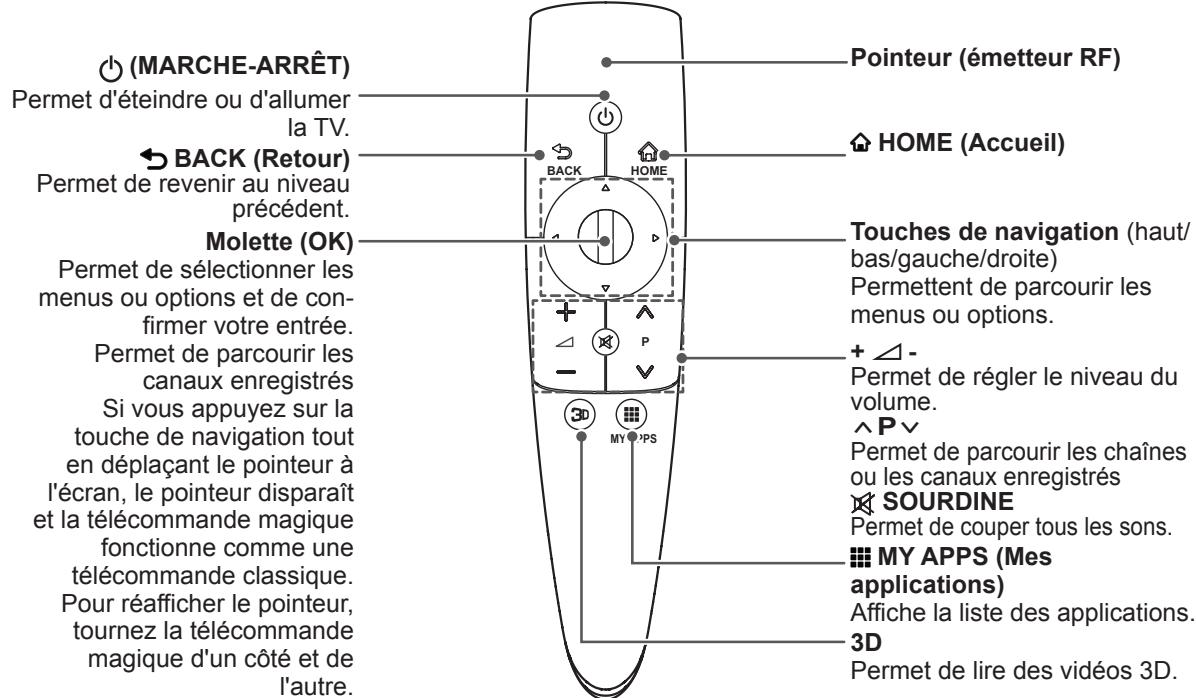

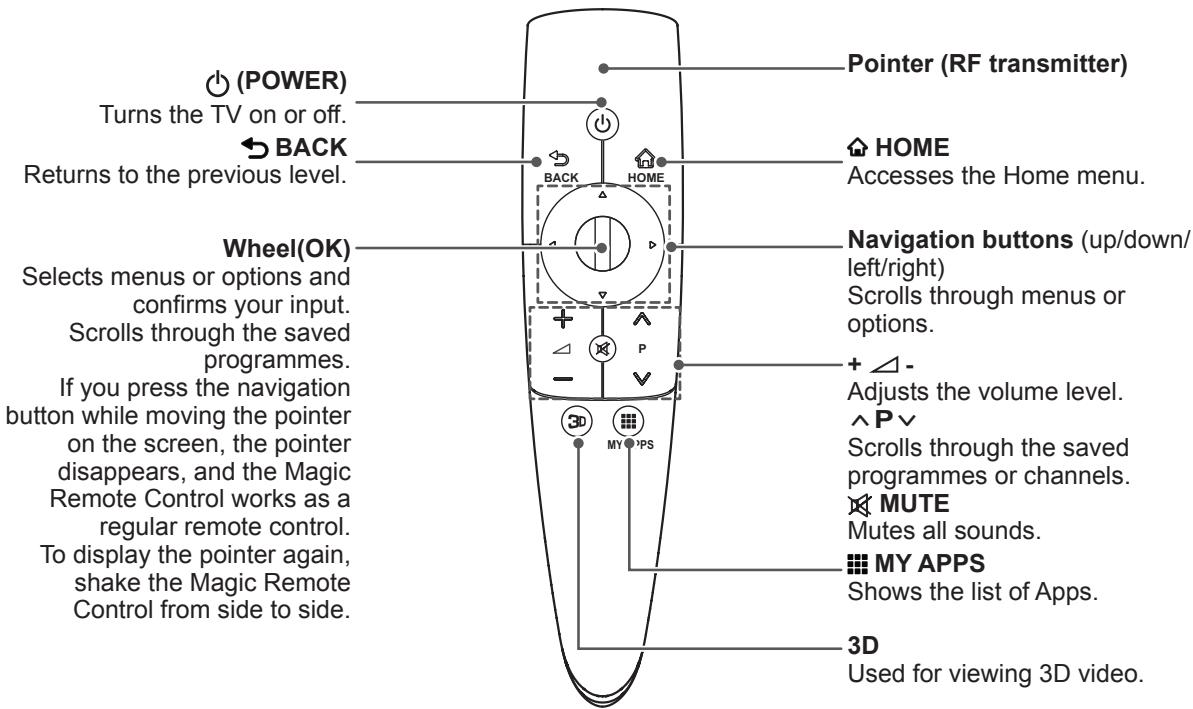

Magic Remote Control

Registering Magic Remote Control

How to use Magic Remote Control Precautions to Take when Using the Magic Remote Control

- Screen, frame, cabinet and stand

SPECIFICATIONS WARNING yy If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.

CAUTION yy If you ignore the caution message, you may be slightly injured or the product may be damaged.

NOTE yy The note helps you understand and use the product safely. Please read the note carefully before using the product.

LICENSES / OPEN SOURCE SOFTWARE NOTICE

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod. divx.com for more information on how to complete your registration. “DivX Certified® to play DivX® video up to HD 1080p, including premium content.” “DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.” “Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274” Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol & DTS and the Symbol together are registered trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

OPEN SOURCE SOFTWARE NOTICE To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com .

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the product.

ENGLISH ENG Licenses

SAFETY INSTRUCTIONS ENGLiSh

ENG SAFETy iNSTRUCTiONS Please read these safety precautions carefully before using the product.

y Do not place the TV and remote control in the following environments:

- A location exposed to direct sunlight - An area with high humidity such as a bathroom - Near any heat source such as stoves and other devices that produce heat - Near kitchen counters or humidifiers where they can easily be exposed to steam or oil - An area exposed to rain or wind - Near containers of water such as vases Otherwise, this may result in fire, electric shock, malfunction or product deformation. y Do not place the product where it might be exposed to dust. This may cause a fire hazard. y Mains plug is the disconnecting device. The plug must remain readily operable.

y Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off.

You may be electrocuted due to excess moisture. y Make sure to connect the power cable to the grounded current. (Except for devices which are not grounded.) You may be electrocuted or injured. y Fix the power cable completely. If the power cable is not fixed completely, a fire can break out. y Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard. y Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock. y Bend antenna cable between inside and outside building to prevent rain from flowing in. This may cause water damaged inside the Product and could give an electric shock. y When mounting a TV it on the wall, make sure not to install TV by hanging power and signal cables on the back of the TV. It may cause fire, electric shock.

y Do not drop the product or let it fall over when connecting external devices.

Otherwise, this may result in injury or damage to the product.

y Keep the packing anti-moisture material or vinyl packing out of the reach of children.

Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children. y Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury. y Dispose of used batteries carefully to protect a child from eating them. In case that it eats them, take it to see a doctor immediately. y Do not insert a conductor (like a metal chopstick) into one end of the power cable while the other end is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model) y Do not put or store inflammable substances near the product. There is a danger of explosion or fire due careless handling of the inflammable substances. y Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention. Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre. y Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur. y Do not allow a impact shock or any objects to fall into the product, and do not drop onto the screen with something. You may be injured or the product can be damaged. y Never touch this product or antenna during a thunder or lighting storm. You may be electrocuted. y Never touch the wall outlet when there is leakage of gas, open the windows and ventilate. It may cause a fire or a burn by a spark.

y Do not plug too many electrical devices into a single multiple electrical outlet.

Otherwise, this may result in fire due to over-heating.

SAFETY INSTRUCTIONS ENGLISH ENG Do not disassemble, repair or modify the product at your own discretion. yy

Fire or electric shock accident can occur. Contact the service center for check, calibration or repair. If any of the following occur, unplug the product immediately and contact your local yy service centre. --The product has been impacted by shock --The product has been damaged --Foreign objects have entered the product --The product produced smoke or a strange smell This may result in fire or electric shock. If you don’t intend to use the product for a long time, unplug the power cable from yy the product. Covering dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire. Apparatus shall not be exposed to dripping or splashing and no objects filled with yy liquids, such as vases, shall be placed on the apparatus.

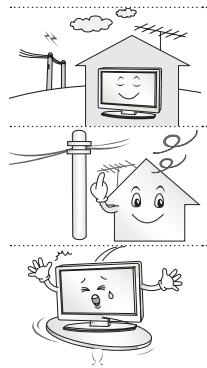

SAFETY INSTRUCTIONS Install the product where no radio wave occurs. yy

There should be enough distance between an outside antenna and power lines to yy keep the former from touching the latter even when the antenna falls.

This may cause an electric shock. Do not install the product on places such as unstable shelves or inclined surfaces. yy Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product. If you install the TV on a stand, you need to take actions to prevent the product yy from overturning. Otherwise, the product may fall over, which may cause injury. If you intend to mount the product to a wall, attach VESA standard mounting interface (optional yy parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop. Only use the attachments / accessories specified by the manufacturer. yy When installing the antenna, consult a qualified service man. yy This may create a fire hazard or an electric shock hazard.

We recommend that you maintain a distance of at least 5 to 7 times the diagonal yy screen size when watching TV.

If you watch TV for a long period of time, this may cause blurred vision. Only use the specified type of battery. yy This could cause damage to the remote control. Do not mix new batteries with old batteries. yy This may cause the batteries to overheat and leak. Make sure there are no objects between the remote control and its sensor. yy

Signal from the remote control may be disturbed by sun light or other strong light. yy

In this case, darken the room. When connecting external devices such as video game consoles, make sure the yy connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

SAFETY INSTRUCTIONS ENGLISH ENG Do not turn the product On/Off by plugging-in or unplugging the power plug to the yy wall outlet. (Do not use the power plug for switch.)

It may cause mechanical failure or could give an electric shock. Please follow the installation instructions below to prevent the product from yy overheating. --The distance between the product and the wall should be more than 10 cm. --Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard). --Do not install the product on a carpet or cushion. --Make sure the air vent is not blocked by a tablecloth or curtain. Otherwise, this may result in fire. Take care not to touch the ventilation openings when watching the TV for long yy periods as the ventilation openings may become hot. This does not affect the operation or performance of the product. Periodically examine the cord of your appliance, and if its appearance indicates damage or yy deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer. Prevent dust collecting on the power plug pins or outlet. yy This may cause a fire hazard. Protect the power cord from physical or mechanical abuse, such as being twisted, yy kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. Do not press strongly upon the panel with a hand or sharp object such as nail, yy pencil or pen, or make a scratch on it. Avoid touching the screen or holding your finger(s) against it for long periods of yy time. Doing so may produce some temporary distortion effects on the screen. When cleaning the product and its components, unplug the power first and wipe it yy with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage). As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power yy source even if you turn off this unit by SWITCH. When unplugging the cable, grab the plug and unplug it. yy If the wires inside the power cable are disconnected, this may cause fire. When moving the product, make sure you turn the power off first. Then, unplug the yy power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.

SAFETY INSTRUCTIONS Contact the service center once a year to clean the internal parts of the product. yy

Accumulated dust can cause mechanical failure. Refer all servicing to qualified service personnel. Servicing is required when the yy apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. If the product feels cold to the touch, there may be a small “flicker” when it is turned yy on. This is normal, there is nothing wrong with product. The panel is a high technology display product with resolution of two million to six yy million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund. You may find different brightness and color of the panel depending on your viewing yy position(left/right/top/down). This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video yy game) for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image sticking. The warranty does not cover the product for image sticking.

Avoid displaying a fixed image on your television’s screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma). Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel. This phenomenon also occurs in third-party products and is not subject to exchange or refund. Generated Sound yy “Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to tempera-ture and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product. This generated sound does not affect the performance and reliability of the product.

ENGLISH ENG When moving or unpacking the product, work in pairs because the product is yy heavy.

Otherwise, this may result in injury.

10 SAFETY INSTRUCTIONS ENGLISH ENG Viewing 3D Imaging (Only 3D models)

WARNING Viewing Environment yy Viewing Time

-- When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long period of time may cause headache, dizziness, fatigue or eye strain. Those that have a photosensitive seizure or chronic illness yy Some users may experience a seizure or other abnormal symptoms when they are exposed to a flashing light or particular pattern from 3D contents. yy Do not watch 3D videos if you feel nausea, are pregnant and/ or have a chronic illness such as epilepsy, cardiac disorder, or blood pressure disease, etc. yy 3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly. Double images or discomfort in viewing may be experienced. yy If you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than the average adult. yy If your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D contents. Symptoms which require discontinuation or refraining from watching 3D contents yy Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking. yy When these symptoms are experienced, stop using/watching 3D contents and get enough rest until the symptom subsides. -- Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain, dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.

Viewing Environment yy Viewing Distance

-- Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you feel discomfort in viewing 3D contents, move further away from the TV. Viewing Age yy Infants/Children -- Usage/ Viewing 3D contents for children under the age of 5 are prohibited. -- Children under the age of 10 may overreact and become overly excited because their vision is in development (for example: trying to touch the screen or trying to jump into it. Special monitoring and extra attention is required for children watching 3D contents. -- Children have greater binocular disparity of 3D presentations than adults because the distance between the eyes is shorter than that of adults. Therefore they will perceive more stereoscopic depth compared to adults for the same 3D image. yy Teenagers -- Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D contents. Advise them to refrain from watching 3D contens for a long time when they are tired. yy Elderly -- The elderly may perceive less 3D effect compared to the young. Do not sit closer to the TV than the recommended distance. Cautions when using the 3D glasses yy Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly. yy Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles. yy Using modified 3D glasses may cause eye strain or image distortion. yy Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation. yy The 3D glasses are fragile and are easily scratched. Always use a soft, clean piece of cloth when wiping the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals.

12 INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING ENGLISH ENG NOTE yy Image shown may differ from your TV. yy Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual. yy The available menus and options may differ from the input source or product model that you are using. yy New features may be added to this TV in the future. yy The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption. yy The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.

Installation Procedure

Open the package and make sure all the accessories are included.

Attach the stand to the TV set. Connect an external device to the TV set. Make sure the network connection is available. You can use the TV network functions only when the network connection is made.

ASSEMBLING AND PREPARING Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.

CAUTION yy Do not use any unapproved items to ensure the safety and product life span. yy Any damag or injuries caused by using unapproved items are not covered by the warranty. yy Some models have a thin film attached on to the screen and this must not be removed.

NOTE yy The items supplied with your product may vary depending on the model. yy Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions. yy For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV’s USB port.

B B A A ASSEMBLING AND PREPARING TV SAVING TV SAVING

3D CH P A G E MUTE FAV VOL MARK FAV VOL MARK CH

3D P A G E MENU INFO P Q.MENU MUTE MENU INFO Q.MENU ENTER BACK Remote control and batteries (AAA)

BACK Magic Remote Control,

Batteries (AA) (Only 60LM645*, 32/42/47/55LM66**, 42/47/55LM67**, 42/47/55LM76**) (See p. 23)

(Depending on model) Use this to remove dust from the cabinet.

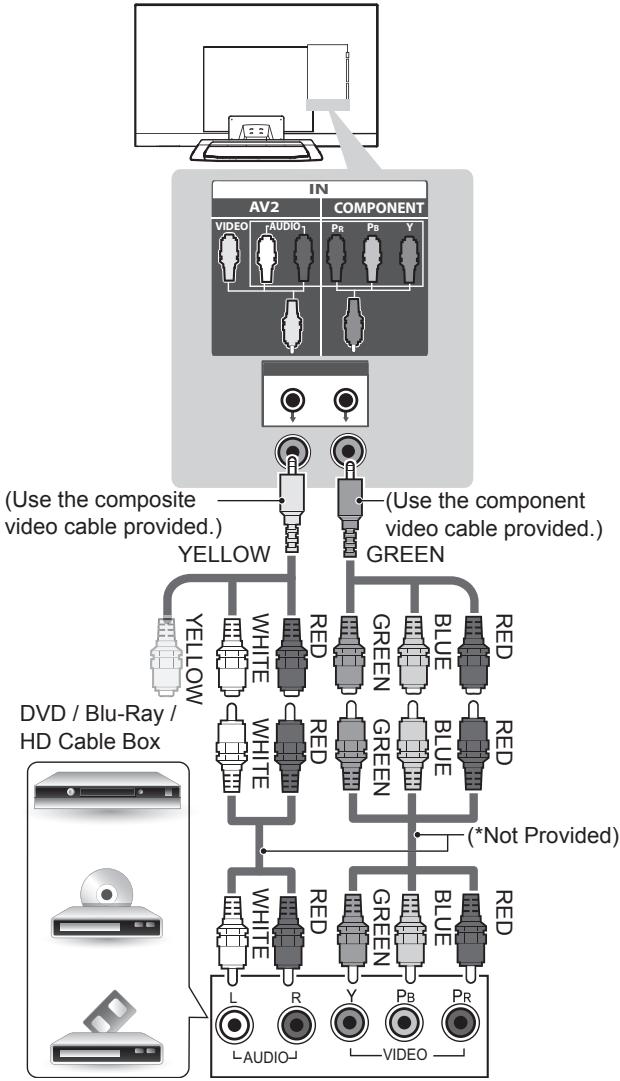

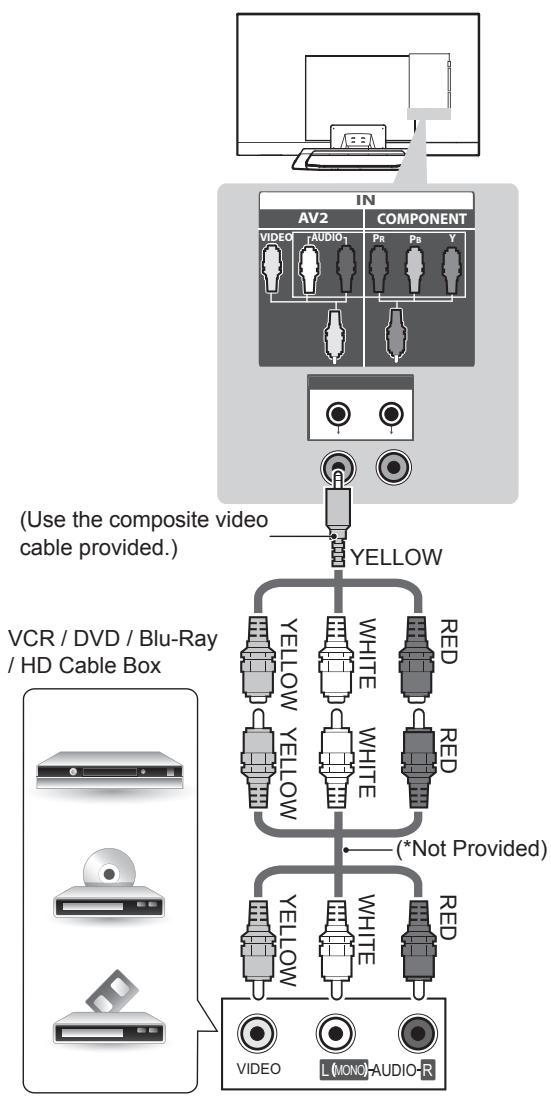

Component video cable

The number of 3D glasses may differ depending on the model or country. (Except 32/37/42LS57**)

(Only 42/47/55LM76**)

(Depending on model) (See p. A-6)

(Only 32/37/42LS57**, 32/37/42/47/55LM62**)

8EA, M4 x 20 (See p. A-3, A-4, A-5)

(1EA: Only 32/37/42LS57**, 32/42/47LM669*) (2EA: Only 32/37LM62**, 32LM660*) (See p. 18)

2EA (Only 32/37LM62**, 32LM660*) (See p. 18)

2EA, M4 x 8 (Only 32/37LM62**, 32LM660*) (See p. 18)

Wall mount inner spacers

4EA (Only 32/37/42LS57**, 32/37/42/47/55LM62**) (See p.20)

(Depending on model) (See p. 14)

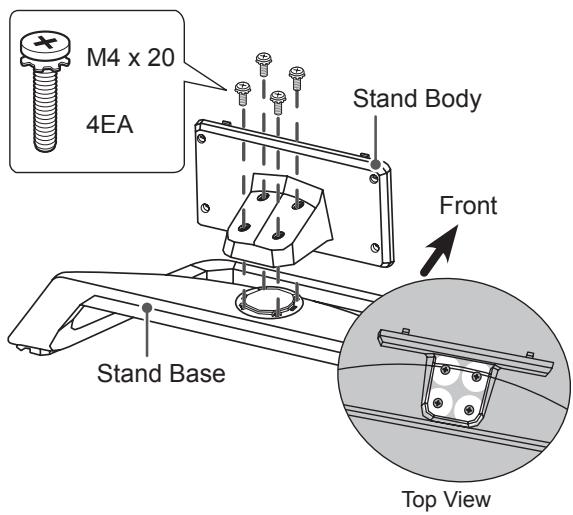

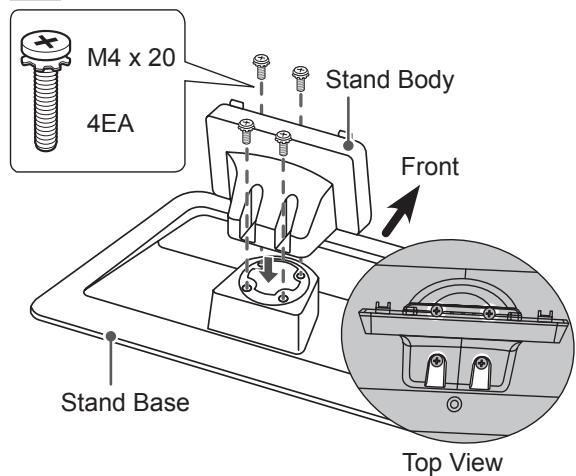

14 ASSEMBLING AND PREPARING ENGLISH ENG Stand Body / Stand Base

(Only 32/37/42LS57**, 65LM62**, 32/42/47LM669*) (See p. A-3, A-5)

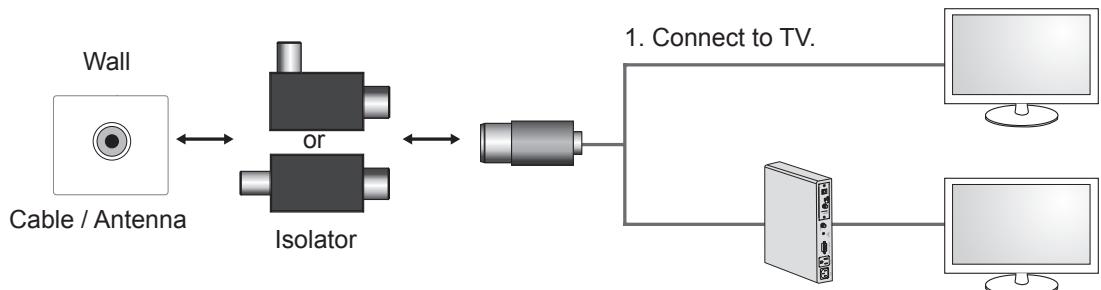

NOTE yy Antenna Isolator Installation Guide

-- Use this to install TV in a place where there is a voltage difference between TV Set and GND of antenna signal. »» If there is a voltage difference between TV Set and GND of antenna signal, the antenna contact might be heated and excessive heat might cause an accident. -- You can improve the safety when watching TV by efficiently removing power voltage from TV antenna. It is recommended to mount the isolator to the wall. If it cannot be mounted to the wall, mount it on the TV. Avoid disconnecting the antenna Isolator after installation. -- Before starting, be sure that the TV antenna is connected. 1. Connect to TV.

2. Connect to Set-Top box.

Connect one end of the isolator to cable/antenna jack and the other to TV set or set-top box.

“Equipment connected to the protective earthing of the building installation through the mains connection or through other equipment with a connection to protective earthing - and to a cable distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)”

When applying the RF Isolator, a slight loss of signal sensitivity can occur.

ASSEMBLING AND PREPARING

Separate purchase items can be changed or modified for quality improvement without any notification.

Contact your dealer to buy these items. These devices only work with certain models.

P AG-F2**DP, AG-F3**DP Dual play glasses

Magic Remote Control

Wireless LAN AG-F2**DP, AG-F3**DP Dual play glasses

Magic Remote Control

The model name or design may be changed depending on the upgrade of product functions, manufacturer’s circumstances or policies.

ENGLISH ENG Separate purchase

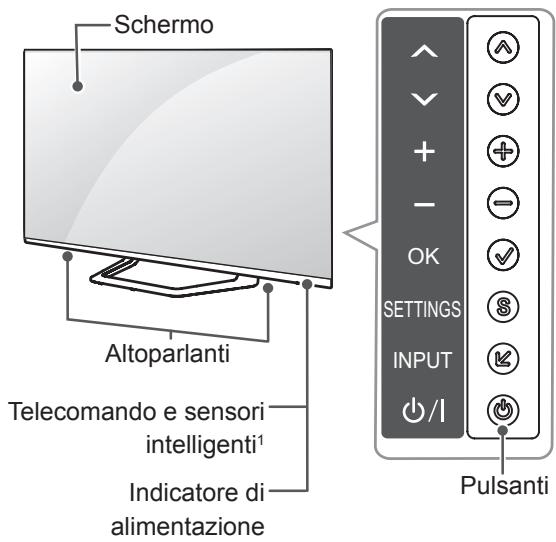

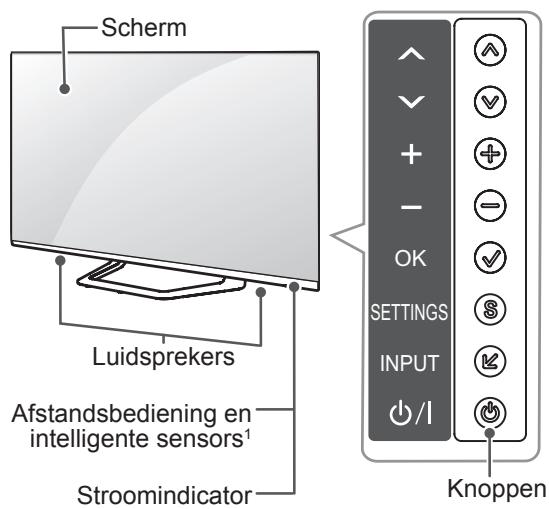

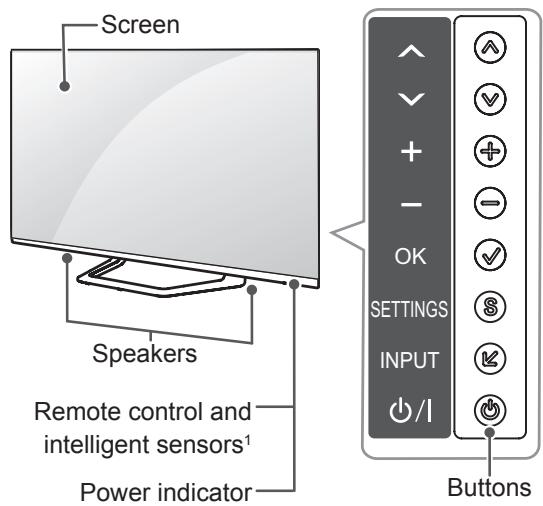

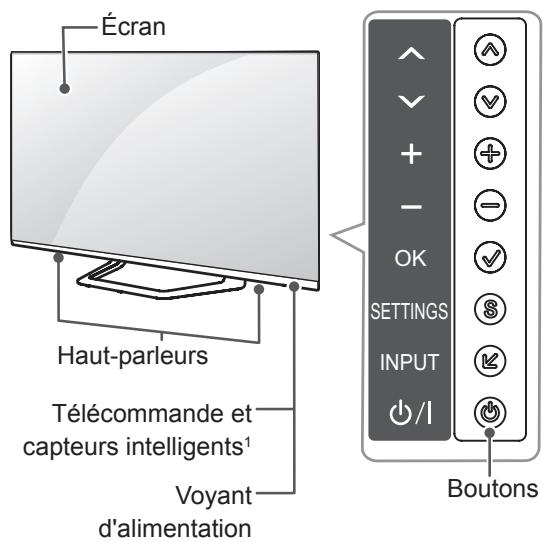

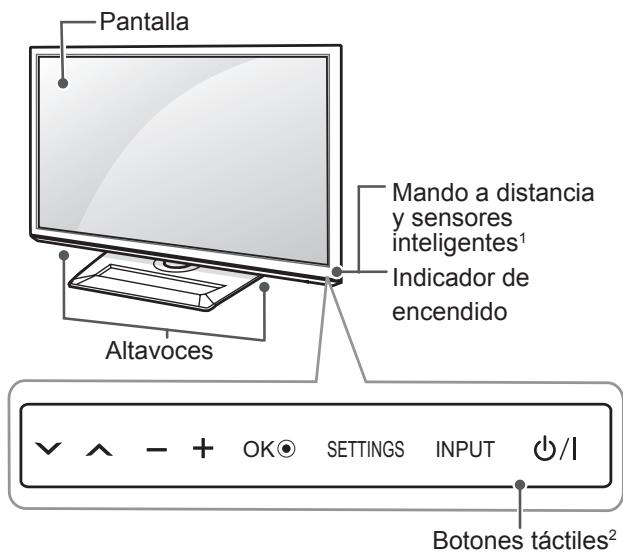

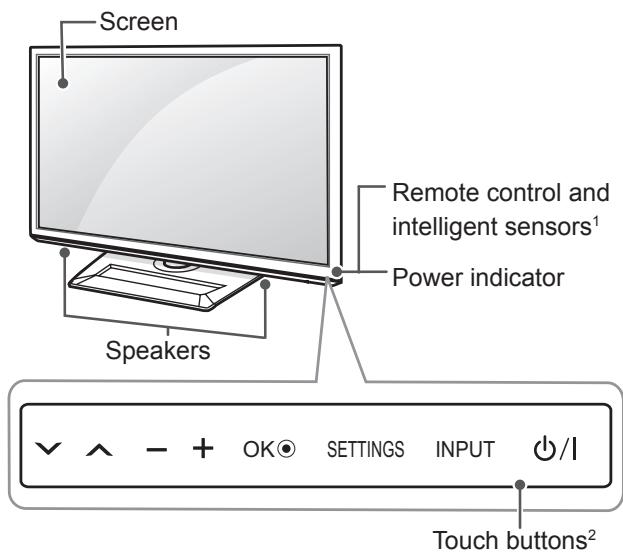

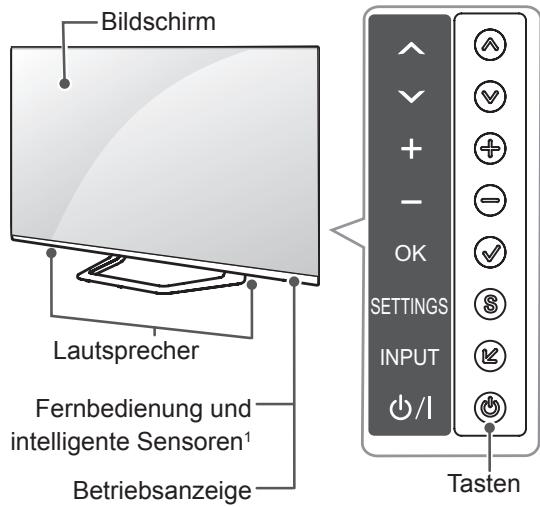

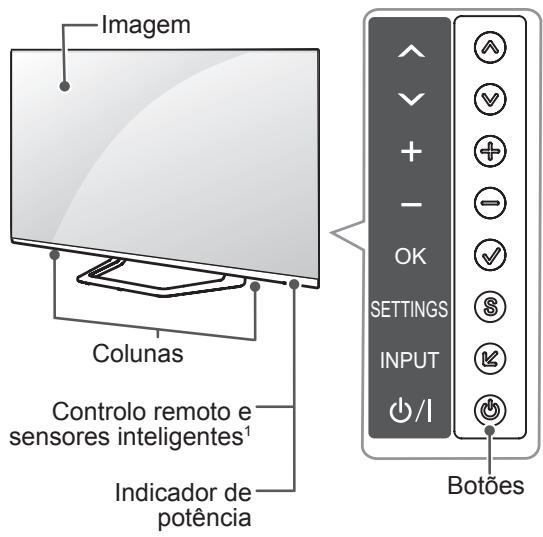

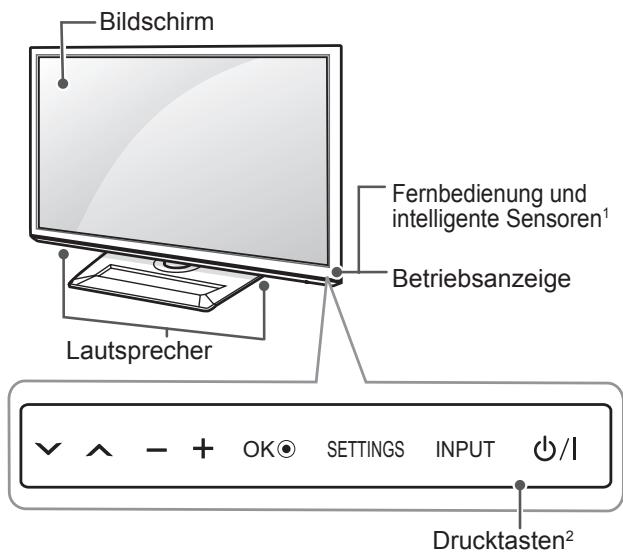

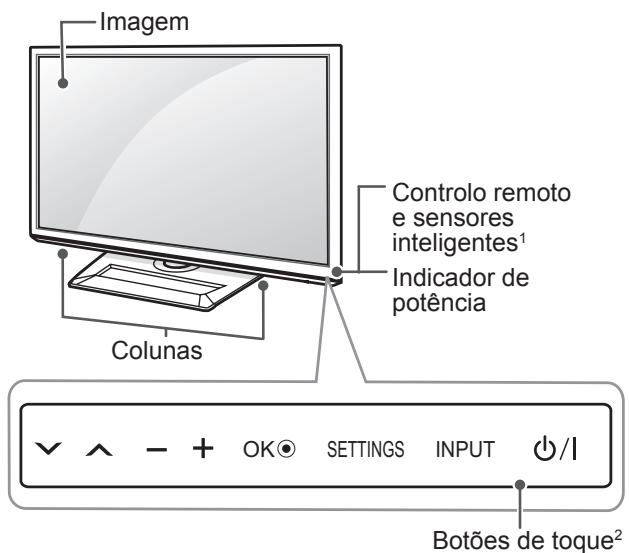

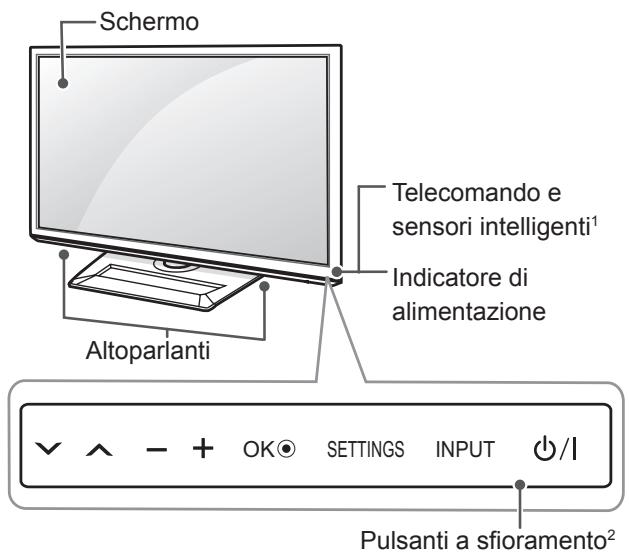

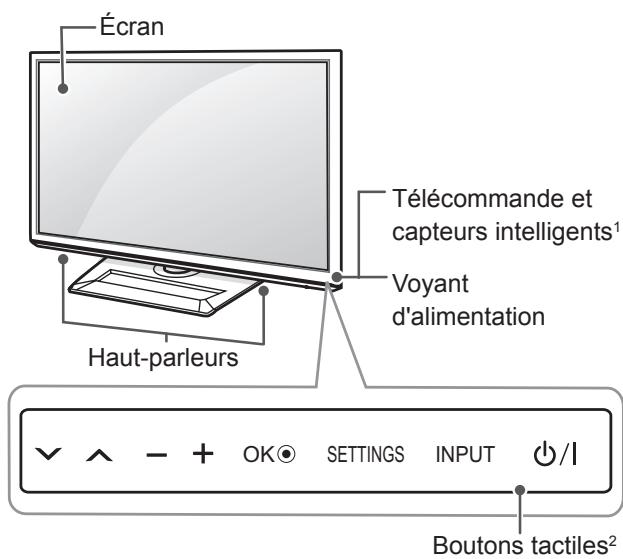

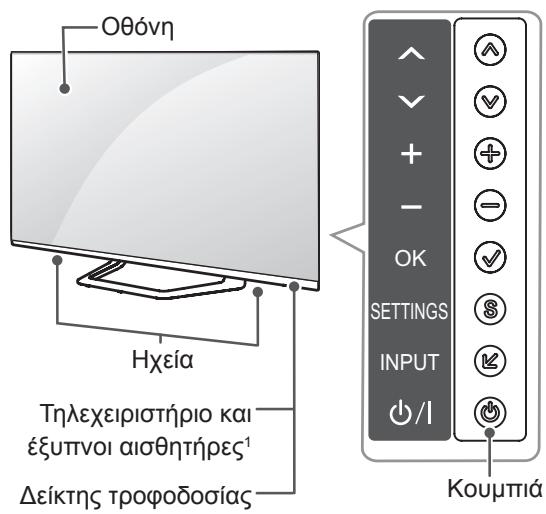

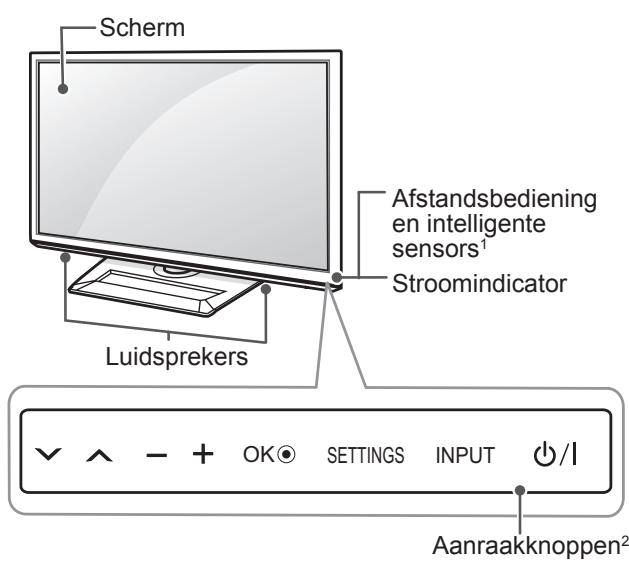

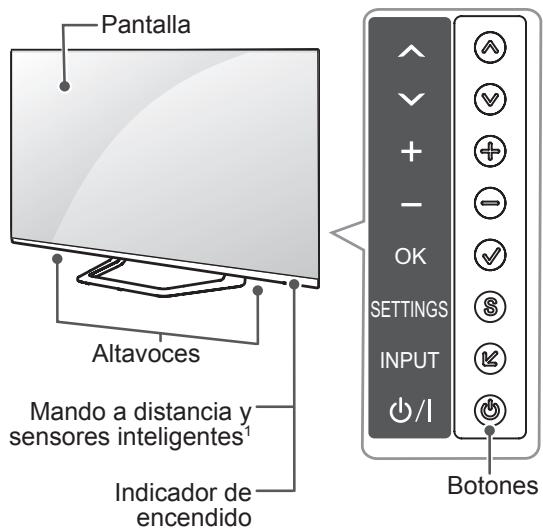

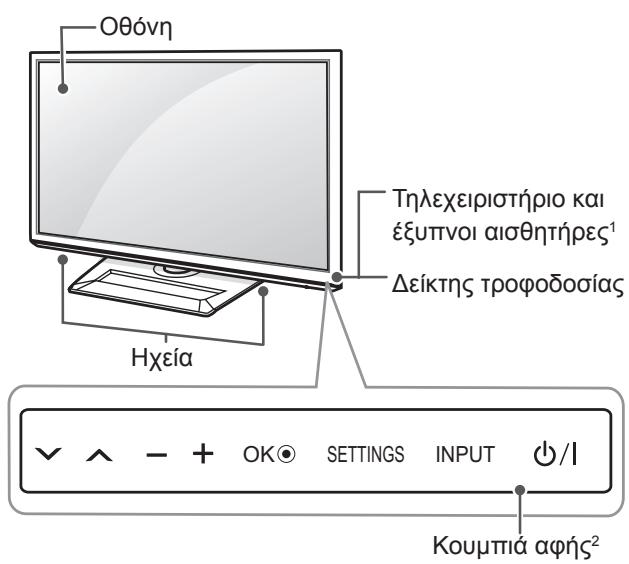

16 ASSEMBLING AND PREPARING ENGLISH ENG Remote control and intelligent sensors1

INPUT Remote control and intelligent sensors1

OK SETTINGS INPUT Buttons

B type Scrolls through the saved programmes.

Adjusts the volume level.

Selects the highlighted menu option or confirms an input.

SETTINGS Accesses the main menu, or saves your input and exits the menus.

INPUT Changes the input source.

/I Turns the power on or off.

Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.

B type buttons are touch sensitive and can be operated through simple touch with your finger.

NOTE yy You can set the power indicator light to on or off by selecting OPTION in the main menus.

ASSEMBLING AND PREPARING Please note the following advice to prevent the

TV from being scratched or damaged and for safe transportation regardless of its type and size.

yy When transporting a large TV, there should be at least 2 people. yy When transporting the TV by hand, hold the TV as shown in the following illustration.

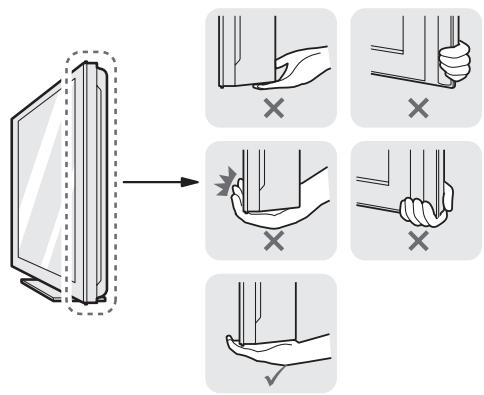

CAUTION yy Avoid touching the screen at all times, as this may result in damage to the screen. yy It is recommended to move the TV in the box or packing material that the TV originally came in. yy Before moving or lifting the TV, disconnect the power cord and all cables. yy When holding the TV, the screen should face away from you to avoid damage.

yy Hold the top and bottom of the TV frame firmly.

Make sure not to hold the transparent part, speaker, or speaker grill area.

yy When transporting the TV, do not expose the

TV to jolts or excessive vibration. yy When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right. yy Whenever you handle TV, Protection pad should be covered with side of TV. (Depending on model) Protection Pad

ENGLISH ENG Lifting and moving the TV

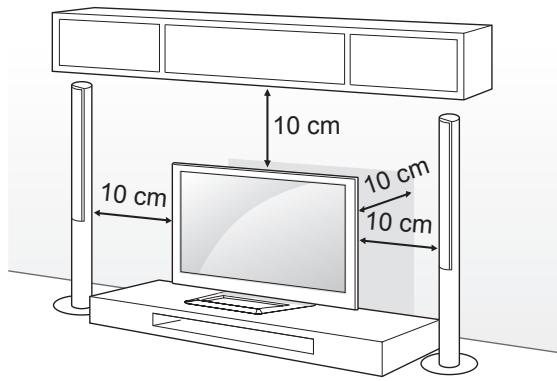

18 ASSEMBLING AND PREPARING ENGLISH ENG Mounting on a table

Lift and tilt the TV into its upright position on a table.

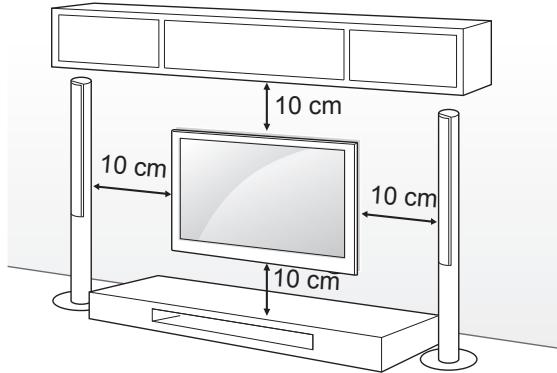

-- Leave a 10 cm (minimum) space from the wall for proper ventilation.

Securing the TV to a table

Fix the TV to a table to prevent from tilting forward, damage, and potential injury. To secure the TV to a table, insert and tighten the supplied screw on the rear of the stand. (Only 32/37/42LS57**, 32/42/47LM669*)

10 c 10 cm (Only 32/37LM62**, 32LM660*)

Connect the power cord to a wall outlet.

CAUTION yy Do not place the TV near or on sources of heat, as this may result in fire or other damage.

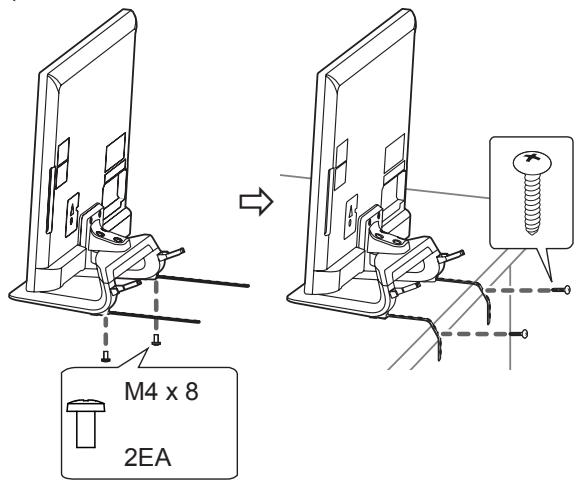

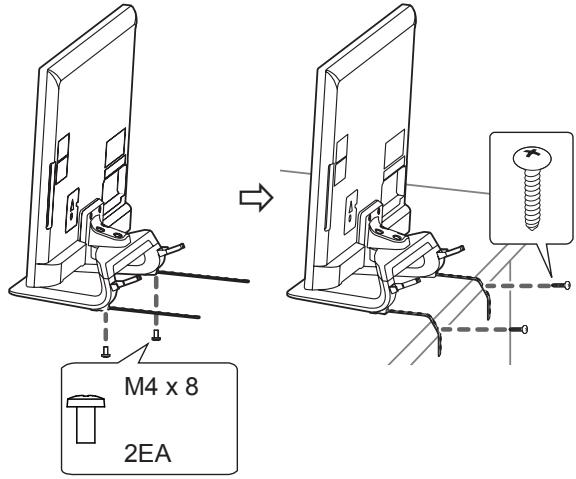

(Only 32/37LM62**, 32LM660*) How to fix the TV to a table 1. Connect the Desk-mount Cables to the Stand Base using the Bracket Screws. 2. Fix the Desk-mount Cables to a table using the Desk-mount Screws. 3. Once the TV is fixed, move the table close to the wall. Children may go in, causing injuries.

WARNING yy To prevent TV from falling over, the TV should be securely attached to the floor/ wall per installation instructions. Tipping, shaking, or rocking the TV may cause injury.

ASSEMBLING AND PREPARING

(This feature is not available for all models.)

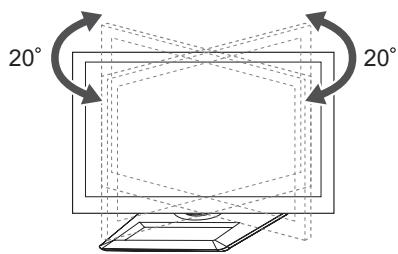

Adjusting the angle of the TV to suit view Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view. (Only 32/37/42LS57**, 65LM62**, 32/42/47LM669*) 20

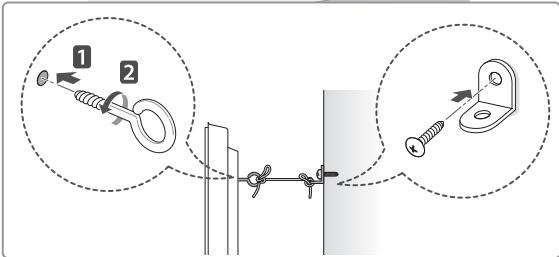

Securing the TV to a wall

(This feature is not available for all models.)

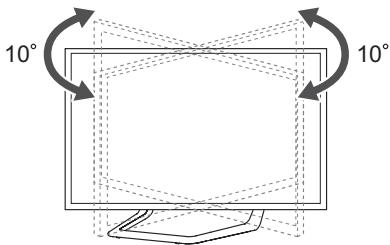

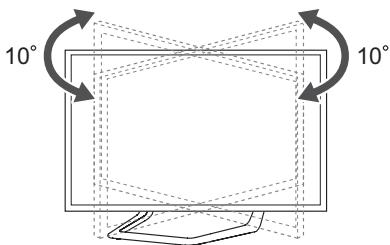

Swivel 10 degrees to the left or right and adjust the angle of the TV to suit your view.

(Only 32/37/42/47/55LM62**, 32/42/47/55/60LM64**, 32/42/47/55LM660*, 42/47/55LM67**, 42/47/55LM76**) 10

CAUTION When adjusting the angle of the product, watch out for your fingers.

»»Personal injury may occur if hands or fingers are pinched. If the product is tilted too much, it may fall, causing damage or injury. (Only 32/37/42/47/55LM62**, 32/42/47/55/60LM64**, 32/42/47/55LM660*, 42/47/55LM67**, 42/47/55LM76**)

Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.

-- If there are bolts inserted at the eye-bolts position, remove the bolts first. Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV. Connect the eye-bolts and wall brackets tightly with a sturdy rope. Make sure to keep the rope horizontal with the flat surface.

CAUTION yy Make sure that children do not climb on or hang on the TV.

NOTE yy Use a platform or cabinet that is strong and large enough to support the TV securely. yy Brackets, bolts and ropes are not provided.

You can obtain additional accessories from your local dealer.

ENGLISH ENG Adjusting the angle of the TV to suit view

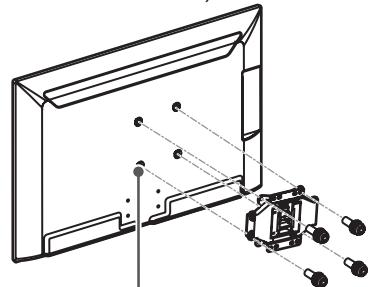

20 ASSEMBLING AND PREPARING ENGLISH ENG Mounting on a wall

CAUTION Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel.

LG recommends that wall mounting be performed by a qualified professional installer.

NOTE Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Separate purchase(Wall Mounting Bracket) Model

Standard screw Number of screws Wall mount bracket

VESA (A x B) Standard screw Number of screws Wall mount bracket

yy Disconnect the power first, and then move or install the TV. Otherwise electric shock may occur. yy If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury.

Use an authorised LG wall mount and contact the local dealer or qualified personnel. yy Do not over tighten the screws as this may cause damage to the TV and void your warranty. yy Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

yy Use the screws that are listed on the VESA standard screw specifications. yy The wall mount kit includes an installation manual and necessary parts. yy The wall mount bracket is not provided. You can obtain additional accessories from your local dealer. yy The length of screws may differ depending on the wall mount. Make sure to use the proper length. yy For more information, refer to the manual supplied with the wall mount. yy When attaching a third-party wall mounting bracket to the TV, insert the wall mount inner spacers into the TV wall mount holes to move your TV in vertical angle. Please make sure not to use the spacers for LG wall mounting bracket. (Only 32/37/42LS57**,

32/37/42/47/55LM62**)

Wall Mount Inner Spacer

(Depending on model) yy In order to protect the TV screen(scratch, fingerprint), put TV on flat table without removing wrapping bag. yy After removing the wrapping bag on the back of the TV, install TV according to manual included in wall mounting bracket product. yy Remove protection pads after installing TV.

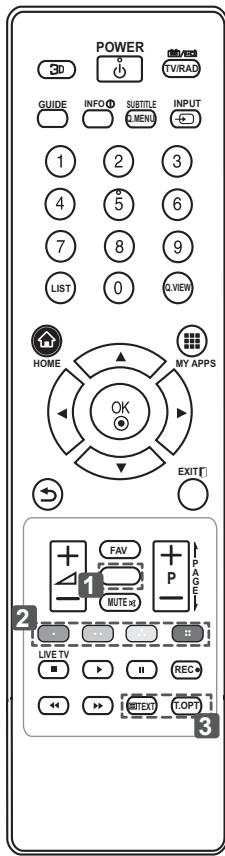

The descriptions in this manual are based on the buttons on the remote control.

Please read this manual carefully and use the TV correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse.

CAUTION yy Do not mix old and new batteries, as this may damage the remote control.

Make sure to point the remote control toward the remote control sensor on the TV. (Only LM669*) 3D Used for viewing 3D video.

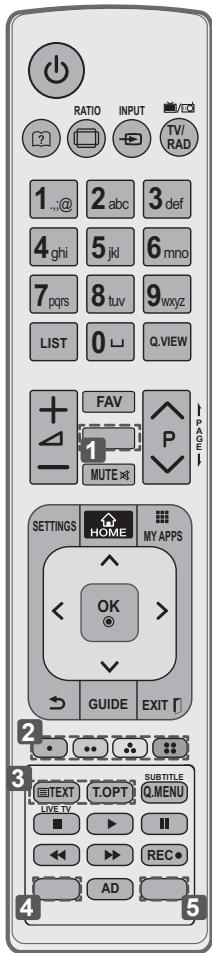

POWER TV/RAD TV/RAD Selects Radio, TV and DTV programme.

GUIDE Shows programme guide.

GUIDE INFO Views the information of the current programme and screen.

SUBTITLE Recalls your preferred subtitle in digital mode. Q. MENU Accesses the quick menus. INPUT Changes the input source. LIST Accesses the saved programme list. Q.VIEW Returns to the previously viewed programme. HOME Accesses the Home menus. MY APPS Shows the list of Apps. Navigation buttons (up/down/left/right) Scrolls through menus or options. OK Selects menus or options and confirms your input. (Back) Returns to the previous level.

INFO SUBTITLE Q.MENU INPUT

Select the MHP TV menu source. (Only Italy) (Depending on model)

Q.VIEW LIST HOME MY APPS

1 @ ORANGE Direct access to your internet portal of entertainment and news services developed by Orange. (Only France)

PAGE Moves to the previous or next screen.

EXIT FAV EXIT Clears on-screen displays and return to

TV viewing. FAV Accesses your favourite programme list.

These access special functions in some menus. ( : Red, : Green, : Yellow, : Blue) LIVE TV Return to LIVE TV. Control buttons ( ) Controls the Premium contents, DVR or Smart Share menus or the SIMPLINK compatible devices (USB or SIMPLINK or DVR). REC Uses to adjust DVR menu. 3 TELETEXT BUTTONS These buttons are used for teletext. For further details, see the ‘Teletext’ section.

ENGLISH ENG REMOTE CONTROL

22 REMOTE CONTROL ENGLISH ENG

(Only LS57**, LM62**, LM64**, LM660*, LM67**, LM76**)

(User Guide) Sees user-guide.

EXIT Clears on-screen displays and return to

RATIO Resizes an image.

RATIO INPUT Changes the input source.

TV/RAD Selects Radio, TV and DTV programme.

LIST Accesses the saved programme list.

Opens an empty space on the screen keyboard. Q.VIEW Returns to the previously viewed programme. FAV Accesses your favourite programme list. 1 3D Used for viewing 3D video. (Only LM62**, LM64**, LM66**, LM67**, LM76**) PAGE Moves to the previous or next screen. SETTINGS Accesses the main menus. HOME Accesses the Home menus. MY APPS Shows the list of Apps. Navigation buttons (up/down/left/right) Scrolls through menus or options. OK Selects menus or options and confirms your input. (Back) Returns to the previous level. GUIDE Shows programme guide.

These access special functions in some menus. ( : Red, : Green, : Yellow, : Blue)

MUTE SETTINGS MY APPS OK GUIDE EXIT T.OPT Q.MENU

SUBTITLE TEXT LIVE TV REC

3 TELETEXT BUTTONS These buttons are used for teletext.

For further details, see the ‘Teletext’ section. SUBTITLE Recalls your preferred subtitle in digital mode. Q. MENU Accesses the quick menus. LIVE TV Return to LIVE TV. Control buttons ( ) Controls the Premium contents, DVR or Smart Share menus or the SIMPLINK compatible devices (USB or SIMPLINK or DVR). REC Uses to adjust DVR menu. 4 ENERGY SAVING Adjusts the brightness of the screen to reduce energy consumption. (Only LS57**) INFO INFO Views the information of the current programme and screen. ( 1 : Only LS57**) ( 4 : Only LM62**, LM64**, LM66**, LM67**, LM76**) AD Switches the Audio Description On or Off.

Select the MHP TV menu source. (Only Italy) (Depending on model) 5 @ ORANGE Direct access to your internet portal of entertainment and news services developed by Orange. (Only France)

Magic Remote Control Functions

This item is not included for all models.

When the message “Magic Remote Control battery is low. Change the battery.” is displayed, replace the battery. To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching and ends to the label inside the compartment, and close the battery cover. Be sure to point the remote control toward the remote control sensor on the TV. To remove the batteries, perform the installation actions in reverse.

CAUTION yy Do not mix old and new batteries, as this may damage the remote control.

(Only 60LM645*, 32/42/47/55LM66**, 42/47/55LM67**, 42/47/55LM76**) Pointer (RF transmitter)

Turns the TV on or off. BACK Returns to the previous level.

BACK HOME HOME Accesses the Home menu.

Navigation buttons (up/down/ left/right) Scrolls through menus or options.

Selects menus or options and confirms your input. Scrolls through the saved programmes. If you press the navigation button while moving the pointer on the screen, the pointer disappears, and the Magic Remote Control works as a regular remote control. To display the pointer again, shake the Magic Remote Control from side to side.

Adjusts the volume level. ꕌPꕍ Scrolls through the saved programmes or channels. MUTE Mutes all sounds. MY APPS Shows the list of Apps. 3D Used for viewing 3D video.

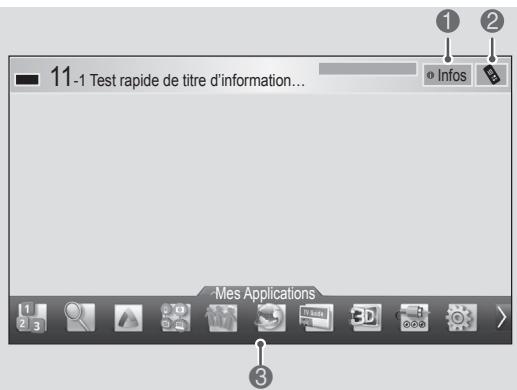

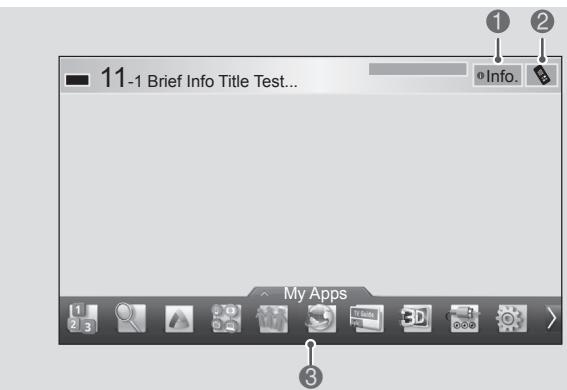

11-1 Brief Info Title Test...

If you press Wheel(OK) on the Magic Remote

Control, the following screen appears. Shows information about the current programme and screen. Pressing this button will display number keypad

2 which you can select programme number.

3 You can select My Apps Menu.

ENGLISH ENG Magic Remote Control Functions

24 Magic Remote Control Functions

ENGLISH ENG Registering Magic Remote

Control It is necessary to ‘pair’ (register) the magic remote control to your TV before it will work. BACKto register HOME How the Magic Remote Control

1 To register automatically, turn the TV on and press the

Wheel(OK) button. When registration is completed, the completion message appears on the screen. 2 If registration fails, turn the TV off and back on, then press the Wheel(OK) button to complete registration.

How to re-register the Magic Remote Control

1 Press and hold the BACK and HOME buttons together for 5 seconds to reset, then register it by following “How to register the Magic Remote

Control” above. 2 To re-register the Magic Remote Control, press and hold the BACK button for 5 seconds toward the TV. When registration is completed, the completion message appears on the screen.

How to use Magic Remote

Control 1 If the pointer disappears, move the Magic Remote Control slightly to left or right. Then, it will automatically appear on the screen. »»If the pointer has not been used for a certain period of time, it will disappear. 2 You can move the pointer by aiming the Pointer Receiver of the Magic Remote Control at your TV then move it left, right, up or down. »»If the pointer does not work properly, leave the Magic Remote Control for 10 seconds then use it again.

Precautions to Take when

Using the Magic Remote Control Use the Magic Remote Control within the yy maximum communication distance (10 m). Using the Magic Remote Control beyond this distance, or with an object obstructing it, may cause a communication failure. A communication failure may occur due to yy nearby devices. Electrical devices such as a microwave oven or wireless LAN product may cause interference, as these use the same bandwidth (2.4 GHz) as the Magic Remote Control. The Magic Remote Control may be damaged yy or may malfunction if it is dropped or receives a heavy impact. Take care not to bump into nearby furniture yy or other people when using the Magic Remote Control. Manufacturer and installer cannot provide yy service related to human safety as the applicable wireless device has possibility of electric wave interference. It is recommended that an Access Point (AP) yy be located more than 1 m away from the TV. If the AP is installed closer than 1 m, the Magic Remote Control may not perform as expected due to frequency interference.

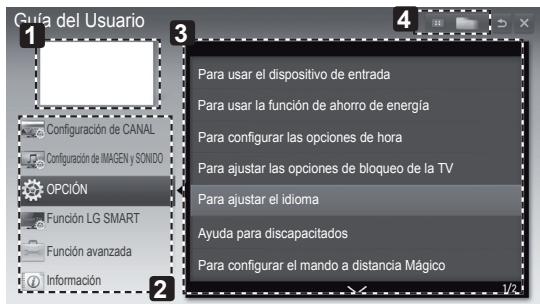

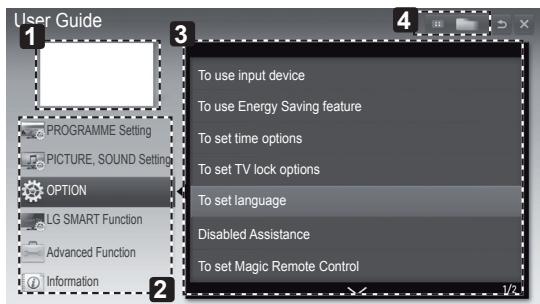

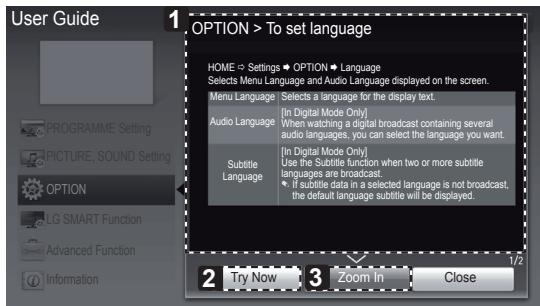

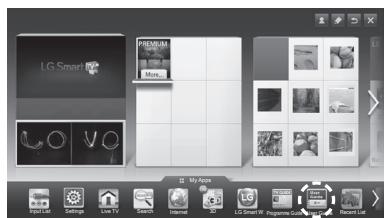

Using the User guide

User Guide allows you to more easily access the detailed TV information. Press the HOME button to access the HOME menu. Select User Guide and press Wheel(OK).

OPTION > To set language

HOME  Settings  OPTION  Language Selects Menu Language and Audio Language displayed on the screen. Menu Language Selects a language for the display text.

[In Digital Mode Only]

Audio Language When watching a digital broadcast containing several audio languages, you can select the language you want.

PICTURE, SOUND Setting

[In Digital Mode Only]

Use the Subtitle function when two or more subtitle languages are broadcast. ✎ If subtitle data in a selected language is not broadcast, the default language subtitle will be displayed.

 yy You can also access the User Guide by pressing (User Guide) in the remote control.

To use Energy Saving feature To set time options

PICTURE, SOUND Setting

OPTION Disabled Assistance

To set TV lock options

Menu Language Selects a language for the display text.

[In Digital Mode Only] Audio Language When watching a digital broadcast containing several audio languages, you can select the language you want. [In Digital Mode Only] Use the Subtitle function when two or more subtitle Subtitle languages are broadcast. Language ✎ If subtitle data in a selected language is not broadcast, the default language subtitle will be displayed.

To set Magic Remote Control

Shows the current watching programme or input source screen.

Allows to select the category you want.

Allows to select the item you want.

You can use ꕌ/ꕍto move between pages.

Allows to browse the description of the function you want from the index.

Shows the description of the selected menu.

You can use ꕌ/ꕍto move between pages.

Moves to the selected menu directly from the

Zooms in or out the screen.

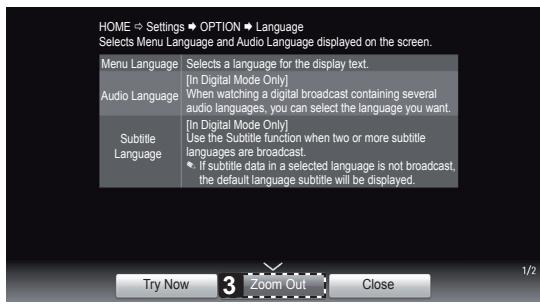

HOME  Settings  OPTION  Language

Selects Menu Language and Audio Language displayed on the screen.

MAINTENANCE Cleaning your TV Clean your TV regularly to keep the best performance and to extend the product lifespan.

CAUTION yy Make sure to turn the power off and disconnect the power cord and all other cables first. yy When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen, frame, cabinet and stand yy To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth. yy To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth.

CAUTION yy Avoid touching the screen at all times, as this may result in damage to the screen. yy Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches and image distortions. yy Do not use any chemicals as this may damage the product. yy Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.

Remove the accumulated dust or dirt on the power cord regularly.

TROUBLESHOOTING Problem

Cannot control the TV with the remote control.

yy Check the remote control sensor on the product and try again. yy Check if there is any obstacle between the product and the remote control. to , to ). yy Check if the batteries are still working and properly installed (

No image display and no sound is produced.

yy Check if the product is turned on. yy Check if the power cord is connected to a wall outlet. yy Check if there is a problem in the wall outlet by connecting other products.

The TV turns off suddenly.

yy Check the power control settings. The power supply may be interrupted. yy Check if the Auto sleep feature is activated in the Time settings. yy If there is no signal while the TV is on, the TV will turn off automatically after

15 minutes of inactivity.

When connecting to the PC (RGB/

HDMI DVI), ‘No signal’ or ‘Invalid Format’ is displayed.

yy Turn the TV off/on using the remote control. yy Reconnect the RGB/HDMI cable. yy Restart the PC with the TV on.

SPECIFICATIONS Product specifications may be changed without prior notice due to upgrade of product functions.

(Only 60LM645*, 32/42/47/55LM66**, 42/47/55LM67**, 42/47/55LM76**) Wireless LAN module(TWFM-B003D) specification Standard

(Typical) Occupied bandwidth

Because band channel used by the country could be different, the user can not change or adjust the yy operating frequency and this product is set for the regional frequency table.

Bluetooth module (BM-LDS302) specification

Standard Frequency Range Output Power (Max.) Data rate (Max.) Communication Distance

Bluetooth Version 3.0

2400 ~ 2483.5 MHz 10 dBm or lower 3 Mbps Line of Open Sight approx. 10 m

ENGLISH ENG SPECIFICATIONS

BENUTZERHANDBUCH LED-LCD-TV AN-WF100

LSW200BXG Boutons tactiles2

LSW200BXG Distance de communication

(Solo 42/47/55LM76**)

Wireless LAN AG-F2**DP, AG-F3**DP Occhiali Dual play

AG-F2**DP, AG-F3**DP Occhiali Dual play

M6 4 LSW200BX, LSW200BXG

32LS570T-ZA 32LS570S-ZB 32LS570T-ZB

37LS570T-ZA 37LS570S-ZB 37LS570T-ZB

42LS570T-ZA 42LS570S-ZB

42LS570T-ZB Dimensioni

37LM620T-ZE Dimensioni

65LM620T-ZB MODELLI Dimensioni

32LM669T-ZC Dimensioni

47LM669T-ZC MODELLI Dimensioni

PAL/SECAM B/G/I/D/K SECAM L/L’

LSW200BXG MANUAL DE INSTRUÇÕES TV LCD LED AN-MR300

Controlo remoto Magic

Controlo remoto Magic

M6 4 LSW200BX, LSW200BXG

M6 4 LSW200BX, LSW200BXG

LSW200BXG MAKING CONNECTIONS B-1

MAKING CONNECTIONS This section on MAKING CONNECTIONS mainly uses diagrams for the LM76** models.

Connect the TV to a wall antenna socket with an RF cable (75 Ω).

NOTE yy Use a signal splitter to use more than 2 TVs. yy If the image quality is poor, install a signal amplifier properly to improve the image quality. yy If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction. yy An antenna cable and converter are not supplied.

Deutsch Schließen Sie das TV-Gerät mit einem RF-Kabel (75 Ω) an eine Wandantennenbuchse an.

B-2 MAKING CONNECTIONS Satellite dish connection

(Only satellite models)

MAKING CONNECTIONS B-3

Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown. Choose any HDMI input port to connect. It does not matter which port you use.

NOTE yy It is recommended to use the TV with the

HDMI connection for the best image quality. yy Use the latest High Speed HDMI™ Cable with CEC (Customer Electronics Control) function. yy High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher. yy Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC yy Supported HDMI Audio format : Dolby Digital, PCM (Up to 192 KHz, 32k/44.1k/48k /88k/96k/176k/192k, DTS Not supported.)

B-4 MAKING CONNECTIONS MAKING CONNECTIONS B-5

B-6 MAKING CONNECTIONS

DVI to HDMI connection

Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the DVI-HDMI cable as shown. To transmit an audio signal, connect an audio cable.

NOTE yy Depending on the graphics card, DOS mode may not work if a HDMI to DVI Cable is in use. yy It is recommended to connect the DVI-HDMI to

MAKING CONNECTIONS B-7

B-8 MAKING CONNECTIONS RGB-PC connection

RGB RGB OUT (PC) AUDIO OUT PC MAKING CONNECTIONS B-9

(Use the composite video cable provided.)

YELLOW GREEN BLUE RED GREEN BLUE RED RED WHITE RED WHITE YELLOW

(Use the component video cable provided.)

RED BLUE GREEN RED WHITE L R AUDIO VIDEO English

Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with a component cable as shown.

NOTE yy If cables are installed incorrectly, it could cause the image to display in black and white or with distorted colour.

B-10MAKING CONNECTIONS

(Use the composite video cable provided.)

RED WHITE YELLOW YELLOW VCR / DVD / Blu-Ray

RED WHITE YELLOW VIDEO L (MONO) AUDIO R B-12MAKING CONNECTIONS Audio connection

OPTICAL DIGITAL AUDIO Digital Audio System

You may use an optional external audio system instead of the built-in speaker.

NOTE yy If you use an optional external audio device instead of the built-in speaker, set the TV speaker feature to off.

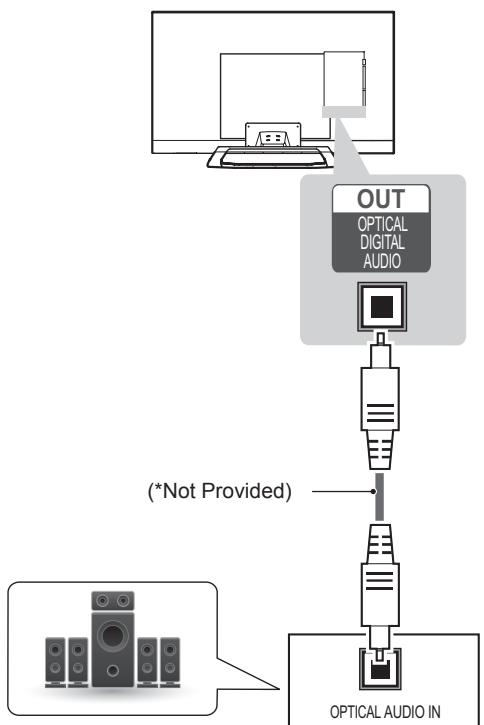

Digital optical audio connection

Transmits a digital audio signal from the TV to an external device. Connect the external device and the TV with the optical audio cable as shown.

NOTE yy Do not look into the optical output port.

Looking at the laser beam may damage your vision. yy Audio with ACP (Audio Copy Protection) function may block digital audio output.

B-14MAKING CONNECTIONS USB connection

Connect a USB storage device such as a USB flash memory, external hard drive, or a USB memory card reader to the TV and access the Smart Share menu to use various multimedia files.

NOTE yy To use a USB Hub device, make sure that it is connected to the USB IN 2 USB Hub port. yy Some USB Hubs may not work. If a USB device connected using a USB Hub is not detected, connect it to the USB port on the

MAKING CONNECTIONSB-15

B-16MAKING CONNECTIONS B-18MAKING CONNECTIONS English

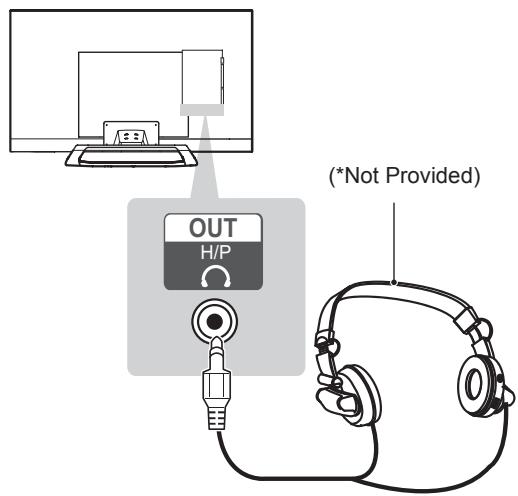

Transmits the headphone signal from the TV to an external device. Connect the external device and the TV with the headphone as shown on the following illustration.

NOTE AUDIO menu items are disabled when yy connecting a headphone.

When changing AV MODE with a headphone yy connected, the change is applied to video but not to audio. Optical Digital Audio Out is not available yy when connecting a headphone. Headphone impedance: 16 Ω yy Max audio output of headphone: 10 mW to yy 15 mW Headphone jack size: 0.35 cm yy

MAKING CONNECTIONSB-19

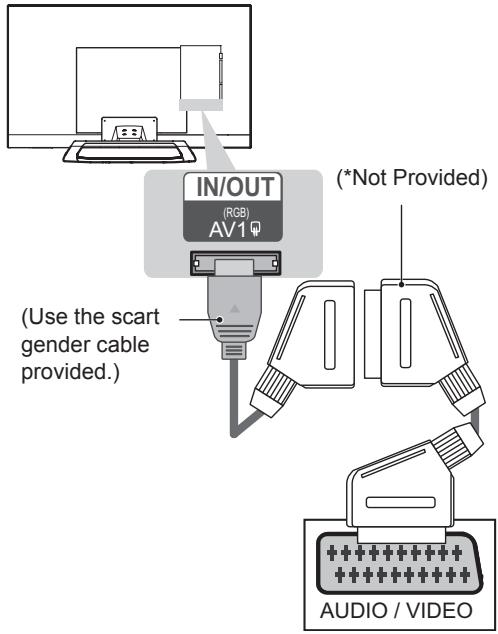

B-20MAKING CONNECTIONS Euro Scart connection

(Use the scart gender cable provided.)

Transmits the video and audio signals from an external device to the TV set. Connect the external device and the TV set with the euro scart cable as shown. To display images by using progressive scan, make sure to use the euro scart cable. Output Type

(When DTV scheduled recording is in progress using recording equipment.)

Digital TV O Analogue TV O

(The input mode is converted to DTV.)

TV Out : Outputs Analogue TV or Digital TV signals.

NOTE yy Any Euro scart cable used must be signal shielded. yy When watching digital TV in 3D imaging mode, TV out signals cannot be output through the SCART cable. (Only 3D models) yy If you set the 3D mode to On while a scheduled recording is performed on digital

TV, monitor out signals cannot be output through the SCART cable, and the recording cannot be performed. (Only 3D models)

B-22MAKING CONNECTIONS Italiano

B-24MAKING CONNECTIONS Nederlands

Connect various external devices to the TV and switch input modes to select an external device. For more information of external device’s connection, refer to the manual provided with each device. Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

NOTE yy The external device connection may differ from the model. yy Connect external devices to the TV regardless of the order of the TV port. yy If you record a TV program on a DVD recorder or VCR, make sure to connect the

TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device. yy Refer to the external equipment’s manual for operating instructions. yy If you connect a gaming device to the TV, use the cable supplied with the gaming device. yy In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear. yy In PC mode, some resolution settings may not work properly depending on the graphics card.

B-26MAKING CONNECTIONS B-28MAKING CONNECTIONS SPECIFICATIONS Product specifications may be changed without prior notice due to upgrade of product functions.

32LS570T-ZA 32LS570S-ZB 32LS570T-ZB

37LS570T-ZA 37LS570S-ZB 37LS570T-ZB

42LS570T-ZA 42LS570S-ZB 42LS570T-ZB

746.0 x 527.0 x 204.0

856.0 x 590.0 x 204.0

979.0 x 660.0 x 269.0

856.0 x 524.0 x 35.5

979.0 x 594.0 x 35.5

37LM620T-ZE Without stand(mm) 746.0 x 462.0 x 35.5

10.0 With stand (kg) Without stand (kg)

Power consumption MODELS Dimensions (W x H x D)

65LM620T-ZB Dimensions

47LM669T-ZC MODELS Dimensions

953.0 x 627.0 x 269.0

Without stand(mm) 953.0 x 566.0 x 33.4

15.1 With stand (kg) Without stand (kg)

55LM660T-ZA With stand (mm)

1232.0 x 795.0 x 331.0

Without stand(mm) 1232.0 x 723.0 x 33.6

25.0 With stand (kg) Without stand (kg)

AC 100-240 V~ 50 / 60

120 W MODELS Dimensions

Environment condition

100.0 mm x 55.0 mm x 5.0 mm

Operating Temperature

0 °C to 40 °C Operating Humidity

-20 °C to 60 °C Storage Humidity

Satellite Digital TV1 Digital TV2

VHF, UHF C-Band, Ku-Band

VHF, UHF Maximum number of storable programmes

External antenna impedance 75 Ω

Only satellite models

Only DVB-T2 support models

Digital TV Analogue TV DVB-T DVB-C PAL/SECAM B/G/I/D/K SECAM L/L’

VHF: E2 to E12, UHF : E21 to E69, CATV: S1 to S20, HYPER: S21 to S47

Component port connecting information

Component ports on the

TV Y PB PR Video output ports on DVD player

(50 Hz / 60 Hz only)

Video, which is input as below media contents is switched into the 3D screen automatically. yy The method for 3D digital broadcast may differ depending on the signal environment. If video is not yy switched automatically into 3D, manually convert the settings to view 3D images. 3D supported mode automatically Input

Side by Side(Half), Side by Side(Full) Frame Packing, Line Alternative Top & Bottom, Side by Side(Half), Side by Side(Full) Frame Packing, Line Alternative Top & Bottom, Side by Side(Half), Side by Side(Full) Frame Packing, Line Alternative Top & Bottom, Side by Side(Half), Side by Side(Full) Frame Packing, Line Alternative Top & Bottom, Side by Side(Half), Side by Side(Full) Frame Packing, Line Alternative Top & Bottom, Side by Side(Half), Side by Side(Full)

Frame Packing, Line Alternative

Top & Bottom, Side by Side(Half)

Side by Side(Half), Top & Bottom,

Checker Board, MPO(Photo) Side by Side(Half), Top & Bottom, Checker Board Playable 3D video format

Side by Side(Half), Top & Bottom

DTV For models supporting WiDi, you can set the 3D mode in the same way as in RGB (PC) mode. yy

3D supported mode manually Input

HDMI-PC RGB-PC Horizontal

Vertical Frequency (kHz) Frequency (Hz) 37.50

720p 1080i Component 1080p

Playable 3D video format

2D to 3D, Side by Side(Half), Top & Bottom, Single Frame Sequential 2D to 3D, Side by Side(Half), Top & Bottom 2D to 3D, Side by Side(Half), Top & Bottom, Checker Board 2D to 3D, Side by Side(Half), Top & Bottom, Checker Board, Single Frame Sequential, Row Interleaving, Column Interleaving 2D to 3D, Side by Side(Half), Top & Bottom

2D to 3D, Side by Side(Half), Top & Bottom,

Checker Board, Single Frame Sequential, Row Interleaving, Column Interleaving

2D to 3D, Side by Side(Half), Top & Bottom

2D to 3D, Side by Side(Half), Top & Bottom

2D to 3D, Side by Side(Half),Top & Bottom,

Checker Board, Row Interleaving, Column Interleaving(Photo : Side by Side(Half), Top & Bottom)

2D to 3D, Side by Side(Half), Top & Bottom

2D to 3D Please contact LG First.

If you have any inquiries or comments, please contact LG customer information centre.

Customer Information Centre

Record the model number and serial number of the TV.

Refer to the label on the back cover and quote this information to your dealer when requiring any service.

MODEL SERIAL Trade Mark of the DVB Digital

Video Broadcasting Project (1991 to 1996)

0900 543 5454 801 54 54 54
