ENERMAX REVOLUTION87+ Series Power Supply Specification

	ERV550AWT-G		ERV650AWT-G		ERV750AWT-G		ERV850EWT-G		ERV1000EWT-G
AC Input Voltage	100-240VAC, 50-60Hz								115-240VAC, 50-60Hz
AC Input Current	7.5 - 3A		8.5 - 3.5A		9 - 4.5A		11 - 5A		11 - 5A
DC OUTPUT
	Rated	Combined	Rated	Combined	Rated	Combined	Rated	Combined	Rated	Combined
3.3V	0-24A	120W	0-24A	120W	0-24A	120W	0-24A	120W	0-24A	120W
5V	0-24A		0-24A		0-24A		0-24A		0-24A
12V1	0-25A	540W (45A)	0-25A	648W (54A)	0-25A	744W (62A)	0-30A	840W (70A)	0-30A	996W (83A)
12V2	0-25A		0-25A		0-25A		0-30A		0-30A
12V3	0-25A		0-25A		0-25A		0-30A		0-30A
12V4	-	-	-	-	0-25A		0-30A		0-30A
-12V	0-0.5A	6W	0-0.5A	6W	0-0.5A	6W	0-0.5A	6W	0-0.5A	6W
5Vsb	0-3A	15W	0-3A	15W	0-3A	15W	0-3A	15W	0-3A	15W
Total Power	550W		650W		750W		850W		1000W
Peak Power*	605W		715W		825W		935W		1100W
PROTECTION CIRCUIT
Over Current Protection	DC Rail		OCP trigger range
	3.3V		30 - 40A
	5V		30 - 40A
	12V		30 - 40A (ERV550AWT-G / ERV650AWT-G) 35 - 45A (ERV750AWT-G / ERV850EWT-G / ERV1000EWT-G)
Over Voltage Protection	DC Rail		OVP trigger range
	3.3V		3.7 - 4.1V
	5V		5.7 - 6.5V
	12V		13.1 - 14.5V
(DC)Under Voltage Protection	DC Rail		UVP trigger range
	3.3V		2.0 - 2.4V
	5V		3.3 - 3.7V
	12V		8.5 - 9.5V
Over Power Protection	Activated when output power > 120 ~ 150% of rated max load.
Over Temperature Protection	Activated when PSU heat sink > 90 ~ 120°C.
Short Circuit Protection	Activated when any DC rails short-circuited.
ENVIRONMENT
Temperature	Operation ambient: 0~50°C (for full rated output) Storage: ambient: -40~70°C
Humidity	Operation: to 85% relative humidity, non-condensing Storage: to 95% relative humidity, non-condensing
OTHERS
Cooling	One 13.9cm twist bearing fan, speed auto controlled.
MTBF	> 100,000 hours at 70% of full rated load, 230VAC/50Hz, 25°C (MIL-HDBK-217F standard)
Dimension	150(w) x 86(h) x 160(d) mm (ERV550AWT-G / ERV650AWT-G) 150(w) x 86(h) x 175(d) mm (ERV750AWT-G / ERV850EWT-G / ERV1000EWT-G)
Weight	2kg (without modular cables)±50g (ERV550AWT-G / ERV650AWT-G) 2.9kg(without modular cables)±50g (ERV750AWT-G / ERV850EWT-G / ERV1000EWT-G)
Safety	UL/cUL(Level 6), TUV, GOST, CB, BSMI
EMC	CE, FCC, KCC

• Peak power may last up to 60 seconds

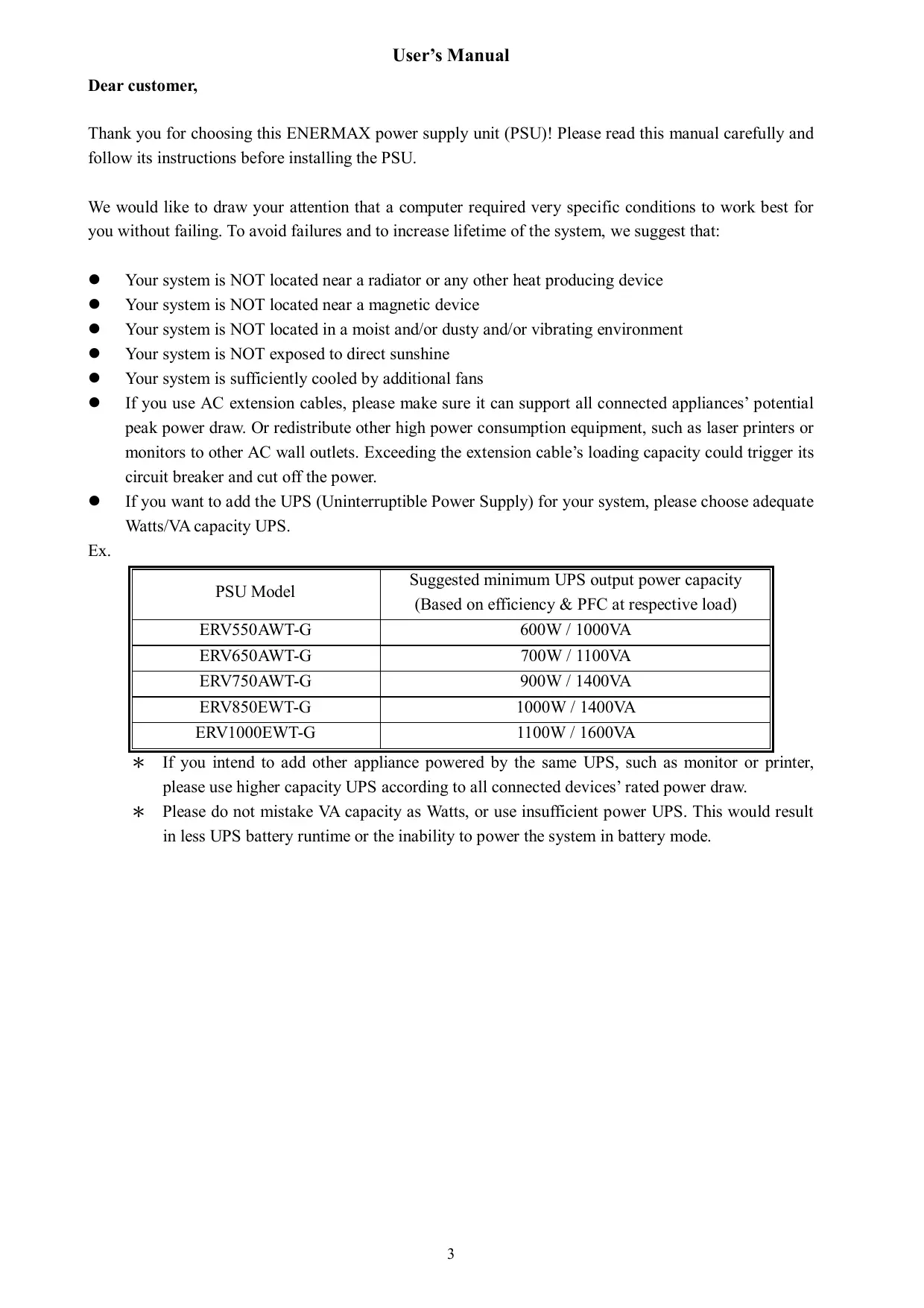

User's Manual

Dear customer,

Thank you for choosing this ENERMAX power supply unit (PSU)! Please read this manual carefully and follow its instructions before installing the PSU.

We would like to draw your attention that a computer required very specific conditions to work best for you without failing. To avoid failures and to increase lifetime of the system, we suggest that:

• Your system is NOT located near a radiator or any other heat producing device
• Your system is NOT located near a magnetic device
• Your system is NOT located in a moist and/or dusty and/or vibrating environment
• Your system is NOT exposed to direct sunshine
• Your system is sufficiently cooled by additional fans
• If you use AC extension cables, please make sure it can support all connected appliances' potential peak power draw. Or redistribute other high power consumption equipment, such as laser printers or monitors to other AC wall outlets. Exceeding the extension cable's loading capacity could trigger its circuit breaker and cut off the power.
• If you want to add the UPS (Uninterruptible Power Supply) for your system, please choose adequate Watts/VA capacity UPS.

Ex.

PSU Model	Suggested minimum UPS output power capacity (Based on efficiency & PFC at respective load)
ERV550AWT-G	600W / 1000VA
ERV650AWT-G	700W / 1100VA
ERV750AWT-G	900W / 1400VA
ERV850EWT-G	1000W / 1400VA
ERV1000EWT-G	1100W / 1600VA

• If you intend to add other appliance powered by the same UPS, such as monitor or printer, please use higher capacity UPS according to all connected devices' rated power draw.
• Please do not mistake VA capacity as Watts, or use insufficient power UPS. This would result in less UPS battery runtime or the inability to power the system in battery mode.

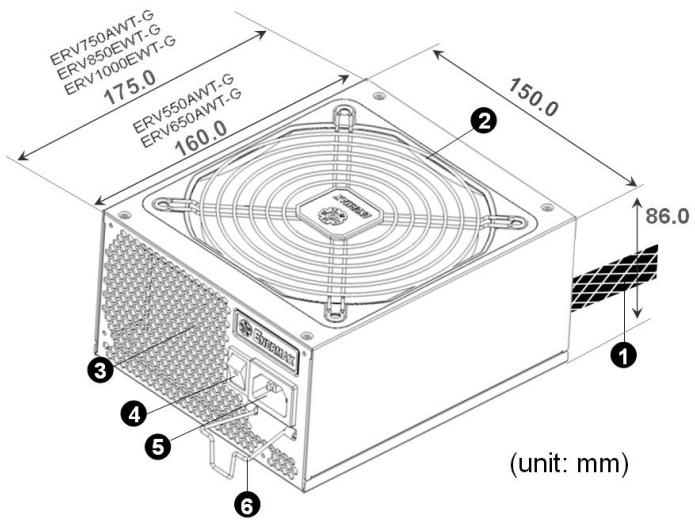

① Output cable: Please check "Cables & Connectors" section.
② Fan. #1
③ Honeycomb air vent.
④ ON/OFF switch (I=ON, O=OFF). #2
⑤ AC Inlet. #2
(6) CordGuard. #3

1 To ensure best system cooling, do not block PSU fan's air in-take and air vent area.

This PSU offers a special HeatGuard function. When the system is turned off, or goes into ACPI S3/S4 sleep mode, the PSU fan will keep dissipating the remaining heat for 30 60 seconds and prolonging system lifetime.

2 When assembling or maintaining the system, please remove AC cord from AC inlet, or turn ON/OFF switch into "OFF" position. Then you can safely service the system.

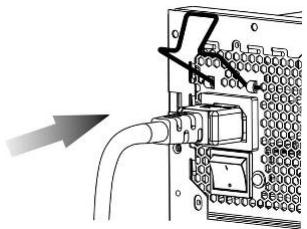

3 AC cord can get loose in many ways. The ENERMAX CordGuard lock can fix your AC cord tightly to the PSU, so that it will not be easily detached and avoid shut-downs of your PC. The following is CordGuard installation:

① Set your PSU into the chassis, and please make sure the I/O switch is on “O” position.

(2) Press two sides of the CordGuard lock together, and set it into

CordGuard holder near the AC inlet.

③ Plug the AC cord into your PSU.

④ Lock CordGuard to latch onto AC cord.

1. CordGuard is for AC cords supplied with ENERMAX CordGuard-compatible PSUs. Other AC cords may be incompatible.
2. When assembling or maintaining the system, please remove AC cord from AC inlet, or turn I/O switch into "O" position.

CABLES & CONNECTORS

All connectors are designed to prevent insertion in wrong orientation. If you cannot easily insert a connector, please check if you are inserting the connector in the right orientation. Do not try by force to insert it nor modify the connectors. This might damage power supply and system components, and warranty shall be void.

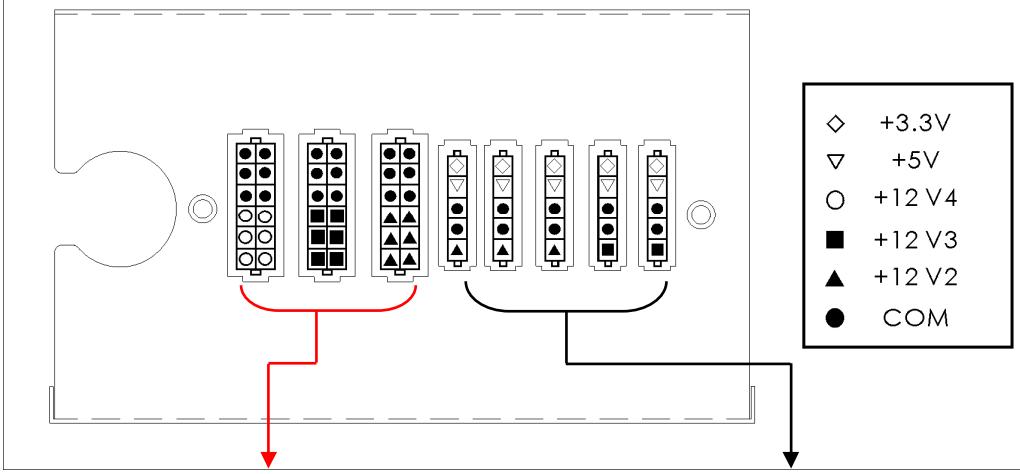

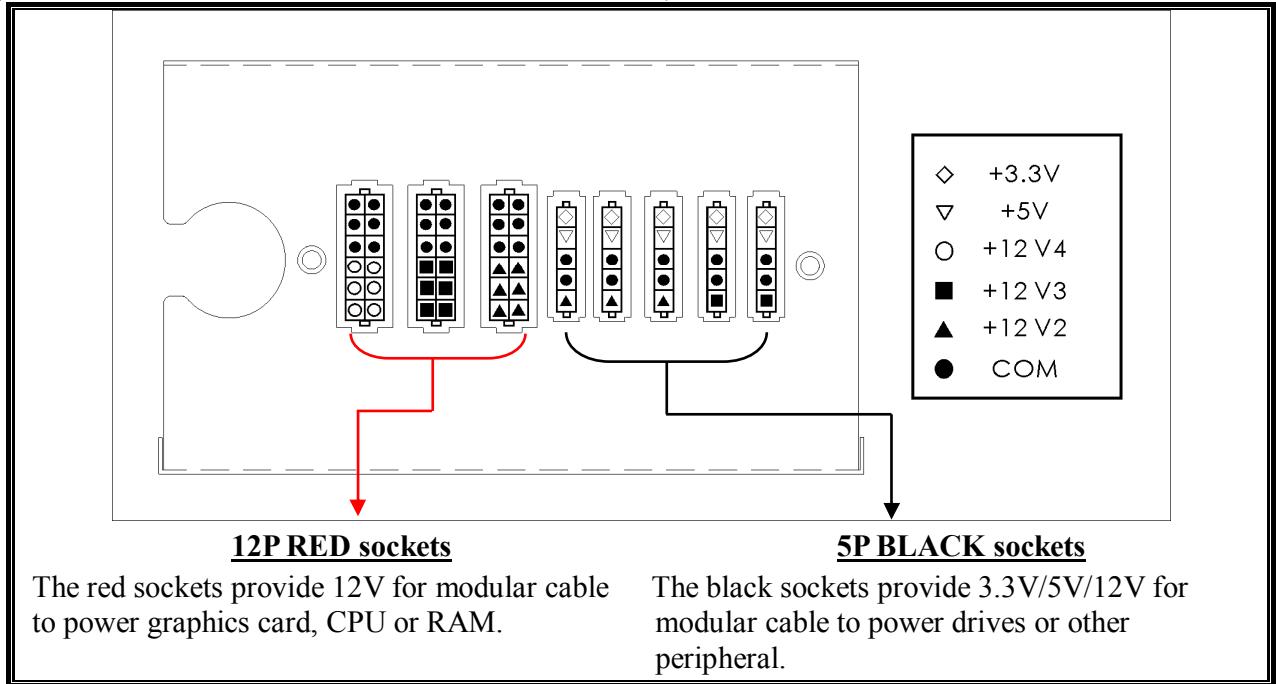

Following graphic illustrates the modular sockets layout and its DC rail distribution.

(ERV750AWT-G / ERV850EWT-G / ERV1000EWT-G)

• This product incorporates multiple 12V rails over current protection. If you let many peripherals consume the power on only one 12V rail, it may trigger the over current protection and shut down the system. Please re-direct certain peripheral power cable to other 12V rail to share the current loading to ensure highest stability and safety.

	24P Mainboard For new generations of ATX/EEB/CEB server/workstation MB.
	8P CPU +12V Native cable, 12V rail supplied by 12V1 (750/850/1000W) 8-pin configuration supports multi-CPU server/workstation systems and some single extreme CPU systems.
	4+4P(8P) CPU+12V, in combined mode Native cable, 12V rail supplied by 12V1 8-pin configuration supports multi-CPU server/workstation systems and some single extreme CPU systems.
	4+4P(8P) CPU+12V, in split mode Native cable, 12V rail supplied by 12V1 4-pin configuration supports certain single CPU systems. Some multi-CPU workstation/server system might also need this extra 4-pin 12V connector. Please use the connector with “12V” marking.
	6+2P (8P) PCI Express, in combined mode 12V rail supplied by 12V4 on native cables (850/1000W) 8-pin configuration supports latest extreme graphic cards, which require 8-pin PCI-E connector.
	6+2P (8P) PCI Express, in split mode / 6P PCI Express 12V rail supplied by 12V4 on native cables (850/1000W) 6-pin configuration supports most performance PCI-E graphic cards, which require 6-pin PCI-E connector.
	SATA #1 For SATA/SAS drives.
	4P Molex #2 For IDE/SCSI/SAS drives or some AGP graphic card with traditional 4P power in socket.
	FDD For floppy drive or certain add-on card.

1 Some SATA drives might accept SATA or 4P Molex power. Normally, use either one of power connector to power the driver, BUT NOT BOTH! Please check the drive's manual for details.
2 Some MB might require this connector to share the +12V current from 24-pin Mainboard connector to PCI-E slot. If your system has multiple extreme graphic cards, please plug this connector to MB correspond socket and check the MB's manual for details.

- MODULAR CABLES SUPPLIED

Use ONLY genuine ENERMAX modular cables coming with ENERMAX PSU. Third party cables might not be compatible and might cause damage to your PSU and/or system, and use of third party cable shall void PSU warranty.

EMC014-G: 2 x 6+2P (8P) PCI-E 2.0 Modular cable for 1 or 2 performance PCI Express graphic cards, which needs 6P or 8P PCI-E connector.

EMC019-G: 4 x SATA drives Modular cable for SATA/SAS drives like ODD and HDD.

EMC020-G: 4 x 4P Molex (IDE/SCSI) drives & 1 x FDD connector Modular cable for IDE/SCSI/SAS drives and peripheral, plus 1 FDD power connector.

EMC021-G: 2 x SATA & 2 x 4P Molex Modular cable for SATA/SAS/IDE/SCSI drives and other peripherals.

Special note for System Integrators: If your system requires special modular cable configuration or design, please contact an ENERMAX sales representative.

	Attaching the modular cable to PSU 5-pin / 12-pin connector on modular cable and PSU's modular socket has an arrow mark. To make correct connection is easy: 1. Black connector to black socket, and red to red. 2. Arrow mark to arrow mark. 3. Then you can easily plug in the connector.
	Detaching the modular cable from PSU 5-pin / 12-pin connector on modular cable has two hooks to lock with the PSU's modular sockets. When unplug the modular cable from PSU, please press two hooks together and gently pull out the cable.

BOOTING YOUR SYSTEM

Before booting your system, please check that:

1. Main power connector (24P) is properly connected.
2. CPU +12V power connector (4 or 8P configuration), and/or a 4P Molex connector (if required by MB) is properly connected.
3. All other needed connectors are properly connected.
4. AC cord is properly connected to wall outlet and PSU AC inlet.
5. Close your system chassis.
6. Turn on the PSU by switching the ON/OFF switch to "ON", and your system is ready.

PROTECTION, SAFETY & SECURITY

This ENERMAX PSU features multiple protections. In case of most abnormal situations, the power supply will automatically turn off to avoid potential danger to itself and other PC components. It is usually a malfunction of components or user's negligence to trigger off a protection event. In such circumstance, please check your PC devices and working environment for malfunction:

1. Turn I/O switch of power supply into "O" position, or disconnect AC cord from wall plug and power supply AC inlet.
2. Check PSU for temperature by simply touching it. If it is very hot, this can be caused by malfunction of case fans or the PSU fan itself and/or wrong positioning of your PC.
3. Wait some minutes until PSU cools off.
4. Reconnect AC cord to wall plug and power supply AC inlet.
5. Turn I/O switch of power supply into "I" position, and reboot your system.
6. Check, if all fans are working.
7. Contact technical support of the respective manufacturer of the component which you think might be the cause to the problem. (e.g. MB, GPU or PSU)

If you have any question or need support, please contact your reseller or nearest ENERMAX subsidiary/agent or ENERMAX headquarters service center.
