Product type	Wireless speaker
Brand	Marmitek
Model	Speaker Anywhere 400
Transmission	UHF stereo 863 MHz
Range	Up to 100 m in open field, up to 30 m through walls and ceilings
Water resistance	IPX3 (rainproof)
Output power	2 x 5 W RMS
Frequency response	50 Hz - 10 kHz
Distortion	< 1%
Signal-to-noise ratio	65 dB (typical)
Transmitter power supply	DC 12 V, 200 mA (adapter included)
Speaker power supply	6 D alkaline batteries (not included) or DC 9 V, 1.2 mA adapter (included)
Remote control power supply	2 AAA alkaline batteries (included)
Main features	360° omnidirectional sound, ambient lighting, remote control, 3 channels, automatic frequency tuning, outdoor use
Audio input	Stereo RCA jack (via transmitter)
Package contents	1 transmitter, 2 speakers, 1 remote control, 3 adapters, RCA and jack cables, user manual
Care and cleaning	Wipe with a soft, dry cloth. Do not use abrasive products. Protect from excessive moisture.
Safety	Do not expose to extreme temperatures or rain. Do not open the casing. Keep out of reach of children.
Spare parts and repairability	Contact your dealer or Marmitek for spare parts. Repairs must be carried out by a professional.
General information	Indoor and outdoor use (speakers only). Warranty void if modified or repaired by unauthorized persons.

Frequently Asked Questions - SPEAKER ANYWHERE 400 MARMITEK

How do I connect the speaker to my audio source?

Connect the audio source (TV, radio, etc.) to the transmitter via the AUDIO IN input (RCA jack) using the supplied cables. Turn on the transmitter and the audio source. The speakers connect automatically. If necessary, press the Tune button on the speaker to adjust the frequency.

What should I do if I hear no sound?

Check that the speaker is on (blue LED), the audio source is on, and the volume is sufficient. Make sure the power adapter is properly connected or the batteries are charged. If the problem persists, press Tune to resynchronize.

The sound is distorted or choppy, what should I do?

Press the Tune button on the speaker to automatically adjust the frequency. If that doesn't solve the problem, change the channel on the transmitter (position CH1, CH2 or CH3) and press Tune again. Also check the battery power or adapter and the distance between speaker and transmitter.

The remote control does not work, why?

Replace the remote control batteries with new ones. Make sure to point the remote towards the front of a speaker within about 10 meters. If the problem persists, check that the speakers are on.

Can I use the speakers outdoors?

Yes, the speakers are IPX3 waterproof and resist rain. However, the transmitter and power adapters must be used indoors, in a dry place.

How do I change the transmission channel?

At the back of the transmitter, a switch allows you to select the channel (CH1, CH2 or CH3). After changing, press the Tune button on the speaker to synchronize.

What does the LED on the speaker mean?

Blue LED: speaker on and connected. Green LED: standby. If it blinks or is off, check the power supply.

How do I maintain the speaker?

Wipe the device with a soft, dry cloth. Do not use chemicals. Do not immerse in water. Store electrical components indoors.

What batteries should I use for the speakers?

Use 6 D alkaline batteries. Do not mix new and old batteries. Remove batteries if the device is unused for a long time.

The speaker turns off by itself, is that normal?

Yes, a power saving function automatically turns off the transmitter after 4 minutes without audio signal, and the speaker after 5 minutes in standby. It turns back on automatically when the signal returns.

USER MANUAL SPEAKER ANYWHERE 400 MARMITEK

• These speakers can be used outdoors. However, to prevent short circuits, the transmitter and the power adaptors of the speakers should only be used indoors and only in dry places. Do not expose these components to rain or moisture. Do not use next to or near a bath tub, swimming pool, etc.
• Do not expose the components of your systems to extremely high temperatures or bright light sources.
• In case of improper usage or if you have altered and repaired the product yourself, all guarantees expire. Marmitek does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. Marmitek does not accept responsibility for additional damage other than covered by the legal product responsibility.
• This product is not a toy. Keep out of reach of children.
• Do not open the product (battery panel excepted): the device may contain live parts. The product should only be repaired or serviced by a qualified expert.
• Keep batteries out of the reach of children. Dispose of batteries as chemical waste. Never use old and new batteries or different types of batteries together. Remove the batteries when you are not using the system for a longer period of time. Check the polarity (+/-) of the batteries when inserting them in the product. Wrong positioning can cause an explosion.
• Only connect the adapter to the mains after checking whether the mains voltage is the same as the values on the identification tags. Never connect an adapter or power cord when it is damaged. In that case, contact your supplier.

INTRODUCTION

Congratulations on your purchase of the Marmitek Speaker Anywhere400. This is a wireless 863MHz 2-way stereo speaker system that can easily be connected to your audio sources (Radio, TV, Hi-Fi and CD-/MP3-/MP4-/Dvd-player). This way, you can enjoy the Music of the audio source anywhere in and around the house. The sound is projected omni directionally (360°) . The speakers are rainwater proof and therefore suitable for outdoor use.

The Marmitek products are manufactured with the utmost precision and are of high quality. Please read this manual first and follow the instructions so you can enjoy the possibilities of this product optimally.

CONTENT

1x Audio Transmitter
2x Wireless Speakers
1x Remote control (2xAAA batteries included)
3x Power adapters
1x RCA to RCA cable (Stereo) 2 meter
1x RCA to 3.5mm jack adapter
1x 3.5mm to 6.3mm jack adapter
1x User manual English, Deutsch, Français, Espanol, Italiano, Nederlands.

INSTALLATION

Transmitter

[1] RCA Stereo AUDIO input "R-AUDIO IN-L"

[2] Power indication LED (green) "①"

[3] Signal indication LED (blue)

[4] Channel switch "CH 1, 2, 3"

[5] Power connection "DC IN"

1. Plug the supplied AC power adapter in the Power connection [5].
2. Connect your audio source (i.e. TV, PC, Radio, CD-/MP3-/MP4-/DVD player) to the AUDIO input [1] of the transmitter. The AUDIO output of your audio source is normally indicated with or AUDIO OUT. If needed, you can use the supplied adapters.
3. Plug the power adapter in the electrical wall outlet and the Power LED [2] will light up. As soon as the transmitter is receiving the audio signal, it will automatically switch on and the Signal LED [3] will illuminate (blue).

Speaker receivers

[6] Speaker on/off button
[7] Atmospheric lighting on/off button
[8] Automatic frequency tuning button
[9] Volume button

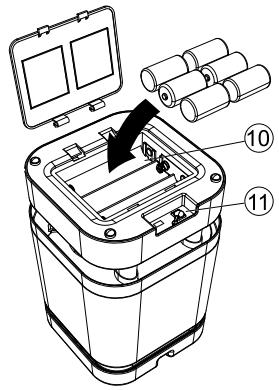

[10] Battery cover
[11] Power connection
[12] Atmospheric lighting

"Light"

"Tune"

一 + / - 一

"DC IN"

At the bottom of the wireless speaker you can find a sticker with an "L" (left) or an "R" (right). These correspond with the left (white) and right (red) AUDIO input [1] on the transmitter.

1. The speakers are dual power:

a. With batteries

Insert 6 pieces 'D' size ALKALINE batteries (not included) into the battery compartment with correct polarity. For using the batteries, make sure the Power adapter is not connected. Note: Remove the batteries when they are empty of if you are not using the device for a longer period.

b. With supplied power adapter

Connect the power adapter to the Power connection [11] on the rear of each speaker, then plug it to the electrical wall outlet.

Note: batteries will not be charged by the speaker.

1. Turn on the speakers by pushing the button [6]. The blue signal LED now lights up.

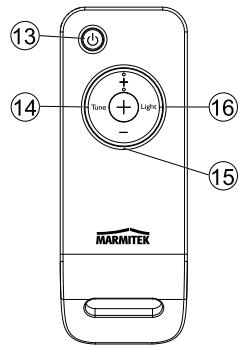

[13] Stand-by button
[14] Automatic frequency tuning button
[15] Volume button
[16] Atmospheric lighting on/off button

"Tune"
一 + / - 一
"Light"

1. Open the battery cover at the back and place the enclosed "AAA" alkaline batteries to activate the remote control.
2. Point the remote control at the front of one of the speakers and press one of the buttons to operate the speaker.

OPERATION

Switching ON

1. Turn on the audio source (TV, PC, Radio, CD-/MP3-/MP4-/DVD player) to which the transmitter is connected. The signal LED [3] on the transmitter will light up (Blue).
2. Adjust the volume to the level you desire by pressing the Volume button on the speaker [9] or on the remote control [15] or turning the volume button of your audio source.

Tip:

• For crystal clear sound, put the volume of the audio source higher and adjust the volume of the speakers to the desired level.

• Place the speakers on the floor for the best possible sound. Different bases can influence the sound quality. Experiment at different places to determine the best sound quality.

• For the best audio reception, you need to tune the set. Therefore put the speakers and transmitter together (max 7 meters in-between). Push the "AUTO TUNING" button on the speaker [8] or the remote control [14].

Whenever you find frequency jam, move your channel switch from one channel to the other channel (there are three channels for selection) on the back of the transmitter, and then press the "AUTO TUNING" button [8/14] on the speaker again.

Speaker lighting ON/OFF

The atmospheric lighting can be switched ON/OFF on both the remote control and the speakers with the "Light" button [7/16].

Switching the speaker ON/OFF/Stand-by

1. Turn the speaker ON/OFF by pushing the button at the front of the speaker [6]. The blue signal LED on the speaker indicates whether the speaker is switched ON or OFF.
2. Use the button of the remote control [13] to switch the speaker to stand-by mode. The blue signal LED [3] will turn green.

Power save function

When not in use, both the transmitter and the speakers automatically switch off to prevent unnecessary use of energy in cases mentioned below;

1. When the speaker is switched to the stand-by mode using the remote control (the blue signal LED at the front of the speaker turns green) it will automatically switch off after 5 minutes.
2. When the transmitter does not receive any signal or a weak audio signal for 4 minutes it will automatically switch off. The transmitter will automatically switch on again if a (strong) audio signal is recognized.

FREQUENTLY ASKED QUESTIONS

No Sound

Ensure;

• the speaker is switched ON (the LED on the speaker is blue).
• the audio source is switched ON and playing (the LED on the transmitter [3] is blue).
• the volume of the audio source and speakers is high enough.
• the power adapter is fully inserted into the wall outlet and the Power connection (DC IN) on the transmitter [5] and speaker [11].
• the battery capacity is sufficient. Replace with new batteries or connect a power adapter to the speakers.

Distorted sound

• Press the "AUTO TUNING" button [8] on the speakers to tune the right frequency.
• Select an other channel (1, 2 or 3) on the transmitter [4] and press on the "AUTO TUNING" button [8/14].
• Check the battery capacity. Replace with new batteries or connect a power adapter to the speakers.
• The speaker is too far from the transmitter, move closer.
• Input level of the audio source is too high or too low. Adjust the volume of the audio source until the sound is received correct.

Remote control does not work

• Check if the batteries have enough power left or replace the batteries.
• You need to point the remote control to the front of the speakers.
• Infrared signals have a maximum reach of about 10 meters. Test at a shorter distance.

TECHNICAL DATA

Transmission Mode: UHF stereo

Frequency: 863 MHz

Range: Up to 100m free field, up to 30m through walls and ceilings

Waterproofness: IPX3 (rainwater proof)

Power Transmitter: DC 12V 200mA

Power Speaker: 6 X 'D' size Alkaline batteries or DC 9V 1.2mA adapter

Power supply remote control: 2x 'AAA' Alkaline batteries

Frequency Response: 50Hz - 10KHz

Distortion: 1%

S/N Ratio: 65dB (typical)

Channel Separation: 50dB (Typical)

Output Power: 2 x 5W (RMS)

Dimensions Transmitter: 100x100x37mm

Dimensions Speaker: 282x200x200mm

Specifications may be modified without prior notice.

OPTIONAL ACCESSORIES

Infrared extension

Marmitek offers several products to operate your devices, even when these are placed in a closed cupboard or in a different room. This as well wired as wireless. More information about these so called infrared extenders can be found at www.marmitek.com.

Environmental Information for Customers in the European Union

European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose

of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

SICHERHEITSHINWEISE

Dimensions Transmetteur : 100x100x37mm

Dimensions Haut-parleur : 282x200x200mm

S/N Ratio: 65dB (typico)

Kanaalafstand 50dB (typico)

Dimensiones transmisor: 100x100x37mm

Dimensiones altavoz: 282x200x200mm

Las specificationsutenbarmiarse sinprevioaviso.

OPCIONALMENTE ADQUIRIBLE

Extension infrarroja

VEILIGHEIDSWAARSCHUWINGEN

DECLARATION OF CONFORMITY

Marmitek is a trademark of Marmidenko B.V. - Speaker Anywhere400 is a trademark of Marmitek B.V. All rights reserved.

Copyright and all other proprietary rights in the content (including but not limited to model numbers, software, audio, video, text and photographs) rests with Marmitek B.V. Any use of the Content, but without limitation, distribution, reproduction, modification, display or transmission without the prior written consent of Marmitek is strictly prohibited. All copyright and other proprietary notices shall be retained on all reproductions.

DECLARATION OF CONFORMITY

Directive 2002/95/CE du Parlement européen et du Conseil du 27 janvier 2003 relative à la limitation de l'utilisation de certaines substances dangereuses dans les équipements électriques et électroniques
Marmitek BV declara que este Speaker Anywhere400 cumple con las exigencias esenciales y con las cuales reglas relevantes de la directriz:
Directiva 1999/5/CE del Parlamento Europeo y del Consejo, de 9 de mayo de 1999, sobre equipos radioeléctricos y equipos terminales de Telecomunicación y reconocimiento mutuo de su conformidad
DIRECTIVA 2004/108/CE DEL PARLAMENTO EUROPEO Y DEL CONSEJO de 15 de días de 2004 relativa a la aproximación de las legislaciones de los Estados miembrs en materia de compatibiliidad electromagnética
Directiva 2006/95/CE del Parlamento Europeo y del Consejo de 12 de diciembre de 2006 relativa a laapproximacion de las legislaciones de los Estados miembros sobre el material electrico destinado autilizarse con determinados limites de tension
Directiva 2002/95/CE del Parlamento Europeo y del Consejo de 27 de enero de 2003 sobre restricciones a la utilizacion de determinadas sustancias peligrosas en aparatos electricos y electronicos
Con ciò, Marmitek BV, dichiara che il Speaker Anywhere400 è conforme ai requisiti essenziali ed alter disposizioni relative alla Direttiva :
Direttiva 1999/5/CE del Parlamento europeo e del Consiglio, del 9 marzo 1999, riguardante le apparecchiature radio e le apparecchiature terminali di telecomunicazione e il reciproco riconoscimento della loro conformità
DIRETTIVA 2004/108/CE DEL PARLAMENTO EUROPEO E DEL CONSIGLIO del 15 dicembre 2004 concernente il ravicinamento delle legislazioni degli Stati membri relative alla compatibilità elettromagnetica
Direttiva 2006/95/CE del Parlamento europeo e del Consiglio del 12 dicembre 2006 concernente il rav vincamento delle legislazioni degli Stati membri relative al materiale elettrico destinato ad essere adoperato entro taluni limiti di tensione
Direttiva 2002/95/CE del Parlamento europeo e del Consiglio del 27 genniaio 2003 sulla restrizione dell'uso di determinate sostenze pericolose nelle apparecchiature elettriche ed elettroniche
Bij deze verklaart Marmitek BV, dat deze Speaker Anywhere400 voldoet aan de essentiële eisen en aan de overige relevante bepalingen van Richtlijnen:
Richtlij 1999/5/EG van het Europees Parlement en de Raad van 9 maart 1999 betreffende radioapparatuur en telecommunicatie-eindapparatuur en de wederzijdsere kenning van hun conformiteit
Richtlun 2004/108/EG VAN HET EUROPEES PARLEMENT EN DE RAAD van 15 december 2004 betreffende de onderlinge aanpassing van de wetgevingen van de lidstates inzake elektromagnetische compatibilititeit
Richtlij 2006/95/EG van het Europees Parlement en de Raad van 12 december 2006 betreffende de onderlinge aanpassing van de wettelijkke voorschriften der lidsten inzake elektrisch materiaal bestem voor gebruik binnen bepaalde spanningsgrenzen
Richtlijn 2002/95/EG van het Europees Parlement en de Raad van 27 januari 2003 betreffende beperking van het gebruik van bepaalde gevaarlijke stoffen in elektrische en elektronische apparatuur

MARMITEK BV - P.O. BOX 4257 - 5604 EG EINDHOVEN - NETHERLANDS

C€0984
