USER MANUAL WCM2025C WINDMERE

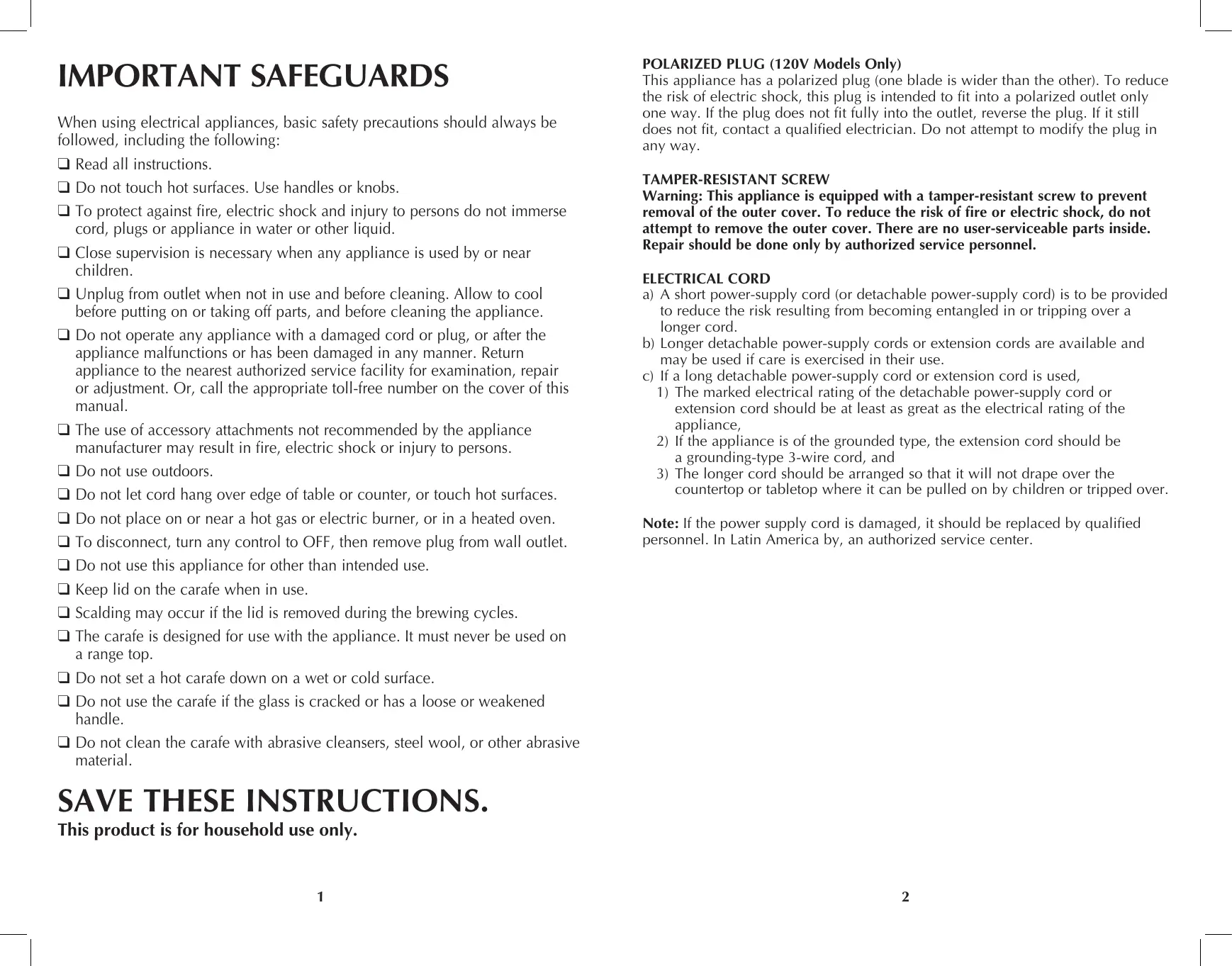

IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: Q Read all instructions. Q Do not touch hot surfaces. Use handles or knobs. Q To protect against fire, electric shock and injury to persons do not immerse cord, plugs or appliance in water or other liquid. Q Close supervision is necessary when any appliance is used by or near children. Q Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance. Q Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment. Or, call the appropriate toll-free number on the cover of this manual. Q The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons. Q Do not use outdoors. Q Do not let cord hang over edge of table or counter, or touch hot surfaces. Q Do not place on or near a hot gas or electric burner, or in a heated oven. Q To disconnect, turn any control to OFF, then remove plug from wall outlet. Q Do not use this appliance for other than intended use. Q Keep lid on the carafe when in use. Q Scalding may occur if the lid is removed during the brewing cycles. Q The carafe is designed for use with the appliance. It must never be used on a range top. Q Do not set a hot carafe down on a wet or cold surface. Q Do not use the carafe if the glass is cracked or has a loose or weakened handle. Q Do not clean the carafe with abrasive cleansers, steel wool, or other abrasive material. SAVE THESE INSTRUCTIONS. This product is for household use only. POLARIZED PLUG (120V Models Only) This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. [f the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way. TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent

removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel. ELECTRICAL CORD a) A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. b) Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. ©) If a long detachable power-supply cord or extension cord is used,

1) The marked electrical rating of the detachable power-supply cord or

extension cord should be at least as great as the electrical rating of the appliance,

2) the appliance is of the grounded type, the extension cord should be

a grounding-type 3-wire cord, and

3) The longer cord should be arranged so that it will not drape over the

countertop or tabletop where it can be pulled on by children or tripped over. Note: If the power supply cord is damaged, it should be replaced by qualified personnel. In Latin America by, an authorized service center.

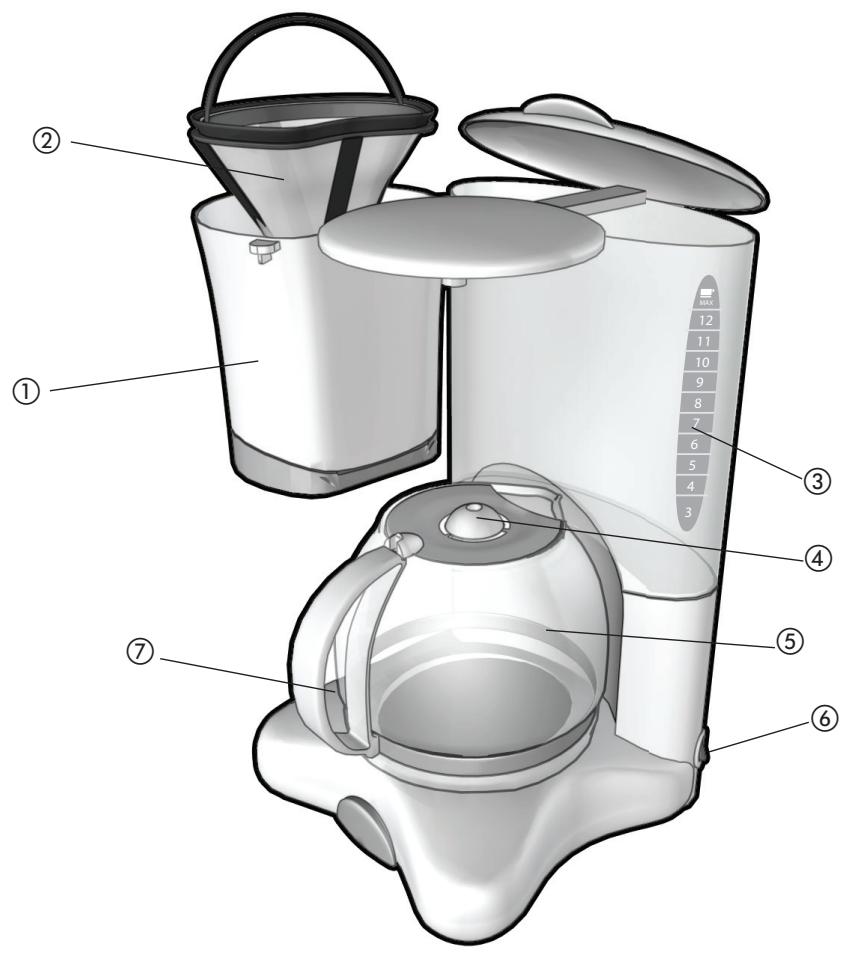

Product may vary slightly from what is illustrated. + 1.Swing-out brew basket (Part# WCM2025C-01) + 2. Permanent nylon mesh filter (inside) (Part# WCM2025C-02)

3. Water window with level markings

4. Auto pause & pour

+ Consumer replaceable/removable parts How to Use This product is for household use only. Before You Use Your Coffee Maker Before preparing coffee in your new Coffee Maker, thoroughly clean the Carafe, Carafe Lid and Permanent Filter Basket in hot, sudsy water. Rinse and dry. Replace disassembled parts. Clean the inside of the Coffee Maker by brewing two full Carafes of tap water (see BREWING INSTRUCTIONS below). NOTE: At the end of first cycle, turn Coffee Maker off and wait ten minutes. Turn unit on and brew second Carafe of water. Coffee Yield 12-Cup Coffee Maker: 12 (5 oz.) cups. Note: À 507. cup is the American industry standard and is used by most Coffee Maker manufacturers. To fill your favorite mug, fill Coffee Maker reservoir with enough water for 2 cups (10 oz.). Coffee Filters Your coffee maker comes with a permanent filter. You may use a Cone-shape paper filter if desired. Cone-shaped paper filters are available locally at grocery stores and where Coffee Makers are sold. Standard #4 filters should be used. The use of basket-style paper filters is not recommended, since they do not conform to the shape of the Filter Basket and may cause coffee to back up and spill over during brewing. Brewing Instructions

1. Plug Coffee Maker into any 120 V AC electrical outlet.

2. Fill Carafe with cold tap water and pour into Water Chamber. Markings on the Water

Window indicate level of water required to brew desired number of cups. No less than two cups is recommended. Note: The amount of brewed coffee will always be less than the amount of water placed into Coffee Maker, since about 10% is absorbed by coffee grounds and paper filter.

3. Place the Permanent Filter in the Swing-Out Filter Holder. Measure one level

tablespoon of drip or regular grind coffee for each cup of coffee desired. For stronger or milder coffee, adjust amount of coffee to suit your taste. . Return Swing-Out Filter Holder to the closed position. . Place Carafe on Warming Plate. . Switch Power Select Button to ON (1). . If you wish to serve a cup of coffee before brew cycle is completed, simply remove Carafe from Warming Plate. Dripping will automatically cease. Return Carafe to position on Warming Plate within 60 seconds; dripping will resume.

8. Upon completion of the brew cycle, wait about one minute until the brew dripping

from the Filter Holder into the Carafe has stopped. Carafe Lid should be kept in place to facilitate safe serving and help keep coffee at proper serving temperature.

9. To keep coffee hot, return Carafe to the Warming Plate after serving. The Warming

Plate will automatically cycle to maintain ideal serving temperature as long as the Coffee Maker is ON (1). Nous

10. Switch Coffee Maker to OFF (O) when Carafe is empty or when unit is not in use.

11. To brew another Carafe of coffee, turn unit OFF and wait 10 minutes to allow heating

element to cool. Important: If unit is not allowed to cool before immediate repeated use, water placed in Water Chamber may become overheated and a spray of steam could be released from opening, creating a risk of burns. Brewing a Second Pot of Coffee As mentioned above, it is recommended that the Coffee Maker should be in OFF (O) position for 10 minutes between cycles, in order to allow unit to cool. While unit is in OFF position, rinse Carafe in water and dispose of coffee grounds and paper filter (if used). Repeat brewing procedure. Hints for Great Tasting Coffee A clean Coffee Maker is essential for making great tasting coffee. Regular cleaning, as specified in CARE AND CLEANING section on pages 6 is highly recommended. + Always use fresh, cold water in your Coffee Maker. ° Finer grinds, such as drip and ADC coffee, promote fuller extraction and provide rich, full-bodied coffee. Regular grind will require slightly more coffee per cup to provide the strength of a finer grind. + Store coffee in a cool, dry place. Once coffee has been opened, keep it tightly sealed in the refrigerator to maintain freshness. ° For optimum coffee, buy whole beans and grind them finely just before brewing. + Do not re-use coffee grounds since this will greatly impair coffee flavor. + Reheating coffee is not recommended. Coffee is at its peak flavor immediately after brewing. + Small oil droplets on the surface of brewed, black coffee is due to the extraction of oil from the coffee grounds. Oiliness may occur more frequently if heavily roasted coffees are used. Overextraction may also cause oiliness, indicating a need to clean your Coffee Maker. Care and Cleaning This product contains no user serviceable parts. Refer service to qualified service personnel. Caution: Be sure to unplug this appliance before cleaning. To protect against electrical shock, do not immerse cord, plug or unit in water or other liquids. Always make sure Coffee Maker is unplugged and Warming Plate is cool before attempting to clean. After daily use, the Carafe should be washed in hot, sudsy water. Wipe exterior with a damp cloth to remove superficial stains. For stubborn stains, use a nylon or plastic pad with a non-abrasive cleanser. Do not use metal scouring pads or abrasive cleansers. Descaling Special cleaning of your Coffee Maker is recommended at least once a month, depending on frequency of use and quality of water used in the unit. If water in your area is especially hard, the following cleaning procedure should be performed every two weeks, since minerals in water can detract from the flavor of the coffee and possibly lengthen brew time.

1. Fill Carafe with one part white vinegar to three parts cold water. Pour water and vinegar

solution into the Water Chamber.

2. Place the Permanent Filter in the Swing-Out Filter Holder and swing to closed position.

Place Carafe on Warming Plate. Switch Power Select Button to ON (1). During cleaning, more steam will occur than during normal brewing.

3. KEEP THE COFFEE MAKER ON UNTIL CARAFE IS HALF FULL. Switch Power Select

Button to OFF (0). When liquid stops dripping from Filter Holder into the Carafe, remove the Carafe and allow liquid to cool in the Carafe for 10 minutes. When cooled, pour liquid back into the Water Chamber.

4. Return Carafe to Warming Plate.

5. Switch Power Select Button to ON (1). Repeat procedure, allowing all the cleaning

solution to empty into the Carafe. After dripping has stopped, discard contents of Carafe.

6. After allowing Coffee Maker to cool for 10 minutes, rinse it out by brewing a Carafe full

7. Atend of brew cycle, switch Power Select Button to OFF (0). Discard water in the

Carafe. Wash Carafe, Carafe Lid and Permanent Filter Basket in hot sudsy water. Dry parts.

8. When Coffee Maker has cooled, wipe exterior with a dry cloth.

NEED HELP? For service, repair or any questions regarding your appliance, call the appropriate 800 number on the cover of this book. DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to the manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this manual. One-Year Limited Warranty (Applies only in the United States and Canada) What does it cover? + Any defect in material or workmanship provided; however, Applica’s liability will not exceed the purchase price of the product. For how long? + One year after the date of original purchase. What will we do to help you? + Provide you with a reasonably similar replacement product that is either new or factory refurbished. How do you get service? + Save your receipt as proof of date of sale. + Check our on-line service site at www.prodprotect.com/applica, or call our toll-free number, 1-800-231-9786, for general warranty service. If you need parts or accessories, please call 1-800-738-0245. What does your warranty not cover? + Damage from commercial use + Damage from misuse, abuse or neglect + Products that have been modified in any way + Products used or serviced outside the country of purchase + Glass parts and other accessory items that are packed with the unit + Shipping and handling costs associated with the replacement of the unit + Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.) How does state law relate to this warranty? + This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.

The lightning symbol refers to “dangerous voltage”; the exclamation symbol refers to maintenance instructions. See below.

WARNING: To reduce the risk of fire or

electric shock, do not remove the cover of the coffeemaker. There are no user- serviceable parts inside. Repair should be done by authorized service personnel only. WARNING / AVERTISSEMENT RISK OF FIRE OR ELECTRIC SHOCK. DO NOT OPEN. RISQUES D’INCENDIE OÙ DE SECOUSSES ÉLECTRIQUES. NE PAS OUVRIR. L'éclair représente une tension dangereuse. Le point d'exclamation indique qu'il s'agit d'importantes consignes d'entretien. Voir plus bas.
