I-335 - Griddle WINDMERE - Free user manual and instructions

Product Type	Steam/Dry Iron
Brand	Windmere
Model	I-335
Power Supply	120 V, 60 Hz (AC only)
Water Tank Capacity	Up to MAX level mark (approximately 200 ml)
Soleplate Material	Nonstick
Temperature Control	Fabric-select dial with settings for synthetic, nylon/silk, polyester/rayon, cotton blends, wools, cotton/linen
Steam Function	Adjustable dry/steam selector and surge of steam button
Spray Function	Spray button for dampening wrinkles
Temperature-Ready Light	Indicates when iron has reached set temperature
Polarized Plug	Yes (for 120 V models)
Cord Type	Pivoting cord for ease of use
Safety Features	Tamper-resistant screw, auto shut-off not specified, polarized plug
Care Instructions	Wipe soleplate and outer surfaces with damp cloth; no abrasives; steam over old cloth to clean vents
Storage	Store vertically on heel rest; empty water tank if desired
Warranty	1-year limited warranty (USA and Canada)
Dimensions (Approx.)	12 x 5 x 6 inches
Weight (Approx.)	2.5 lbs

Frequently Asked Questions - I-335 WINDMERE

What type of water should I use in the iron?

Use ordinary tap water. Do not use water processed through a water softening system as it may affect performance.

How do I fill the water tank?

Tilt the iron and pour water into the water-fill opening using a clean measuring cup until water reaches the MAX level mark. Do not overfill.

How do I select the correct temperature for my fabric?

Turn the fabric-select dial to the setting matching your fabric type. Refer to the fabric guide on the heel rest and garment label. Settings range from 1 (synthetic) to 6 (cotton/linen).

How do I use the steam function?

Move the dry/steam selector to the desired steam level. Ensure the fabric-select dial is set between 4 and 6. The temperature-ready light will glow until the set temperature is reached.

What is the surge of steam button for?

Use the steam button to remove stubborn creases. With water tank filled to MAX, set the dial to at least 4 and wait for the temperature-ready light to go off. Pump the button at 5-second intervals for a concentrated blast of steam.

Can I use the iron without water?

Yes, for dry ironing. Set the dry/steam selector to 'OFF' (symbol) and empty the water tank if desired. Turn the fabric-select dial to the appropriate setting.

How should I clean the iron?

Ensure the iron is unplugged and cool. Wipe the soleplate and outer surfaces with a soft cloth dampened with water. Do not use abrasives. After cleaning, steam over an old cloth to remove residue from vents.

How do I store the iron?

Set the dry/steam selector to 'OFF', unplug the iron, and let it cool. Store vertically on its heel rest to prevent water leakage from the soleplate. You may empty the water tank.

What safety features does the iron have?

The iron has a polarized plug to reduce electric shock risk and a tamper-resistant screw to prevent removal of the outer cover. Do not attempt to open the iron; no user-serviceable parts inside.

What warranty covers the iron?

The iron comes with a one-year limited warranty (USA and Canada) covering defects in material or workmanship. Liability does not exceed purchase price. Keep your receipt.

USER MANUAL I-335 WINDMERE

Please Read and Save this Use and Care Book

White iron iron with brand logo and model number windmere, no visible text or symbols on body

USA/Canada 1-800-231-9786

Mexico 01-800-714-2503

www.applicaconsumerproductsinc.com

Accessories/Parts (USA/Canada)

When using your iron, basic safety precautions should always be followed, including the following:

☐ READ ALL INSTRUCTIONS BEFORE USING.
☐ Use iron only for its intended use.
☐ To protect against a risk of electric shock, do not immerse the iron in water or other liquid.
☐ The iron should always be turned to "OFF" before plugging into or unplugging from an outlet. Never yank cord to disconnect from outlet; instead grasp plug and pull to disconnect.
☐ Do not allow cord to touch hot surfaces. Let iron cool completely before putting away. Loop cord loosely around iron when storing.
□ Always disconnect iron from electrical outlet when filling with or emptying of water and when not in use.
☐ Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron, take it to a qualified serviceman for examination and repair. Or, call the appropriate toll-free number listed on the cover of this manual. Incorrect reassembly can cause a risk of electric shock when the iron is used.
☐ Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended while connected or on an ironing board.
Burns can occur from touching hot metal parts, hot water, or steam. Use caution when you turn a steam iron upside down or use the surge of steam — there may be hot water in the water tank. Avoid rapid movement of iron to minimize hot water spillage.

SPECIAL INSTRUCTIONS

☐ To avoid a circuit overload, do not operate another high-wattage appliance on the same circuit.
☐ If an extension cord is absolutely necessary, a 15-ampere and 120-volt, or 7-ampere and 220-volt cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS.

POLARIZED PLUG (120V Models Only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.

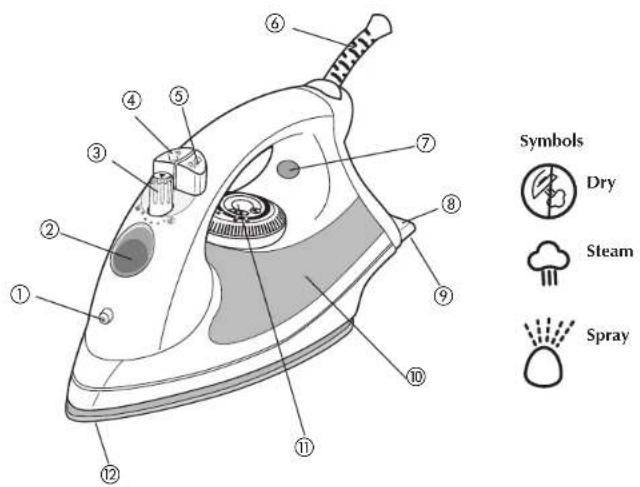

Product may vary slightly from what is illustrated.

1. Spray nozzle
2. Water-fill opening
3. Dry/steam selector
4. Steam button
5. Spray button

6. Pivoting cord

7. Temperature-ready light

8. Heel rest
9. Fabric guide
10. Water tank
11. Fabric-select dial
12. Nonstick soleplate

Fabric guide

1 ▶ Synthetic
2 ▶ Nylon•Silk
3 ▶ Polyester•Rayon

4 Cotton Blends
5 Wools
6 ▶ Cotton•Linen

How to Use

This appliance is for household use only.

GETTING STARTED

Remove any labels, stickers or tags attached to the body or soleplate of the iron.

Note: Use ordinary tap water for ironing. Do not use water processed through a water softening system.

Important: For optimum performance, let the iron stand for 90 seconds before beginning to iron.

TO FILL THE WATER TANK

1. Tilt the iron and using a clean measuring cup, pour water into opening until the water reaches the MAX level mark on the water tank (A). Do not overfill. Refill as needed.
2. Plug in the iron. Temperature-ready light glows when iron has reached set temperature setting.

Tip: If unsure of a garment's fabric, test a small area (on an insid seam or hem) before ironing.

FOR STEAM IRONING

1. Move the dry/steam selector to the desired steam level (B).

1. Turn the fabric-select dial to appropriate setting (between 4 and 6) for your fabric (C). See fabric guide on the heel rest and read garment's label to help you determine fabric type. The temperature-ready light glows until it reaches the appropriate temperature. It then cycles on and off during ironing.
2. When finished ironing, turn the fabric-select dial to lowest heat setting, move the selector to ④ and unplug the iron. Stand the iron on its heel rest and allow it to cool off.

Important: Always stand the iron on its heel rest when powered on but not in use.

Surge of Steam

Use to remove stubborn creases.

1. With water tank filled to the MAX mark, turn the fabric-select dial to at least setting 4 and wait for the temperature-ready light to go off.

1. To remove tough wrinkles, pump the button at 5-second intervals for a concentrated blast of steam (D).
2. When finished ironing, turn the fabric-select dial to lowest heat setting, move the dry/steam selector to ④ and unplug the iron.

IRONING WITH SPRAY

Use to dampen tough wrinkles at any setting (E).

1. Be sure the iron is filled with water.
2. On first use, pump the 🎨 button several times.

FOR DRY IRONING

1. Make sure dry/steam selector is set to ④ (F). Note: It is recommended that you empty the water (see "Emptying Water Tank After Ironing").

1. Turn the fabric-select dial to the appropriate setting for your fabric (G). See fabric guide on the heel rest and read garment's label to help you determine fabric type. The temperature-ready light glows until it reaches the appropriate temperature. It then cycles on and off during ironing.

Note: For optimum performance, let the iron stand for 90 seconds before beginning to iron.

1. When finished ironing, turn the fabric-select dial to lowest heat setting, move the selector to ④ and unplug the iron. Stand the iron on its heel rest and allow it to cool off.

Important: Always stand the iron on its heel rest when powered on but not in use.

EMPTYING WATER TANK AFTER IRONING

Note: It is not necessary to empty the water after each use.

1. Turn the fabric-select dial to . Unplug the iron. Stand the iron on its heel rest and allow it to cool off.
2. Empty the water by holding the iron over a sink with the tip pointing down. Water will empty out of water-fill opening (H).

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service personnel.

CLEANING OUTSIDE SURFACES

1. Make sure iron is unplugged and has cooled completely. Wipe the soleplate and outer surfaces with a soft cloth dampened with water. Never use abrasives, heavy-duty cleansers, vinegar or scouring pads that may scratch or discolor the iron.
2. After cleaning, steam iron over an old cloth to remove any residue from the steam vents.

STORING YOUR IRON

1. Check that the selector is set to ④.
2. Unplug the iron. Stand the iron on its heel rest and allow it to cool off.
3. Store vertically on its heel rest to prevent water leaking from the soleplate, or you can empty the water tank.

PRECAUÇÕES IMPORTANTES

For service, repair or any questions regarding your appliance, call the appropriate "800" number on the cover of this book. Do not return the product to the place of purchase. Do not mail the product back to the manufacturer nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

One-Year Limited Warranty

(Applies only in the United States and Canada)

What does it cover?

- Any defect in material or workmanship; provided; however, Applica's liability will not exceed the purchase price of the product.

For how long?

• One year after the date of original purchase.

What will we do to help you?

- Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of the date of sale.
• Check our on-line service site at www.prodprotect.com/applica, or call our toll-free
  number, 1-800-231-9786, for general warranty service
• If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
  • Glass parts and other accessory items that are packed with the unit
  • Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you).

How does state law relate to this warranty?

- This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.

PRECISA DE AJUDA?

San Jose, Costa Rica

Tel.: [phone]

223-0136

Ecuador

City Market Nivel Plaza Local

15.3

Diagonal Hotel Melia,

Caracas.

Tel. [phone]

www.applica-latam.com

[e-mail]

Col. Chapultepec Morales, Mexico D.F

Deleg. Miguel Hidalgo

CP 11570

MEXICO

Copyright © 2008 Applica Consumer Products, Inc., a subsidiary of Salton Inc.

Printed on recycled paper.

Made in People's Republic of China

Printed in People's Republic of China
