USER MANUAL GP200C GEORGE FOREMAN

THE LEAN MEAN FAT REDUCING GRILLING MACHINE

Please Read and Save this Use and Care Book

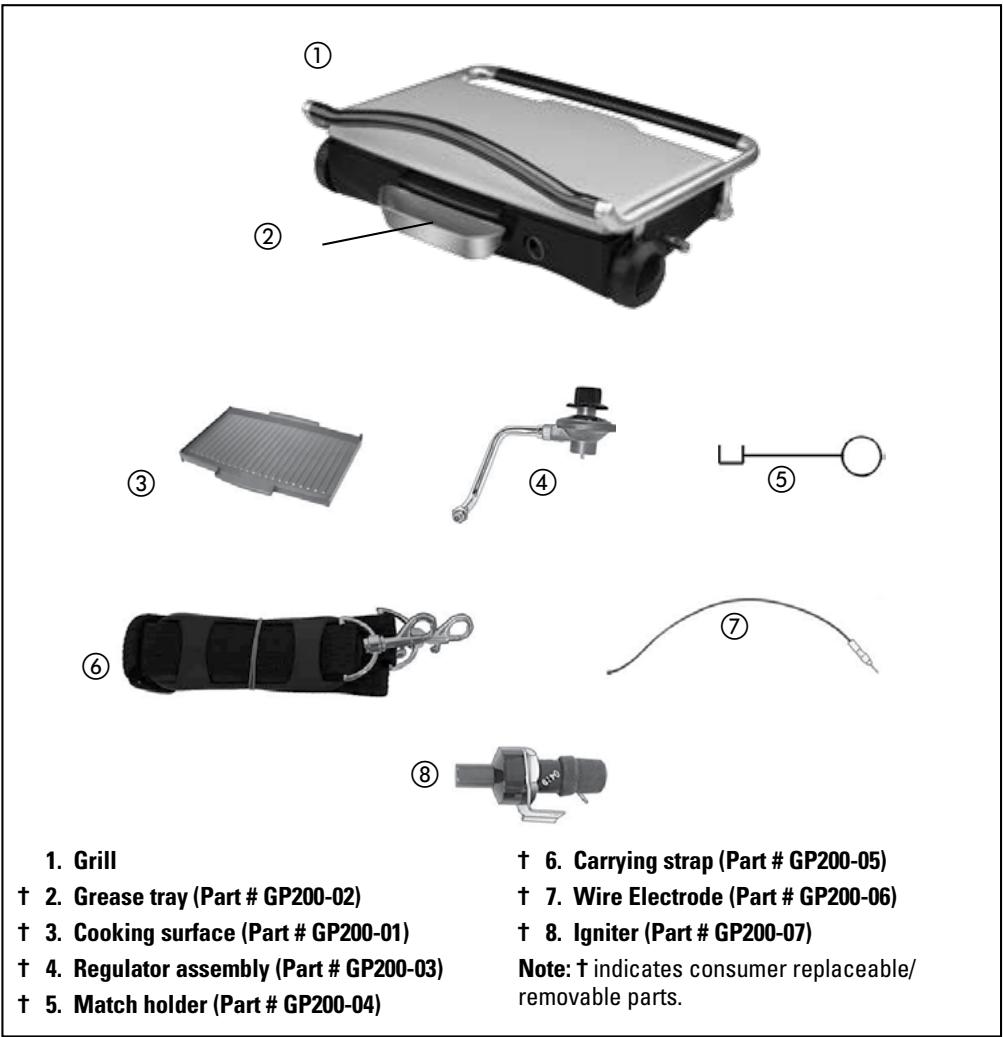

Accessories/Parts (USA / Canada)

For online customer service

and to register your product go to

www.prodprotect.com/applica

Model

Modèle

GP200C

If you smell gas:

1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, immediately call your gas supplier or your fire department.

Failure to follow these instructions could result in fire or explosion, which could cause property damage, personal injury or death.

DANGER

1. Never operate this appliance unattended.
2. Never operate this appliance within 10 ft. (3.0 m) of any structure, combustible material or other gas cylinder.

3. Never operate this appliance within 25 ft. (7.5 m) of any flammable liquid.

4. If a fire should occur, keep away from the appliance and immediately call your fire department. Do not attempt to extinguish an oil or grease fire with water.

Failure to follow these instructions could result in fire, explosion or burn hazard, which could cause property damage, personal injury or death.

WARNING!

• THIS INSTRUCTION MANUAL CONTAINS IMPORTANT INFORMATION NECESSARY FOR THE PROPER ASSEMBLY AND SAFE USE OF THE APPLIANCE.
• READ AND FOLLOW INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY OR USE. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN DEATH, SERIOUS BODILY INJURY, AND/OR PROPERTY LOSS.
  FOR OUTDOOR HOUSEHOLD USE ONLY. NOT FOR COMMERCIAL USE.
• SOME PARTS MAY CONTAIN SHARP EDGES - ESPECIALLY WHERE NOTED IN THIS MANUAL! WEAR PROTECTIVE GLOVES, IF NECESSARY.
• THESE INSTRUCTIONS MUST BE KEPT WITH THE CONSUMER AND RETAINED FOR FUTURE USE.
• NOT FOR USE ON BOATS OR RECREATIONAL VEHICLES.

IMPORTANT SAFEGUARDS

FAILURE TO FOLLOW THESE SAFEGUARDS COULD RESULT IN DEATH, SERIOUS BODILY INJURY, AND/OR PROPERTY LOSS. READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY OR USE OF THE LP GAS GRILL.

SAVE THESE INSTRUCTIONS.

1. WARNING! Read and follow all instructions. This grill comes fully assembled, with the exception of the regulator assembly. Do not use grill if it is not COMPLETELY assembled, parts are not securely fastened, or parts are missing.

2. For Household Outdoor Use Only - Do Not Use Indoors or on recreational vehicles or boats. Never use as a space heater. NOT FOR COMMERCIAL USE.

1. WARNING! To reduce the risk of serious or fatal injury from breathing toxic fumes and from explosion and fire as a result of leaking gas, use only outdoors in an open area with good ventilation.

As with all conventional fuels, the burning process consumes oxygen and produces toxic gases, including carbon monoxide. In addition, the combustion products of such fuels, including liquefied petroleum (LP), contain chemicals known to the state of California and other authorities to cause cancer, birth defects and other reproductive harm.

1. Place your Liquefied Petroleum (LP) gas grill on a firm, level surface. Grill should be set up away from high traffic areas and combustible materials.
2. Locate your LP gas grill at least 10 feet away from your house or any building. Do not use the grill in a garage, breezeway, carport, porch, or in any enclosed area or high traffic area. Do not locate this appliance under or near combustible structures, materials, gasoline, and other flammable liquids or vapors. The grill must be on a level, stable surface. Asphalt surface (blacktop) may not be acceptable for this purpose.
3. When cooking, have a type BC or ABC fire extinguisher readily available. In the event of an oil or grease fire, do not attempt to extinguish with water. Immediately call the fire department. A type BC or ABC fire extinguisher may, in some circumstances, contain the fire.

1. WARNING! If your grill catches on fire:

2. If the fire is in the grill portion and you can safely reach the Regulator Knob, then turn it "OFF" by turning knob clockwise. If you cannot safely reach the Regulator Knob, call the fire department.

3. If the fire involves the cylinder, leave it alone, evacuate the area and call the fire department.

4. If there is any type of fire that threatens either personal safety or endangers property, call the fire department.

5. Check the grease tray for grease buildup. Remove excess grease to avoid a grease fire in the pan. Never use the grill without Grease Tray in place.

6. This installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54 Storage and handling of Liquefied Petroleum Gases ANSI/NFPA 58 or CSA B149.1 Natural Gas and Propane Installation Code.
7. If an external electrical source is utilized, the outdoor cooking appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Codes, ANSI/ NFPA 70, or the Canadian Electrical Code. CSA C22.1.
8. Keep any electrical supply cord away from any heated surfaces. Electric cords should be placed away from walkways to avoid a tripping hazard.
9. Combustible materials should never be within 36 in. of the back or sides of your LP gas grill.

1. WARNING! Always Store LP Cylinders upright and where temperatures do not exceed 125 degrees Fahrenheit. Never store a spare or disconnected LP cylinder under or near this LP gas grill.

1. Check the LP gas grill for gas leaks and burner obstructions before each use. WARNING! Do not use a flame to check for gas leaks. See BEFORE USING YOUR LP GAS GRILL section of this manual for correct leak test procedures. A clogged burner tube can lead to a fire.

1. DANGER! If you see, smell, or hear the hiss of escaping gas from the LP cylinder:

A. Get away from the cylinder.
B. Do not attempt to correct the problem yourself.
C. Call your local fire department.

1. WARNING! Do not operate an LP gas grill if you have knowledge of or suspect a gas leak.

2. Always inspect the regulator assembly before each use. Always turn the LP cylinder to the "OFF" position before inspecting parts. If it is bent, cut or damaged, do not use the LP gas grill. Contact the manufacturer, as the regulator assembly must be replaced with an assembly specified by the manufacturer prior to further use of the LP gas grill.

18. WARNING! Before lighting the LP gas grill, open the lid to prevent an explosion from gas build-up. See OPERATION OF YOUR LP GAS GRILL section.

1. If burner does not light, turn off regulator knob. Wait five minutes before attempting to light.
2. If burner goes out during operation, turn "OFF" regulator knob. Wait five minutes before attempting to light.
3. Exercise reasonable care when using this LP gas grill. Never leave grill unattended during use or cleaning.
4. Do not leave the appliance unattended. Keep children and pets away from the appliance at all times.
5. Always turn off the LP gas cylinder at the regulator knob when not in use. Allow grill to cool before handling parts or cleaning.

24. WARNING! Do not move an LP gas grill when in use or hot.

25. WARNING! Never touch hot surfaces. Use heat resistant gloves, long-handled tongs, or cooking mitts at all times. The grill will become very hot. Be careful when cooking to avoid burns from the hot vapors and steam generated by the grill.

1. Use only the regulator assembly that is supplied with your LP gas grill and/or specified by the manufacturer.
2. Use of this LP gas grill other than for the intended use, or alteration of LP gas grill in any way may not be safe and will void any warranty.
3. Never attempt to refill or repair the LP gas cylinder. Properly discard the bad LP cylinder and replace it with a good one. Call local refuse utility or recycle center to discard.
4. LP gas is not natural gas. The conversion or attempted use of natural gas in an LP unit, or LP gas in a natural gas unit is dangerous and will void your warranty.
5. Do not use charcoal in an LP gas grill. Do not use aerosols or store flammable liquids or materials near this LP gas grill.

31. WARNING! Do not wear loose clothing (for example: hanging shirt tails, clothing with frills, etc.) around an LP gas grill while in use or hot.

1. Never use an LP cylinder if it shows signs of: dents, gouges, bulges, fire damage, corrosion, leakage, excessive rust or other forms of visual external damage. Do not use an LP cylinder with a damaged valve.

2. Even though your LP cylinder may appear to be empty, gas may still be present and the cylinder should be transported and stored accordingly.

3. Never store an LP gas cylinder indoors (empty or filled). If storing your gas grill indoors, disconnect LP gas cylinder and store it outdoors out of the reach of children.

4. Never leave an LP cylinder inside a vehicle which may become overheated by the sun.
5. Never lean your body over the LP gas grill when lighting it or while it is in use or hot.
6. Do not attempt to disconnect, move or alter any gas fittings while your LP gas grill is in operation.
7. Your LP gas grill should be cleaned on a regular basis. Refer to CARE AND CLEANING section in this manual.
8. Do not move the grill when in use. Allow to cool before moving, putting on or removing parts and before cleaning or storing the grill.
9. Never douse the grill with water when its surfaces are hot because it may cause grease to splatter causing a burn.
10. When not in use, the gas must be turned "OFF" on the regulator knob.
11. Do not operate the grill after it malfunctions, or is dropped or damaged in any manner. Contact Customer Service for advice and replacement of parts.
12. The use of accessory attachments not recommended by the grill manufacturer may cause injury and void warranty.
13. The use of alcohol, prescription or non-prescription drugs may impair the consumer's ability to properly assemble or operate the appliance.
14. In the event of rain, snow, hail, sleet or other forms of precipitation while cooking with oil or grease, cover the cooking vessel immediately and turn off the appliance burners and gar supply. Do not attempt to move the appliance or cooking vessel.
15. Do not place empty cooking vessel on the appliance while in operation. Use caution when placing anything in the cooking vessel while the appliance is in operation.
    47 This appliance is not intended for and should never be used as a heater.
16. This appliance will be hot during and after use. Use insulated oven mitts or gloves for protection from hot surfaces or splatter from cooking liquids.

SAVE THESE INSTRUCTIONS.

Product may vary slightly from what is illustrated.

PREPARATION AND GRILL SET-UP

Before First Use

1. Remove grill from carton and discard all the packaging. Make sure there are no loose parts.
   Note: Before using your grill, read the instructions and your manual.
2. Remove and save literature.
3. Please go to www.prodprotect.com/applica to register your warranty.

Follow instructions for each step in the order they are listed as you look at the diagrams. This will allow for easier assembly.

If you have any questions which require help, contact Customer Service and be sure to mention the model number of your grill, which can be viewed on the underside of the grill through the opening in the bottom of the bowl.

STEP 1. Place the grill on a flat table top or level surface where you will be using it. Make sure the torsion bar is locked in the vertical position. If necessary, push the torsion bar lock button and rotate the torsion bar upward; the lock button will lock back in place once the torsion bar is fully engaged.

STEP 2. Grasp the spring loaded pull handle of the right and left hand level adjusters at the same time. Pull out and rotate away from you and toward the back of the grill. This will unlock the lid. Continue rotating adjusters as you loosen the pull pressure and until the pull handles lock into the bowl.

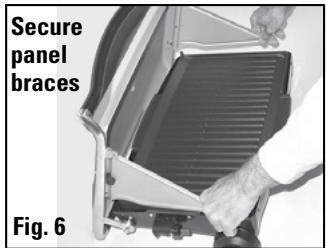

STEP 3. Open the lid. Swing the right and left panel braces out and insert the hook into the small slot at the front of the grill.

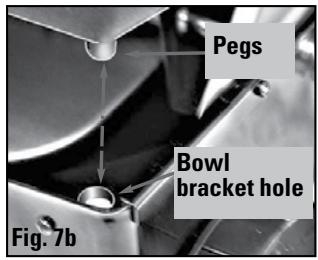

STEP 4. Lift the cooking surface and remove the grease tray and the regulator assembly located inside the bowl. Lay regulator assembly aside for a future step. Make sure the pegs at each end of the grill plate always fit into the holes of the front bowl brackets. Allow the cooking surface lip to orient downward over the grease tray for drainage. When changing surfaces to grill on: simply flip the cooking surface over toward you to automatically orient the proper position for the front lip. Install the grease tray by hanging the hooks over the wide notch in the bowl just under the cooking surface.

Note: The ribbed side is a grill and the smooth side is a griddle.

Fig. 7a

Fig. 7c

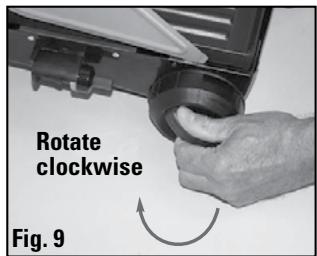

STEP 5. Adjust the level of the adjusters by pulling both lever adjustors at the same time; rotate one clockwise and the other counterclockwise until they are locked in place in a flat grill position or a tilted grill position. The flat grill position is for grilling vegetables and tilted grilling position is for grilling meat to allow for grease drainage. Rotate all the way away from you for flat grilling and all the way toward you for tilted grilling.

ATTACHING REGULATOR ASSEMBLY AND LP GAS CYLINDER

STEP6

A. Turn the regulator knob to the OFF/LOCK position. (FIG 10)
B Remove the protective cap from the LP cylinder gas nozzle.
C. Hold LP cylinder upright. Do not turn it upside down when connecting to the regulator assembly. (FIG 11)
D. Push the LP cylinder nozzle into regulator nipple and turn counterclockwise. Make sure the connection does not cross thread.
E. Hand tighten until a snug fit is obtained. Do not use tools.
F. Perform a leak test. (See LEAK TEST INSTRUCTIONS, but first go to next page.)

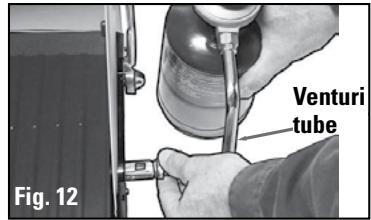

G. Insert nozzle end of the regulator/cylinder assembly to the burner Venturi tube. Thread the coupling clockwise into the Venturi tube by hand. Do not tighten with tools. (FIG 12)

WARNING! Do not use an LP gas grill indoors, on recreational vehicles, or on a boat.

This LP gas grill is for outdoor use only and should be placed on firm, level table or surface. The grill should be placed in an open area with good ventilation, away from high traffic areas and combustible materials. Asphalt surface (blacktop) may not be acceptable for this purpose.

• Combustible or flammable materials should never be used or stored within 36 inches of the back or sides of your LP gas grill.
• Locate your LP gas grill at least 10 feet away from your house or any building. Do not use the grill in a garage, breezeway, carport, porch, or under a surface that can catch fire.

STEP 1. With lid open, perform a leak test.

Warning!

Always perform a leak test before each use.
- Leak test must be performed in a well ventilated area.

• Never perform a leak test on a grill while in use or hot.
• If you detect a gas leak that cannot be corrected by using the leak test procedures below, do not use the LP gas grill.
• Never smoke or have an open flame near the grill

SUPPLIES NEEDED FOR A LEAK TEST

Clean paint brush, water, and dishwashing liquid.

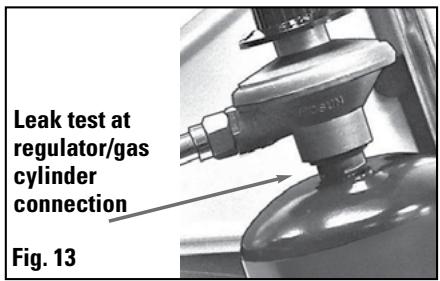

LEAK TEST INSTRUCTIONS: See leak test diagram on page 12.

WARNING! Never use an open flame to test for gas leaks.

1) Make sure the regulator control knob is turned to the OFF/LOCK position.
2) Remove the protective cap from the LP cylinder gas nozzle.

3) Hold LP cylinder upright. Do not turn it upside down when connecting to the regulator.

egulator nipple and turn counterclockwise making sure the connection does not cross thread.

5) Hand tighten until a snug fit is obtained. Do not use tools.
6) Mix 14 cup of water with one teaspoon of dishwashing liquid.
7) Check for leaks by brushing the soap solution around the connection between the gas cylinder and the regulator and the regulator and tube connection (as shown by the heavy arrow in the diagram on page 12). Make sure you generously brush the locations with the soap solution, completely surrounding the connections and fittings.

8) If "growing" bubbles appear on any of the connection points, then you have detected a gas leak. Immediately disconnect the LP cylinder from the regulator.

A) If a leak appears at the cylinder/regulator connection, unscrew the cylinder and retighten, but do not over tighten. (Note: Only hand tighten. Do not use any tools) Repeat Leak Test.
B) If a leak can not be stopped, disconnect the LP cylinder and do not use the grill. Call Customer Service at 1-800-231-9786.

STEP 2. If no leaks are found, the grill is ready to be operated.

• Before proceeding, make certain you understand the IMPORTANT SAFEGUARDS at the beginning of this manual.

• Before lighting the LP gas grill, you must open the Lid to prevent an explosion from gas build-up.
  If your LP gas grill catches on fire:

• If the fire is in the grill portion and you can safely reach the regulator knob, then turn it to the Off position.

• If the fire involves the cylinder or tube, leave it alone, evacuate the area and call the fire department.

• If there is any type of fire that threatens either personal safety or endangers property, call the fire department.

• Do not operate an LP gas grill if you have knowledge of or suspect a gas leak.

• Never allow children to operate or play near an LP gas grill. Do not leave grill unattended.

Always turn off the LP gas cylinder when not in use.
- Allow grill to cool before handling parts or cleaning.
- Do not move an LP gas grill when in use or hot.
- Never touch hot surfaces. Use heat resistant gloves, long-handled tongs, or cooking mitts at all times since the grill will become very hot. Do not attempt to close the lid when cooking to avoid serious burns.
- Do not wear loose clothing (example: hanging shirt tails, clothing with frills, etc.) around a LP gas grill while in use or hot.
- Never lean your body over the LP gas grill when lighting it or while it is in use or hot.
- Always empty grease cup before it fills up to prevent any grease fires.

The LP gas grill is only for use with propane gas. Propane cylinders will supply gas all year round, even on cold winter days.

LP CYLINDER

DANGER! If the instructions included in these warnings are not followed exactly, a fire causing death or serious injury may occur.

DANGER!

• Read and follow all warnings on LP gas cylinder.
• If you see, smell, or hear the hiss of LP gas escaping from the cylinder:

1) Evacuate all people from the grilling area.
2) Do not attempt to correct the problem yourself.
3) Call the local fire department.

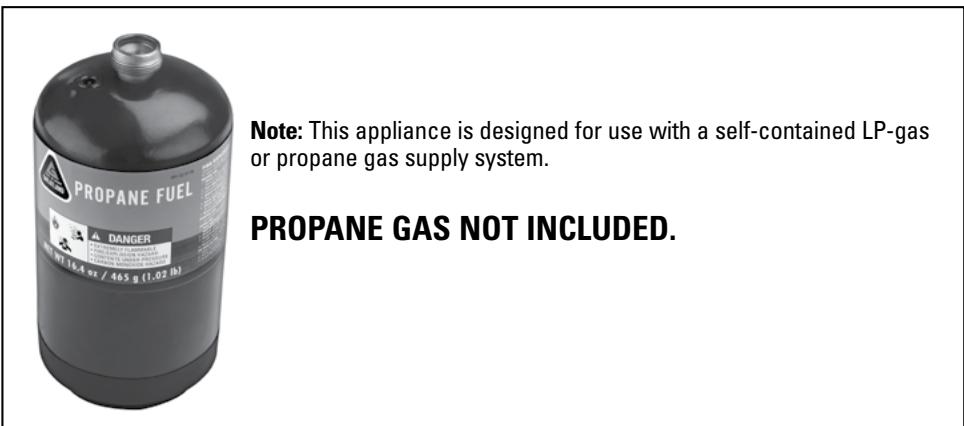

• The LP gas cylinder (1lb. disposable), for use with the LP gas grills, must meet the following requirements:

1) Use only cylinder marked "Propane Fuel".
2) Size should be 4'' diameter × 8'' tall.
3) Must be constructed and marked in accordance with the U.S. Department of Transportation (DOT) or the National Standard of Canada, CAN\CSA-B339. (See LP cylinder for marking.)
4) Must have a cylinder cap to protect LP cylinder valve when not in use.

WARNING!

Use only 1 lb. propane bottles as specified above. Use of other gas bottles could cause gas leak or fire.

• Read manufacturer's instructions and warnings on LP cylinder.
• Never use an LP gas cylinder if it shows signs of: dents, gouges, bulges, fire damage, corrosion, leakage, excessive rust or other forms of visual external damage; it may be hazardous and should be checked by a liquid propane supplier.
• Keep children away from LP gas cylinder at all times.
• Do not use, store, or transport the LP gas cylinder where it would be exposed to heat, sparks or flame. The relief valve may open which will allow a large amount of flammable gas to escape. Never leave an LP gas cylinder inside a vehicle which may become overheated by the sun.

• WARNING! Never store an LP cylinder indoors. Storage of an outdoor cooking gas appliance indoors is permissible only if the cylinder is disconnected and removed from the outdoor cooking gas appliance. LP Cylinders must be stored outdoors out of the reach of children and must not be stored in a building, garage, or any other enclosed area.

• WARNING! Never store a spare LP gas cylinder near the grill. All spare and disconnected LP gas cylinders must have safety caps installed on the LP cylinder valve.
• LP gas is not natural gas. The conversion or attempted use of natural gas in an LP unit or LP gas in a natural gas unit is dangerous and will void your warranty.

• WARNING! Never attempt to repair or refill a 1# LP gas cylinder and its valve. These could cause a hazard or explosion. Replace gas cylinder with a spare.

• When transporting an LP gas cylinder, keep it secured in an upright position with the protective cap on.

CONNECTING/ DISCONNECTING LP GAS CYLINDER TO GRILL

• Always check for gas leaks when you disconnect and reconnect the regulator to the LP gas cylinder, especially after a period of storage (for example, over winter).

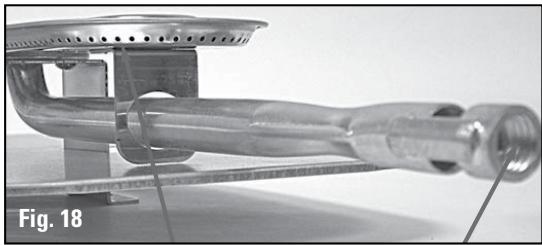

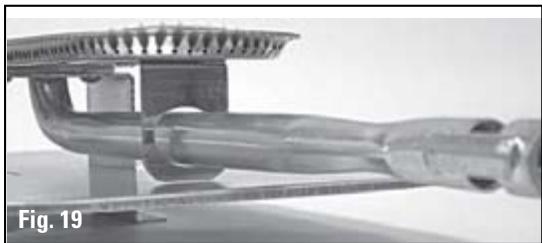

• Check tubes that lead into the burner for any blockage from insects, spiders, or food grease before using.
• Check regulator tube for bends or crimping.
• Check tube nozzle and threaded collar for damage.

REGULATOR ASSEMBLY

WARNING!

Using a regulator assembly that has not been supplied by the manufacturer of this LP gas grill, could result in serious bodily injury or property loss.

The LP gas cylinder shall be constructed and marked in accordance with the specifications for LP gas cylinders of the Department of Transportation (DOT).

• Use only regulator assembly that has been furnished with this LP gas grill. If the regulator assembly is not working properly and you need a replacement, contact the manufacturer at (1-800-231-9786).
• Inspect the regulator assembly before each use. If it is bent, cut or damaged, do not use the LP gas grill. Contact the manufacturer, as the regulator assembly must be replaced with an assembly specified by the manufacturer prior to the further use of the LP gas grill.

PREPARATION BEFORE COOKING

• Wash the cooking surface with a mixture of hot water and dish detergent. Do not use an abrasive scrubber. This product is Teflon coated and harsh cleansers will ruin the finish.
• Empty the grease tray after each cooking session so excessive grease does not accumulate. Wash same as cooking surface.
• Make sure grease tray is in place before each grilling session. (FIG 14)

WARNING!

• Empty the grease tray after each cooking session so excessive grease does not accumulate. Failure to remove grease may result in a grease fire in the tray or bowl.

• Never light the LP gas grill without the grease tray in place.

• Open the grill fully before lighting the burner to prevent an explosion from gas buildup.
• Always inspect the regulator/tube assembly before each use. If it is not damaged, do not use the LP gas grill. Contact the manufacturer, as the or assembly must be replaced with an assembly specified by the manufacturer in the further use of the LP gas grill.

HOW TO LIGHT YOUR LP GAS GRILL (See diagram below for illustrations)

Note: If the flame is accidentally extinguished, repeat the procedure below for lighting the grill. (See also TROUBLESHOOTING on pages 24 - 25.)

1) Open the lid and rotate the level adjusters to the grilling position desired.

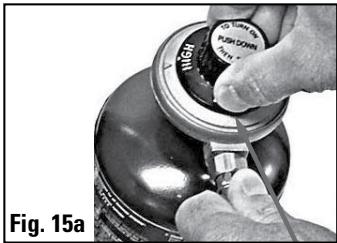

2) Push in and turn the regulator knob counterclockwise from the OFF/ LOCK position to HIGH. (FIG 15A)

3) Push the igniter button several times so that it clicks each time. (FIG 15B)

4) Turn the regulator knob from HIGH to LOW, while checking the flame through the match light hole to make sure it is lit.
5) If burner does not light or igniter does not work, turn regulator knob to OFF/LOCK. Remove the cooking surface to dissipate the gas. Wait five minutes then repeat steps 2 thru 4.
6) If burner still fails to light, repeat step 5, wait five minutes and refer to the TROUBLESHOOTING page. If it fails to light, the burner can be lit manually, see MANUAL LIGHTING OF THE GRILL on page 16.
7) After ignition, preheat the grill and cooling surface by turning the regulator knob to HIGH for about 8 minutes.

WARNING: If the burner goes out while cooking, turn the regulator knob to the OFF position. Wait five minutes before attempting to relight the grill. MANUAL LIGHTING OF THE GRILL

Note: If the flame is accidentally extinguished, repeat the procedure below for lighting the grill. (See also TROUBLESHOOTING on pages 24 - 25.)

WARNING!

• Open the grill lid before lighting the burner to prevent an explosion from gas buildup.

• Always inspect the regulator/tube assembly before each use. If it is bent, cut or damaged, do not use the LP gas grill. Contact the manufacturer, as the regulator assembly must be replaced with an assembly specified by the manufacturer prior to the further use of the LP gas grill.

How to manually Light your LP Gas Grill

1) Open the grill on a table top or level surface.
2) Turn the regulator knob counterclockwise from the OFF/LOCK position, push in and turn to HIGH. (FIG 16A)

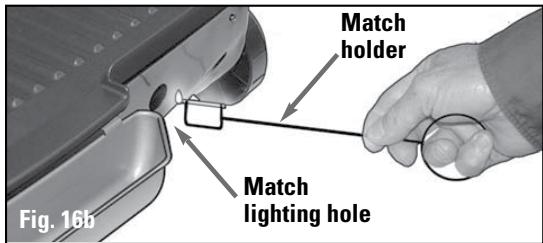

3) Insert a lit match on the match holder through the match lighting hole at the front, right side of the grill (FIG 16B)

4) Turn the regulator knob from HIGH to LOW, while checking the flame through the match light hole to make sure it is lit.
5) If burner does not light, turn regulator knob to OFF/LOCK. Remove the cooking surface to dissipate the gas. Wait five minutes then repeat steps 2 thru 4.
6) If burner still fails to light, wait five minutes and refer to the TROUBLESHOOTING on pages 24 - 25.
7) After ignition, preheat the grill and cooking surface by turning the regulator knob to HIGH for about 8 minutes.

WARNING: If the burner goes out while cooking, turn the regulator knob to the OFF position. Wait five minutes before attempting to relight the grill.

GRILL COOKING

1) Follow the instructions on page 15 / 16 to light your LP gas grill.

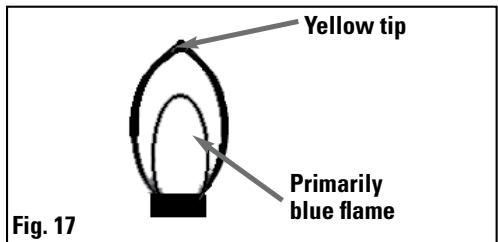

2) Check your flame. Your burner has been preset by the manufacturer for optimal flame performance. A blue flame, possibly with a small yellow tip, is the result of the optimal air and LP gas mixture. (FIG 17)

The flame should be checked before the initial cooking session and periodically throughout the grilling season, especially after storing the grill over a long period of time. If the flame is significantly yellow in color, then you are not getting the appropriate amount of LP gas in the air /LP gas mixture. You should follow the BURNER MAINTENANCE section of this manual for cleaning the burners.

Note: If the flame is accidentally extinguished, repeat the procedure above for lighting the grill. (See also TROUBLESHOOTING on pages 24 – 25.)

ON THE GRILL

The following are meant to be used as a guideline only. The times reflect a full grill of food. Cooking time will depend upon thickness and cut being used. Use a cooking thermometer as a test for doneness. If the food needs longer cooking, check periodically to avoid overcooking the food.

FOOD	COOKING TIME	COMMENTS
MEAT
Hamburger (5 oz.)	12 - 14 minutes	¾-inch thick Cooked to medium (160°F)
NY Strip Steak (Shell Steak) 6 oz.	14 – 16 minutes	¾-inch thick Cooked to medium rare (145°F)
NY Strip Steak (Shell Steak) 6 oz.	16 – 18 minutes	¾-inch thick Cooked to medium (160°F)
T-bone steak (8 oz.)	17 to 20 minutes	¾-inch thick Cooked to medium (160°F)
Pork loin chops, boneless	12 - 14 minutes	¾-inch thick Cooked to 160°F
Pork loin chops, bone in	14 to 16 minutes	½ -inch thick Cooked to 160°F
Hot dogs	11 - 13 minutes	Cooked to 160°F
Chicken breast, boneless and skinless (8 oz.)	24 - 28 minutes	Cooked to 170°F
Turkey burgers (5 oz.)	12 - 14 minutes	Cooked to 170°F
Marinated Pre-cooked Barbecued Baby Back Ribs	15 – 18 minutes	Cooked to 160°F
Chicken Drumsticks (3-4 oz., ea.)	40 – 45 minutes	Cooked to 180°F
Vegetables
Sliced zucchini and yellow squash	8 – 10 minutes	To desired doneness

Please note: To be sure your food is fully cooked the USDA recommends the following guidelines. Using a meat thermometer cook test for doneness by inserting the meat thermometer into the center of the food being cooked and make sure the thermometer is not touching the bone.

FOOD TO BE COoked	MEDIUM	WELL DONE OR FULLY COoked
Chicken Breast		170°F 77°C
Chicken Thigh		180°F 82°C
Beef / Lamb/Veal	160°F 71°C	170°F 77°C
Pork		160°F 71°C
Reheated cooked meats and poultry		160°F 74°C

On the Griddle:

The following are meant to be used as a guideline only. The times reflect a full grill of food. Cooking time will depend upon thickness of food. Use a fork inserted into the center of the food or meat thermometer to test for doneness. (Be careful not to touch the grilling plate.) If the food needs longer cooking, check periodically to avoid overcooking the food. These foods can be grilled on the grilling plates or on the griddle.

Sausage, link or patty Turn often	8 - 12 minutes	Cooked to 160°F
Bacon Turn often	8 – 10 minutes	Cooked till crisp
Eggs, over easy; turn when white is set	2 – 4 minutes	To desired doneness
Scrambled eggs	3 – 5 minutes	To desired doneness

GRILLING TIPS

• Do not overfill the appliance; it will hold approximately 4 to 6 servings comfortably.
• When first cooking a particular food, check for doneness several minutes before suggested time; if necessary, adjust the cooking time.
  If cooking more than one piece of food, try to have them similar in size and thickness.
• Watch carefully to avoid overcooking.
• For added flavor, add dry seasonings before grilling or marinate foods before cooking.

SUGGESTED GRILL SETTINGS

Low: Use to reheat fully cooked foods.

Medium: Vegetables

High: Beef, Pork, Poultry and Lamb

WARNING! Never leave your LP gas grill unattended during use or cleaning.

GRILL COOKING CONTINUED

3) To preheat: With the grill lid open, preheat on high for about 8 minutes. During the first use, you may notice a slight odor caused by the curing oil used in manufacture.
Important: Do not close the grill lid while in use.
4) Carefully place food on the cooking surface. Cook to desired doneness, turning food halfway through the cooking time for most foods. Adjust flame as needed with the regulator knob.
5) When food is cooked, remove food with long-handled heat resistant, nylon or wooden utensils to avoid scratching the non-stick surface. Never use metal tongs, forks or knives as these can damage the cooking surface.

CAUTION: Do not leave any utensils on the cooking plate surface while it is hot.

CAUTION: Never touch hot surfaces. Use heat resistant gloves, long-handled tongs, or cooking mitts at all times.

END OF COOKING SESSION

WARNING!

• Always turn OFF the regulator knob when not in use. Allow the grill to cool before handling parts or cleaning.
• Do not move an LP gas grill when in use or hot.

CAUTION: Do not remove the grill plates while the appliance is hot. Always allow them to cool to room temperature before removing or cleaning.

TURN OFF YOUR LP GAS GRILL

1. Turn the regulator knob clockwise to the OFF/LOCK position.
2. Wait until the grill is cool before cleaning the grill or closing the lid.
3. After the grill is cool, disconnect the LP cylinder and regulator assembly from the grill. Store these parts in a safe place.

WARNING! Never store an LP gas cylinder indoors (empty or filled). If storing the gas grill indoors, disconnect LP gas cylinder and store it outdoors out of the reach of children.

Care and Cleaning

CLEANING THE GRILL

CAUTION: Some of the metal edges may be sharp. be careful handling it.

Regularly clean your LP gas grill between uses and after extended storage. To prolong the life and condition of your grill, the portable unit should not be stored outside for any length of time, especially during the winter months.

• Do not clean any grill part in a self-cleaning oven. The extreme heat will damage the finish.
• Do not immerse the burner in water. Make sure any water is removed from the burner.
• Never use oven cleaner, steel wool or other abrasive cleaning products on the painted and nonstick surfaces. These will cause damage to the finish or parts.

How to Clean the Grill

1. After grill has cooled, empty and clean the grease tray in hot soapy water.
2. Remove excess grease and drippings from the grill bowl with a soft plastic or wooden scraper. If necessary, use a nylon bristle brush to loosen hardened food particles. Wash the cooking surface in hot soapy water or in the dishwasher. Rinse and dry thoroughly.
3. Wash exterior parts with a soft sponge and warm soapy water. Non-abrasive cleansers may be used. Rinse and dry thoroughly.
4. Use a damp cloth to clean the inside of the grill lid and grill body. Rinse and dry thoroughly.
5. Replace the grease tray inside the bowl and the cooking surface on the bowl brackets.

BURNER MAINTENANCE

WARNING!

• Do not obstruct the flow of combustion and ventilation of air.

• Check the LP gas grill for gas leaks and burner obstructions before each use.

• Always turn off the regulator knob when not in use. Allow grill to cool before handling parts or cleaning.

Provided that the burner is operating correctly, in normal usage, burning off the residue after cooking will keep the burner clean. The burner should be cleaned annually, or whenever heavy build-up is found, to ensure that there are no signs of blockage (debris, insects) in the burner portholes, the primary air inlet, or the neck of the burner. (See BURNER CLEANING INSTRUCTIONS below.)

CAUTION: Some of the metal edges may be sharp. be careful in handling. How to Clean the Burner

1) Make sure the LP cylinder and regulator knob is turned to the OFF/LOCK, and the grill has completely cooled.

2) Remove the LP cylinder and regulator.
Note: Keep ventilation opening(s) of the cylinder enclosure are free and clear from debris.
3) Carefully remove grease tray and the cooking plate.
4) Remove 4 screws from top of grease deflector.

5) Use a pipe cleaner to clear obstructions from the burner holes and inlet hole. Verify that there are no insects, insect nests or debris blocking the inlet hole. Normal wear and corrosion may enlarge some holes, however, if large cracks or holes are found, the burner should be replaced. (FIG 18)

Note: Before reassembly of burner you may want to fully clean the grill. See CLEANING THE GRILL section.

6) After cleaning, reassemble burner assembly and other parts in reverse order of previous steps 2-5 disassembly.

Note: When refitting the burner, be sure to check that it is positioned correctly.

7) Check burner operation after cleaning (FIG 19).

GREASE TRAY

WARNING!

• Always turn the LP gas cylinder valve "OFF" when not in use. Allow grill to cool before handling parts or cleaning.

• Empty the grease tray after each use so excessive grease does not accumulate. Failure to remove grease may result in a grease fire in the tray.

• Never light the LP gas grill without the grease tray in place.
• Before each use, remove all grease from your grease tray.
• Make sure grease tray is in place before use.
• Failure to remove grease from the grease cup may cause a fire hazard.

STORAGE

WARNING!

• Never store an LP gas cylinder indoors (empty or filled). If storing the gas grill indoors, disconnect the LP gas cylinder and store it outdoors out of the reach of children.

• Never leave an LP gas cylinder inside a vehicle which may become overheated by the sun.

• Never store a spare or disconnected LP gas cylinder under or near the LP gas grill.

• Always turn off the regulator knob when not in use. Allow grill to cool before transporting.
• Even though your LP gas cylinder may appear to be empty, gas may still be present and the LP cylinder should be transported and stored accordingly.
• Store your LP gas grill in a cool dry place.
• Disconnect LP gas cylinder from grill and store outside, in a dry, well-ventilated area, away from any sources of heat or ignition. Recap LP cylinder valve with the safety cap.
• Check your LP gas grill for gas leaks, deterioration, proper assembly, and burner obstructions before using the grill after periods of storage and/or non-use (i.e. over winter).

PRECAUTIONS

WARNING!

• Carefully read the IMPORTANT SAFEGUARDS section at the beginning of this manual. Make sure you understand and follow all instructions and warnings. If you have any questions regarding this section, call 1-800-231-9786 and ask for a Customer Service Representative.

• Always turn the regulator to the OFF/LOCK position when not in use.

• Allow grill to cool before handling parts or cleaning.
• Do not use aerosols or store flammable liquids or materials near this gas grill.

PREVENTIVE MAINTENANCE

Periodically check and tighten all nuts, bolts, and screws. Check if the grill works mechanically and the grill lid locks.

EASY-CARRY SHOULDER STRAP

Note:

• Always lock the grill lid with level lock adjusters before carrying this grill.
• Do not carry the grill unless it has cooled down and has been cleaned.

Your gas grill comes with a convenient shoulder carrying strap. When the grill has completely cooled down, and the grill and all the parts are clean:

• Return the grease tray and the regulator assembly to inside the bowl and cooking plate on the bowl brackets.
• Fold and lock the grill lid with the level adjusters.
• Slide the strap lock back with your thumb and hook into the hole under the back handle on each side of your grill.
• Hold the grill with one hand; place the strap over your shoulder and you are ready to go. Adjust the strap length to fit your carrying comfort.

TROUBLESHOOTING

Problem	Possible Cause	Solution
Burner will not light using the igniter.	·Burner not assembled correctly. ·Not pausing long enough before clicking the Igniter. ·No spark ·LP gas cylinder is empty. ·Regulator tube coupling nut is not fully connected to Venturi. ·Excess flow valve tripped in Regulator. ·Obstructions in burner or Venturi tube. ·Electrode and burner are wet. ·Wire is loose or disconnected. ·Wire is shorting (sparking between igniter wire and electrode.	·See Assembly Instructions for INSTALLING THE BURNER. ·When lighting the burner, push-in and turn regulator knob counter-clockwise to the high position. Push in igniter button several times so that it clicks each time. ·The spacing between electrode and burner ports should be approximately 3/16". Make sure wire connections are secure and burner is attached securely to brackets. ·Use a pipe cleaner to clear Venturi tube. ·Dispose of empty cylinder and replace with a full one. ·Tighten coupling nut until a snug fit is obtained. Make sure Coupling nut is not cross-threaded. ·Turn regulator knob to OFF position. Wait five minutes. Relight LP gas grill. If flame remains to be low, turn off gas. Disconnect the LP gas cylinder from the regulator. Reconnect the LP gas cylinder to the regulator. Perform a leak test. Relight grill. This will reset the excess flow valve. ·Clean burner (See BURNER MAINTENANCE in Care and Cleaning section of this manual). ·Dry electrode with clean cloth. ·Reconnect the wire. ·Replace igniter wire/electrode assembly (Call the Customer Service Department @ 1-800-231-9786).

Burner will not light using a match.	·LP gas cylinder is empty. ·Regulator tube coupling nut is not fully connected to Venturi. ·Obstructions in burner	·Disposition of empty cylinder and replace with a full one. ·Tighten coupling nut until a snug fit is obtained. Make sure coupling nut is not cross-threaded. ·Clean burner (See BURNER MAINTENANCE in Care and Cleaning section of this manual.)
Flames blow out	·High or gusting winds ·Gas in LP cylinder is low.	·Turn front of grill away from wind or increase flame height. ·Check LP gas cylinder. Replace if necessary.
Persistent grease fire	·Grease trapped in bowl and around burner system.	·Turn regulator knob OFF. Let fire burn out and remove grid plate. After the grill cools, clean all parts.
Humming or whistling from the regulator	·Outside temperature, humidity, barometric pressure, and the gas level within the tank may cause the rubber diaphragm inside the regulator to vibrate, making a humming or whistling sound.	·Although this sound may be alarming, this is NOT dangerous as long as it is not accompanied by the smell of gas. Simply adjust the burner settings and usually the sound will subside. If the humming sound persists, a change in atmospheric conditions will eventually stop the vibration. Should you smell gas, do not use the grill and call Customer Service at 1-800-231-0786.
Low flame or low heat	·Gas in LP cylinder is low.	·Check LP gas cylinder. Replace if necessary.

DANGER

ALLUMAGE MANUEL DU GRIL

For service, repair or any questions regarding your appliance, call the appropriate 800 number on cover of this book. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

Two-Year Limited Warranty

(Appplies only in the United States and Canada)

What does it cover?

• Any defect in material or workmanship provided; however, Applica's liability will not exceed the purchase price of product.

For how long?

• Two years after the date of original purchase.

What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of date of sale.
• Check our on-line service site at www.prodprotect.com/applica, or call our toll-free number, 1-800-231-9786, for general warranty service.
• If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
  Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

• This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.

BESOIN D'AIDE?

Applica Consumer Products, Inc.
