GUSSOFEN G2 - Gas heating group AUSTRO FLAMM - Free user manual and instructions

Brand	AUSTRO FLAMM
Model	GUSSOFEN G2
Product type	Gas heating group (wood/briquette stove)
Height	751 mm
Width	690 mm
Depth	585 mm
Weight	162 kg
Flue diameter	150 mm
Nominal power	11 kW
Maximum power	16 kW
Minimum power	5 kW
Heated volume	100 – 280 m³
Flue gas mass flow	16 g/s
Flue gas temperature	386 °C
Minimum draught pressure	0.11 mbar
Authorized fuels	Dry natural wood (<15% humidity), wood or lignite briquettes
Maximum fuel quantity	4.8 kg of wood or 3.6 kg of briquettes
Safety distances (non-flammable)	Front >400 mm, sides >200 mm
Safety distances (flammable)	Front >800 mm, sides >800 mm
Glass maintenance	Use a product like Thermohit
Warranty	2 years on steel and cast iron, excluding wear parts

Frequently Asked Questions - GUSSOFEN G2 AUSTRO FLAMM

How to correctly light the GUSSOFEN G2 stove?

To light the stove, follow these steps: open the primary and secondary air inlets fully, place uncoated paper, wood shavings and 1-2 logs in the firebox, light the paper, close the door. As soon as the shavings burn, close the primary air supply. Adjust the power with the secondary air supply. Refer to the manual for more details.

What fuels are authorized for this stove?

Authorized fuels are dry and well-seasoned natural wood (relative humidity <15%), wood or lignite briquettes. Never use flammable or explosive materials.

What are the minimum safety distances to observe?

For non-flammable objects: front >400 mm, sides >200 mm. For flammable objects and load-bearing reinforced concrete walls: front >800 mm, sides >800 mm. Respect these distances to avoid any fire risk.

How to maintain the stove glass?

Use a specific glass cleaner like Thermohit. The lacquered parts can be cleaned with a soft cloth, possibly damp. For stainless steel, use special products.

What to do during first commissioning because of the varnish smell?

During first use, the special varnish hardens when heating. Heat strongly for at least 1h30, with the window open to evacuate fumes. The smell will disappear after several fires.

Can I use the stove if I wear loose clothing?

No, it is forbidden to reload the stove while wearing loose clothing or flammable materials due to fire risk.

How to adjust the heating power?

Use the secondary air inlet slider: maximum position = maximum power. After lighting, close the primary air and adjust the secondary air according to the desired power.

Where can I find spare parts for the GUSSOFEN G2?

Spare parts (seals, refractory ceramic, glass door, etc.) are available from your AUSTRO FLAMM specialist dealer. References in the manual.

What is the warranty period and what does it cover?

The warranty is 2 years on steel and cast iron parts, from the purchase date. It does not cover wear parts (ceramic, seals, grate, glass, varnish).

Can I install the stove myself?

It is strongly recommended to have the installation done by a professional installer, especially for connecting the flue to the chimney, to comply with safety standards.

USER MANUAL GUSSOFEN G2 AUSTRO FLAMM

secondary air supply primary air supply

italiano

aperto - chiuso

1. Techn. data 4
2. Important information 4
3. Correct operation of your stove 5
4. The most important spare parts - overview 6 Guarantee 13

italiano

#

As a stove of construction type 1, it is possible to connect it to the flue pipe of an existing other stove or another furnace for solid and liquid fuels, as long as the chimney does complies with DIN 4705, Part 3.

TECHNICAL DATA
Height	751 mm
Width	690 mm
Depth	585 mm
Weight	162 kg
Weight with ceramic shell	--------
Flue pipe outlet diameter	150 mm
Nominal thermal output (DIN 18891)	11 kW
Maximum thermal capacity	16 kW

Smallest heating capacity	5 kW
Room heating capacity (depending on building insulation)	100 – 280 m3

Exhaust values for multiple use of the chimney in accordance with DIN 4705, Part 3 and for the calculation of the chimney measurements in accordance with DIN 4705, Part 2
Fluegas mass flow	closed	16 g/s
Fluegas temperature	closed	386 °C
Minimum feed pressure Nominal thermal output	closed	0.11 mbar
	at 0.8 times n. ther. outp.	0.09 mbar

2. IMPORTANT INFORMATION

The installation and operation information given here is of a general nature, exact regulations may vary from country to country. The rules in force in your country should always take precedence.

General Safety Instructions for the Operation of Your Stove

• Thoroughly read the entire manual before starting up your stove and ensure compliance with the warnings.
• Your heating unit may not be moved without approved means of transport with sufficient load-bearing capacity.
• Your heating unit is not suitable to be used as a stand or as a ladder.
• The burning of fuel releases thermal energy that leads to a substantial heating up of the surface of the heating unit, the doors, the parts mounted on the door, door glass, flue pipe and in some cases the front wall of the heating unit. Do not touch any of these surfaces without respective protective clothing or without the help of accessories such as heat-resistant gloves or a cold hand.
• Make your children aware of this particular danger and keep them at a distance from the heating unit whenever it is in operation.
• Only burn approved fuels and materials listed in the section entitled Clean Burning.
• The burning or introduction of flammable or explosive materials, such as empty spray cans and the like into the firebox as well as the storage of such materials in the immediate vicinity of your

heating unit is strictly forbidden due the danger of explosion.

• Do not wear loose or flammable clothing when adding fuel to the fire.
• Placing non-heat-resistant objects on the heating unit or in the vicinity of the heating unit is forbidden.
• Do not lay laundry onto the stove for drying.
• Laundry hung up to dry must be kept at a safe distance from the stove because of the danger of fire.
• When operating your heating unit it is forbidden to use flammable or explosive materials in the same or an adjacent room to the one in which your heating unit is located.

Setting Up Your Stove

Safety Clearances (Minimum Distances in Fig. 2)

1. to nonflammable objects:

$$ a > 4 0 0 \mathrm {m m} b > 2 0 0 \mathrm {m m} $$

1. to flammable objects and to supporting walls of reinforced-concrete construction with convection shell:

$$ a > 8 0 0 \mathrm {m m} b > 8 0 0 \mathrm {m m} $$

$$ (a - \text {t o w a r d t h e f r o n t i n t h e r a d i a t e d a r e a}) $$

$$ (b - t o \text {t h e s i d e a n d t o t h e b a c k}) $$

Make sure that the room in which the stove is set up has at least one door or window to the outside or is directly adjacent to such a room.

Floor Load Capacity

Before the heating unit is installed, make sure that the load capacity of the supporting construction is sufficient to carry the weight of the entire unit.

Stovepipe Connection

For your own safety stringent laws apply to the connecting of the stovepipe to the chimney. Your professional dealer or distributor knows these laws. Please have your certified retailer carry out the connection of your stove.

Initial startup of your stove

Your stove was treated with a special environmentally friendly lacquer. The lacquer surface is still soft at the time the stove is shipped. The lacquer will harden when your stove is used for the first time. The lacquer surface may not be touched when it is heated for the first time. The stove must be initially heated to a high temperature for at least 1.5 hours. Visible vapors may appear during the hardening of the lacquer. For this reason it will be necessary to open windows during initial operation in order let the vapors escape into the outdoors.

PLEASE TAKE NOTE: It takes several heating sessions before for your stove releases only the pleasant smell of burning wood.

Approved Fuels

Dry, well cured and natural wood, wood briquettes, brown-coal briquettes.

Maximum Amount of Fuel

Maximum amount of fuel to be added: appr. 4,8 kg wood or appr. 3,6 kg wood briquettes. Larger amounts of fuel can lead to overheating and thus damage the stove.

Clean Burning

The wood must be dry (relative wood moisture < 15% ) and untreated and the right amount of wood must be burned in order to ensure a clean fire that releases only small amounts of emissions.

Making a Fire

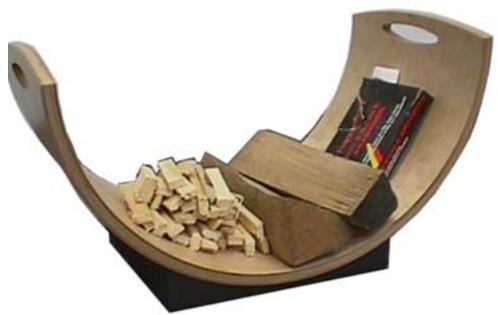

Prepare everything you need for starting the fire—soft wood chips, igniter materials (such as Thermohit wood/coal igniter), uncoated paper, wood. Figure 1 provides a good overview of the materials you will need.

Figure 3: Heating Material

Open the primary and secondary air all the way. Move both sliders. See Figure 2.

Open the stove door.

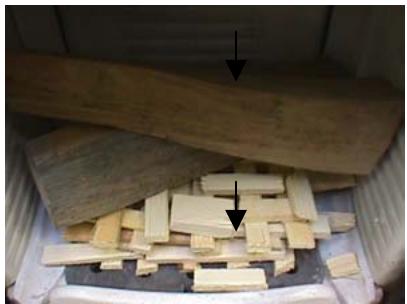

Lay uncoated paper on the floor of the firebox. Lay soft wood chips onto the paper.

Lay one or two logs of wood on the wood chips.

Figure 4: Igniting the Fire

Light the paper.

Close the firebox.

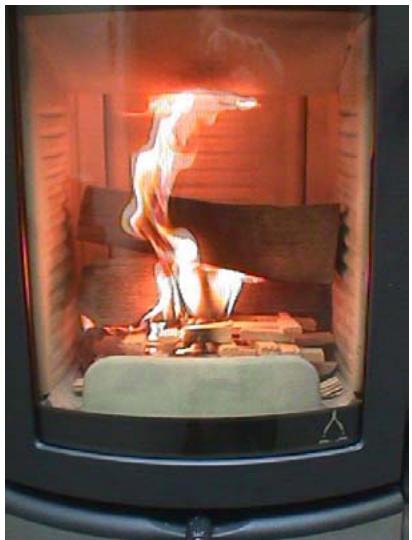

As soon as the chips are burning well, close the primary air supply.

Figure 5: Close the Primary Air

As soon as the wood logs are burning well, you can regulate the heating capacity with the secondary air slider. (Slider set to the maximum ("AUF") setting produces maximum heat - see Figure 2.)

When adding wood to the fire, follow the same procedure as when igniting the fire: Open primary air, open secondary air, carefully open firebox door, lay wood on the fire, close the firebox door. Wait until the added wood catches fire and is burning. Then close the primary air. Subsequently regulate the fire with the secondary air supply.

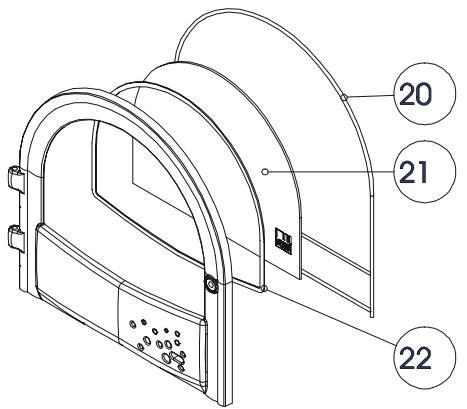

4. THE MOST IMPORTANT SPARES-OVERVIEW

Gaskets

Description	Nr. drawing	Part number
Flat gasket 8 x 2 x 1220 mm	22	710096
Round gasket d=8 x 1680 mm	20	710049

Other parts

Description	Nr. drawing	Part number
G2 baffle plate back		716195
G2 baffle plate front		716192
G2 wood retainer		716076
G2 grate		716077
G2 ash drawer		716008

Description	Nr. drawing	Part number
G2 door glass	21	716064
Stove lacquer	--	650002
Wood/coal igniter	--	640067
Glass cleaner ½ litre	--	640070

Accessories

You can obtain floor plates of glass or steel, fireplace utensils or care products from your certified dealer.

IMPORTANT: Have defective parts replaced by your certified dealer. This will guarantee that your stove functions properly and safely.

Maintenance

To clean the glass, please use a specialized product such as Thermohit glass cleaner. Lacquered surfaces are to be cleaned only with a cloth (may be damp). Special cleaning agents should also be used for stainless steel surfaces.

1. DATI TECHNICI

We guarantee full functionality of all AUSTROFLAMM stove components made of steel or cast iron for a full two years from the date of purchase. Steel and cast-iron components which show defect in materials or workmanship during the guarantee period shall be replaced with new components.

We do not guarantee wearable components (such as Keramott, gaskets, floor grid), surface coatings, lacquer, glass and ceramics.

Conditions of the Guarantee:

1. Your AUSTROFLAMM stove was installed by a certified professional and is operated in accordance with the operator's manual.
2. Claims to the guarantee shall be subject to a completely filled-out Guarantee Card and submittal of the original invoice issued by a certified AUSTROFLAMM sales agent.

IMPORTANT: Our guarantee includes free shipping of new components. Work and travel times are not included. Unwarranted claims shall be re-invoiced to the operator.

In the event of claims to the guarantee, separate here and present this proof of purchase to your certified AUSTROFLAMM dealer.
