1L22 - Wristwatch BREIL - Free user manual and instructions

Product Type	Watch
Brand	BREIL
Model	1L22
Movement	Quartz
Power Source	Button cell
Display	Hands (hours, minutes, seconds on some models)
Date	On some models
Water Resistance	From non-water resistant (level A) up to 200 meters (20 bar, level E) depending on model
Case Material	Metal (not further specified)
Crystal Material	Mineral glass (typical)
Strap	Possible options: metal, plastic, rubber
Main Functions	Time display, date (on some models), water resistance
Maintenance	Regular cleaning, periodic inspection every 1 to 2 years
Metal Strap Cleaning	Toothbrush and lukewarm soapy water
Plastic/Rubber Strap Cleaning	Water only, no solvents
Plastic Strap Cleaning (outer side)	Soft dry cloth; opposite side: cloth moistened with alcohol
Precautions	Avoid violent shocks, magnetic fields >60 Gauss, chemicals, extreme temperatures, static electricity
Safety	Keep batteries out of reach of children
Reparability	Repair only by authorized service center
Warranty	Document provided at purchase, to be presented for services
Manual	Available in French, German, English, Spanish, Italian and other languages on request
Detailed Water Resistance Characteristics	Level A: not water resistant; B: splash resistant (WR); C: WR 50m (5 bar) – swimming; D: WR 100m (10 bar) – shallow diving; E: WR 200m (20 bar) – deep diving

Frequently Asked Questions - 1L22 BREIL

How to set the time on my BREIL 1L22 watch?

Pull the crown to position (1) (if your watch has a date function, to position 2) to stop the second hand at 0. Turn the crown to set the hands to the desired time, then push the crown back to position (0) to restart the watch.

How to set the date on my BREIL 1L22 watch?

If your watch has a date function, pull the crown to position (1). Turn the crown to set the date, then push the crown back to position (0).

Is my BREIL 1L22 watch water resistant?

Water resistance depends on the model. Check the indications on the dial or case: WATER RESISTANT (splash resistant), WR 50M/5bar (swimming), WR 100M/10bar (shallow diving), WR 200M/20bar (deep diving). If no indication, it is not water resistant.

What to do if condensation appears under the crystal of my watch?

Temporary condensation after a temperature change is normal. If it persists, contact an authorized service center, as it may indicate moisture ingress.

How to clean the metal strap of my watch?

Use a wet toothbrush with lukewarm soapy water to scrub the dirty parts. Rinse and dry thoroughly.

How to clean the plastic or rubber strap?

Wash with clean water. Never use solvents. For the outer side of a plastic strap, gently rub with a soft dry cloth; for the opposite side, use a cloth moistened with alcohol.

Can I swim with my BREIL 1L22 watch?

It depends on its water resistance level. Watches with WR 50M/5bar are suitable for swimming but not diving. Models with WR 100M/10bar or more are suitable for shallow or deep diving. Check the indication on your watch.

What to do if my watch suffers a violent shock?

The watch is designed to withstand daily shocks, but a very strong impact may damage it. If it falls or suffers a violent shock, have it checked by an authorized service center.

How to prevent my watch from being affected by magnetic fields?

The watch is anti-magnetic up to 60 Gauss. Avoid placing it near devices generating strong magnetic fields (speakers, powerful magnets) as this could affect its accuracy.

Where to get my BREIL 1L22 watch serviced?

We recommend a periodic inspection every 1 to 2 years by an authorized service center. Consult the retailer or the BREIL website to find the nearest center.

USER MANUAL 1L22 BREIL

Thank you very much for purchasing a BREIL WATCH. To ensure its correct use, please read these instructions carefully.

In order to be able to make full use of the guarantee service (subject to the guarantee terms), please ensure that the Breil international guarantee card is supplied with the watch at the time of purchase.

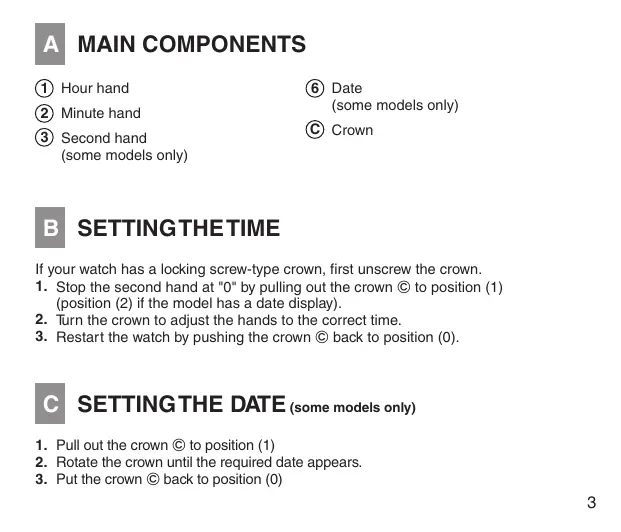

When reading this instruction booklet, keep the watch diagram on the left unfolded and in full view. The symbols (A, B, etc.) on the diagram are those referred to in the section describing the operating instructions.

① Hour hand
② Minute hand
③ Second hand (some models only)

(6) Date (some models only)
Crown

B SETTINGTHETIME

If your watch has a locking screw-type crown, first unscrew the crown.

1. Stop the second hand at "0" by pulling out the crown © to position (1) (position (2) if the model has a date display).
2. Turn the crown to adjust the hands to the correct time.
3. Restart the watch by pushing the crown back to position (0).

C SETTING THE DATE (some models only)

1. Pull out the crown © to position (1)
2. Rotate the crown until the required date appears.
3. Put the crown back to position (0)

PRECAUTIONS AND USEFUL INFORMATION

Indication			Use in
Degree of water resistance	Dial	Case	Spray, sweat, light rain, washing, etc.	Swimming, etc.
A	-	-	NO	NO
B	-	WATER RESISTANT	YES	NO
C	WATER RESISTANT 50M (5bar)	WATER RESISTANT	YES	YES
D	WATER RESISTANT 100M (10bar)	WATER RESISTANT	YES	YES
E	WATER RESISTANT 200M (20bar) or more	WATER RESISTANT	YES	YES
The words “WATER RESISTANT” may sometimes be abbreviated to “WATER RESIST”.

• In order to prevent water coming into contact with the internal mechanism, never pull the crown out when the watch is wet.
• If any watches designed for sportswear or use in water come into contact with salt water or heavy sweating, they should be rinsed in fresh water and dried thoroughly.
• Contact with water may cause a deterioration in the quality of some leather straps.

Water
Skin-diving	Scuba diving	Water-resistance characteristics
NO	NO	Not water resistant. Must be kept away from water and moisture
NO	NO	Average water resistance. Can withstand spray, sweat, light rain, washing, etc. during daily use
NO	NO	Can be worn while swimming but not diving
YES	NO	Suitable for skin-diving
YES	YES	Suitable for scuba diving
*Always keep the crown in its normal position. *Fully tighten crown screw lock.

• As the internal parts of the watch can retain moisture, when the outside temperature is lower than the inside, the watch glass may mist-up. This phenomenon is purely temporary and should not create any problems. However, if it persists for any length of time, the watch should be checked by the shop where it was purchased or by the nearest Authorised Service Centre.

Impact

This watch can withstand normal everyday impacts and shocks and those normally imparted by non-contact sports such as golf and baseball. Serious damage, however, may result if the watch is dropped or subjected to severe shock.

Magnetic fields

This watch is antimagnetic up to 60 gauss, and is therefore not affected by magnetic fields produced by normal domestic appliances. If used near strong magnetic fields, its operation may be temporarily affected.

Chemicals and gases

Avoid wearing the watch in the presence of strong gases or chemical substances.

Parts of the watch may discolour, dissolve or even break if brought into contact with benzol or petroleum based products such as solvents, thinners, detergents, adhesives etc.

Pay special attention to avoiding contact with chemicals.

The watch case and strap may discolour if they come into contact with mercury from a broken thermometer or other equipment.

Keeping the watch clean

Use an absorbent soft cloth to clean off any dirt or damp from the watch glass.

Wearing the watch when the strap or back of the case is dirty can cause skin irritation.

Keeping the watch clean also keeps shirt cuffs clean.

Cleaning the watch strap.

Metal bands: use a toothbrush and soapy warm water to wash the dirt off.
- Plastic or rubber straps: wash with water. Do not use solvents.
- Leather straps: gently rub the face of the strap using a soft dry cloth. Clean the opposite side with a cloth and alcohol.

Periodic inspection

In order to guarantee long trouble-free operation, it is advisable to have the watch checked by an authorised assistance centre once every 12 months or two years.

If your watch is fitted with a quartz movement

Temperature

Do not leave the watch exposed to direct sunlight or temperature extremes for long periods of time.

Long exposure, in fact, may adversely affect the operation of the watch and actually shorten battery life, causing it to gain or lose time and affect its other functions.

Static electricity

The integrated circuits present inside the watch are sensitive to static electricity. If the watch is exposed to intense electrical fields, the time display may temporarily lose some of its accuracy.

Keep batteries out of the reach of children

In order to improve the product, the technical specifications may be modified without prior notice.

INDEX

A PIECES PRINCIPALES 9
B COMMENT REGLER L'HEURE 9
C COMMENT REGLER LA DATE 9
PRECAUTIONS D'UTILISATION ET INFORMATIONS UTILES 10

A PIECES PRINCIPALES
