Product Type	Fire-rated recessed enclosure for ceiling speakers
Brand	BOSTON ACOUSTICS
Model	FRB6R
Compatible Speakers	DSi265, 465, 465T2, VRi565
Cutout	8 7/8" (225 mm)
Speaker Depth	5 3/8" (137 mm)
Plate Dimensions (W x L)	23 3/4" x 13" (603 x 330 mm)
Enclosure Volume	0.46 ft³ (13 L)
Material	Heavy-gauge steel, heat and fire resistant
Insulation	5 cm (2") insulation layer for up to 10 dB acoustic isolation
Installation Type	Ceiling, wall bay, or drop ceiling
Cable Entries	2 standard 20 cm (8") knockouts with included ULM connectors
70/100 V Transformer	Compatible with internal mounting on threaded rods
Standards and Certifications	UL 2043, UL 263, ASTM E119, NFPA 251, CAN/ULC S101/M89, UBC 7-1
Support Bars	Adjustable bars for drop ceilings included
Safety Tab	Integrated at the rear for a safety cable (provided by installer)
Trim Color	Blue (for 15 cm / 6" speakers)
Warranty	5-year limited (parts and labor)
Care and Cleaning	Wipe with a soft, dry cloth; do not use abrasive products
Disposal	Do not dispose of with household waste; recycle via WEEE channels

Frequently Asked Questions - FRB6R BOSTON ACOUSTICS

Which speakers are compatible with the FRB6R?

The FRB6R is compatible with the following Boston Acoustics speakers: DSi265, 465, 465T2, and VRi565. Check the cutout diameter (8 7/8") and depth (5 3/8") for optimal compatibility.

What is the difference between the FRB6R and the FRB5R or FRB8R?

The FRB6R accepts 15 cm (6") speakers with a cutout diameter of 8 7/8". The FRB5R accepts 12 cm (5") speakers with a cutout of 6 3/4", while the FRB8R accepts 20 cm (8") speakers with a cutout of 10 7/8". Enclosure volumes and plate dimensions vary.

Can I install the FRB6R in a drop ceiling?

Yes, the FRB6R is designed for installation in a drop ceiling using the included adjustable support bars. Follow the instructions in the manual to attach the bars and cut the hole in the ceiling panel.

Is the FRB6R fire-resistant?

Yes, the FRB6R is made of heavy-gauge steel that is heat and fire resistant. It meets UL 2043, UL 263, ASTM E119, NFPA 251, CAN/ULC S101/M89, and UBC 7-1 standards, making it suitable for applications requiring a fire-rated enclosure.

How do I install a 70/100 V transformer in the FRB6R?

Use the threaded mounting rods inside the FRB6R to mount the transformer. Ensure compliance with local electrical regulations and connect the speaker correctly.

What is the cutout procedure for the FRB6R?

The cutout diameter is 8 7/8" (225 mm). Carefully measure the location, cut the hole in the drywall or ceiling panel, then install the FRB6R by securing it with at least 4 screws into the joists or studs.

Does the FRB6R come with a safety cable?

No, the safety cable is not included. The FRB6R has an integrated safety tab at the rear for attaching a safety cable (provided by the installer) to a structurally sound building element.

What is the warranty period for the FRB6R?

Boston Acoustics offers a 5-year limited warranty from the date of purchase for the original buyer, covering material and workmanship defects. The warranty does not cover damage due to improper installation or abuse.

How do I maintain the FRB6R?

Clean the exterior of the FRB6R with a soft, dry cloth. Do not use abrasive products or solvents. Ensure the interior insulation remains in place to maintain acoustic performance and fire resistance.

Where can I find the full manual for the FRB6R?

The user and installation manual is available for free download in PDF format on sites like notice-facile.com. You can also contact Boston Acoustics customer support at [e-mail] to obtain a copy.

USER MANUAL FRB6R BOSTON ACOUSTICS

FRB5R FRB6R FRB8R

Fire Rated Metal Speaker Enclosures

The three FRB models covered in the manual were designed to accommodate a variety of Boston Acoustics round in-ceiling loudspeakers. They meet the stringent requirements of electrical codes throughout the country for fire and plenum rated enclosures. Such enclosures are often required by building codes in commercial applications and in town homes or condominiums.

Each FRB model is made from heavy gauge steel that is both heat and fire resistant. A 2" layer of insulation lines the inside of the enclosure and provides up to 10dB of acoustical isolation between adjoining rooms. Each unit also includes internal mounting posts for 70/100 volt transformers for use in commercial applications or home audio systems where many speakers are used or where speaker wires must be run over long distances.

Additional Key Features

The FRB models meet the following agency requirements:

UL 2043

UL263

ATSM E119

NFPA251

CAN/ULCS101/M89

UBC 7-1

• Standard 3/8'' knockouts for the two supplied ULM connectors
  Color coded raised flange around the speaker opening to aid location after drywall installation - green for 5'' speakers, blue for 6'' speakers and gray for 8'' speakers
• The FRB5R and FRB6R can be mounted in 12", 16" or 24" stud bays. The FRB8R can be mounted in 16" or 24" stud bays.
• Adjustable support bars are supplied that allow easy installation in drop tile ceilings
• An integrated safety tab is mounted on the back of the cabinet for an installer-supplied safety cable

This product has been tested and found to comply with UL 263

"One-Hour Fire Resistant Rating" and UL 2043

"For Use in Air handling Spaces"

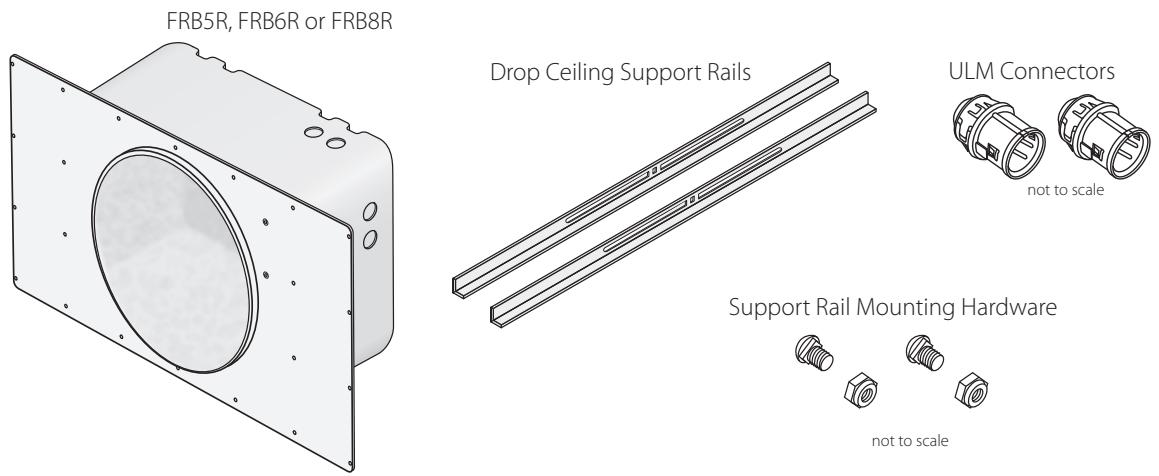

Parts List

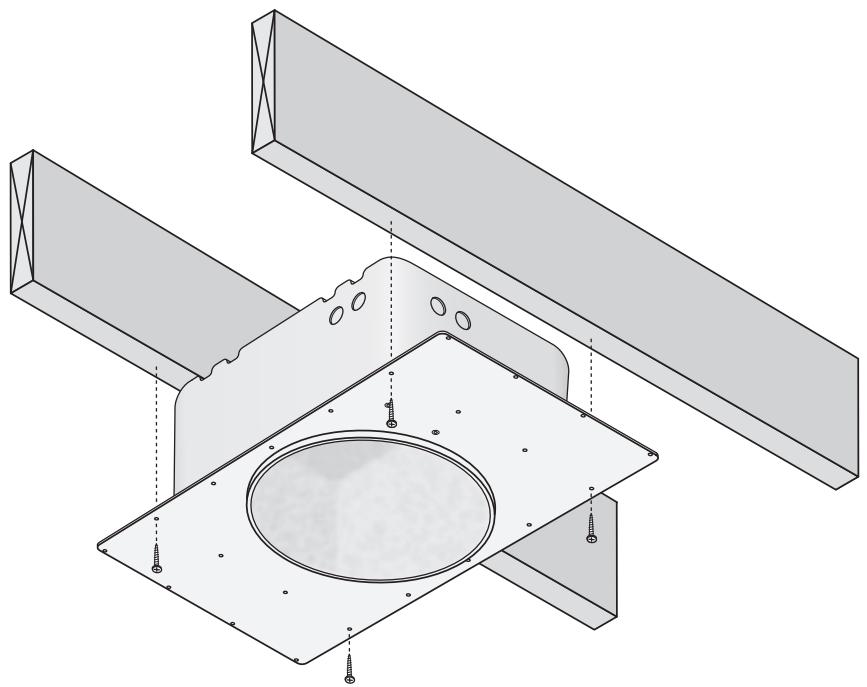

Ceiling or Wall Bay Installation

1 Run the speaker wire to the installation location. Be sure the wire meets electrical and building code requirements.
2 Decide which of the wire inputs you want to use and remove the appropriate knockout cover(s). If the wiring will be "daisy chained" to other speaker, remove other knockout covers as needed. Snap a ULM connector into each of the knockouts removed.
3 If you are using a 70 / 100V constant voltage transformer, mount it on the mounting studs provided inside the FRB.
4 Position the FRB unit between the rafters or studs. The mounting holes in the front plate align with common rafter/stud separation. Center the mounting screw holes over the rafter/stud and level the FRB.
5 Fasten the FRB to the rafter/stud with at least 4 screws.
Before installing the drywall, carefully measure the location of the FRB unit and cut the appropriate hole. The hole cutout diameter is listed in the specifications table.
7 Connect the speaker (and the 70/100V transformer if it is used) and mount the speaker according to the instructions supplied with it.

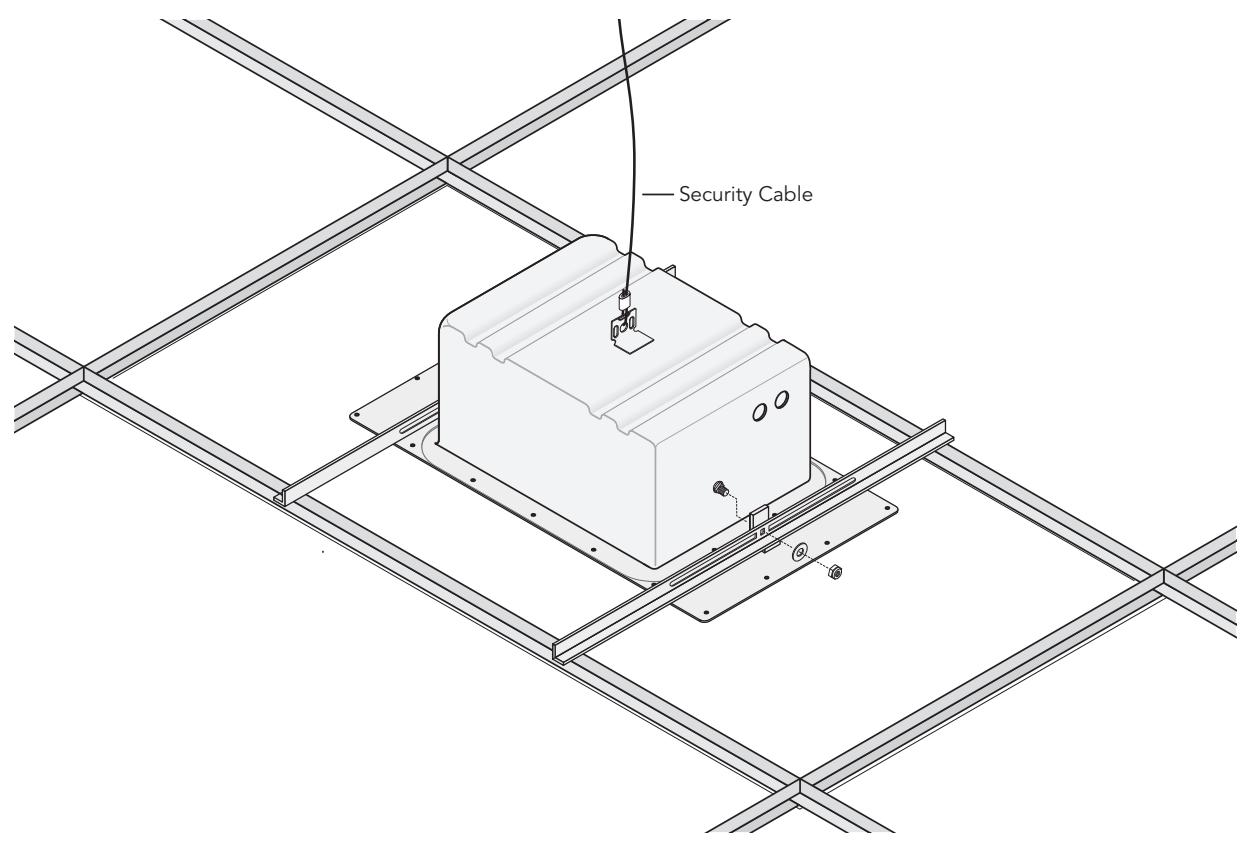

Drop Ceiling Installation

1 Run the speaker wire to the installation location. Be sure the wire meets electrical and building code requirements.
2 Decide which of the wire inputs you want to use and remove the appropriate knockout cover(s). If the wiring will be "daisy chained" to other speaker, remove other knockout covers as needed. Snap a ULM connector into each of the knockouts removed.
3 If you are using a 70/100V constant voltage transformer, mount it on the mounting studs provided inside the FRB.
4 Fasten the drop ceiling support bars to the FRB with the hardware provided.
Cut the appropriate size hole in the ceiling panel over which the FRB will be mounted. The hole cutout diameter is listed in the specifications table. Set the ceiling panel in the support grid.

Hint: For a variety of reasons it is best to center the cutout hole in the ceiling panel.

Hint: Do not install the ceiling panels adjacent to the installation location until the FRB and speaker have been installed and connected.

6 Slide the FRB through an adjacent opening in the support grid and set it in place over the cutout in the ceiling panel.
Caution: Because drop ceiling support grids are not particularly strong, we strongly recommend you fasten a safety cable between the tab on the back of the FRB and a structurally strong building element.
7 Connect the speaker (and the 70/100V transformer if it is used) and mount the speaker according to the instructions supplied with it.

Limited Warranty

Boston Acoustics warrants to the original purchaser of our FRB series products that they will be free of defects in materials and workmanship for a period of 5 years from the date of purchase.

Your responsibilities are to install and use them according to the instructions supplied, to provide safe and secure transportation to an authorized Boston Acoustics service representative, and to present proof of purchase in the form of your sales slip when requesting service.

Excluded from this warranty is damage that results from abuse, misuse, improper installation, accidents, shipping, or repairs/modifications by anyone other than an authorized Boston Acoustics service representative.

This warranty is limited to the Boston Acoustics product and does not cover damage to any associated equipment. This warranty does not cover the cost of removal or reinstallation. This warranty is void if the serial number has been removed or defaced. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If Service Seems Necessary

First, contact the dealer from whom you purchased the product. If that is not possible, write to:

Boston Acoustics, Inc.

300 Jubilee Drive

Peabody, MA 01960 USA

Or contact us via e-mail at:

[e-mail]

We will promptly advise you of what action to take. If it is necessary to return your FRB unit to the factory, please ship it prepaid. After it has been repaired, we will return it freight prepaid in the United States and Canada.

For European Union Customers Only

This symbol found on the product indicates that the product must not be disposed of with household waste. Instead, it may be placed in a separate collection facility for electronic waste or returned to a retailer when purchasing similar product. The producer paid to recycle this product. Doing this contributes to reuse and recycling, minimizes adverse effects on the environment and human health and avoids any fines for incorrect disposal.

Especillasiones	FRB5R	FRB6R	FRB8R
Compatibility con los Altavoces	DSi255, 455, 455T2, VRi555	DSi265, 465, 465T2, VRi565	DSi285, 485, 495 VRi585, 585t2, 595W
Tamaño de los Agujeros	63/4"	87/8"	107/8"
Profundidad del Conteditor Metálico	53/8"	53/8"	71/4"
Dimensiones de la Placa (W x L)	233/4"x13"	233/4"x13"	233/4"x13"
Volumen de la Caja	0.46 ft3	0.46 ft3	0.62 ft3

Descripción
