Your new Yorkville AP4020/4040 power amplifier is designed and built to provide years of trouble free performance. The AP4020/4040 combines the field proven reliability of our Audiopro amplifiers with customer requested features such as switchable limiters, a Mono/Stereo/Bridge switch, and SPEAKON™ output connectors as well as binding posts.

The AP4020/4040 weighs a comfortable but solid 42 pounds, fits into two rack spaces, and reproduces music with over 4000 Watts of headroom. It will drive reactive phase shifted loads with no difficulty - even though it is fully protected from accidental short circuits. Our design goal was to create an amplifier which would do exactly what an amplifier should do: reproduce music with great power, complete reliability, and uncompromising signal fidelity. We think you will agree that the Yorkville AP4020/4040 does exactly that.

Inputs

Balanced Inputs

Either XLR or two-circuit 'Ring, Tip, Sleeve' Stereo 1/4-inch PHONE cords may be used. Each channel's XLR input is internally paralleled with its phone input (The TIP of the channel 'A' PHONE input is connected to pin 2 of its XLR input, the RING is connected to pin 3, and the Sleeve is connected to PIN 1). PIN 2 is in phase, PIN 3 is 180 degrees out of phase, and PIN 1 is ground. We recommend using balanced lines for the best hum-free performance, particularly when chaining multiple amplifiers.

Unbalanced Inputs

Ordinary single circuit Standard 1/4-inch PHONE plugs may be used to connect unbalanced signals. IMPORTANT NOTE: Such plugs effectively connect the ring terminal to sleeve ground, so they work correctly. However, if you use a Stereo 1/4-inch PHONE plug on an unbalanced line, you MUST short the Ring terminal to the sleeve terminal, otherwise the sensitivity will be 6dB lower than is specified! (The same applies to the XLR input: To connect an unbalanced source via the XLR input, you must connect the signal to Pin 2 and ground BOTH Pin 1 and Pin 3).

Remote Referencing

You can approach balanced performance with unbalanced sources by utilizing the remote reference feature of the AP4020/4040. Connect a balanced cable to the AP4020/4040 just as you would if you were running a balanced line. At the other end, connect Pin 3 and Pin 1 together, (or connect ring to sleeve if you are using a PHONE plug cable), and plug this modified end into your unbalanced piece of equipment. This connection enables the AP4020/4040's input to look down the cable directly at the output jack of the unbalanced equipment. Any hum voltage generated across the cable's impedance will be attenuated by the common mode rejection of the AP4020/4040.

Driving Multiple AP4020/4040's

In large installations it is often desirable to operate many amplifiers in tandem. Since each channel's XLR input is internally paralleled with its phone input, you may use the remaining input jack as an output to the next amplifier. Obviously you will need both XLR to XLR and PHONE to PHONE patch cords if you are going to tandem more than two amplifiers.

NOTE: These patch cords MUST be balanced whether the input signal is balanced or unbalanced!

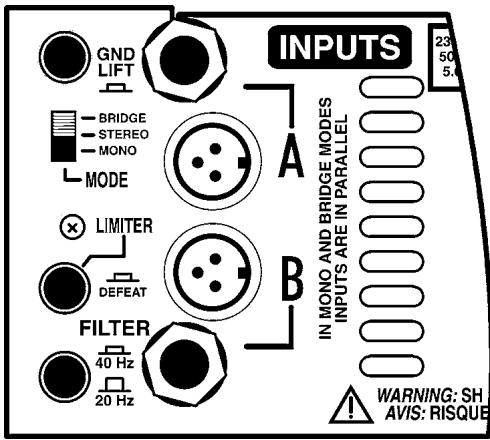

Ground Switch

Switching the ground switch on the rear panel will disconnect chassis ground from circuit ground. Safety (earth) ground is still connected to the chassis. We do not recommend lifting the ground strap unless you are experiencing problems with ground loop hum in multiple amplifier setups where lifting the ground straps of all but one amplifier cures the hum problem.

CAUTION: Sometimes hum problems are an indication of improper AC wiring somewhere else in your system. Don't just doctor the symptom by lifting grounds. Fix the cause by making sure that the proper electrical wiring safety regulations have been adhered to.

Modes

Mono Mode

• Channel A & B inputs are paralleled
  Each gain control'adjusts the signal level for its respective channel
  Output signals are of equal phase.
• Two loads are driven.
• Loads are connected between the BLACK and RED post on each channel.

Stereo Mode

• Two independent amplifiers, Amp A and Amp B.
• Two loads are driven.
• Loads are connected between the BLACK and RED posts on each channel.

Bridge Mode

• Channel A & B inputs are paralleled. GAIN-B has no effect.
• Output signals are equal in amplitude but opposite in phase.
• One load is driven.
• The load is connected between the two RED binding posts. The BLACK posts are not used.

Subsonic Filter Switch

The AP4020/4040 features a specially designed subsonic filter which effectively blocks potentially destructive energy in the band below 40Hz . The filter provides a 12 dB/octave, skirt below 40Hz . It is implemented with a two pole network designed to minimize phase shift down to 40Hz . We recommend using this filter in conjunction with some subwoofoers and with all high power full range cabinets. With the filter disabled, the AP4020/4040 is flat down to 20Hz , and rolls off at 12dB/Oct below that.

Limiter Switch

With the internal limiters activated, the AP4020/4040's gain is continuously adjusted to fit the signal within the available dynamic range. Occasional clipping is permitted. The limiters will not only help to protect your system's horns and tweeters, but will automatically make the best use of the available dynamic headroom. With the limiters activated, all you need to do is turn up the signal level until you start to see some clipping. The limiters will make sure that you are getting the maximum clean power output at all times. Setting the switch to the IN position completely disables both limiters.

Protect LED

In the event of a shorted load or a load which is of too low an impedance for the amplifier to handle the PROTECT LED will flash alternately on and off at about 3 second intervals. The sound may come on and off at 12 second intervals. In this case, the fault is in the speakers or the speaker cables and should be located and remedied. No reset of the AP4020 /4040 is required to restore proper operation. The PROTECT LED will stay on if the amplifier has overheated. Check the speaker load impedance and any restrictions to air flow at the air intake or exhaust vents of the amplifier.

Short Circuit Protection

The AP4020/4040 is fully protected against all possible passive load conditions. It can operate into a dead short continuously without damage. (However, we don't recommend that you short your AP4020/4040 "just for fun." Shorts do create a lot of stress on the output devices). The output stage uses a unique triple slope VI-limiting scheme which is sophisticated enough to remain inert during transient currents in excess of 100 Amperes and phase angles of more than 45 degrees, yet is capable of protecting the output stage from damage due to accidental short circuits and improper loads.

DC Protection

In the unlikely event of the AP4020/4040's outputs going DC, a thyristor circuit will short the output terminals and divert all potentially harmful currents away from your speakers.

Thermal Protection

In the unlikely event that the AP4020/4040 overheats, the signal will be sporadically cut off and the PROTECT LED will stay on. The AP4020/4040 is designed and tested to operate under "worst case" conditions without shutting down, so if you experience a thermal shut down you should check for blocked air flow.

Cooling

The fan draws air in from the front and expels hot air through the rear vents. This is compatible with most installations. Since hot air rises, the heated air forcibly expelled from the back tends to rise away from the equipment rack. This draws cool air from the floor upwards into the front of the rack. In some cases where the rear of the rack is obstructed, it may be necessary to install rack fans to aid cooling. If there are no obstructions, no secondary cooling is required.

Fan Filter Maintenance

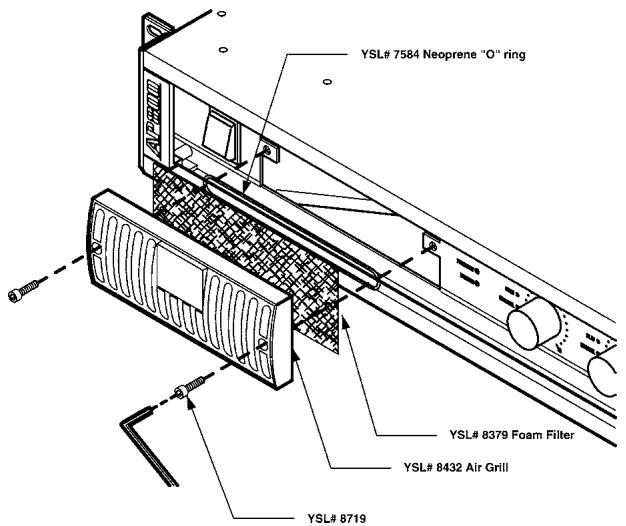

The AP4020/4040 is factory equipped with a fan filter mounted on the air-intake grill located on the amplifier's front panel. Regular cleaning of this filter will increase the amplifier's long term reliability. The filter should be removed and washed at the first sign of visible clogging. This will typically occur every four to six weeks depending on use and environment. Replacement filters are inexpensive and can be ordered through Yorkville dealers. The foam filter should be removed if a regular inspection schedule is not going to be followed. The amplifier can operate without the filter in place, but the amplifier should be cleaned internally by a qualified service technician when dust is visible on the heatsink fins.

Note: In an unusually dusty location, without regular filter inspections, removing the foam filter can extend the operating time before thermal shutdown could occur. At that time, the internal heatsinks should be cleaned thoroughly.

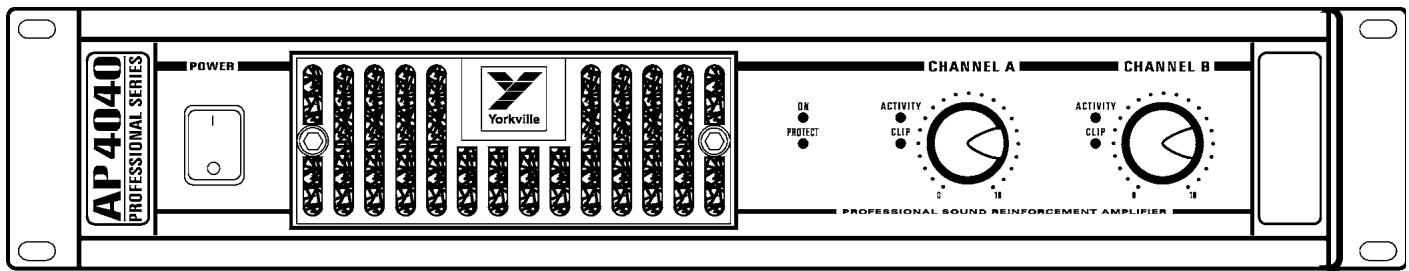

Clip LEDs

The CLIP LEDs on the front panel will visibly indicate any signal excursion beyond the dynamic headroom of the amplifier.

Reliability

The AP4020/4040 is designed and manufactured by Yorkville Sound. Each unit undergoes a thorough, temperature cycled burn-in period, and each circuit is tested by both manual and sophisticated computer controlled equipment

CAUTION: The AP4020/4040 can deliver over 2400 Watts of power into a bridged load. Yorkville's own high power speaker systems have circuit-breaker protection built in. Although these speakers will protect themselves, they are unlikely to be damaged by a bridged AP4020/4040. However, many other speaker manufacturers make "high power cabinets" with no protection features at all.

Yorkville Sound is not responsible for any damage which may result as a consequence of exceeding such a speaker's power handling capability. Yorkville's Two Year Unconditional Warranty does not cover any consequential damages to non-Yorkville equipment. Please consider these facts carefully before you choose to run your AP4020/AP4040 in Bridge Mode!

which is capable of identifying any deviation from the design center parameters. The design of the AP4020/4040 is conservative with respect to the power handling capabilities of the output devices. The topology guarantees that thermal stress not secondary breakdown will set the limits of operation, while the computer optimized heat dissipation system insures that excessive thermal stress will not occur. Yorkville's reputation as a manufacturer of reliable equipment will be further enhanced by the AP4020/4040.

The AP4020/4040 is not only suitable for use in both heavy duty touring sound reinforcement systems but also when high headroom and low distortion are needed to fully reproduce the dynamic range and clarity of today's CD recordings. It is built to survive grueling road conditions and constant 2 ohm (4 ohm in the AP4040) operation. Its reliability in a fixed installation running 4 or 8 ohm studio monitors is without parallel.

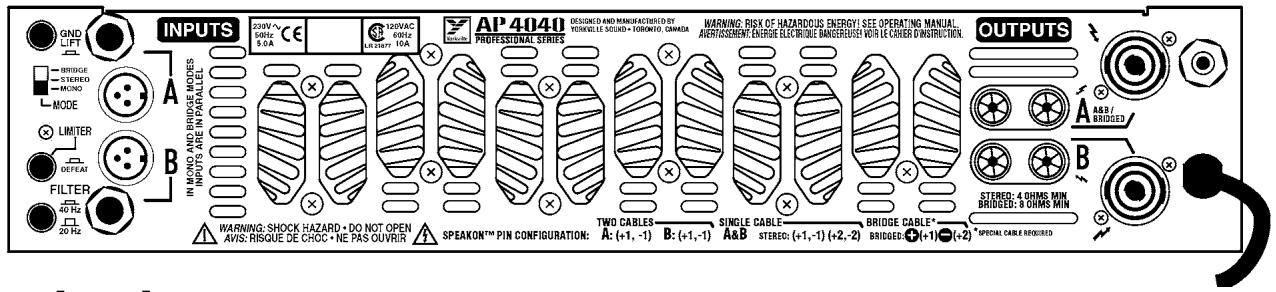

Output Connections

WARNING: When driven to full power in Bridge Mode. There is more than 100Vrms appearing between the binding posts. This represents a significant shock hazard and due care should be taken when making any speaker connections. Ensure that no strands of bare conductor are exposed after inserting the speaker wire into the hole in the side of the binding post terminals.

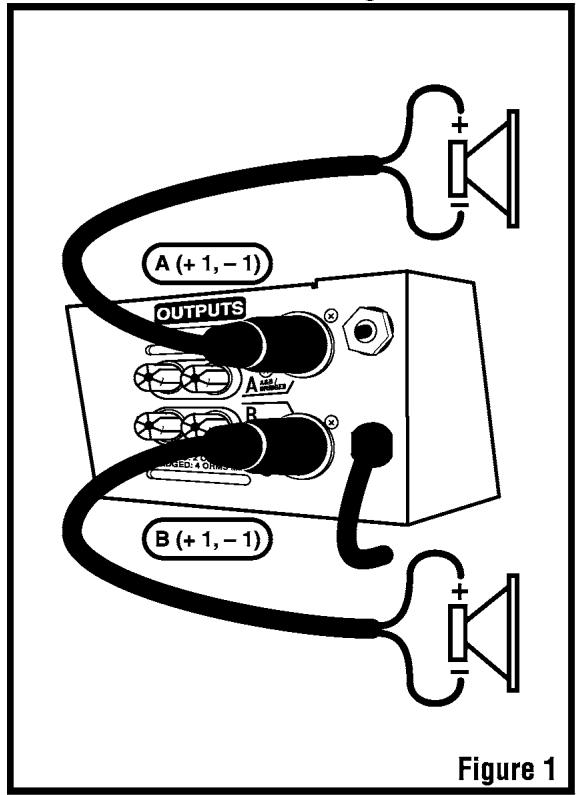

The AP4020/4040 has 5-way binding posts and Neutrik four contact Speakon™ connectors for output speaker connections. Connection to the binding posts can either be made with a banana plug inserted into the end of the post.

There are two Speakon™ connectors. The Speakons™ are connected to the amplifier's outputs whether the amplifier is in stereo, mono, or bridge modes. Each Speakon™ output connector (output A and output B) is wired in parallel with its respective binding posts for two channel two cable connections (figure 1).

SpeakonTM output A also doubles as the A&B/Bridge connector. This Speakon™ contains both channels on one connector. This is convenient when connecting one speaker to the amplifier in bridge mode where the speaker is connected across the positives of each amplifier output. Configure the mode switch for bridge and connect the speaker to pins +1 and +2 of the bridge/bi-amp Speakon (figure 3).

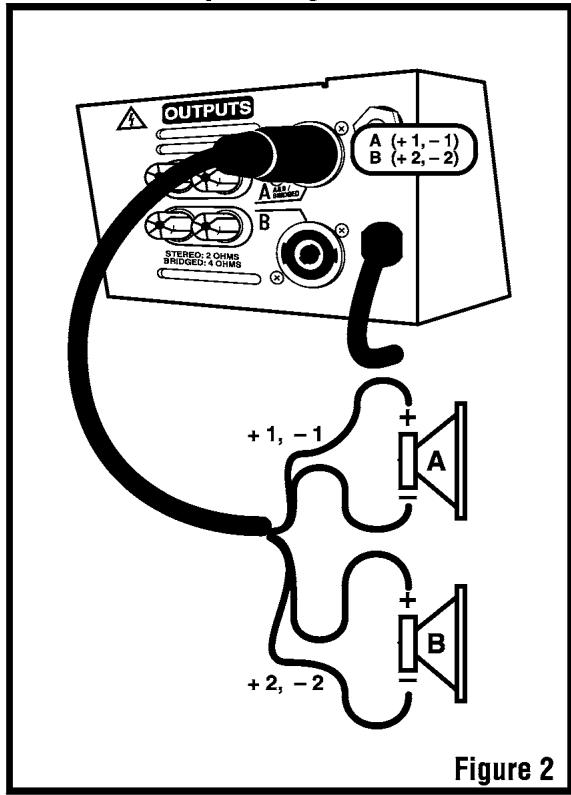

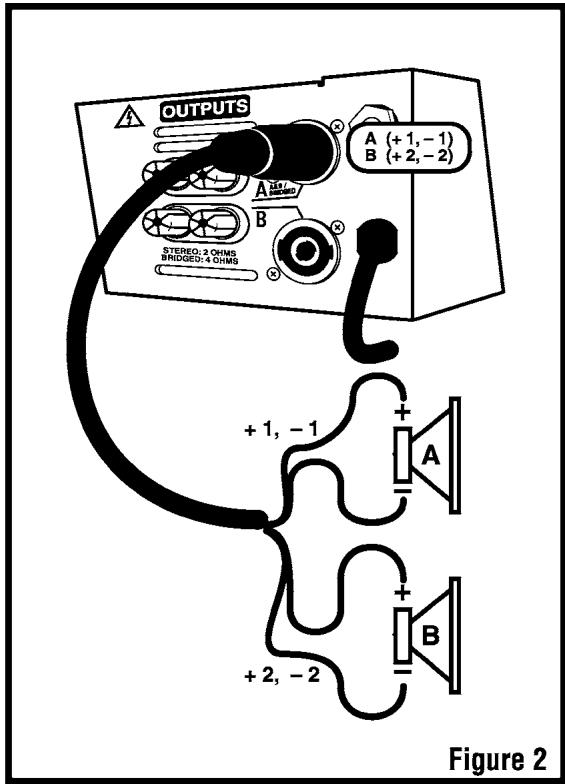

To connect a bi-amp speaker, configure the amplifier for stereo and connect to the bridge/bi-amp connector but use all four terminals in the Speakon connector which will connect A and B outputs separately to the speaker (figure 2). Connection configurations are labeled on the back panel.

Power Output

All values are in WATTS. Measurements were made at the 0.1% distortion point. Some CONTINUOUS AVERAGE POWER measurements required line currents greater than 15 Amps. The amplifier under test was plugged into an IDEAL POWER LINE consisting of a REGULATED 120 VAC RMS 60 Hz pure sine wave. Ordinary AC "wall outlet" lines will always exhibit varying and unpredictable amounts of sag. To produce objectively verifiable and accurate specifications these unknown factors must be eliminated by using an ideal AC line. When using an ordinary electrical outlet, it will usually be possible to get 2400 Watts when the AP4020 is bridged into 4 ohms (AP4040 bridges at 8 ohms). The BURST measurements use a 10mS burst at 1KHz with a 1/8 second pause between bursts. The 1KHz burst represents the maximum possible sine wave output power.

AP4020
Both Channels Driven

Load (ohms)	1KHz Cont. Avg.	1KHz Burst	1KHz Cont. Avg.	1KHz Burst
	2 ohm Mode	2 ohm Mode	4 ohm Mode	4 ohm Mode
8	475	625	750	1200
4	750	1200	1200	2175
2	1200	2175	n/a	n/a

Bridge Mode

Load (ohms)	1KHz Cont. Avg.	1KHz Burst	1KHz Cont. Avg.	1KHz Burst
	2 ohm Mode	2 ohm Mode	4 ohm Mode	4 ohm Mode
8	1500	2400	2400	4350
4	2400	4350	n/a	n/a
2	n/a	n/a	n/a	n/a

Two Channel Configuration

Bi Amp Configuration

Bridged Configuration

Specifications

Amplifier class	AP4020:	H	AP4040:	H
Coninuous Average Power @ 8 ohms BCD (Watts)	AP4020:	475 (x2)	AP4040:	750 (x2)
Coninuous Average Power @ 4 ohms BCD (Watts)	AP4020:	750 (x2)	AP4040:	1200 (x2)
Coninuous Average Power @ 2 ohms BCD (Watts)	AP4020:	1200 (x2)	AP4040:	NA
Continuous Average Power Bridged BCD (Watts)	AP4020:	2400 @ 4 ohms	AP4040:	2400 @ 8 ohms
Burst Average Power @ 8 ohms BCD (Watts)	AP4020:	625 (x2)	AP4040:	1200 (x2)
Burst Average Power @ 4 ohms BCD (Watts)	AP4020:	1200 (x2)	AP4040:	2175 (x2)
Burst Average Power @ 2 ohms BCD (Watts)	AP4020:	2175 (x2)	AP4040:	NA
Burst Average Power Bridged BCD (Watts)	AP4020:	4350 @ 4 ohms	AP4040:	4350 @ 8 ohms
Frequency Response (Hz, +/- 1dB)	AP4020:	20-20,000	AP4040:	20-20,000
Hum and Noise (un / A-weighted -dB)	AP4020:	-103 / -106	AP4040:	-103 / -106
THD -1kHz- 4 ohms	AP4020:	0.0001	AP4040:	0.0001
THD - 20Hz-20kHz, 4 ohms	AP4020:	less than 0.1%	AP4040:	less than 0.1%
Slew Rate (V/uS)	AP4020:	25	AP4040:	25
Slew Rate Bridged (V/uS)	AP4020:	50	AP4040:	50
Damping Factor (30 Hz - 400 Hz @ 8 ohms)	AP4020:	600	AP4040:	600
Crosstalk (1kHz / 20Hz-20kHz)	AP4020:	-75 / -60 dB	AP4040:	-75 / -60 dB
Input Impedance - Bal/Unbal (ohms)	AP4020:	20,000/10,000	AP4040:	20,000/10,000
Input Sensitivity (Vrms) For Full Power Out	AP4020:	1.4 V	AP4040:	1.4 V
Max Voltage Gain (dB)	AP4020:	41	AP4040:	36
CMRR @ 60Hz (min/typ)	AP4020:	48/56 dB	AP4040:	48/56 dB
Stereo / Mono / Bridge (S/M/B)	AP4020:	S/M/B	AP4040:	S/M/B
Protection	AP4020:	DC,Load,Thermal	AP4040:	DC,Load,Thermal
Limiter	AP4020:	Peak	AP4040:	Peak
High Pass Filter	AP4020:	40Hz, 12dB Octave	AP4040:	40Hz, 12dB Octave
Cooling	AP4020:	Internal Fan	AP4040:	Internal Fan
Cooling Path	AP4020:	Front to Rear	AP4040:	Front to Rear
Fan Filter	AP4020:	User Serviceable	AP4040:	User Serviceable
Inputs - XLR	AP4020:	2	AP4040:	2
Inputs - 1/4-inch Jacks	AP4020:	2	AP4040:	2
Outputs - Speakon 4-pin	AP4020:	2	AP4040:	2
Outputs - Binding Post	AP4020:	2	AP4040:	2
Power Consumption (typ/max)	AP4020:	1130/1800 Watts	AP4040:	1130/1800 Watts
Rack Spaces	AP4020:	2	AP4040:	2
Transformer Type	AP4020:	Toroidal	AP4040:	Toroidal
Exterior Finish	AP4020:	Baked, Black Painted	AP4040:	Baked, Black Painted
Dimensions (DWH /D fm ears, inches)	AP4020:	19 x 17.3 x 3.5 x 16.2	AP4040:	19 x 17.3 x 3.5 x 16.2
Dimensions (DWH /D fm ears, cm)	AP4020:	48.3 x 43.9 x 8.9 x 41	AP4040:	48.3 x 43.9 x 8.9 x 41
Weight (Ibs / kg)	AP4020:	40.5 / 18.4	AP4040:	43.5 / 19.8

Introduction

Configuration Bi-Amp

Puisance Moyenne Continue @ 8 ohms DCF (Watts)

Puisssance Moyenne Continue @ 4 ohms DCF (Watts)

Puisance Moyenne Continue @ 2 ohms DCF (Watts)

Dimensions (PLH /P fm ears, pouces)

Dimensions (PLH /P fm ears, cm)

Poids (livres/kg)

AP4020: H

AP4020: 475 (x2)

AP4020:750 (x2)

AP4020: 1200 (x2)

AP4020: 2400 @ 4 ohms

AP4020: 625 (x2)

AP4020: 1200 (x2)

AP4020: 2175 (x2)

AP4020: 4350 @ 4 ohms

AP4020: 20-20,000

AP4020: -103 / -106

AP4020: 0.0001

AP4020: Moins de 0.1%

AP4020: 25

AP4020:50

AP4020:600

AP4020: -75 / -60 dB

AP4020: 20,000/10,000

AP4020: 1.4 V

AP4020: 41

AP4020: 48/56 dB

AP4020: S/M/B

AP4020: CC, Charge, Thermique

AP4020: De Pointe

AP4020: 40Hz, 12dB Octave

AP4020: Ventilateur Interne

AP4020:DevantàArriere

AP4020: 19 × 17.3 × 3.5 × 16.2

AP4020: 48.3 × 43.9 × 8.9 × 41

AP4020: 40.5/18.4

AP4040: H

AP4040:750 (x2)

AP4040: 1200 (x2)

AP4040:NA

AP4040: 2400 @ 8 ohms

AP4040: 1200 (x2)

AP4040: 2175 (x2)

AP4040: NA

AP4040: 4350 @ 8 ohms

AP4040: 20-20,000

AP4040: -103 / -106

AP4040: 0.0001

AP4040: Moins de 0.1%

AP4040:25

AP4040:50

AP4040:600

AP4040: -75 / -60 dB

AP4040: 20,000/10,000

AP4040:1.4V

AP4040:36

AP4040: 48/56 dB

AP4040: S/M/B

AP4040: CC, Charge, Thermique

AP4040: De Pointe

AP4040: 40Hz, 12dB Octave

AP4040:Devant a Arriere
