USER MANUAL GIGA VU PRO EVOLUTION JOBO

Contents 1 Safety Instructions 4 2 Overview 5

2.1 Scope of Delivery 5

2.2 Features in Brief 5

2.4.3 Power supply / Charging the Battery 7

2.4.4 Rubber Protection Cover 7

2.4.5 Devices for Data Transfer 7

3 Quick Instruction for Photo Download from a CF Card 9 4 General Instructions 10

4.1 General Instructions 10

4.2 Buttons “Home”, “Back” and

4.3 How to Select Content 12

4.4 How to Use the Keyboard 13

4.5 Use external keyboard 14

6.1 Copy Data from or to a Memory Card 19

6.1.1 Import data from a Memory Card 19

6.1.2 Export Data to a Memory Card 22

6.2.1 Connect the Device to a Computer 23

6.2.2 Import Data from a Computer 23

6.2.3 Export Data to a Computer 24

7.2.2 Delete Previews 28

7.4.6 Delete Single Pictures and Albums 35

710.1 Copy Pictures to another Album 39

7.10.3 Manage Keywords 40

7.11 View Pictures with Photo Voice

9.1 Playing Music 42

9.3 Delete an Album or a Single Music File43

10.3 Delete an Album or a Single

11 Software Upgrade 12 Available Accessories 13 Technical Specification Addendum1

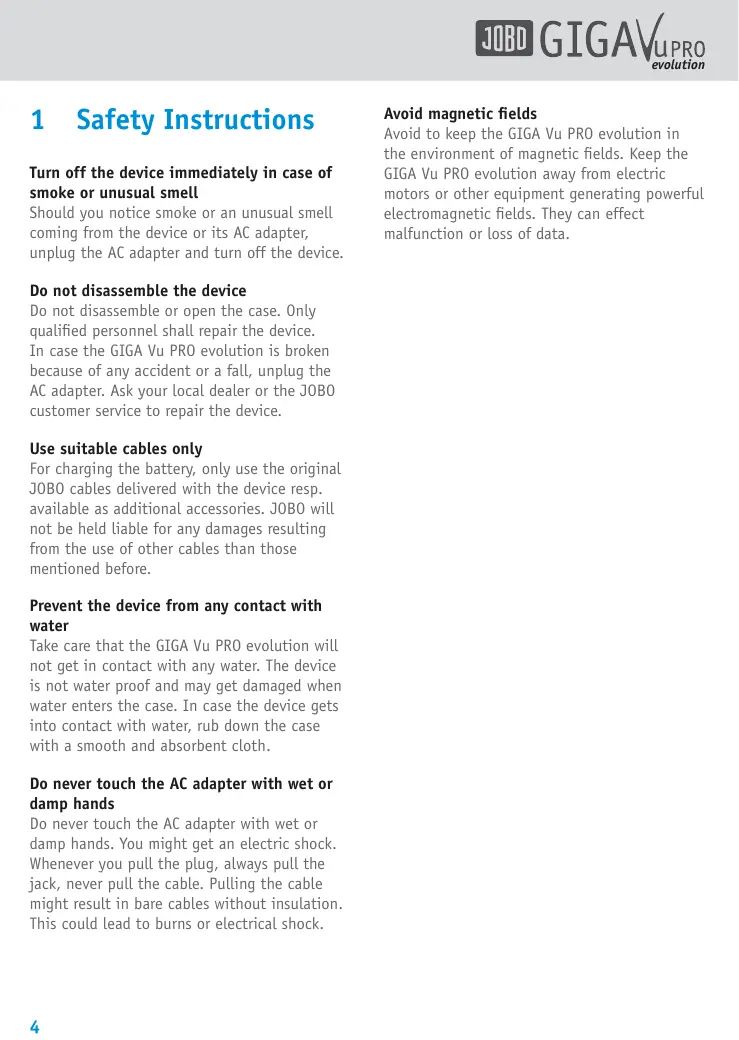

1 Safety Instructions Turn off the device immediately in case of smoke or unusual smell Should you notice smoke or an unusual smell coming from the device or its AC adapter, unplug the AC adapter and turn off the device. Do not disassemble the device Do not disassemble or open the case. Only qualified personnel shall repair the device. In case the GIGA Vu PRO evolution is broken because of any accident or fall, unplug the AC adapter. Ask your Local dealer or the J0B0 customer service to repair the device. Use suitable cables only For charging the battery, only use the original 3080 cables delivered with the device resp. available as additional accessories. J0BO will not be held liable for any damages resulting from the use of other cables than those mentioned before. Prevent the device from any contact with water Take care that the GIGA Vu PRO evolution will not get in contact with any water. The device is not water proof and may get damaged when water enters the case. In case the device gets into contact with water, rub down the case with a smooth and absorbent cloth. Do never touch the AC adapter with wet or damp hands Do never touch the AC adapter with wet or damp hands. You might get an electric shock. Whenever you pull the plug, always pull the jack, never pull the cable. Pulling the cable might result in bare cables without insulation. This could Lead to burns or electrical shock. ED GIGA Verre Avoid magnetic fields Avoid to keep the GIGA Vu PRO evolution in the environment of magnetic fields. Keep the GIGA Vu PRO evolution away from electric motors or other equipment generating powerful electromagnetic fields. They can effect malfunction or Loss of data.

2 Overview On the next pages we will explain all functions oftthe Giga Vu Pro Evolution. In the following description the device will be abbreviated as GVPE.

2.1 Scope of Delivery

The GVPE is delivered with the following equipment: GVPE, covered with a rubber protection cover AC power supply USB cable (USB 2) Operating manual Analogue audio-video cable Earphones Remote control There are several accessories available: External PowerPack Power supply for 12 V socket (e.g. in a cars cigarette lighter) WiFi interface card Multi Card Adapter See chapter 12, “Available Accessories" for more information.

2.2 Features in Brief

The GVPE can be used for the following actions: 1 Transferring data from and to various data carriers Intermediate storage of photos View and select photos Print photos Prepare slide shows Present slide shows Dust detection on the camera chip Intermediate storage of MP3 music files Playing music 0 Intermediate storage of MPEG2 and MPEG4 video files 11 Watching movies Boœsausrs win The data can be transferred via numerous types of memory cards, USB connections or WiFi to a camera, a printer or a computer.

Opening the device The GVPE is equipped with a rubber cover. It protects the screen and covers all interface ports to prevent dust from entering into the device. For using the GVPE take off the rubber cover, turn it around and attach it to the bottom of the unit. Fig. 2.2: Opening the device.

First charge >>l<< Please read this instruction carefully before the first use of GVPE! The GVPE will be delivered with a completely discharged battery. >>l<< Please charge the battery for 9 hours before first use of GVPE. Then use the battery until it is completely discharged. Only then will the battery report correct levels to the software. The correct battery level in percent will only be displayed reliably after the battery has gone through three full charge and discharge cycles. This is a limitation that exists with all lithium ion batteries.

2.4 Getting Familiar with the

ED GIGAWre Slot for CompactFlash memory card On/off switch Microphone USB2 high speed interface for data transfer to a computer 7 USB2 OTG interface for data transfer to a printer, camera or external hard disk 8 “Home” button (always returns to the main menu) 9 “Back” button (always takes you one step back) 10 “Settings” button with LED 11 Digital video out

12.5 softkeys with different functions

Joystick The 4-way joystick is used for navigating and selecting. Navigating: The joystick can be used to scroll trough à list of possible options. For this purpose the joystick has to be moved up or down, resp. to the left or right. The possible options will highlight as vou scroll. Selecting: Pressing the joystick will confirm a selection, it acts as an “Enter” button. Softkeys Below the screen there are 5 buttons, the so called softkeys. Depending on the actual menu on the screen they have different functions. The corresponding function is always displayed on the screen.

The GVPE is equipped with a high quality, high resolution LCD screen with 640 * 480 RGB pixels. By using state-of-the-art technology, the GVPE screen is very bright and allows easy viewing even outdoors. Brightness and saturation of the LCD screen can be modified. For instruction see

chapter 5.3, “Screen & Video Settings”.

2.4.3 Power supply / Charging

the Battery The GVPE features a high quality lithium-ion polymer rechargeable battery. The battery pack includes an integrated circuit (gas gauge) which continuously monitors capacity and other critical battery parameters. The battery will provide vou with accurate remaining run-time predictions, even if the battery ages over time. To charge just connect the AC power supply to the GVPE. While the unit is charging the LED in the “Settings” button will turn red. When charging is complete the LED will dim.

2.4.4 Rubber Protection Cover

The rubber cover protects the GVPE's screen. When closed, it covers all interface ports to prevent dust from entering the device. Take off the rubber cover with Light pressure, turn it around and attach it to the bottom of the unit to use the GVPE.

2.4.5 Devices for Data Transfer

The GVPE can transfer data from and to several devices. It is important to chose the correct cable and socket for each type of data transfer. Figure 2.4 shows the various options and the corresponding cables.

USB connectors The GVPE features two USB connectors. The upper USB connector is a high speed USB 2 mass storage interface. Use this one for fast communication between the GVPE and à computer. Copying is done from PC to GVPE's hard disk directly without involvement of the GVPES main microprocessor. Transfer speed can reach 20 MBytes/s in this way, provided the PC interface is as fast. For best operation, connect the GVPE directly to your computer and do not route it through à hub. Using a hub may sometimes lead to operational conflict and data Loss. The Lower USB connector is a USB 2 OTG (On The Go) interface. This interface is handled by the main processor. This port is used for = connecting the GVPE directly to a camera. In this way you can download pictures from the camera to the GVPE without having to remove the memory card from the camera. The camera's USB interface must be set to “Mass Storage Device” and NOT to “PTP” (Picture Transfer Protocol). = connecting GVPE to external USB hard disk. Use this to backup all files stored in your GVPE. In this case the GVPE is the “Master” and the external USB hard disk is a “mass storage device”. If you want to make a backup from one GVPE to a second unit you must connect the cable between the first GVPE lower USB port (Master) to the second GVPE upper USB port (mass storage device). = connecting GVPE to compatible PictBridge printers. Socket “Analogue audio/video out” This socket can be either used to connect the GVPE to a TV set or to use the earphones. ED GIGA Verre Use the supplied audio/video cable to connect the GVPE to a TV set. This is convenient for watching slide shows and movies. See chapter 5.3, “Screen & Video Settings” for selecting either the NTSC (mainly North America) or the PAL (e.g. most European countries) TV standard. Use the supplied headphones to listen to music via the GVPE. Socket “Digital video out” This socket is intended for connecting the GVPE to high quality flat panel TVs and computer monitors and beamers. Use the supplied digital video cable for connecting the display resp. the flat panel TV. The digital video output has a fixed resolution of 640 x 480 pixels (VGA, 60 Hz), i.e. the connected monitor or flat screen has to support this setting. PC monitors that only provide higher resolutions will not be able to synchronize with the GVPE. In this case the settings of the PC's video card have to be adjusted. Please consult the PC manual for further information. When presenting slide shows and movies using the digital video output the quality Level will be higher than ever seen before in Portable Storage Devices (PSD). Infra-red interface The infra-red receiver gets signals from the remote control. This will be used for music playback, video playback and photo slide shows. The remote control has 7 buttons in total with the following functions: - Play - Pause - Stop - Next - Previous - Volume Up - Volume Down

Verify 1 x, turn à e bottom of th 2 supply. 3 e On/Off button for a few se

ory card Photo Abu View Thumbs. View File List View Slide Show View Dust Action wnen done Generate Cached views Print for pho Full view s the joysti right to br w the the rightmost 10 Use the joyst to view or hide files from 11 Use the joystick emory card to its hard disk. the softkey te: how many files and how much d Thumbnail view 9 o view the thumbnails move the joystick down until ‘ hightighted general and uch capacity is still Left ew Thumbs’ on the device

Press the joystick. Press softkey 1 resp. 2 to browse the thumbnail-pages. Move the joystick up, down, left or right to select a photo. Press the joystick to view the selected photo in full view. Press the joystick again to return to thumbnail view. File List view

To view a file List move the joystick up / down until "View File List” is highlighted. Press the joystick. Press softkey 1 resp. 2 to browse the file list. Move the joystick up or down to select a file. Press the joystick to view the selected photo in full view. Press the joystick again to return to the file List. ED GIGA Verre 4 General Instructions

General Instructions After having switched off the unit, wait 1 minute before turning it on again. Do not bump the unit while it is powering up or down. Do not use the device on 2500 m (7500 ft) above sea Level or higher. The hard disc drive may get damaged when used at higher levels and this may lead to a loss of data. Use only the power supply that was delivered with the unit. Operating the device at another voltage or current than specified, may damage it. In order to prevent any Loss of data, the GVPE provides the possibility to backup the data to an external hard disk, such as the J0B0 mobile hard disk Giga One, via the USB-2-0TG connection. Buttons “Home”, “Back” and “Settings” Home Wherever you are in the menus of the GVPE, the “Home” button brings you back to the starting screen. This is convenient both if you want to start a new action or got lost in the menu structure. On the “Home” screen you can see the battery status (upper Left comer) and the amount of free disk space (upper right corner). Both data can be displayed as absolute values or as percentage.

The battery status indication expressed in % is rather accurate. The indication of the time Left is an estimation, because the power consumption of the GVPE depends on the kind of activity. For example, playing music files will consume much Less energy than playing video files via a TV or flat screen monitor. The time left is obtained by performing a calculation taking into account the battery status and the average consumption. It is provided for easiness but will be Less accurate than the % reading.

2. Disk: Choose bel "9%" or “GB Left”

button A screen as depicted in fig. 4.2 will pop up. Back This button brings you one step higher in the menu hie! 8s, his is hy. In most of the ca a direct step back. As some operations need certain commandés, in Lbe routed to the needed inter Settings on has a function whenever the orange nside the button is on. The LED goes the menu displayed provides some context s ettings that can be changed can adjust to your specific needs. In any case use the joystick up / down to Move the joystick down to sele: select the item you want to change. Use the and move the joystick Left / right to select joystick Left / right to view and another option setting. Furthermore, two functions are always ew settings, press 5 To leave the menu without saving, press softkey 1, “Cancel”

4.3 How to Select Content

In many cases you wilL have to select pictures or songs for copying, deleting, viewing etc. In all cases the same selecting mechanism is used s described below which Selecting files For selecting pictures you have two options: thumbnail selection or file List selection. For all other types of content ie. music, movies and data, only the file list selection is available. In both cases a small rectangle in front o file name resp. at the top left corner of the thumbnail indicates that this picture is selected. png aart_antwerpen_09.JPG _1_80x60.png =AKoestiekInS1_PC.JPG s selected in “file list selection’ humb view 4.4: Files selected in tion” mode

evolution You can use the joystick to navigate through he files. Use the joystick up / down to go through the file names one by one. Use the joystick Left / right to advance one page at the time. Pressing the joystick wilL toggle the actually highlighted file from selected to not selected resp. the other way round The softkeys offer the follo Softkey 1, "ALL": Selects all files Softkey 2, “None”: De-selects all files. In case you only want to copy à few files, first use this option and then man select the files you need as described above Softkey 3, ’Recall”: Recalls the previous selection on this album. or each album, the GVPE remembers the last selection you made. If, for example, you select pictures for a slide show, you can re-use this selection later on for printing the same pictures. Softkey 4, “More”: Leads to more options. wing actions: irst La AlL- None - Recall Prev - Next - GoTo Third layer rom - To Second layer: Softkey 1, “Prev” This command will bring you to the previous page of thumbnails / ile ist. Softkey 2, “Nes This command will bring you to the next page of thumbnails / file list Softkey 3, “GoTo”: Use the GoTo command to jump directly to a specific file Third Layer: The From - To option allows you to select or de-select a continuous block of files. If the chosen files were not selected prior to tl action, they will be selected aftenards. If the

chosen files were selected prior to the action, they will be de-selected afterwards If the block contains a mix of selected and non selected files prior to the action, the selection wilL be inverted afterwards To select files with the From-To method, follow the steps below: - Press softkey 3, “Select” - Press “None” to deselect alL files. - Press “More” to enter the 3rd Layer. - Move the joystick to the first file of the block you want to selecl - Press the joystick. - Press softkey 2, “To - Use the joystick to highlight the Last file of the block. In order to move to the Last file of a selection you can use also the softkey “More”, and the 2nd layer softkeys “Prev”, “Next” and - When the last file of the block is highlights press softkey 2, “To”. - To finalize the operation, press s4 “Done”. Default settings for selections By factory default, the GVPE will select all data files when entering the selection process. This default starting condition can be modified by pressing the “Settings” button after the selection screen appeared Fig. 4.5: Screen “Selection Settin

or each type of file (photos, music, movies and other files) the starting conditions can be s to “Select All”, “Select None” or to “Recall Last selection”. or photo view you can choose between imbnail or file List view as default method for the selections

4.4 How to Use the Keyboard

Whenever you need to enter text (e.g. when renaming an album or editing keywords), a keyboard screen will be displayed Prev Preview Aew text here ig. 4.6: Screen with keyboard At the top of the screen there is a text entry field. Left to it there is an indication of the directions in which the joystick can be moved. Use the joystick to select a character from the displayed list. The softkeys 1 to 3 allow you to switch between lower case, upper case and numeric characters. Press the joystick to add the selected character À text cursor will indicate the position where the character will be added. If you want to change the text cursors position, move the joystick upwards until the position indicator shows that « entry field. Then use the right to change the cursor pos you are in the te joystick le

To enter a space, move the cursor to the “SPC” item and press the joystick To delete the character immediately before the cursor, move the cursor to the “BCK” item and press the joystick. When the cursor is in the text entry field, the cursor turns into a white block. To delete the character at the current cursor position press softkey 4, “Del”. In case the text is longer than one line, the cursor jumps to the first character when pressing the joystick in the position “Prev”. In case the text is longer than one line, the cursor jumps to the last character when pressing the joystick in the position “Next”. À preview of the complete text can be seen when pressing the joystick in the position “Preview”. In this mode press softkey 5 to return to the keyboard from the preview To finally save the typed text, press softkey 5, “Save”.

Whenever you need to enter text (e.g. when renaming an album or editing keywords), a keyboard screen will be displayed. You could also plug an external USB keyboard in the USB OTG slot and use the external keyboard fort these functions as welL Preview Dei Abb. 4.7: Figure screen with keyboard. Plug in the USB plug of the external keyboard into the OTG slot of GVPE (see Fig. 2.4) The keyboad keys F1 till F5 are mapped on the 5 softkeys The keyboard arrow keys up, down, left, right are mapped on the joystick navigation The keyboard enter key mapped on the joystick (press button), so you can also use the Keyboard for the rest of the navigation and for entering text.

settings owni There are some bas: guage or th: are independently from an, management. To check or change these basics, please follow the steps below: 1 Pi he “Hi #

1. Language: Select the user interface

albums that will be copied from CF card. Whenever you copy data from a CF to the GVPE, the device wilL create a new album using this album prefix complemented with a number as album name. Factory default is “cf”. You can change it to any combination of letters. To change the prefix, move the joystick to the right. Then à keyboard will appear and you can enter your personal prefix. See chapter 4.3 for keyboard description.

3. Menu Color: Select the color used for

highlighting items. Use the joystick Left / right to select your preferred color

4. Automatic Caching: Define whether

pictures are generally cached or not. Caching the pictures means that previews are generated in order to shorten the time until you see a picture, for example in à slide show. These cached photos require some additional disk space. Use the joystick Left / right to select your preferred setting. On: Whenever a picture is viewed for the first time it wilL be cached. Note however that the GVPE does not scan all albums for caching automatically. If an album is opened and only a few pictures are view only these will be cached Off: No automatic caching is performed when viewing pictures. You still may cache any album by selecting it and only cache these pictures. See chapter 7.2.1, “Generate previews”, for more details. Cache compression: Define the compression of the cached pictures. Use the joystick Left / right to select your preferred setting. The higher the compression, the smaller the files generated will be. So in order to save disk space choose a high compression.

6. Dim Backlight: Enter the time after which

the backlight will be dimmed. Use the joystick Left / right to select your preferred

7. Power Off: Enter the time after which the

unit wilL be switched off automatically Use the joystick Left / right to select your preferred setting. Dimming the backlight reduces battery consumption. If you enter a value other than “Never” it is recommended to select a value other than “Never” in the “Power off” section. Otherwise, dimming the screen and not automatically switching off the unit after some time introduces the risk of not noticing that the unit is still on and draining the battery completely.

5.3 Screen & Video Settings

This menu is used to adjust some settings concerning the video output. Use the joystick up / down to select one of the items. To save the new settings, press softkey 5, “Save”. To leave the menu without saving new settings, press softkey 1, “Cancel”. Brightness High ace Qty High Normal Fig. 5.4: Screen “Device Menu - Screen & Video Settings”.

1. Video Output: Select the TV standard

“PAL" or “NTSC” before watching photos or

videos on a TV. Use the joystick Left / right to select the TV standard.

2. LCD Brightness: Adjust the brightness of

the screen. Use the joystick Left / right to select the preferred brightness. The brighter the screen, the more energy is needed

3. Decode Quality: Adjust the quality for

decoding. À lower quality means faster decoding, à higher quality returns a slightiy better image rendition at the cost of some extra time. Use the joystick Left / right to select your preferred decode quali

4. Color Profile: Select the preferred color

profile for watching photos. Use the joystick Left / right to select your preferred setting.

5.4 WiFi & FTP Settings

The GVPE can be incorporated in your wireless network by inserting an optional WiFi CompactFlash card (see chapter 12, “Available Accessories"). If you work with the recommended WiFi CompactFlash card there will be no problem, but the GVPE is not guaranteed to work with all brands of Wifi CompactFlash cards. Therefore check the J0B0 website (www. jobo.com) for approved types first or try the type of your choice before you buy. Trying out à WiFi CompactFlash card will not damage the GVPE. In the “WiFi & FTP Settings” menu as shown in fig. 5.5 the basic settings for the wireless data transfer are adjusted. Use the joystick up / down to select one of the items. To save the new settings, press softkey 5, “Save”. To leave the menu without saving new settings, press softkey 1, “Cancel”. Fig. 5.5: Screen

SSID: Enter your network name here. This network name will be given to you by the administrator of the current network. To enter the name, move the joystick to the right. Then a keyboard will appear and you can enter the Letters. See chapter 4.3 or keyboard description. Mode: Depending on the type of net select “adhoc” or “infrastructure”. Use the joystick Left / right to select the network type. Adhoc: Use this setting if you conne. GVPE directly to a PC or a Local network. Infrastructure: Use this mode if you Look for an access point (Hot Spot). Channel: Select the channel according to the WiFi network router. Please consult the routers user manual for this. Use the joystick Left / right to select the correct channel WEP: Select the type of encryption according to the network router. Please consult the routers user manual for this. Use the joystick Left / right to select the mode in which the key can be decrypted. Key: Enter the key for the WEP here. Please consult the routers user manual for this. To enter the key, move the joystick to the right. Then a keyboard will appear. See

chapter 4.3 for keyboard description:

6. IP Address Mode: Select the IP address

Mode needed. Please consult the routers user manual for this. Use the joystick Left / right to select the correct mode. DHCP: Select server is used Static IP: When operating the GVPE without à DHCP server, the administrator defines a network address for every user in the WiFi network. You have to enter this static address in the next item.

7. IP Address: Enter the IP address here.

Please consult the routers user manual for this. To enter an IP address, move the joystick to the right. Then a keyboard will appear and you can enter the numbers. See

chapter 4.3 for keyboard description:

8. FTP Album Prefix: Define the prefix for all

albums that wilL be copied via WiFi (FTP) When you connect the GVPE to a computer or network and copy data on the GVPE via WiFi, it will create a new album using this album prefix complemented with a number as album name. Factory default is “ftp_” Instead you can enter any combin his option when a DHCP move the joystick to the rigl Keyboard will appear and you can enter the new prefix. See chapter 4.3 for keyboard description. After Upload: Define what happens after the upload is completed. Use the joystick Left / right to select your preferred action.

The first three items in this section allow you to enter our name, e-mail address and cell phone number. This shall be helpful in case you lose your device The last two items allow you to enter an

EG IGA Vino authors name and a copyright notice. They wilL serve as default settings for the comments resp. EXIF data that can be added to photos See chapter 7.10.2, “Add Comments” for more information. To save the new settings, press softkey 5, “Save”. To leave there menu without saving new settings, press softkey 1, “Cancel Celi Phone uthor Name Copyrignt . 5.6: Screen “Device Menu - Owner Info”.

1. Name: Enter your name here.

To enter text, move the joystick to the right. Then a keyboard will appear and you can enter the Letters. See chapter 4.3 for Keyboard description.

2. e-mail: Enter your e-mail address here

To enter the address, move the joystick to the right. Then a keyboard will appear and you can enter the Letters. See chapter 4.3 or keyboard description

3. Cell Phone: Enter your phone number here

To enter a number, move the joystick to the right. Then a keyboard will appear and you can enter the Letters. See chapter 4.3 for Keyboard description.

4. Author Name: Enter your name for

copyright purposes here. This information wilL be part of the EXIF data if you export a photo later. To enter text, move the joystick to the

right. Then a keyboard will appear and you can enter the letters. See chapter 4.3 for keyboard description.

5. Copyright: Enter your copyright code,

company name or name here. This information will be part of the EXIF data if you export a photo later. To enter text, move the joystick to the right. Then a keyboard will appear and you can enter the letters. See chapter 4.3 for Keyboard description.

Should the GVPE Lock up during operation, the reset function is activated by pressing softkey 1, softkey 5 and the On / Off button simultaneously for a few seconds. To reset the GVPE during normal operation, follow the steps below: 1 Press the “Home” button. 2 Press softkey 5, “Device”. 3 Use the joystick up / down and select “Disk management”. 4 Use the joystick up / down until “Reset AIL Settings to Factory Default” is highlighted. 5 Press the joystick to reset all settings.

Be aware that “Reset All Settings to Factory Default” includes clearing user information (name, copyright etc.) and resets all counters. There will be no double check. Pressing the joystick immediately deletes all your personal settings. This function will restore all settings to the factory defaults. This function will not remove any content such as photos, movies or music.

6 Data Import, Data Export and Disk Management There are several ways how to transfer data from or to your GVPE:

1. Copying data from or to a memory card.

2. Copying data from or to a computer using

the USB 2 connection.

3. Copying data from or to a computer

network using the WiFi connection.

4. Copying data from or to an external device

(e.g. camera, hard disk, other GVPE) using the USB2 OTG connection. Whatever device is chosen, it is important to know that the GVPE file management works with directories called “Albums”. There are “Photo” albums, “Movie” albums and “Music” albums. Any time you copy content from an external device to the GVPE, it will create à new album. You can rename and delete albums and you can move content from one album to another. If you connect the GVPE to à computer, all albums will show up as sub- directories. See chapter 6.2, “Copy data from or to a computer” for more details.

6.1 Copy Data from or to a

Memory Card The GVPE has a CompactFlash card slot that supports both Type I and Type II (MicroDrives) cards. Other cards like SD / MMC, xD and MemoryStick can be used with an optional adapter. See chapter 12, Available Accessories for more information. To copy data from à memory card switch on the

unit first and then insert the memory card resp. the adapter into the CompactFlash card slot. After a few seconds a screen as depicted in fig.

Copy Memory Card 19 Hard Disk Copy Onty Show Previews Nothing. files selected (7 MB) Fig. 6.1: Screen “Copy Memory Card to Hard Disk”. You can tailor the copy process to your needs by adjusting five options. Move the joystick up or down to select a function and move the joystick to the Left or right hand side to select an option. If the memory card is already inserted, you can always go to the copy screen by first going to the “Home” screen and then pressing the “Back” button. To start the copy action, press softkey 5, “Start”. During the copy process the device will provide detailed information on the copy process. The copy process can be stopped by pressing softkey 4, “Stop”. To leave there menu without copying any data, press softkey 1, “Cancel”

The GVPE will create a new album every time a memory card is inserted. The name of the n album is a combination of a standard prefix and a number. You can change the prefix an

EG IGA Vino size of the number. See chapter 5.2, “Device Settings” for more details Instead of creating a new album, you can copy the data from the memory card into an album already existing. Use the joystick Left / right to select one of the existing albums. The GVPE will copy all files, regardless of type, into this album. The files will automatically be saved in separate sub-directories called “Photos”, “Music”, “Movies” and “Data”.

For the copy process you may choose from three options. Use the joystick Left / right to select one of the options - Copy only: In this mode, the GVPE will copy all selected files - Copy and verify: In this mode, the GVPE will copy all selected files. Afterwards the GVPE will automatically start a verification process. This comprises a bit per bit comparison between the files on the hard disk and the files on the memory card. After completion a screen with statistics is displayed. Because all files have to be checked completely this takes about as much time as the copy process.

For the copy mode you may choose from two options. Use the joystick Left / right to select one of the options - Fast, no preview: This is the default value and it is the fa y to copy the data from the memory card Previews are not shown in this mode. In fast copy mode the complete memory card is copied. There is a progress indication but no previews are shown in this mode. To obtain maximum copy speed completely empty or re-format the memory card after each download.

In order to maximize speed, the GVPE will determine the memory card's speed grade before starting the copy process. Some media adapters designed for using SD or MS memory cards in CompactFlash slots may disturb this mechanism and as a consequence copying may be slowed down. In case you experience problems, use the “Show Previews” copy mode. - Show Previews: When you like to see the previews during the copying process, choose this option.

Itis strongly advised not to switch off the unit during copy actions. Doing so may corrupt the data structure on GVPE's hard disk drive. If the unit accidentally powers down during copying, carefully check if all files were copied and then run the disk repair utility (see chapter 6.4, section “Check Hard Disk for Errors”).

4. Action when done:

This function defines what GVPE will do after the copy action is complete. Use the joystick Left / right to select one of the four options. - Do Nothing: The GVPE will stay switched on and wait for user interaction. - Switch off: The GVPE will switch off when it has performed the actions defined in the “Copy Action” setting. This can be very convenient because you can leave the unit unattended and go on shooting pictures, for example. On your return you can power on the unit and check your data. - Beep: The GVPE will produce a beep at the end of the copy process. - Beep + Switch off: The GVPE will produce a beep at the end of the copy process and then switch off.

5. Generate cached views:

After copying, the GVPE can generate so called “cached views”. They can be helpful for the selection of pictures, because the pictures wilL appear on the screen without delay immediately after they have been selected. The caching process may take some time, especially when copying albums that contain many pictures. Use the joystick Left / right to select one of the two options. - No As default this function is switched off. No cached views are generated. - Yes Cached views are generated from every file that enables this action (e.g. JPEG, TIFF, RAW). Other file formats are ignored. As generating the cached views takes some time, it is advised to connect the GVPE to the mains using the AC power supply.

6. Softkey 3, “Select”:

The GVPE displays how many files are selected for copying. In case you will not copy al files, press this softkey to select pictures. You may tailor the “Select” process to your needs and copy files more selectively if wanted. See chapter 4.2, “How to select content” for possible settings and options After the copy process is completed, the GVPE shows the status on the screen. This will be shown only once so please check this before you press any button and proceed using the unit.

Card To export pictures to a memory card do the following: To c memory Compa below: ta to a memory card inse Copy Onty. Show Previews Nothing. 67 / 67 tes selected (131 ME) Fig. 6.2: Screen “Copy files to memory Card”. Here you can define the following settings:

Use the joystick right / Left to select the option “Memory Card

evolution he copy action, press softke, Start To leave there menu witl press softkey 1, “Cancel” copying any data, This function can also be helpful when you want to copy files from one album to another on your GVPE. In this case, select the album you want to copy vour data to instead of selecting the memory card.

6.2 Copy Data from or to a

6.2.1 Connect the Device to a

Computer USB connection The fastest data exchange between the GVPE and a computer is provided when you use the USB 2 connection. In this case you need the Long cable with the USB plug To connect the units do the following: 5 Plug the USB cable into the upper USB connector. 6 Wait a few seconds. 7 A new hard disk device, called GVPE, will be visible on the computer. On this hard wilL find the directorie disk you - Device = MemoryCards - WiFi = PC 8 When all files are exchanged, press softkey 5, “Disconnect”, before unplugging the USB cable. WiFi connection Alternatively you can connect the device: a wireless LAN using the WiFi adapter card. To establish a connection put the WiFi card into the slot for the CompactFlash card and adjust for Wifi and FTP according to via

6.2.2 Import Data from a

Computer Al media that is imported into the GVPE via the PC should be copied in the directo Copying the files in the correct directory is essential, because the GVPE will only display data that are placed in the correct sub- directories. Files stored on other parts of the disk wilL be ignored The directory “PC” is split into the sub- directories: Movies, Music and Photos. Photos The “Photos” directory contains one or more sub-directories. Each subdirectory represents an “Album” If you want to copy pictures to the GVPE do the following: 1 Create a new subdirectory on the PC under “Photos”. 2 Rename this new folder want to use. The complete path is: GigaVu\pc\Photos \NewAlE 3 Copy your this subdirectory. Movies Movies” dire. subdirectories. Each subdirectory ‘Album

If you want to copy movies to the GVPE do the following: 1 Create a new subdirectory under “Movies”. 2 Rename this new folder with the name you want to use. The complete path is: GigaVu\pc\Movies\NewAlbum. 3 Copy your movies from the computer to this subdirectory. Music files The “Music” directory contains one or more subdirectories. Each subdirectory represents an “Album”. If you want to copy music files to the GVPE do the following: 1 Create a new subdirectory under “Music”. 2 Rename this new folder with the name you want to use. The complete path is: GigaVu\pc\Music\NewAlbum. 3 Copy your MP3 files from the computer to this subdirectory.

6.2.3 Export Data to a Computer

To export data from the GVPE to a computer, connect the devices as described in chapter

6.2.1. Then select the files you want to copy

from the GVPE. On the GVPE, the files are split in directories according to the following structure. This should help you to easily find the files you want to copy to your PC. Device + Keywords ctites.bxt_<- Keywords for photos (see chapter 7.10.4) + RecycleBin Folder 1 Folder 2 Folder n + Restored File 1 File 2

ED GIGA Verre Filen settings.backup swap.img MemoryCards + cf_00001 + Cache <- Cached views from folder cf_00001 + Data <- Data from folder cf_00001 + Photos <- JPEG, RAW and TIFF files from folder cf_00001 + Music <- MP3 files views from folder cf_00001 + Movies _<- MPEG2 / MPEG4 files from folder cf_00001 saved selection <- Last selection made for files in folder cf_00001 + cf_00002 + cf_99999 WiFi + ftp_00001 + Cache + Data + Photos + Music + Movies savedselection + ftp_00002 + ftp_99999 + Movies + movie_folder_01 + movie_folder_02 + movie_folder_nn + Music + music_folder_01 + music_folder_02

+ music_folder_nn folder_01 folder_02 + photo_folder_nn

Backup Data data from or to an external device like a camera, a mobile hard disk or another GVPE, use the lower USB-interface to conne devices. See Fig. 2.5 for a detailed ins To co truction: When an external hard disk drive is connect to the GVPE's USB 2 OTG connector, you c4 backup à certain album to another device such as the JOBO Mobile Hard Disk Giga ONE. To establish a connection and backup the data proceed as decribed bel 1 Press to the “Home” button. 2 Press softkey 1, “Photos”. 3 tick up / down until the album want to backup is highlighted. 4 ftkey 5, “Manage”. tick up / down until “Copy Album to External Disk” is highlighted 6 Press the joystick to copy the current photo album to this disk drive. In the related Info screen it will be indicated that this album has been copied to a backup hard disk.

This chapter describes some general data managing operations such as to delete all cached views, empty the Recycle Bin hard disk for errors, and how to reformat the hard disk. To initiate these actions, follow the steps below: 1 Press to the “Home” button.

2 Press softkey 5, “Device 3 Use the joystick up / down until “Disk Management” is highlighted. 4 Press the joystick to select this item. 5 The screen will show the items as depicted in fig. 6.4 below. Use the joystick up 0 select one of the items. neck Hard Disk Reformat Hard Disk ig. 6.4: Screen “Device Menu - Disk Management

1. Empty Al Recycle Bins: Empties the

Recycle Bin. While browsing you can remove files from an album by sending them to the Recycle Bin. Normally these are files you want to delete. This option deletes all files you put into the recycle bin at once. LL free disk space. Press the joystick when the n is highlighted to empty the Recycle Bin. When the Recycle Bin is empty, the “Home” screen will appear.

When you press the joystick while the “Empty Recycle Bin” option is highlighted, all content in the recycle bin will be deleted immediately. To check the files to be deleted, the content of the Recycle Bin by selecting it in the Photo -> Select Albums (resp. Music -> Select Albums vies -> Select Albums) can view

menus. If you changed your mind and want to keep the file anyway, press softkey 5 to restore it. Restore will move the file from the recycle bin to an album called “Restored”. You can check the content of the “Restored” album by selecting it in the Photo > Select Albums (resp. Music -> Select Albums / or Movies -> Select Albums) menus. Restored files will end up in this album, regardless which album they initially belonged to.

2. Remove all Cached Preview Files: Deletes

all cached preview files. While watching photos, the GVPE generates cached vieus to shorten the loading time for the photos (see chapter 7.2. for more details). Use this command to remove all cached previeu files that were generated by vour GVPE. Press the joystick when the option is highlighted to remove all cached views. This wilL free up disk space, but makes viewing of albums slower. When all cached preview files are deleted, the “Home” screen will appear.

When you press the joystick while the “Remove all Cached Previews” option is highlighted, all cached views will be deleted immediately.

3. Check Hard Disk for Errors: This function

wilL check the hard disk for faulty clusters and repair them. If you experience problems with the hard disk of your GVPE, you should first run this function. Some disk errors can occur when the unit is switched off or the USB connection is broken during data transfers. Running this function will not remove any valid data from GVPE. When the repair process is done, the “Home” screen will appear.

hard disk This function allows you to re-format the GVPES hard disk drive without connecting it to a computer. Re-formatting will restore the disk to the factory default layout, including the generation of al directories. >>l<< Using this function will delete ALL images, music files, movies and data from your GVPE. This function should be used only if you experience serious trouble with the disk or are unable to connect the device to your computer. >>l<< It is not recommended to re-format the GVPE by using some computer applications or operating system functions. The GVPE only works with FAT32 formatted disks.

7.1 Some Remarks about File

Formats Cameras and computers can store photos in different file formats. Most use JPEG compression because this decreases the file size. As the JPEG compression process is an irreversible data operation, this compression is always related with a certain loss of data. Nevertheless, for the vast majority of applications, the JPEG format is sufficient and delivers good results. For professional or semi-professional photographers it is sometimes important to keep the whole information. Therefore some cameras provide the possibility to store pictures in RAW format. RAW files contain all the information that the camera's sensor recorded at the time of exposure, without any compression or post-processing. In many cases the RAW file also contains a scaled down “thumbnail” version of the picture. Due to their nature, RAW files are much larger and more difficult to process. Although GVPE can display most types of RAW files, there are limitations and not all features available for JPEG files can be used with RAW files: - In “Picture View” display mode, the GVPE wilL only display the RAW file's embedded thumbnail. In most cases this is not a problem as these thumbnails are large enough. - You can use the zoom function on RAW files. But depending on the amount of processing needed this may take somewhere between 30 seconds and up to a few minutes! = RAW files can be used in slide shows only when they contain an embedded JPEG picture.

- RAW files can not be rotated. -You cannot print RAW files from the GVPE. -You cannot add keywords to RAW files. -You cannot use RAW files for the “Dust Detection” feature. Pictures that were originally scanned or produced on a PC may be stored in TIFF format. Most of these files wilL be decoded. In case a TIFF file will not be decoded, the reason mostly is, that a computer program applied a proprietary compression to the file and stored the result in a TIFF file structure.

Each time you want to view a picture, the GVPE performs a number of actions. The file is read from the disk, then the JPEG file is decoded, rescaled to fit the screen resolution and finally color corrected to match the color space used by the camera (sRGB or RGB). Each of these steps takes some time. The higher the resolution of the camera and thus the larger the file, the more time it takes. The GVPE can however, if wanted, store the final result of all these manipulations on disk. For subsequent viewing the GVPE can load this “screen dump”. This increases the viewing and browsing speed considerably. This method is often called “caching”. There is no loss in viewing quality. The only drawback is that some amount of disk space is needed for storing the previews.

7.2.1 Generate Previews

There are two ways to generate cached previews: Automatic: a preview is generated automatically for each picture you view. For details see chapter 5.2, “Device Settings” for details. Manual: You can instruct your GVPE to generate previews for the current photo album.

To do this, follow the steps below: 1 Press “Home” bu 2 Press softkey 1, “Pl 3 Use the joystick u is highlighted. 4 Press softkey 5 05”. down until the album cached Views” is highlighted tick to select this option. hed views will be generated and the screen as soon as they are 8 When all cached views are generated, press softkey 5, “Done” and you return to the “Manage” menu:

7.2.2 Delete Previews

If an album is not viewed frequently, you can recover the disk space by deleting the previews without affecting the original files. To delete the previews of a special album, follow the steps below: 1 Press “Home” button. 2 Press softkey 1, “Photos”. 3 tick up / down until the album is highlighted. 4 Manage”. 5 / down until “Clear ews” is highlighted. 6 tick to select this option. 7 You will be asked v to delete the 8 To delete the files, press and you return to the “Manage” menu:

7.3 Select a Photo Album

On the “Home” screen you find 4 softkeys labelled “Photos”, “Musi and all albums available on the GVPE will n. Fig. 7.1 shows a sample.

vice”. After pressing the softkey 1, “Photos”,

evolution Use the joystick up / down to go through the albums one by one. The numbers in the upper right comer show how many albums exist and which one is highlighted. To select an album, press the joystick. Only one album at the time can be selected. The name of the currently selected album is displayed in the upper part of the screen for all actions in this album. Belgium RecycieBin Restored Screen “Photo Albums - Select an The softkeys have the following meaning:

1. Softkey 1, “Albums”: À List of all available

albums is shown. To select an album, press the joystick.

2. Softkey 2, “Info”: This screen summarizes

some information about the current phot album. The screen indicates the number of files, the storage capacity needed for this album etc. You will always see a thumbnail the first and the last photo of this Move the joystick Left / right or up / down album. Pressing the + that album:

bring you to the several viewing modes See chapter 7.4.1 for more detailed information. Softkey 4, “Print”: This has to be chosen when à photo shall be printed via the “PictBridge” mode. See chapter 7.8 for more information

5. Softkey 5, “Manage”: This menu offers

options for data management and administration

Once you selected an album by pressir joystick, the GVPE will automaticall top viewing mode. By default, every me you select an album, the device will format you want to view tures. You can chose from “Thumbnail”, “File List” or “Picture View”. The “Settings” ows you to override this question and directly jump to the viewing mode you prefer. To do this, press the “Settings” button. Then use the joystick right / Left to efer. Confirm your selection by pressing softkey 5, “Save”. switch e options

The GVPE offers different ways to view the pictures.

If you view the picture as Large as possible and would like to have access to the GVPE's e the “View res” mode. “Thumbs” and “File List” view ng modes are most convenient for Locating a specific picture or fast browsing In “View Pictures” mode, you can view the previous or next picture by moving the joystick Left or right. Because à number of pictures are buffered in the memory the changes are almost instantaneous. If you move the joystick in one direction more than 3 times successively you ve to wait about a ond until the lecodes the next picture. Pressing the ystick wilL bring you in the “Thumbs” or “File List” mode À “Slide from the G further details. le to check the c or dust. This is important mainly for those photographers who often change the lenses of their equipment. See chapter 8 for more details. By moving the joystick up/down you can hide the softkey prompts. or sho) Settings for “View Pictures” When you selected “View Pictures” and a picture is shown on the screen, there are à

few options available. You can define them by pressing the “Settings” Button.

1. Overlay: In the upper left corner of the

screen some text can be superimposed on the picture. Use this entry field to select what you want to see there. The possible choîces are: No Overlay”, “File name”, “Date”, “Comments”, “Author”, “Description” or “Shooting Data”.

2. Color: Sets the color of the overlay text.

3. JPEG + RAW: Some cameras offer a

JPEG+RAW mode in which all pictures are stored in JPEG format and in RAW format. While browsing it can be annoying to see every picture twice. With this setting you can specify if you want to view only the JPEG files, only the RAW files or both

4. Softkey text: By default the softkey

prompts appear whenever pictures are shown. You can decide whether these prompts shall be seen by default or not. While viewing the photos, by moving the joystick up/down you can hide resp. show the softkey prompts.

7.4.1 View Picture Details

While viewing pictures you can use the softkeys for the actions displayed on the bottom of the screen as shown in fig. 7.3. creen in “View Pictures” mode. ED GIGAV se Softkey 1, “Zoom”: Zoom the picture. Softkey 2, “Info”: Check the EXIF data and keywords. Softkey 3, “Chann”: Have a Look at the single red, green and blue channels as well as the Black&White version. Softkey 4, “Levels”: À histogram illustrates how pixels are distributed. This is available for the full color image and for the red, green and blue channels individually. Zoom mode There are several zooming options. When entering the “Zoom” mode, the complete photo is shown. By moving the joystick up/down you can hide resp. show the softkey prompts. You can either press the joystick (enter) or the “Back” button to leave the zoom mode and go back to standard picture viewing. Fig. 7.4: Screen in “zoom” mode. The GVPE always starts with decoding the full picture and keeps in memory all available information. Zooming in, zooming out and panning through the picture are then just a matter of displaying the available information. The consequence of this method is that it takes a bit longer to get the first view but that aftenvards all other manipulations are rendered much faster.

This is advantageous compared to many other photo viewers. They start from screen resolution and then gradually zoom in using small steps, each taking some calculation time. Softkey 1, "Fit": This is the view whenever you enter the zoom mode. When you zoomed into a photo, pressing this softkey will scale the complete picture so that it fits on the screen again. The joystick can be used to switch to the previous or next picture. This is convenient if you intend to use the zoom function on subsequent pictures. Due to the fact that there is no picture buffering in this mode, viewing will be slower than in the normal “View Pictures” mode. Softkey 2, “Zoom -": Zoom out Softkey 3, “Zoom +": Zoom in Softkey 4, Full”: For à full resolution view. The upper left corner will indicate the zoom ratio. The GVPE uses the file dimensions as à reference rather than its own screen resolution. Zoom “Full” means that one pixel on the screen corresponds with one pixel in the file. ALL other zoom ratios are related to this. The upper right comer will indicate the position of the Lower right corner of the screen in relation to the complete picture. This is

helpful when special areas of a photo shall be identified to check them for their quality. Use the joystick to navigate and bring another area of the image into view. Softkey 5, “Pick Color”: Pressing this button will display a cross-hair cursor on the screen. Use the joystick to move the cross-hair along the screen. It reads the RGB values and displays them on top of the screen. In this mode, softkey 5, “Pan Zoom” will indicate the way back to a operation without cross-hair. Fig. 7.5: Screen in “Zoom” and “Pick Color” mode. Zoom Settings Pressing the “Settings” button will allow you to tailor the zoom function. There is only one option to be modified, that defines how to handle RAW files when zooming, The GVPE offers two ways of zooming in RAW files, “Use Embedded JPEG” or “Use Raw Data”. To understand the difference between these two modes you need some insight in how RAW files are structured. Contrary to JPEG, there is no standard defining the structure of RAW files. Every camera brand has its own format and even within one brand, files from several cameras can differ a lot.

APEG file RAW file Zoom options pion 1: Us PE prie Open 2: Le an data Fig. 7.6: Structure of JPEG and RAW files A JPEG file consists of 3 parts: à small preview image used as ‘thumb’, a part containing EXIF information (camera brand, exposure settings etc.) and the full resolution image stored in a way as defined by the JPEG standard. A RAW file always contains the data coming from the sensor dump. This means a full resolution picture in the camera's native RAW format. On top of that most RAW files contain à small JPEG preview image, mostly about 160 pixels wide. Optionally some RAW files also contain higher resolution JPEG preview images. These can be of any size up to full resolution. When viewing RAW files in normal picture viewing mode, GVPE will scan the file for JPEG preview images. The highest resolution JPEG found will be displayed. When zooming you have two options: Option 1: Use embedded JPEG: In this case the GVPE will use the embedded JPEG preview image. This means that zooming is limited to the size of the preview image which can be much less than the cameras resolution. The advantage of this option is speed.

ED GIGA Verre Option 2: Use Raw Data: In this case GVPE will use the full resolution RAW data to generate an image. Since RAW file decoding is very computation intensive this may take somewhere between 30 seconds and up to a few minutes for each zooming process. There may appear color differences between the two options, because RAW decoders running on personal computers offer a large amount of customization. Users can tweak parameters such as white balance, exposure, sharpening etc. to obtain the picture quality they want. Cameras use a specific setting for these parameters when they generate an embedded JPEG preview image. The GVPE also has a fixed set of parameters for this job and as à consequence there will be color differences between the two viewing options. Use the option “RAW" to check focus and details of your pictures but do not use it to judge color accuracy.

7.4.2 Show Info Data (EXIF)

When viewing pictures, you can press softkey 2, “Info”, to see some basic picture infos such as exposure time or focal aperture. The type and quality of data shoun depends on the EXIF-data produced by the camera. By moving the joystick Left or right you can view the infos for the previous or next pictures. Softkeys 1 to 4 allow you to view different sets of EXIF data related to exposure, camera and file. Softkey 4 shows the keywords connected to this photo.

de allows you to vi From Left to right ulL color, red cha blue chann channels as well as a

Fig. 7.11: Screen “Photo Channel - Red” Use the “Settings” button to define how the B&W image is generated. You can either select to use the luminance channel of the picture or make your own channel mix of Red, Green and Blue channels. If the total sum (in percentage) of Red, Green and Blue is not 100%, you can use softkey 3 (100 %) to normalize this.

7.4.4 Show Histogram

A levels view (or histogram) ilustrates ho pixels in an image are distributed by showing the number of pixels at each color intensity level. Press softkeys 1, 2, 3 or 4 for the full color image and for Red, Green, Blue channels individually. Softkey 5 shows the luminance channel. Levels - RGB”. Fig. 7.12: Screen EG IGA Vino Again by moving the joystick Left or right you can view the channels of the previous or next pictures. You can either press the joystick (enter) or the “Back” button to leave the “Levels” mode and go back to standard picture viewing

7.4.5 Rotate Pictures

Sometimes the cameras do not include the information of the orientation in their EXIF data. If you want to turn a photo from “Landscape” to “Portrait” or the other way round, press softkey 5, “More” in the picture viewing mode. Then the softkeys get another function as shown in fig. 7.13: Softkey 1, “CCW": Rotates the picture counter-clockwise. Softkey 2, “CW": Rotates the picture clockwise. Press the softkeys and the picture will be Ustore the photo in turned by 90°. The GVPE w the new, rotated version. To return to the vi “More”, again ng mode, press softkey 5,

7.4.6 Delete Single Pictures and

Albums To delete single pictures from an album while viewing, press softkey 5, “More” in the picture viewing mode. Then the softkeys get another function as shown in fig. 7.1 Softkey 4, “ToBin”: Removes the currently selected picture from the album without asking once more and puts it in the recycle bin To return to the viewing mode, press softkey 5, “More”, again. To delete a complete album, follow the steps below: 1 Press “Home” button. 2 Press softkey 1, “Photos”. 3 Use the joystick up / down until the album to be deleted is highlighted. 4 Press softkey 5, “Manage”. 5 Use the joystick up / down until “Send Album to Bin” is highlighted. 6 Press the joystick to select this option. 7 You will be asked whether you really want to delete the album 8 To delete the files, press softkey 5, “Delete” and you return to the “Manage” menu

In “Thumbs View” 12 thumbnail pictures of the selected album are shown at once. Use the joystick to navigate. À rectangle frame indicates the position. You can navigate through the complete album with the joystick and the softkeys. Softkey 1, “Prev”: Go back one page. Softkey 2, “Next”: Advance one page. Softkey 3, “GoTo”: Opens another screen where you can choose between “First”, “Last” and a specific picture number which you can enter moving the joystick right / Left or select à number by pressing the joystick. Softkey 5, “More”: Leads to the screen where you can rotate a single photo. See 7.4.5 for further details.

In the “File list mode 10 file names of the selected album are listed. The first picture name is highlighted and its thumbnail is shown n the left hand comer. Use the joystick up down to navigate through the album file by file. Use the joystick Left / right to navigate per page By using the softkeys you can navigate quickly through the complete album as follows: AkoestiekinS1_PC.JPG Autumjpg Boat-jpg Brocante.jpg De-naan_010.JPG Softkey 1, “Prev” Go back one page Softkey 2, “Next': Advance one page. Softkey 3, “GoTo": Opens another screen where you can choose between “First”, number which you can enter moving the joystick right / Left or select a number by pressing the joystick. Softkey 5, “More”: Leads to the screen where you can rotate a single photo. See 7.4.5 for further details ast” and a specific picture

7.7 View Slide Shows

With the GVPE complete slide shows can be prepared. They can be viewed either on the device, on a or flat screen or as beamer show on a larger screen

evolution Slide shows only work with JPEG files and RAW files that include embedded JPEG previe To start a slide show of your pictures do the following: 1 The slide shows are always connected to L photos for the an album. Therefore cop slide show in one album Select this album If the GVPE goes directly to Picture humbs or File List viewing, press the “Back” button to get in the “Viewing options” screen. In the viewing options screen select “View Slide Sh The screen as depicted in fig 7.16 with options will Output Overiay No Overlay Color wnite None ïg. 7.16: Screen “Slide Show - Album xxx” to define the settings of the slide show The possible settings for the single options are:

1. Interval: Select the timing of the slide

show. The viewing time for each slide can be set between 5 and 45 seconds. Use the joystick right / Left to If “Manual” is se the next or previous you can switch to ide by using either the remote control or the joystick.

2. Fade: Fading between pictures can be

switched off here or can be set to any o! fading speeds. Use the joystick right / Left to change the setting Output: Select between LCD (view on

the GVPE), (view on a TV, flat screen or beamer) TV. Use the joystick right / left to change the setting.

4. Overlay: File name, date, comments,

author, description or shooting data can be overlaid during the slide show. By default this is switched off. Use the joystick right / left to change the setting.

5. Color: Controls the color of the overlay

text. Use the joystick right / Left to change the setting.

6. Music:The GVPE can play music during the

slide show. This interface field allows you to select a music album. Use the joystick right / Left to change the setting. Select Photos from an album If ou want to show only a selection of the pictures in the active album, you have to define the pictures for your selection here. For each album the GVPE will remember the last selection. See chapter 4.2 for selection advice. Start and the slide show Press the softkey 5, "Start” to start the slide show. The slides will be shoumn in an endless Loop. Stop the slide show To stop the slide show, press any of the softkeys or the “Back” button.

You can print JPEG pictures directly from your GVPE to any PictBridge compatible printer. To print a photo, select an album from the “Photos” menu and press softkey 4, “Print”. You then have to connect the printer to the GVPE via the long cable, plugged into the lower USB socket. Fig. 7.17: Connection GVPE - PictBridge compatible printer. Connect the GVPE to your PictBridge printer and wait a few seconds. The GVPE will try to detect the printer. When the connection is successful the printer will return its capabilities. This includes the type and size of paper, the number of pictures that can be printed on one page etc. The printer will print all photos in the relevant album. If only a selection of photos shall be printed, press softkey 3, “Select”, and select the photos to be printed. See chapter 4.2 for selection advice. Adjust the settings to your needs and press “Start”.

You cannot print RAW files in this way because the PictBridge standard does not support it. PictBridge is a protocol that expects the devices to send JPEG files to the printer. It is the printer that first decodes the JPEG file and then prints it. Problems may occur with photos manipulated with photo editing software. Some printers may print them while other printers will generate an error message. Please keep in mind that that in all cases GVPE is just sending the files to the printer and has no control over the decoding.

er you import an album from the Ash card or via WiFi, the albums get a name consisting of a prefix and an number in ascending order. If you do no use the automatically generated names, it is helpful to rename an album. To rename an album do the following: 1 Press “Home 2 Press softkey 1, “Photos”. 3 Use the joystick up / down until the album you want to rename is highlighted. 4 Press softkey 5, “Manage”. 5 Useth tick up / down until “Rename Album” is highlighted 6 Press the joystick (enter) and you will see the keyboard. 7 Enter the new name for the album. See

chapter 4.3 for instructions how to use the

Digital cameras automatically assign file names to the pictures. This function allows you to rename a group of files and give them a similar name combined with a ascending number. To rename the pictures in an album do the following: 1 Press “Home 2 Press softkey 1, “Photos”. 3 he joystick up / don until the album Pictures” is h highted.” 6 Press the joystick (enter) and you will see the screen as depicted in Fig. 7.18.

evolution Start At ctures selected for renaming Select Rename “Rename Pictures - Album Use the joystick right / Left and the Keyboard will appear. Enter the new prefix for the new picture names. See chapter 4.3 for instructions how to use the keyboard aut mber of the renamed pictures will start with 00001. If you w to start with another number, use joystick up / down to highlight the “ at” line. Use the joystick right / Left and the keyboard will appear. Enter the starting number for the counter. See chapter 4.3 instructi of the pictures in the album, s pictures to be renamed by pressing softkey 3, “Select”. See chapter 4.2 for instructions how to select pictures

11. Press softkey 5, “Rename” to start the

7.10.1 Copy Pictures to another

Album To move or copy pictures in another album 3 stick up / down until the album rename is highlighted. 4 5, “Manage”. 5 tick up / down until “Copy to CF Memory Card” is highligh

7 Follow the instructions as described in

chapter 6.1.2. but select the album you

v copy the files to. start the copy Copy Onty. Show Previews 7 files selected (131 ME)

The EXIF data is a set of information that a digital photo. and “Image description” data fields. Also an “Author” name and notil can be led. Comments can only be added to JPEG files that Copyright

GUPE Keywords IPTC : Keywords To add the comments, proceed as described below: 1 Press “Home 2 Press softkey 1, “Photos’ 3 Use the joystick up / down until the album 0 rename is highlighted you wal 4 Press soi n until “Add s highlighted.

comments t 6 Press the jo ) and the screen as depicted in fig. 7 lLsee Autn 67/67 piaures selected for adding co ig. 7.20: Screen “Comment Pictures — Album 20%".

7 You can enter informatiol four fields. Us the keyboard will appear. Enter the text into each of th

See chapter 4.3 for instructions how to use the keyboard. 8 In case you want to comment only a part of the pictures in the album, select the pictures by pressing softkey 3, “Select”. er 4.2 for instructions how es. 9 Press softkey 5, “Add” to start the procedure. If you handle an album with many pictures, this process might take some time.

7.10.3 Manage Keywords

A digital camera can provide you with a Lot of pictures. Finding them back on your computer later on can be à /PE al you your files. These keywords v in the EXIF fields of your JPEG files. The format used is compatible with Adobe Photoshop, Adobe Photoshop Elements and Adobe Photoshop Album. ke s can not be added to RAW files. You can add, edit and delete keywords with the computer or using the the GVPE Add keywords from the PC: lists are stored in plain text files that e extensi On the PC you can generate as many ke example you could have files called: People.trt, Places.trt, Parties.txt, Colors.txt and 50 on. Places.txt Rome New-York London Brussels Each file contains a simple List of words. They can be selected as keywords after the files have

stick right / Left and ord files as you want. For been

Connect the GVPE to the PC via the upper USB socket (see chapter 6.2 for detailed instructions). Copy the files in the folder Device/ Keywords. Disconnect the device. Afterwards the keyword Lists will be available on the device. To edit keywords on the GVPE, do the following: 1 Press “Home 2 Press softkey 1, “Photos”. 3 Use the joystick up / down until the album you want to rename is highlighted. 4 Press softkey 5, “Manag 5 Use the joystick up / down until “Edit keywords” is highlighted. Press the joystick (enter) and you will see the screen as depicted in fig. 7.21.

If there are already categories available, you can choose a category by using the joystick right / left. To enter à new category, press softkey 3, e keyboard will app See chapter 4.3 for

instructions how to use the keyboard 9 To delete a category, press softkey 1, “Del Cat” and the category will be deleted immediately. Enter keywords 10 Ifthere are already keywords available, you can choose a keyword by using the joystick right / Left.

11. To enter a new keyword, press softkey 3,

KW” and the keyboard will appear. Enter the text. See chapter 4.3 fo instructions how to use the keyboard

12. To delete a keyword, press softkey 1,

“Del KW” and the keyword will be deleted immediately.

7.10.4 Add Keywords to Pictures

If you want to tag a large number of pictures with the same k s, proceed as foll To edit keywords on the GVPE, do the 1 Press “Home”. 2 Press softkey 1, “Photos”. 3 tick up / down until the album want to rename is highlighted. 4 Press softkey 5, “Manage”. 5 Use the joystick up / down until “Add keywords to Pictures” is highlighted. 6 Press the joystick (enter) and you will see the screen as depicted in fig. 7.22 Keywords. Queue pictures selected for adding keywords Add Screen “Add ke: rds — Album xxx”.

7 Press Softkey 3, “Select” and select the pictures that shall get the same combination of keywords. 8 Choose a category by using the joystick right / left. 9 Choose a keyword by using the joystick right / left. 10 You can select mo this case, press softkey 4, “Qu adds the currently displayed keyword to the keywords selected before.

11. Press softkey 5, “Add” to actually write all

the queued keywords to your pictures. You can add keywords to JPEG files only.

7.11 View Pictures with Photo

Voice Annotations tore a short voice h the photos. These ations are stored as WAV files and have the same file name as the photo. Many cameras allo When copying content from memory cards x à camera, the pictures will be stored in a separate Photo Album. Files with a W4 extension and the same file name as any of the photos will also be stored in the Photo album. In this way voice annotation files stay grouped th the original pictures and xyz.JPG and xyz. emain in the same directory. When viewing pictures in Full Picture, Thumbs or List View there will be an additional WAV option disp en the current picture has an annotation file associ it. To play the voice annotation, press softkey 5, “More in the picture viewing mode. Then an option called “av” will appear on softkey 3. Press it to actually play the sound fie.

8 Dust Detection While changing lenses on Digital Single Lens Reflex (DSLR) cameras, dust can enter the camera and stick to the sensor. This means that cameras need to be cleaned sometimes in the field. The GVPE offers a unique dust detection feature that helps you trace the small dust spots. Choose a JPEG file for the dust check, because this feature needs the JPEG format. 1 Make a picture of an even surface (blue sky, hite wall etc.) using a high aperture se. 2 Transfer the picture to GVPE. This creates a new album (see chapter 6 for advice) 3 Press “Home 4 Press softkey 1, “Photos”. tick to select the album with 7 Usetl ew Dust”. 8 Select the picture of the even surface and press softkey 5, “Check”! e position of dust particles on the screen and it gives you feedback about the success of a cleaning attempt. Use softkeys 1 and 2, “Sense -” and “Sense +” or adjusting the sensitivity. Softkey 3, “Reset”: Returns to the original sensitivity. Softkey 4, “Hide” Hides the picture itself and leaves the detected dust particles only. Softkey 5, “Done”: Returns to the s

‘evolution 9 Playing Music

The GVPE is able to identify and play MP3 files. To listen to music, do the following: 1 he menu. 2 Select “Music” by pressing softkey 2. À list albums will appear. 3 Use the joystick up / down to select an album 4 Press the joystick to confirm your selection. 5 The screen will display a list of all tracks in that album as shown in fig. 9.1. Use the joystick up / down to select a track 6 Press the joystick to start playing that track. at Gig In The Sky.mp3

— Us and Them. Fig. 9.1: Screen “Select a music tra In this menu you can define a personal play list. To organize the play list, you have the following options: Press softkey 2, “AL”, to select all songs from the list. Press softkey 3, “None”, to deselect all songs form the list. Press softkey 4, Sel” to select or omit the song actually highlighted from the play list.

Lay”, to start press softkey 5, n fig. 9.2 will ing. À screen as sho appear O1 - Speak To Me - Breathe Fig. 9.2: Screen “Play song While a song is playing, you can - press softkey 1, “Vol -" ce the volume resp softkey 2, “Vol. +” ncrease the volume. - press softkey 5, “Stop” or the joystick top the MP3 playback. he songs in the order they n in fig. 9.1. As an Shuffle” the list e songs wilL be played hepl the joysti rth in the song

To copy sound files back from the GVPE to à CompactFlash card or from one album to another, proceed as described here: 1 Go to the “Home” menu. 2 Select “Music” by pressing soft of albums will appear. 3 Usethe album 4 Press softkey 5 5 Select music to CF Memory Card” press the joystick. 6 A screen as shown in fig. 9. the instructions in ck up “Manage” 3 will appear. pter 6.1.2 +Flash card Copy Onty. Show Previews Act Nothing 67 res selected (131 MB) have a Look at specific web pages for

9.3 Delete an Album or a

Single Music File If you want to delete an album from your GUPE, proceed as described here: 1 G he “ 1e” menu. 2 Select “Music” by pressing si of albums will appear.

3 Use the joystick up / down until the album you want to delete is highlighted. 4 Press softkey 5, “Manage”. 5 Use the joystick up / down to select “Send an Album to Bin” and press the joystick. 6 A confirmation screen will appear. 7 Press softkey 1, “Cancel”, to abort the process. 8 Press softkey 5, “Delete”, to delete the album. In this case the album will be moved into the “Recycle Bin”. To delete a single music file, follow the steps below: 1 Go to the “Home” menu. 2 Select “Music” by pressing softkey 2. À list of albums will appear. 3 Use the joystick up / down to select the album. 4 Press softkey 3, “Songs”. 5 Use the joystick up / down to highlight the song that shall be deleted. 6 Press softkey 1, “ToBin”. Now the song wilL be moved into the “Recycle Bin” immediately.

Whenever you import an album from the CompactFlash card or via WiFi, the albums get a name consisting of a prefix and an number in ascending order. If you do not want to use the automatically generated names, it is helpful to rename an album. To rename an album do the following: 1 Press “Home”. 2 Press softkey 2, “Music”. 3 Use the joystick up / down until the album you want to rename is highlighted. 4 Press softkey 5, “Manage”. 5 Use the joystick up / down until “Rename Album” is highlighted. 6 Press the joystick (enter) and you will see the keyboard.

chapter 4.3 for instructions how to use the

10.1 Watching Movies

The GVPE is able to identify and play MPEG2 or MPEG files. To play a movie, do the following: 1 Go to the “Home” menu. 2 Select “Movies” by pressing softl A st of albums will app down K to confirm your display a List of all tracks in that album as shown in fig. 10.1. Use the

Album Muppets RecycleBin Restored

Julie Andrews.avi Twiggy.avi ToBin ig. 10.2: Screen Select a movie clip Press softkey 1, “ToBin”, to delete the clip highligh Press softkey 5, “Play”, o start playing. A screen as shown in fig. 10.3 Start From Beginning Joystic eft/Rignt up/Doun ig. 10.3: Screen “Pl movi efore starting the movie please check these TV and DVI. he digital video ution of 640 x 480 connected monitor his setting. PC

monitors that only provide higher resolutions will not be able to synchronize . In this case the settings of the PCs video card have to be adjusted. Please consult the PC manual for further information: Use the joystick right / Left to select your choice.

Either select to start from the beginning of the movie or to resume playing from the position here it was stopped Last time. Use the joystick right / Left to select your choice.

Select the amount of time that will be skipped by moving the joystick left (back) or right (forward). Use the joystick right / Left to select your choice.

Select the amount of time that will be skipped by moving the joystick up (back) or d). Use the joystick right / Left to t your choice. Press softkey 5, “Start” to view the movie clip While playing a movie you can press the joystick to pause. Press the joystick again to continue playing. Press softkey 1, “Vol -” to reduce the volume resp. softkey 2, “Vol. +” to increase the volume. Press softkey 5, “Stop” or the joystick to stop the movie. Use the joystick up-down to jump back and forth in the movie. Use the joystick Left-right for Fast Reverse or Fast Forward. The volume controls and softkey 5, “Stop remain active even if your GVPE is using the full LCD screen to display the movie.

10.2 Copy Movie Clips

To copy movie files back from the GVPE to

EG IGA Vino à CompactFlash card or from one album to another, proceed as described here: 1 Go to the “Home” menu. 2 Select “Movies” by pressing softkey 3. À List of albums will app 3 Use the joystick up / dou album 4 Press softkey 5, “Manage”. 5 Select “Copy Movies to CF Memory Card” and press the joystick 6 À screen as shown in fig. 10.3 will appear 7 Follow the instructions in chapter 6.1.2 to copy the iles to your CompactFlash card or to another album. yn to select an Copy Onty Show Previews Nothing. 67 files selected (131 ME) Fig. 10.3: Screen “Copy Files to Memory Card” On how to convert DVDs to the corresponding formats, please ask your local dealer or have à Look at specific web pages for details.

10.3 Delete an Album or a

Single Movie Clip If you want to delete an album from your GUPE, proceed as described here: Go to the “Home” menu. 2 Select “Movies” by pressing softkey 3. A List of albums will app 3 Use the joystick up / down until the album you want to delete is highlighted 4 Press softkey 5, “Manag 5 Use the joystick up / dou nn to select “Send

Album to Bin” and press the joystick. 6 À confirmation screen will appear. 7 Press softkey 1, “Cancel”, to abort the process. 8 Press softkey 5, “Delete”, to delete the album. In this case the album will be moved into the “Recycle Bin”. To delete a single movie clip, follow the steps below: 1 Go to the “Home” menu. 2 Select “Movies” by pressing softkey 3. À List of albums will appear. 3 Use the joystick up / down to select the album. 4 Press softkey 3, “Clips”. 5 Use the joystick up / down to highlight the song that shall be deleted. 6 Press softkey 1, “ToBin”. Now the movie lip will be moved into the “Recycle Bin” immediately.

10.4 Rename an Album

Whenever you import an album from the CompactFlash card or via WiFi, the albums get a name consisting of a prefix and an number in ascending order. If you do not want to use the automatically generated names, it is helpful to rename an album. To rename an album do the following: 1 Press “Home”. 2 Press softkey 3, “Movies”. 3 Use the joystick up / down until the album you want to rename is highlighted. 4 Press softkey 5, “Manage”. 5 Use the joystick up / down until “Rename Album” is highlighted. 6 Press the joystick and you will see the keyboard. 7 Enter the new name for the album. See

chapter 4.3 for instructions how to use the

11 Software Upgrade On a regular basis updates of the GVPE softiare will become available. These updates can include new functionalities, support for more camera formats and bug fixes. ro upgrade your GVPE do the following:

Visit the J0BO website www.jobo.com and go to the “Download” section. Download the latest version of the software on your computer. Unzip the downloaded file. Connect the USB cable to your PC. Connect the GVPE with the PC (see

chapter 6.2, “Copying Data from or to a

Computer”). Copy the downloaded files to the root directory of GVPE (do not copy the files into one of the existing directories!) Switch off the GVPE. Wait some seconds, then switch on the GVPE again. À message will appear indicating that the GVPE is upgrading its software. If for some reason the process is interrupted, try again later.

ED GIGA Verre 12 Available Accessories + Operating Range: Up to 250 m in open area; 60 m indoor Optionally available are: + Ambient temperature: OC - +55°C (Operating); -20°C - +65°C (Storage) External PowerPack, Art. No. GVEBO1 + Humidity: Max. 95 % non-condensing This PowerPack loads the internal battery ofthe + Supported OS: Windows 98SE / ME / 2000 GIGA Vu PRO twice. 1 XP, WinCE 2.1x, WinCE 3.0, PockPC, PockPC2002, Linux. Capacity: 3 Ah + Voltage: 9V Multi Card Adapter, Art. No. GVZO01 + Discharge Current: Max. 1.5 À Adapter to enable reading data from memory Charge Voltage: 9 V cards other than CompactFlash. + Charge Current: 1.5 A + Size: 58.5 x 41 x 82 mm Can be fed with ° Weight: 300 g + Memory Stick, . Memory Stick PRO, Gauge: Five stage charge level indicator (low battery alarm) + Battery Protection: Over-charge / Over- discharge / Express current / Short circuit + Discharge Temperature: -20°C - +60°C (Recommended: -10°C - +50°C) + Charge Temperature: 0°C - +40°C + Storage: Full charged one time approx. 45 days at -10°C - +40°C (Recommended: - 5°C- +35°C) + Cycle Life: > 500 Cycles @ 20°C SmartMedia, SecureDigital and Multimedia cards. Car adapter (power supply for 12 V socket, e.g. in a car's cigarette lighter), Art. No. GVEZO1 This adapter saves the battery and can be used for recharging the device while driving. WLAN adapter card, Art. No. GVZ002 (WIFI CompactFlash Card) This card enables a wireless data transfer from and to the GVPE. + IEEE802.11b CF Type I WLAN Card j Intersil Prsim2,5 2.4000 - 2.4835 GHz subject to local regulation) + Data Rate 11 MB + Power Consumption: 180 mA; max. 200 mA (70 mA in power saving mode)

13 Technical Specification General Model name 3080 GigaVu Pro Evolution (GVPE) Storage 40, 80 or 120 GBytes of hard disk storage. No system files on the device. Screen

3.7 inch high quality color LCD screen.

640 * 480 RGB pixels. Adjustable brightness. Battery Replaceable high quality rechargeable Li-Ion battery (2200 mAh). Dimensions 145 x 107 x 38 mm Weight 420q Menu languages English, French, German, Italian, Spanish, Swedish, Dutch. Upgrades Firmware fully user upgradeable. Device Info Number of albums, number of photos, hard disk space used/free, battery status, software version number. Device Settings Menu language, LCD brightness, decode quality, album naming convention. Owner Info Name, E-mail, phone, copyright notice. Interfaces Memory cards Supports CompactFlash (CF) cards, Type 1/II and Microdrives. Other media (SmartMedia, Memory Stick, SD, MMC, xD) supported through optional adapter, (sold an optional accessory).

Interfaces upper: USB 2.0 high speed interface. The GVPE is recognized as a computers external HDD, for fast up- and downloading from or to PC. lower: USB 2 high speed OTG interface for connection to cameras and PictBridge enabled printers. WiFi enabled (the WiFi (IEEE802.11b) CompactFlash card is sold as an option). Analogue video out PAL / NTSC selectable. Analogue audio out Headphone / audio line out compatible. Built in loudspeaker with volume control. Digital video out High quality digital video out for connecting to LCD or plasma TVs and PC monitors, Resolution 640x480 (VGA 60 hz) WiFi connection SSID, Channel, Mode, WEP, Key, Authentification type. Copy functions Automatic activation of copy function after memory card insertion. Selective / full copy from CF to harddisk. A new album (directory) is generated for each download. Selective / full copy from harddisk to CF. Copy with or without preview. Verify after copy function. Switch off after copy and verify function. Photo Supported file formats Typical decoding times for 6 Megapixel file: Full screen view on LCD: < 15 Full zoom: approx. 3 s RAW: ALL functions except “Slide Shows” and “Dust Detection” For overview of supported cameras consult www.jobo.com TIFF: Restricted to embedded thumbnail viewing in Full Picture View

Display modes Thumbnail view: Shows 12 thumbs per page Full picture view: Shows one photo full screen on the LCD display (JPEG). For RAW files this mode will show the large embedded JPEG thumbnail if available. File list view: Shows one thumb at the time and a List of 10 file names. Slide show view: Shows photos full screen on LCD or TV output. Selection of photos to be included in the slide show, adjustable slide interval (JPEG only). Picture Info view Shows one thumb at the time plus EXIF shooting data. Channels view Shows one photo full screen on the LCD with RGB, red channel only, green channel only, blue channel only or B&M. B&W conversion selectable between Luminance channel and RGB channel mixer. Levels view Shows one thumbnail at the time and the red, green, blue or RGB histogram. Zoom functions Zoom max: In “Full Zoom” mode one pixel on the LCD screen corresponds with one pixel in the photo file. On screen zoomed section position indicator. Zoom function works for JPEG and all supported RAW formats. Navigation functions Show next or previous picture (available in all display modes except slide show). Show next or previous page of thumbs (available in thumbnail mode only). Jump to a specific picture. Edit functions Rotate clockwise (JPEG only). Rotate counter-clockwise (JPEG only). Send picture to Recycle Bin. Recover picture from Recycle Bin. Album functions Rename album. Batch rename pictures.

ED GIGA Verre Add comments to pictures. Add keywords to pictures (JPEG files only). Send album to Recycle Bin. Music Supported file formats MP3 files Device functions Play, Stop, Fast Forward, Rewind Movies Supported file formats On built-in LCD screen: MPEG2 640 * 480 pixels up to 10 Mbps 30 frames per second + audio 128 kbps MPEG4 640 * 480 pixels up to 4 Mbps 30 frames per second + audio 128 kbps Device functions Play, Stop, Fast Forward, Rewind Part of this product is based on the work of the independent JPEG group. Part of this product is based on open source software. The source code version of the open source software covered by the GPL, LGPL or MPL license is available on request. The GIGA Vu PRO evolution was designed and developed in Belgium and manufactured in The Philippines. Technical changes reserved.

Addendum1 A new software upgrade of the GigaVU Pro Evolution allows you to add metadata and keywords in a more convenient way. With a new function you can enter metadata in a template that is stored inside the units flash memory. Goto Photo>Manage>Edit Metadata template. You can enter metadata in the following fields: EXIF metadata EXIF : Image description EXIF : Artist EXIF : Copyright EXIF : User Comment IPTC metadata IPTC1 : Headline IPTC1 : Description IPTC1 : Keywords IPTC1 : Description Writer IPTC2 : Location Name IPTC2 : City IPTC2 : State/Province IPTC2 : Country IPTC2 : Edit State IPTC3 : Photographer (IPTC Artist field) IPTC3 : Photographer title IPTC3 : Job Identifier (IPTC Transmission Reference field) IPTC3 : Instructions IPTC3 : Provider IPTC3 : Source IPTC3 : Coypright notice Metadata can be added to photos in two ways.

1. When copying from memory cards to

hard disk an option can be selected to automatically add the metadata template to all imported pictures.

2. For existing albums go to Photo > Manage

> Add Metadata to Pictures. In this case you can select photos first and then launch à batch process to add the metadata

template to the selected pictures. Metadata is embedded in JPEG files only. For RAW files XMP sidecar files are generated. The meta data is added according to the IPTC standard. GigaVu also allows you to add a ‘Star rating’ to pictures. You can give each picture a one, to or three star rating while viewing them. Goto Photos and select an album. Às view mode select View Pictures’ to view pictures full screen. The soft keys are now labeled Zoom - Info - Chann - Levels - More. Press the More button twice. The soft keys now read 1 star - 2 stars - 3 stars - clear - more. Use soft key 1 to 3 to add a star rating . Use softkey 4 to remove any star rating. Star ratings can be stored in the IPTC: Urgency field, in an IPTC:Keyword_or in both. Use the ‘Settings’ button to tailor this to your needs. Where to Look for the metadata you added? The metadata added by GigaVu will be accessible by most photo viewer/ browsers. However sometimes the info is somewhat buried in the user interface. Here are some examples for frequently used programs.

The IPTC organization provides custom XML file info templates that can be added to Photoshop. You can use these for maximum compatibility. You can download them for free here: http:// wwwiptc.org/IPTC4XMP/ Please also read the accompanying documentation: http://awwiptc.org/std/IptcéxmpCore/1.0/ documentation/IpctéxmpCore_1.0-doc- ANcs1panelShareFix_1.pdf
