Product type	Motorcycle
Brand	GUZZI
Model	V7 CLASSIC
Engine	V-twin 90°, 4-stroke, 749 cc
Maximum power	35.5 kW (48.8 hp) at 6800 rpm
Maximum torque	58.2 Nm at 3200 rpm
Gearbox	5-speed
Final drive	Shaft, ratio 8/33 (1:4.125)
Front suspension	Marzocchi 40 mm hydraulic telescopic fork
Rear suspension	Cast alloy swingarm, 2 preload adjustable shock absorbers
Front brake	320 mm stainless steel floating disc, 4-piston caliper
Rear brake	260 mm stainless steel disc, 2-piston caliper
Front tires	100/90 - 18 56H TL
Rear tires	130/80 - 17 65H TL
Overall length	2185 mm
Overall width	800 mm (max)
Seat height	805 mm
Dry weight	182 kg
Fuel tank capacity	17 L (reserve 2.5 L)
Exhaust system	3-way catalytic converter with Lambda sensor
Dashboard	Chrome analog gauges, digital display
Available colors	Lunar White

Frequently Asked Questions - V7 CLASSIC GUZZI

What engine oil type is recommended for the GUZZI V7 CLASSIC?

Use 10W-60 or 20W-50 engine oil as per the manual. Check the level regularly with the dipstick.

How to adjust the preload of the rear shocks?

Turn the notched ring at the top of each shock using a suitable tool. Turn clockwise to increase preload (firmer suspension).

What tire pressure for the V7 CLASSIC?

Front: 2.2 bar (32 psi), rear: 2.4 bar (35 psi) cold. Adjust according to load.

How to maintain the shaft drive?

Check the rear drive oil level every 10,000 km. Use SAE 90 oil. Grease the universal joints during services.

What to do if the engine does not start?

Check the battery, kill switch, fuel level, and fuel tap position. If the problem persists, consult a Moto Guzzi garage.

What is the fuel tank capacity and approximate range?

The tank holds 17 L (including 2.5 L reserve). With an average consumption of 5 L/100 km, the range is about 340 km.

How to clean the chrome parts of the V7 CLASSIC?

Use a soft cloth and a specific chrome cleaner. Avoid abrasive products. Rinse with clean water and dry.

Where to find spare parts for the GUZZI V7 CLASSIC?

Contact an authorized Moto Guzzi dealer. Original parts are available online or through the official network.

What is the wheel tightening torque?

For front wheel: 100 Nm, for rear wheel: 120 Nm. Use a torque wrench.

How to adjust the clutch and brake controls?

The levers are adjustable for reach. Loosen the adjustment knob near the master cylinder or clutch lever, adjust the position, then retighten.

USER MANUAL V7 CLASSIC GUZZI

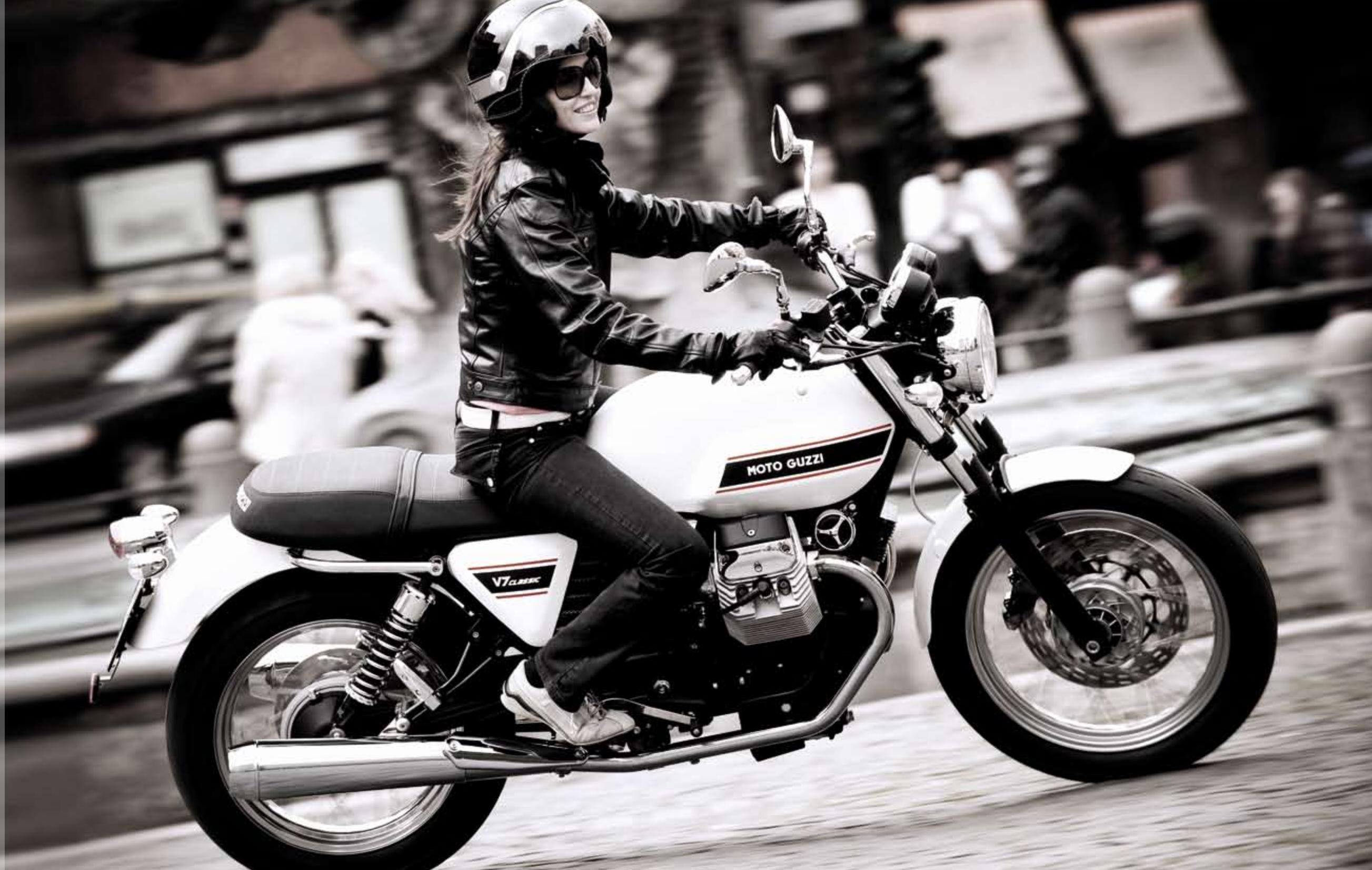

Enjoy a timeless pleasure.

A whole new concept in riding

is coming to us from the past, in the form of an

evolved yet truly classic motorcycle.

The V7 Classic combines the purity of

traditional Moto Guzzi design with

the performance of modern technology.

So seize the opportunity to stand out from the crowd.

V7classic

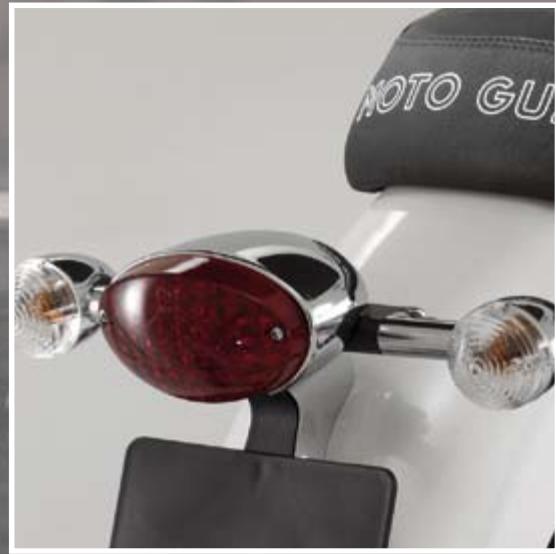

The new chrome finish rear light cluster is the perfect match for the curvaceous lines of the rear mudguard and also provides solid support for the number plate and indicators.

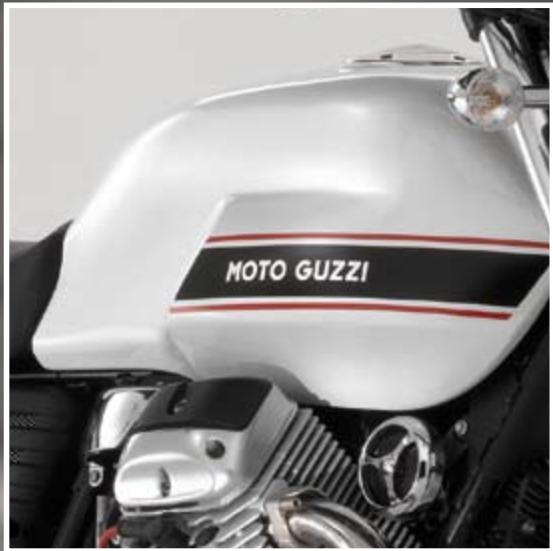

The fuel tank, in classic Moto Guzzi form, blends smoothly and gently with the bike to create a welcoming sensation for the rider. The lines diverge elegantly, coming together again at the steering head in a movement like the beating of wings.

The wheel rims and hubs have classic lines and emphasise the true significance of this motorcycle classic.

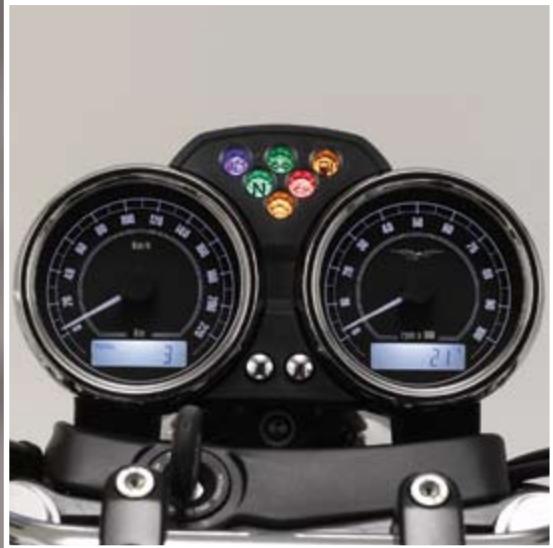

The dashboard combines two classic analog units with chrome finished surrounds and white needles. In addition, all the information provided by the digital displays can be accessed from convenient chrome plated push Buttons.

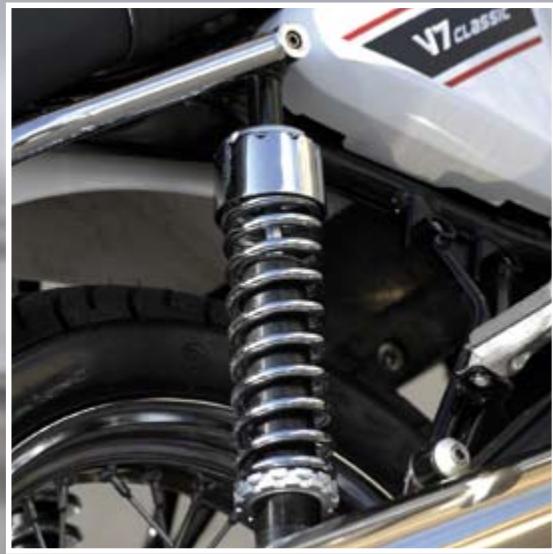

The rear suspension respects the bike’s simple, classic design and shows just how much care has been taken over details like chrome plating and paint finish.

V7class

Engine	90° V twin 4 stroke.
Displacement	749 cc.
Maximum power	35.5 kW (48.8 HP) at 6,800 rpm.
Max torque	58.2 Nm at 3,200 rpm.
Exhaust system	3 way catalytic converter with Lambda probe.
Gearbox	5 speed.
Final drive	Shaft drive. Transmission ratio: 8/33 (1:4.125).
Front suspension	Marzocchi 40 mm hydraulic telescopic fork.
Rear suspension	Light alloy die-cast swingarm. 2 shock absorbers with adjustable spring preload.

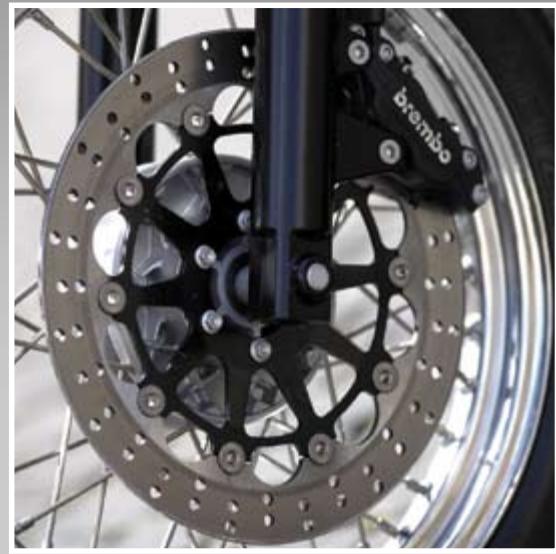

Front brake	320 mm stainless steel floating disc; caliper with 4 opposed pistons of differential size.
Rear brake	260 mm stainless steel disc; caliper with 2 opposed pistons.
Tyres	100/90 - 18 56H TL (front). - 130/80 17 65H TL (rear).
Overall length	2,185 mm.
Overall width	max 800 mm.
Overall width max	1.115 mm.
Seat height	805 mm.
Dry weight	182 Kg.
Fuel tank capacity	17 litres (2.5 litre reserve).

Colours

Lunar White
