HY-013 - Fan KAZ - Free user manual and instructions

Product type	Fan
Brand	KAZ
Model	HY-013
Intended use	Household only
Power supply	120 V AC, polarized plug
Plug type	Polarized (wide blade)
Number of speeds	3
Available speeds	High, medium, low
Oscillation	Yes, dedicated button
Automatic shut-off timer	Yes, 10 to 120 minutes
Assembly required	Yes, pedestal and base
Assembly screws	3 M5 x 12 screws
Required tool	Star-head screwdriver (not included)
Cleaning	Soft damp cloth; do not immerse
Safety	Polarized plug; do not use near water or flames; do not use a transistorized speed control
Customer service phone	1-800-477-0457 (toll-free)
Customer service email	[e-mail]
Customer service website	www.kaz.com
Warranty	1 year limited

Frequently Asked Questions - HY-013 KAZ

How to assemble the KAZ HY-013 fan?

To assemble the fan, start by assembling the pedestal by snapping the front and back parts together after placing the power cord in the center. Then, secure the pedestal to the fan housing using the 3 M5 x 12 screws provided and a star-head screwdriver (not included). Repeat for the base if necessary. Make sure the cord is properly inserted into the cord clip.

How to use the automatic shut-off timer?

Turn the timer knob to the desired setting, between 10 and 120 minutes. The fan will shut off automatically after that time. To turn it back on, turn the knob counterclockwise to the ON position.

How to activate or deactivate oscillation?

Press the oscillation button (marked O) to enable or disable the fan's rotating movement. For the HY-013 series, this button is located on the control panel.

What are the essential safety precautions?

Use the fan only as described in the guide. Do not immerse it in water or spray any liquid on it. Avoid using it near flames or explosive vapors. Do not pull the cord to unplug. Do not attempt to open the motor housing. Use only on a dry, level surface.

How to clean the fan?

Unplug the appliance before cleaning. Use a soft damp cloth to wipe the exterior. To clean between the grilles, use a pipe cleaner, a flexible duster, a vacuum cleaner, or compressed air. Never immerse the fan in water and do not use chemicals like gasoline or thinner.

What to do if the fan does not work?

First, check that the fan is plugged in and the outlet works. Make sure the stop button is not pressed. If the problem persists, contact customer service at 1-800-477-0457 or by email at [e-mail]. Do not attempt to open the motor housing yourself.

Can I use the fan outdoors?

No, this fan is designed for household indoor use only. Do not use it outdoors as it is not protected against moisture.

Is the fan warranted?

Yes, the KAZ HY-013 fan is covered by a 1-year limited warranty from the date of purchase. It covers defects in materials and workmanship. For any claims, contact Kaz Incorporated.

How to contact customer service?

You can reach customer service by phone at 1-800-477-0457 (toll-free), by email at [e-mail], or visit the website www.kaz.com. Mention the model number HY-013.

Can I use an external speed control with this fan?

No, to reduce the risk of fire or electric shock, avoid using a transistorized speed control with this fan. Use only the built-in speed buttons.

USER MANUAL HY-013 KAZ

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE SAFETY INSTRUCTIONS BEFORE USING THIS FAN

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Use this fan only as described in this manual. Other use not recommended as it may cause fire, electric shock or injury to persons.
2. This product is intended for household use ONLY and not for commercial, industrial or outdoor use.
3. To protect against electric shock, do not place fan in window, immerse unit, plug or cord in water or spray with liquids.
4. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fitfully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
5. Close supervision is necessary when any appliance is used by or near children.
6. Turn the fan OFF and unplug the fan from

TOWER FAN

Model DY-012 Series

Model HY-013 Series

the outlet when not in use, when moving the fan from one location to another and before cleaning.

1. To disconnect the fan, first turn the unit OFF, grip the plug and pull it from the wall outlet. Never pull the plug by the cord.
   8 Do not operate the fan in the presence of explosive and/or flammable fumes.
2. Do not place the fan or any parts near an open flame, cooking or other heating appliance.
3. Do not operate the fan with a damaged cord or plug or if the product malfunctions, is dropped or damaged in any manner (see warranty).
4. Avoid contact with moving fan parts.
5. The use of attachments not recommended by the manufacturer may be hazardous.
6. Place the fan on a dry level surface.
7. Do not hang or mount fan on a wall or ceiling.
8. Do not operate if the fan housing is damaged.
9. A loose fit between the AC outlet (receptacle) and plug may cause over heating and a distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.

WARNING: To Reduce The Risk of Fire or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device.

DY-012 SERIES ASSEMBLY INSTRUCTIONS

NOTE: Remove all contents from the box being careful not to discard the manual and hardware needed for assembly. A phillips head screw driver () is required for assembly and is not included with the fan purchase.

A. Base Assembly

• Gently turn the fan upside down.
• Place the power cord through the recessed channel located in the center of the rear base assembly (Fig 1).
• Align the rear and front base assembly and firmly snap together by pushing the 4 round extrusion into the adjacent circles of the connecting pieces (Fig 2).

B. Securing the Tower Fan to the Base

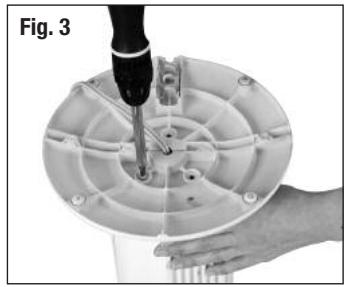

• Using the 3 (M5 x 12) screws and phillips head screw driver () secure the base into the bottom portion of the fan housing by aligning the 3 screw holes on the base with the 3 screw holes on the bottom of the fan housing (Fig 3).
• Gently pull any slack out of the power cord and place the cord

securely in the power cord holding bracket (Fig. 4).

• Place the fan right side up. Your fan is now ready for use.

DY-012 SERIES OPERATION INSTRUCTIONS

• Be sure your fan is in the OFF position by pressing the off button. ( )
• Place the fan on a level and dry surface.
• Plug the power cord into a polarized 120 Volt AC wall outlet.
• To operate, press the appropriate speed control

option: High (), Medium (), or Low (Fig. 5).

• To activate or disengage the fan oscillation, press the oscillation button () (Fig 6).
• To turn the fan OFF (U) press the Off button once.

HY-013 SERIES ASSEMBLY INSTRUCTIONS

NOTE: Remove all contents from the box being careful not to discard the manual and hardware needed for assembly. A phillips head screw driver (⊗) is required for assembly and is not included with the fan purchase.

A. Pedestal Assembly

• Place the power cord through the center of the front and rear pedestal assemblies with the screw hole openings facing towards the fan.

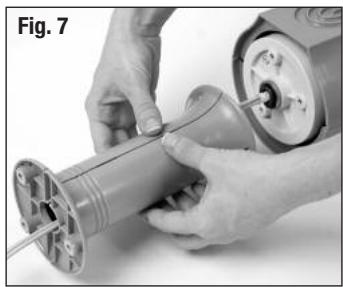

• Align the front and rear pedestal assembly and firmly snap together (Fig 7).

B. Securing the Tower Fan to the Pedestal

Gently turn fan upside down.

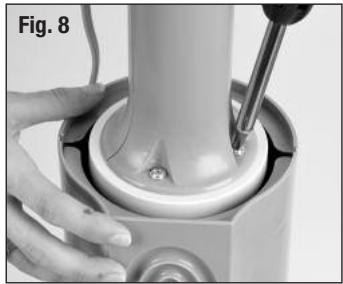

- Line up the 3 screw holes on the pedestal with the 3 screw holes on the bottom of the fan housing. Use the 3 (M5 x 12) screws included in the box and a phillips head screw driver () to secure the pedestal to the fan housing (Fig. 8).

C. Base Assembly

• With the fan in the upside down position, pass the power cord through the recessed slot located in the center of the rear base assembly (Fig 9).
• Align the rear and front base assembly and firmly snap together by pushing the 4 round extrusion into the adjacent circles of the connecting pieces (Fig 10).

D. Securing the Tower Fan to the Base

• Align the 3 screw holes in the bottom of the pedestal with the 3 screw holes located on the base. Using the 3 (M5 x 12) screws and phillips head screw driver () , secure the base into the bottom portion of the fan housing (Fig 11).
• Place the power cord through the cut out on the bottom of the base. Gently pull any slack out of the power cord and place the cord securely in the power cord holding bracket (Fig. 12).

• Place the fan right side up. Your fan is now ready for use.

HY-013 SERIES OPERATION INSTRUCTIONS

• Be sure your fan is in the OFF position by pressing the off button. (U)
• Place the fan on a level and dry surface.
• Plug the power cord into a polarized 120 Volt AC wall outlet.

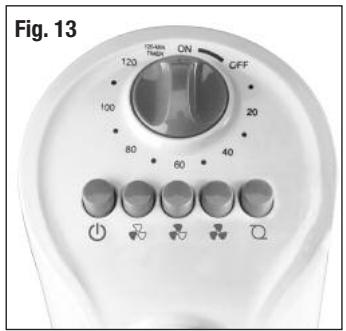

• To operate, press the appropriate speed control option: High (♂), Medium (♀), or Low (♂) (Fig. 13).

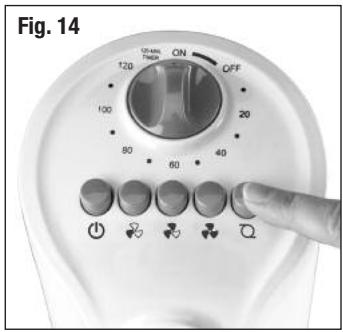

• To activate or disengage the fan oscillation, press the oscillation button. (O) (Fig 14).

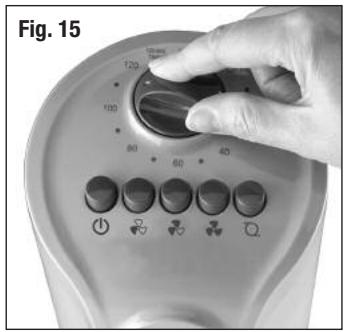

• Operate the automatic shut-off timer feature by turning the timer knob to the desired setting of 10 to 120 minutes (Fig 15).
• To turn on the fan after automatic shut-off, turn the knob counterclockwise to the ON position.
  To turn the fan off press the Off button once. (U)

CLEANING AND STORAGE

• Unplug the fan before cleaning.
• Use only a soft, damp cloth to gently wipe the outside surface of the fan.
• DO NOT immerse the fan in water and never allow water to drip into the motor housing.
• DO NOT use gasoline, paint thinner or other chemicals to clean the fan.
• Gently wipe the grilles with a cloth. To clean between the grilles we recommend using a pipe cleaner, flexible dustwand, vacuum cleaner or compressed air to gently remove dust. DO NOT IMMERSE THE FAN IN WATER AND NEVER ALLOW WATER TO DRIP INTO THE MOTOR HOUSING. DO NOT USE GASOLINE, PAINT THINNER,OR OTHER CHEMICALS TO CLEAN THE FAN.
• For storage, clean the fan carefully as instructed. Store the fan in the original packaging or cover the product to protect it from dust. Store the fan in a cool, dry place.

CONSUMER RELATIONS

Mail questions or comments to:

Kaz, Incorporated

Consumer Relations Dept.

250 Turnpike Road

Southborough, MA 01772

Call us toll-free at: 1-800-477-0457

E-mail: [e-mail]

Or visit our website at: www.kaz.com

Please be sure to specify a model number.

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST OR SEE YOUR WARRANTY. DO NOT RETURN TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF, DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE.

1 YEAR LIMITED WARRANTY

You should first read all instructions before attempting to use this product.

A. This 1 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

KAZ IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.

B. At its option, Kaz will repair or replace this product if it is found to be defective in material or workmanship.

C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.
D. Return defective product to Kaz, Incorporated with a brief description of the problem. Include proof of purchase and a 10 US/ 15.50 CAN check or money order for handling, return packing and shipping charges. Please include your name, address and a daytime phone number.

You must prepay shipping charges.

We suggest having tracking or delivery confirmation. Send to:

In U.S.:

Kaz, Incorporated

Attn: Returns Department

4755 Southpoint Drive

Memphis, TN 38118

USA

In Canada:

Kaz Canada Inc.

Attn: Returns Department

510 Bronte Street South

Milton, ON L9T 2X6

Canada

Please go to www.kaz.com and register your product under the Customer Care Center and receive product information updates and new promotional offers.
