Product type	Pedestal fan
Brand	KAZ (Honeywell Consumer Products)
Model	HV-141
Power supply	120 V, 60 Hz, AC
Power plug	Grounded plug (3 prongs)
Mounting	On pedestal with round base, extension, and metal pole
Base weight	No weight (HV-141), optional for HV-181
Height adjustment	Yes, by wing screw
Airflow direction	Manually tiltable up to ceiling
Speeds	Multi-speed (variable control)
Motor housing	Sealed, permanently lubricated, non-removable
Maintenance	Clean with soft damp cloth; do not immerse
Prohibited cleaning products	Gasoline, thinner, chemicals
Child safety	Supervision recommended near children
Moisture protection	Do not use in a window or outdoors
Replacement parts available	Fixing knob, round base, extension, pole, screws, socket wrench
Customer service	1-800-332-1110 (USA)
Warranty	5-year limited (material or workmanship defects)
Part number	HV-141-* (see manual for references)

Frequently Asked Questions - HV-141 KAZ

How to assemble the base of the KAZ HV-141 fan?

Place the base on the floor with the weight underneath. Align the extension holes with those of the base and insert the extension. Insert the 5 bolts through the plate, then place the washers and nuts. Use the supplied #10 socket wrench to tighten the nuts without over-tightening. Flip the base over, then insert the metal fan pole into the extension, aligning the grooves. Tighten the wing screw.

How to attach the fan module to the pole?

Place the fan module over the metal pole. Align the module groove with the pole hole. Push the two together and align the holes. Insert and hand-tighten the wing screw.

How to install the control box?

Unscrew the locking knob of the control box. Push the control box extension into the hole in the fan pole. Let the power cord connecting the box to the fan hang freely. At the back, tighten the control box fixing knob without over-tightening.

How to clean the HV-141 fan?

Always unplug the fan before cleaning. Use a soft, damp cloth to wipe the exterior. Never immerse the fan in water or let water enter the motor housing. Do not use gasoline, thinner, or chemicals. The motor is sealed and does not require lubrication.

What are the important safety precautions?

Use only on a dry, level surface. Plug into a grounded outlet (120 V). Do not place the fan near curtains or objects that could be sucked in. Do not use outdoors or near flames. Unplug when not in use or before moving. Supervise children nearby.

What to do if the fan does not operate?

First check that the power cord is plugged into a working outlet. Make sure the speed control is in a position other than OFF. If the problem persists, do not attempt to repair yourself; contact customer service at 1-800-332-1110. The warranty covers material or workmanship defects.

Can I use a transistorized speed control with this fan?

No, this is expressly not recommended. Using a transistorized speed control may cause a risk of fire or electric shock. Use only the controls supplied with the appliance.

What replacement parts are available for the HV-141?

The following parts are available: control box fixing knob (HV-141-2), round base (HV-141-4), base extension (HV-141-5), fan pole (HV-141-6), wing screw set (HV-141-7), base locking screw set (HV-141-8), and #10 socket wrench (HV-141-9). Contact customer service to order.

How to contact Honeywell customer service for the KAZ fan?

Call toll-free 1-800-332-1110. Service is available 24/7. You can order parts by phone using Master Card, Visa, or Discover. For warranty returns, follow the instructions in the manual.

What is the duration and coverage of the warranty?

The limited warranty is 5 years from the original purchase date. It covers repair or replacement of a product with a material or workmanship defect. It does not cover damage due to misuse, normal wear, or unauthorized repair attempts. To make a claim, return the product with proof of purchase and a handling fee.

USER MANUAL HV-141 KAZ

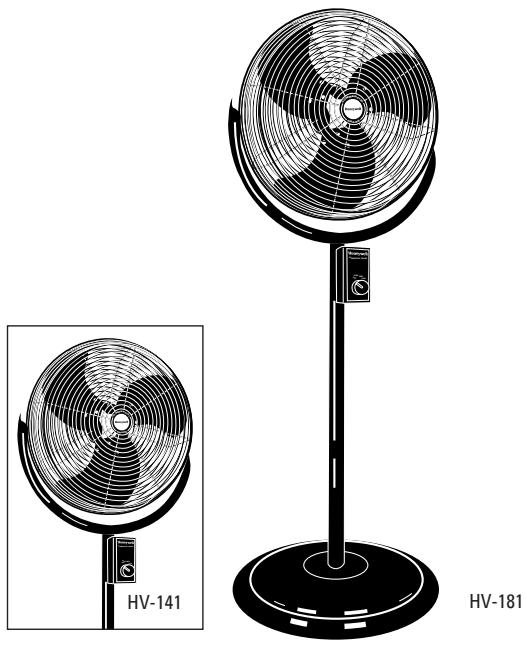

Model HV-141 without base weight

HV-181 with base weight

READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS BEFORE USING THIS FAN.

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Use this fan only as described in this manual. Other use not recommended may cause fire, electric shock or injury.
• High Velocity fans are designed to create rapid air movement; therefore, make sure the fan is not placed near drapes, curtains, or any objects that may be drawn into the fan.
• To protect against electrical shock, do not immerse unit, plug or cord in water or spray with liquids.
• This fan requires a grounded 120 volt power source (3 prong receptacles).

NEVER CONNECT THIS FAN TO ANY POWER SOURCE OTHER THAN A PROPERLY GROUNDED 120 VOLT AC RECEPTACLE. DO NOT

ATTEMPT TO DEFEAT THIS SAFETY FEATURE.

• Close supervision is necessary when any appliance is used by or near children.
• Turn the fan to the OFF position and unplug the fan from the outlet when not in use, when moving fan from one location to another, servicing parts and before cleaning.
• Do not operate fan in the presence of explosive and/or flammable fumes.
• Do not place the fan or any parts near an open flame, cooking or other heating appliance.
• Do not operate the fan with a damaged cord or plug, after a malfunction or if dropped or damaged in any manner. (See warranty)
• Avoid contact with moving fan parts.
• To disconnect, grip the plug and pull it from the wall outlet. Never pull by the cord.

• The use of attachments not recommended by Honeywell Consumer Products may be hazardous.

• Always use on a dry, level surface.

• Do not hang or mount fan on a wall or ceiling.
• Do not operate without the fan grilles properly in place.
• Be sure to center this fan when using it on an elevated surface and be careful not to place the fan too close to the edge of that surface.
• Do not use outdoors.
• Do not let the power cord hang over the edge of a table or counter or let it touch any hot surfaces.
• A loose fit between the AC outlet and plug may cause overheating of the plug. Have a qualified electrician replace the outlet.

WARNING: To reduce the risk of fire or electrical shock, DO NOT USE THIS FAN with any SOLID STATE Speed Control Device.

NOTE: THESE INSTRUCTIONS ARE FOR MODEL HV-141 (NO BASE WEIGHT INCLUDED/FIG. 1) AND HV-181 (WITH BASE WEIGHT/FIG. 1A).

IF YOU HAVE MODEL HV141 (Fig.1), PLEASE FOLLOW THESE INSTRUCTIONS BUT DISREGARD REFERENCES TO BASE WEIGHT.

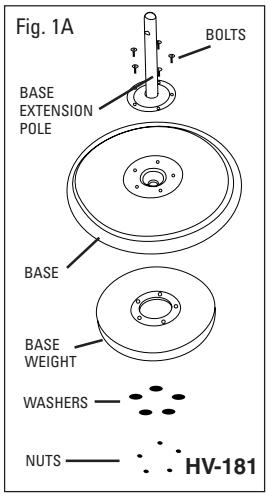

• Remove the base extension pole, base with attached base weight (Fig.1A), #10 metric socket wrench and (5) bolts and (5) nuts from the box.

• Place the base on the floor with the weight on the bottom, line up the base extension pole holes with those in the base and firmly insert the pole into the base.

• Separate the nut and metal washer from each bolt.

• Using your fingers, press one bolt through the base extension pole plate, and into the base until it is almost flush with the plate.
• Once the bolt is inserted, carefully turn over the base and pole so the base weight is facing upright.
  Take a metal washer and drop it into the hole so it fits around the bolt.
• Then take a nut and fit it into the #10 metric socket wrench (included). You may then, using the tool, thread and secure the nut around the bolt. Do not completely tighten
• Repeat for all 5 bolts, then tighten.

NOTE: It may be easier for you to insert and tighten each bolt individually instead of all 5 at once. Use the method you are most comfortable with.

• When you are finished attaching all (5) bolts, flip the base back over so that the base extension pole is now facing up.

• Place the metal stand fan pole into the base extension, lining up the groove of the pole to the hole in the base extension.
• Push together until the holes (in the groove) line up (Fig. 2).

• Insert and hand tighten the locking thumb screw.

• Place the fan assembly over the metal stand pole while lining up the groove from the fan assembly with the hole in the fan pole. Push together and line up the holes (Fig. 3).

• Insert the fan locking thumb screw and hand tighten.

• Unscrew the control box locking knob from the control box.

• Push the control box extension through the hole in the fan pole (Fig. 4). Be sure that the power cord from the control box to the fan is always free hanging.
  From the rear, tighten the control box holding knob. DO NOT OVERIGHTEN.

OPERATION

• Set your fan on a level, dry surface.
• Plug the power cord into a grounded three prong wall outlet.
• Select the desired speed for your needs
• Tilt the fan assembly to the desired air direction.
• For maximum circulation, you may point the fan toward the

ceiling and get the maximum air turbulence (Fig. 5). Using this method in the summer will circulate air providing a "wind chill" effect, and in the winter will move the warm air from the ceiling, dispersing it and giving you a more uniform room temperature.

• Turn the Control to OFF and UNPLUG THE FAN BEFORE CLEANING.
• NOTE: fan housing does not disassemble.
• Use only a soft, damp cloth to clean the fan.
  DO NOT immerse the fan in water and never allow water to drip into the Motor Housing.

DO NOT use gasoline, paint thinner or other chemicals to clean the fan.
- Store the fan in its original box or cover the fan to protect it from dust.

NOTE: Your fan motor does not need to be oiled. It is permanently sealed and lubricated.

CONSUMER RELATIONS/REPLACEMENT PARTS

To speak with a technical representative or place an order, please call our Consumer Relations Center, toll-free, at : 1-800-332-1110. Orders may be placed with Master Card, Visa or Discover.

ITEM	HV-141 PART NO.	HV-181 PART NO.	PRICE U.S	PRICE CAN.
Fan Control Holding Knob	HV-141-2	HV-181-2	4.00	5.40
Round Base	HV-141-4	HV-181-4	15.00	20.25
Base Extension	HV-141-5	HV-181-5	10.00	13.50
Fan Pole	HV-141-6	HV-181-6	10.00	13.50
Locking Thumb Screws (set of 2)	HV-141-7	HV-181-7	4.00	5.40
Base Locking Screws (set of 2)	HV-141-8	HV-181-8	4.00	5.40
#10 Metric Socket Wrench	HV-141-9	HV-181-9	4.00	5.40

To order by mail, please include 4.50 U.S./ 6.00 CAN. for shipping and handling and make check or money order payable to Honeywell Consumer Products Business. For Canadian residents please add 7 % GST plus applicable provincial sales tax. Mail to:

Consumer Relations

Honeywell Consumer Products Business

250 Turnpike Road

Southborough, MA 01772 USA

Note: Honeywell Consumer Products Business can not ship to P.O. Box numbers

Thank you for purchasing a Honeywell fan. To learn more about Honeywell please visit us at www.honeywell.com

You should first read all instructions before attempting to use this product. The enclosed Customer Response card should be filled out and returned within 7 days of purchase.

A. This 5 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

HONEYWELL IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION

TO THE DURATION OF THIS WARRANTY.

Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.

B. At its option, Honeywell will repair or replace this product if it is found to be defective in material or workmanship. Defective product should be returned to the place of purchase in accordance with store policy. Thereafter, while within the warranty period defective product may be returned to Honeywell.

C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.

D. Return defective product to Honeywell Consumer Products with a brief description of the problem. Include proof of purchase and a 15.00 US/ 19.85 CAN check or money order for handling, return packing and shipping charges. Please include your name, address and a daytime phone number. You must prepay shipping charges. Send to:

Honeywell
Attn: Returns Department
4755 Southpoint Drive
Memphis, TN 38118
USA.

VENTILATEUR SUR PIED 14 PO/18 PO (35 CM/45 CM) DE CALIBRE COMMERCIAL

REMARQUE:CES INSTRUCTIONS S'APPLICENT AUX MODELES HV-141 (SANS POIDS POUR LA BASE/FIG.1) ET HV-181 (AVEC POIDS POUR LA BASE/FIG. 1A).

POUR LE MODELE HV-14 (FIG.1), SUIVRE CES INSTRUCTIONS EN NE TENANT PAS COMPTE DES RÉFERENCES AU POIDS DE LA BASE..
