Brand	KAZ
Model	HS-2007
Product Type	Pedestal Fan
Power Supply	120 V, 60 Hz, 3-prong polarized plug
Use	Household only, indoor
Adjustable height	Yes, with adjustment knob
Oscillation	Yes, push/pull button control
Speeds	Multi-speed (rotary selector)
Head tilt	Yes, manually adjustable
Child safety	Child-proof switch (push and turn)
Removable front grille	Yes, for cleaning
Cleaning	Soft damp cloth, do not immerse
Warranty	5-year limited
Customer service	1-800-332-1110, [e-mail]
Estimated weight	Approximately 4 kg

Frequently Asked Questions - HS-2007 KAZ

How to assemble the KAZ HS-2007 fan?

Start by placing the support bars into the base and secure the fastener. Insert the adjustable pole aligning the groove with the base button, then turn clockwise to lock. Adjust to the desired height and tighten the knob. Then screw the motor module onto the pole, then mount the rear grille, blades, and front grille following the detailed instructions in the manual.

How to clean the fan?

Always unplug the fan before cleaning. Use a soft damp cloth to wipe surfaces. Never immerse the device in water and avoid water entering the motor housing. For a thorough clean, disassemble the front grille by releasing the clips, then remove the blades and gently clean them.

How to adjust the fan height?

Loosen the height adjustment knob on the pole. Adjust the pole to the desired height, then retighten the knob firmly. Ensure the fan is stable before use.

How to activate oscillation?

To activate oscillation, press or pull the oscillation control on the fan. To stop it, perform the reverse action. Oscillation helps distribute air in different directions.

What are important safety precautions?

Use the fan only on a dry, level surface. Do not immerse it in water. Do not use it near flames or explosive vapors. Keep children under supervision. Unplug when not in use. Do not use a solid-state speed control.

How to obtain spare parts?

Spare parts are available from the manufacturer. Contact Kaz customer service at 1-800-332-1110 or by email at [e-mail]. Do not open the motor housing as this will void the warranty.

What is the warranty for the KAZ HS-2007 fan?

The fan is covered by a limited 5-year warranty from the date of purchase. It covers defects in materials and workmanship. For any claim, return the product to the point of purchase or contact Kaz with proof of purchase. Handling fees may apply.

Can the fan be used outdoors?

No, this fan is designed for household use indoor only. Do not use outdoors as it may cause electrical hazards or damage.

How to change fan speed?

The speed selector is rotary and located on the motor housing. For models with child safety, first push the selector then turn it to the desired position (speed 1, 2, or 3).

What to do if the fan does not work?

First check that the cord is properly plugged into a working 120 V outlet. Ensure the speed selector is on an active position. If the problem persists, do not attempt to repair yourself, return the fan to the point of purchase or contact Kaz for warranty service.

USER MANUAL HS-2007 KAZ

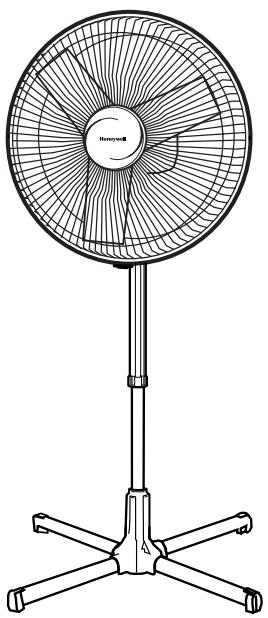

20" [50CM] TURBO FORCE™

20" (50CM) TRI-TECHMC

HIGH PERFORMANCE STAND FANS

Model HS-2007 Series

READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS BEFORE USING THIS FAN.

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Use this fan only as described in this manual. Other use not recommended may cause fire, electric shock or injury to persons.
2. This product is intended for household use ONLY and not for commercial, industrial or outdoor use.
3. To protect against electric shock, do not place fan in window, immerse unit, plug or cord in water or spray with liquids.

4. This fan requires a grounded 120 volt power source (3 prong receptacles). Never connect this fan to any power source other than a properly grounded 120 volt AC receptacle. Do not attempt to defeat this safety feature.

5. Close supervision is necessary when any appliance is used by or near children.

6. Turn the fan to the OFF position and unplug the fan from the outlet when not in use, when moving the fan from one location to another and before cleaning.
7. To disconnect the fan, first turn control to the OFF position, grip the plug and pull it from the wall outlet. Never pull by the cord.
8. Do not operate the fan in the presence of explosive and/or flammable fumes.
9. Do not place the fan or any parts near an open flame, cooking or other heating appliance.
10. Do not operate the fan with a damaged cord or plug or if the product malfunctions, is dropped or damaged in any manner (see warranty).

11. Avoid contact with moving fan parts.

12. The use of attachments not recommended by the manufacturer may be hazardous.

13. Place the fan on a dry level surface.
14. Do not hang or mount fan on a wall or ceiling.
15. Do not operate if the fan housing is removed or damaged.

16. A loose fit between the AC outlet (receptacle) and plug may cause overheating and a distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.
    WARNING: To Reduce The Risk of Fire or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device.

17. Place Base Extensions (A) as illustrated and snap Base Connector (B) firmly onto Base Extensions (Fig. 1).

18. Insert the Adjustable Pole (C) into the Base by lining up the recessed slot in the Pole to the

raised dot on the Base Connector and push in. Be sure that the Pole is fully seated. Hold the Base firmly and twist the Pole CLOCKWISE 90^ until it stops. DO NOT OVER-TIGHTEN (Fig. 2).

• Adjust to the desired height and tighten the Height Adjustment Knob (D) (Fig. 3).

ATTACHING THE MOTOR ASSEMBLY TO THE FAN POLE

• Place the Motor Assembly (E) onto the Adjustable Pole and screw into place by turning Clockwise (Fig. 4). Align the slot to slide the latch into place (Fig. 5). NOTE: The tilt angle of the Motor Assembly can be changed by simply tilting the Motor up or down.
• Remove the Blade Knob (F) and the Rear Grille Mounting Nut (G). Place the Rear Grille (H)

onto the Motor Housing by making sure the 3 holes of the Rear Grille fit over the 3 bumps on the Motor Housing. Tighten the Rear Grille Mounting Nut CLOCKWISE.(Fig.6)

• Push the Fan Blade onto the Motor Shaft, lining up the blade with the D-shape on the Motor Shaft's end. Tighten the Blade Knob by turning it COUNTER-CLOCKWISE (Fig. 7).
• Properly align the Front Grille and hook the top

Grille clip (I) onto the Rear Grille (Fig. 8).

• Raise the built in clips around the Front Grille. Fasten the clips onto the Rear Grille (Fig. 9)

• Place your fan on a level and dry surface.
• Plug the power cord into a polarized 120 Volt AC wall outlet.
• Adjust the height by loosening the Height Adjustment Knob and adjusting the fan up or down. Then tighten the Height Adjustment Knob.
• To operate the Child Resistant switch, depress the Speed Control Knob and turn to the desired position (Fig. 10).

To activate or disengage the oscillation feature, push down or pull up on the Oscillation Control Knob (Fig. 11).
- Tilt the fan head to desired angle.

CLEANING AND STORAGE

• Unplug the fan before cleaning.
• Use only a soft, damp cloth to gently wipe the fan clean.
• DO NOT immerse the fan in water and never allow water to drip into the motor housing.
  DO NOT use gasoline, paint thinner or other chemicals to clean the fan.

REMOVAL OF THE FRONT GRILL FOR CLEANING

• Release the Front Grille clips from around the Rear Grille and remove the Front Grille.
• Unscrew the Blade Knob by turning it CLOCKWISE (reverse thread).

• Pull the Fan Blade away from the Motor Housing.
  Gently wipe the Fan Blade and Grilles.

• Re-assemble the fan by following the ASSEMBLY INSTRUCTIONS.

TO DISASSEMBLE THE MOTOR FROM THE STAND

• Unplug the fan. Hold the Fan Pole and slowly turn the Motor Assembly COUNTER-CLOCKWISE until it comes apart from the Fan Pole.

• For storage, disassemble and clean the fan carefully as instructed.

• Store the fan in its original box. You may also leave the fan fully assembled and covered

with plastic to protect it from dust. Store your fan in a cool, dry place.

CONSUMER RELATIONS / REPLACEMENT PARTS

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE RETURN THE FAN TO THE ORIGINAL PLACE OF PURCHASE OR SEE YOUR WARRANTY. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF. DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE FAN OR PERSONAL INJURY.

IF YOU HAVE ANY QUESTIONS REGARDING THIS FAN, PLEASE CALL OR WRITE:

Kaz Home Environment
Consumer Relations Dept.
250 Turnpike Road
Southborough, MA 01772 USA

Toll free: 1-800-332-1110
E-mail: [e-mail]

Please visit us at www.kaz.com

You should first read all instructions before attempting to use this product.

Register your product online at www.kaz.com or complete and return the Consumer Response Card within 7 days.

A. This 5 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. KAZ IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.

B. At its option, Kaz will repair or replace this product if it is found to be defective in material or workmanship. Defective product should be returned to the place of purchase in accordance with store policy. Thereafter, while within the warranty period defective product may be returned to Kaz.
C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.
D. Return defective product to Kaz Home Environment with a brief description of the problem. Include proof of purchase and a 10 US/15.50 CAN check or money order for handling, return packing and shipping charges. Please include your name, address and a daytime phone number. You must prepay shipping charges. Send to:

In US:

Kaz Home Environment

Attn: Returns Department

4755 Southpoint Drive

Memphis, TN 38118

USA

In Canada:

Kaz Home Environment

Attn: Returns Department

510 Bronte Street South

Milton, ON L9T 2X6

Canada

TURBO FORCE™ DE 20 PO (50 CM)

TRI-TECHMC DE 20 PO (50 CM)

VENTILATEURS SUR PIED HAUT RENDEMENT

Kaz Home Environment

Consumer Relations Dept.

250 Turnpike Road

Southborough, MA 01772 USA

Kaz Home Environment
Attn: Returns Department
510 Bronte Street South
Milton, ON L9T 2X6
Canada

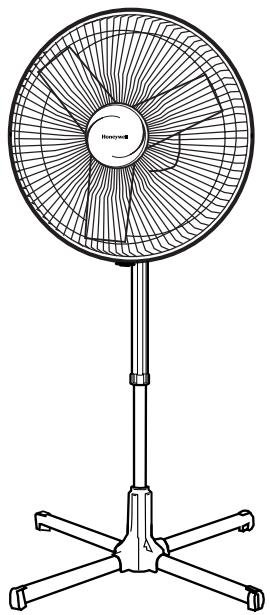

MANUAL DE PROPIETARIO
