1. General Information 18

1.1 Information about the instruction manual 18
1.2 Key to symbols 18
1.3 Liability and Warrantees 19
1.4 Copyright protection 19
1.5 Declaration of conformity 19

2. Safety 20

2.1 General information 20
2.2 Safety instructions for use of the device 20-21
2.3 Intended use 21

3.Delivery,packaging and storage 22

3.1 Delivery check 22
3.2 Packaging 22
3.3 Storage 22

4. Technical data 23

4.1 Technical specification 23
4.2 Overview of parts 23-24

5. Installation and operation 24

5.1 Safety instructions 24-25
5.2 Installation and connection 25
5.3 Operating 25-28

6. Cleaning and maintenance 28

6.1 Safety advice 28
6.2 Cleaning 28-29
6.3 Safety instructions for maintenance 29

7.Waste disposal 30

Bartscher GmbH

1.1 Information about the instruction manual

This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide.

Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

In addition to the information given here, you should comply with any local Health and safety Controls and generally applicable safety regulations.

The instruction manual forms part of the product and should be kept near the device and easily accessible for anyone carrying out the installation, servicing, maintenance or cleaning.

1.2 Key to symbols

In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. The instructions should be followed very carefully to avoid any risk of accident, personal injury or material damage.

WARNING!

This symbol highlights hazards, which could lead to injury. Please follow the instructions very carefully and proceed with particular attention in these cases.

WARNING! Electrical hazard!

This symbol draws attention to potential electrical hazards. If you do not follow the safety instructions, you may risk injury or death.

CAUTION!

This symbol highlights instructions, which should be followed to avoid any risk of damage, malfunctioning and/or breakdown of the device.

NOTE!

This symbol highlights tips and information, which have to be followed for an efficient and trouble-free operation of the device.

WARNING! Hot external surface!

This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns!

1.3 Liability and Warrantees

All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years.

The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. The German version of this instruction manual is definitive.

If the delivery consists of a special model, the actual scope of delivery may differ from the descriptions and illustrations in this manual. This is also the case for special orders or when the device has been modified in line with new technology. If you have any questions, you should contact the manufacturer.

NOTE!

Read the instruction manual carefully before using the device. The manufacturer does not accept liability for any damage or malfunction resulting from not following the instructions for use.

The instruction manual should be kept near the device, easily accessible for anyone wishing to work with or using it. We reserve the right to make technical changes for purposes of developing and improving the useful properties.

1.4 Copyright protection

The instruction manual including any texts, drawings, images or other illustrations is copyright. No part of this publication may be reproduced, transmitted or used in any form or by any means without permission in writing from the manufacturer. Any person who commits any unauthorized act in relation to this publication shall be liable to claims for damages. All rights reserved.

NOTE!

The contents, texts, drawings, pictures and any other illustrations are copyright and subject to other protection rights. Any person unlawfully using this publication is liable to criminal prosecution.

1.5 Declaration of conformity

The device complies with the current standards and directives of the EU.

We certify this in the EC declaration of conformity.

If required we will be glad to send you the according declaration of conformity.

2. Safety

This section provides an overview of all important safety aspects.

In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols.

Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility.

By following all the important safety advice you gain an optimal protection against all hazards as well as the assurance of a safe and trouble-free operation.

2.1 General Information

This device is designed in accordance with the presently applicable technological standards. However, the device can pose a danger if handled improperly and inappropriately.

Knowing the contents of the instruction manual as well as avoiding mistakes and thus operating this device safely and in a fault-free manner is very essential to protect yourselves from the hazards.

To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken.

This device may only be operated in technically proper and safe condition.

2.2 Safety instructions for use of the device

The specifications regarding the industrial safety are based on the Regulations of the European Union applicable at the time of manufacturing the device.

If the device is used commercially, the user is obliged to ensure that the said industrial safety measures concur with the state of the rules and regulations applicable at the time in question for the entire period of use of the device and to comply with the new specifications. Outside the European Union, the industrial safety laws applicable at the place of installation of the device and the regional territorial provisions must be complied with.

Besides the industrial safety instructions in the instruction manual, the general safety and accident prevention regulations as well as environment protection regulations applicable for area of application of the device must be followed and complied with.

CAUTION!

The device is not intended for use by individuals (including children) with physical or mental disabilities, insufficient experience, and/or insufficient knowledge unless such persons are under the care of a person responsible for their safety or have received instructions regarding appropriate use of the device.
Children should be observed to ensure that they are not playing with the device.
o Preserve this manual safely. When passing on/selling the device to a third party, the manuals must be handed over along with the device.
○ Every person using the device must act in accordance to the manuals and under consideration of the safety advice.

2.3 Intended use

Safe operation is only guaranteed when using the device for its intended purpose.

Any technical interventions, as well as assembly and maintenance are to be made by a qualified customer service only.

Mulled wine pot / preserving pot is meant only for heating up and keeping the heat of liquids suitable for drinking, such as e.g. heated wine, tea, for preparing hot water and for preserving.

Do not use the mulled wine pot / preserving pot for:

• cooking food;
• warming up or heating of inflammable, volatilizing, noxious or similar fluids or materials.

CAUTION!

Do not use the device for anything beyond or other than its intended use.

The manufacturer and/or authorized parties do not accept any claims resulting from damage caused by using the device not according to its intended use.

The operator is totally liable for any such damage.

3. Transport, packaging and storage

3.1 Delivery check

Please check the delivery upon completeness and transport damage immediately after receipt.

In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier's bill of delivery. Trigger off the complaint.

Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

3.2 Packaging

Please do not throw away the covering carton of your device as it might be useful for storage purposes, when moving or, in case of damages, when the device must be sent back to a repair center. The outer and inner packing material should be removed completely from the device before installation.

NOTE!

If you liked to dispose the packing, consider the regulations applicable in your country. Supply re-usable packing materials to the recycling.

Please inspect the device upon completeness. In case any part is missing please contact our customer service center immediately.

3.3 Storage

Keep the package closed until installation and under consideration of the outside indicated positioning- and storage markings.

Packages should be stored under consideration of the following:

• Do not store outdoors.
• Keep it dry and dust-free.
• Do not expose it to aggressive media.
• Do not expose it to direct sunlight.
• Avoid mechanical shocks and vibration.
  In case of longer storage (> 3 months) make sure you check the state of the packaging and the parts regularly. If required refresh or renew.

4. Technical data

4.1 Technical specification

Description:	Mulled wine pot / preserving pot
Item no.:	A200.052	200.057
Material:	Container: stainless steel; cover: glass; base, handles, small tap: plastic
Connection:	230 V ~ 50 Hz 1800 W
Temperature control:	Rotary knob approx. 30°C - 100°C
Dimensions:	Ø 450 mm, H 470 mm	Ø 450 mm, H 520 mm
Capacity of container:	25 litres	30 litres
Weight:	6,1 kg
Accessories:	1 grid made of stainless steel

Subject to technical changes and alterations!

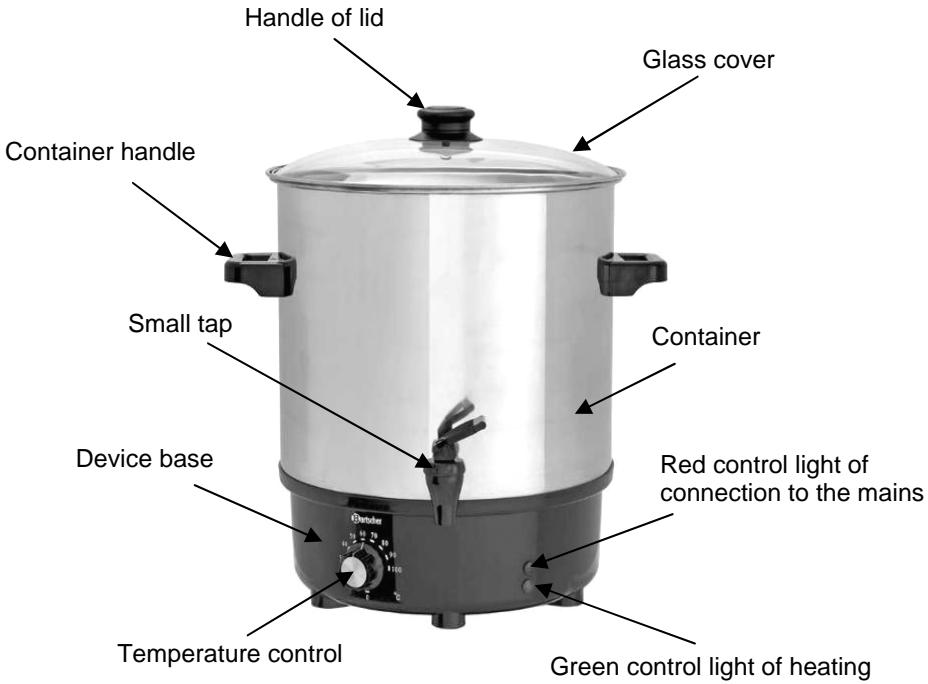

4.2 Overview of parts

Accessories

Grid made of stainless steel (included in the packaging)

Heat-retaining lid for cups (not included in the packaging)

Suitable for approx. 10 - 15 cups

Code-No.: 200.059

5. Installation and operation

5.1 Safety instructions

WARNING! Hazard via electrical current!

The device must only be connected to a properly installed single socket with protective contact.

Never yank cord to disconnect from outlet.

Cable must not touch any hot parts.

• See that the cable does not touch any heat sources or sharp edges. Do not let the cable dangle over the counter edge.

WARNING! Hot external surface!

During operation some parts of the device become very hot. In order to avoid injuries do not touch any hot parts!

• Do not use the device in case it does not function properly, has been damaged or dropped.
• Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires.

• Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep away the cable from operating range and do not dunk it into water.

• Protect the device from rainwater, moisture and dampness.

• Do not move or tilt the device when in operation.

WARNING! Hazard via electrical current!

The device can cause injuries due to improper installation!

Before installation the local power grid specification should be compared with that of the device (see type label).

Connect the device only in case of compliance!

Take note of the security advice!

5.2 Installation and connection

• Discard the complete packing material after unpacking the device.
• Place the device on top of an even and safe surface which supports the weight of the device and is not heat sensitive.
• Not at any time should you place the device on an inflammable surface (such as: table cloth, carpet, etc.).
• You must not position the device near open fireplaces, electric ovens/arc furnaces, furnaces/electric heaters or other heat sources.
• Do not place any acid chemicals, gases or other, easily inflammable materials near this device.
• The electrical circuit in the socket must be secured to at least 16A. Only connect the device directly to the wall socket; do not use any extension cords or power strips.
• Place the device so that the plug is easily accessible and can be quickly removed from its socket in case of necessity.

5.3 Operating

• For hygiene reasons, before first use fill the device with approx. 6 litres of water, adjust for the highest temperature and boil for approx. 5 minutes. Then drain the container.
  After boiling, rinse the container with clean water and drain it again.
• Clean the glass cover thoroughly with warm water and a mild cleaning agent. Then rinse the cover with clean water and dry it thoroughly with the use of a soft cloth.
• Adjust the temperature control in the „0” position.

CAUTION!

It is important that there is always drinkable liquid in the container before engaging the device. You must not pour undrinkable liquids such as acids, bases or leys, oils, nitrates etc. in the mulled wine pot/preserving pot.

Pour the desired drinkable liquid in the mulled wine pot/preserving pot. Minimum filling quantity of 5 litres.

WARNING!

Never use the device when it is not filled with liquid!

• Put the plug in the power socket (the red control light will go on).

WARNING! Hazard via electrical current!

During operation it must be ensured that no liquids can spill over as this can cause short-circuits in the electronic control.

Personal injury can be the result.

Pay attention to the labels inside the container!

• Before starting the device, put the glass cover so as to avoid temperature loss in the container.

WARNING! Danger of burn!

During taking the lid off there is a danger of burn by the escaping steam and condensate! Be particularly careful while doing this!

• With the use of the temperature control it is possible to adjust the temperature gradually from approx. 30^ - 100^ .
• Set the temperature control at the desired temperature by turning it clockwise (the green control light of heating will go on). When the desired temperature is reached, the control light goes off.

NOTE!

The heat is created via a heating coil in the bottom part of the mulled wine pot/preserving pot. The electric temperature control with the temperature sensor are placed here as well. The adjustment of temperature is done via the thermostat switch.

NOTE!

The heating time depends on the liquid and the amount. When the desired liquid temperature is reached the temperature controller shuts off automatically. In case the liquid temperature drops below the desired temperature the temperature controller switches on to keep the liquid at the set temperature over a larger period of time.

• In order to drain the liquid pull the small tap forward and hold it till the cup or container is filled. When this process is finished, let go of the small tap and it will shut off automatically. In order to drain the liquid in a continuous way, stop the tap by pressing it.
• Conditional on the system a quantity of approx. 1 litres remains in the container. This quantity can be slightly reduced by carefully tilting the container forward.

WARNING! Hot external surface!

While operating the device the surface of the container will be heated up according to the adjusted temperature! Do not touch hot surface!

• If the device is not going to be used, turn the temperature control to the „0“ position, disconnect it from the power socket (take out the plug!), leave the device to cool and drain the liquid.

Preserving

The device can also be used for preserving foodstuffs in jars.
- Use the enclosed grid for putting the jars in the container. The grate helps a better circulation of the boiling water under and between the jars and at the same time a quicker heating of them.
After putting the jars in the cointainer pour so much water so that the jars are immersed to approx. 3 / 4 of their height.
- Connect the device to a suitable power socket.
- Set the preserving temperature. Read the temperature and the preserving time in a cookery book or in indications of a special recipe.

NOTE!

Pay attention to the fact that the heating time does not depend on the preserving time. The preserving time starts when the green control light of heating goes off for the first time.

After preserving, disconnect the device from the power socket (take out the plug!).
- Take the jars out of the preserving pot. While doing that, use tongs for taking out jars or a cloth so as to avoid burning your hand
- Leave the water in the device to cool and then empty the pot.

CAUTION!

The device is equipped with protection against overheating.

If the device happens to be empty when turned on, the overheating protection will be activated.

Remove the plug from its socket and leave the device to cool for approx. 30 minutes.

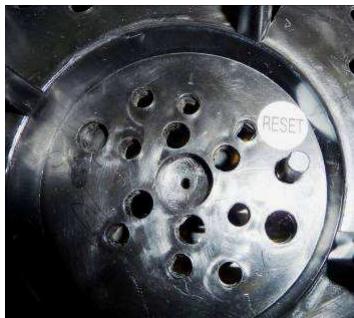

Next, press the RESET button located at the bottom of the device.

The device is ready for use.

6. Cleaning and maintenance

6.1 Safety advice

Before beginning with repair or cleaning works make sure the device has been disconnected from power socket (pull the power plug!!!) and has cooled down.
o Do not use any acid agents and make sure no water ingresses the device.
To protect yourself from electric shock, never immerse the device, its cables and the plug in water or other liquids.

CAUTION!

The device is not suited for direct washing via water jets. Therefore, you must not use any kind of pressure water jet for cleaning the device!

6.2 Cleaning

The device should be cleaned regularly.
The surface of the device should be cleaned with a damp cloth. For tenacious stains a mild detergent can be used. Do not use any sprays or aggressive detergents.
Clean the device thoroughly inside and rinse it with clean water.

Only use a soft cloth and make sure you never use any kind of abrasive agents or pads which could scratch the surface.
○ Do not use steel wool for cleaning purposes. Parts of the steel wool can loosen and settle in the stop valve and lead to damages of the seal faces.
If the device is used daily the whole faucet mechanism has to be cleaned once a week. If the device is used less often, it may be cleaned less frequently. For cleaning the faucet bonnet unscrew bonnet, remove silicone seat cup and wash the parts in warm soapy water. Clean the inside of the faucet and the connection to the device by using a small bottle brush.

CAUTION!

Never insert the brush in the assembled faucet since it will puncture the seat cup.

o Never use any kind of inflammables for cleaning purposes as, in case of reconnection, this increases the risk of fire and explosion.
In the case of water containing lime, a calcareous layer, which can have an influence on the heating power of the device appears in the container, particularly at the bottom of it. It is possible to remove this residue carefully by adding to water a drop of vinegar or a lime remover available on the market and by boiling this solution for a short time.
After removing lime rinse the container with clean water.

CAUTION!

Complaints will not be accepted if the device is not decalcified regularly as described in the instruction manual.

Such complaints are no cases of warranty!

○ After cleaning you should apply a soft, dry cloth in order to wipe dry and polish the surface.
o Make sure the device has been cleaned properly before storing it in a dry place.

6.3 Safety instructions for maintenance

Check the mains connection cable for damage from time to time. Never operate the device when the cable is damaged. A damaged cable must immediately be replaced by customer service or a qualified electrician to avoid dangers.
In case of damage or malfunction, please contact your stockist or our customer service centre.
o Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself.

7. Waste disposal

Discarding old devices

At the end of its service life the discarded device has to be disposed in accordance with the national regulations. It is advisable to contact a company which is specialized in waste disposal, or just contact the local disposal service in your community.

WARNING!

To exclude any abuse and the dangers involved make the waste device unfit for use before disposal. For that purpose disconnect device from mains supply and remove mains connection cable from the device.

NOTE!

For the disposal of the device please consider and act according to the national and local rules and regulations.

Bartscher GmbH

4.1 Indications techniques
