Product type	Wired gaming headset
Brand	Razer
Model	Kraken Pro GREEN
Color	Green
Connectivity	3.5 mm combo audio+mic jack
Speakers	40 mm with neodymium magnets
Frequency response (headphones)	20 - 20,000 Hz
Impedance	32 Ω
Headphone sensitivity	110 ± 4 dB
Microphone	Retractable unidirectional
Frequency response (microphone)	100 - 10,000 Hz
Microphone sensitivity	-40 ± 4 dB
Signal-to-noise ratio (microphone)	52 dB
Cable length	1.3 m + 2 m adapter
Weight	Approx. 300 g
Integrated controls	Volume wheel, mic mute
Ear cushion type	Circum-aural leatherette
Inner ear cushion diameter	50 mm
Headband	Adjustable padded
Foldable	Yes
Warranty	1-year limited
Included accessories	Audio/micro splitter adapter, important product guide

Frequently Asked Questions - CASQUE GAMING KRAKEN PRO VERT RAZER

How to use the retractable microphone?

The microphone is retractable: push it into the earcup to disable it (mute position) and pull it out to activate it. Once deployed, use the mute button on the cable to quickly mute the microphone.

Which devices are compatible with the Razer Kraken Pro?

The headset works with any device that has a 3.5 mm jack. For combined audio+mic use, it requires a combo 3.5 mm jack. With the included splitter adapter, it is also compatible with PCs and laptops that have separate headphone and microphone jacks.

How to adjust the volume and mute the microphone?

Use the volume wheel on the cable to adjust the sound. The microphone mute button allows you to quickly enable or disable it. An audible click confirms the change of state.

Is the headset foldable for transport?

Yes, the earcups can be folded inward for easy storage in a bag. The headband is also height-adjustable.

How to clean the headset?

Unplug the headset. Clean the surfaces with a soft cloth or a slightly damp cotton swab (no soap or harsh chemicals). Avoid wetting the electrical parts.

What is the lifespan of the headset and how to extend it?

With regular maintenance, the headset can last for several years. To avoid damaging the headband, gently spread the earcups before putting it on your head. Do not force it beyond its mechanical limit.

Does the microphone work with a console controller?

Yes, if the controller has a combo 3.5 mm jack (e.g., Xbox One or PS4 controllers). Otherwise, use a console-specific adapter.

What to do if the sound quality is poor or no sound comes out?

Check that the plug is fully inserted. Test the headset on another device. Make sure the volume is not at minimum. If the microphone does not work, check that it is not in mute position.

Is there a warranty on the Razer Kraken Pro?

Yes, the headset comes with a one-year limited warranty from the date of purchase. For more information, visit www.razerzone.com/warranty.

Can the ear cushions or cable be replaced?

The ear cushions are removable and can be replaced if they wear out. The cable is fixed; if damaged, the headset must be repaired by a professional or replaced.

USER MANUAL CASQUE GAMING KRAKEN PRO VERT RAZER

The perfect balance of weight, functionality, and performance, the Razer Kraken Pro is undisputedly the most comfortable gaming headset out there.

On top of being optimized for extended wear, the Razer Kraken Pro is outfitted with a fully retractable microphone, in-line volume controls and mute toggle, giving you easy access to all its features. Powered by large, high-quality drivers, this full-sized headset provides you with immersive gaming audio for hours on end. The 3.5mm combined audio jack and splitter cable ensure that you have mic support on your mobile devices as well as full connectivity to any gaming setup, so you never have to switch headsets, wherever you are.

TABLE OF CONTENTS

1. PACKAGE CONTENTS / HARDWARE REQUIREMENTS 2
2. REGISTRATION / TECHNICAL SUPPORT 3
3. TECHNICAL SPECIFICATIONS 4
4. DEVICE LAYOUT 5
5. USING YOUR RAZER KRAKEN PRO 6
6. SAFETY AND MAINTENANCE 8
7. LEGALESE 9

1. PACKAGE CONTENTS / HARDWARE REQUIREMENTS

PACKAGE CONTENTS

Razer Kraken Pro Analog Gaming Headset
Audio / Mic Splitter Adapter Cable
- Important Product Information Guide

HARDWARE REQUIREMENTS

Audio Usage

Devices with 3.5mm audio jack

Audio + Microphone Usage

Devices with 3.5mm audio + mic combined jack (Works with all portable audio/mobile/computing devices including the iPod, iPhone, iPad, Kindle Fire, Android phones, Razer Blade, MacBook Pro, or today's newer Ultrabooks.)

Audio / Mic Splitter Adapter Usage

Devices with separate 3.5mm audio and microphone jacks (Works with most laptop and desktop computers)

2. REGISTRATION / TECHNICAL SUPPORT

REGISTRATION

Sign up now for a Razer Synapse account to get real-time information on your product's warranty status. To learn more about Razer Synapse and all its features, visit www.razerzone.com/synapse.

If you are already a Razer Synapse user, register your product by clicking on your email address at the Razer Synapse application and select Warranty Status from the dropdown list.

To register your product online, visit www.razerzone.com/registration. Please note that you will not be able to view your warranty status if you register via the website.

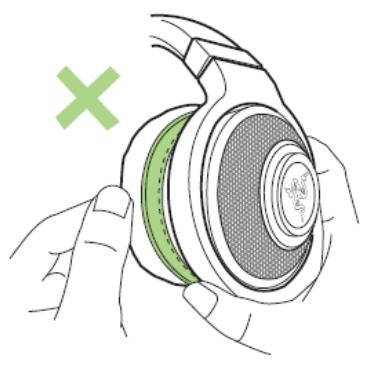

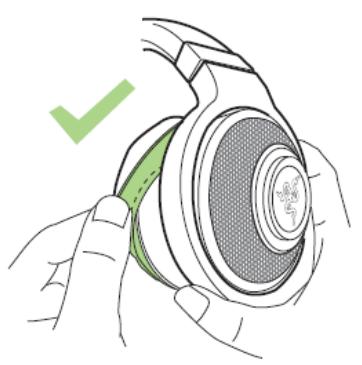

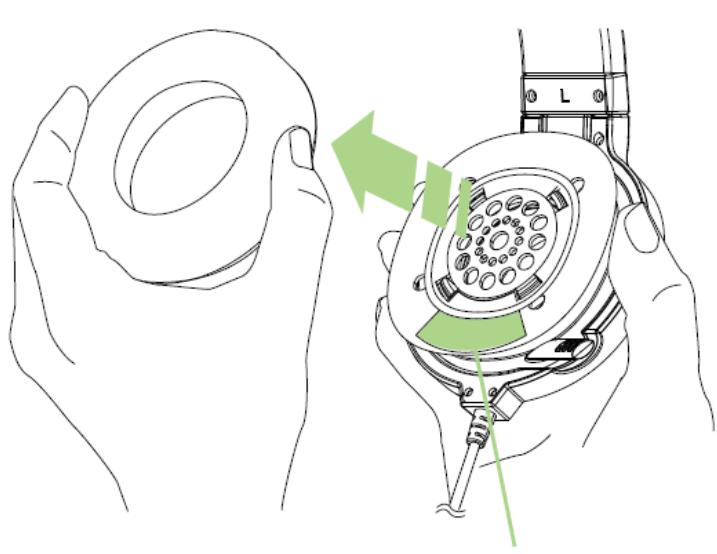

Your product's serial number can be found inside the leatherette ear cup, as shown here.

TECHNICAL SUPPORT

What you'll get:

• 1 year limited manufacturer's warranty,
• Free online technical support at www.razersupport.com.

3. TECHNICAL SPECIFICATIONS

HEADPHONES

Frequency response: 20 - 20,000 Hz
- Impedance: 32 Ω at 1 kHz
- Sensitivity (@1kHz, 1V/Pa): 110 ± 4 dB at 1 kHz max
- Input power: 50 mW
- Drivers: 40 mm , with neodymium magnets
- Inner ear cup diameter: 50 mm / 0.16 ft
- Cable length: 1.3 m / 4.27 ft plus 2 m / 6.6 ft splitter adapter
- Approximate weight: 300 g / 0.66 lbs
- Connector: Analog 3.5 mm combined jack (headphone and mic)

MICROPHONE

Frequency response: 100 - 10,000 Hz
- Signal-to-noise ratio: 52 dB
- Sensitivity (@1 kHz, 1 V/Pa): -40 ± 4 dB
Pick-up pattern: Unidirectional

IN-LINE CONTROL

• Analog volume control wheel
• Microphone quick mute toggle

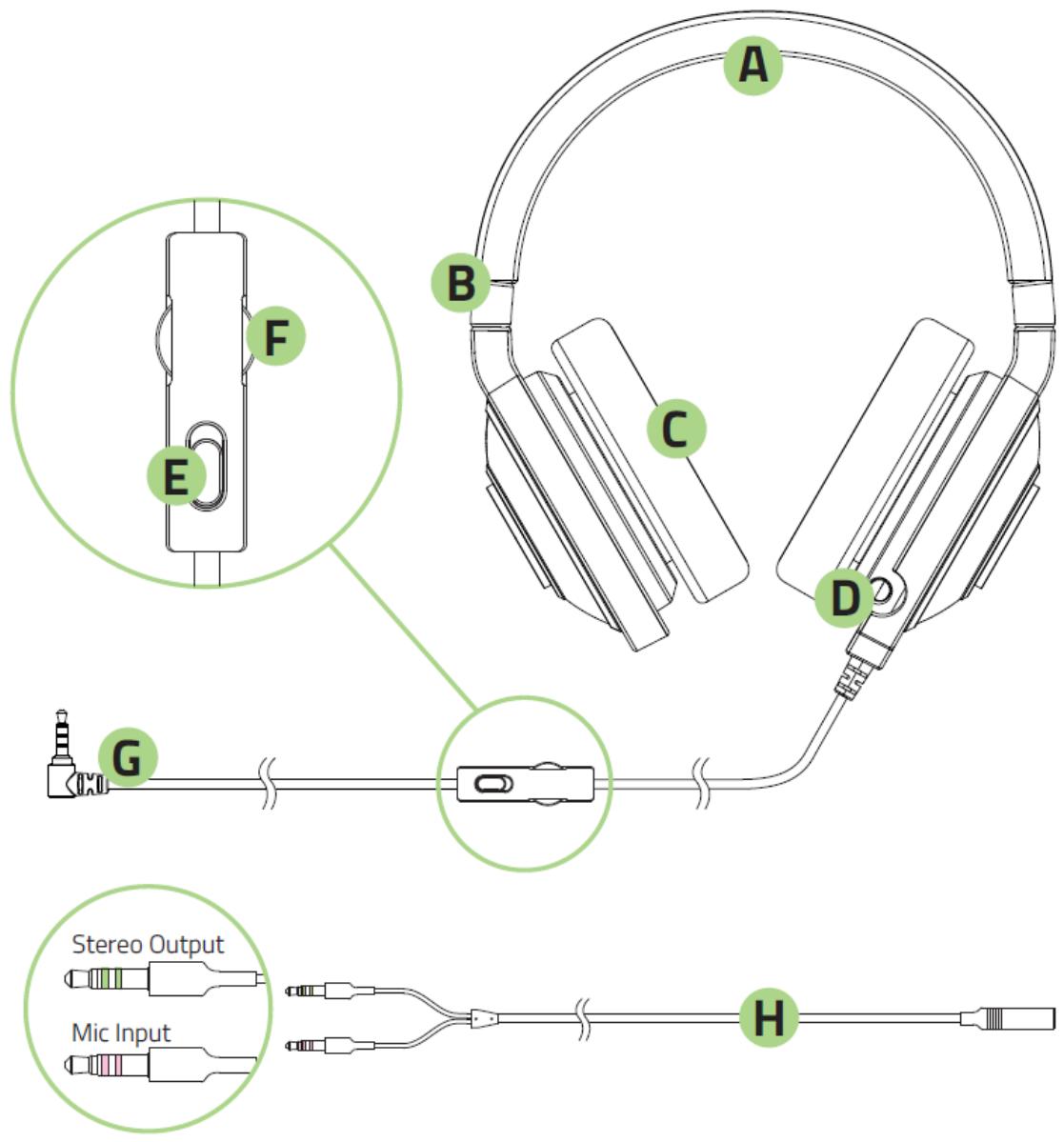

4. DEVICE LAYOUT

A. Adjustable Padded Headband
B. Foldable Ear Cup Design
C. Circumaural, Leatherette Ear Cushions
D. Retractable Microphone
E. Microphone Mute Toggle
F. Volume Control Wheel
G. 3.5mm Audio + Mic Jack
H. Audio / Mic Splitter Adapter Cable

5. USING YOUR RAZER KRAKEN PRO

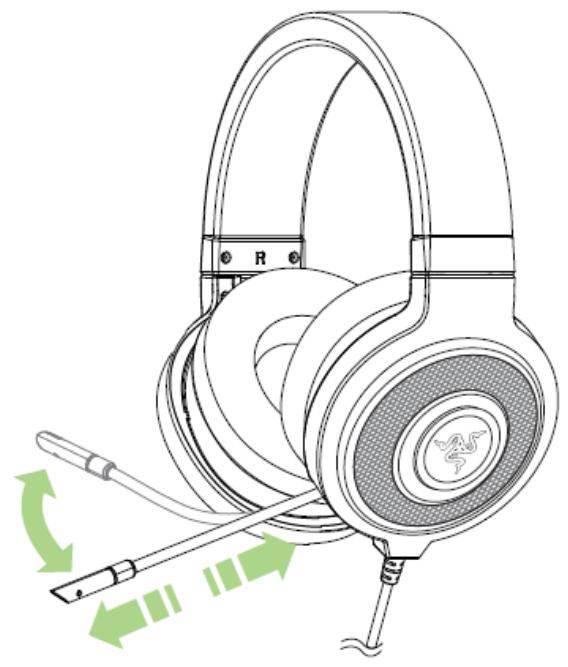

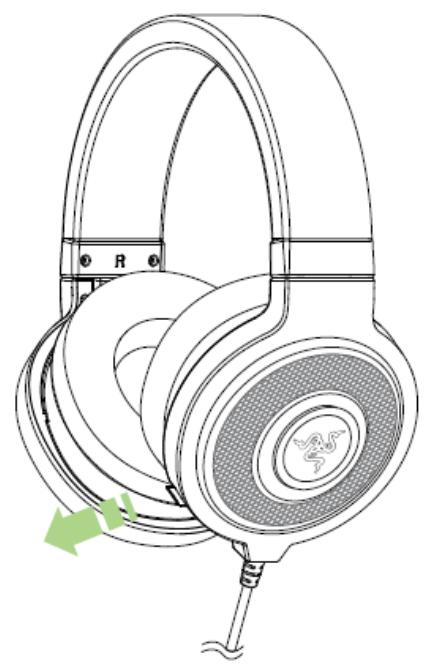

USING THE RETRACTABLE MICROPHONE

Microphone Muted

Microphone Active

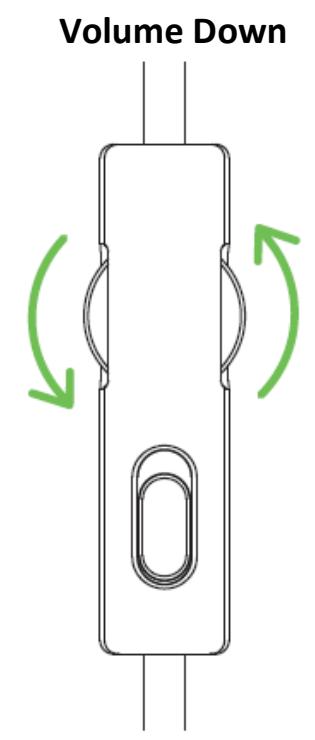

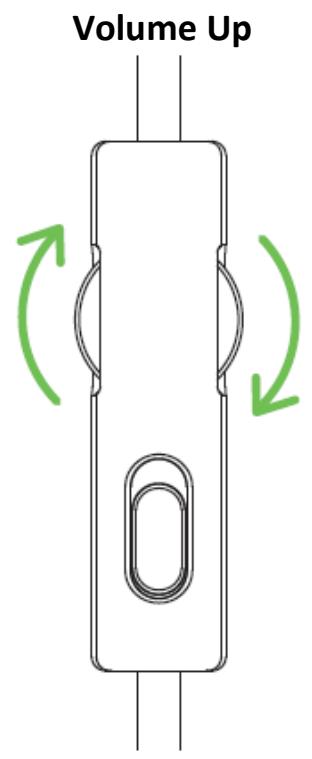

ADJUSTING THE VOLUME

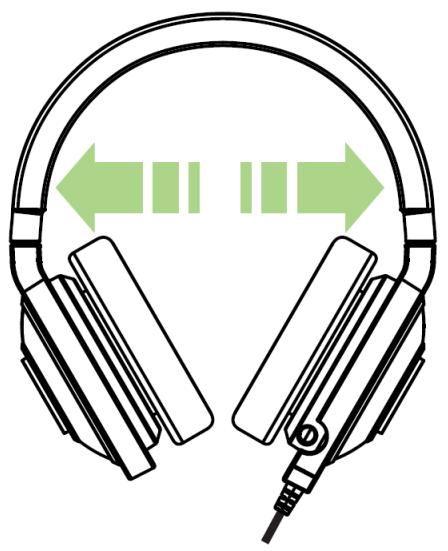

EXTENDING YOUR HEADPHONE'S LIFESPAN

We recommend stretching the headphones gently apart before placing them over your head to minimize headband stress. However, please avoid overstretching the headphones beyond its technical limits.

6. SAFETY AND MAINTENANCE

SAFETY GUIDELINES

In order to achieve maximum safety while using your Razer Kraken Pro, we suggest that you adopt the following guidelines:

1. Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to www.razersupport.com for support. Do not attempt to service or fix the device yourself at any time.
2. Do not take apart the device (doing so will void your warranty) and do not attempt to service it yourself or operate it under abnormal current loads.
3. Keep your device away from liquid, humidity or moisture. Operate your device only within the specified temperature range of 0°C ( 32°F ) to 40°C ( 104°F ). Should you operate it in a temperature that is beyond this range, unplug and switch off the device in order to let the temperature stabilize within the optimal temperature range.
4. The device isolates external ambient sounds even at low volumes, resulting in lowered awareness of your external surroundings. Please remove the device when engaging in any activities that requires active awareness of your surroundings.
5. Listening to excessively loud volumes over extended periods of time can damage your hearing. Furthermore, legislation of certain countries permits a maximum sound level of 86db to affect your hearing for 8 hours a day. We therefore recommend that you reduce the volume to a comfortable level when listening for prolonged periods of time. Please, take good care of your hearing.

MAINTENANCE AND USE

The Razer Kraken Pro requires minimum maintenance to keep it in optimum condition. Once a month we recommend you unplug the device and clean it using a soft cloth or cotton swab with a bit of warm water to prevent dirt buildup. Do not use soap or harsh cleaning agents.

7. LEGALESE

COPYRIGHT AND INTELLECTUAL PROPERTY INFORMATION

Copyright © 2012-2015 Razer Inc. All rights reserved. Razer, For Gamers By Gamers, and the triple-headed snake logo are trademarks or registered trademarks of Razer Inc. and/or affiliated companies in the United States or other countries. Razer Inc. ("Razer") may have copyright, trademarks, trade secrets, patents, patent applications, or other intellectual property rights (whether registered or unregistered) concerning the product in this Master Guide. Furnishing of this Master Guide does not give you a license to any such copyright, trademark, patent or other intellectual property right. The Razer Kraken Pro (the "Product") may differ from pictures whether on packaging or otherwise. Razer assumes no responsibility for such differences or for any errors that may appear. Information contained herein is subject to change without notice.

LIMITED PRODUCT WARRANTY

For the latest and current terms of the Limited Product Warranty, please visit www.razerzone.com/warranty.

LIMITATION OF LIABILITY

Razer shall in no event be liable for any lost profits, loss of information or data, special, incidental, indirect, punitive or consequential or incidental damages, arising in any way out of distribution of, sale of, resale of, use of, or inability to use the Product. In no event shall Razer's liability exceed the retail purchase price of the Product.

COSTS OF PROCEDURE

For the avoidance of doubt, in no event will Razer be liable for any costs of procurement unless it has been advised of the possibility of such damages, and in no case shall Razer be liable for any costs of procurement liability exceeding the retail purchase price of the Product.

GENERAL

These terms shall be governed by and construed under the laws of the jurisdiction in which the Product was purchased. If any term herein is held to be invalid or unenforceable, then such term (in so far as it is invalid or unenforceable) shall be given no effect and deemed to be excluded without invalidating any of the remaining terms. Razer reserves the right to amend any term at any time without notice.
