Notes on using the manual

EN Table of contents

Notes on using the manual

Caution! Safety Instruction: Failure to observe this instruction can cause material damage and impair the function of the device. Note Supplementary information for operating the device. fig. 2 1, page 2 : This refers to an element in an illustration. In this example, item 1 in figure 2 on page 2.

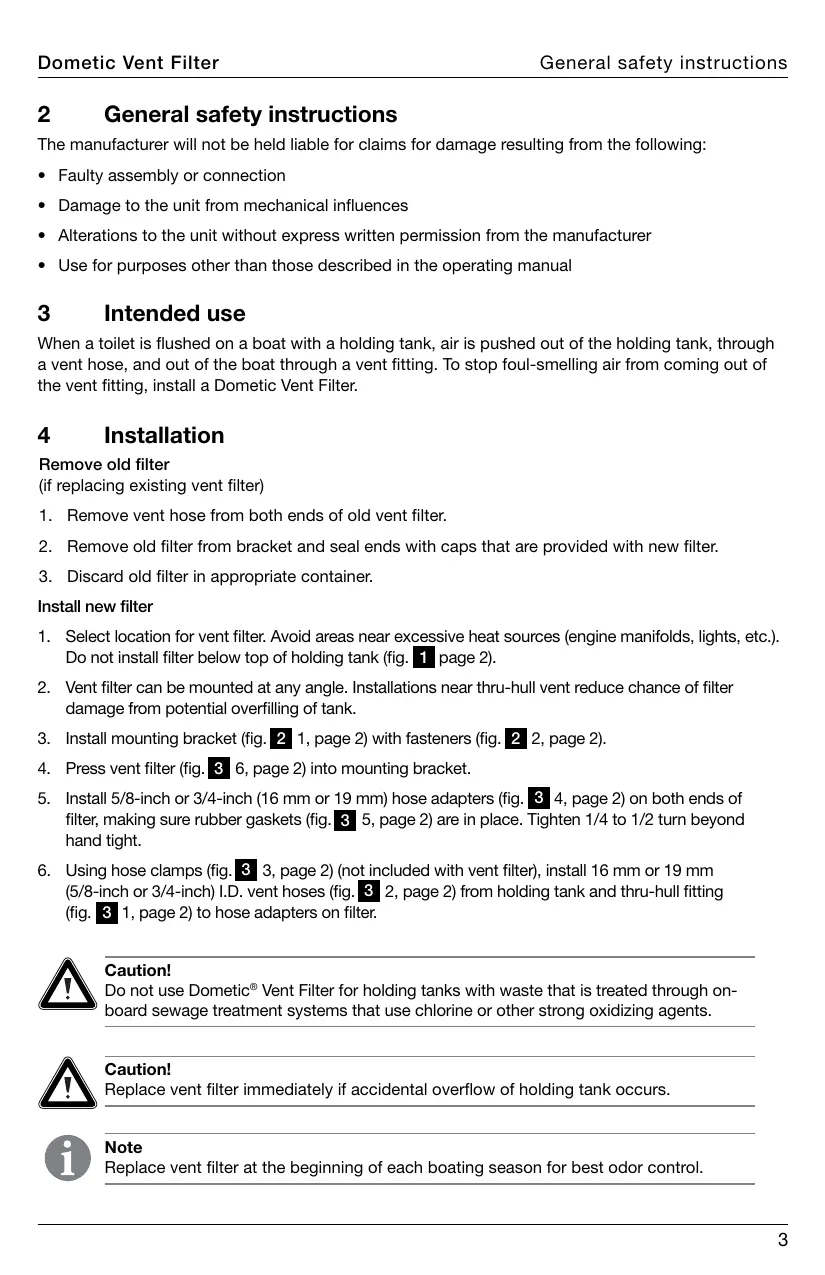

General safety instructions

General safety instructions

The manufacturer will not be held liable for claims for damage resulting from the following:

• Faulty assembly or connection • Damage to the unit from mechanical influences • Alterations to the unit without express written permission from the manufacturer • Use for purposes other than those described in the operating manual

When a toilet is flushed on a boat with a holding tank, air is pushed out of the holding tank, through a vent hose, and out of the boat through a vent fitting. To stop foul-smelling air from coming out of the vent fitting, install a Dometic Vent Filter.

(if replacing existing vent filter) 1. Remove vent hose from both ends of old vent filter. 2. Remove old filter from bracket and seal ends with caps that are provided with new filter. 3. Discard old filter in appropriate container. Install new filter 1. Select location for vent filter. Avoid areas near excessive heat sources (engine manifolds, lights, etc.). Do not install filter below top of holding tank (fig. 1 page 2). 2. Vent filter can be mounted at any angle. Installations near thru-hull vent reduce chance of filter damage from potential overfilling of tank. 3. Install mounting bracket (fig. 2 1, page 2) with fasteners (fig. 2 2, page 2). 4. Press vent filter (fig. 3 6, page 2) into mounting bracket. 5. Install 5/8-inch or 3/4-inch (16 mm or 19 mm) hose adapters (fig. 3 4, page 2) on both ends of filter, making sure rubber gaskets (fig. 3 5, page 2) are in place. Tighten 1/4 to 1/2 turn beyond hand tight. 6. Using hose clamps (fig. 3 3, page 2) (not included with vent filter), install 16 mm or 19 mm (5/8-inch or 3/4-inch) I.D. vent hoses (fig. 3 2, page 2) from holding tank and thru-hull fitting (fig. 3 1, page 2) to hose adapters on filter. Caution! Do not use Dometic® Vent Filter for holding tanks with waste that is treated through onboard sewage treatment systems that use chlorine or other strong oxidizing agents. Caution! Replace vent filter immediately if accidental overflow of holding tank occurs. Note Replace vent filter at the beginning of each boating season for best odor control.

Warranty and Product Liability

Warranty and Product Liability

Warranty and Customer Service Warranty arrangements are in accordance with EC Directive 44/1999/CE and the normal conditions applicable for the country concerned. For warranty or other service, please contact our Dometic/Waeco Service department listed elsewhere in this manual. Any damage due to improper use is not covered by the warranty. The warranty does not cover any modifications to the product or the use of non-original Dometic parts; the warranty does not apply if the installation and operating instructions are not adhered to and no liability shall be entertained.

Product liability of Dometic Group and its subsidiary companies does not include damages which may arise from: faulty operation; improper alterations or intervention in the equipment; adverse effects from the environment which may impact the equipment itself or the direct vicinity of the equipment or persons in the area. To obtain warranty service, first contact your local dealer from whom you purchased this product or go to http://www.dometic.com/enuk/Europe/United-Kingdom/Customer-Center/ for a dealer near you.

North America and Rest of the World:

Manufacturer’s One-Year and Five-Year Limited Warranty Dometic Corporation, Sanitation Division warrants to the original purchaser only that this product (certain Dometic products, listed below, have a longer warranty period), if used for personal, family or household purposes, is free from defects in material and workmanship for a period of one year from the date of purchase. Dometic Corporation, Sanitation Division also warrants to the original purchaser only that the following products will not leak liquid sewage or malodorous gases for a period of five (5) years if used for personal, family or household purposes: • OdorSafe branded sanitation hose • Thermoplastic pump bellows installed in the Dometic T-series discharge pump • Dometic L-series holding tanks If this Dometic product is placed in commercial or business use, it will be warranted to the original purchaser only to be free of defects in material and workmanship for a period of ninety (90) days from the date of purchase. Dometic reserves the right to replace or repair any part of this product that proves, upon inspection by Dometic, to be defective in material or workmanship. All labor and transportation costs or charges incidental to warranty service are to be borne by the purchaser-user.

EXCLUSIONS IN NO EVENT SHALL DOMETIC BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, FOR DAMAGES RESULTING FROM IMPROPER INSTALLATION, OR FOR DAMAGES CAUSED BY NEGLECT,

ABUSE, ALTERATION OR USE OF UNAUTHORIZED COMPONENTS. ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ARE LIMITED TO A PERIOD OF ONE YEAR FROM DATE OF PURCHASE.

Warranty and Product Liability

IMPLIED WARRANTIES No person is authorized to change, add to, or create any warranty or obligation other than that set forth herein. Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one (1) year from the date of purchase for products used for personal, family or household purposes, and ninety (90) days from the date of purchase for products placed in commercial or business use.

OTHER RIGHTS Some states do not allow limitations on the duration of an implied warranty and some states do not allow exclusions or limitations regarding incidental or consequential damages; so, the above limitations may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state.

To obtain warranty service, first contact your local dealer from whom you purchased this product or go to http://www.dometic.com/enus/Americas/USA/Customer-Support/ for a dealer near you.

® Registered; ™ Trademark of Dometic Corporation

© Dometic Corporation 600346025 10/08

13128 SR 226 | PO BOX 38

BIG PRAIRIE, OHIO 44611 USA www.dometic.com
