USER MANUAL A40 IBP

1 introduction 2
2 preliminary remarks 3
3 about blood pressure

3.1 blood pressure values 4-5
3.2 measures affecting your blood pressure positively 6
3.3 how to obtain accurate readings 6-7

4 the unit / accessories 8
5 display/symbols 9

6 before using the device

6.1 battery installation, battery replacement 10
6.2 setting the timer 11

7 making a blood pressure measurement

7.1 attaching the wrist cuff 12-13
7.2 the measuring accuracy 14
7.3 the right measuring position 15
7.4 the measuring method 16-18
7.5 switching off automatically 18

8 the memory function 19
9 an error is displayed 20

10 other important notes 21
11 specifications 22

guarantee 23

1 introduction

dear customer,

we are glad that you have decided for this blood pressure monitor. The product you have bought is state of the art, of highest quality and has many advanced features. This unit measures blood pressure at the wrist extremely accurately and is ideal for regular monitoring of blood pressure. With a memory that can store up to 60 values, you can keep close track of your heart rate and inform your physician of any significant changes as early as possible. The unit is ideal for active health prevention and is designed for home use by adults.

important notes!

The purpose of the Instruction Manual is to provide information. Please read this Instruction Manual carefully to know your blood pressure monitor. Then the monitor will give you many years of smooth service and supply measuring data of high accuracy. Only your physician can interpret your blood pressure values. If you suffer from cardiac arrhythmia, always discuss the blood pressure values with your doctor. If you have questions about blood pressure for which you do not find an answer in this booklet, also consult your doctor.

The right to technical modifications is reserved.

• This Blood Pressure Monitor bears the CE (conformity) label for notinvasive Blood Pressure Monitors to show that it conforms with the EU Council Directive (EN 1060-1 / EN 1060-3) for notinvasive Blood Pressure Monitors.
• It also confirms with the EU Council Directive "93/42/EEC of 14th June 1993 on Medical Products".
• ibp hereby confirms that the product delivered together with this Instruction Manual complies with this Directive. The appropriate conformity declaration is available with ibp.
• To ensure accurate measurements, the Blood Pressure Monitor must receive a technical check-up every 2 years. Inspection is also required when the blood pressure data supplied by the monitor are obviously off-range. If you have any questions about these checks, please contact our Customer Services Department (address on the warranty certificate).

3 about blood pressure

More than half the number of people suffering from high blood pressure are unaware of it. The most common cause of death in today's society is from diseases that are directly related to the problem of high blood pressure. This Blood Pressure Monitor allows you to measure your blood pressure at home. If your blood pressure is off limits, the monitor helps you to keep it under constant watch. Remember only your physician can interpret your blood pressure values. Never venture self-diagnosis or self-treatment. The blood pressure is the measure of the force which the heart needs to pump the blood through the circulatory system and supply the vital organs of our body. The higher the pressure, the harder the heart must work.

3.1 blood pressure values

Typical normal blood pressure as recommended:

hypotension normalless borderline hypertension

systolic blood pressure less than 105 mmHg less than 140 mmHg 140 - 160 mmHg more than 160 mmHg

diastolic blood pressure less than 60 mmHg less than 90 mmHg 90 - 95 mmHg over 95 mmHg

If the blood transport system is inot functioning normally, the blood pressure can be higher than normal. High blood pressure can damage vital organs, such as the heart, the brain or muscles.

about blood pressure 3

Remember that only the physician can interpret your blood pressure values. Never venture self-diagnosis or self-treatment. We recommend you to discuss your blood pressure values with your physician. He can advise you on any measures that may be good to take.

The blood pressure is changing constantly. You should not be frustrated by two or three bad readings, and don't fly into high spirits if a few readings are good. The blood pressure changes during the day as during the month. It is also influenced by the time of year and the temperature. Monitor your blood pressure regularly and keep a full record of all readings. This allows you to make a competent judgment.

3 about blood pressure

3.2 measures affecting your blood pressure positively

If your blood pressure is high or you want to avoid high blood pressure, your lifestyle should generally be conducive to this goal.

Existing diseases: Strictly follow the instructions of your doctor to treat existing diseases e.g., diabetes, gout, disturbed lipid metabolism, etc..

Nutrition: Reduce overweight. Use little salt with your food, avoid food with lots of fat.

Smoking, drinking: No smoking! Consume only little alcohol and coffee.

Sport activities: If advised by your doctor after an examination, practice stamina sports (jogging, swimming). Avoid sports involving strength, do not try your limits!

3.3 how to obtain accurate readings

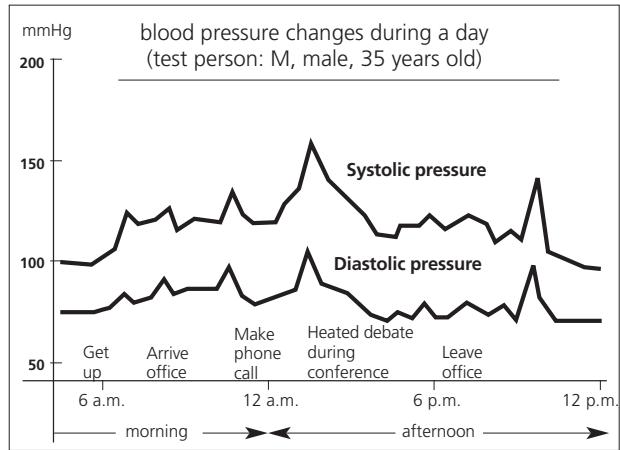

The blood pressure is constantly changing throughout a day. The changes are caused by psychic and physical factors, such as anxiety, exercise, smoking, caffeine and stress. Because it is changing, the blood pressure should always be measured at the same time of day, when your body is relaxed. It is the physician's responsibility to interpret the readings and analyze your physical condition. It is important that you consult your physician regularly. He will tell you your normal blood pressure and what you should take care of.

Here are a few helpful tips to obtain accurate readings:

• Wait one hour before measuring the blood pressure after a substantial meal.
• Do not smoke or drink alcohol before measuring the blood pressure.
• You should not do physical work one hour before taking a reading.
  It is important that you relax. Try to take 15 minutes rest before the reading.
• Do not take measurements if you are under stress or tension.
• Take the blood pressure reading at normal body temperature, not when you feel cold or hot.
• When the monitor is stored at very low temperature (near freezing), keep it at a warm place at least for 1 hour before using it.
• Wait about 5 minutes before making the next pressure measurement.

4 the unit - accessories

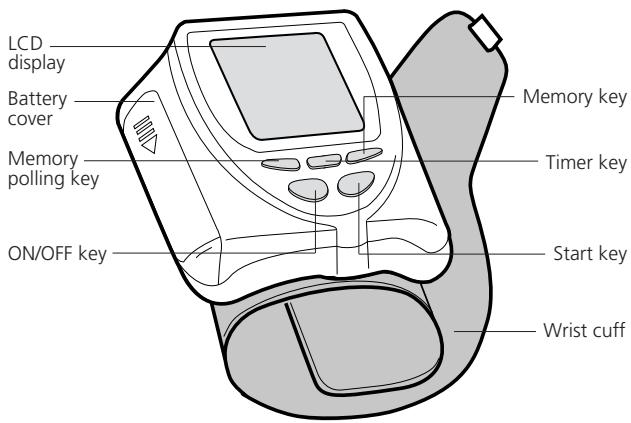

identification of the unit

accessories included :

keeping box (without ill.)

instruction manual including warranty

2 "AAA" size 1,5 V alkaline batteries

batteries

display / symbols 5

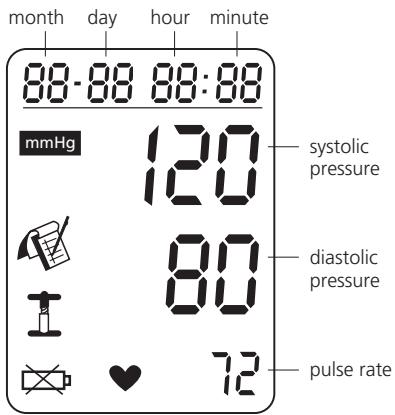

display

symbols

The memory sign appears when you save data to the memory and during memory polling.

The pump sign appears when you inflate the cuff.

When this sign appears the batteries should be replaced.

The pulse sign appears when the pulse rate is displayed.

The error sign appears with wrong input or device defect.

6 before using the device

6.1 battery installation battery replacement

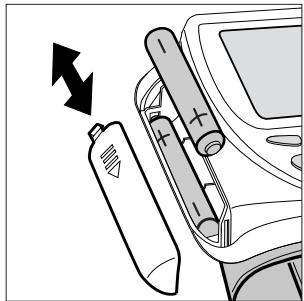

The enclosed batteries must be fitted before use. The battery cover is on the left-hand side of the unit. Push it in the arrowed direction and remove it. Insert the 2 supplied "AAA" size, 1.5V alkaline batteries. Insert the lower battery first. Ensure correct polarity (as shown in the battery compartment). Close the battery compartment. Replace the batteries when the battery replacement sign appears on the LCD display, or when the LCD display is blank after you switch on the unit.

notes :

As the supplied batteries are for test only, they may be discharged earlier than batteries you buy in the store. Replace the batteries in pairs. Batteries are hazardous waste. Do not dispose them together with the household garbage. Remove the batteries from the appliance if it is not to be used for a long period.

Battery safety instructions:

• Keep away from children!

• Do not short-circuit!

• Not rechargeable!

• Do not throw into fire!

6.2 setting the timer

To enter the timer mode, press the TIMER key longer than 3 seconds and release it. The year number flashes.

To increment the flashing digit, press the MEMO/+ key; to decrement, press the RCAL/- key.

Press the TIMER key. The month flashes.

Set the month as described above.

Press the TIMER key. The day flashes.

Set the day as described above.

Press the TIMER key. The hour flashes.

Set the hour as described above.

Press the TIMER key. The minute flashes.

Set the minute as described above.

To leave the Timer mode, press the TIMER key again.

Note: If no key is pressed for 10 seconds, the next digit starts flashing. The unit will enter the standard mode after running through all digits.

7 making a blood pressure measurement

7.1 attaching the wrist cuff

a) Remove the wristwatch and all jewelry.

Put the blood pressure monitor on the inside of your left wrist (fig. 1).

fig. 1

b) Place the cuff around your wrist, make sure that the bottom edge of the cuff is about 5 - 10mm above the palm of your left hand (fig. 2).

Make sure that the cuff is placed on the bare skin with no clothing in between.

fig.2 5-10 mm

making a blood pressure measurement 7

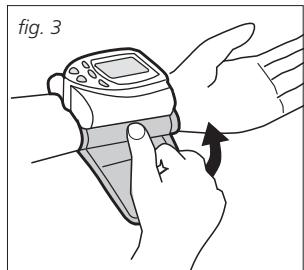

c) Hold the bottom part of the wrist cuff as illustrated in fig. 3. Pull the cuff tight and wrap it upwards so that there is no gap between the cuff and your wrist.
d) While you wrap the cuff upwards, hold the cuff cover with your thumb.
e) Wrap the cuff around your wrist to suit its form. The blood pressure reading will be correct even if you wrap the cuff askew. If the cuff is not wrapped tight enough, the pressure will be falsely higher and the wrist go numb. Correct measuring is then not possible.
f) If you cannot place the cuff around your left wrist and the blood pressure measurement is not possible on the left wrist, place the cuff around the right wrist. Proceed as illustrated in fig. 4 on the right.

7 making a blood pressure measurement

7.2 the measuring accuracy

• The new stepping valves mean a dramatic improvement of the measuring accuracy.
• Your new wrist blood pressure monitor is equipped with state-of-the-art valve technology for extreme accuracy.
• The mechanical valves have been replaced by electronic valves so that the user can recognize even small pressure changes and compensate them by means of the cuff pressure.
• The cuff pressure is adapted in steps. A clicking sound indicates that air is released from the cuff.
• The stepwise release of the cuff pressure allows the unit to respond more perfectly to changes in the cuff and consider them for the evaluation. If no change is detected during any step, the air pressure will be reduced. If changes are detected, they are evaluated at the appropriate step level until their accuracy has been determined.
• The identification and evaluation of changes at the various steps and corresponding adjustment of the cuff pressure mean that more accurate values are obtained.

7.3 the right measuring position

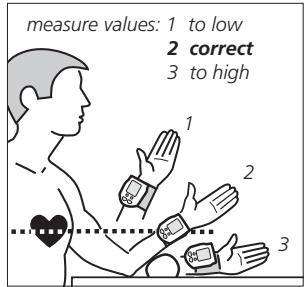

• Have yourself on a seat in a comfortable position, breathe deeply several times and relax.
• Measure the blood pressure the same time every day. To get a correct picture of the blood pressure changes during the day, make the measurements at home daily at the same time.
• Place your elbow on the table or other suitable support and hold the cuff so that the cuff is at the same level as the heart.
• Record the values and show them to your physician for assessment.

notes :

If the cuff is not pulled tight you get wrong measure values. The blood pressure value measured on the wrist may be different from that on the upper arm. As the measuring positions and the size of the blood vessels are different on the wrist and upper arm, the values may differ slightly. In many cases the difference can be ± 10 mmHg systolic and diastolic in a healthy person. Holding your arm in too high or too low a position when measuring your blood pressure (see illustration) results in a measurement error of 10mmHg per 15~cm of height differential. The following groups should watch their blood pressures in particular: hypertonic persons, diabetic patients, persons with liver disease, hardened arteries, circulatory weakness, etc.

7 making a blood pressure measurement

7.4 the measuring method

a) Place the cuff around your arm as described (pages 12 - 13).
b)Start the Monitor by pressing one of the ON/OFF (POWER) key.

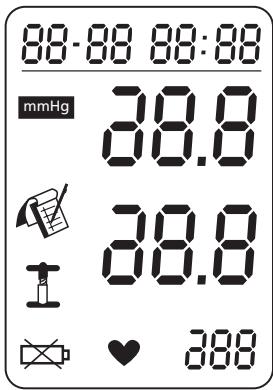

When the ON/OFF (POWER) key is pressed, all digits will light up (fig. 1). This is a check of the display functions which is complete after about 2 seconds. When the display check is complete, the LCD will show the pattern on the right to indicate that the unit is ready for use (fig. 2).

fig. 1

fig. 2

making a blood pressure measurement 7

c) Press the START key. The pump begins to inflate the cuff automatically. The pump icon displays during the inflation procedure.
d) If the cuff pressure is low, the unit interrupts the measuring and increases the cuff pressure to an acceptable level.

notes :

As the pump reaches the starting pressure, measuring starts. While measuring, do not move the cuff or your arm or hand muscles. As the unit detects pulse, the LCD will show the pulse rate. During the measuring the displayed value will decrease. If you want to interrupt the measurement, simply press any key. The cuff will be deflated.

7 making a blood pressure measurement

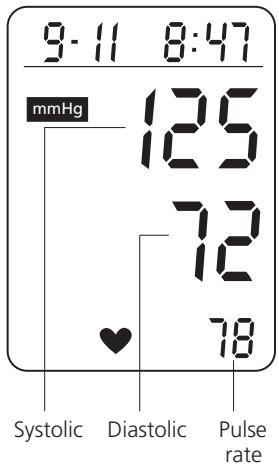

e) The cuff will deflate when the unit completes the measuring. The LCD then shows the systolic and diastolic pressures, and the pulse rate.

7.5 switching off automatically

Pressing the ON/OFF (POWER) key ends the measuring and turns off the power.

The unit will automatically turn off after about 3 minutes of inactivity.

a) Up to 60 measurements can be saved in the memory. The values (blood pressure and pulse rate) can be saved in the memory of the unit, together with the time and date. Just press the MEMORY key while the values are shown on the LCD. The MEMORY sign appears and the values will be written in the memory. The LCD will go blank.
b) To read memory values, press the MEMORY POLLING (RCAL) key. The memory values will be shown on the LCD, together with the time and date. The last measurement will be shown first. Every new press of the MEMORY POLLING (RCAL) key calls one prior value pair.

When 60 measurements are memorized and a new value is stored, the oldest value will be erased.

note : The data in the memory will not be lost even when the Blood Pressure Monitor is switched off. The data in the memory is erased when the batteries are replaced.

9 an error is displayed

Error display	Possible reason	Remedy
EE	The cuff position is not correct. The unit interrupts the measuring and increases the cuff pressure. You have moved during the measuring.	Put on the cuff correctly. Do not move while the measuring continues.
	The batteries are empty.	Replace the empty batteries by new size „AAA“ 1.5V batteries.
	The display remains blank. Batteries are not inserted or inserted wrongly or batteries are depleted.	Insert batteries. Check the battery position or replace batteries.

other important notes 10

1. The unit contains high-precision assemblies. Therefore avoid extreme temperatures, humidity, direct sunlight. Do not give strong shock. Do not try to open the blood pressure monitor. This will destroy the calibrated factory settings. Protect from ingress of dust.
2. Do not bend the preformed cuff inside out. Clean the blood pressure computer body and the cuff carefully with a slightly damp, soft cloth. Do not press. Do not wash the cuff or use chemical cleaner on it. Never use thinner, alcohol or petrol as cleaner.
3. Leaky batteries can damage the unit. Remove the batteries when the unit is not used for a long time.
4. Do not press the Start key when the cuff is not placed around the wrist.
5. The unit should only be used by adult persons.
6. If the unit is stored at or near freezing point, make sure that it is warmed up to room temperature before use.
7. Do not separate the monitoring unit from the cuff. Do not open the unit. Do not attempt to use any sort of tool to change the internal settings. If you have problems with the unit, please contact our Customer Services Department.

11 specifications

Model

Measuring method

Indicator

Measuring range

Measuring resolution

Pressure build-up

Pressure release

Deflation

Power source

Memory

Working temperature

Storage temperature

Humidity

Hard cuff

Dimension (measuring unit)

Weight

: ibp A40

: Oscillometric method

：LCD

20 - 280 mmHg (blood pressure)

Automatic pressure build-up by pump

Automatic pressure release by valve system

Automatic deflation valve

: 2 x 1.5V high capacity or alkaline batteries size “AAA”

: 60 measuring values

: + 10 ℃ to + 40 ℃, 40 - 85 % RH

: - 5 °C to + 60 °C, 10 - 95 % RH

85% RH maximum

For wrist circumference between 135 - 195 mm

: appr. 84 (l) x 76 (w) x 60 (h) mm

: appr. 120 grams (without batteries)

Service and Warranty

Service Addresses:

England: International Business Products Limited, 6 Newfield Court, West Houghton, Bolton BL5 3 SA England, Phone: [phone] - 8196 95

India: sano health care products Pvt. Ltd., Corporate Office: 28, Landsdown Terrace, 1st Floor Kolkata - 700 026, Phone: [phone]

Warranty and Compensation for Damages

Starting with the purchase date (date on proof of purchase or receipt) we will perform repairs free of charge for 24 months, should your device be non-operational due to manufacturing or material defects.

The warranty excludes damage resulting from non-compliance or only partial compliance with these instructions for use.

Further-reaching claims such as compensation for damages are likewise excluded.

Please send your device in question as well as the proof of purchase or receipt and the description of the complaint to our service address. Please also attach the warranty documents if you would like to file a warranty claim.

Waste disposal and care of the environment

At the end of its life cycle, this product must not be disposed of in regular domestic waste, but must be taken to a collection site for recycling electric and electronic devices (disposal of used appliances).

Battery safety information: - Keep away from children!

• Do not short-circuit!
• Not rechargeable!
• Do not incinerate!

chere cliente, cher client,

11 specifications techniques
