USER MANUAL WPS-G SMC

ASSIGNING AN IP ADDRESS

PRINT PORT RELATED PROBLEMS

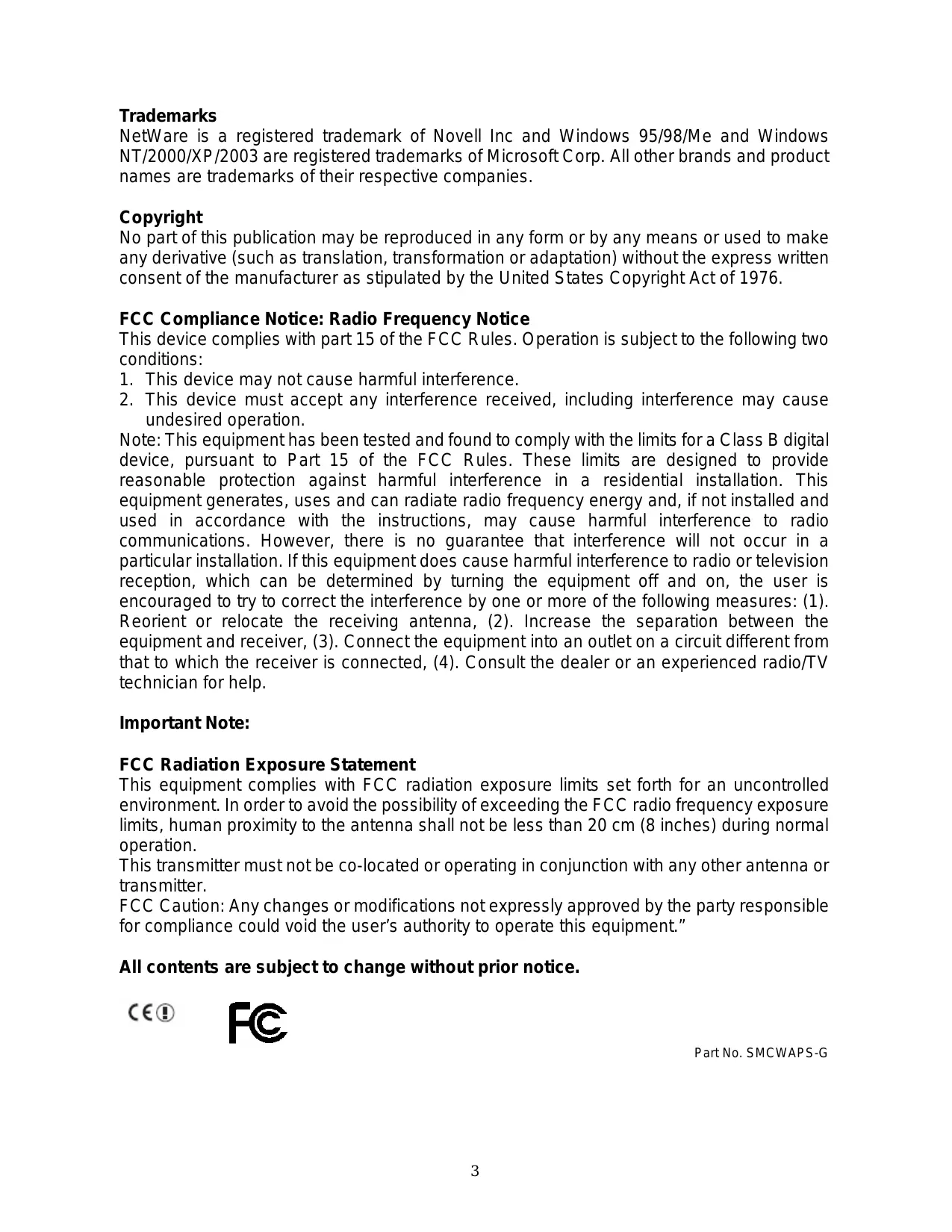

Trademarks NetWare is a registered trademark of Novell Inc and Windows 95/98/Me and Windows NT/2000/XP/2003 are registered trademarks of Microsoft Corp. All other brands and product names are trademarks of their respective companies. Copyright No part of this publication may be reproduced in any form or by any means or used to make any derivative (such as translation, transformation or adaptation) without the express written consent of the manufacturer as stipulated by the United States Copyright Act of 1976. FCC Compliance Notice: Radio Frequency Notice This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference may cause

undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1). Reorient or relocate the receiving antenna, (2). Increase the separation between the equipment and receiver, (3). Connect the equipment into an outlet on a circuit different from that to which the receiver is connected, (4). Consult the dealer or an experienced radio/TV technician for help. Important Note: FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.” All contents are subject to change without prior notice. (440) FE Part No. SMCWAPS-G

L. Introduction Product Overview The external print servers enhance capability by letting you place your printers at convenient locations directly on the Ethernet network, and by increasing network printer performance and management. Please note that the print server does not support printing with host-based printers, e.g. CAPT, GDI, PPA. Network Management The print servers support the Simple Network Management Protocol (SNMP), which remote printer management and a warning. À standard SNMP agent is permanent on these print servers. Any standard SNMP-based application can be used to access and manage these print servers. Network configuration The print servers provide an embedded web server that can be accessed via a proper web browser. We also subsidiary Windows-based PSAdmin utility which help administrator to setup print server environment. Wireless Specifications Complies with IEEE 802.11b/g standard Standard Radio Frequency 2.4Ghz ISM Band Media Access Control Carrier Sense Multiple Access / Collision Avoidance (CSMA/CA) Method with ACK Modes Ad-Hoc and Infrastructure (User definable) Data Transfer Rate 1,2, 5.5, 6,9, 11, 12, 18, 24, 36, 48, 54Mbps Output Power 15 -20dBm WEP (Wired Equivalent/Support 64 and 128 bit Encryption Privacy) Encryption

Components and Features Print server ‘1 USB2.0 port ‘POST (Power On Self Test)

• LED Lights Power: Green, indicating Power/POST process (flash 5 times) WLAN Active: Green, indicating the linkage and data transmission via wireless connectivity. USB: Green, indicating the linkage and data transmission of USB port. ‘1 setup CD for Windows 95/98/Me/NT/2000/XP/2003 ‘l'external AC power adapter(5V/2A) ‘Normal (factory default) and Diagnostic Mode (select by DIP switch) ‘Built-in Reset Button Before you start, you should prepare the following items: One Windows-based computer with print server setup CD One printer with a USB port One USB printer cable One 802.11b/g Access Point (optional)

Hardware Installation To install the print servers, you need to complete these steps: ‘Confirm that your printer USB port works well. ‘Connect the print server to the network and printer, and plug in the print server. Follow these instructions to install the print servers, please refer to any peripheral you are connecting to the print server:

Turn off the printer's power. Connect the print server to your printer with the USB cable. Turn the printer's power on. Plug the AC power adapter into the power connector on the side of the print server. Wait 30 seconds until all the LEDs have stopped flashing (the WLAN LED will continue to flash if data is being transmitted via wireless connectivity). Note: The Power LED should be flash five times when POST. Then WLAN LED should be flash 30 seconds to associate with the proper Access Point with best wireless signal. If not, please contact your local dealer for repair or replacement.

It's highly recommended to configure the print server by wired connectivity first. Ensure that the print server's DIP is switched to NOR (Normal mode).

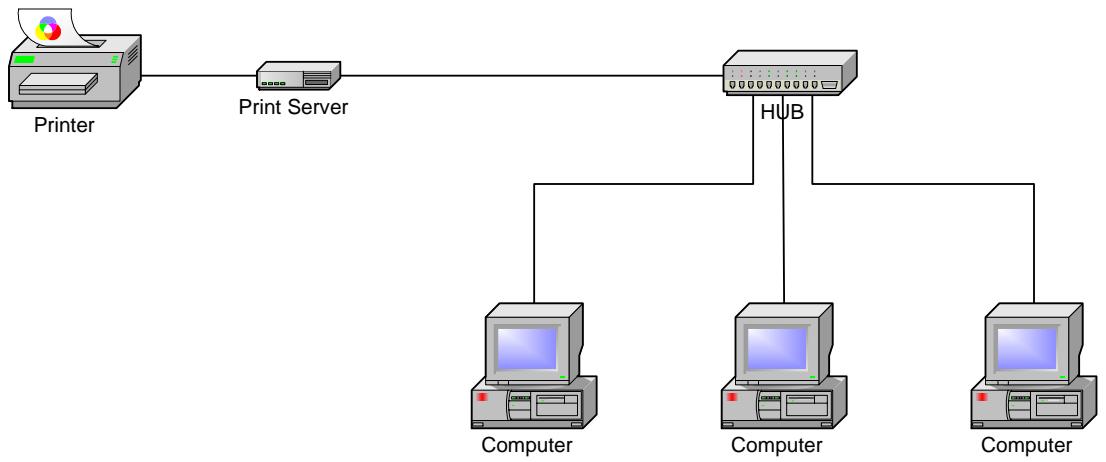

Network Environment Wired Network with Print Server:

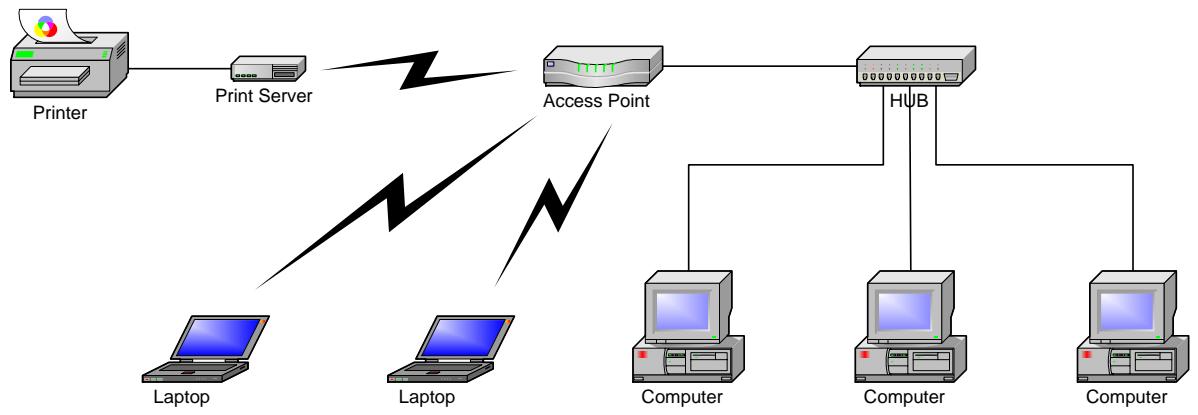

Print Server ME Printer Computer Computer Computer Wireless Network with Print Server: Infrastructure (Access Point) Mode: Print Server Printer

Access Point DE CI LI CI == == FE] Laptop Laptop Computer Computer Computer

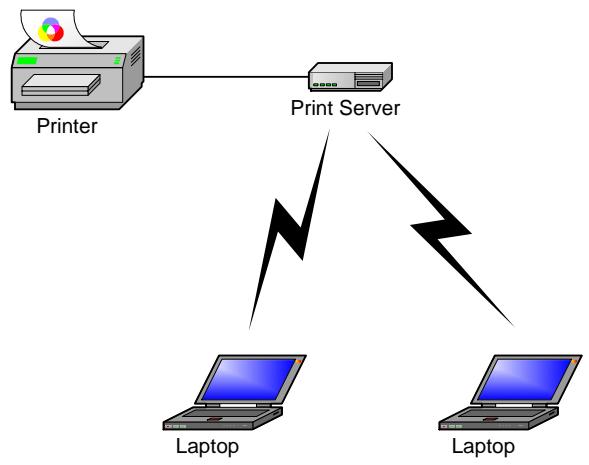

Ad-Hoc (PEER-to-PEER) Mode: Print Server Printer

Preparation To meet users’ network printing needs in today's heterogeneous and multiple protocol networking environments, the print server supports industrial standard protocols, including TCP/IP, IPX/SPX, NetBEUI and AppleTalk. This means that the print server supports the most popular network operating systems today, including NetWare, Windows 95/98/Me/NT/2000/XP/2003, UNIX systems and Macintosh computer. As such, there might be several ways to deploy the print server on your network. Supported Networks Print server supports a variety of network protocols, including TCP/IP, IPX/SPX, NetBEUI and AppleTalk. In addition, we provide software for network configuration on the following networks: ‘Novell NetWare 3.12, 4.x, 5.x (Bindery and NDS) “Microsoft Windows 95/98/Me ‘Microsoft Windows NT/2000/XP/2003 “Apple EtherTalk “UNIX /Linux system ‘Internet (via Internet Printer Connection software) Configuration Solution Table Setup Operating Function Remarks System PSAdmin utility / Setup Wizard Windows Install a single |Easy printer installation runs from print server 95/98/Me networkona setup CD Windows peer-to-peer or NT/2000/XP/20031client-server network Embedded Web server Windows Remote setup |Follow standard browse, e.g. IE or Netscape 95/98/Me print server from Windows private LAN NT/2000/XP /2003 Mac OS, Linux... HP Web J etAdmin Windows Remote Print server solution for continual management of NT/2000/XP/2003|management of |multiple printers- anywhere on your LAN

print server, include alert and consumables Internet Printing Protocol Windows Printing via the |Allows saving distribution of HQ hardcopy NT/2000/XP/2003)internet to document over Internet, replacing fax, mail Internet Printing Protocol- enabled print server Comment Configuration solution Table has many installations way to setup Windows 95/98/Me, Windows NT/2000/XP/2003, NetWare, UNIX / Linux system and Mac computer. Firstly, we introduce PS Admin utility, HP Web ] etAdmin program and Internet Printing Protocol solution. Then we will discuss Embedded Web Server Installation with print server.

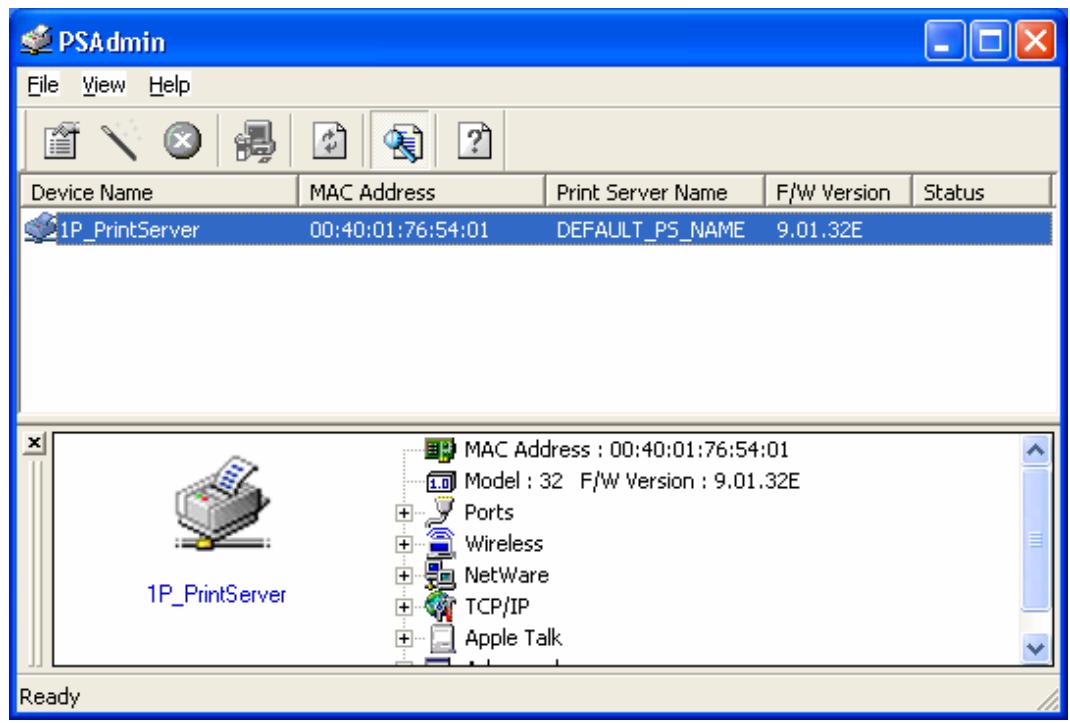

The PSAdmin is a proprietary Windows-based management program that can assist you in configuring and managing your print server in NetWare environments. The program can be installed from the setup CD of print server. Installing the PSAdmin and Print Server’s Driver

1. To enable network communication with print server, your computer must have a proper

IP address, e.g. 192.168.2.15. The Print Server is a DHCP-client by default.

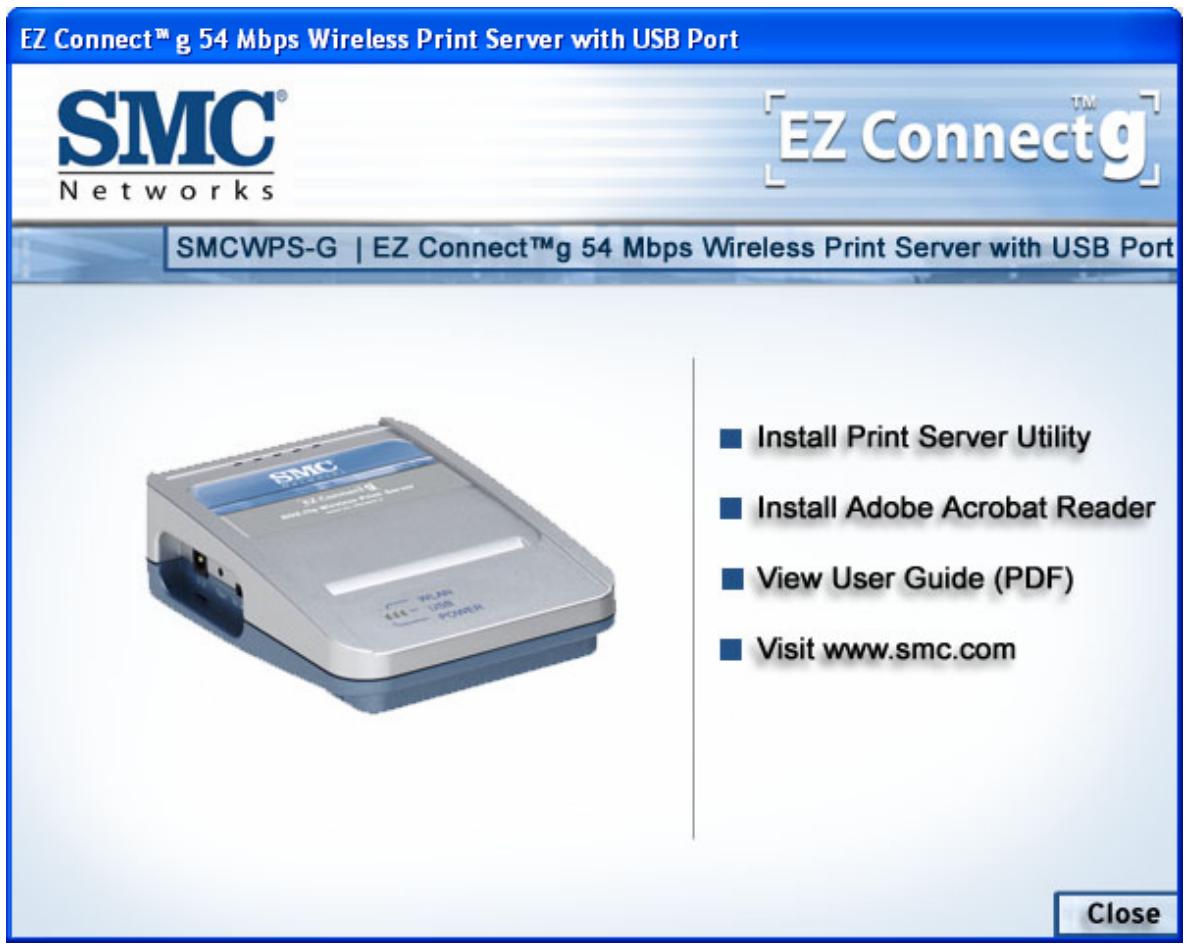

2. Insertthe setup CD into your CD-drive, and the following message appears:

3. Choose Setup Wizard to install the print server and configure the connected printer.

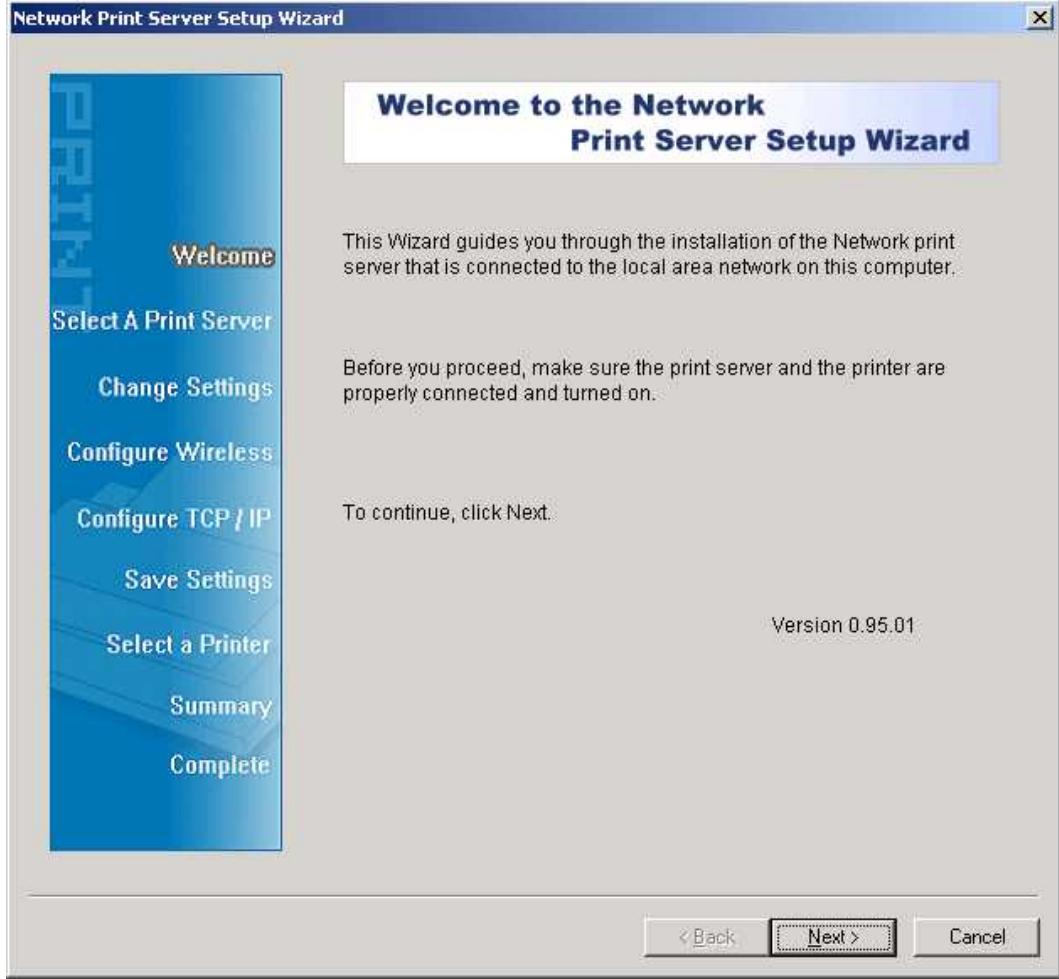

Network Print Server Setup Wizard x] Welcome to the Network Print Server Setup Wizard This Wizard guides you through the installation ofthe Network print serverthatis connected to the local area network on this computer, Select À Print Serven k Before you praceed, make sure the print server and the printer are Change Settings proper connected and tumed on. Configure Wireless Configure TCRAI To continue, click Next. Save Settings . 4 Version 0.95.01 Select a Printel Summan Complete TER Note: The setup CD will install the print server's driver, PSAdmin and Setup Wizard into your computer. The default installation directory will be C:\Program files\Network Print Monitor.

4. Click Next, the wizard will automatically discover the print server.

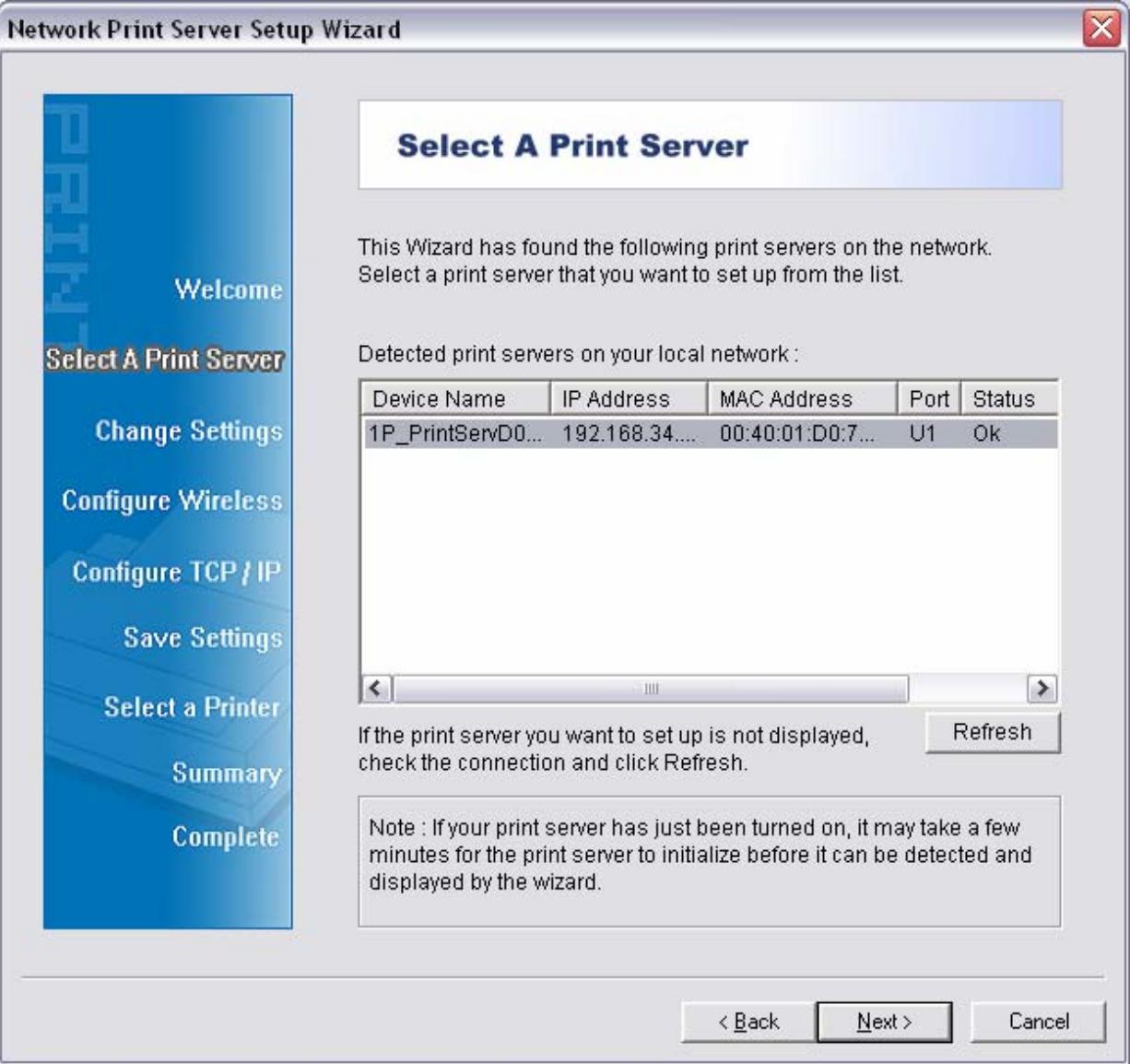

5. Fromthe Select A Print Sever screen, selectthe print server that you wantto configure

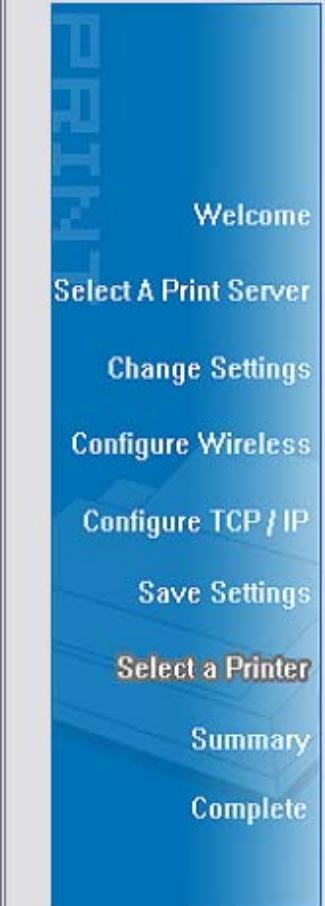

Welcome Select À Print Server Change Settings Configure Wireless Configure TCPAIRN Save Settings Select a Printer Summang Complete Select A Print Server This Wizard has found the following print servers on the network. Select a print server that you want to set up from the list. Detected print servers on your local network: Device Name IP Address MAC Address Port | Status &] m ] Ifthe print server you want to set up is not displayed, Refresh checkthe connection and click Refresh. Note : Ifyour print server has just been turmed on, it may take a few minutes forthe print server to initialize before it can be detected and displayed by the wizard. <Bak [ New» | Cancel |

On the Change Settings screen, select No or Yes: nt Server Setup Wizar Change Settings This Wizard allows the network administrator to change some basic settings ofthe print server. fyou are notthe network administrator, do not change settings. Wrong settings may cause the print server notto lect À Print Server function praperly. Welcome Change Settings] figure Wireless Password : Configure TCPAIBS | © No, | dont want to change settings. Save Settings Select a Printer Summary To change settings, you must enterthe password. À brand-new Network print server has no default password. Ifyou are configuring a wireless print server and it's now operating in Diagnostic mode, you dontneed to enter the password. Complete <Back Next > Cancel_ | Click No if you want the print server to keep using the defaultiP address and keep the default Infrastructure settings: Infrastructure mode SSID: <ANY > Channel: 6 Encryption: none DHCP client: off IP address: DHCP client Click Yes if you want change wireless settings or assign a static IP address to the print server: On the Basic Wireless Settings screen, select Communication Type according to your network: - Infrastructure - Ad-Hoc

© Enter the proper SSID of your wireless network. - Channel: optional - Data Transmit Rates: select Auto or others -__ Transmit Mode: select Auto or others e Onthe Wireless Security screen, enable or disable WEP/WP A/WP A2 encryption, configure according to your wireless network and click Next. e Onthe TCP/IP Settings screen, specify a fixed or dynamic IP address for the print server, a fixed IP address is highly recommended. Click Next. Note: The IP address of print server must be within the same subnet as your network adapter.

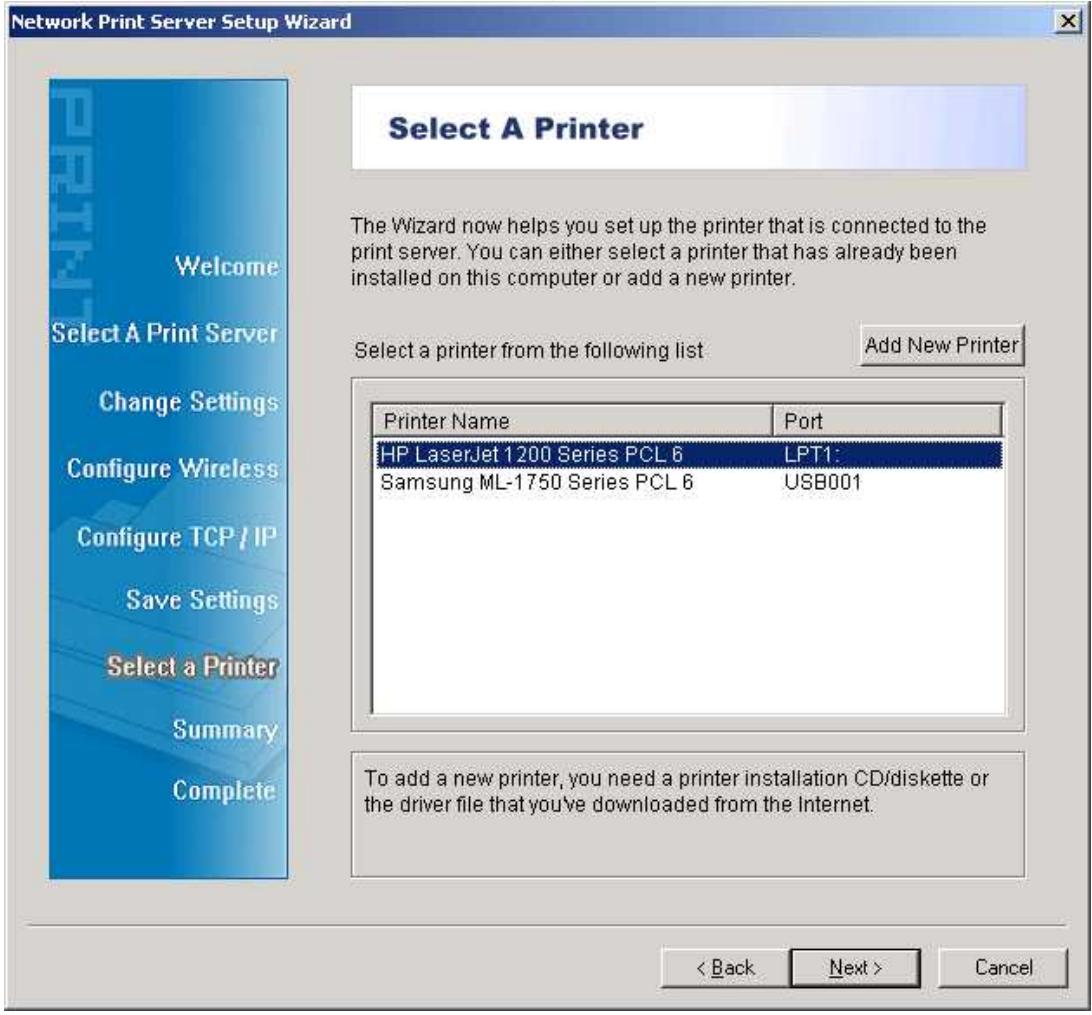

7. Inthe setup wizard, select an already configured printer from the list, click Next, Next

and then Finish to complete the installation. Select Add New Printer if the print server is connected to a printer that hasn't been installed before and does not appear in the list. twork Print Server Setup Wizar Select A Printer The Wizard now helps you set up the printer that is connected to the print server. You can either select a printer that has already been installed on this computer or add a new printer. Select À Print Sem R LE ! el Select a printer from the following list Add New Printer Welcome Change Settings Printer Name Ï Port [ : : Microsoft Office Document Image Writer Microsoft Document. nfigure Wireless: ns _ NE | EPSON Stylus C40 Series LFFE Configure TCPAIBS Auto HP 4500 Color Printer on Ben-file BCN-FILE\HP4500... Auto 4050 PM Printer on Ben-file WBCN-FILE\WOSOPM... Save Settings] Auto 4050 Customer Service on BCN-FI. WBCN-FILE\HPSN Adobe PDF My Documentsi* pdf To add a new printer, you need a printer installation CD'diskette or Complete the driver file that youve downloaded from the Internet. < Back Next > Cancel

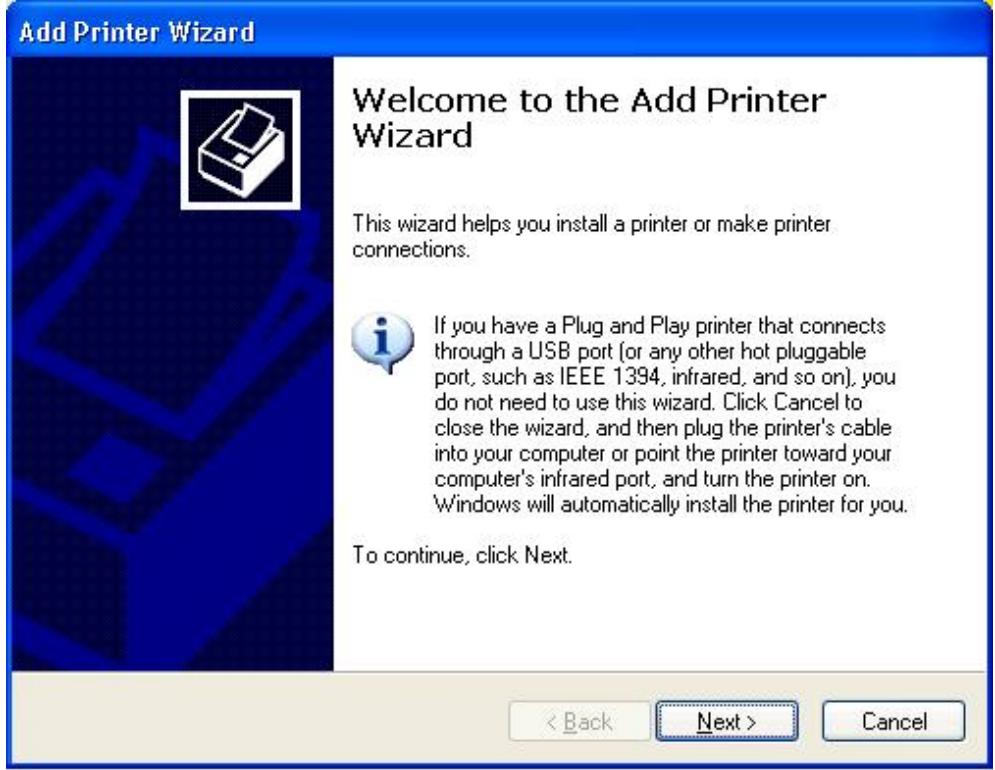

Click Add New Printer to launch Windows Add Printer Wizard. Add Printer Wizard Welcome to the Add Printer & Wizard This wizard helps you install a printer or make printer connections. # à lfyou have a Plug and Play printer that connects d) through a USB port (or any other hot pluggable port, such as IEEE 1394, infrared, and so on], vou do not need to use this wizard. Click Cancel to close the wizard, and then plug the printer's cable into your computer or point the printer toward your computer's infrared port, and tum the printer on. Windows will automatically install the printer for vou. To continue, click Next. Click Next and select Local Printer, make sure the Automatically detect and install my Plug and Play printer check box is NOT checked. Then click Next. Add Printer Wizard Local or Network Printer The wizard needs to know which type of printer to set up. Select the option that describes the printer you want to use: [läutomatically detect and install my Plug and Play printer © 4 network printer, or a printer attached to another computer 2 To set up a network printer that is not attached to à print server, d) use the “Local printer" option. [_<Bak J[ New» ] [ Cancel )

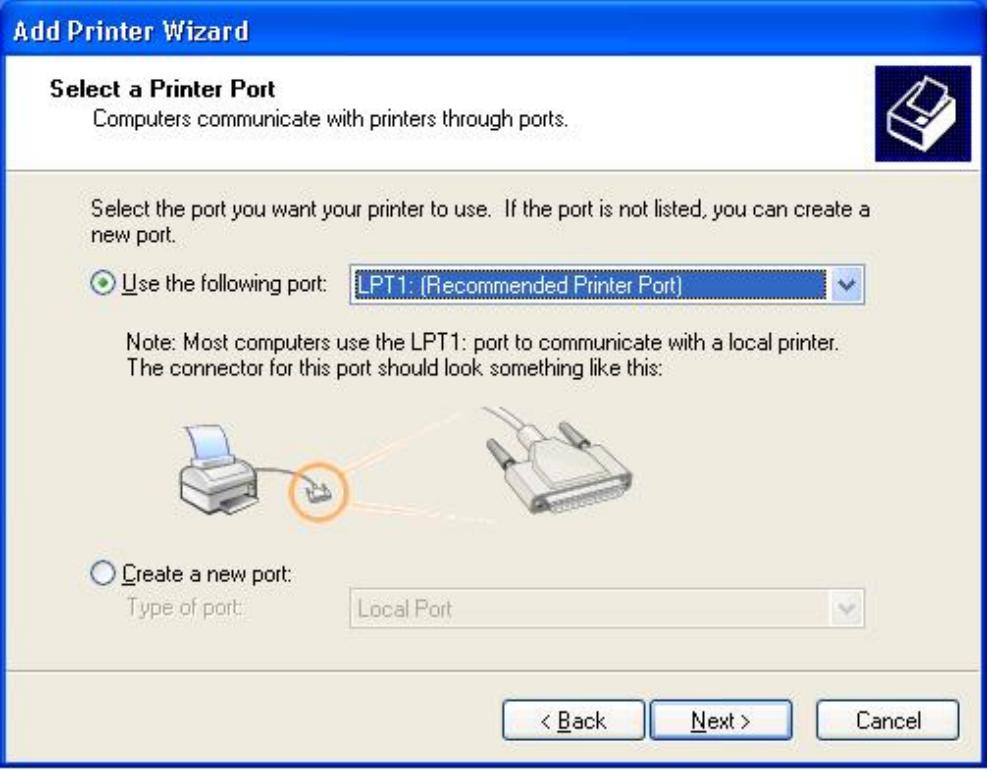

10. Make sure the Use the following port radio-button is clicked and select LPT1:

(recommended Printer Port) from the pull-down list. Then click Next. Select à Printer Port Computers communicate with printers through ports. Select the port you want your printer to use. lfthe port is not listed, you can create a new port. @ Use the following port |A] Note: Most computers use the LPT1: port to communicate with a local printer. The connector for this port should look something like this:

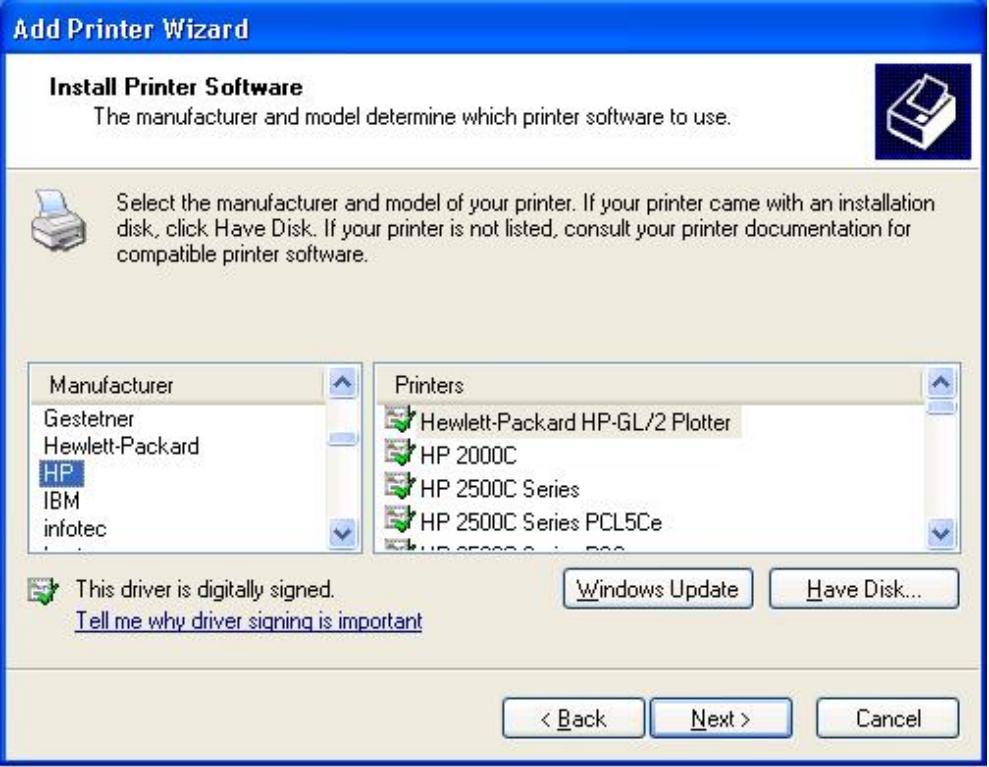

© Create a new port: of part Local Part [_<Ea%k J[ New» ] [ Cancel ] Select Manufacturer and Printer from the lists of printer's driver. Then Add Printer Wizard Install Printer Software The manufacturer and model determine which printer software to use. Select the manufacturer and model of your printer. If your printer came with an installation disk, click Have Disk. If your printer is not listed, consult your printer documentation for compatible printer software. Manufacturer A | Pinters «a Besanes ” FF Hewlett-Packard HP-GL/2 Potter "| lewlett-Packar: fr HP 2000€ ÆS+ HP 2500C Series infotec & || HP 2500€ Series PCLECe a Ef This driver is digitally si Iel ver si [_<Ea%k J[ New» ] [ Cancel ]

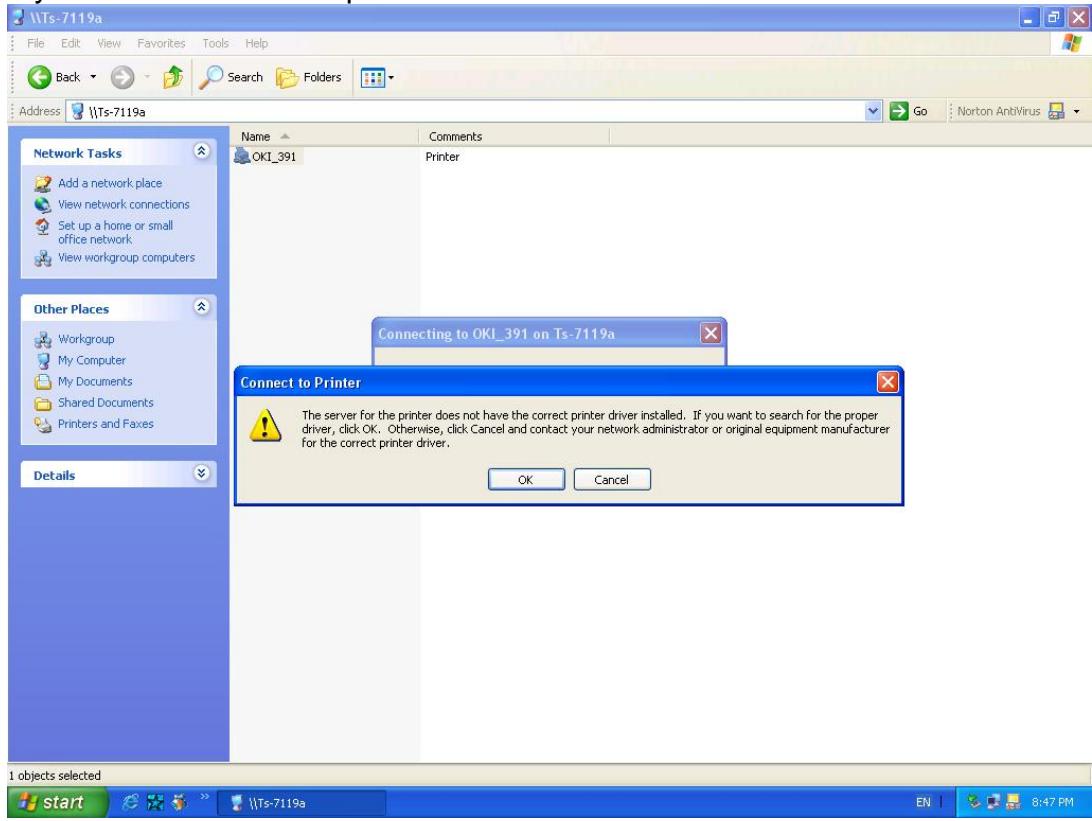

12. If you already have the printer's driver installed, you will be asked whether to keep it or to

replace it. Click Next. Supply a name for the printer and choose whether you want to make it your default printer. Then click Next.

13. Then, choose whether you want to share the printer with other network user, print a test

page (please select No.), etc. Selectthe appropriate radio-button and click Next and Finish.

14. Inthe setup wizard, finish the installation by highlighting the installed printer in the

Select a Printer list and click Next, NEXT -> Finish. Network Print Server Setup Wizard) x] Select A Printer The Wizard now helps you set up the printer that is connected to the print server. You can either select a printer that has already been Welcome installed on this computer or add a new printer. Select À Print Sem il AUDRE | Sci printertomihe folowinglist Ad New Printer] Change Settings STE Pot Configure Wireless US8001 Contigure TCR AIR Save Settings Select a Printer Complete To add a new printer, you need a printer installation CDidiskette or L the driver file that youVe downloaded from the Internet. <Bak [ New | Canet |

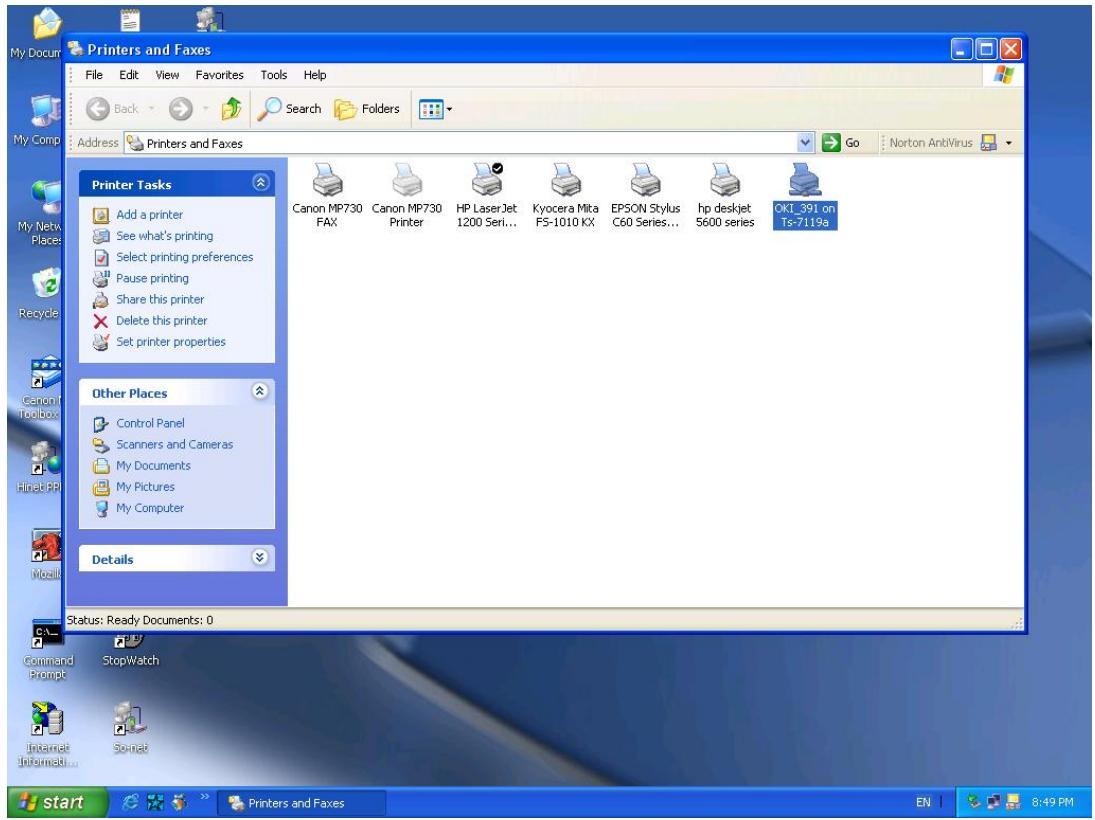

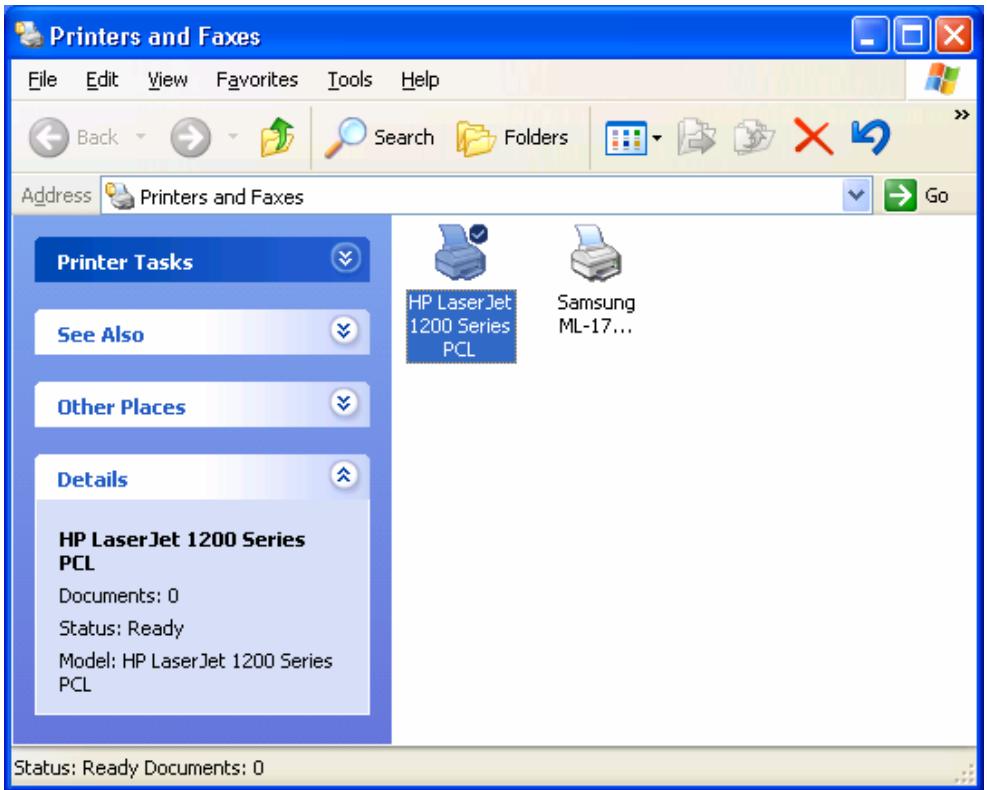

15. From Windows system, go to start -> Printers and Faxes and highlight your newly

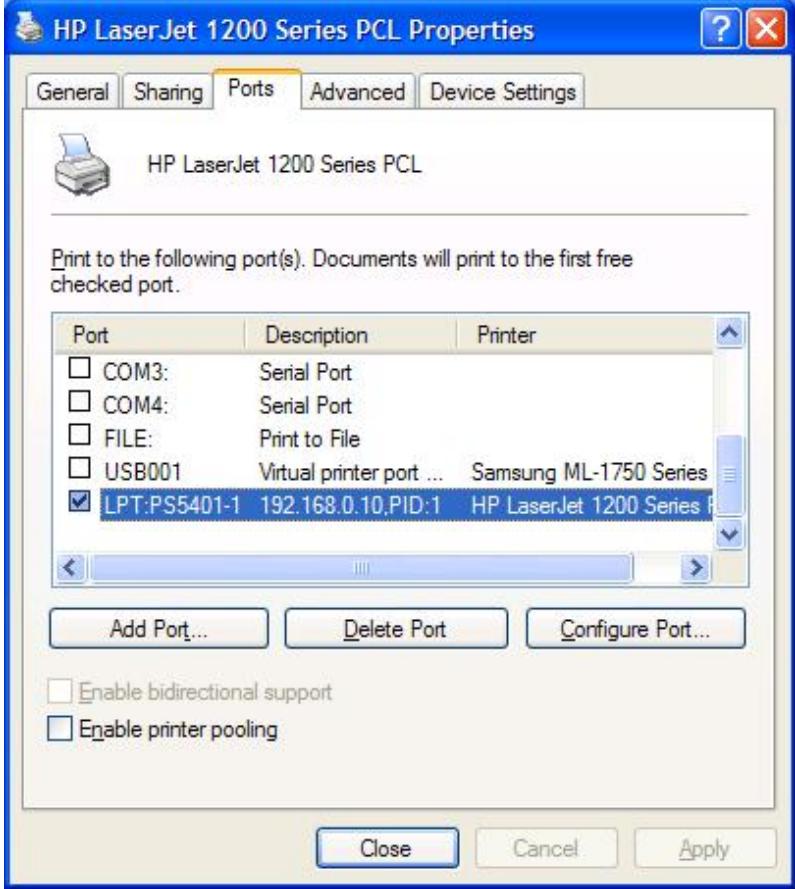

16. Right-click, select Properties -> Ports and verify that the print server’s port appears.

HP LaserJet 1200 Series PCL Properties | General | Sharing | Ports | Advanced | Device Settings | Es HP LaserJet 1200 Series PCL Print to the following port(s). Documents will print to the first free checked port. ( Description | Printer Serial Port Serial Port Print to File Virtual printer port (EZ Samsung ML-1750 Series | = (Add Pot. ][ DeletePot ][ ConfguePot… |] | Enable bidirectional support [] Enable printer pooling [ ] Cancel Apply

Note: If you want to install more print servers, start setup wizard from your Windows Start menu: start -> AIl Programs -> Network Print Server -> PSWizard and repeat the installation procedure. Using PSAdmin After the software of setup CD is successfully installed, starts PSAdmin utility from your Windows Start menu: start -> AIl Programs -> Network Print Server -> PSAdmin. The screen will then appear as follow picture. PSAdmin BE Fle View Help S\0e sale nm Device Name [ Mac Address [Print Server Name | F/W Version | Status DEFAULT x : 3 MAC Address : 00:40:01:76:54:01 A Model : 32. FJw Version : 9.01,32E <Ÿ Ports = Wireless NetWare TCPjIP L-] Apple Talk a

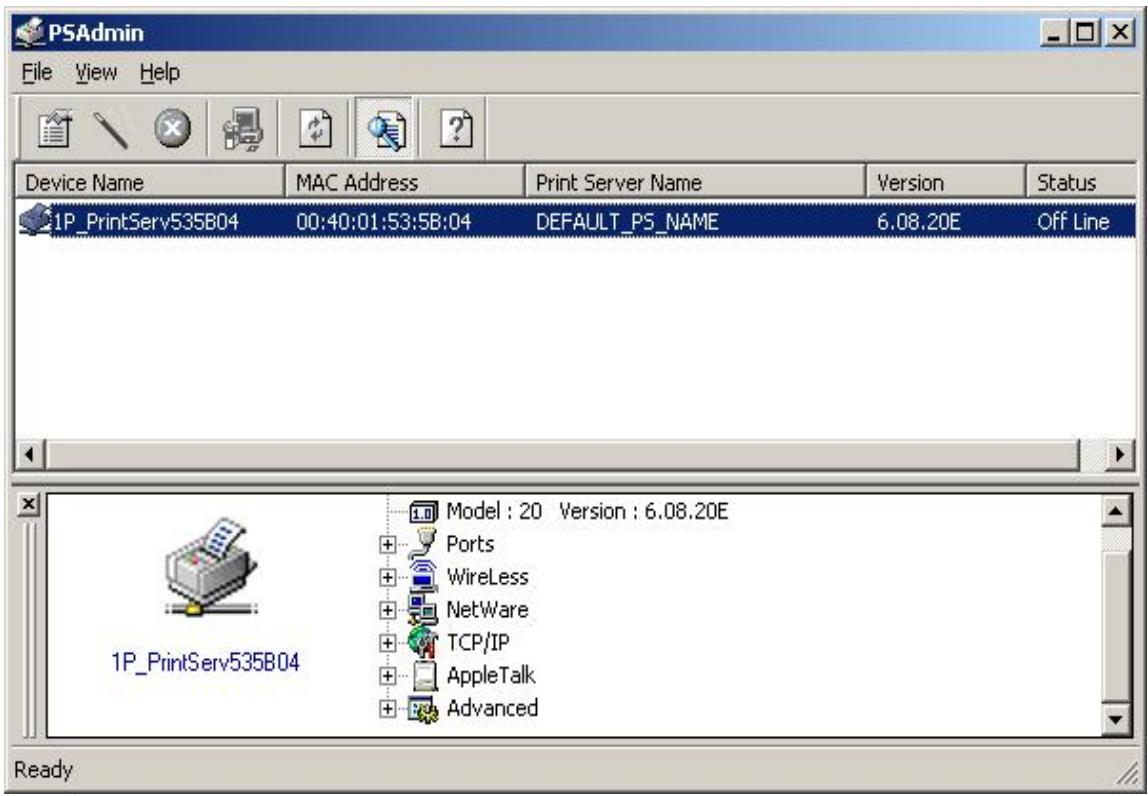

1P_PrintServer &-&-6-6-6 Ready

All print server(s) feature Novell NetWare function on the LAN will be displayed along with their respective device name, MAC Address, print server name, firmware version, and status. The terms are defined as follows: Device Name: The name of the print server hardware used for identification purposes. MAC Address: The Ethernet address of the print server. Print server Name: The print server to which the device is attached. Version: The firmware version of the print server. Status: To come up a Printer's status presently.

Wizard Wizard is a configuration program that can assist you in setting up the necessary parameters for your print server device to function. Setup a print server by using Wizard. TCP/IP Wizard

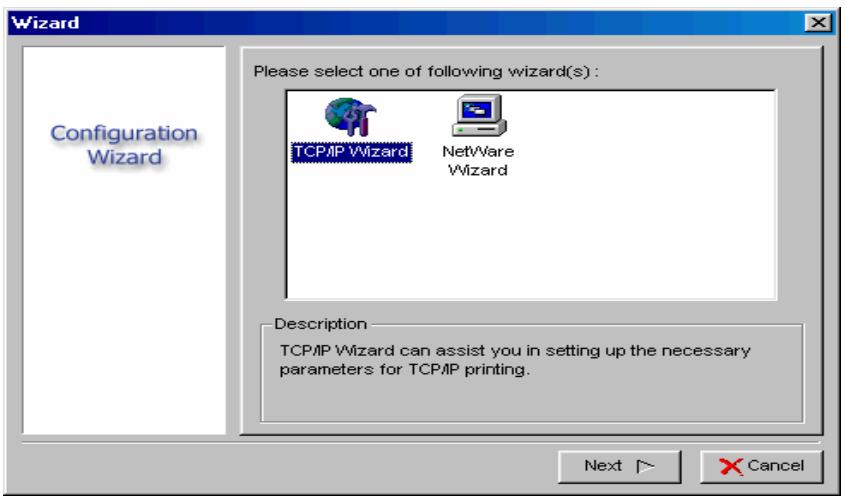

1. Click Wizard button just like a picture K and select TCP/IP Wizard.

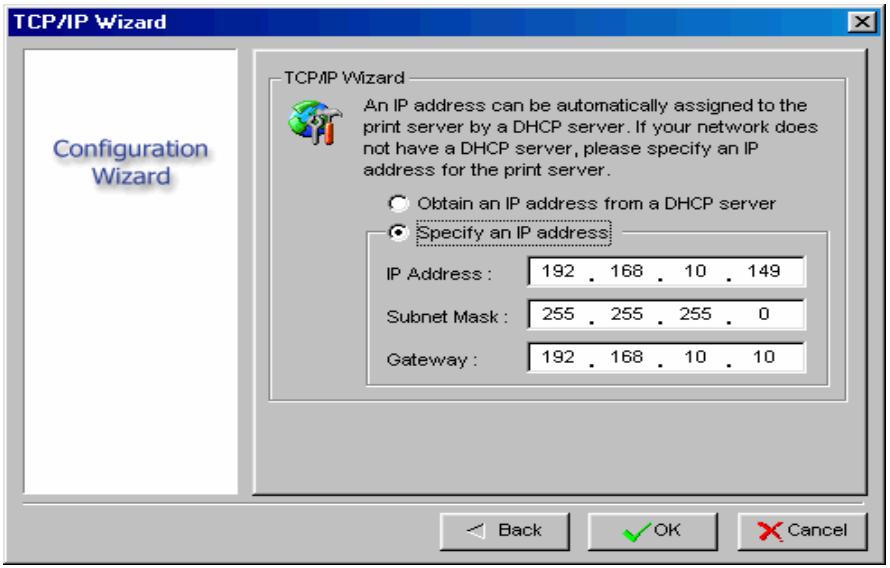

2 Select “Obtain an IP address from DHCP server”. [fthere is a DHCP server on your network. This option allows the print server to obtain IP-related settings automatically from your DHCP server. This setting, by default, is disabled. If you would like to manually specify an IP address to the device, please skip to the following step. 3 Inthe IP Address option, type an IP address for the print server. The IP address must meet the IP addressing requirements of the network segment. TCP/IP Wizard

4 (Optional) In the Subnet Mask option, type the Subnet Mask your LAN or network segment is currently configured to use. 5 (Optional) In the Gateway field, type the IP address of gateway. 6 When done, click OK button. The program will save the above settings into the print server. 7 Done NetWare Wizard

1. Loginto your NetWare file server as a Supervisor (Admin.) or equivalent.

2. Click Wizard button just like a picture

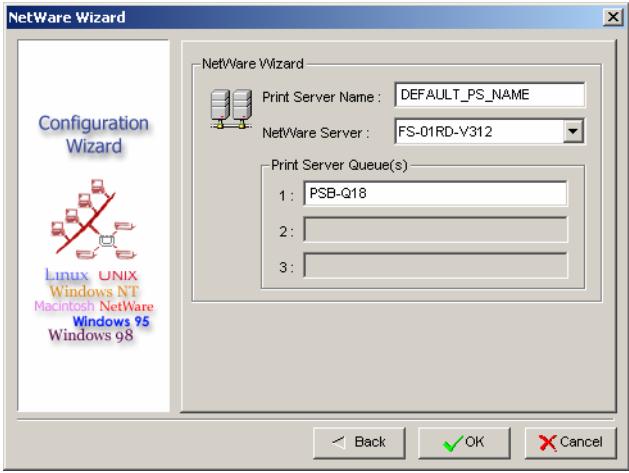

picture. and select NetWare Wizard, as follow Netware Wizard x] are ar 93 Print Server Name: [DEFAULT PS_NAME D Feow Configuration 2 But | VO | x

3. Selectthe NetWare File Server to which the print server device will be attached.

4. Type in a Print server.

5. Type in a Print Queue Names.

Note: Each print queue corresponds to each print port of the print server.

8. From your NetWare client computer, such as Windows 95/98/Me, create a printer that is

connected (redirected) to one of the NetWare print queues serviced by the print server.

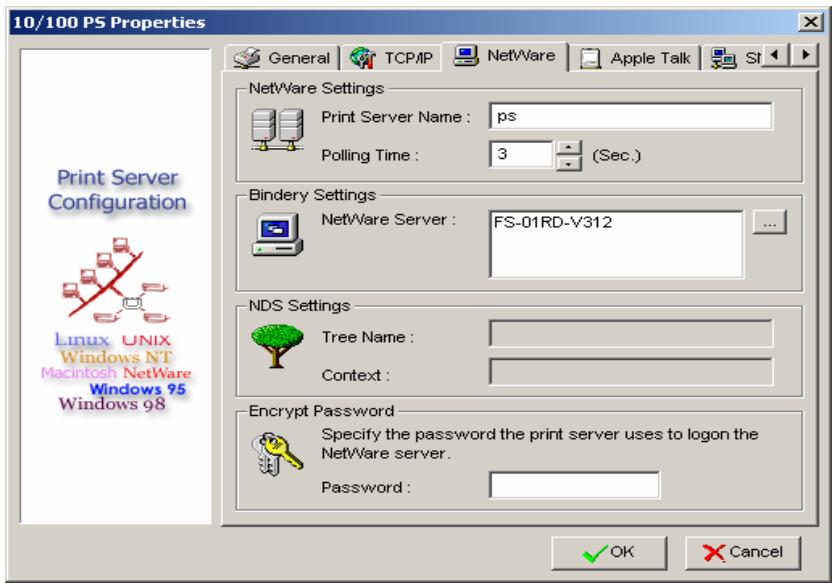

Manual Setup Manual Setup is a configuration program designed for more experienced users of NetWare. To setup the print server by using Manual Setup follow the steps:

Run PCONSOLE in NetWare 3.x or NetWare 4.x and create the necessary parameters (Refer to your Novell NetWare print server/Services manual for details). Log into your NetWare file server as a Supervisor (Admin.) or equivalent. From your Windows 95/98/Me, run PSAdmin. Select the print server that you wish to configure. Click Properties in the tool bar and the following screen will appear, Properties button just like a picture , as follow picture. 10/100 PS Properties xl SB Generai | Gr rcpr ÆJ Nethère | [] appie rai | &5 si » NetWare Settings 99 Print Server Name es Poling Time 3 2 (Sec) Print Server = Configuration Bindery Settings a] NetWare Server FT NDS Settings e P MER Re hière er EEE Windows 35 MADÉEET 95 Encrypt Password Specify the password the print server uses to logon the NeWere server. Password D | 7% X Cancel Select NetWare and type in the Print server that created during PCONSOLE. (Optional) In Bindery Settings, Select NetWare file server(s) that print server can do Bindery mode. (Optional) In NDS Settings, Select NetWare file server(s), NetWare 4.x or later that print server can do NDS mode. Click OK. From your NetWare client computer, such as Windows 95/98/Me, create a printer that is connected (redirected) to one of the NetWare print queues serviced by the print server.

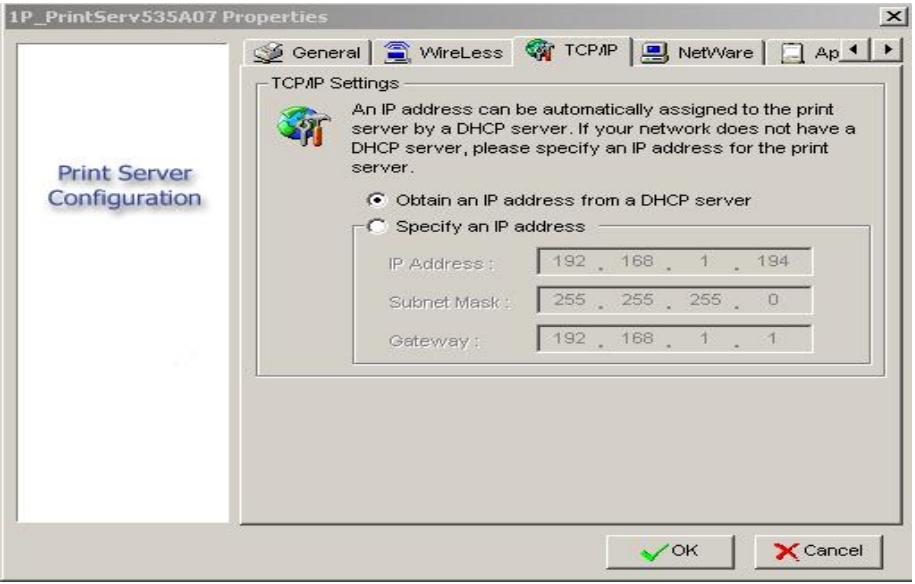

Properties - TCP/IP Options The TCP/IP options allow you to modify the print server's TCP/IP settings. Each option is detailed as follows. : x a Generai | Æ vireuess Gr TcPIP | ©) netwere | [1 a+ | » TCPAP Settings Er An IP address can be automatically assigned to the print server by a DHCP server. If your network does not have a DHCP server, please specify an IP address for the print Print Server Ée Configuration € Obtain an IP address from a DHCP server d Specity an IP address Obtain an IP address from a DHCP server: This option enables or disables the DHCP feature of the print server. When this option is enabled, the print server will obtain an IP address automatically from the DHCP server on your LAN. The default value is “Disable”. Note: 1.Once this option is enabled, the following IP address, Subnet Mask, Gateway will be grayed out and are not available for editing. 2.While the print server supports DHCP, we strongly recommend you manually specify a fixed IP address to the print server. Specify an IP address: IP Address: This option shows the print server's current IP address maybe obtained from your DHCP server or manually specified. This option also allows you to manually specify an IP address to the print server, if DHCP option is disabled. Subnet Mask: This option shows the print server's current subnet mask maybe obtained from the DHCP server or manually specified. This option also lets you manually specify a subnet mask to the print server, if DHCP option is disabled. This value is optional. Gateway: This option shows the print server's current gateway address maybe obtained from the DHCP server or manually specified. The option also allows you to manually specify the IP address of the gateway to the print server, if DHCP option is disabled. This value is optional

Upgrade Upgrade allows the user to upgrade the print server device. In order to upgrade the unit please perform the steps as follows:

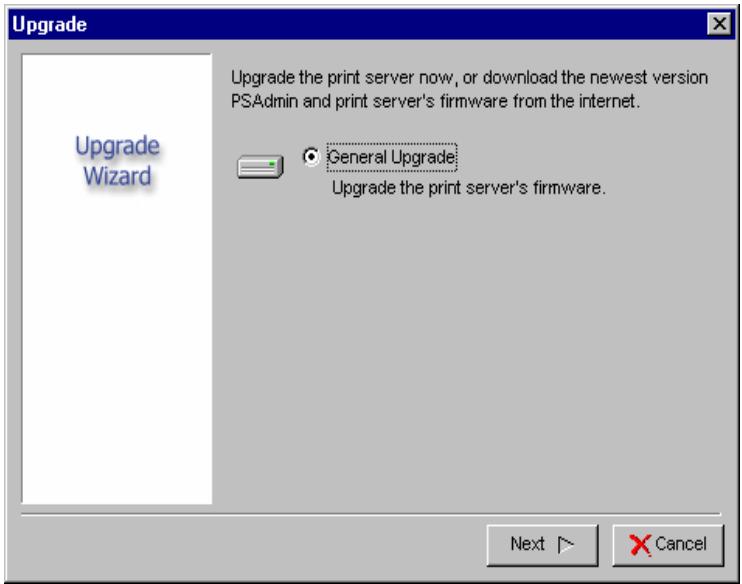

1. Click Upgrade button just like a picture a , as shown as follow picture

Upgrade the prit server now, or download the newest version PSAdimin and print server firmware from the internet. Upgrade Wizard Upgrade the print server’s finmware. Next 1 | XCancel

2. Select General Upgrade. Make sure thatthe upgrade file is located in the same directory

1. Click Reset button just like a picture e

2. Reset allows the user to reset the print server device in order to establish a new

connection or for new settings to take effect. Refresh

1. Click Reset button just like a picture El .

2. Refresh searches the network for all attached print server(s).

Note: Configure the print speed in the Advanced label, must match the printer's speed which connect to the print server. Undependable configuration will cause printer to abnormal printing. Multiple Print Queues Configuration To configure the print server to service multiple print queues, please follow the instructions listed below: Log into your NetWare file server as a Supervisor (Admin.) or equivalent. Run the PSAdmin from your Windows. Select the print server and to be configured. Click the Wizard icon in the tool bar. Type in à Print server and a Print Queue Name (For more detailed information about Wizard, please refer to the “Wizard” section in this chapter).

6. Runthe NetWare's PCONSOLE and create additional print queues.

7. Selectthe Print server name you specify in Step 5.

8. Select the “Print server Configuration” option and select the "Queue Serviced by

Printer” option (For NetWare 4.x's PCONSOLE, please select “Printers” option and select “Printer 0” instead).

9. Select the “Printer 0” and press the [Insert] key to add the print queues you create in

Step 6 into the list (For NetWare 4.x's PCONSOLE, please select “Print queues assigned” option instead).

10. Reset the print server by clicking the “Reset” icon from the PSAdmin. Done.

nEswRE Note: Please refer to NetWare's Print server/Services manuals for detailed PCONSOLE commands. Uninstalling the PSAdmin on Windows PC To help users easily remove all installed software components of the PSAdmin from their Windows PC, and the PS Admin software comes with un-installation wizard program that can automatically remove the software components from their Windows PC systems in minutes. Please follow the directions listed below to proceed with the un-installation procedure. After the PS Admin is removed, the print server is no longer accessible via the PSAdmin. You have to re-install the PS Admin on your system in order to access the print server again. Procedure:

1. Click Start, point to Settings, and select Control Panel.

Click Change or Remove Programs tab. Select Network Print Monitor for Windows 95/98/NT/2000/XP/2003 and click Change/Remove button. The un-installation wizard program will be launched. Follow the directions on the screen to complete the un-installation procedure.

&.internet Printer Connection and HP Web J etAdmin IPP Overview Printserver(s) supportthe Internet Printing Protocol (IP P). Using the appropriate software on your system, you can create an IPP print path from your system as Windows PC over the Internet. Note: For incoming print path requests, the network administrator have to configure the firewall to accept incoming IPP requests. Windows NT/2000/XP/2003 For Windows NT/2000/XP/2003, you can use a supported Web Browser, for example, Netscape or IE to view the embedded web server on the print server. Contact your administrator to get the IP address or URL ofthe printer and browse to the print server's web page. For example, to install Windows 2000 by IPP service you must follow below information: 1.Click Start button. 2.Select Settings, and then select “Printers” option. 3.Click Add Printer icon. Appear welcome to the add printer wizard, Click Next. 4.Select Network printer option, and then click “Next”. 5.Select Connect to a printer on the Internet or on your intranet option, appear as follow picture.

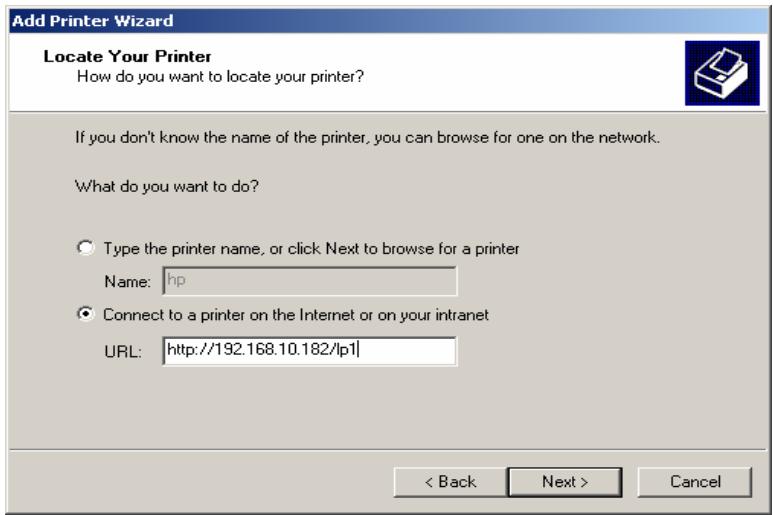

fadd Printer Wizard Locate Your Printer Haus do pou Want te locale your inter? Hnttp:#7182. 168. 10.182/1p1] Le TES 7 [Es 7 6.In URL's box, input print server's IP address, for example, http://192.168.10.182/Ip1. Then Click Next. ** One port should be the port name as Ip1. 7.1twill check print server to connect to HP printer, if not, it will appear as follow picture. Then Click OK. {Connect to Printer

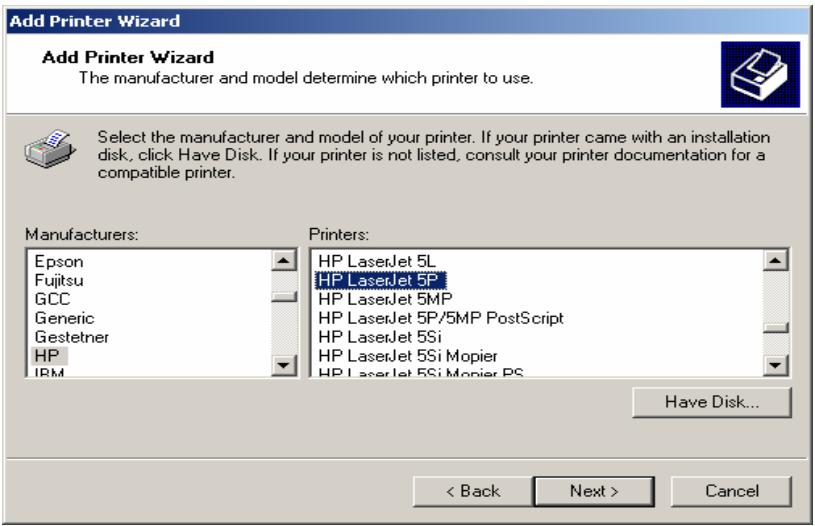

8. Select the appropriate printer manufacturer and printer type and click “Next”, appear as

follow picture. Add Printer Wizard The manufacturer and model determine which printer to use. HP Lasenet 5P/5MP PostScript HP Lasenet 56 n] [HP Lasenet 5SiMopier

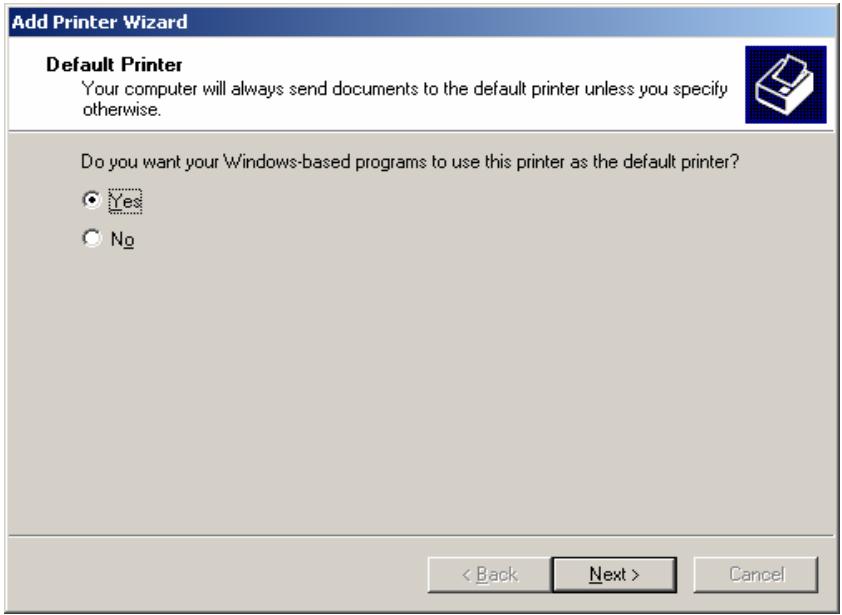

9.1f you want your Windows-based programs to use this printer as the default printer, please select “Yes”, and Click Next. It will appear as follow picture Add Printer Wizard Default Printer Your computer wil always send documents ta the defaul printer unless you specify otherwise. Da you want your Windows-based programs to use this printer as the defaut printer?

19. Click Finish button.

HP Web J etAdmin Overview HP Web J etAdmin allows you to use a Web browse to revise, view, manage and diagnose devices connected to the print server or any standard printer MIB devices. For more information about a procedure or Windows in the HP Web J etAdmin software, see about HP's relation document. System Requirements HP Web J etAdmin software runs on Microsoft Windows NT, HP-UX, Solaris, Red Hat Linux and SUSE Linux system. For information on supported operating systems and browser versions, we recommend IE or Netscape version 4 or higher. Please access HP Customer Care Online at http://www.hp.com/go/webjetadmin. Note: When installed on a supported host server, HP Web ] etAdmin can be accessed from any client through a supported Web browser by browsing to the HP Web j etAdmin host.

Installing HP Web J etAdmin Before installing the HP Web J etAdmin software, you must have domain administrator or root privileges: Download the installation files from HP Customer Care Online at http://www.hp.com/go/webjetadmin/. Follow the instructions on the screen to install the HP Web ] etAdmin software. Note: Installation instructions are also contained in the HP Web J etAdmin install file. Confirming Installation and Supply Access Confirming that the HP Web J etAdmin software is correctly installed by navigating to it with your browser as shown in the following. For example, http:// server domain port/ where server domain is the host name of your web server and port is the port number assigned during installation. “Supply users access to HP Web J etAdmin software by adding a link to your web server's home page that is addressed to HP Web J etAdmin's URL. For example: http://server.domain:port/ Configuring and Modifying a Device Using your browser, navigate to HP Web J etAdmin's URL. For example: http://server.domain:port/ Follow the instructions on the appropriate home page to configure or modify your printer. Note: You can also substitute the server domain with TCP/IP address. Removing HP Web J etAdmin Utility To remove HP Web J etAdmin software from your web server, use the uninstall program provided with the software package.

Overview The Print Server contains an embedded web server that can be accessed through a supported web browser on à LAN, for example, IE 4.0, Netscape 4.0 or above is recommended. The embedded web server provides access to configuration and management pages for the print server and the connected peripheral device. Using Embedded Web Server Before you can use the embedded web server, the print server must be configured with an IP address. There are many ways to configure the print server's IP address. For example, the Windows-based of PS Admin utility can easily set an IP address with the print server, please see the Properties - TCP/IP options of chapter 3. After an IP address is established on the print server, perform the following step: Status Menu Once you have finished the IP address configuration with print server. You should be use web browser to view and management the print server. The status menu of the print server helps administrator control the print server's System, Printer, NetWare, TCP/IP, SNMP and AppleTalk of status for the time being. Preparation Enter the print server's IP address in the Address field of your Web browser. Press Enter. Then the print server page will appear. From here you can configure all print server settings. Please follow this information in the status menu of the print server: System Status 1.Click Status, it then appears the sub-menu. 2.Click System, itthen as shown in the following picture.

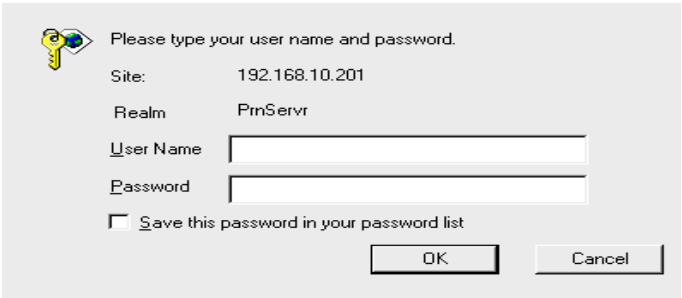

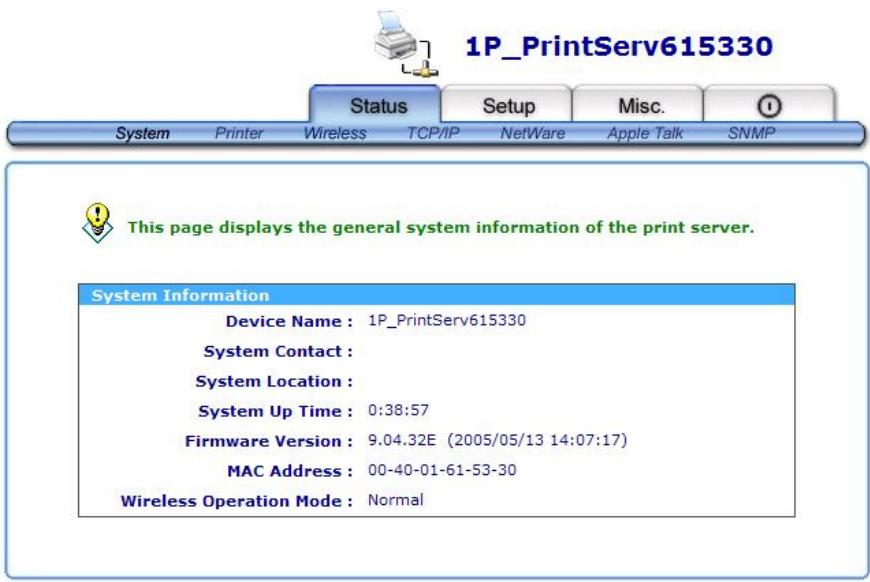

& This page displays the general system information of the print server. Device Name : _1P_PrintServ615330 System Conta: System Locati System Up Tim 38:57 Firmware Versi .04.32E (2005/05/13 14:07:17) MAC Address : 00-40-01-51-53-30 Wireless Operation Mode : Normal Device Name: This option allows you to view device name ofthe print server. To correctthe print server's device name. System Contact: This option allows you to view contact name of the print server. To check the print server's contact name who in charge of this device. System Location: This option allows you to view Location name of the print server. To confirm the print server's location name where the print server is located in the office's LAN. System Uptime: This option allows you to view uptime of the print server. When you start the print server, it will compute the print server from start time to power off time. Firmware Version: This option allows you to view firmware version of the print server. To verify the print server's firmware version is newer in this time. MAC Address: This option allows you to view Node ID of the print server. The Node ID is unique from any print server. Wireless Operation Mode: This option allows you to view the current wireless mode of print server. Printer Status 1.Click Status, it then appears the sub-menu. 2.Click Printer, it then as shown in the following picture.

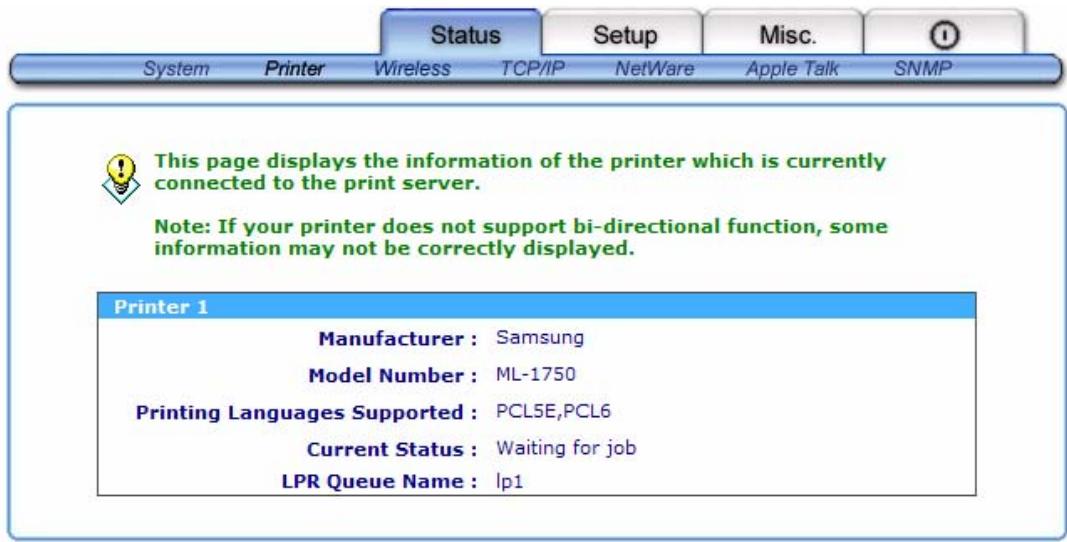

This page displays the information of the printer which is currently connected to the print server. Note: If your printer does not support bi-directional function, some information may not be correctly displayed. Manufacturer : Samsung Model Number : ML-1750 Printing Languages Supported : PCLSE,PCL6 Current Status : Waiting for job LPR Queue Name :_|p1 Manufacturer: This option allows you to view manufacturer of the printer. When the printer connected with the print server, it will be show in the manufacture box. Model Number: This option allows you to view model of the printer. When the printer connected with the print server, it will be show in the model box. Printing Language Supported: This option allows you to view command to set the printer. When the printer connected with the print server, it will be show in the command box. Current Status: This option allows you to view status of the printer. When the printer connected with the print server, it will be show in the status box. For Example, Waiting for job. Itis means the printer already to printing. LPR Queue Name: This option allows you to view queue name of print server when you want to use the network printing via LPR setting. (default: Ip1) Wireless Status 1.Click Status, it then appears the sub-menu. 2.Click Wireless, it then as shown in the following picture.

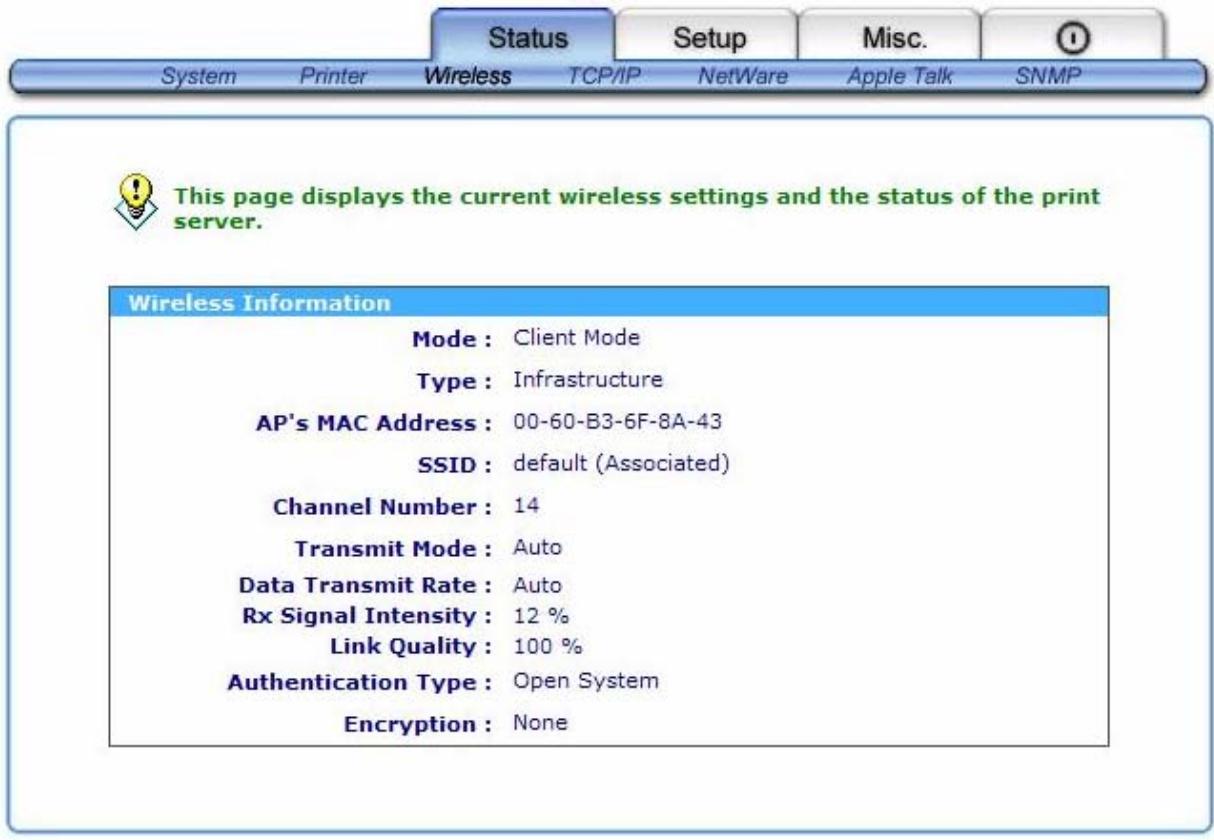

Auto Auto 12% 100 % Open System None Mode: This option shows the wireless operation mode of your print server. Type: Infrastructure or Ad-Hoc mode. AP's MAC Address: This option shows the MAC address of Access Point that associated with print server. SSID: The SSID of your wireless network. Channel Number: Current channel number. Transmit Mode: Current wireless transmit mode (802.11b or 802.11g) Data Transmit Rate: Current wireless transmit rate. Rx Signal Intensity and Link Quality: The wireless behavior of print server. Authentication Type: The status of wireless authentication. Encryption: This option shows the encryption type. TCP/IP Status 1.Click Status, it then appears the sub-menu.

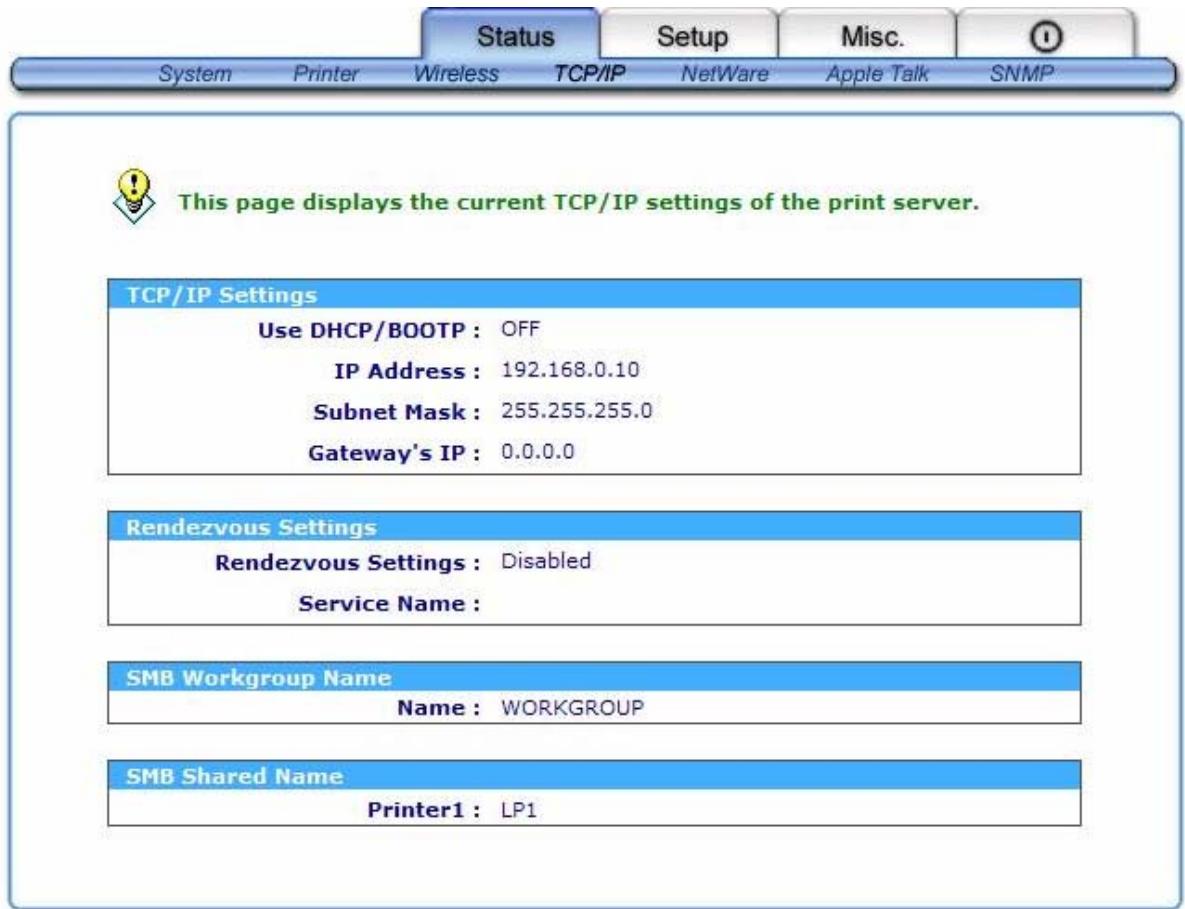

2.Click TCP/IP, it then as shown in the following picture. a EE $ This page displays the current TCP/IP settings of the print server. TCP/IP Settings Use DHCP/BOOTP : OFF 1P Address : 192.168.0.10 Subnet Mask: 255.255.255.0 Gateway's IP: 0.0.0.0 Rendezvous Settings Rendezvous Settings : Disabled Service Name : SMB Workgroup Name Name : _WORKGROUP SMB Shared Name Printer1: LP1 Use DHCP/BOOTP: This option allows you to view DHCP/BOOTP status. Ifthere is a DHCP/BOOTP server on your network, this option allows the print server to obtain IP-related settings automatically from your DHCP server. IP Address: This option allows you to view IP address from the print server. The IP address must meet the IP addressing requirements of the network segment. Subnet Mask: This option allows you to view subnet mask from the print server. Gateway's IP: This option allows you to view gateway from the print server. Rendezvous Settings: This option allows you to view the Rendezvous status from the print server. SMB Workgroup Name and Shared Name: This option allows you to view the SMB status. Netware Status:

1. Click Status, itthen appears the sub-menu.

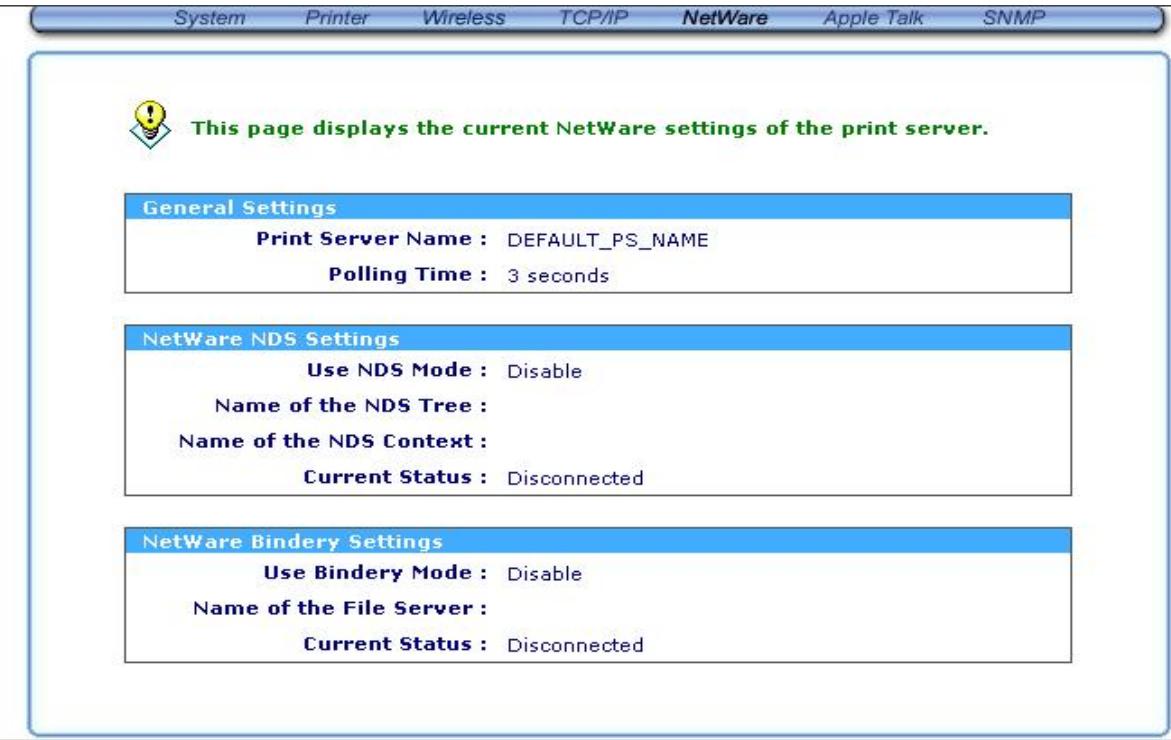

2. Click Netware it then as shown in the following picture.

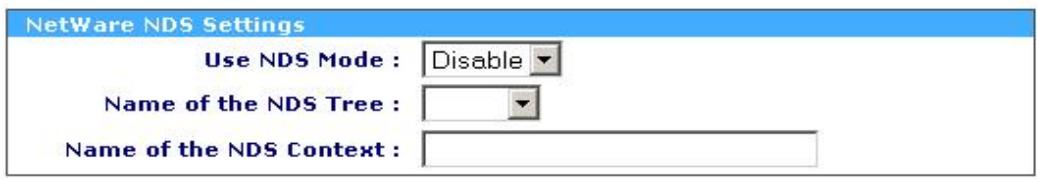

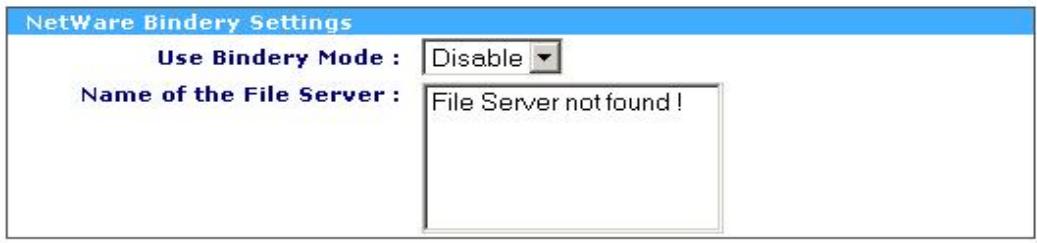

& This page displays the current NetWare settings of the print server. Print Server Name : DEFAULT_PS_NAME Polling Time : 3 seconds NetWare NDS Settings Use NDS Mode : Disable Name of the NDS Tree : Name of the NDS Context : Current Status : Disconnected NetWare Bindery Settings Use Bindery Mode : Disable Name of the File Server : Current Status : Disconnected General Settings: Print Server Name: This option allows you to view print server's name would be configured by PSAdmin utility. Polling Time: This option allows you to view polling time from the print server. This function is search for NetWare Server by per time. NetWare NDS Setting: Use NDS Mode: Enable or Disable. Name of the NDS Tree. Name of the NDS Content. Current Status: Connect or Disconnect. NetWare Bindery Setting: Use Bindery Mode: Enable or Disable. Name of the File Server: Current Status: Connect or Disconnect. AppleTalk Status 1.Click Status, it then appears the sub-menu.

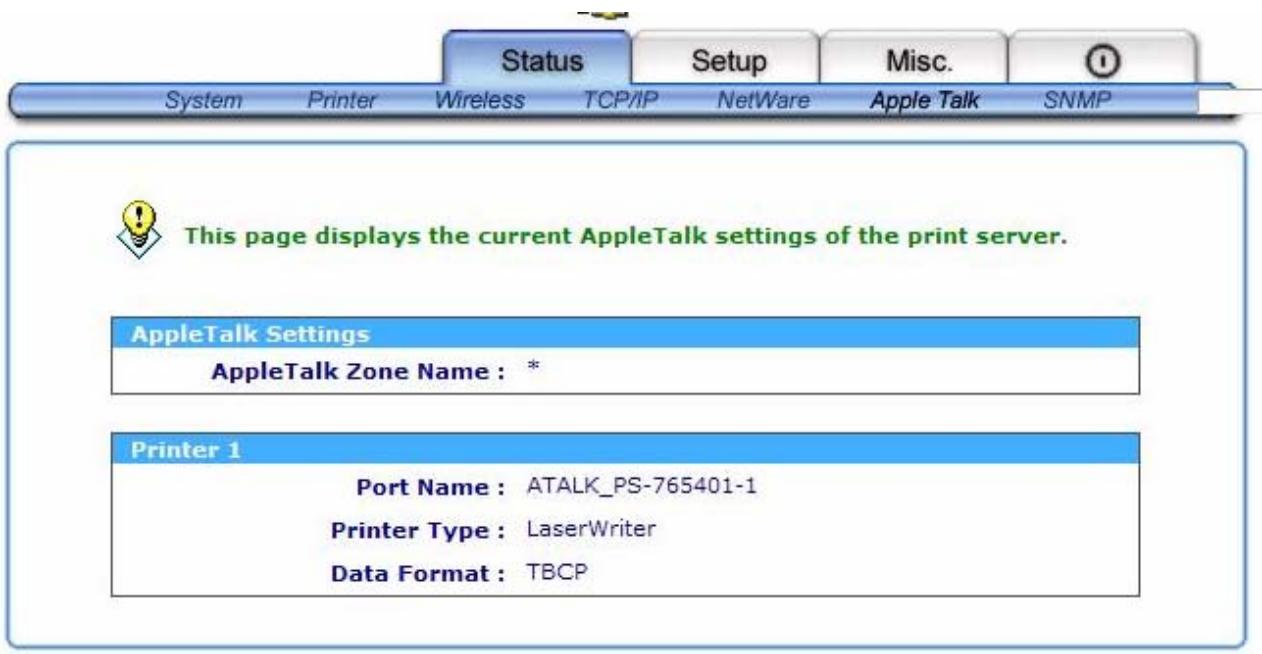

2.Click AppleTalk, it then as shown in the following picture. Setup Misc. (O] $ This page displays the current AppleTalk settings of the print server. AppleTalk Settings AppleTalk Zone Name: * Port Name: ATALK_PS-765401-1 Printer Type: LaserWriter Data Format: TBCP Zone Name: If no any zone exists, the print server itself displays the zone name as an asterisk (*) in the current AppleTalk Status of the print server in the web browser. Port Name: <ATALK_PS>xxxxxx-1, where xxxxxx represents the last six digits of the print server's Node ID. Printer Type: This option allows you to view printer type from the print server. If you are using a PostScript printer you can select the LaserWriter 8 icon from your Mac computer. Data Format: This option allows you to view data format from the print server. If you are using a PostScript printer you can select ASCII, TBCP or BCP format from web configuration. SNMP Status 1.Click Status, it then appears the sub-menu. 2.Click SNMP, it then as shown in the following picture.

= D Lo) This page displays the current SNMP settings of the print server. SNMP Community Settings SNMP Community 1: public, Read-Only SNMP Community 2: public, Read-Only SNMP Trap Settings Send SNMP Traps: Disable Use Authentication Traps: Disable Send Traps to IP Address 1: 0.0.0.0 Send Traps to IP Address 2: 0.0.0.0 SNMP Communities: This option allows you to view SNMP communities from the print server. There are two communities that control message from the network management of the print server. SNMP Traps: This option allows you to view SNMP traps from the print server. Setup Menu Meanwhile, you have finished the IP address configuration with print server. You should use web browser to configure the print server. The setup menu of the print server helps administrator to setup the print server's System, Printer, NetWare, TCP/IP, SNMP and AppleTalk. Preparation Enter the IP address of the print server as the URL. Then the print server's home page will appear in content of the web browser. Please follow this information in the setup menu of the print server: System Setup 1.Click Setup, it then appears the sub-menu. 2.Click System, itthen as shown in the following picture.

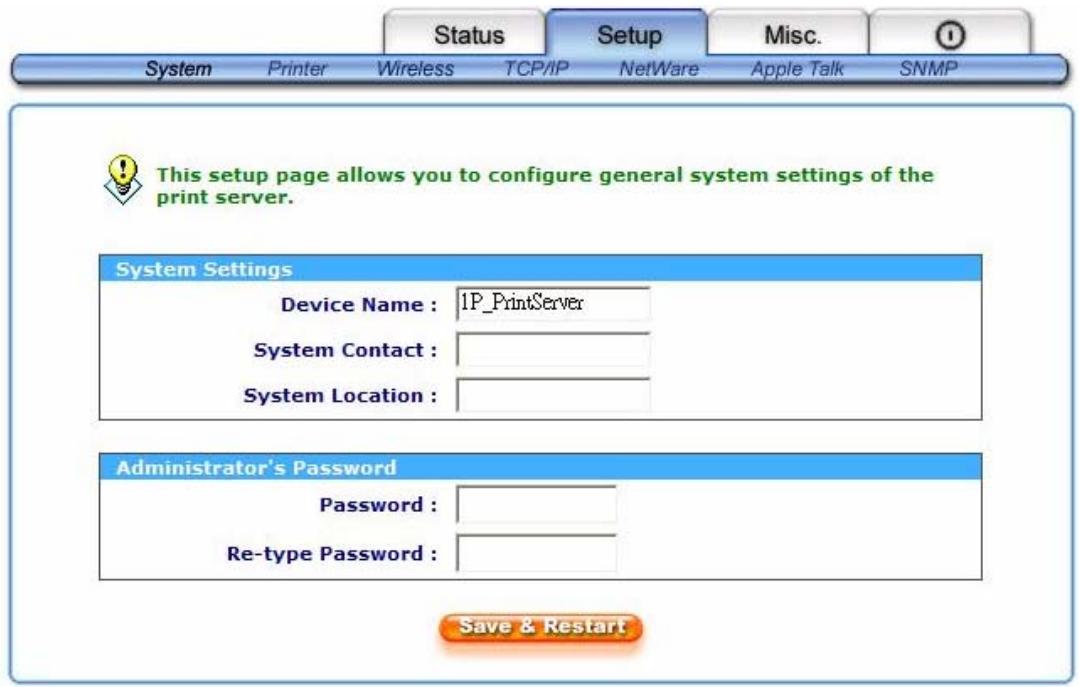

Status Misc. [o] Lo) This setup page allows you to configure general system settings of the print server. Device Name : [IP_PriniServer System Contact : System Location : Administrator's Password Password : Re-type Password : Save & Restart, Device Name: This option allows you to input device name of the print server. To correctthe print server's device name. System Contact: This option allows you to input contact name of the print server. To check the print server's contact name who in charge of this device. System Location: This option allows you to input Location name of the print server. To confirm the print server's location name where the print server is located in the office's LAN. Password: This option allows you to input setup password of the print server. When you select setup menu of web configuration from the print server, itthen as shown in the following picture. Re-type Password. FD Faire Sie 192168.10.201 Reaim PmServr Beerhame Basswed I Save this password in your passward list ‘User Name: Y ou must be input the default administration user name, admin as login user name. ‘Password: The default password is empty or smcadmin. After setup password is completed from the print server, you shouldn't forget this password.

1. Click Setup, it then appears the sub-menu.

2. Click Printer, itthen as shown in the following picture.

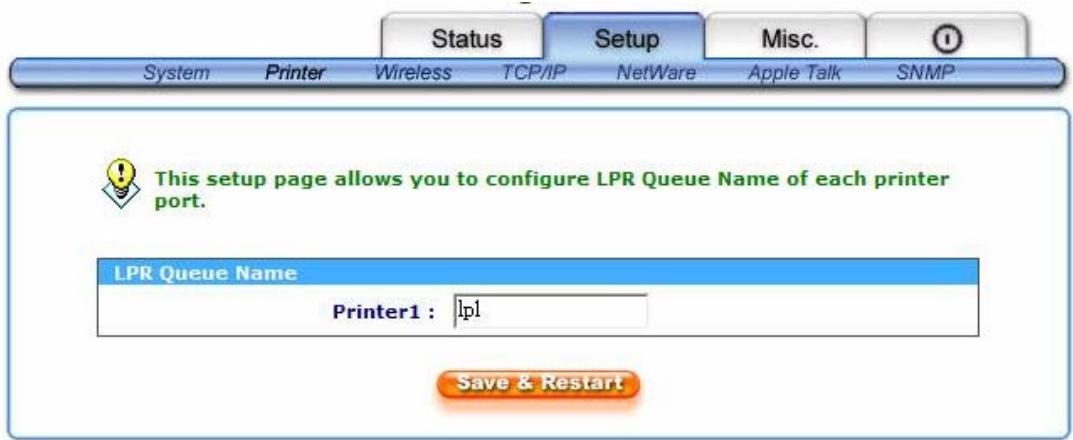

Status En - © $ This setup page allows you to configure LPR Queue Name of each printer port. Printer1 AVE & RESTATT LPR Queue Name: This option allows you to define the queue name ofthe print server's port when you want to use the LPR printing. Wireless Setup: 1.Click Setup, it then appears the sub-menu. 2.Click Wireless, it then as shown in the following picture.

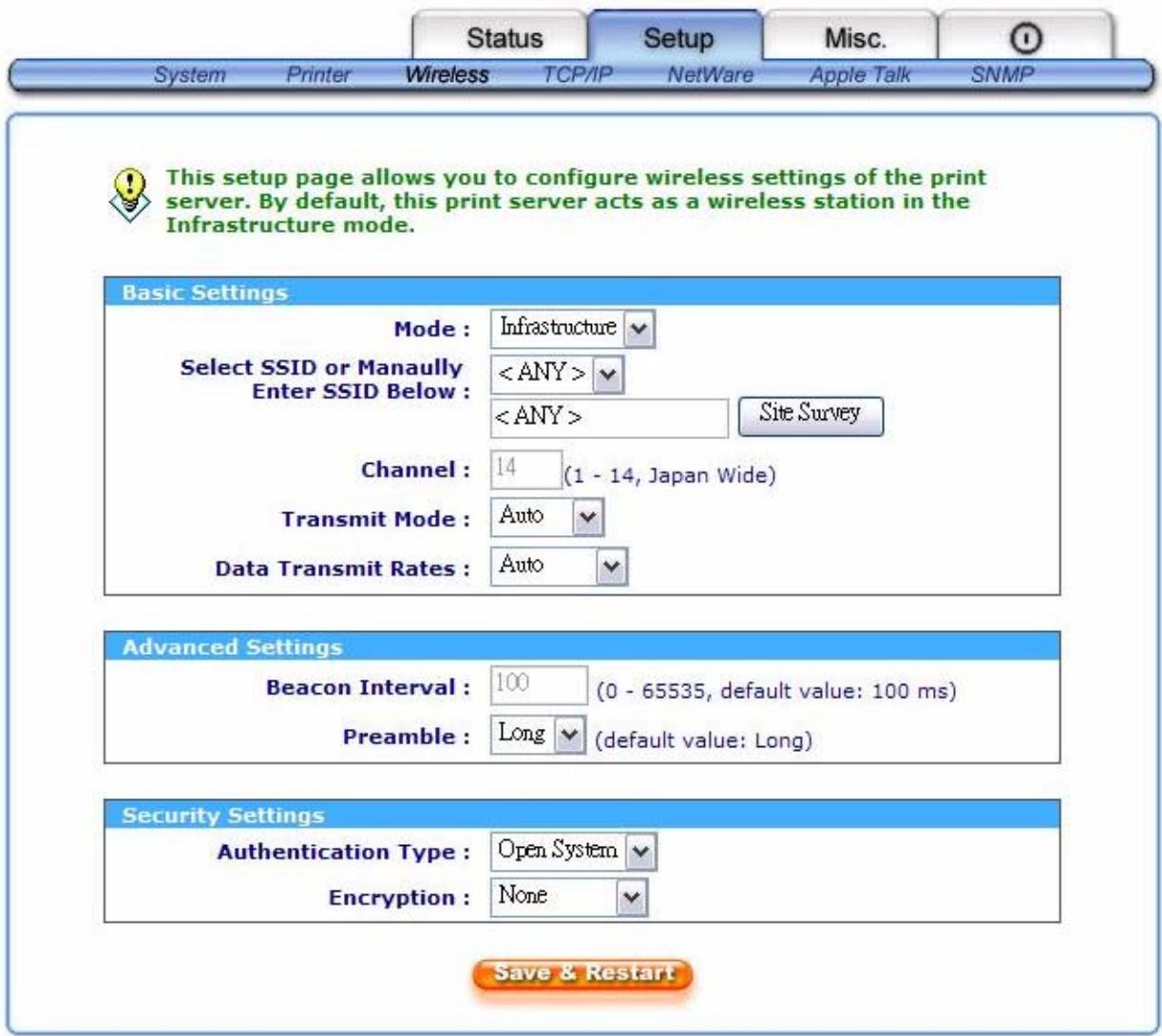

This setup page allows you to configure wireless settings of the print server. By default, this print server acts as a wireless station in the Infrastructure mode. Mode : | Infrastructure | Select SSID or Manaully |£:ANY> le Enter SSID Below : = - : l<ANY> IEC Channel: |l4 1-14, Japan wide) Transmit Mode: |Auto | Data Transmit Rates : | Auto + Advanced Settings Beacon Interval: [00 |(0- 65535, defauit value: 100 ms) Preamble : (default value: Long) Authentication Type : | Open System |» Basic Settings: Mode: Infrastructure or Ad-Hoc mode. Select SSID or Manually Enter SSID Below: You can use Site Survey to help you assign a SSID or input in manually. Channel: Specify a Channel number that meet your wireless environment. Transmit Mode: B only, G only or Auto. Data Transmit Rates: Choose the transmit rate of your wireless print server. Advanced Settings: To avoid the unexpected problem, please use these default value. Security Settings:

Authentication Type: Open System, Shared Key or WP A/WP A2. Encryption: WE P-64/128bit for Open S ystem/S hared Key. Or TKIP/CCMP for WP A/WP A2. TCP/IP Setup:

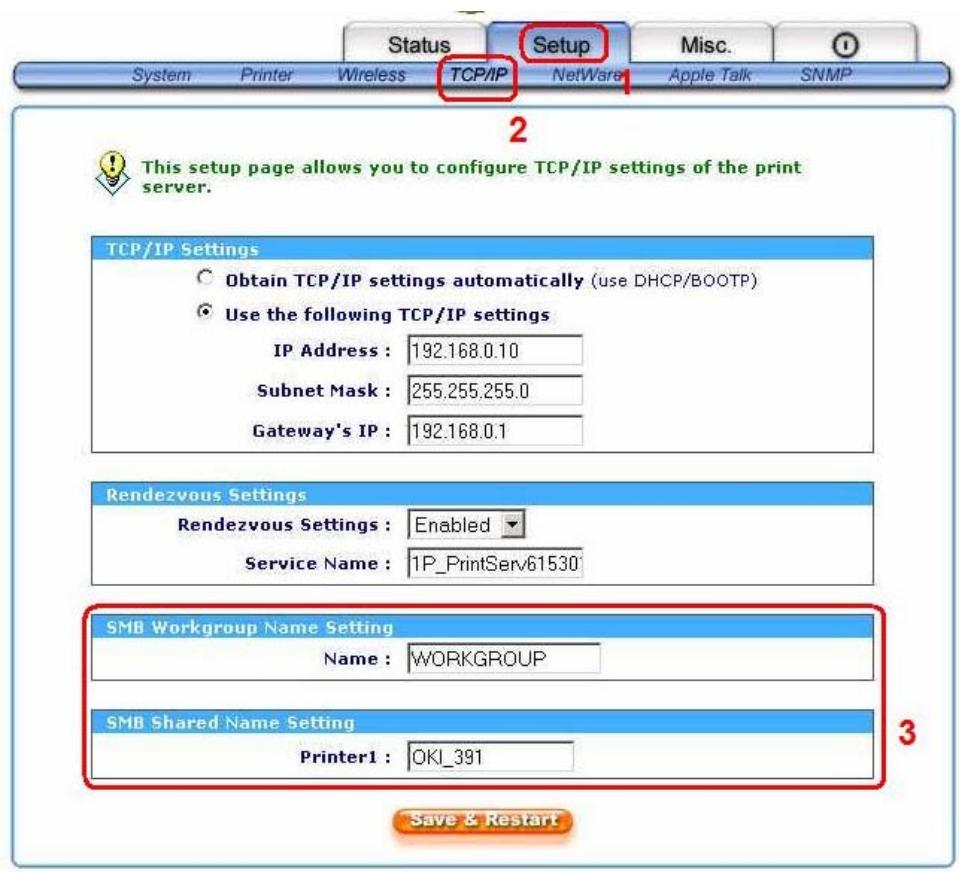

1. Click Setup, it then appears the sub-menu.

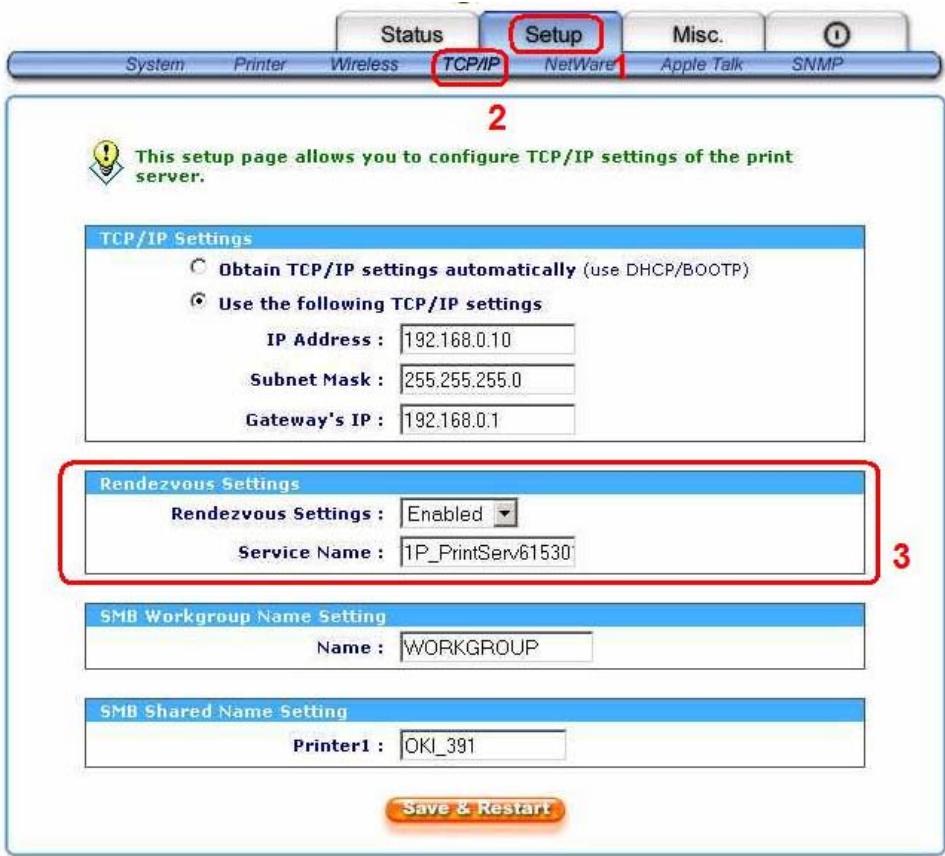

2. Click TCP/IP, itthen as shown in the following picture.

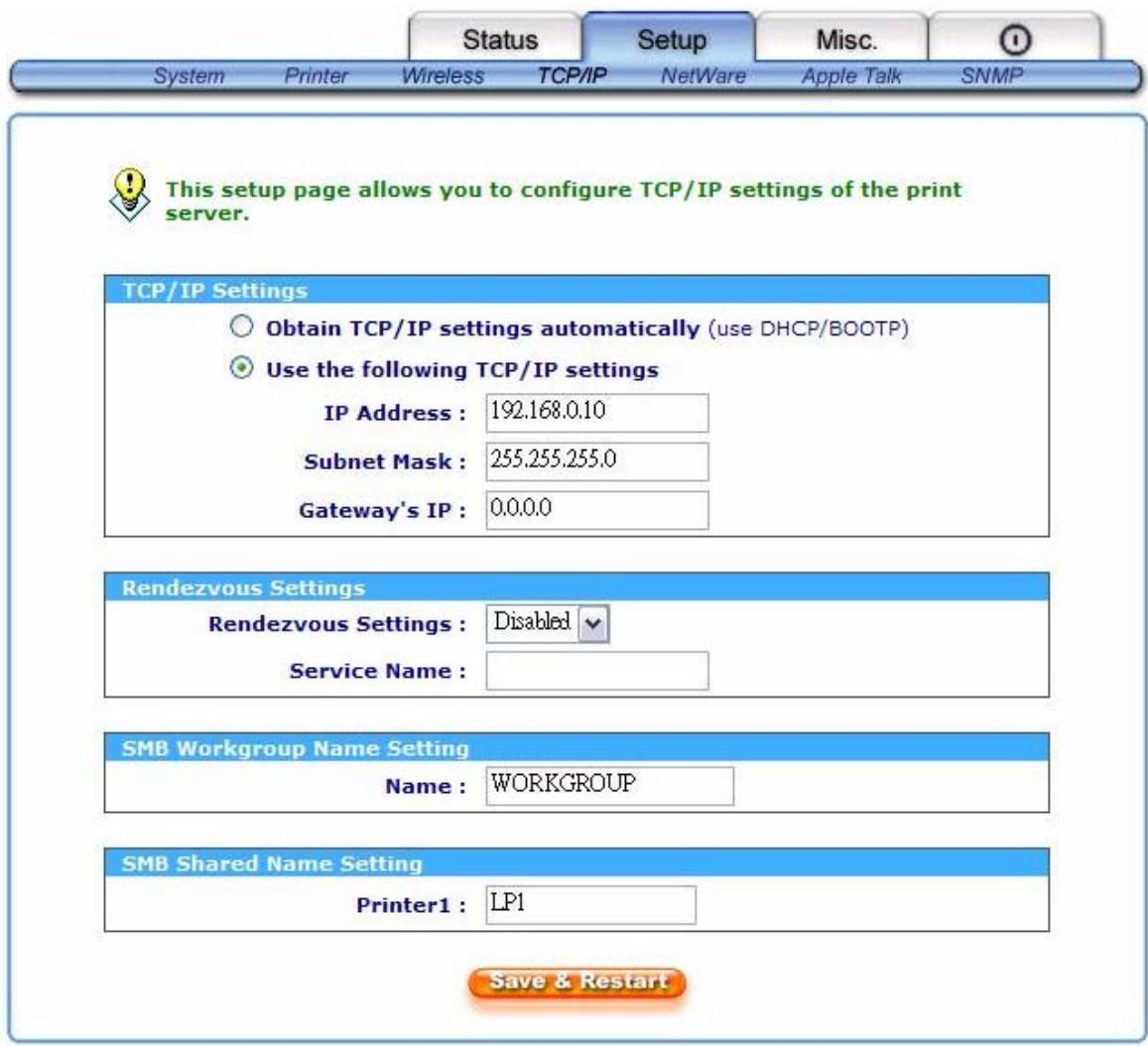

Lo) This setup page allows you to configure TCP/IP settings of the print server. TCP/IP Settings © obtain TCP/IP settings automatically (use DHCP/BOOTP) © use the following TCP/IP settings 1P Address : |192.168.0.10 | Subnet Mask : 1255255.255.0 Gateway's IP: 10000 Rendezvous Settings : | Disakled | Service Name : ] Name : [WORKGROUP SMB Shared Name Setting Printer1 : DHCP/BOOTP: This option allows you to select DHCP/ BOOTP option. lfthere is a DHCP/BOOTP server on your network. This option allows the print server to obtain IP-related settings automatically from your DHCP server. IP Address: This option allows you to inputIP address from the print server. The IP address must meet the IP addressing requirements of the network segment. Note: On the TCP/IP Setup screen, specify a fixed IP address is highly recommended.

Subnet Mask: This option allows you to input subnet mask from the print server. The IP address must meet the IP addressing requirements of the network segment. Gateway: This option allows you to input gateway from the print server. This IP address of gateway must meet the router or gateway to go across of the network segment. Rendezvous Settings: Enable/Disable the Rendezvous support for Mac OS 10. SMB Worgroup/Shared Name Setting: This option allows you to change the SMB name of print server to support the SMB printing on Windows 2000 and above. NetWare Setup 1.Log into your NetWare file server as a Supervisor (Admin.) or equivalent. 2.Select NetWare and type in the Print server that created during PCONSOLE Select the NetWare File Server to which the print server device will be attached. 3.Click Setup, it then appears the sub-menu. 4.Click NetWare, it then as shown in the following picture. S This setup page allows you to configure the NetWare function of the print server. Printer Server Name : |DEFAULT_PS_NAME Polling Time : |3 seconds (min: 3, max: 29 seconds) Logon Password : Use NDS Mode : |Disable » Name of the NDS Tree : | Name of the NDS Context : Use Bindery Mode : |Disable » Name of the File Server: [Fe Servernotfoundi ET SET Print Server Name: This option allows you to input print server name which configured by PSAdmin utility or PCOMSOLE program. Polling Time: The time interval in which the print server unit polls the file server for servicing of print queues.

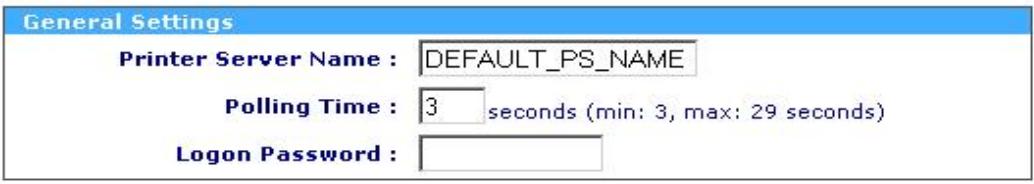

Logon Password: This option allows you to input encrypted password from the print server. The print server login to NetWare server that administrator set password from selected print server. NDS Mode: To Enable NDS Mode, if you want to setup NDS environment. To select Tree Name of NetWare then input context name in the Context box. Bindery Mode: To Enable Bindery Mode, if you want to setup Bindery environment. To select File Server Name of NetWare. Installing Print Server on NetWare 4,x/5.x Due to its architecture and functionality, the print server must work under NetWare 4.x/5.x NDS Bindery Emulation. When you install the NetWare file server for the firsttime, by default, the installation program will automatically set up the Bindery Emulation function for you by adding “SET BINDERY CONTEXT =" in the AUTOEXEC.NCF file. By default, the bindery context will only be set on your organization (O0) object. If you have ever modified this line, or if you have ever added any organization units (OU) to your NDS tree after the NetWare system was installed, please read the following section before you install the print server. For the purpose ofillustration, we assume the NDS tress structure is as follows: [ROOT] (0)ABC (OU)ABC-USA —T— (OU)Sales Admin FileServer-1 L__(OU)Tech

Installation Procedure

1. At your file server console, type “load install”.

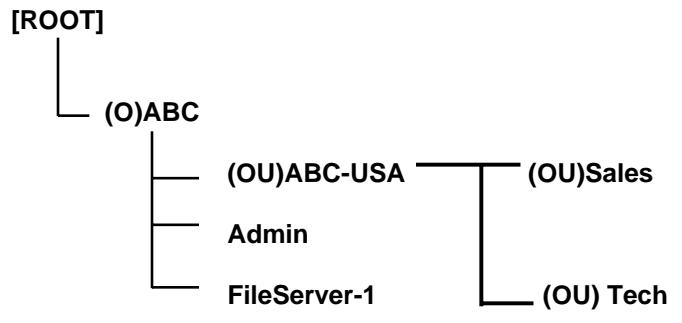

Select “NCF files options”. Select “Edit AUTOEXEC.NCF file”. Add or Modify the “SET BINDERY CONTEXT =" line to include the NDS organization (O) and all organization unit (OU) objects where users are located. For example: SET BINDERY CONTEXT = O=ABC; OU=SALES.OU=ABC-USA.O=ABC; OU=TECH.OU=ABC-USA.O=ABC ;

5. When done, save the new AUTOEXEC.NCF file. Please restart your NetWare file server

in order for new settings to take effect immediately. 8 w N

6. Next, please refer to “Auto Setup” section in this chapter to finish installing your print

7. Log into your NetWare file server as a Supervisor (Admin.) or equivalent via a Bindery

connection. Run NetWare's PCONSOLE and add users to the “Queue Users” list. From your NetWare client computer, such as Windows 95/98/Me, create a printer that is connected (redirected) to the NetWare print queue serviced by the print server. Note: Please refer to NetWare’s Print Server/Services manuals for detailed PCONSOLE commands. SNMP Setup TCP/IP networks use a standard management protocol called Simple Network Management Protocol (SNMP). SNMP is widely used in the industry as a solution for remote network management and monitoring of networking devices. SNMP actually includes a protocol, a database structure specification, and a set of database objects. The database objects are contained in a standard database called Management Information Base (MIB) that is stored on the networking device called SNMP agent. The print servers SNMP implementation runs in a TCP/IP environment. A host on the network running Network Management System (NMS) software can access the print server device by reading and writing the MIB objects stored in the device. The Network Management Systems are available from many third-party vendors, such as Hewlett-P ackard's OpenView. When accessing (traversing) MIB objects in the print server using NMS software called SNMP manager, you need to provide a community name in each SNMP request for authentication purpose. The print server supports up to two community names. The default community name is public (case-sensitive), with Read Only access right in default.

When an unusual condition or activity occurs, the SNMP agent alerts the SNMP manager through SNMP traps. Following listsummaries SNMP trap messages thatthe print server will send out. Activities/SNMP Trap Messages Description Link Up or Link Down When the network interface on the print server fails, a link down trap message is generated; if the network interface comes back to life, a link up trap message is sent. Cold Start or Warm Start When the print server restarts, the cold start or warm start trap message is generated. Authentication Failure When the print server received a SNMP request with a community name that does not match the community name the print server is configured with (stored in the print server's memory), an authentication failure trap message is generated. In the print server's SNMP implementation, the following MIB objects are available for updating. MIB Object Names Description system.sysContact Indicates the network administrator's name. system.sysName Indicates the print server's name for identification. system.sysLocation Indicates the location of the print server. snmp.snmpEnableAuthenTraps Enables or disables the function of sending SNMP Authentication Failure trap message to the network administrator, if the community name within a SNMP request is not correct. Users can set up print server's SNMP functions by using their browsers. 1.Click Setup, it then appears the sub-menu. 2.Click SNMP, it then as shown in the following picture.

$ This setup page allows you to configure SNMP settings of the print server. Support HP WebletAdmin : |Disable “| SNMP Community Name 1 : Jpublie Privilege : [Resd-Onty | SNMP Community Name 2 : Jpublie Privilege : [Resd-Onty x] SNMP Trap Settings Send SNMP Traps: |Disable » Use Authentication Traps : [Disable +] Send Traps to IP Address 1: [000.0 Send Traps to IP Address 2: [000.0 AVI Star. SNMP Community: The print server supports up to two community names. The default community name is public (case-sensitive), with Read Only access right in default. Support HP Web] etAdmin: This option allows user determine to disable/enable the Support HP Web] etAdmin. SNMP Traps: Enable the function of sending SNMP Authentication Failure trap message to the network administrator, if the community name within a SNMP request is not correct. AppleTalk Setup The print server can print jobs submitted from Macintosh workstations connected to an Ethernet using AppleTalk protocol. The basic configuration is for the print server in an AppleTalk environment is performed simply by opening the Chooser window and selecting a printer that is connected to the print server. 1.Click Setup, it appears the sub-menu. 2.Click AppleTalk, it as shown in the following picture.

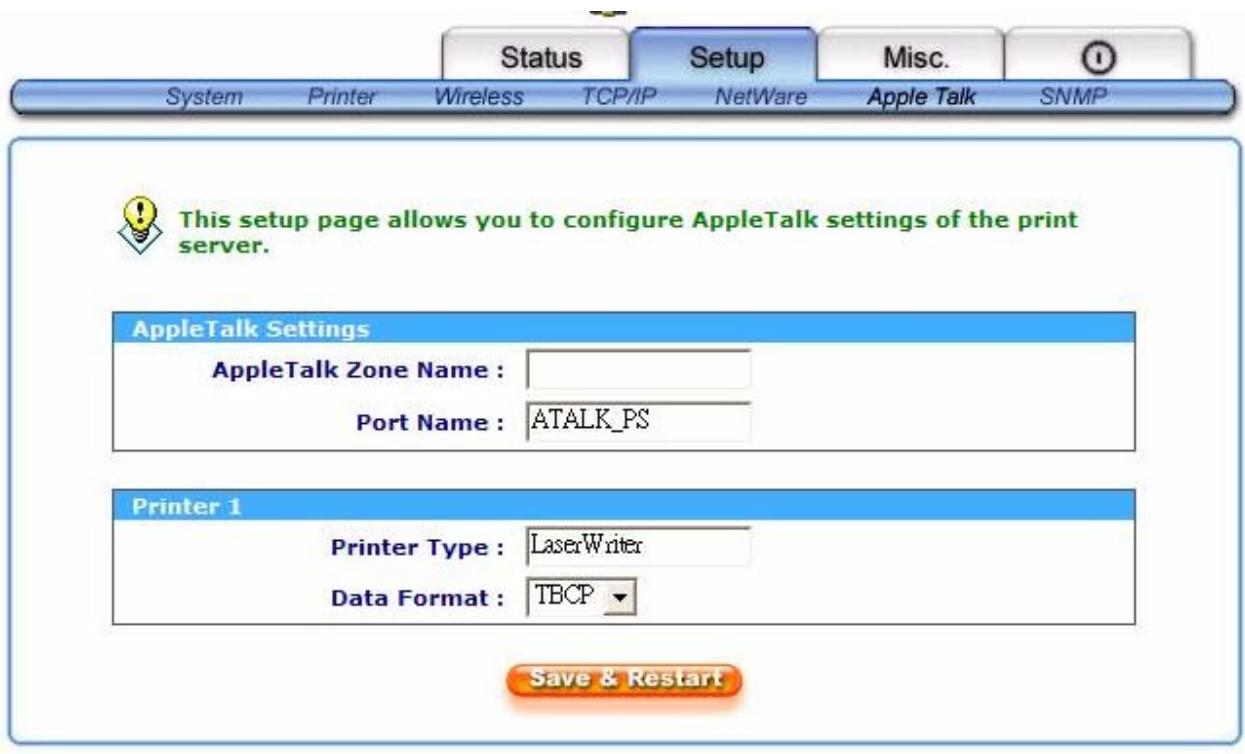

$ This setup page allows you to configure AppleTalk settings of the print server. AppleTalk Zone Name : Port Name: |ÂTALK_PS Printer Type : Data Format : 3.Zone Name: In this option, type an AppleTalk Zone name that you want the print server to belong to or leave it in default (This enables the print server automatically search and link itself to the default zone that is set on the AppleTalk router, if found). We also assume that at least an AppleTalk Zone exists on the network. If no any zone exists, the print server itself displays the zone name as an asterisk (*) in the current AppleTalk Status of the print server in the web browser. 4.Port Name: In this option, type a name for identification purpose or just leave it in default (recommended). Note: The default print server's Chooser name is as shown as follows: <ATALK_PS>xxxxxx-1, where xxxxxx represents the last six digits of the device's Node ID. For example: ATALK_PS-40EEED-1. You may also change the <ATALK_PS>to a name you like for identification purpose in this option. The print server will append the last six digits to the name you specify.

5. Printer Type: In this option, the LaserWriter of printer type by default

(recommended). 6.Data Format: In this option, data format includes ASCII, TBCP and BCP. Setting Up a Macintosh Computer

1. Ata Macintosh computer, from the Apple menu, select Chooser.

2. The Chooser window then displays an Apple Zone list. Select the Zone name that you

Note: |f you select a Zone thatthe PRINT SERVER doesn'tbelong to, as you specified in the previous section, no print server will be displayed in the Step 4.

3. If you are using a PostScript printer you can select the LaserWriter 8 icon.

4. The Chooser window then displays PRINT SERVER (s) featuring the support for

AppleTalk protocol, along with its default Chooser Name in the right-hand Select A PostScript Printer dialog box. Note: 1.You may change the default Chooser name and Zone name of a PRINT SERVER by using your web browser before proceeding with this installation. Please see the previous section in this chapter for details.

2. If you use Mac OS 8.x or 9.x, please make sure your printer support PostScript.

5. Click Setup. button and choose the PPD file matching your printer, and click OK. If

your printer does not appear in the PPD file list, please contact your printer vendor. You may also use the Generic PPD if you do not need any printer specific features.

6. Close the Chooser Windows.

Preparation The print server supports TCP/IP, IPX/SPX and NetBEUI protocols under Windows 95/98/Me. Please make sure that the following steps have been completed before proceeding with installation under Windows PC. Select À Desired Protocol D The TCP/IP Protocol must be installed. For further information, please read “TCP/IP Protocol Installation” section in this chapter. Note: lf TCP/IP protocol is chosen, please refer to “Assigning an IP Address to the print server” section later in this chapter. The IPX/SPX-compatible Protocol must be installed. For further information, please read “IPX/SPX-compatible Protocol Installation” section in this chapter. The NetBEUI protocol must be installed. For further information, please read “NetBEUI Protocol Installation” section in this chapter.

TCP/IP Protocol Installation Click Start, point to Settings and select Control Panel. Double click the Network icon. Ifthe TCP/IP Protocol is not already installed, click Add. Select Protocol and click Add. Select Microsoft from the Manufacturers list. Select TCP/IP Protocol from the Network Protocols list. Specify an IP address, Subnet Mask, and Gateway address or specific “Obtain IP address automatically”, if a DHCP server is available on the LAN. Restart the computer. Done. Note: Using TCP/IP protocol to access the print server requires well-configured TCP/IP settings. If you are not familiar with these settings, please consult your network administrator for details or ask for help. IPX/SPX-compatible Protocol Installation

Click Start, point to Settings, and select Control Panel. Double click the Network icon. If the IPX/SPX-compatible Protocol is not already installed, click Add. Select Protocol and click Add. Select Microsoft from the Manufacturers list. Select IPX/SPX-compatible Protocol from the Network Protocols list and follow the instructions on the screen. Restart the computer. Done.

1. Click Start, point to Settings, and select Control Panel.

2. Double click the Network icon.

3. Ifthe NetBEUI is not already installed, click Add.

4. Select Protocol and click Add.

5. Select Microsoft from the Manufacturers list.

6. Select NetBEUI from the Network Protocols box and follow the instructions on the

7. Restart your computer for new settings to take effect.

Note: For more detailed information, please refer to your Microsoft Windows 9X/ME/NT/2000/XP/2003 manuals. Windows 95/98/Me/NT/2000/XP/2003 manual Installation Procedure Please perform the steps as follows to ensure a smooth installation:

1. Run Setup from the print server's NetWare, Win 95/98/Me/NT/2000/XP/2003 Setup

diskette The Network Print Monitor for Windows 95/98/Me Setup will then appear. Click Next. À message reading, “Setup is complete. You may add the Network Print Port by using the PSAdmin” will appear. Click OK.

4. Click Start, point to Settings, and select Printers.

5. Double-click the Add Printer icon.

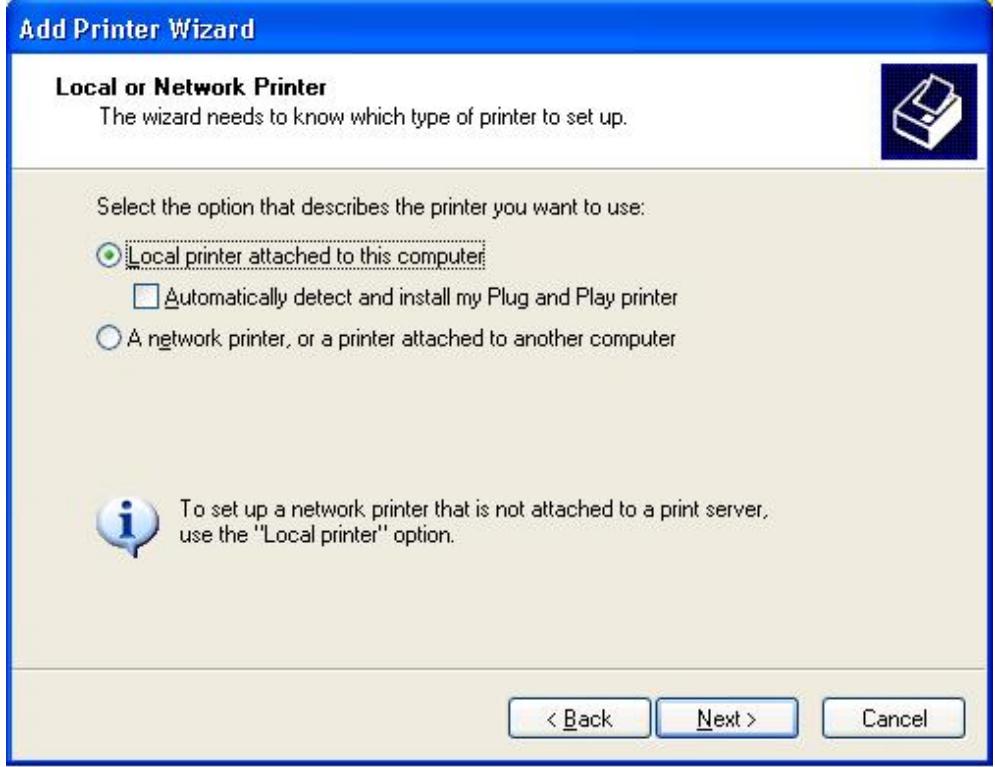

6. Select Local Printer and click Next.

7. Selectthe appropriate printer manufacturer and printer type and click Next.

8. Select LPTI and click Next.

9. Type in the Printer Name and click Next.

A message reading, “After your printer is installed, Windows can print a test page so you can confirm that the printer is set up properly.” Select No and click Finish. Double-click the newly created Printer Name icon. Select Printer and Properties. Click Details tab and select Add Port. In the Add Port dialog box, select Other, as shown in the following picture. Select the Network Print Port and click OK. The Add Port box will then appear, along with the print server's Node ID (The last 6 digits ofthe Node ID, located on the back of the print server unit). Select one printer server port from the list, which is now connected to (one of) your printer(s), as shown in the following picture. Add Port SJ 1P_Printserv43D452 004001430452 | 3P_Printserv43FF9a 00400143FF94 3P_PrintServ43FF9A 00400143FF94 | Ÿ 3P_Printserv43FF9A 00400143FF94 LY 1P_PrintServ430FDE 004001430FDE h

By default, the computer will first search for the print server(s) on the network by using the IPX/SPX protocol. Ifthe IPX/SPX protocol is installed, the print server will be displayed along with its Node ID, as shown in Node column. (The last 6 digits ofthe Node ID, located on the back ofthe print server unit). Select one of the print server's ports from the list. Ifthe IPX/SPX protocol is not installed, no print server will be shown in the display box. Then please select TCP/IP or NetBEUI alternatively. It starts again to search for the print server on the network by using the protocol you specify in the step above. When finished, the print server will be displayed along with the its Node ID, as shown in the following picture. (The last 6 digits ofthe Node ID, located on the back of the print server unit). Select one of the print server’s ports from the list. Uninstalling Network Print Port on Windows 95/98/Me/NT/2000/XP/2003 To provide users an easiest way to remove all of the Network Print Port components from Windows 95/98/Me, the Network Print Port software comes with un-installation wizard program to help users remove the software components from their Windows 95/98/Me/NT/2000/XP/2003 systems in minutes. Please follow the directions listed below to proceed with the un-installation procedure. After the Network Print Port is removed, the print server is no longer accessible via the Network Print Port. You have to re-install the Network Print Port on your system in order to access the print server again. Procedure: pus y nn Click Start, point to Settings, and select Control Panel. Double click the Add/Remove Programs icon. Click Add/Remove tab. Select Network Print Monitor for Windows 95/98/Me and click Add/Remove button. The un-installation wizard program will be launched. Follow the directions on the screen to complete the un-installation procedure. Note: We recommend you restart your computer after un-installation is finished.

Basic TCP/IP Installation Overview When installing your print server in a TCP/IP environment, IP addresses are essential as a basic means of communications. It is therefore necessary to first assign an IP address to your print server unit. After assigning an IP address, the print server can be configured accordingly. Assigning an IP Address The first step to install a print server on a TCP/IP network is to assign the print server an IP address and other related TCP/IP settings before the print server can function. You can select the following two methods to specify an IP address the print server. Each method will be detailed in the following section.

1. Use the Network Print Monitor utility.

2. Manually specify (using DOS commands or UNIX text-mode commands. This

applies to Windows NT/2000/XP/2003 and UNIX systems). Note: The Network Print Monitor can only search for the print server(s) over the same network segment the Windows NT/2000/XP/2003/UNIX computer is located. You would like to install a print server on a different network segment. DHCP The print server supports DHCP feature, allowing the print server to obtain an IP address and related TCP/IP settings automatically from a DHCP server. While the print server supports DHCP, we strongly recommend you manually specify a fixed IP address to the print server. By default, the print server's DHCP function is enabled. Windows NT LPR Port Printing Installation

1. Click Start, point to Settings, and select Printer.

3. The Add Printer Wizard screen will appear, Select My Computer and click Next.

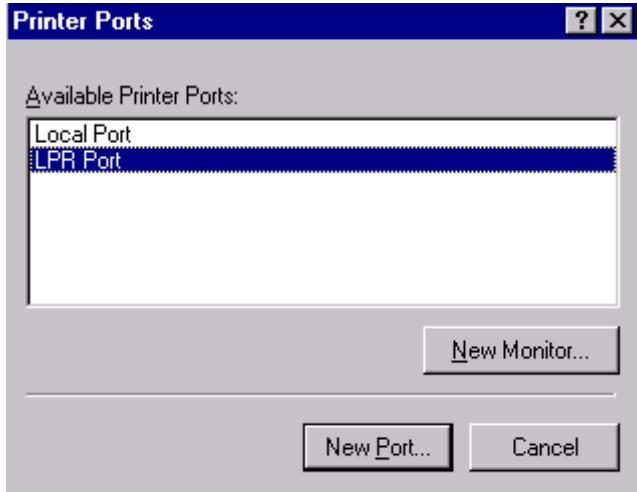

5. From the Printer Ports box as shown in the following picture, select the LPR Port.

Printer Ports HE Available Printer Ports: Local Port New Monitor... | New Poit... Cancel |

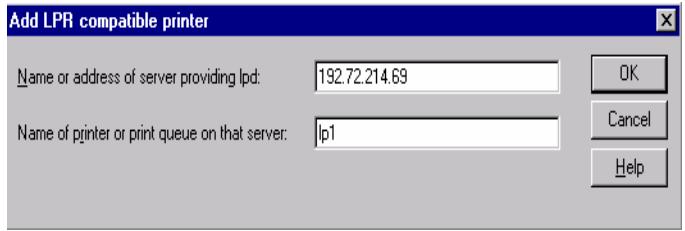

6. The Add LPR compatible printers box will then appear as shown in the following picture.

Type in the IP address assigned to the print server in the Name or address of server providing lpd box.

JAdd LPR conpatble printer ane oraddess olsenverprotmepé | FE2722488 Ame of pin or pint aueusontatsever [Et LG | Hep In the Name of printer or print queue on that server box, type in a printer name, for example, lp1. Click OK. In the Printer Ports box, select Close. Click Next. . Select the appropriate printer manufacturer and printer type list and click Next. . Select Shared. Type in a new Share Name or leave it in default and click Next. . À message reading, “After your printer is installed, Windows can print a test page so you can confirm that the printer is set up properly.”, Select Yes (Recommended) and click Finish. Done. Windows 2000/XP/2003 Standard TCP/IP Port Printing Installation

click Start, point to Settings, and select Printer. Run Add Printer, Click Next. The Add Printer Wizard screen will appear, Select Local Printer and click Next. From the type of Create a new port box as shown in the following picture, select the Standard TCP/IP Port, Click Next and Next.

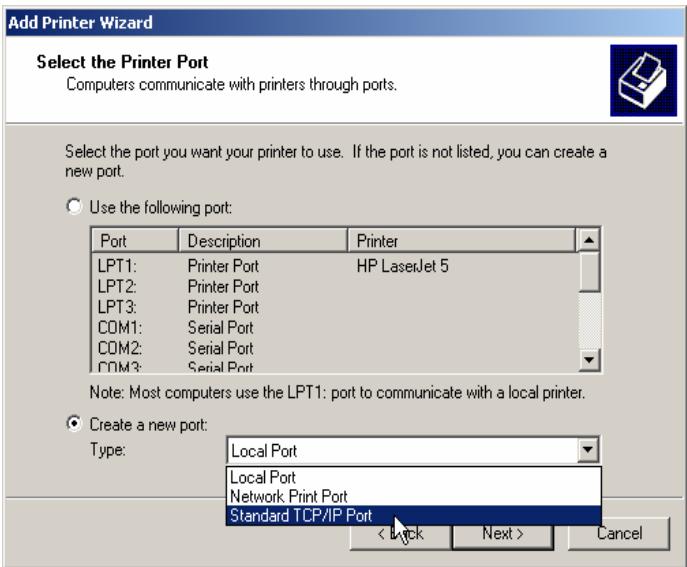

Jadd Printer Wizard Select the Printer Port Computers communicate wilh priers through ports.

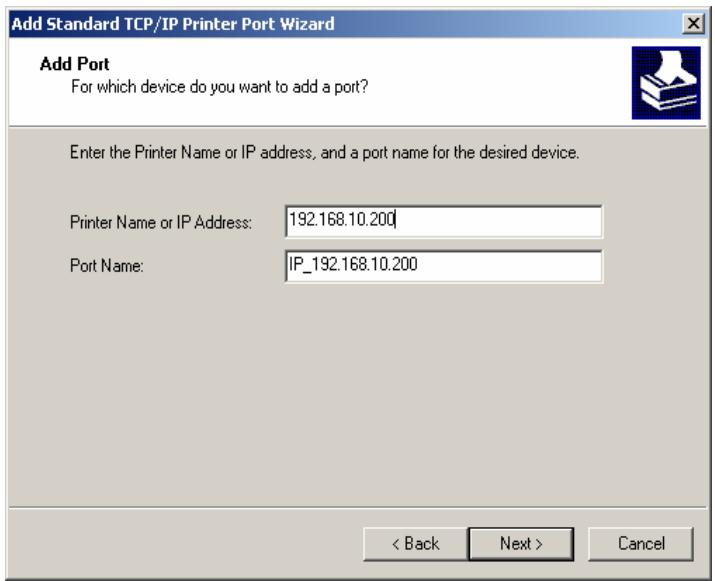

5. The Add Standard TCP/IP Printer Port Wizard box will then appear as shown the picture

as below, and type in the IP address assigned to the print server in the Printer Name or IP Address box, Click Next. Add Standard TCP/IP Printer Port Wizard Add Port For which device do you want to add a pot? f192.168:10.200 [P_182.168.10.200

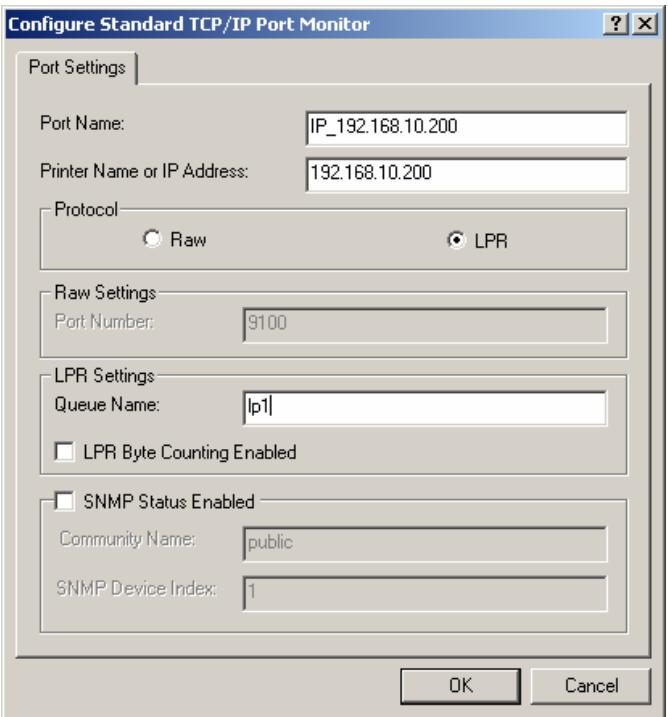

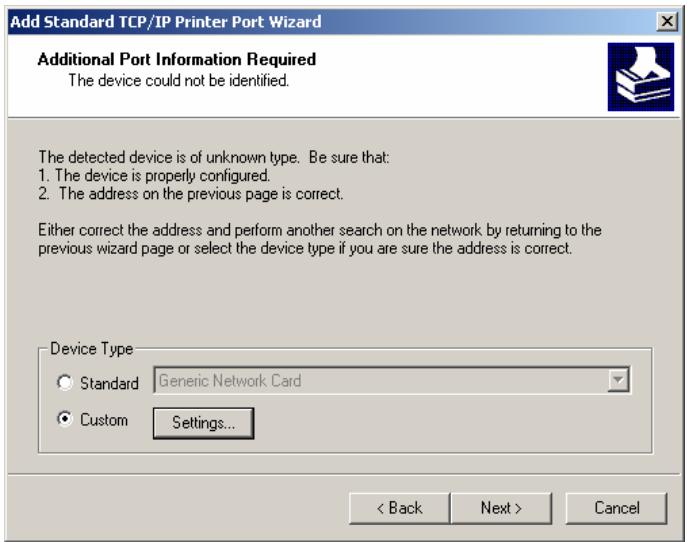

6. Inthe Add Standard TCP/IP Printer Port Wizard box as shown in the following picture,

Select Custom, Click Settings button, and click Next.

TCP/IP Printer Port Wizard Additional Pot Information Required The device could not be identified.

7. Inthe Configure Standard TCP/IP Port Monitor box as shown in the following picture,

select LPR form Protocol, type in a queue name, for example, Ip1.

8. Click OK, and Next.

10. Select the appropriate printer manufacturer and printer type list and click Next.

11. Type in a new Printer name or leave it in default, and click Next button.

12. À message reading, ‘To confirm that the printer is installed properly, you can print a test

page”. Select Yes (Recommended) and click Finish.

UNIX Installation After the static IP address is assigned, the Print Server is ready to be configured. For some UNIX/Linux systems, we include the detailed installation procedures below. If you can't find the installation procedure corresponding to your UNIX system, please refer to your UNIX manuals for details about configuring your UNIX for the “remote printing system”. SCO UNIX 8.0.0 (Caldera Open Unix 8.0.0)

4. Name: Input a name you like. For example: Test.

Protocol Type: Choose “pd (BSD). Make/Model: Select the printer model. For example: EPSON LQ570. Printer Connection Type: Choose “On Remote Server”. Remote System: Inputthe IP address ofthe printer server. For example: 192.168.1.250. Remote Printer: Ip1 or Ip2 or Ip3. (fixed) Ifthe printer connected to the first print server port, please choose Ip1. Ifthe printer connected to the second print server port, please choose Ip2. Ifthe printer connected to the third print server port, please choose Ip3.

1. For example: the print server has a static IP address: 192.168.1.100

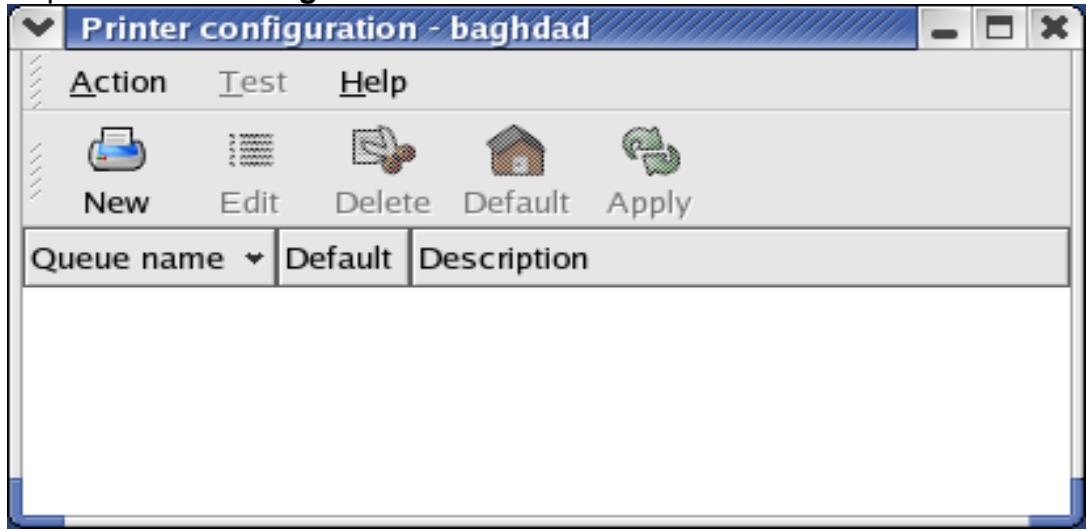

Redhat Linux 9 The Print Server can work under any Linux-based systems, including Slackware, RedHat, etc, without any problems. Basically, the Linux's printing system is based on BSD system. Although many commercial Linux systems are available in the market and their commands will vary slightly, depending upon which version is used, the functionality of the Linux-based variants is exactly the same. Following are the outlined procedures (recommended for all users) on Red Hat Linux 7.2/7.3 or later with X-Window system installed. a. Make sure that the TCP/IP is well configured on your RedHat system, including network interface card's driver and IP-related settings say, IP address, subnet mask, and gateway IP). b. Login root. c. Assign Print Server an IP address. At shell mode: c.1. arp -s <the IP address you want to assign to the Print Server> < Print Server ‘s Node ID> c.2. Execute tftp < Print Server 's IP > get config.txt and quit tftp. c.3. Edit the config.txt and modify the IP address, subnet mask, and gateway IP. When done, save the config.txt. c.4. Execute tftp <P rint Server ‘s IP > put config.txt and quit tftp. d. Start X-windows by typing startx at the shell mode. e. Open Printer Configuration. Ld Printer. configurations baghdad Action Iest Help S = © Àà © New Edit Delete Default Apply Queue name + |Default | Description L = f. Click New button.

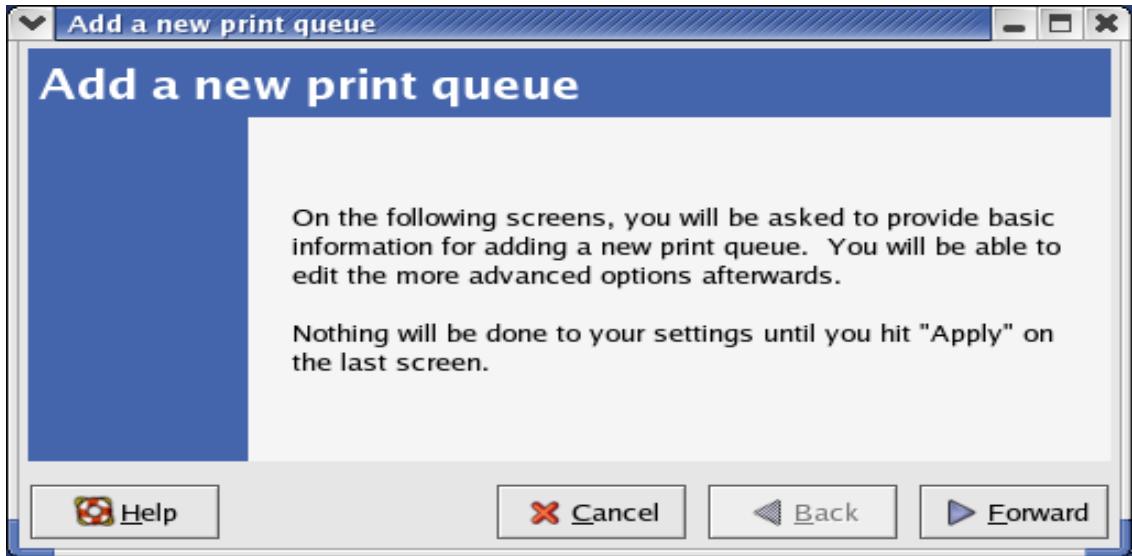

BB Help Add a new print que Add a new p On the following screens, you will be asked to provide basic information for adding a new print queue. You will be able to edit the more advanced options afterwards. Nothing will be done to your settings until you hit "Apply" on the last screen. 3% Cancel 4 Back

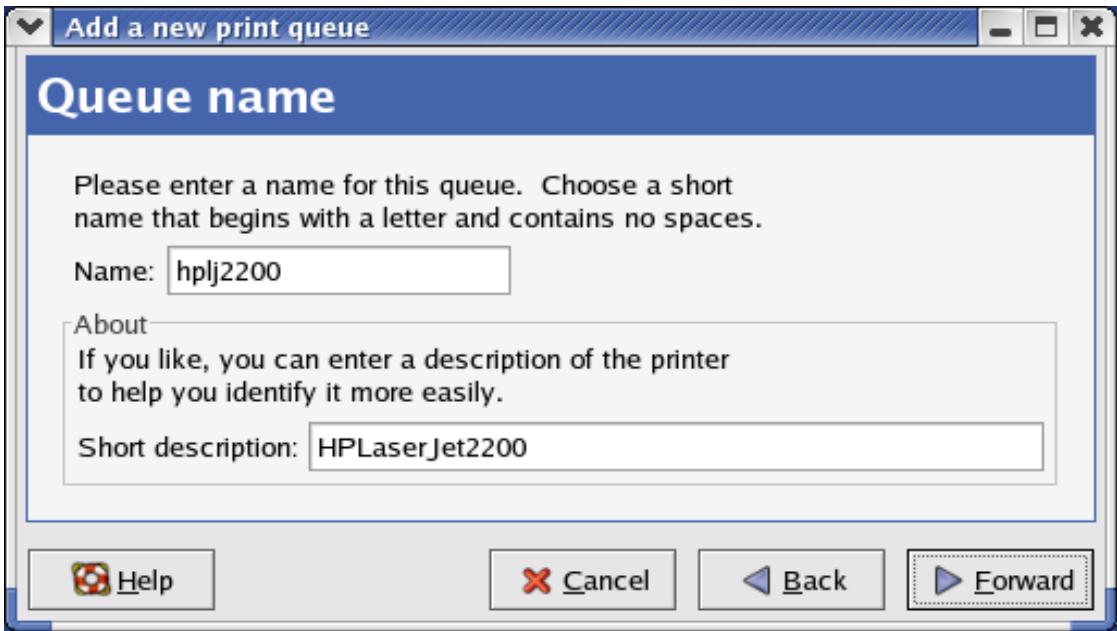

Add,anew.print queu ueue name Please enter a name for this queue. Choose a short name that begins with a letter and contains no spaces. g. Click Forward button. Name: hplj2200 About If you like, you can enter a description of the printer to help you identify it more easily. Short description: | HPLaser Jet2200 Help

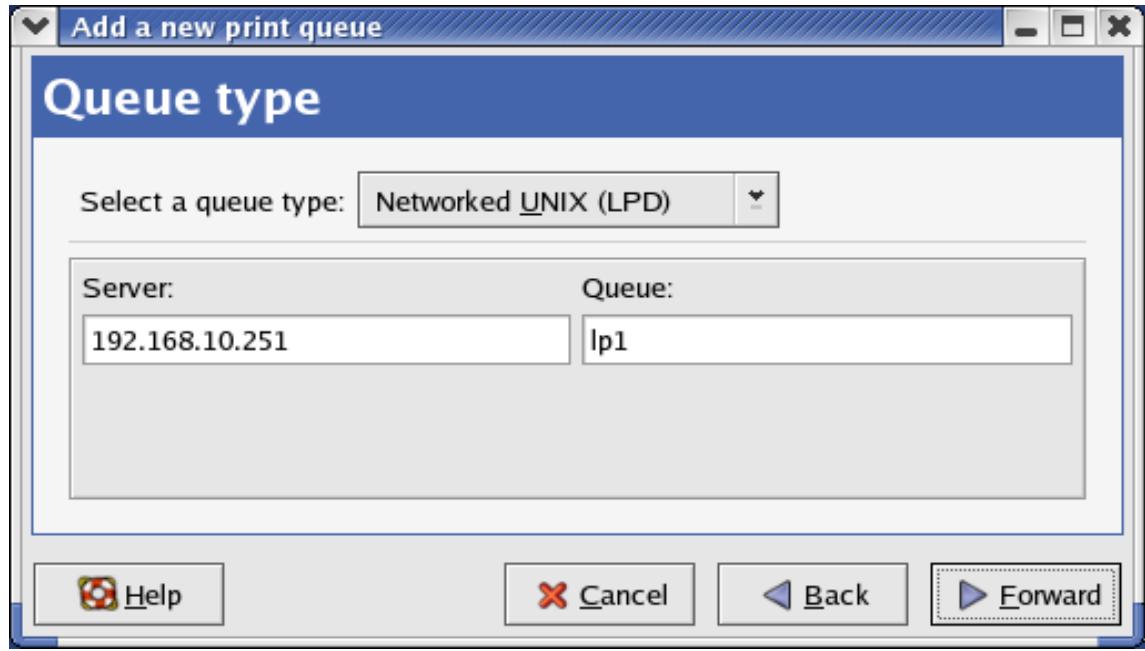

i. In the Queue Type field, choose Networked UNIX.

j. In the Server field, type the IP address of print server k._In the Queue field, type a print server's port name, which connect to the printer. For example: Ip1.

1. Click Forward button.

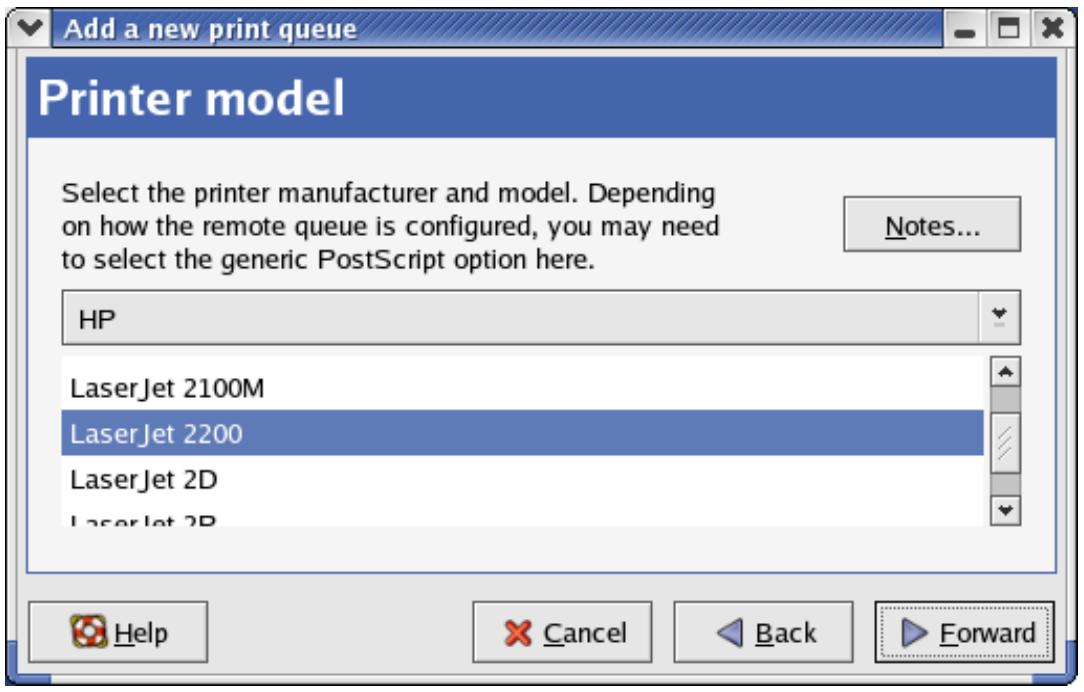

m. In the Printer field, choose Postscript Printer. 62 Add a new print queue MCE Printer model Select the printer manufacturer and model. Depending on how the remote queue is configured, you may need Notes. to select the generic PostScript option here. HP + LaserJet 2100M LaserJet 2D Pacarlat 20 LL Help % Cancel | | < Back

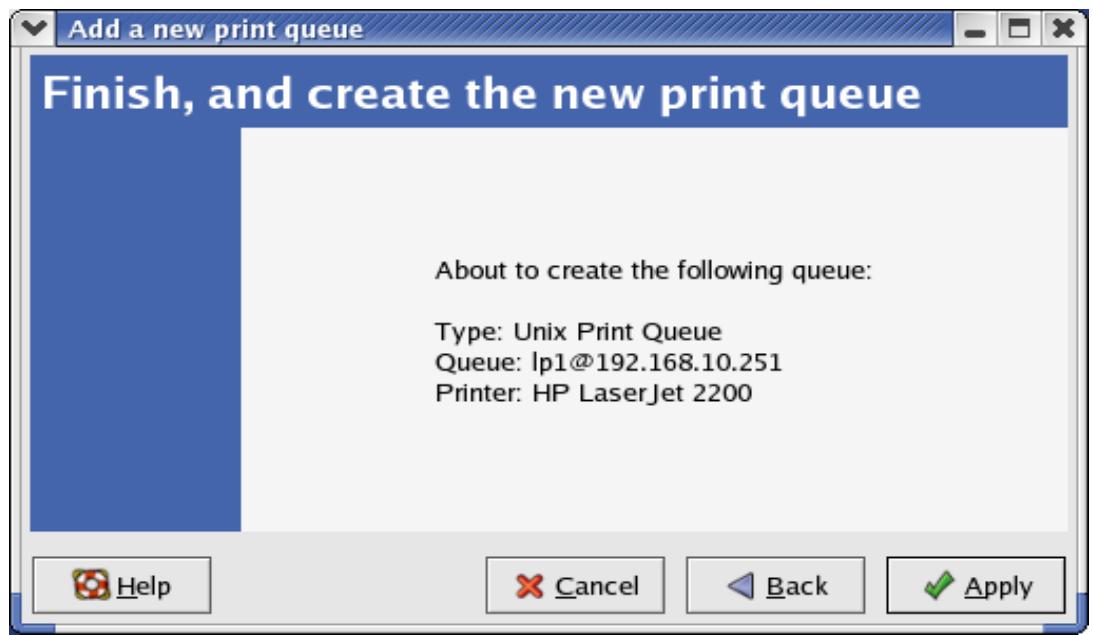

8.Upgrading Print Server Overview Upgrading print server will allow you to upgrade its firmware inside the print server while the newer software version of the print server is available from your local dealer. Depending on the different systems users might use, this chapter is divided into several Sections; please refer to the following lists for your systems. Upgrading the print server from PSAdmin Upgrading the print server from Windows NT/2000/XP/2003 Upgrading the print server from UNIX system BwuNE Upgrading the print server from WEB browser Note: 1.Before you proceed to upgrade the print server, please ensure that the necessary binary file is located on your current working directory. 2.Before upgrading the print server, ensure that it is not printing jobs. You have to wait until the print job is finished before you can proceed. 3.Be careful not to interrupt the file transfer. If the transfer is interrupted, the print server may have to be re-initialized by your dealer. Upgrading the print server from PSAdmin

1. Loginto your NetWare file server as a Supervisor (Admin.) or equivalent.

2. Ensure binary file is located in the PSAdmin directory.

3. Run PSAdmin from your Windows PC.

4. Click the Upgrade icon on tool bar.

Upgrading the print server from Windows NT/2000/XP/2003 (Through TCP/IP)

1. Ensure binary file is located in your current working directory.

2. AtNT/2000/XP/2003's DOS prompt, and type “tftp -i <print server's IP address> put

3. Wait for the transfer successful message.

Upgrading the print server from UNIX (Through TCP/IP)

2. Ensure binary file is located in your current working directory.

3. Type “tftp <print server'’s IP address >”.

4. Attftp prompt, type “get upgrade”.

5. Change to binary mode.

6. _Attftp prompt, type “put mpsXX.bin”.

7. Wait for the file transfer to complete.

Upgrading the print server from Browser

1. Ensure binary file is located in your current working directory.

2. Enterthe IP address of the print server as the URL.

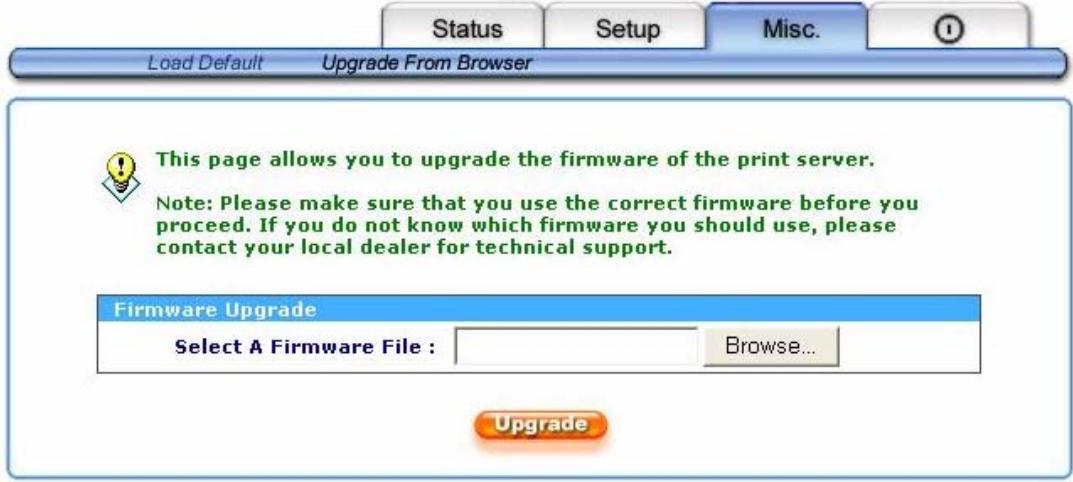

3. Click Misc, and then choose Upgrade From Browser, itthen as shown in the following

picture. Status Setup (0) g This page allows you to upgrade the firmware of the print server. Note: Please make sure that you use the correct firmware before you proceed. If you do not know which firmware you should use, please contact your local dealer for technical support. Select A Firmware File : Browse. parade

General Troubleshooting Overview The most common problems, which cause the print server to perform improperly, are covered in this chapter. Ifa problem still exists after reading this chapter, please contact your dealer for technical support. LED Light Indicators The print server is equipped with LED lights to assist in diagnosing problems that are the result of the network and/or the print server hardware itself. Power (Green) When the print server unit is powered on, the Power LED will flash five times as part of the units Power On Self Test (POST). This indicates that the print server hardware is properly configured. Note: Make sure that the LED flashes five times (POST) upon connecting the power. If the unit does not flash five times, contact your dealer for a replacement or repair. WLAN (Green) Data is being transmitted via the wireless connectivity. USB (Green) Data is being transmitted via the USB port. Power Related Problems The print server requires an external AC power adapter in order for it to function. If you have a power problem, check to see whether the power cord or its connectors are damaged. More importantly, check to see that the AC power adapter included with the print server matches the AC voltage in your country or area. Using an incorrect AC adapter will damage your print server.

Print Port Related Problems Printing data failure may be caused by a loose connection of the print server to the USB port of the printer. Check to see if any of the pins on the USB connector are damaged. In addition, check the cable connection. If the pins are damaged, contact your dealer for a replacement connector. Windows 95/98/Me/NT/2000/XP/2003 Troubleshooting Multi-S egment LAN Environment Installation (through the Network Print Port) If your print server and Windows 95/98/Me/NT/2000/XP/2003 are located on two different segments, and your Windows NT server is used as the router/gateway you will need to implement the following procedures in order for your print server to function properly: ao Add the RIP for NWLink IPX/SPX compatible transport. See RIP for NWLink IPX/SPX compatible transport Installation Procedure later in this section. o Add the frame type 802.2 for both Ethernet adapters. See Multi-Segment Frame Type

802.2 Installation later in this section.

RIP for NWLink IPX/SPX compatible transport Installation Procedure

1. From your Windows NT server that is used as a router, select Start from the bottom left

hand corner of the screen. Select Settings. Select Control Panel. Double-click the Network icon. Select Services. Select Add. In the Select Network Service box, select the RIP for NWLink IPX/SPX compatible transport. Click OK. Follows the directions on the screen. Done. Multi-Segment Frame Type 802.2 Installation

From your Windows NT server that is used as a router, select Start from the bottom left hand corner of the screen. Point to Settings, and select Control Panel. Double-click the Network icon. Select Protocols.Select the NWLink IPX/SPX Compatible Transport. Select Properties. Select your (first) network interface card and select Manual Frame Type Detection. Click Add. In the Frame Type field, select Ethernet 802.2. In the Network Number field, type in an unique 8-digit hexadecimal network number. For example: 12345ABC.

11. Repeat the Steps 8-12 for the other Ethernet adapter.

12. Restart the computer.

Moving the print server to À New Segment If the print server is moved from one network segment to another after the initial installation, through the Network P rint P ort, the print server must be reconfigured on the original Windows NT server or on each Windows 95/98 computer using this print server in order for the print server's driver on each computer to re-establish a new connection. Print Server Reconfiguration Procedure on Windows 95/98/Me

1. Click Start on the bottom left hand corner of the screen.

2. Select Settings and select Printers.

3. Select your printer connected to the print server, and right-click the printer icon. Select

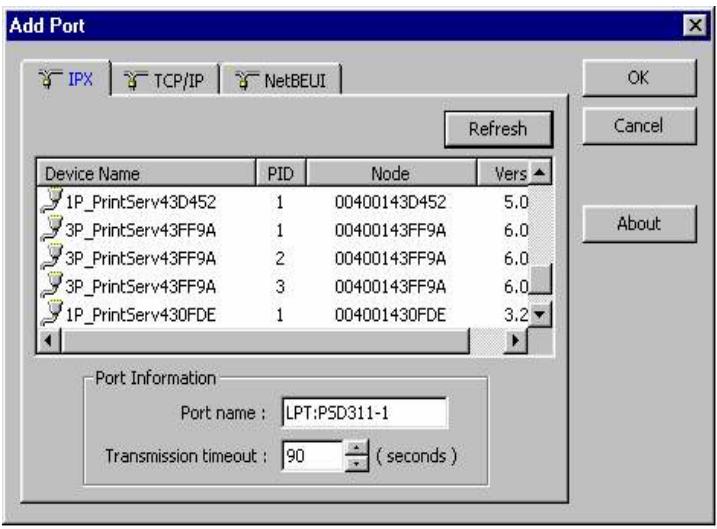

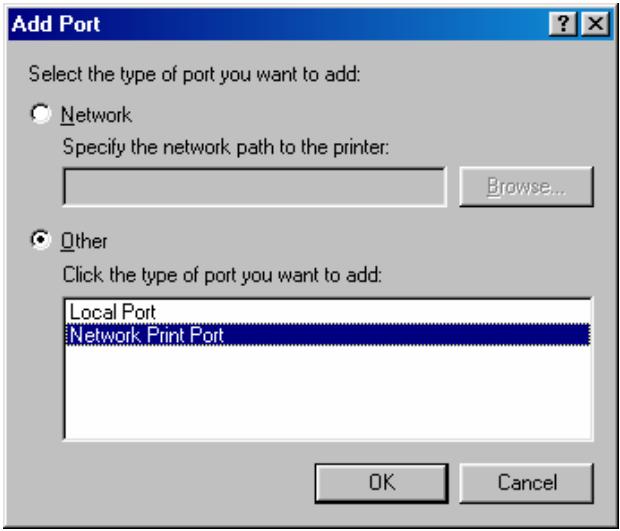

5. Click Port Settings as shown in the picture below. The print server will be displayed on

the next print server's configuration screen. Find your original print server according to its Port Name or other distinguished name and click this print server.

Select Settings and select Printers. Select your printer connected to the print server, and right-click the printer icon. Select Properties. Click Ports tab. Click Configure Port. The print server will be shown on the next screen. Find your original print server according to its Port Name or other distinguished name and click this print server. Click OK and it returns to the printer's Properties page. Click OK.

Moving Your Computer to A New Segment If you are using the print server through the Network Print Port on your NT or Windows 95/98/Me computer and your computer is going to be moved onto another segment, you have to reconfigure the print server on your computer to use your print server. However, this situation is like moving the print server to a new segment. Please refer to the “Moving the print server to a new segment” section for more detailed reconfiguration instructions. Novell NetWare Troubleshooting Many printing problems can be traced back to incorrect or incomplete print server installations. It is always wise to check the installation configurations first. In some cases, if necessary, delete the print server, print queue(s) or other setting(s). Next recreate the necessary parameters or reconfigure the print server by running the PSAdmin. TCP/IP Troubleshooting When you are configuring a new print server on your NT/UNIX server through LPR Port printing under TCP/IP protocol, you might encounter the following problem in your initial installation steps: "I can do the "arp" command. However, when | am going to ping or tftp the print server, it always shows Request timed out. | have checked the print server's power and it exactly passed the POST. Besides, the network cabling is OK. As such, 1 can't do tftp command to get and put the print server's configuration file and save its IP address permanently. | can't, therefore, continue installing the print server." Regarding this problem, there are three possible causes: A. The print server's Node ID you specified in the "arp" command is not correct. If this is the case, please ensure the Node ID field in the corresponding entry of the print server's IP address in NT's ARP cache table is correct by typing the following command at NT's DOS prompt. "arp -a" If the Node ID shown on the screen doesn't match the print server's Node ID, please follow the instructions below to reset the entry.

1. At NT's DOS prompt, type "arp -d <print server's IP address>" to delete the current

3. Refer to Chapter 7 for the detailed instructions to complete the installation.

B. The print server's IP address is duplicated or is as same as another computer's IP address on the network. Ifthis is the case, please consult your network administrator to obtain an unused IP address for your print server. C. The print server is on one segment and your Windows NT server is on the other segment. (This troubleshooting guide will also apply to a multiple-segmented network while installing the print server) For example, assuming the print server is on Segment À, NT server is on Segment B, and there is a gateway computer between Segment A and Segment B. The network might be a complete TCP/IP network, or a hybrid of TCP/IP and IPX/SPX network. If this is the case, you have to adopt the following steps, depending on which platform the gateway computer is. a.lf the gateway computer is a NT/UNIX server: You have to do the same "arp" command to specify an entry on the NT/UNIX computer as a gateway in order for it to forward your subsequent "ping" or/and "tftp" commandés to the print server. b.Ifthe gateway computer is a Novell NetWare file server:

1. Due to the presence of this NetWare file server, the IP X/SP X protocol might be used on

your network. Therefore, we strongly suggest you run the PSAdmin from any client computer and select "Manual Setup" to specify the print server's IP address (For more detailed information about Manual Setup, please refer to Chapter 3). 2.If the solution described above is not applicable, you have to follow the instructions below to set up the print server's IP address. Forthe purpose ofexplanation, we assume the NT server is on Segment A andits IP address is 192.72.214.66 (subnet mask: 255.255.255.224), the print server is going to be installed on SegmentB, with IP address, for example, 192.72.214.100.

1. Find an unused IP address on Segment A for temporary use in the following steps, for

example, 192.72.214.68.

2. Connect your print server to Segment À as a networked node.

3.On your NT server, type, for example, "arp -s 192.72.214.68 00-40-01-3F-02-AB". Please note, in this arp command you have to type 192.72.214.68 on purpose. Do nottype this IP address as 192.72.214.100. 4.Type "tftp 192.722.214.68 get config.txt". The configuration file will then be retrieved and transferred to your NT server.

6.In your editor, modify "BoxIPAddress" field from "O.0.0.0" to "192.72.214.100". Leave other options as default and do not change their values. When done, save this new file and quit from your editor. Please note, in this step you must specify an IP address which is valid on Segment B, such as 192.72.214.100 in this example, rather than

7.Type, for example, "tftp 192.72.214.68 put config.txt" to save this new configuration back to print server.

8. Move the print server back to the Segment B.

Appendix: Diagnostic Mode (Wireless) If you have no the twisted-pair cable to configure print server and have problems to configure it on wireless network. Please refer to the following steps:

1. Change the print server to diagnostic mode by switching the DIP switch to DIAG mode.

Change your wireless adapter to Ad-hoc mode, and the ESSID: WLAN-PS; Channel: 6

3. Run PSAdmin to discover the print server.

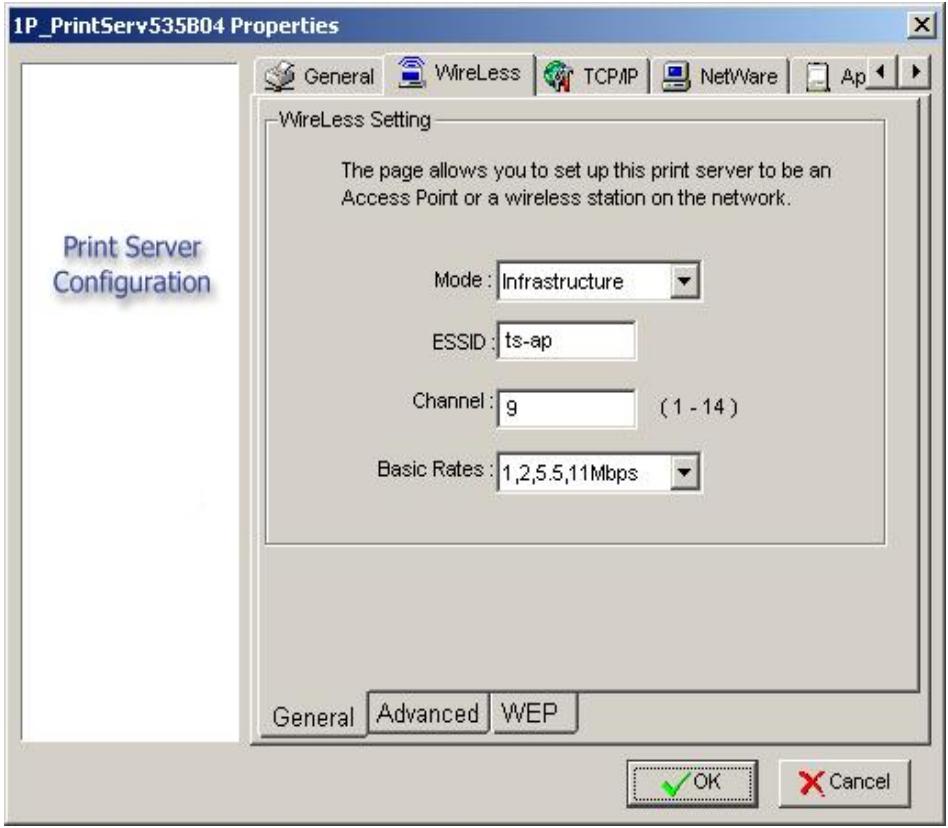

5. Select wireless and inputthe ESSID, Channel, Rates that meet your network

6. Done. The print server will restart.

7. Switch the DIP back to normal mode and change your wireless adapter setting.

Rendezvous with Mac OS X 10.3.7

1. Enable the Rendezvous settings from the print server's WEB configuration.

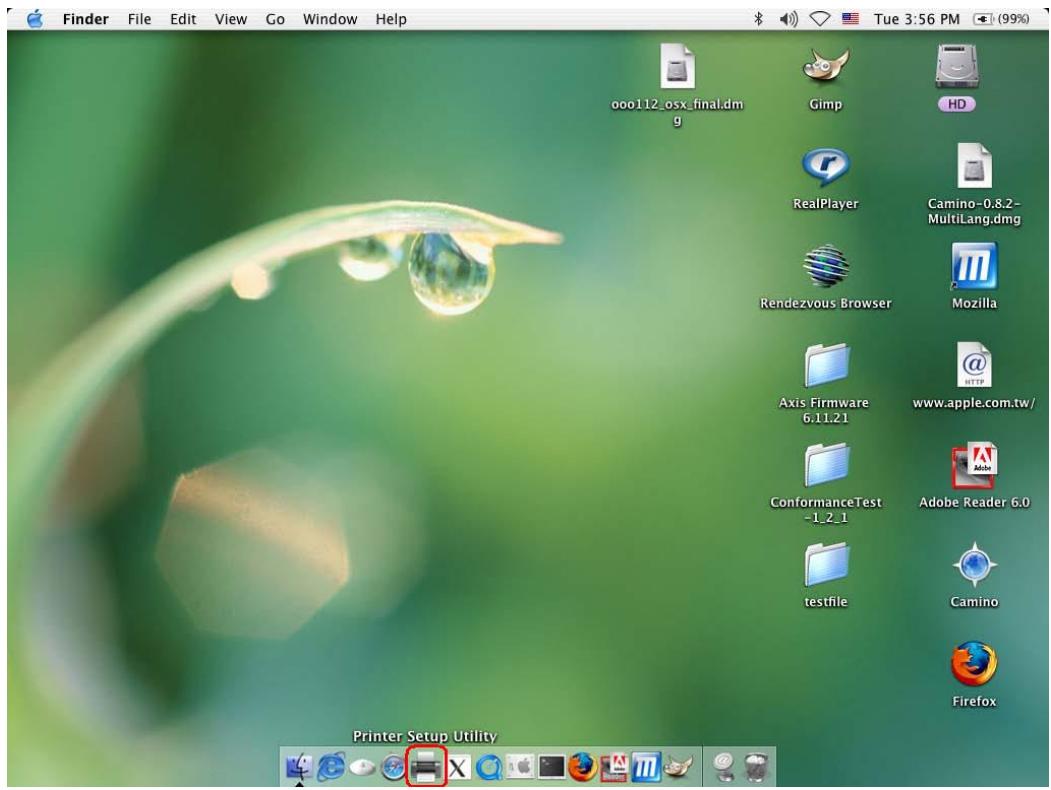

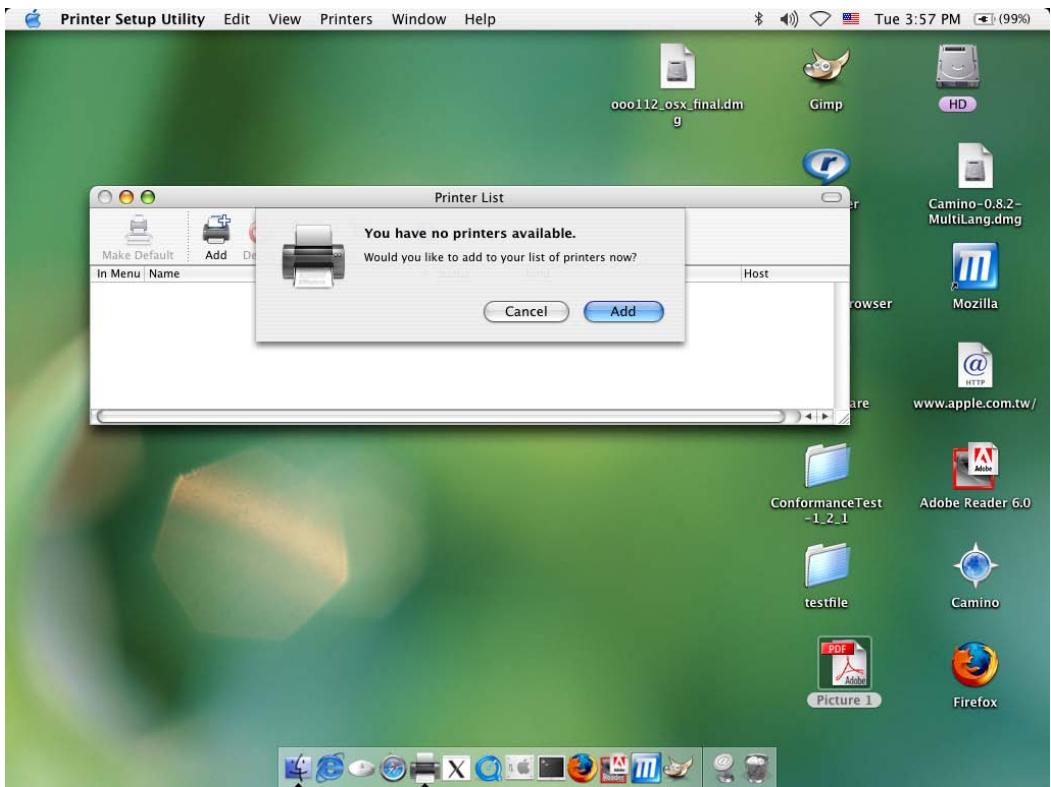

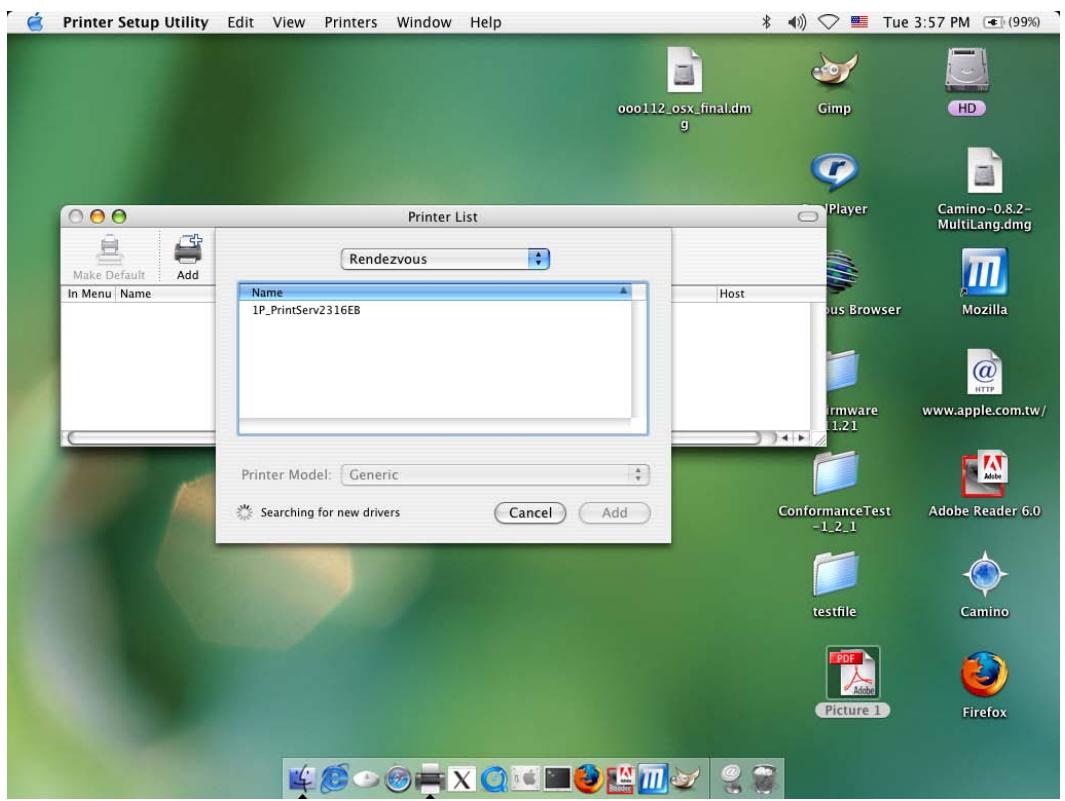

2. Click "Printer Setup Utility” from the bottom toolbox of Mac.

© @ Finder file Edit View Go Window Help à 4) © Æ Tue 56 PM (69%

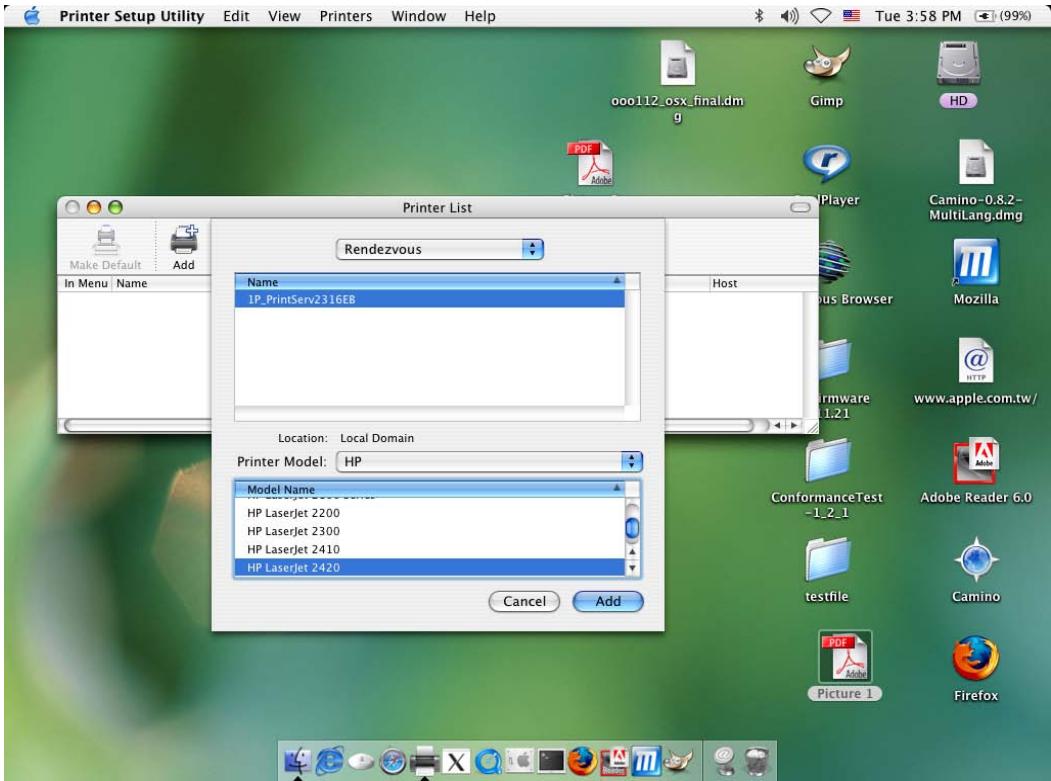

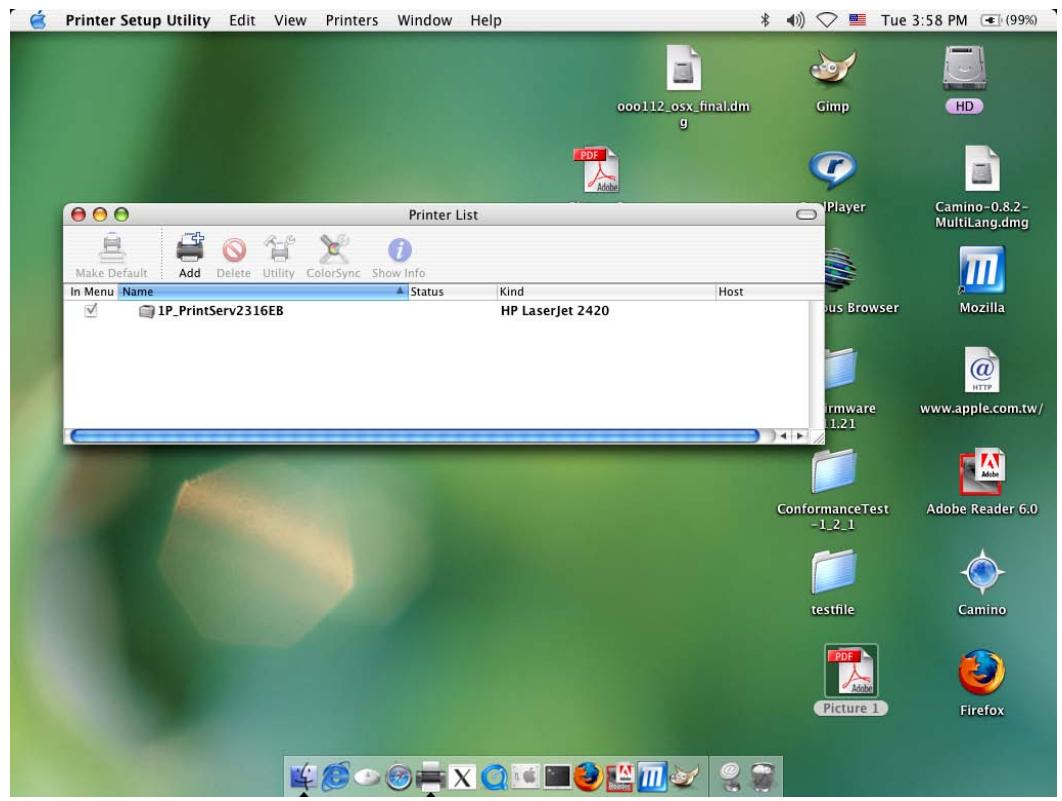

6. Now the network printer with Rendezvous has been successfully installed.

4 4) T Æ Tue3:5SPM (6090 7 é_primer Setup Uulty Edit View Primers _indow Help HP Laseret 2420 SMB Printing with Windows XP

1. Enable the SMB settings from the print servers WEB configuration. Assume your

computers use the “WORKGROUP” as the SMB workgroup name in Windows. Please assign the same SMB name to your print server. If print server uses the different SMB name from computers’, the SMB printing won't active.

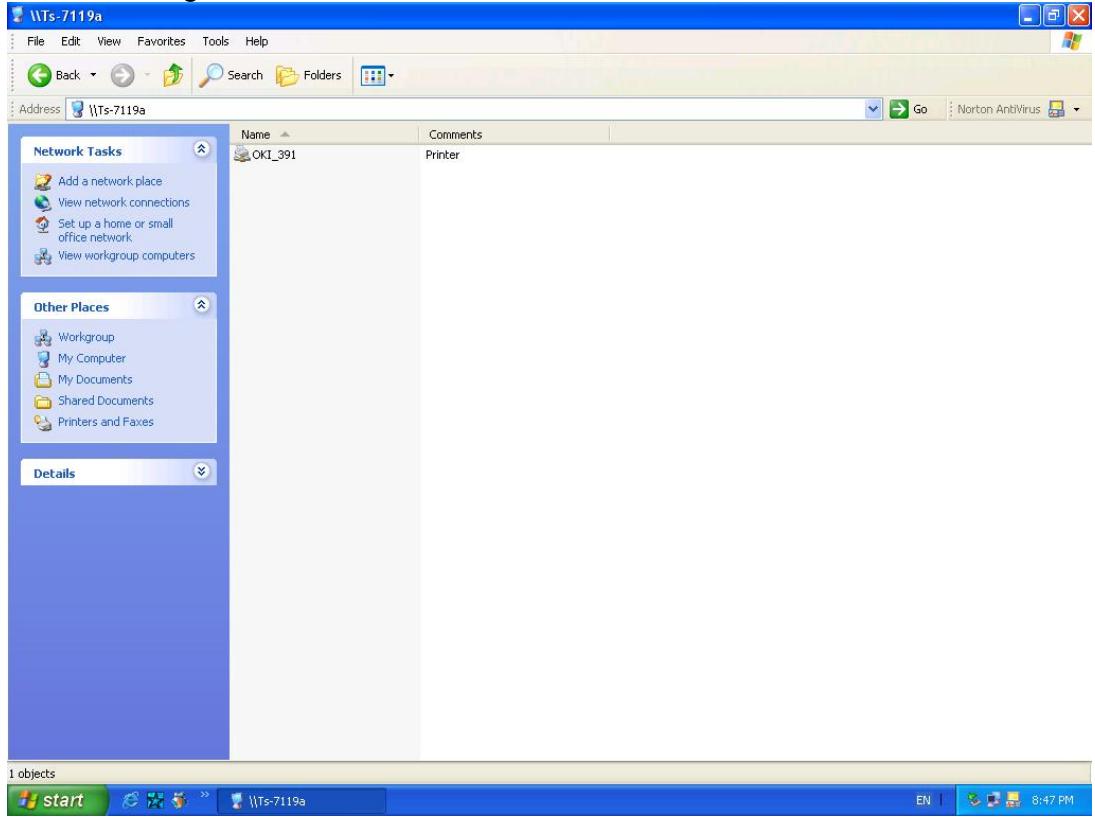

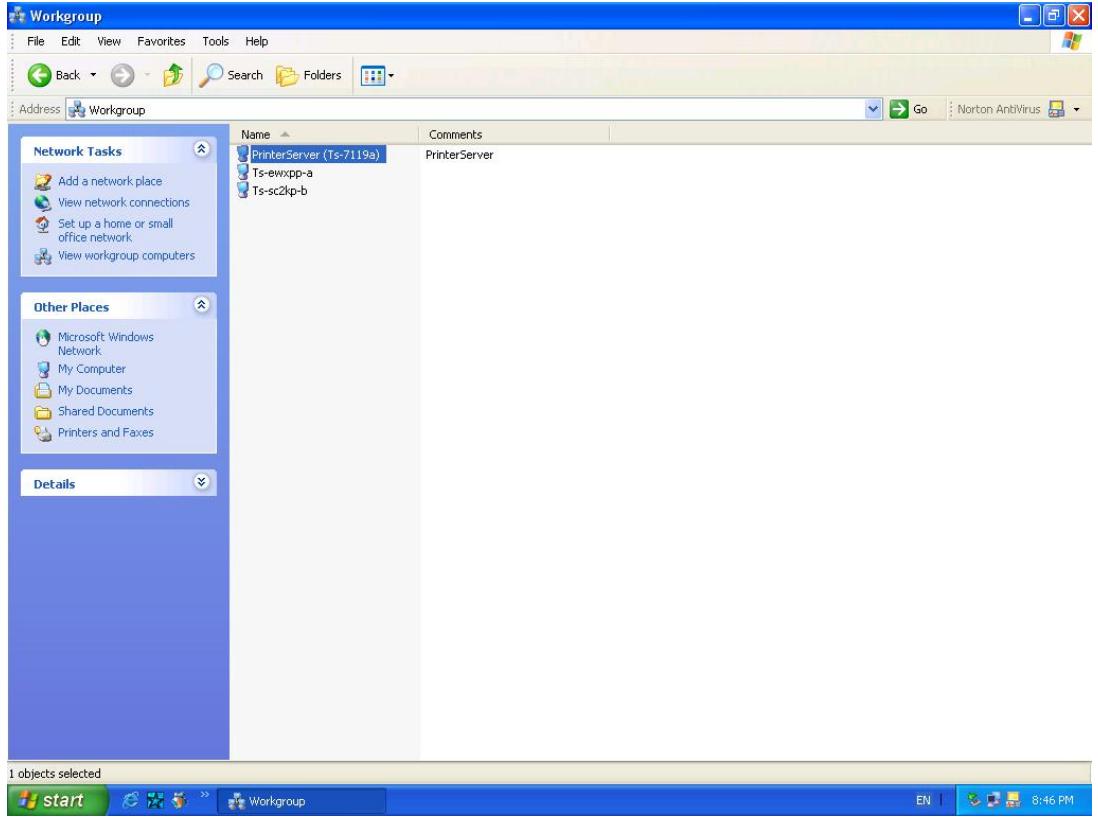

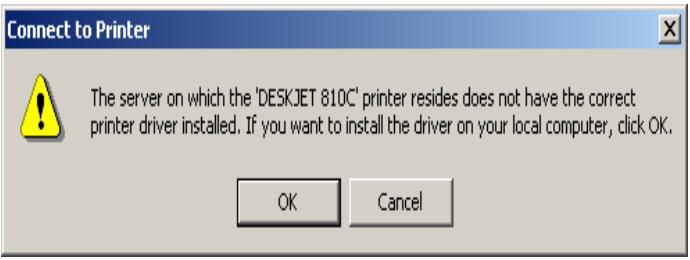

2. Now you can find the print server from the SMB workgroup of Windows. Then, double

4. Now En have to install the printer driver.

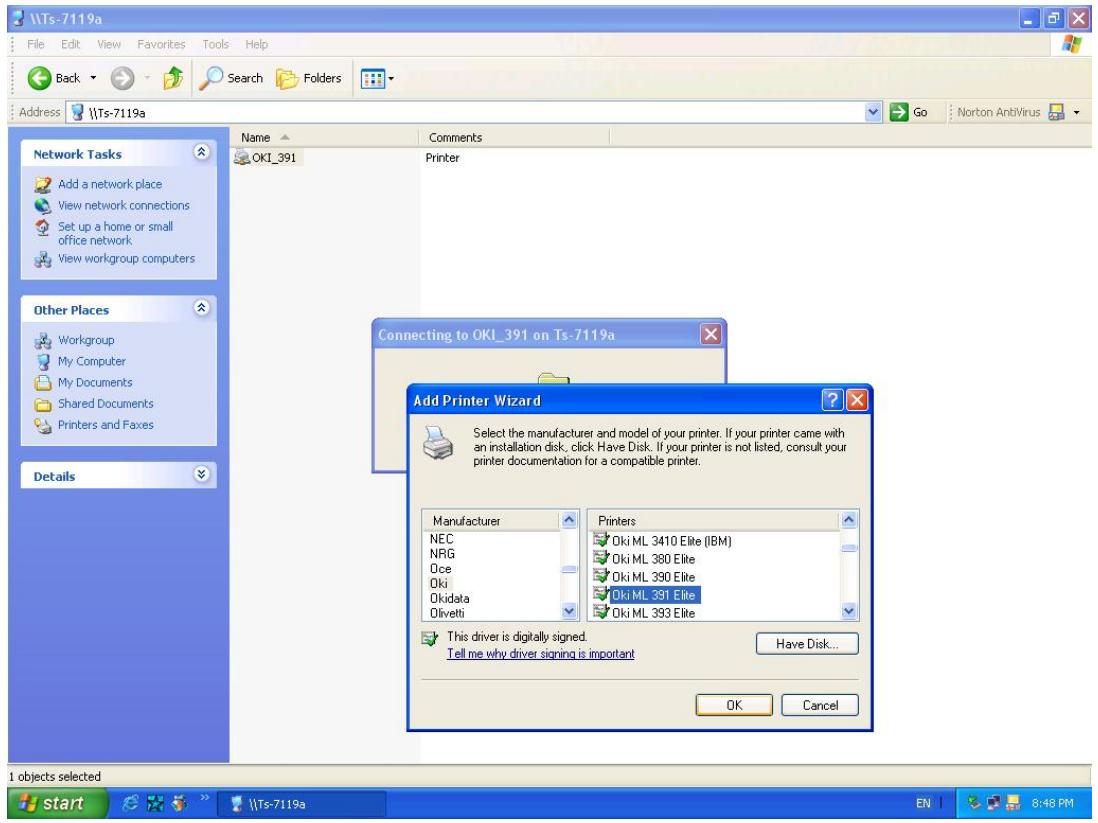

5. Choose it from the “Add Printer Wizard

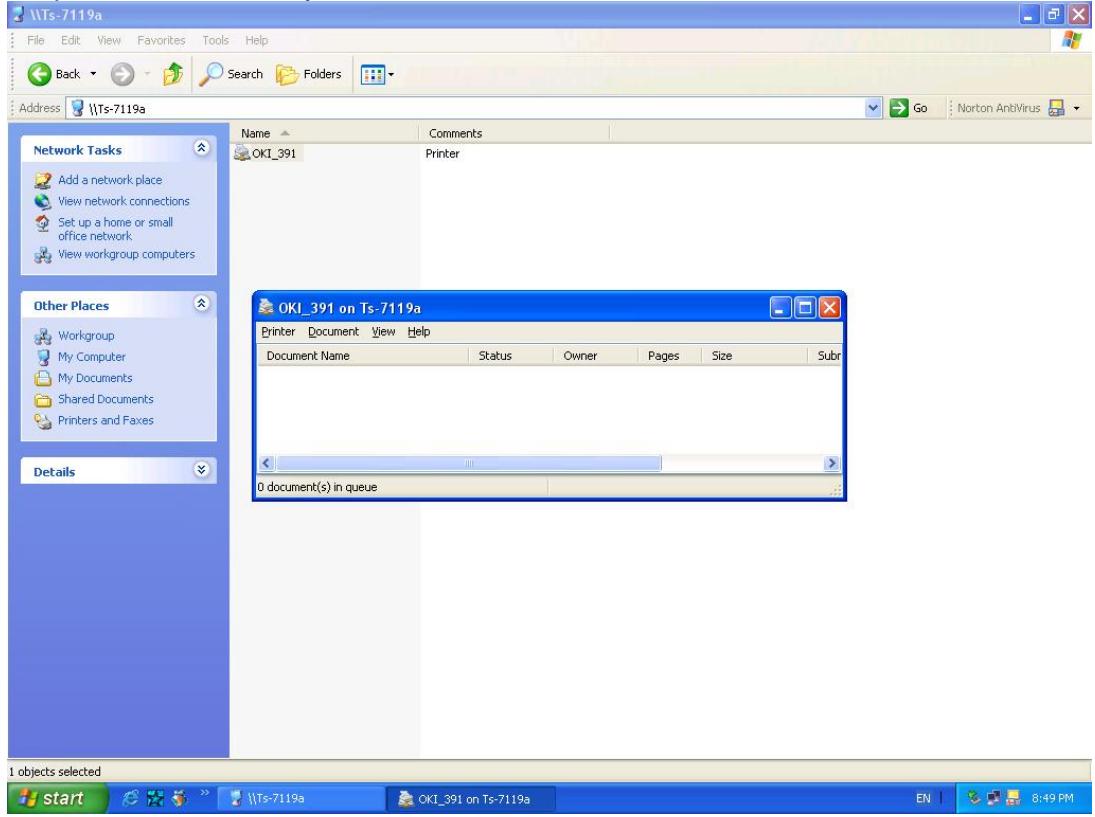

6. Install printer successtuly.

7. Now, you can find your printer's icon and you can use the SMB printing mode.

© - $ Ps (yrate |: FBe Enoonaire 5 - ET nn En Crete nn HE ecrans ERNSRNE Leae OS | Reset Button Reboot the Print server:

1. Verify the power of print server is turned on.

2. Press the reset button once, and then release it.

WARNING: This will restart the print server and stop all on-going and pending print jobs!

Perform a Factory Default: Disconnect the external power adapter. Hold down the reset button. Reconnect the external reset button. Wait about 5 seconds. Release the reset button. The print server will restart. nBswDE

WARNING: This will erase all settings of print server to default and should be performed with

caution! After performing a factory default, the default settings will be: Infrastructure mode SSID: <ANY > Channel: 6 Encryption: none

e DHCP client: off © IP address: 192.168.2.15

Frequently Asked Questions Question A Print jobs are sent to the print queue successfully, but fail to be sent to the printer. Possible explanations

1. The Print server Name/P rint Queue configuration in PCONSOLE is incorrect.

2. The Printserver name specified and stored in the print server memory doesn't match the

same one setin PCONSOLE.

3. The network cable or power adapter connected to the print server is loose or

4. The printer is off-line, jammed or out of paper.

2. Check allthe information of the print server by running P SAdmin.

3. Check to see that ifthe network cabling and power adapter are properly connected.

4. Recheck the print server connection by running the PSAdmin. It should read

“Connected."” Question B Print jobs start printing, but print very slowly or print unknown characters. Possible explanation and solution A printer driver is missing or is incompatible with that printer. Using a print driver that is not specific for the printer can cause printing errors. Install the proper printer driver. If these printer drivers are not available to you, please contact your printer manufacturer. Question C The upgrading process indication bar stops and does not seem to proceed again while upgrading the print server. Possible Explanation There might be a network problem. This causes the upgrading procedure to fail. Solutions 1.Check the network cabling, especially from the workstation running the PSAdmin to the print server unit. 2.Run the PSAdmin and upgrade the print server again.

Question D The Power LED light keeps blinking after POST. Possible explanation and solution The last upgrade process was not completed. The print server must be upgraded again by using the PSAdmin. Please see Chapter 3 for details. Question E The PSAdmin reports “Create Print server Error”, “Create Printer Error”, or “Create Print Queue Error” while using Auto Setup. Possible Explanation The print server name, the printer name, or the print queue name you specified in the Auto Setup dialogue box contains a space. Solution Check to see if there is a space in the print server name, the printer name, or the queue name. Type in a new name without a space between two characters or replace a space by a dash (-) or an underscore (_). Question F The PSAdmin reports “Print server Already E xists”, “Printer Already E xists”, or “Print Queue Already E xists” after specifying the print server name, or the print queue name in Auto Setup. Possible Explanation A same print server name or queue names exists in the specific NetWare file server as the one you specified in the Auto Setup dialogue box. Solution Specify a new print server name or queue name in the Auto Setup. Question G The setup Wizard can't find print server. Possible Explanation The Personal Firewall installed in your computer blocks the connection. Solution Please disable the Personal Firewall or adjust the security level to lower.

Additional Installation Instructions Panasonic KX-P6100/6300/6500 If you are using a Panasonic KX-P 6100/6300/6500 laser printer with the print server through the Network Print Port under Windows 95/98, please redirect the printer named “Panasonic KX-P6100 PCL” or ‘Panasonic KX-P6300 PCL”, or “Panasonic KX-P6500 PCL" to the print server through the Network Print Port. DO NOT redirect the printer named “Panasonic KX-P6100 GDI”, “Panasonic KX-P6300 GD{/”, or “Panasonic KX-P 6500 GDI”to the print server. Please note that the print server doesn't support printing with host-based printers, e.g. CAPT, GDI, and PPA printers. Furthermore, the print server doesn't support any non-printing functions of MFP (Multiple Function Printer).
