Product Type	Wireless Media Receiver
Brand	SMC
Model	WMR-AG
Dimensions (approx.)	16.5 x 11.5 x 3.5 cm
Weight (approx.)	300 g
Power Supply	5V DC power adapter (included)
Wireless Connectivity	802.11a/b/g (2.4 / 5 GHz)
Wired Connectivity	Ethernet 10/100 Mbps (RJ-45)
Supported Audio Formats	MP3
Supported Video Formats	MPEG-1, MPEG-2 (.mpg, .mpeg)
Supported Photo Formats	JPEG, BMP
Main Functions	Audio, video, photo playback, Internet radio, slideshow
Compatibility	UPnP, Windows 98SE/Me/2000/XP
Included Software	Media Server, MusicMatch Jukebox
Remote Control	Yes, with provided AA batteries
Audio Outputs	Stereo RCA (left/right)
Video Output	Composite RCA (yellow)
Indicator Lights	Power (blue), Link (blue), 100 Mbps (green), 10 Mbps (green)
Setup	Via TV (user interface) or web interface
Wireless Security	WEP 64/128-bit
Standards	IEEE 802.11b/g/a, IEEE 802.3, IEEE 802.3u
Package Contents	Receiver, remote control, batteries, audio/video cables, RJ-45 cable, CD-ROM, power adapter, quick install guide
Care	Clean with a soft, dry cloth. Do not use abrasive products.
Repairability	Not user-serviceable. Contact customer support.

Frequently Asked Questions - WMR-AG SMC

What to do if the receiver does not detect the host PC?

Check that the Media Server software is running on the same network. Make sure the network connection selected in the Network Connection tab matches the interface used (wired or wireless). Restart Media Server if necessary.

I hear no sound, what should I check?

Check that the audio cables (left/white, right/red) are correctly connected to the corresponding input on your stereo or TV. Ensure the audio source is selected on your amplifier.

Nothing displays on the TV screen

Check that the receiver is powered on (Power indicator lit). Check the video cable (yellow) and the video input selected on the TV.

How to add MP3 files to share?

Open Media Server, go to the Shared Folders tab and click Add to select the folder containing your MP3 files (extension .mp3). Subfolders are shared automatically.

Why are photos not displaying?

Ensure the files are in JPEG (.jpg, .jpeg) or BMP (.bmp) formats. Check that the shared folder contains these files. Refresh the content via Update Now in Media Server.

How to listen to Internet radio?

Press iRadio on the remote control. Ensure Media Server is configured with radio stations in the Internet Radio tab (name and full URL with port). A broadband Internet connection (>128 kbps) is required.

Videos have no sound or are in black and white

Check that the video is in MPEG (MPG/MPEG) format and the audio is encoded in MP3. PAL or SECAM videos may appear in black and white on an NTSC TV. Press Stop if the image is unstable.

How to configure the receiver for wireless network?

Turn on the receiver, follow the on-screen prompts. Select Use Wireless, enter your network's SSID, choose encryption (WEP if enabled), network type (Infrastructure for access point) and DHCP mode. Confirm with OK.

Can I use multiple SMC WMR-AG receivers on the same network?

Yes, you can use multiple receivers. However, only one host computer can run Media Server at a time. Each receiver will connect to the same server.

What to do in case of wireless interference?

Move the receiver away from other wireless devices (phones, microwaves) and metal obstacles. Reduce the distance between the receiver and the access point. Try changing the channel on your access point.

USER MANUAL WMR-AG SMC

Technical Specifications 43

Terminologie 47

Compliances

Legal Information and Contacts .

DESCRIPTION DU MATÉRIEL

Wireless Data Rates (With Automatic Fall-back):

802.11b = 1/2/5.5/11 Mbps

802.11a = 6/9/12/18/24/36/48/54 Mbps

802.11g = 1/2/5.5/6/9/11/12/18/24/36/48/54 Mbps

Data Modulation Techniques:

802.11b (DSSS) = BPSK, QPSK, CCK

802.11a (OFDM) = BPSK, QPSK, 16-QAM, 64-QAM

802.11g (OFDM) = BPSK, QPSK, 16-QAM, 64-QAM

Radio Signal Type:

Direct Sequence Spread Spectrum (DSSS)

Orthogonal Frequency Division Multiplexing (OFDM)

Security:

64/128 Wired Equivalent Privacy (WEP)

802.1x*

WPA (WiFi Protected Access)**

Channel Support (5GHz RF):

US/Canada - 12 non-overlapping channels

• 5.15-5.35GHz, 5.725-5.825GHz

Europe - 19 non-overlapping channels

• 5.15-5.35GHz, 5.47-5.725GHz

Technical Specifications

Japan - 4 non-overlapping channels

• 5.15-5.25GHz

China-5.725-5.85GHz

Channel Support (2.4GHz RF):

US/Canada - 11

France - 4

Japan-14

Europe - 13

China - 13

Media Access Protocol:

CSMA/CA (Collision Avoidance)

Firmware Upgrade:

Built-in search for firmware upgrade

Network Configuration:

Ad-Hoc (Peer-to-Peer)

Infrastructure

Wired

Interface:

Network

• RJ-45 Connector
  802.11a/b/g

CVBS

NTSC
RCA connector (yellow)

Auc

• Analog Audio left and right
• RCA red (right)
• RCA white (left)

Remote Control

Front Panel Button

Power/Standby
- System in power-on state or stand-by mode

LED:

Power (blue)

Link (blue)

100Mbps (green)

10Mbps (green)

File Format:

Audio - MP3 (64-320kbps)

Internet Radio - MP3

MPEG1 Video (NTSC) - 30fps, 352x240, 2Mbps

MPEG2 Video (NTSC) - 30fps, MP@ML Full D1 704x480, 4Mbps

Image (NTSC) - JPEG, BMP

Operating System:

Windows 98SE, Me, 2000, XP

Compliance:

Wi-Fi Compliant

FCC Class B

Industry Canada

ETSI, EN301 893, EN60950

UPnP

Operational Conditions:

Supply voltage of external power supply: input 110 VAC, 50 / 60Hz

output 5VDC,3A

Ambient temperature: -10^ to +45^

Relative Humidity: 95% max

Dimensions:

16.4 (D) x 16.2 (L) x 7.0 (W) cm

[with Base]

Weight:

320g

TERMINOLOGIE

10BaseT

Adresse MAC (Media Access Control Address)

DNS (Domain Name System) is an archetype of a domain name system that permits the exchange of information between different domains. It is a domain name system that uses a set of rules to establish a hierarchy of names and addresses. DNS (Domain Name System) is an archetype of a domain name system that permits the exchange of information between different domains. It is a domain name system that uses a set of rules to establish a hierarchy of names and addresses. DNS (Domain Name System) is an archetype of a domain name system that permits the exchange of information between different domains. It is a domain name system that uses a set of rules to establish a hierarchy of names and addresses. DNS (Domain Name System) is an archetype of domain name systems that permits the exchange of information between different domains. It is a domain name system that uses a set of rules to establish a hierarchy of names and addresses. DNS (Domain Name System) is an archetype of domain name systems that permits the exchange of information between different domains. It is a domain name system that uses a set of rules to establish a hierarchy of names and addresses. DNS (Domain Name System) is an archetype of domain name systems that permits the exchange of information between different domains. It has been shown that DNS (Domain Name System) can be used to establish a hierarchy of names and addresses.

JPEG (Joint Photographic Experts Group)

MDI (Medium Dependent Interface)

NTSC (National TV Standards Committee)

PAL (Phase Alternating Line)

PBCC (Packet Binary Convolutional CodeTM)

PCI (Peripheral Component Interconnect)

TCP (Transmission Control Protocol)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices). Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

SMC Networks, Inc. declare under our sole responsibility that the product SMCWMR-AG EZ-Stream Universal 2.4GHz/5GHz Wireless Multimedia Receiver complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION STATEMENT:

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 5 centimeters between the radiator and your body.

Compliances

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Note: In order to maintain compliance with the limits of a Class B digital device, SMC requires that you use a quality interface cable when connecting to this device. Changes or modifications not expressly approved by SMC could void the user's authority to operate this equipment. Attach unshielded twisted-pair cable (UTP) to the RJ-45 port and shielded USB cable to the USB port.

Industry Canada – Class B

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled "Digital Apparatus" ICES-003 of Industry Canada.

SMC contact for these products in Europe is:

SMC Networks Europe, Edificio Conata II
Calle Fructuos Gelabert 6-8, 2o, 4a08970 - Sant Joan Despi Barcelona, Spain

This information technology equipment complies with the essential requirements of the R&TTE Directive 1999/5/EC and all other related provisions of this directive.

Notified Countries are:

Australia, Austria, Belgium, Denmark, Finland, France, Germany, Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, UK

CE Mark Warning

In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Warning!

Important Safety Notices

• Unplug this product from the AC power before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a dry cloth for cleaning.

• Route the power supply cords so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

• Situate the product away from heat sources such as radiators, heat registers, stoves, and other products that produce heat.

• To prevent fire or shock hazard, do not expose this unit to rain or moisture. Do not allow water or any foreign objects to enter the interior. This may cause a fire or electric shock. In the event that water or other foreign objects get into the product, immediately unplug the AC adapter from the electrical outlet and contact Customer Service for inspection and/or repair/replacement options.

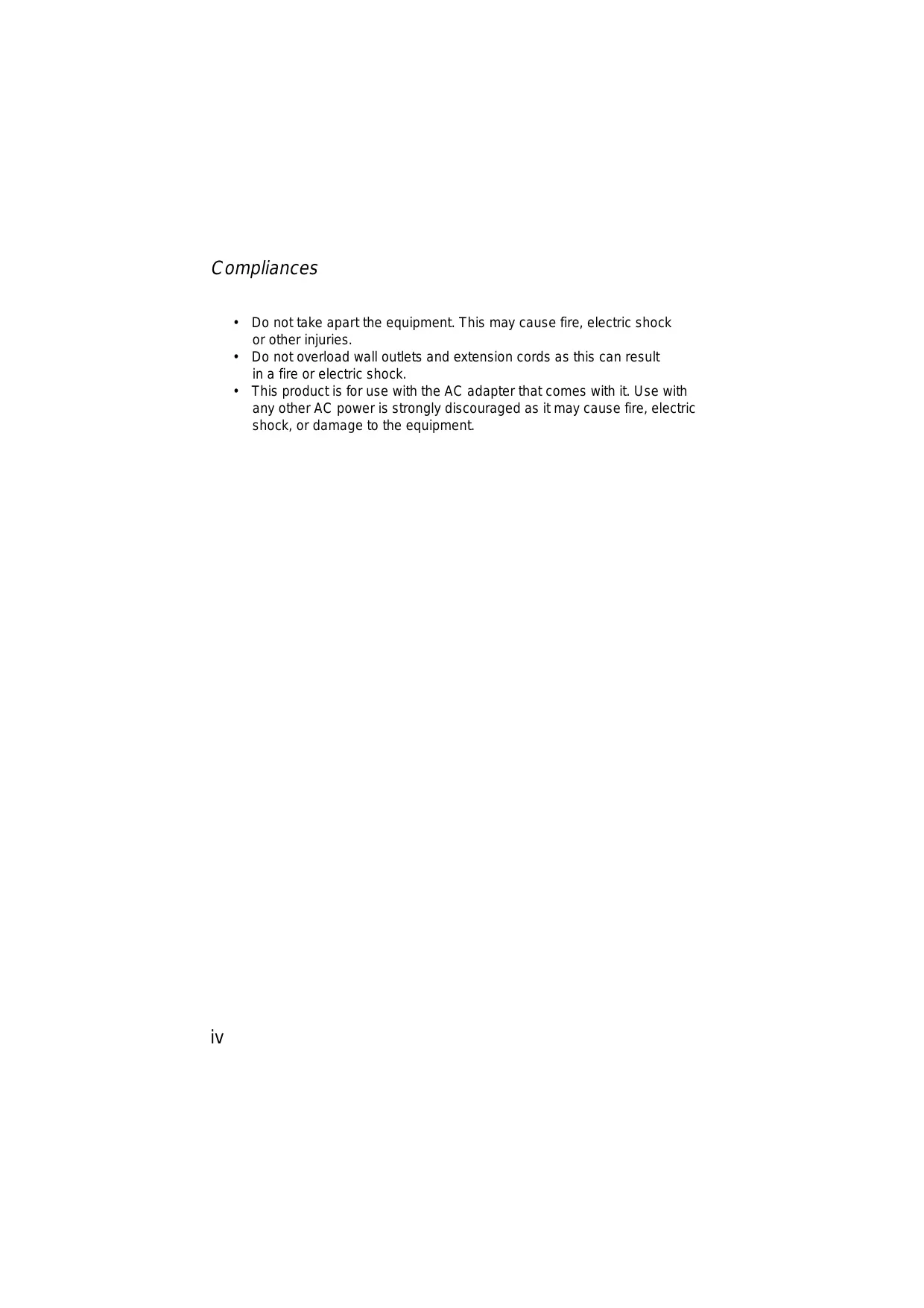

Compliances

• Do not take apart the equipment. This may cause fire, electric shock or other injuries.
• Do not overload wall outlets and extension cords as this can result in a fire or electric shock.
• This product is for use with the AC adapter that comes with it. Use with any other AC power is strongly discouraged as it may cause fire, electric shock, or damage to the equipment.

LEGAL INFORMATION AND CONTACTS

SMC's Limited Warranty Statement

SMC Networks Europe ("SMC") warrants its products to be free from defects in workmanship and materials, under normal use and service, for the applicable warranty term. All SMC products carry a standard 2 year limited warranty from the date of purchase from SMC or its Authorized Reseller. SMC may, at its own discretion, repair or replace any product not operating as warranted with a similar or functionally equivalent product, during the applicable warranty term. SMC will endeavour to repair or replace any product returned under warranty within 30 days of receipt of the product. As new technologies emerge, older technologies become obsolete and SMC will, at its discretion, replace an older product in its product line with one that incorporates these newer technologies.

The standard limited warranty can be upgraded to a 5 year Limited Lifetime * warranty by registering new products within 30 days of purchase from SMC or its Authorized Reseller. Registration can be accomplished via the enclosed product registration card or online via the SMC web site. Failure to register will not affect the standard limited warranty. The Limited Lifetime warranty covers a product during the Life of that Product, which is defined as a period of 5 years from the date of purchase of the product from SMC or its authorized reseller.

All products that are replaced become the property of SMC. Replacement products may be either new or reconditioned. Any replaced or repaired product carries, either a 30-day limited warranty or the remainder of the initial warranty, whichever is longer. SMC is not responsible for any custom software or firmware, configuration information, or memory data of Customer contained in, stored on, or integrated with any products returned to SMC pursuant to any warranty. Products returned to SMC should have any customer-installed accessory or add-on components, such as expansion modules, removed prior to returning the product for replacement. SMC is not responsible for these items if they are returned with the product.

Customers must contact SMC for a Return Material Authorization number prior to returning any product to SMC. Proof of purchase may be required. Any product returned to SMC without a valid Return Material Authorization (RMA) number clearly marked on the outside of the package will be returned to customer at customer's expense. Customers are responsible for all shipping charges from their facility to SMC. SMC is responsible for return shipping charges from SMC to customer.

WARRANTIES EXCLUSIVE: IF A SMC PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, CUSTOMER'S SOLE REMEDY SHALL BE REPAIR OR REPLACEMENT OF THE PRODUCT IN QUESTION, AT SMC'S OPTION. THE FOREGOING WARRANTY AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU

OF ALL OTHER WARRANTYES OR CONDITIONS, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTYES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. SMC NEITHER ASSUMES NOR AUTHORizes ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS. SMC SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER'S OR ANY THIRD PERSON'S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY: IN NO EVENT, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), SHALL SMC BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE, LOSS OF BUSINESS, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF ITS PRODUCTS, EVEN IF SMC OR ITS AUTHORIZED RESELLER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

SOME COUNTRIES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTYES OR THE LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM COUNTRY TO COUNTRY. NOTHING IN THIS WARRANTY SHALL BE TAKEN TO AFFECT YOUR STATUTORY RIGHTS.

• Under the limited lifetime warranty, internal and external power supplies, fans, and cables are covered by a standard one-year warranty from date of purchase.

Full Installation Manual

Full installation manuals are provided on the Installation CD-Rom. Manuals in other languages than those included on the CD-Rom are provided on www.smc-europe.com (section support).

Firmware and Drivers

For latest driver, technical information and bug-fixes please visit www.smc-europe.com (section support).

Contact SMC

Contact details for your relevant countries are available on www.smc-europe.com and www.smc.com.

Statement of Conditions

In line with our continued efforts to improve internal design, operational function, and/or reliability, SMC reserves the right to make changes to the product(s) described in this document without notice. SMC does not assume any liability that may occur due to the use or application of the product(s) described herein. In order to obtain the most accurate knowledge of installation, bug-fixes and other product related information we advise to visit the relevant product support page at www.smc-europe.com before you start installing the equipment. All information is subject to change without notice.

Limitation of Liability

In no event, whether based in contract or tort (including negligence), shall SMC be liable for incidental, consequential, indirect, special or punitive damages of any kind, or for loss of revenue, loss of business or other financial loss arising out of or in connection with the sale, installation, maintenance, use, performance, failure or interruption of its products, even if SMC or its authorized reseller has been advised of the possibility of such damages.

Copyright

Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of SMC. SMC reserves the right to change specifications at any time without notice.

Trademarks

SMC is a registered trademark; and EZ Connect is a trademark of SMC Networks, Inc. Other product and company names are trademarks or registered trademarks of their respective holders.
