USER MANUAL PRESTIGE FALMEC

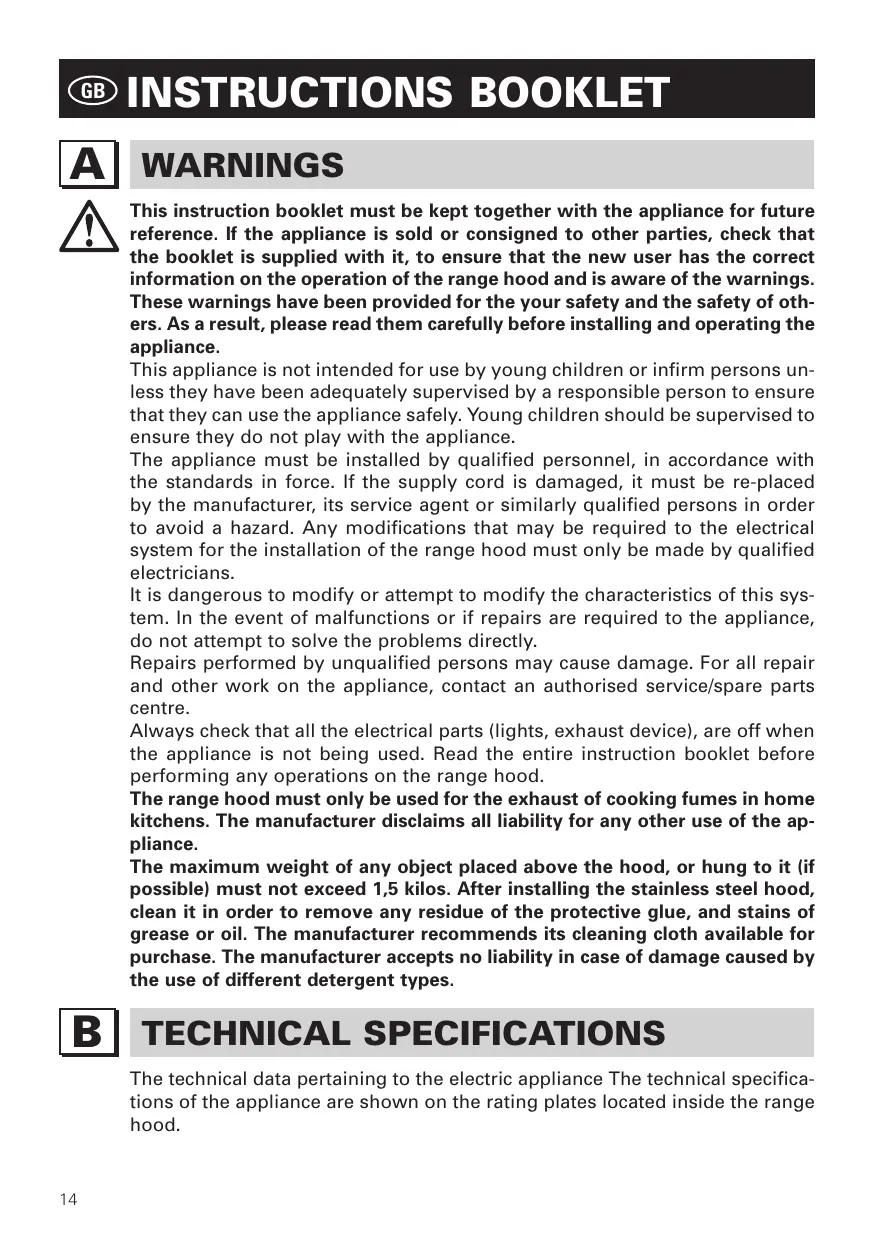

INSTRUCTIONS BOOKLET

Dear Sir/Madam, congratulations!

You have purchased a prestigious range hood of guaranteed quality. For best results, we suggest that you carefully follow the operating and maintenance instructions provided in this booklet; in addition, to order spare charcoal filters, use the special coupon on the cover.

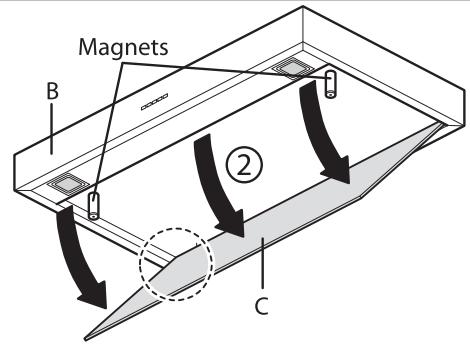

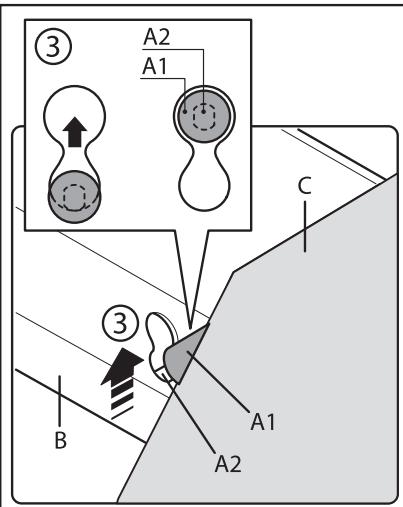

NEW FIXING SYSTEM WITH MAGNETS

Fig. H3

AVVERTENZE

3. PANNELLO REMOVIBLE

Square halogen light

3. LAMPADA FLUORESCENTE

This instruction booklet must be kept together with the appliance for future reference. If the appliance is sold or consigned to other parties, check that the booklet is supplied with it, to ensure that the new user has the correct information on the operation of the range hood and is aware of the warnings. These warnings have been provided for the your safety and the safety of others. As a result, please read them carefully before installing and operating the appliance.

This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure they do not play with the appliance.

The appliance must be installed by qualified personnel, in accordance with the standards in force. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Any modifications that may be required to the electrical system for the installation of the range hood must only be made by qualified electricians.

It is dangerous to modify or attempt to modify the characteristics of this system. In the event of malfunctions or if repairs are required to the appliance, do not attempt to solve the problems directly.

Repairs performed by unqualified persons may cause damage. For all repair and other work on the appliance, contact an authorised service/spare parts centre.

Always check that all the electrical parts (lights, exhaust device), are off when the appliance is not being used. Read the entire instruction booklet before performing any operations on the range hood.

The range hood must only be used for the exhaust of cooking fumes in home kitchens. The manufacturer disclaims all liability for any other use of the appliance.

The maximum weight of any object placed above the hood, or hung to it (if possible) must not exceed 1,5 kilos. After installing the stainless steel hood, clean it in order to remove any residue of the protective glue, and stains of grease or oil. The manufacturer recommends its cleaning cloth available for purchase. The manufacturer accepts no liability in case of damage caused by the use of different detergent types.

TECHNICAL SPECIFICATIONS

The technical data pertaining to the electric appliance The technical specifications of the appliance are shown on the rating plates located inside the range hood.

(Section reserved for qualified installers of the range hood)

The distance between the hob and the lowest part of the rangehood is normally at least 65~cm (see figure C1). This distance is measured in the lowest part of the rangehood not operating at safety voltage. Based on this detail provided by European Standards, the distance may be reduced in some models as specified in the general catalogue. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account.

In the outside exhaust version, the diameter of the fume discharge duct must be no smaller than the range hood connection.

In the horizontal sections, the duct must slope slightly (around 10% ) upwards, so as to better convey the air outside of the room.

Avoid using angled pipes, make sure that the pipes are at least of the minimum length.

Comply with the current regulations on air discharge into the atmosphere. If a boiler, stove, fireplace, etc. that uses gas or other fuels is being used at the same time, make sure the room where the fumes are extracted is well ventilated, in compliance with the current regulations.

Mounting instruction: see section "O" of the booklet.

ELECTRICAL CONNECTIONS

(Section reserved for qualified installers)

WARNING!

Before doing any work inside the range hood, disconnect the appliance from the mains power supply.

Check that the wires inside the range hood are not disconnected or cut; if this is the case, contact your nearest service centre. The electrical connections must be performed by qualified personnel.

The connections must be performed in compliance with the legal standards in force. Check that the relief valve and the electrical system are able to support the load of the appliance (see the technical specifications in point B).

Some types of appliance are supplied with a cable without plug; in this case, "standardised" plugs must be used, keeping in mind that:

• the yellow-green wire must be used for the earth,
• the blue wire must be used for the neutral,
• the brown wire must be used for the phase; the cable must not come into contact with hot parts (over 70^ ).
• fit a plug that is suitable for the load to the power cable, and connect it to a suitable power outlet.

For appliances that come supplied with cable and plug please ensure they are plugged into a circuit suitable for this appliance.

Please refer to a qualified person. (See technical specifications in point B).

The manufacturer declines all liability if the safety standards are not observed.

RANGE HOOD WITH OUTSIDE

DISCHARGE (exhaust)

In this version, the fumes and steam from the kitchen are conveyed outside through an exhaust duct.

The exhaust conveyor that protrudes from the upper part of the range hood must be connected to a duct that carries the fumes and steam outside. In this version, the charcoal filters, if fitted, should be removed; to do this, see the instructions in point F. There must be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels, according to the standard.

Deviation for Germany:

When the range hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4x10 E-5 bar).

RECIRCULATING RANGE

HOOD (with filter)

In this version, the air passes through charcoal filters for purification, and is then recirculated back into the kitchen.

Check that the charcoal filters are fitted to the motor, and if not, install them as described in the instructions in point H.

If the hood is of filtering type, remove the non-return valve fitted at the motor's outlet.

For maximum efficiency, the third speed should be used when there are strong odours or a lot of steam, the second speed in normal conditions, and the first speed for keeping the air clean with minimum energy consumption. The range hood should be switched on when starting to cook, and left on until the odours disappear.

OPERATION

1. FIVE BUTTON CONTROL PANEL

LIGHT- button

Pressed: the light is on

Released: the light is off

MOTOR button - 1, 2, 3, OFF

1: starts the motor at minimum speed
2: starts the motor at medium speed
3: starts the motor at maximum speed
OFF: stops the motor

2. ELECTRONIC CONTROL PANEL

Light pushbutton

• ON: light on (the pushbutton is lit);
• OFF: light off;

Pushbutton -

Press to reduce motor speed

Speed 1, 2 and 3 are indicated by the number of LEDs that light up (excluding the light and the timer LEDs).

Pushbutton +

Press to increase motor speed

Speed 1, 2 and 3 are indicated by the number of LEDs that light up (excluding the light and the timer LEDs).

(In the 4-speed version the pushbutton + blinks. The fourth speed remains on for a set duration of time. After 15 minutes the motor returns to the third speed).

Mode pushbutton

Function: it turns hood motor on and off.

The function "desired speed" enables to start the motor at the speed that was selected before the hood was last turned off.

Optional: version with remote control (some versions only).

WARNING:

Install the hood away from sources of electromagnetic waves, as these could affect the correct operation of the electronic system.

Maximum operating distance: 5 metres. The maximum operating distance could be less than 5 metres in case of electromagnetic interference by other equipment.

Light pushbutton on remote control: light on/off.

• and + pushbutton: increase/decrease speed (to start the motor press either the + or the - pushbutton).

Timer pushbutton: see instructions below.

Timer and 'filter clogged' alarm pushbutton

• This function allows the automatic turning off of the hood after running for 15 minutes at the speed previously set (the pushbutton shows a flickering light).

• After about 30 hours of running the pushbutton indicates the need for washing the metal filters (the pushbutton shows a solid red light). To disable the alarm press the pushbutton for a few seconds until the red light turns off. Then turn the hood off and on again to check that the alarm has disappeared.

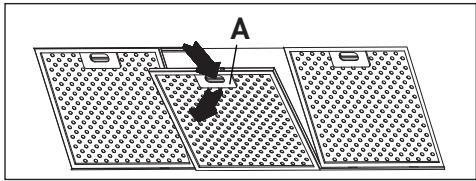

1. METAL FILTERS

To remove the metal grease-trapping filter, simply pull the handle A until releasing it from the front guide; then tilt it slightly downwards, and slide it out of the rear guide. To reposition the filter, repeat the operation in the reverse order.

Hoods with perimeter suction:

• Open the panel (see fig. 1). Use handle A to remove the metal grease filter.

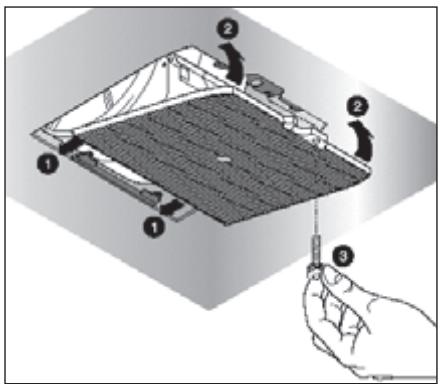

2. CHARCOAL FILTERS

To replace the charcoal filters, proceed as follows: remove the metal filters as described above. The two filters located at the ends of the motor can now be easily accessed.

To install the new filters see picture.

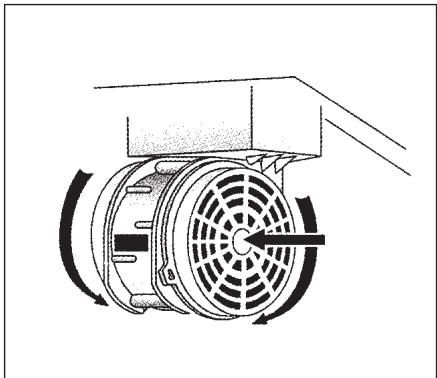

In case of hood with the motor box the filter is located on the bottom part of the motor box.

To install the new filters see picture.

To order new charcoal filters contact the distributor/retailer.

VALID ONLY FOR ITALY: download the appropriate order form from: www.falmec.com (access the assistance drop-down menu).

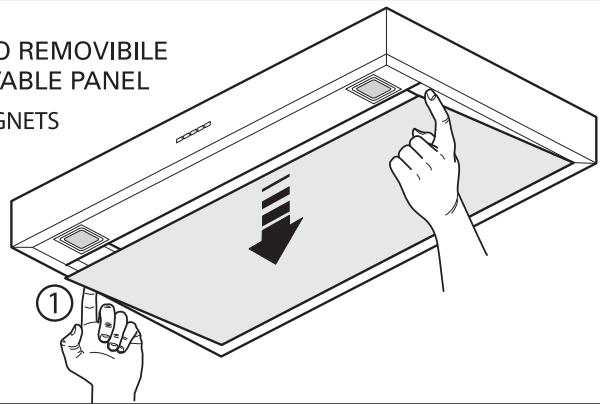

3. REMOVABLE PANEL

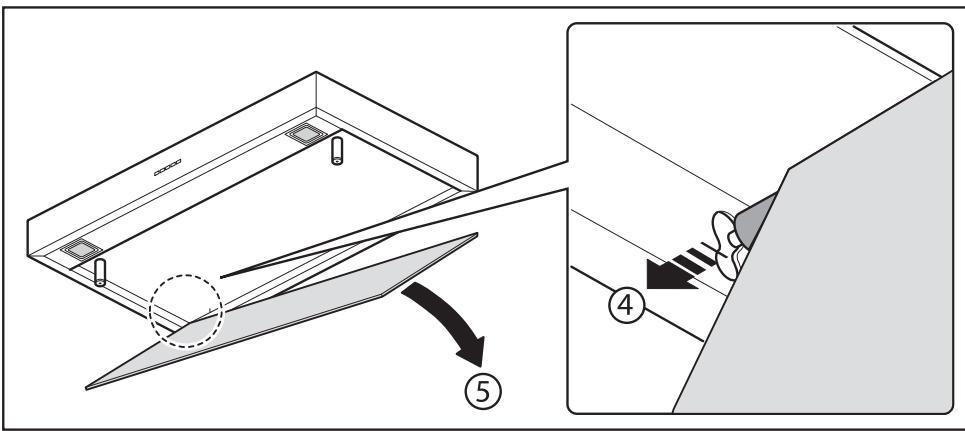

Follow the instructions on fig. H3 to remove the panel.

LIGHTING ASSEMBLY AND REPLACEMENT

1. LIGHT BULB

To replace the light bulb:

a) Make sure the appliance is disconnected from the mains power supply.
b) Unscrew the support screw A and remove the light cover.
c) Replace the light bulb with the same model as the original (max 25 W, see the markings near the light).

WARNING! Light bulbs with different shapes and power ratings from the original may seriously damage the light compartment.

2. SPOTLIGHT

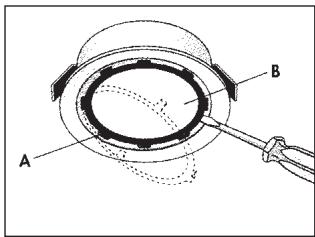

To replace the lamp for "Round halogen light":

a) Make sure the appliance is disconnected from the mains power supply.
b) Remove, by levering with a screwdriver, the support ring A for the cover glass.
c) Remove the cover glass B to access the light compartment.
d) Replace the lamp with the same type (halogen, max 20 W, 12 Volt, G4 fitting).
e) Replace the glass cover B and fasten it using the special ring A.

Round halogen light

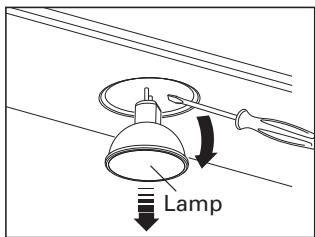

How to replace the dicroic lamp:

a) Check that the equipment is disconnected from the power supply.
b) Remove the lamp with the help of a screwdriver (see figure)
c) Replace the lamp with a similar one (dichroic, max 20 W, 12 Volt).

Dicroic spot

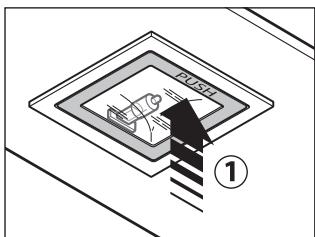

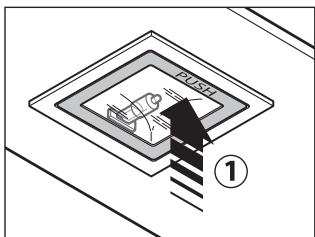

How to replace a square halogen light:

a) Check that the equipment is disconnected from the power supply.
b) Open the panel completely till 90^ (see figure) pressing the PUSH button
c) Replace the lamp with a similar one (halogen, max 20 W, 12 Volt, G4 connection).
d) Close the panel. If the panel does not close correctly repeat the operation

at point b.

Square halogen light

3. FLUORESCENT TUBE

(Section reserved for qualified installers)

Replacing the fluorescent tube:

a) Disconnect the device from the mains;
b) Unscrew the fixing screws and remove the bottom panel;
c) Remove the fluorescent tube, by rotating through 90^ , and replace it with one of similar features (8W-13W-21W-28W according with the model);
d) Reconnect the device to the mains.

MAINTENANCE AND CLEANING

Constant maintenance ensures the correct operation and efficiency of the appliance over time. Special attention should be paid to the metal grease-trapping filters and the charcoal filters. Frequent cleaning of the filters and their supports will ensure that fats and grease do not accumulate on the range hood, with the consequent risk of fire.

1. METAL GREASE-TRAPPING FILTERS

These trap the fat and grease particles suspended in the air, and therefore should be washed every month in hot water and detergent, without bending them. Wait until they are completely dry before repositioning them.

To remove and replace these filters, see the instructions in point H1. This operation should be performed at regular intervals.

2. CHARCOAL FILTERS

These trap the odours present in the stream of air that passes through them. The air is purified by passing a number of times through the filters and being recirculated into the kitchen. The charcoal filters cannot be cleaned, and should be replaced on average every 3-4 months (according to use). To replace the charcoal filters, see the instructions in point H2.

3. CLEANING THE OUTSIDE OF THE APPLIANCE

It is advised to clean the external hood surfaces at least every 15 days in order to avoid that oily or greasy substances affect the steel surfaces.

The aside of the range hhod should be cleaned using a damp cloth and neutral liquid detergent or denatured alcohol.

In case of fingerprint-less finish (fasteel) clean only with water and neutral soap using clean with a soft cloth, rinse and wipe dry thoroughly. Do not use products that contain abrasive substances, rough cloths or cloths specifically designed for cleaning steel. Using abrasive substances or rough cloths will

inevitably damage the finish of steel. The steel surface will be irrevocably damaged if the instructions above are not complied with.

Keep these instructions together with the instructions for use of your hood.

The manufacturer accepts no liability for any damage caused by non-compliance with the instructions above.

4. CLEANING THE INSIDE OF THE APPLIANCE

The electrical parts or parts of the motor assembly inside the range hood must not be cleaned using liquids or solvents.

Do not use abrasive products. All the above operations must be performed after having disconnected the appliance from the mains power supply.

SAFETYWARNINGS

The electrical system features an earth connection in compliance with international safety standards; furthermore, it is compliant with the European standard for electromagnetic compatibility.

Do not connect the appliance to flues (from boilers, fireplaces, etc.). Make sure the mains voltage corresponds to the values on the rating plate located inside the range hood. The minimum safety distance between the cooktop and the range hood must be at least 65~cm .

Never cook on "open" flames under the range hood.

Check deep-fryers during use: superheated oil may be flammable.

• Ensure there is adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels.
• Do not flambe under the rangehood
• The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.
• Ensure that all regulations concerning the discharge of exhaust air have been fulfilled before you use the appliance.

Before performing any cleaning or maintenance operations, disconnect the appliance by unplugging it or using the main switch. The manufacturer disclaims all liability for any damage that may be directly or indirectly caused to people, things and animals due to the failure to follow all the instructions provided in this booklet and above all the warnings relating to the installation, operation and maintenance of the appliance.

WARRANTY

The new equipment is covered by warranty.

The warranty conditions are provided by the distributor.

The manufacturer is not liable for any inaccuracies in this booklet resulting from printing or transcription errors. The manufacturer reserves the right to modify its products as it considers necessary or in the interests of the user, without compromising their essential safety and operating characteristics.

INSTALLATION OF ISLAND HOOD WITH LATTICE-WORK

Step 1

• Identify the desired height (H1=65) for the positioning of the hood.
• Slide the lattice-works (C) and (C1) to the desired height (H2), then block them with the 8 self-threading screws (V2) (Fig.1a).
• Fasten the lattice-work (C) to the ceiling using the four 8 expansion plugs and relative screws(V1) (Fig.1b).

Step 2

• Insert the extension on the flue and fasten them to each other with masking tape (Fig. 2).
• Fasten the flue-extension assembly (D + E) to the lattice-work (C) with the 4 M4 metric screws (V3) inserted in the existing holes without tightening them completely (Fig. 2).
• For suction version: identify the optimal height for the rigid or flexible exhaust pipe (F) and connect it to the motor connection.

Step 3

• Raise the hood, hooking it onto the 4 M5 metric screws (V4) pre-tightened to the lattice-work (C) (center the 11 holes on the slot of the inner liner and move it laterally)(Fig. 3a).
• Completely tighten the 4 M5 screws (V4) (Fig. 3b).
• Remove the masking tape (Fig. 3c), remove the four M4 metric screws (V3) previously tightened onto the lattice-work (Fig. 3d) and slide the flue-extension assembly downwards. (Fig. 3e).
• Connect the pipe to the connection of the ceiling discharge hole. (Fig. 3f).
• Make electrical connections only after having removed electrical power supply.
• Fasten the extension to the lattice-work (C) by means of the 4 M4 metric screws(V3), without tightening them completely(Fig. 3g).
• Block the extension completely to the lattice-work (C) by screwing down the 4 M4 metric screws (V3).
• Block the flue with the 2 self-threading screws (V5) (Fig. 3i).
• Use the extension support elements(A) (Fig. 2) only if the upper lattice-work is not used, or in the case of a false ceiling.

HINWEISE

2. ELEKTRONISCHES BEDIENFELD

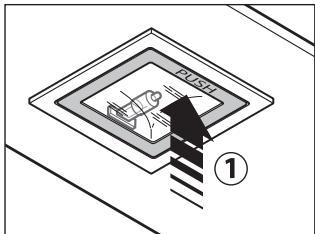

Lichtkopf

Square halogen light

Square halogen light

Square halogen light

MEPbI PPEIOCTOPOXHOCTN

OueHb BaxHo, YTO6bl DaHHoe PyKOBoDCTBO no 3KcnIyatauHN xpaHnIOcb BMeTe c aannapaTpyoJ dIra BO3MOxHoi Heo6XoIMocTN KOHCyJIbTaUIN B 6yduIeM.

Pnp npoajke npnbopa nnn nepeaue ero dpyromy nucy K npnbopy 6oa3atelbno doJXHO npnlaRaTbcr PyKOBODCTBO, TTO6bl HOBbI NOlb30BaTeIb 6bl B Kypce TOrO, KaK NOlb30BaTcBcR BbITJxKoN KaKne COOTBeTCTByIOUe MepbI npdeocTopoxHOCTH Heo6xoDmO Co6JIOnDaTb.

ДанhoePykoBoDcTBo6bIIOcoCTaBJIeHOДЯ6e3OJaNacHocTnKaBaWe,Tak NOKpykaIoUxN，No3ToMу npocmBac BHNMaTeJbHo C Hm O3HaKOMtbcr NepeD yCTaHOBKoI n 3KnJIyatauNei npnbopa.

IeTAM I6OJIbHbIM IIOJAM pa3peWaeTcI N0JIb3OBaTbcra npu6Opom IINUb IOnd aIeKBAthbIM KOHTPOEm OTBETCTBeHHbIX IINU, KOTOpbIe MOryT OBeCneuBaTb 6e3oNaChoe IcNoJIb3OBaHne npu6opa.

OTBETCTBEHHOMy IINuY Heo6xoIIMO CJIeIITb, YTO6bl DeTn He Irpaln c npIbOpom.

Pa60tbl no yctaHOBKe DoJXHbI npoBOINTBcR KOMnTeHTHBIMn KBaJIncfNpOBAHHbIMn CneuaJIncTAmN COrIacHO DeNCTBYUOUM HOpMaM.

JIIO6OE Heo6xOJIMoe IyYCTaHOBKn BbITJXKN N3MeHHe B 3JeKTPnueCKOM 6JIOKe D0JXHO OCyUeCTBJIbTcR ToJIbKO KOMIeTeHTbIM JINlOm.

I3MeHHe IJIN NONbITKa I3MeHHe HxapaKTepncTn npnbopa onacHo! B cnyuae HeKOppeKTHoI pa60TbI BbITaJIteKn He nbITaJIteCb yCTpaHnTb HencnpaBHOCTb CAMOCTOReTJIbHO.

Pemont, npoBeHbI HeKOMTeHTbIM IuOm, MoKeT Bbl3BaTb NOBpeJdeHn.

y6dntcb, yTO BHytpn BbITJxHOrO yCTpOcTBO H OTCoDHHbl N H NOBpKdHbI 3NkTpncKn npOBoDa; B cLnya BO3HNKHOBNH TaKnx CNTyaCNI CBxKNTcb C 6bnXaWIM CpBNCbM uHTpOM. DnBbINOHNH N3NkTpncKn COINHHN

6paTntcb K KBaJIHΦIuIpOBAHbIM CIIuaJIHCTam.

COnHHnD OJXHbI 6bITb IPOUN3BHN B COOTBTCTBn C DnCTBYUHmM 3aKoHOaTlbCTBOM. YbNTcb, YTO ORpaHnHTlbHbI npDOxpaHnTlN IN 3JIKTPOO6OpyDoBaHUMOryT BbIDPxaTb HarpY3ky OT npN6opa (CM. 3TNIKTky C TXHnCKIMN XapaKTPncTnKaMn, corNaCHO nyHKTy B). HKOtOpbl npN6opbl MOrYT 6bITb OChauHbI UHypom 63 BnIK; B TaKOM cInCyHa nCnONb3yma BnIka DOJXHa

6bITb "CTaHdapTHoro" TnA c yTOM TORO, YTO:

• JNTO-3HbI NPOBOD OJXH INCNOJB3OBaTbcra 13a3MnHna,
• rony6oI npOBOD oJxH NcOJIb3OBAtbcra Iy HITpaJIbHOr npOBoDa,
• KOpuHbI npoBOd DoJXH NcNoJIb3OBAtbc Da Jpa3bl, UHyp HdoJXH KaCaTbcHaRpTbIX qactn, ImIOxN TmnpaTy p601 70^
• yCTaHOBnT Ha шнур элкtrponntaHnBиКу, пriroDHyI O ДЯ Harpy3Kn, И BCTaBBt B 3auntHyIO BnKy.

Pn H6xOJIMOCTN nprMOro NODKJIIOUHnN K CTN H6xOJIMO pa3MCTNTb MxNy npnbopom n CTbIOMHORONOLpHbIM MaHHTOTPMUCKn IpkJIIOuATNb C MNHMaJIbHbIM OTKpbITmMkNy KOHTaKTAMN 3 MM, paccHTaHHbI Ha Harpy3Ky I OTBaIOUm dNCTBYIOUHm HopMa. XJTO-3JIbI pOBoD 3a3MlHnI HdoJIxH npbbiBaTbcrnpKJIIOUaTIm.

IIO NOKlnuHn npnbopa K CTN 3JIKTponNTaHn y6dtcb, YTO:

• HaprxkHn CTN PHTAHNO COOTBTCTByT yKa3aHHOMy Ha 3TNKTK C TXHNUCKMn XapaKtpncTKamn.
  -3a3MJIH NФФКТИВНО И BbIINHNO ПраВЛьНО.
  -ЛИИЯ 3ДКТРОПИТАИЯ OСHAЦHA 3ФФКТИВHBIM 3a3MЛHIM NO ДИСТBYЮЦМ HOPMaM.
• INCNoJIb3yMbI po3TKa IIN MHOrONoJIocHbI npKJIouaTJIb IIGKO DoCTyHbI npN yCTaHOBnHHOM npi6Op.

ПОНЗВODИТЛН HСТ НИКАКОЛ OTBTCTBHHOCTN B CNYA, CIN HOPMbl 63ONaCHOCTN H CO6JIIODAIOTCЯ.

E BbITJXHOE YCTPOICTBO C BbIbPOCOM BO3dUXA HAPXXy

B 3ToMmDn DbIM n nap O T rOToBKn Bbl6paCbIbAOTc HApJy Up3 Tpy6y.

Tpy6aДЯ BBy6pOca, KOTOPaBbICTyNaI3 BxHn YacTn BbITJXKN DoJXHa 6bITb coDHHa C Tpy6o, KOTOPaBbIOdNt DbIM n Nap BH NOMUHNIA, PNC.

B daHHo moJIn CHImaIOTc qnJIbTpbl Ha aKTbUropOBaHHom yI, cNIO OHYCTaHOBJHb; KaK OHN CHImaIOTc, CM. NyHKT F. EcN KxOHHa BbITaXKaNCNoJIb3yTcO ndHOBpMHNO nДЯ dpyrnx npnbOpOB, pa60taIoXn Ha ra3yIIN dpYROM TOnJIHB, POMuH NdoJIxHo IMMb BO3MOxHocTb DoCTaTOHOro IPOBTPnuBaHn.

BbITJXHOE YCTPOIcTBOC PEUNPKUJIaIeN BO3dYXA (cФиЛьТрацn)

B 3toM MoIIN BO3dyN IpoXoIIT yp3 fIJIbTpbl C aKTHBnPoBaHHbIM YrJIM, FOnuTcN BO3BpaIaTcR B NOMUHN KUYHNI.

Y6DNTcb, YTO yROJbHbI QINbTpbl yCTaHOBJIHbI Ha MOTop, pnc. 6, B INpOTNBOM Cnya yCTaHOBnT nx, KAK yKa3aHO B NHT F INHCTpyKcun.

Дя улушня xapaКТпСТИК рКOMHДУТС ИСОЛБ3OBaВТ ТТБЮ CКОРOCТБ npи HaJIчИС CINьНБИЗ 3anaxOB ИИ N6OЛБ worO KOLINCTBa napa,ВTOpyIO CKOPOCTb B HopMaJbHbIX YCLOBnIAX,ПрВYIO CKKOPOCТДЯ OUHCTKn BO3dYxa npи Hn3KOM paCXODOBAHn 3KNKTpo3Hprn.

PKOMHdyTcBKNIOaTb BbITaKKy, KOrda Bbl HaUNHaT rOToBnTb N OCTabJrTa pa6oTaIoUd IO NC3HOBnIe CNJIbHbIX 3anaxOB.

1. ПЯТИК"HОПОЧHOE UYPABJIЕНUE

OCBEUHNE-KHONKa

MOTOP-KHonka1,2,3,OFF

1: MOTOP BKNIOUaTcHa MInHmAlbHoN CKOpOCTn
2: MOTOP BKNIOUATCRA Na CpDn CKOPOCTN
3: MOTOP BKNHouaTcHa MaKcImaJIbHoN CKOPOCTN

OFF: MOTOP BvIKJIIOUaTc.

2. KHONKIC 3JEKTPOHHBIM YIPABJIEHNEM

KnaBnua ocBeuHnna

• ON: ocBeueHne BInoueHo (KHOIIKa CBeTntcra);
• OFF: ocBeueHne BbIKJIoueHo;

KnaBnsa -

KnaBnua OcBeueHnHa npNbTe:CBETBKn./BbIKn. (on/off).

KnaBnla - e + yMeHbWeHne/YBeIuYeHne cKOpocTn (Дя 3anycka MoTopa MoXHO HaxaTb KaK KnaBnUy +, TaK N KnaBnUy -).

KnaBnua TaMepa:cm. Hxke INHCTpyKuIIO.

CneyuTe 3a HnCTpykunmHa pnc.H3,TO6bI ydaIaTb rpynny.

OCBELSEHNE yCTAHOBKA 3AMEHA

1. JIAMNIOUKA

Square halogen light

3.ФЛYOPECUEHTHAJIAMA (pa3dIeIЯспuaJIncTOB)

3aMeHaΦnyopecUeTHOnJaMnbl:

a) OTKJIIOHTb npn6Op OT cTeu nITaHn;
6) CHaTb MeTaJIInuecKyI NaHeJIb, OTKpyTnB KpeJexHbIe BnHTbI, eCNI TAKOBa IMeETcI.

Сять ФлуорецHTHyTO Tpy6y, NOBepHyB ee Ha 90°, И зааменть ee Дую саналогиных.apakTepructnkaMu (8 Bt - 13 Bt - 21 Bt - 28 Bt -ВЗвсимоCTN OT MOdeJI);

B) BHOBB NODKJIIOUHTb PnI6Op K CeTu NiTaHnA.

ЧИСТКА И YXOD

CBoBmHbI yXoJ rapaHTnpyT xopoWyIO pa6Ory I 60JIbwoI cpoK cnyk6bl. Oco6HHO BnMaHn H6XoDnmo YdIaTB MtaJIInuCKM fNtbpam JIra 3axBaTaJ Knpa I qNtlbTpam C aKTNBupOBaHHbIM YrIm, DINCTBNTlbHO, YaCTaR OChcKa fNtlbTpOB IN MCT INX KpIINHra rapaHTnpyT, YTO B BbITJxK H CObipatcR Xnp, KOtOpBIO nOnach N3-3a IJrKOCTn BO3rOpAHn.

1. METAJIINUÇECKNE ΦΙΝΙbTPblДЛЯ 3ADEPЖAHNY JИРА

PpHa3NaHbI IyIaBnBaHna YacTnJ Knpa, pKOMHdyTcMbITb pa3 McaC B

BODI C MOIOUIM CpDCTBOM, H pRn6a Ix. Do yCTaHOBKn DOXJNTc bIx PONHORO BblCbIXAHNIA.

ДяТОуTO6bI CHЯТь ФиЛьТИ yCTaHOВNTb Ha MCTO CM. ИНСТPyКцИ, nyHKT I. PKOMHdYTCr pryJRApHO BblONHrTb 3Ty onpaMuI.

I3roTOBnTeJIb He npHnHaMeT HnKaKnx IpTeH3n B CJIyue Heco6JIIODeHnHaCTOaux npaBnJ.

4. ONUCTKA BHYTPEHHEY UACTN

OuNTKa 3JIKTpuCCKNX INI ONTOCHaXcB MOTOpy Uactb BHyTpN BbITJxKn Ipn NOMOUs KNDKoCTN pactBOPNTJa 3anpHa.

H noIb3yIYTCb a6pa3nHBbIMN XmMkTaAMN.

BbInonHnT Bc onpaun, npdBapntIbHO OTKIOUHB np6Op O T 3JKTponHTAHN.

БЕЗПАСНСТВ МЕРБИ ПЕДОCTОPOЖHOCTN C

3NeKtpnuecka cxema cna6xeha KOHTaKTOM 3a3emJIeHnCOrIaCHO MExdYnapoDhBIM HopMam 6e3OanacHOCTn; KpOME TORO, OHa COOTBETCTBYET eBPOneCKmHopMam 3aunTbI OT paIIOnomex.

He noklouaTe np6op K Tpy6am, OTbOJaIIM DbIM OT cropaHn TOnJIbA (KOTbl, KaMHbI N.T.I.). Y6eInTEcB TOM, YTO HApJxKeHne B CETN COOTBeTCTByET yka3aHHomy Ha Ta6JIuChe, pInKpeJIeHHO BHyTpN BbITJxKn.

B ueJx 6e30nacHocTn pacCToHHe OT BapOuHoN IOBepXHOCTn Do BbITaKKN DOJXHO COCTaJIaTb He MeHee 65 cm.

HeIb3ra roTOBnTb NiuHa OTKpbITOM orHe nOd BbITJxKo. CJeInte 3a

Фпнгорниам: neperepeToe MacNo MOKTe 3aRopeTbCra.

• Y6eIntecb B TOM, UTO B NOMEUHIN NMEETcA DOCTaTOHAY BEHTNIAZY, ECNI BbITJXKA INCNOJIb3yETcA COBMeCTHO C DpyrIMN PpIBOpAMN, pa6OtaIOUzIMN Ha r3e IIN DpyROM ROPUChEM.
• He 3axirraTe OTKpbIbIy OROH NOI BbITaKKoI.
• He noДКЛЮЧаTe npi6op K Tpy6aM, OTBODJIIM DbIM OT CROPANI YOJIINBA (KOTJIbI, KAMHbI I T.I.).
• Y6eIITecb B CO6JIIODeHn BCex DeIcTByUOxH HOpM N0 BBIOy BO3dyXa HApJyN3 NOMEseHn, IpexKeYem N0JIb3OBaTbC8 BbITJxKoI.

Ipepe npoBeHnem IIO6bIX MaHnnylauCn no QnCTKe nnn yXOdy BvIKJIOUHTe pnp6op, BbITaunB BnJKy n3 PO3ETKn nnn c NOMOu bO oOcero BvIKJIOUHTeJI. PpeepnTne-n3rTOOBtJeB He Hecet OTBETCTBEHNOCTn 3a BO3MOxHHb BpeD, PpNCHHeHHB, PpAMO nIN KOCBeHHO, JIOdAm, PpeMeTaM nIN DOMaushm XINBOTbIM BCNECDTBne Heco6JIHOdeHn npedncAHn, yKa3aHHbIX B PyKOBODCTBE NO 3KcnNyatauN, OOCeHNo B TOM, YTO Kacaetc npabnY yCTaHOBKn n 3KcnNyatauN np6opa n yXoDa 3a Hm.

ГAPAHТИN

Hobii npio6op haoonTcnoiD nCTBm rapaHTn.

TapaHTnHbI yCIOBnI POJIHOCTbIO IpNBdHbI Ha IocNdH CTpaHnC 3TOrO n3daHnI.

Pon3BODnTlb H OTBuat 3a BO3MOXHbI HTOUHOCTN N OUn6Kn B daHHOM n3daHnn, BO3HKnUn pnp nnatn un npnauTbIBaHnn. POn3BODnTlb OCTabJrT 3a cO6o npaBO Ha T MoDnΦnKaun Co6CTBHHo NpOdyKun, KOTOpbl COHTT Ho6xOIMMbIMu nnno3HbIMn, a TaKK B INHTpcax NOJb3OBaTJr, H BInnaOun Ha rIaBbI fYHKUNHaJIbHbI XapaKtpnCTNKn N 63OnacHOCTb.

MOHTAX OCTPOBHO BbITJXKN COCTO'KOJ

3ran 1

-Опраздени Te blicotу (H1=65-75 cm),Требуемю Длу установки витяк.
-Перединьтуйн CиС1 до Требуемов ВсOTы H2,Затм Зakpenite nx пипомои 8 вntOB-camope3OB V2,pnc.1a.
-Пикpeniteстokу C кnotokу,нспьзу 4 добелдам.8 n COOTBEcTByUOuNe wypnbl V1,pnc.1b.

3tan 2

• BCTaBbTe ydIINHITeJIb Ha dblMOxOД, 3akpeIITe erO npn nOMoU 6ymaxHoR O cKOTua, pnc.2.
  -Пикpenite ДыIMOXODс уДИнHTeJEM(D+E)К сToIke Cпрп пOMOи 4ВИNTOB M4 (V3),ВCTaBnB INX B cyIeCTbYIOUSeE OTBepCTnI H He 3aBOPaUNBaOKOHuaTeIbHOb,pnc. 2.
  -Bcnyae moeIc Bb6pocom BO3dyxa ONpeJeIte OITMmaJIbHyIO BbICOTy JeCTKO IINr6koTpy6blBb6poca BO3dyxa F u coeHNHTe ee C MOTOPOM.

3ran 3

FILTRY INSTRUKCJE WYJMOWANIA I WYMIANY

1. FILTRY METALOWE

Square halogen light

3. LAMPA JARZENIOWA
