COLORGRAPHIC CG223W, COLOREDGE CG243W, COLORGRAPHIC CG241W, COLORGRAPHIC CG245W, COLOREDGE CG246W-BK, COLOREDGE CG276W-BK, COLORGRAPHIC CG275W - Professional monitors for graphic design EIZO - Free user manual and instructions

Product Type	Professional color LCD monitor for graphic design
Brand	EIZO
Compatible Models	COLORGRAPHIC CG223W, COLOREDGE CG243W, COLORGRAPHIC CG241W, COLORGRAPHIC CG245W, COLOREDGE CG246W-BK, COLOREDGE CG276W-BK, COLORGRAPHIC CG275W
Screen Size	22 inches (CG223W) / 24.1 inches (CG243W)
Native Resolution	1680 x 1050 (CG223W) / 1920 x 1200 (CG243W)
Recommended Brightness	120 cd/m²
Viewing Angle	178° horizontal and vertical (contrast >10)
Pixel Pitch	0.282 mm (CG223W) / 0.270 mm (CG243W)
Response Time	12 ms (CG223W) / 13 ms (CG243W)
Displayable Colors	Approximately 1.073 billion (10-bit via DisplayPort)
Input Connectors	DVI-I x 2 (HDCP), DisplayPort x 1
USB Ports	USB 2.0: 1 upstream, 2 downstream (500 mA max/port)
Main Functions	Color Mode (sRGB, EBU, REC709, SMPTE-C, DCI), Auto EcoView, ColorNavigator calibration, Portrait/Landscape mode
Power Consumption	85 W max (CG223W) / 95 W max (CG243W) with USB charging
Power Supply	100-240 VAC, 50/60 Hz
Weight (with stand)	Approx. 9.6 kg (CG223W) / 10.7 kg (CG243W)
Dimensions (without stand)	511 x 333 x 85 mm (CG223W) / 566 x 367 x 85 mm (CG243W)
Operating Conditions	Temperature: 0 to 35°C; Humidity: 20 to 80% RH (no condensation)
Cleaning	Use a soft cloth; for stubborn stains, dampen slightly. Do not use solvents.
Security	Kensington security lock, main power switch
Spare parts and repairability	Spare parts available through EIZO after-sales service. Refer to the manual for procedures.

Frequently Asked Questions - COLORGRAPHIC CG223W, COLOREDGE CG243W, COLORGRAPHIC CG241W, COLORGRAPHIC CG245W, COLOREDGE CG246W-BK, COLOREDGE CG276W-BK, COLORGRAPHIC CG275W EIZO

How to adjust the screen brightness?

Press the Brightness key (key with sun icon) or access the menu via the Menu key, then select Color > Brightness. Use the ▲/▼ keys to adjust the value from 0 to 100%.

What to do if the screen remains black and the indicator is orange?

The orange indicator indicates power saving mode. Press a key on the keyboard or move the mouse to wake the computer. If the problem persists, press the S key to change the input source.

How to use the Color Mode?

Press the Mode key (M key) to display the list of modes: Custom, sRGB, EBU, REC709, SMPTE-C, DCI and CAL. Use the ▲/▼ keys to select the mode suitable for your work (for example, sRGB for the web).

How to clean the screen without damaging it?

Use a soft cloth (cotton or glasses cleaning cloth). For stubborn stains, lightly dampen the cloth with water or use the provided ScreenCleaner. Never use solvents, alcohol or abrasive products.

How to calibrate colors with ColorNavigator?

Install the ColorNavigator software from the provided CD-ROM. Connect the monitor to the computer via the USB cable. Launch the software and follow the instructions to calibrate color settings and generate an ICC profile. The CAL mode will then display the calibrated settings.

How to switch the monitor to portrait orientation?

In the menu, go to OSD Setup > Orientation and select Portrait. Physically rotate the screen to the right. Ensure the graphics card supports portrait display and adjust the operating system settings if necessary.

What to do if dead or bright pixels appear?

The LCD panel may have a few defective pixels, which is normal (effective pixel rate ≥ 99.9994%). This is not a defect. If the problem is bothersome, contact your dealer.

How to connect two computers to the monitor?

Use the two DVI-I connectors and the DisplayPort. Connect each computer with the appropriate cable. Press the S key to switch between sources. In the menu Tools > Input Selection, choose Auto or Manual for detection.

How to enable the power saving function?

In the menu, go to PowerManager > Sleep and set to On. The monitor will automatically enter sleep mode (orange indicator) when the computer goes to sleep. Power consumption in sleep mode is less than 0.9 W.

What does the operation indicator mean?

The indicator is blue in normal operation, blinking blue when the ColorNavigator calibration timer is active, orange in power saving mode, and off when powered off. You can adjust its brightness in the menu PowerManager > Power Indicator.

USER MANUAL COLORGRAPHIC CG223W, COLOREDGE CG243W, COLORGRAPHIC CG241W, COLORGRAPHIC CG245W, COLOREDGE CG246W-BK, COLOREDGE CG276W-BK, COLORGRAPHIC CG275W EIZO

Setting Resolution 13

Windows 7. 13
Windows Vista 13
Windows XP 13
Mac OS X. 13

FCC Declaration of Conformity 49

2 Réglage/Configuration

DVI DMPM (DVI Digital Monitor Power Management)

HDCP (High-bandwidth Digital Contents Protection)

TMDS (Transition Minimized Differential Signaling)

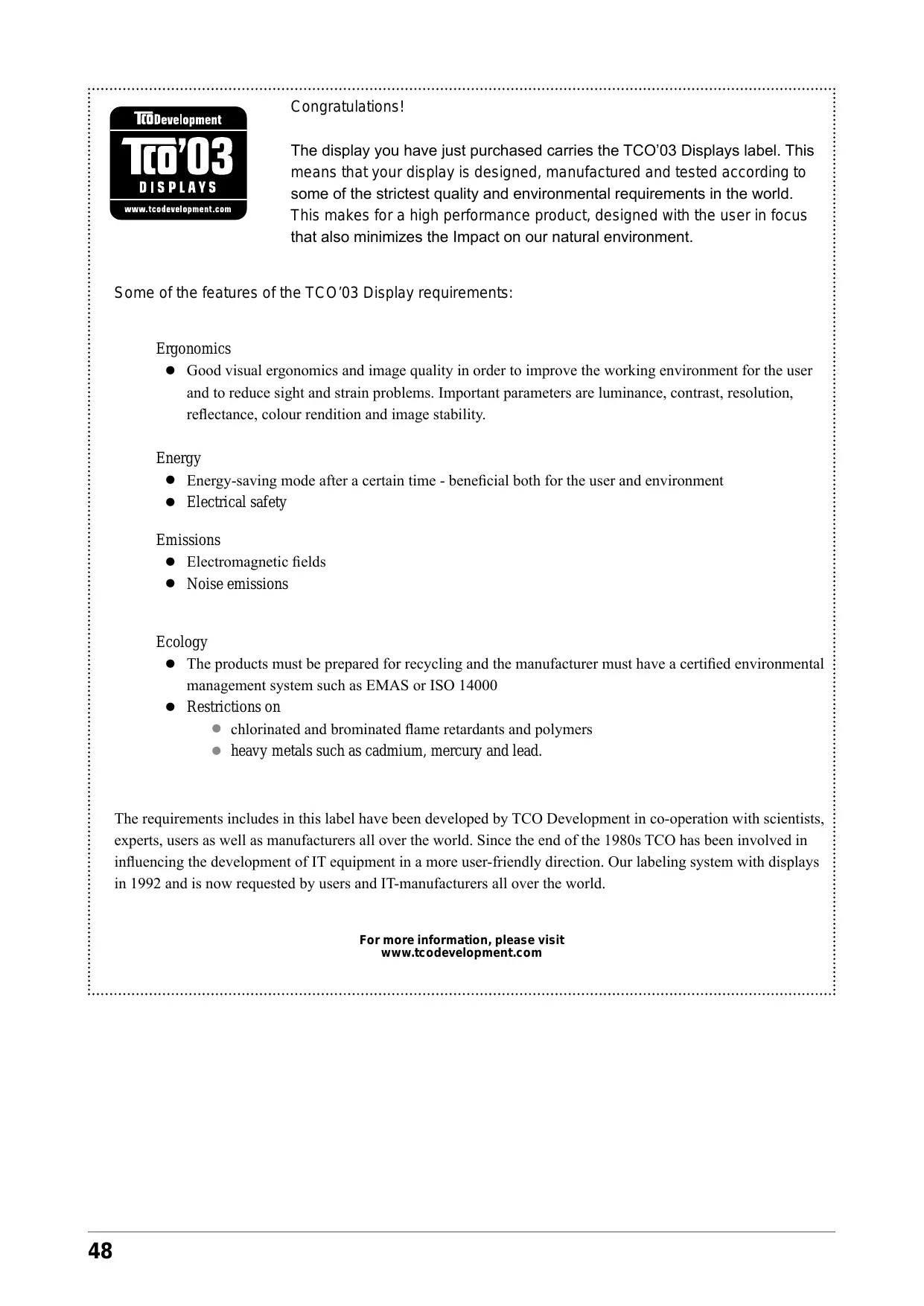

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the Impact on our natural environment.

Some of the features of the TCO'03 Display requirements:

Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time - beneficial both for the user and environment
• Electrical safety

Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The products must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14000

• Restrictions on

• chlorinated and brominated flame retardants and polymers

• heavy metals such as cadmium, mercury and lead.

The requirements include in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labeling system with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit www.tcodevelopment.com

For U.S.A., Canada, etc. (rated 100-120 Vac) Only
FCC Declaration of Conformity
We, the Responsible Party	EIZO NANAO TECHNOLOGIES INC.
	5710 Warland Drive, Cypress, CA 90630
	Phone: [phone]
declare that the product	Trade name: EIZO
	Model: ColorEdge CG223W / CG243W
is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Note
Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device.
- AC Cord
- Shielded Signal Cable (Enclosed)
Canadian Notice
This Class B digital apparatus complies with Canadian ICES-003.
Cet appeil numérique de le classe B est conforme à la norme NMB-003 du Canada.
