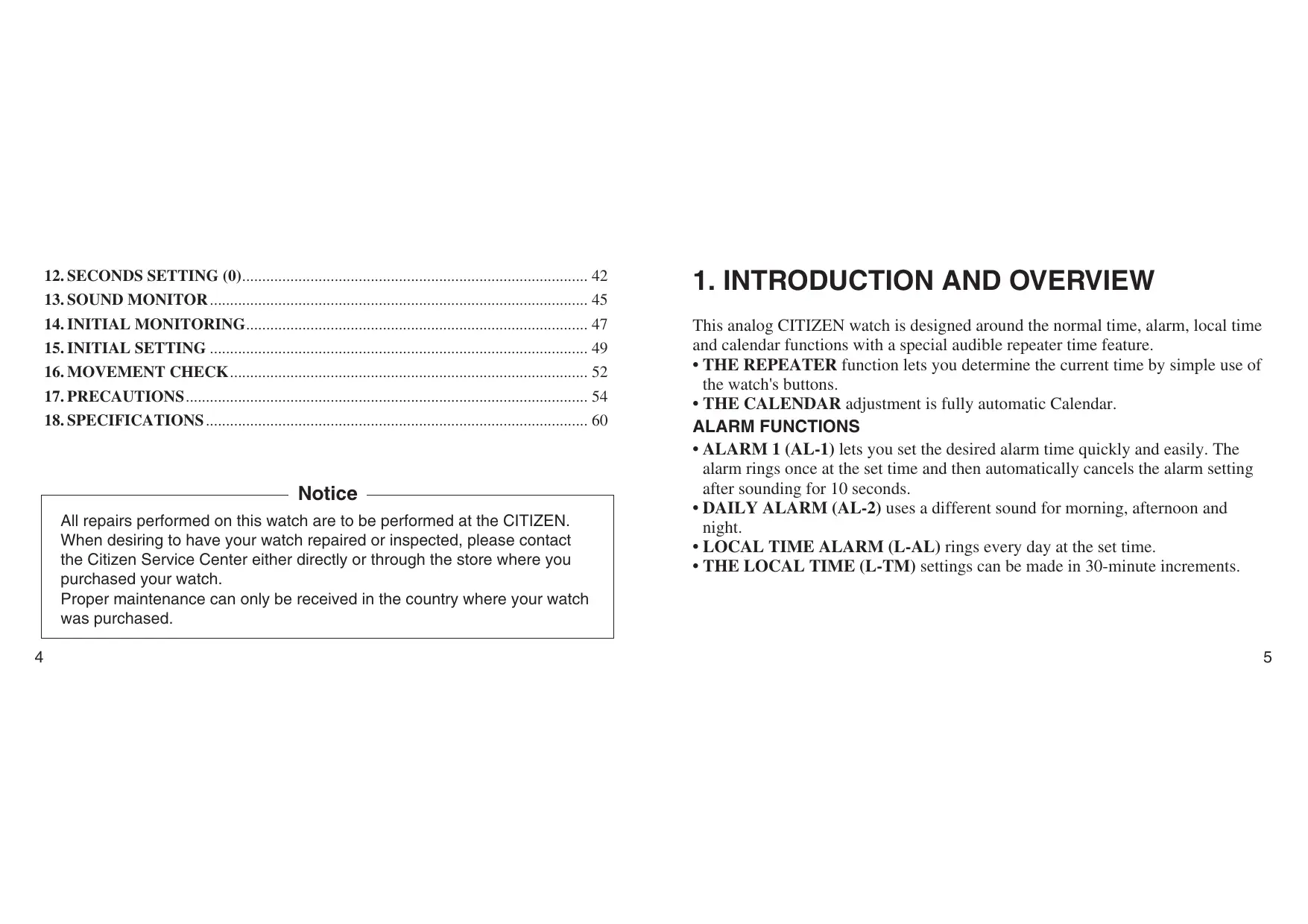

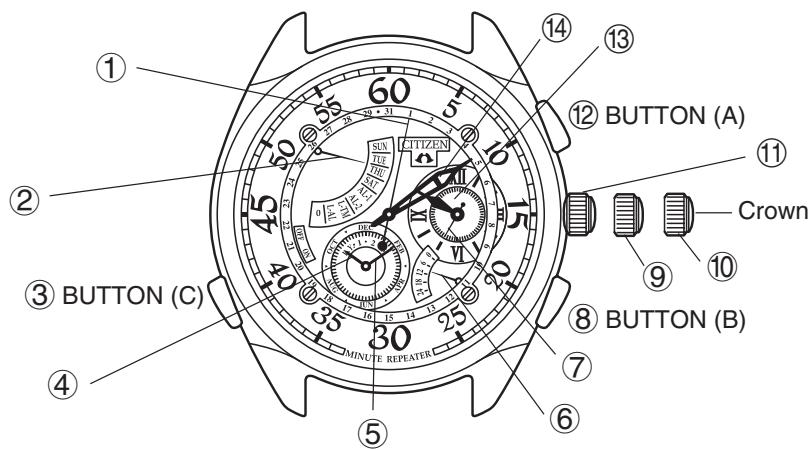

1. INTRODUCTION AND OVERVIEW

This analog CITIZEN watch is designed around the normal time, alarm, local time and calendar functions with a special audible repeater time feature. + THE REPEATER function lets you determine the current time by simple use of the watch's buttons. + THE CALENDAR adjustment is fully automatic Calendar. ALARM FUNCTIONS + ALARM 1 (AL-1) lets you set the desired alarm time quickly and easily. The alarm rings once at the set time and then automatically cancels the alarm setting after sounding for 10 seconds. + DAILY ALARM (AL-2) uses a different sound for morning, afternoon and night. + LOCAL TIME ALARM (L-AL) rings every day at the set time. + THE LOCAL TIME (L-TM) settings can be made in 30-minute increments.

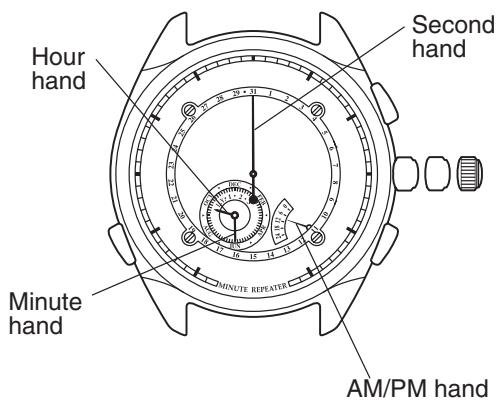

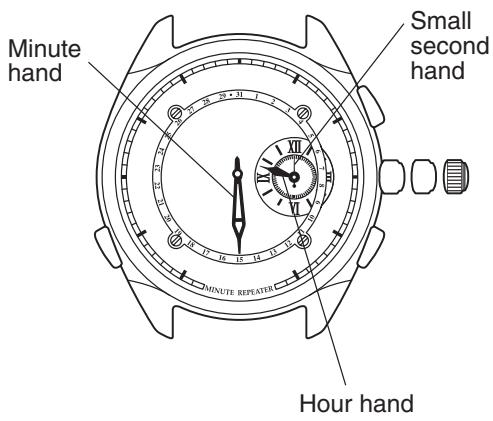

2. USING TH E WATCH Set the Main watch and Sub watch to the current time (See "4. SETTING THE

TIME") Time signal chime (Repeater) is activated based on the Sub watch. This feature will not function properly if the Sub watch is not set. If there is a one minute time difference (plus or minus) between the time signal chime and the main watch time setting, reset the SUB WATCH to the same time as the MAIN WATCH.

[MAIN WATCH] [SUB WATCH]

Minute hand (Example) If the time signal chime is one minute slow, set the SUB WATCH forward one minute. Wearing the watchband If the watch is worn too tightly, it may be difficult to clearly hear the Watch sounds. Minute Allow a space of one finger between the watch and your wrist for best results. hand Hour hand AM/PM hand

TTON (B) NOTE: This watch displays number of years from the leap year. NOTE: The AM/PM hand should only be used to distinguish morning/evening. It should not be used as a 24 hour time display. + The design may differ according to the model.

Main watch hour hand AM/PM hand Main watch minute hand

Hand Function crounl Mode | MAN WATON | SUBWATCH | AMPM | Date | Mode crownl Mode | MAN WATON | SUBWATCH | AMPM | Date | Mode second hour, minute hand hand hand second hour, minute hand hand hand : : (Main (Main : : : . Normal Main watch hour, [Local time hour, Local watch) watch) Local time | Main watch hour, |Local time hour,| Local time (at 12 L-TM mode minute, second minute AM/PM Date Day set minute, second minute AM/PM o'clock) : : (Main (Main : Local time Ge antour | anna | | dan | ae na /teea fer annee aamnous | Aa Lovorr| LaL ’ ’ Date Day ’ minute Normal Main watch hour, | Alarm hour, Alarm oN AL-1 Second Main watch hour, | (Main watch) |(Main watch) LE) 0 position minute, second minute AM/PM setting minute, second hour, minute AM/PM second Alarm 1 set |-- . . . . Main | (Main Main watch hour, | (Main watch) |(Main watch) _ First Calendar | Main watch hour, ( minute, second hour, minute AM/PM OFF AL: step setting minute, second Year, month watch) watch) Date Day : : Main Main watch hour, | Alarm hour, Alarm Second |… Main watch hour, | (Sub watch) | (Sub watch) | ( Alarm 2 set minute, second minute AM/PM ON/OFF AL2 step Time setting minute, second hour, minute AM/PM etc) 9

When setting the current time, it is essential to set both the Main watch and Sub watch to the same time. If the Sub watch is not matched to the Main watch, the Repeater will not sound properly. <MAIN WATCH> 2nd step /} position Hour hand

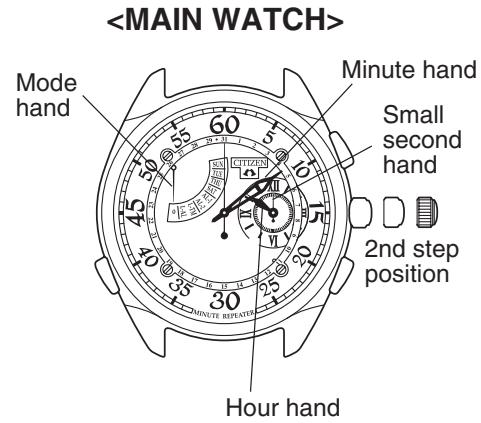

(1) Pull the crown out to the 2nd step position when the small second hand is at 0 position (12 o'clock) and stops.

• When the crown is pulled out the 2nd step, the mode hand points to "0." At the same time, the date hand changes to the Sub watch second hand and moves to the 0 (12 o'clock) position and stops. (2) Turn the crown to set the Main watch to the current time. <SUB WATCH> (3) Press the (B) button to set the Sub watch to the current time.

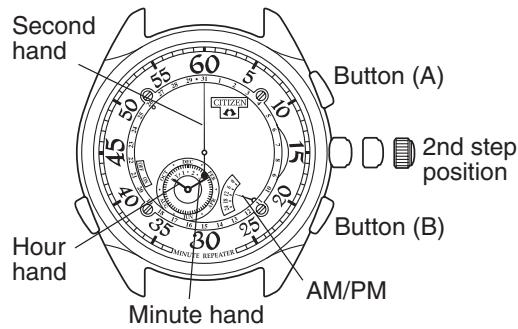

• The time setting advances one minute each time the (B) button is pressed. Press and hold down the Second hand D D @ 211 step (B) button to quick-advance the position hour, minute hand. NOTE: Button (B Hour utton (B) The Sub watch hour, minute hands hand AM/PM are synchronized with the AM/PM hand. Watch the AM/PM hand when adjusting the Sub watch time setting to ensure the proper setting is made. (4) When the Sub watch second hand is not aligned with the "O sec" position, press (A) button to set it to this position. Press the (A) button to advance the second hand in 1-second increments. Press and hold down the (A) button to quick-advance the second hand. Minute hand

(5) Push the crown in to the normal position at the desired time to start the watch running at the current time. At this time, the Sub watch second hand returns to this normal function as the date hand. The mode hand switches to indicate the day, the hour and minute hands of the Sub watch switch to local time.

5. SETTIGN THE CALENDAR

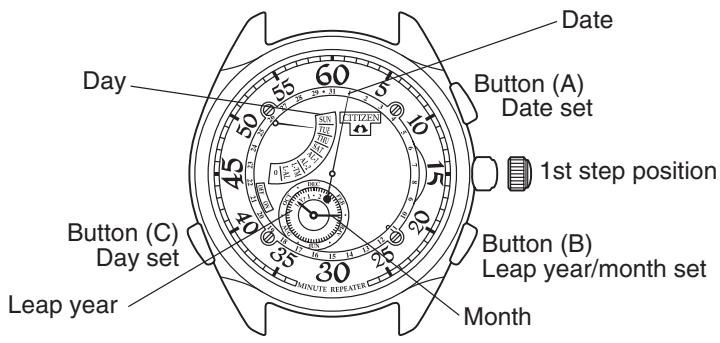

Date Day SK Button (A) Date set B 1st step position Button (C) Day set Button (B) Leap year/month set Leap year (1) Pull the crown out to the 1st step position. At this time, the local time hour, minute hands switches to the leap year, month hands.

• The calendar hands advance one increment each time the (A) or (B) buttons is pressed. Press and hold down the (A) or (B) button to quick-advance the calendar hands.

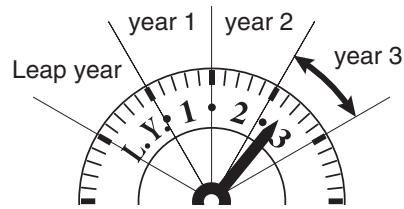

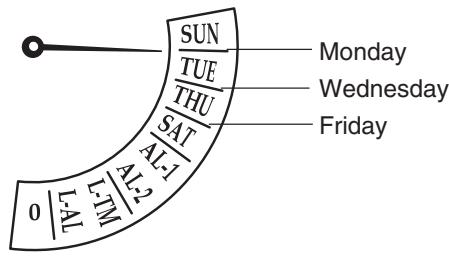

(2) <Date set> X Reading the leap year display + Press the (A) button to set the date. (3) <Leap year/month set> + Check the number of years following the leap year for the current year. (see Leap year below) + Press the (B) button to set the leap year and month. The year hand is synchronized with the month hand. % Leap year display year 1 year 2 The leap year and years following the leap year are displayed as shown in the diagram. When the year hand is in the position + 3 «—, the reading is "the third year following the leap year." 2004 Leap year 2008 Leap year 2012 Leap year 05 Year 09 Year 1 13 Year 06 Year 2 10 Year2 14 Year 2 07 Year3 11 Year 3 15 Year3

(4) <Day set> + Press the (C) button to set the day. + Pressing the (C) button advances the hand one day at a time. Quick-advance is not a feature of this function. -X Reading the day display The points between the days listed on Monday the day display represent the days not listed. Therefore, the line between "Sun" and "Tue" represents "Monday", etc. Wednesday Friday (5) Push the crown all the way in to the normal position when adjustments are complete.

• The calendar will not function properly operation when the crown is left in the Ist step position.

Adjustment-free calendar This feature lets you use your watch without need to make end-of-month or leap year adjustments. Example: End-of-month: 11/30 — 12/1 Automatic adjustment Leap year: 2/29 (Leap year) — 3/1 Automatic adjustment 2/28 —+ 3/1 Automatic adjustment

• The day setting does not change under this feature.

• about 2 4 Â k “about 1

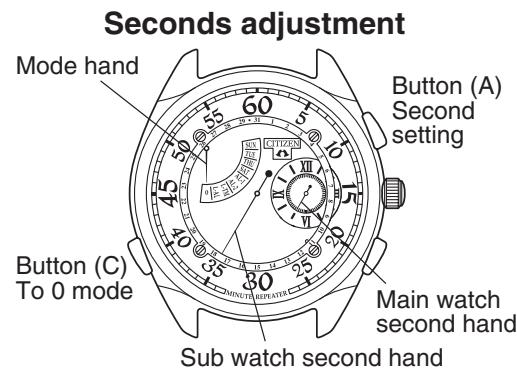

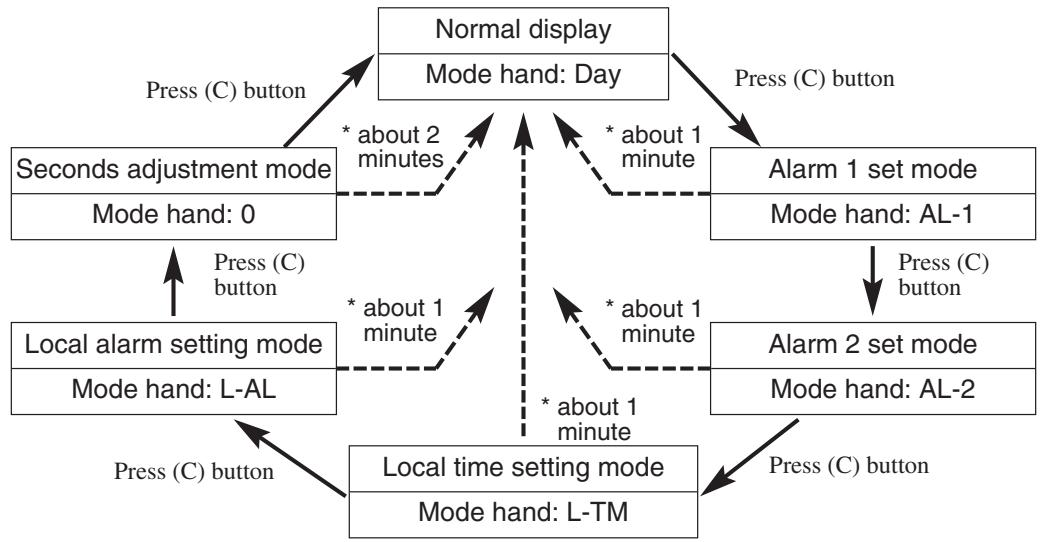

Seconds adjustment mode] Minutes / minute Alarm 1 set mode

Local alarm setting mode Alarm 2 set mode

minute Press (C) button Local time setting mode Press (C) button Mode hand: L-TM “1 There is no input the watch automatically returns to the normal display.

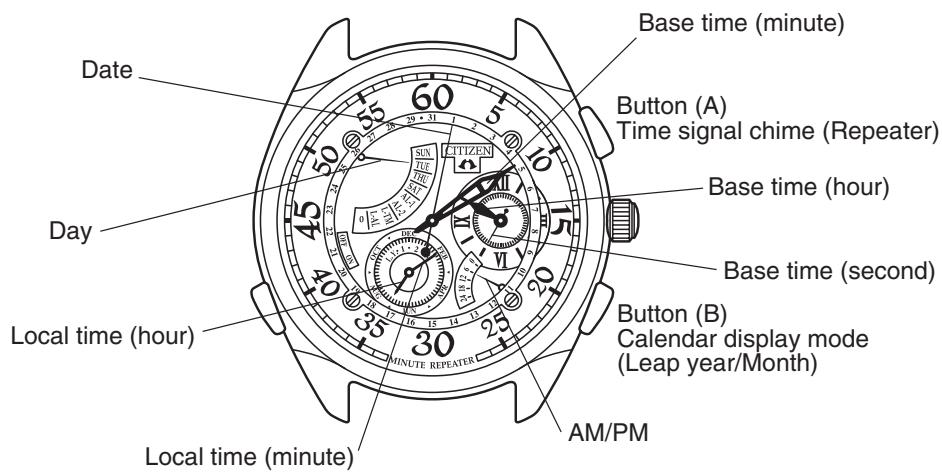

The normal time display appears as follows. Example: Base time 10:09:00/1/TUE : Local time AM 7:09 Base time (minute) Date Button (A) Time signal chime (Repeater) — Base time (hour) Day Base time (second) Button (B) Calendar display mode (Leap year/Month) Local time (hour) Local time (minute)

Press the (A) button to sound the time signal chime (see "1. Time signal chime (Repeater)"). Press the (B) button to display the calendar (see "2. Calendar display").

1. Time signal chime (Repeater)

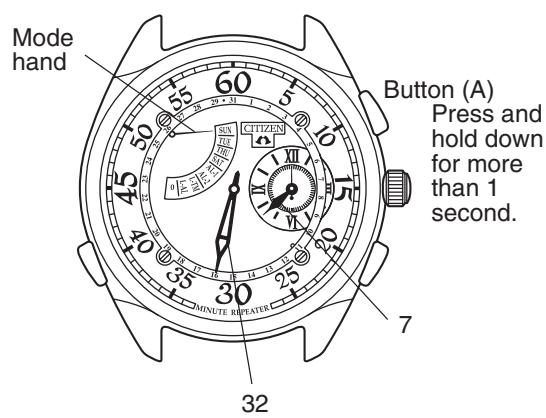

The feature allows you to tell the current time by the watch's chime sound. + Crown in the normal position

• This feature will not work unless Button (A) the mode hand is set to day press and (normal) display. for more (1) Press and hold down the (A) mai button for more than 1 second to activate the chime sound. Time signal chime (Repeater) operates under the 12-hour system.

(Œxample) [ You want to make the watch chime sound at 7:32.

1) Hour sound: One high-pitched chime sounds each seconds for each hour

(7 times=7 o'clock).

2) Quarter sound: One high and one low-pitched chime sounds each second

(L/AHR X 2=30 minutes).

3) Minute sound: One low-pitched chime sounds each second (2 times=

2 minutes). By playing the above sound, you know the time is now 7:32.

• Press the any button while the chime is playing to stop the sound. NOTE: + The chime sound cannot be activated while the calendar is being displayed. + The time is not set properly if the time display and chime sound are not synchronized. See "4. SETTING THE TIME”.

The calendar feature displays the date and day of the week. Itis also possible to display the month and leap year calendar indications by using the watch's (B) button. Normal display <Tuesday, 1> Date Local time hour, minute

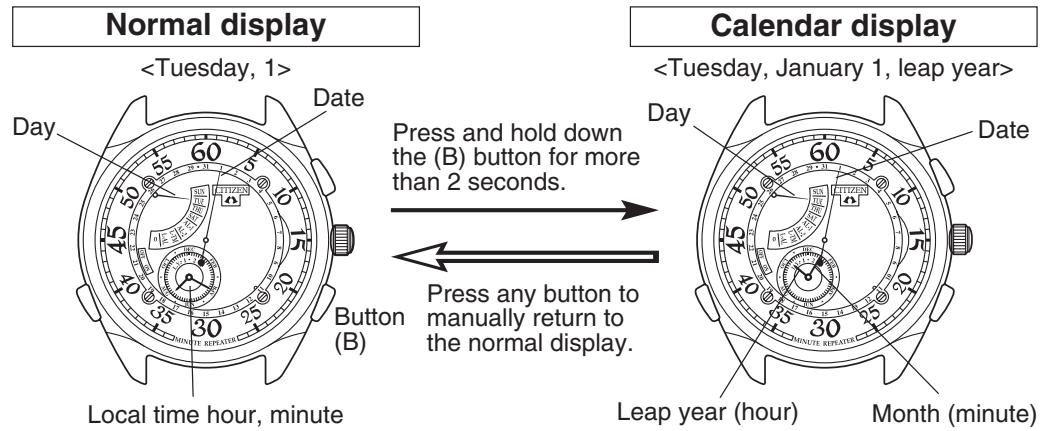

) the normal display. | [ Calendar display | <Tuesday, January 1, leap year> Press and hold down the (B) button for more than 2 seconds. Press any button to tton manually return to Leap year (hour) Month (minute)

+ Crown in the normal position + Press and hold down the (B) button for more than 2 seconds to switch the Local time hour, minute hands to the Leap year, month hands.

see Lets you set the desired alarm time quickly and easily. The alarm rings once at the set time and then cancels the alarm setting. Setting Alarm 1 + The alarm can be set in one-minute increments. + AM/PM can be determined with the AM/PM hand. + Alarm hour, minute hands and AM/PM hand are synchronized. + Press the (B) button once to advance the alarm hands one minute at a time. Press and hold down the (B) button to use the quick-advance feature.

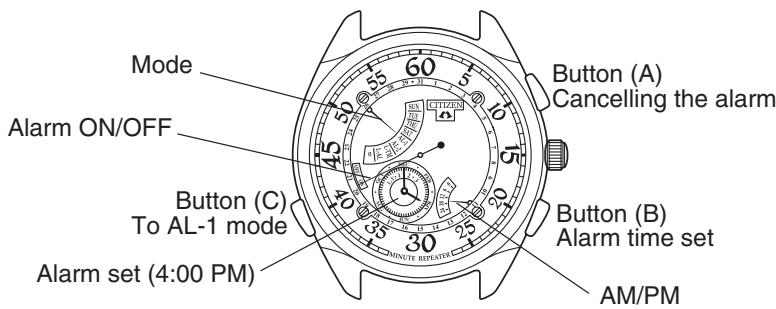

Alarm set (4:00 PM) AMPM + Crown in the normal position (Example) [ You want to set the alarm for 4:00 PM today. | (1) Press the (C) button to move the mode hand to the AL-I position. At this time, the hour and minute hands of local time switch to the hour and minute hands showing current time. (2) Press the (B) button and set the alarm to 4:00 PM. Always confirm the AM/PM hand to ensure the proper setting is made.

• When pressed the (B) button, the alarm ON/OFF hand indicates the ON state.

NOTE: When the alarm is set between 12:00-12:30 AM, the alarm hand sweeps forward and back in a 30 minute arc and stops at the set time. This is normal and does not indicate faulty movement. (3) Press the (C) button 5 times when the setting has been completed the mode hand return to the day display. (normal display) [About the alarm 1] Alarm 1 rings for 10 seconds upon reaching the alarm set time. Press any button to stop the alarm once it has started chiming. % Cancelling the alarm setting + Press the (A) button in the Alarm 1 mode to switch the alarm OFF.

• At this time, the alarm set time returns to the current time display.

• If there is no input for about 1 minute, the watch automatically returns from alarm 1 (AL-1) mode to the normal display.

Alarm 2 (Daily alarm) )-- This feature allows the alarm to ring every day at the set time. Setting the Daily alarm (Alarm 2) + The alarm can be set in one-minute increments. + AM/PM can be determined with the AM/PM hand. + Alarm hour, minute hands and AM/PM hand are synchronized. + Press the (B) button once to advance the hands one minute at a time. Press and hold down the (B) button to use the quick-advance feature.

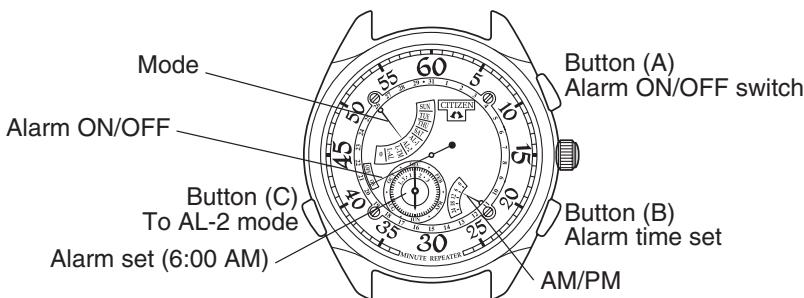

Mode Button (A) À Alarm N/OFF switch Alarm ON/OFF Button (C) To AL-2 mode Alarm set (6:00 AM) /) Button (B) Alarm time set + Crown in the normal position (Œxample) [You want to set the alarm for 6:00 AM every day | (1) Press the (C) button to move the mode hand to the AL-2 position. At this time, the Local time hands switch to the alarm hour, minute set hands and the date hand switches to the Alarm ON/OFF function. (2) Press the (B) button and set the alarm to 6:00 AM. Always confirm the AM/PM hand to ensure the proper setting is made. + Pressing the (B) button automatically moves the alarm ON/OFF hand to the ON position.

NOTE: When the alarm is set between 12:00-12:30 AM, the alarm hands sweeps forward and back in a 30 minute arc and stops at the set time. This is normal and does not indicate faulty movement. (3) Press the (C) button 4 times when the setting is complete to move the mode

hand back to the normal time display. [About the Daily alarm (AL-2)] Depending on the time of day for which the alarm is set, for the watch will sound 3 different alarms. + Refreshing sound --- From 4:00 AM to 11:59 AM (14-second chime) + Vibrant sound --- From 12:00 Noon to 5:59 PM (15-second chime) + Relaxing sound --- From 6:00 PM to 3:59 AM (16-second chime) Press any button to stop the alarm from chiming. % Cancelling the alarm setting Press the (A) button in the AL-2 mode to switch the alarm OFF.

• If there is no input for about 1 minute, the watch automatically returns to the normal display.

Setting Local Time + Settings can be made in 30-minute increments. + Local time hour, minute hands and AM/PM hand are synchronized. + Press the (B) button once to advance in 30-minute increments. Press and hold down the (B) button to use quick-advance feature. Mode ZA GO AM/PM Button (C) To L-TM mode ]) Button (B) Local time set Local time (9:30 AM)

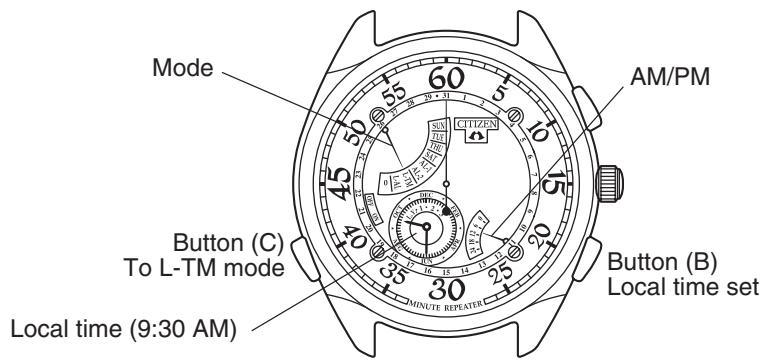

+ Crown in the normal position (Example) You want to synchronize the current time in Tokyo (5:30 PM) with the local (current) time in Paris (9:30 AM). (1) Press the (C) button to move the mode hand to the L-TM position. At the same time, the date hand moves to the 31st (12:00 PM) position. (2) Press the (B) button to set the local time to 9:30 AM. Always confirm the AM/PM hand to ensure the proper setting is made. NOTE: When the local time is set between 12:00-12:30 AM the local time hands sweep forward and back in a 30 minute arc and stop at the set time. This is normal and does not indicate faulty movement.

(3) Press the (C) button 3 times when the setting is complete to move the mode 11. LOCAL TIME ALARM (L-AL) hand back to the Day (normal) mode position.

• If there is no input for about 1 minute, the watch automatically returns to the Local time alarm (L-AL)) This feature allows the alarm to ring every day normal display. at the set time. Setting the Local time alarm + The alarm can be set in one-minute increments. + AM/PM can be determined with the AM/PM hand. + Alarm hour, minute hands and AM/PM hand are synchronized. + Press the (B) button once to advance the hands in one-minute increments. Press and hold down the (B) button to use the quick-advance feature.

Button (A) Mode Ÿ\ Alarm ON/OFF switch Button (C) To L-AL Mode Alarm set hands (10:00 AM) /) Button (B) Alarm time set AM/PM + Crown in the normal position (Example) [ You want to set the alarm to sound at 10:00 AM Paris time. (1) Press the (C) button to move the mode hand to the L-AL position. At the same time, the Local time hands switch to the alarm hour, minute set hands and the date hand switches to the Alarm ON/OFF hand. (2) Press the (B) button to set the alarm to 10:00 AM. Always confirm the AM/PM hand to ensure the proper setting is made. + Pressing the (B) button automatically moves the ON/OFF hand to the ON position.

NOTE: When the alarm is set between 12:00-12:30 AM, the alarm hand sweep forward and back in a 30 minute arc and stop at the set time. This is normal and does not indicate faulty movement. (3) Press the (C) button 2 times when the setting is complete to move the mode hand back to the Day (normal) mode position. [About the Local time alarm] The local time alarm will sound at the set time for 16 seconds.

• Press any button to stop the alarm from chiming. % Cancelling the alarm setting Press the (A) button in the L-AL mode to switch the alarm OFF.
• If there is no input for about 1 minute, the watch automatically returns to the normal display.

Refer to the "Seconds adjustment" entry below for instructions on adjusting the watch. + Crown in the normal position Synchronizing the Main and Sub watch Button (A) second hands Seconds adjustment Mode hand NS Er (1) Press the (C) button to move to the "0" mode. The date hand switches to the Sub watch second hand function. Button (C) (2) Press the (A) button once at the To 0 mode Main watch sound of a time signal to second hand synchronize both second hands as Sub watch second hand shown in the diagram below.

(3) Press the (C) button when the setting is complete to move to the normal display. (The mode hand displays the day mode.)

• If there is no input for about 2 minutes, the watch automatically returns to the normal display.

Second hand position MAIN WATCH (Second hand) SUB WATCH (Second hand) Second hand Second hand stops. advances to the Movement 0 position and begins when begins 0-29 Sub watch movement. SEC second hand The minute hand reaches same advances one position. minute. Second hand Second hand returns to the advances to the 0 position and 0 position and 30-59 begins begins SEC movement. movement. The minute hand advances one minute.

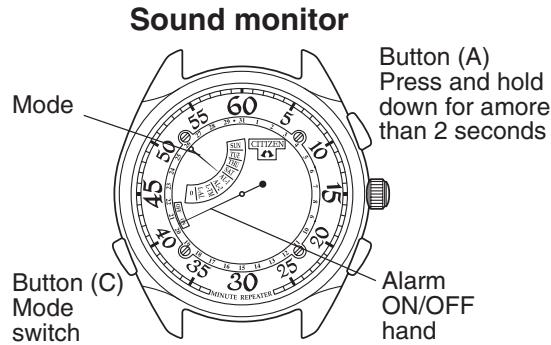

Sound monitor) The sound monitor feature is used to confirm the alarm sounds in the Alarm 1, Alarm 2 and Local time alarm modes. Sound monitor Button (A) Button (C Alarm Mode ON/OFF switch hand Press and hold down for amore À than 2 seconds + Crown in the normal position (1) Press the (C) button to move the mode hand to the alarm mode you want to monitor (Alarm 1, Alarm 2, Local time alarm). (2) Press the (A) button for more than 2 seconds to activate the sound monitor. NOTE: + Alarm 1 will only sound when the ON/OFF hand is in the OFF position.

+ Alarm 2: When the Local Time Alarm is set to ON or OFF, pressing button (A) for more than 2 seconds will activate the sound monitor. Caution should be exercised at this time because the Local Time Alarm switch setting will also be changes.

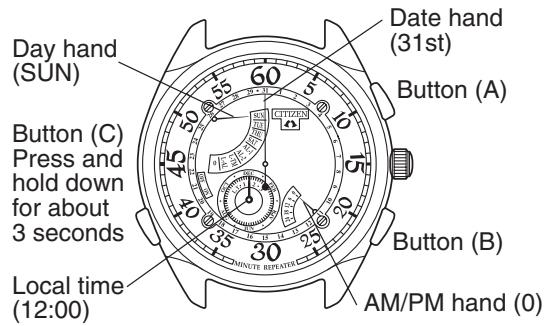

Positioning of the watch's hands) - This feature allows you to check and confirm the proper position for each of Checking the position the watch's hands. of the watch's hands + Crown in the normal position FE Las * This feature can be used with the RUN A mode hand in any position. (Button (A) (1) Press and hold down the (C) button for more than 3 seconds to move the hands to the following initial positions. Button (C) Press and hold down for about 3 seconds CZ Button (B) Date hand: 31 : Day hand: SUN Local (800) AM/PM hand (0) Local time: 12:00 AM/PM hand: 0

If the hands do not move to the above positions, see "15. INITIAL SETTING". If there is no input for about 20 seconds, the watch will automatically return to the normal display. Press the any button to manually return to the normal display.

If the calendar, local time or various alarm functions for the watch do not operate correctly, follow the procedures listed below.

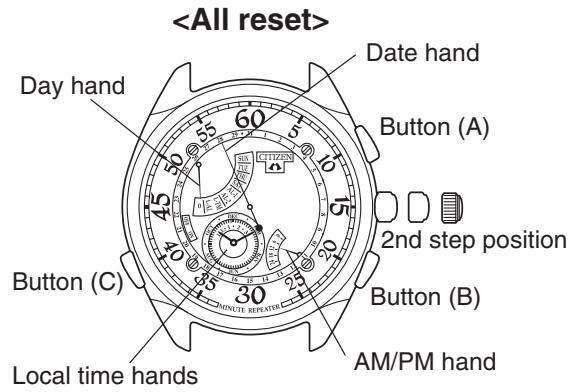

• These instructions should always be completed when new batteries are installed. <All reset> (1) Pull the crown out to the 2nd Date hand step position (mode hand Day hand display: 0). (Eutton (A) (2) Press and hold down the all buttons simultaneously for more b D8 than 2 seconds. 2nd step position (3) Release all buttons to reset the watch's hands. Button (B) (A) confirmation beep will sound with the completion of this operation. Local time hands AM/PM hand

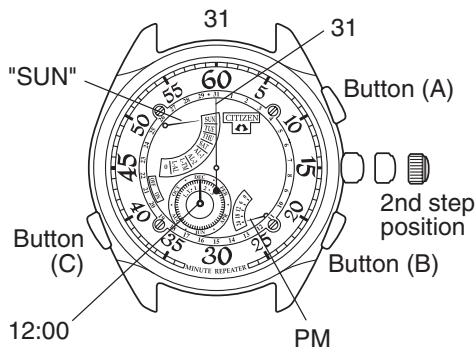

<initial setting operations> + Crown is in the 2nd step position (1) Press the (A) button to set the date hand to the "31" position (12 o'clock). NN Button (A) (2) Press the (B) button to set the Local time hand to the 12 o'clock position DDS and AM/PM hand to the "PM" ES position. Button (8) (3) Press the (C) button to set the day hand to "SUN". The day hand may not align precisely with the SUN mark but this does not adversely effect normal watch operations. Set the day hand to "SUN" even if the hand appears to be correctly positioned. (4) Push the crown in to the normal position to complete setting procedures. The AM/PM hand will automatically move to the "AM" position.

- After setting the hands to the initial position, first refer to section 4 of the manual, "SETTING THE TIME", to set the watch hands to the correct time. Then, refer to section 5, "SETTING THE CALENDAR", and set the calendar to the correct date.

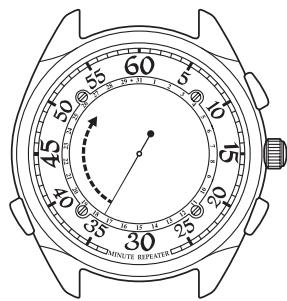

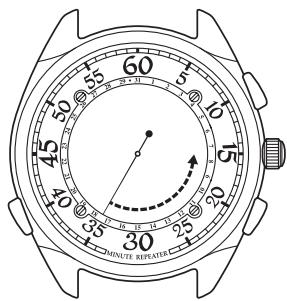

+ When the date hand quick-advances in a clockwise direction this indicates that the "time setting" between the Main watch and Sub watch was not successfully completed. See "4. SETTING THE TIME" for further instruction. (Time setting incomplete warning indication) + When the date hand quick-advances in a counterclockwise direction this indicates that the initial setting was not successfully completed. See "15. INITIAL SETTING" for further instruction. (Initial Setting incomplete warning indication)

WARNING: Water-resistance performance

There are several types of water-resistant watches, as shown in the following table. The unit "bar" is roughly equal to 1 atmosphere.

• WATER RESIST(ANT) xx bar may also be indicated as W.R. xx bar. For correct use within the design limits of the watch, confirm the level of water- resistance of your watch, as indicated on the dial and case, and consult the table. Examples of use Indication Dial Case (case back) Specifications Minor exposure to water (washing face, rain, etc.) Moderate exposure to water (washing, kitchen work, swimming, etc.) Marine sports skin diving) Scuba diving (with air tank) Operation of the crown or button with moisture visible WATER RESIST or no indication WATER RESIST(ANT) Water-resistant to 3 atmospheres

WARNING: Water-resistance performance

+ Water-resistance for daily use (to 3 atmospheres): This type of watch is water-resistant to minor exposure to water, For example, you may wear the watch while washing your face: however, it is not designed for use underwater. + Upgraded water-resistance for daily use (to 5 atmospheres): This type of watch is water- resistant to moderate exposure to water. You may wear the watch while swimming; however, it is not designed for use while skin diving. + Upgraded water-resistance for daily use (to 10/20 atmospheres): This type of watch may be used for skin diving; however, it is not designed for scuba or saturated diving using helium gas. CAUTION - Be sure to use the watch with the crown pressed in (normal position). If your watch has a screw-lock type crown, be sure to tighten the crown completely. + Do NOT operate the crown or button with wet fingers or when the watch is wet. Water may enter the watch and compromise water-resistance. + Ifthe watch is used in seawater, rinse with fresh water afterward and wipe with a dry cloth. + If moisture has entered the watch, or if the inside of the crystal is fogged up and does not become clear within a day, immediately take the watch to your dealer or Citizen Service Center for repair. Leaving the watch in such a state will allow corrosion to form inside.

+ If seawater enters the watch, place the watch in a box or plastic bag and immediately take it in for repair. Otherwise, pressure inside the watch will increase, and parts (crystal, crown, buttons, etc.) may come off. CAUTION: Keep your watch clean. + Leaving dust and dirt deposited between the case and crown may result in difficulty in pulling the crown out. Rotate the crown while in its normal position, from time to time, to loosen dust and dirt and then brush it off. + Dust and dirt tend to be deposited in gaps in the back of the case or band. Deposited dust and dirt may cause corrosion and soil your clothing. Clean the watch occasionally. Cleaning the Watch + Use a soft cloth to wipe off dirt, perspiration and water from the case and crystal . + Use a soft, dry cloth to wipe off perspiration and dirt from the leather band. + To clean a metal, plastic, or rubber watchband, wash away dirt with mild soap and water. Use a soft brush to remove dust and dirt jammed in the gaps in the metal band. If your watch is not water-resistant, take it to your dealer. NOTE: Avoid using solvents (thinner, benzine, etc.), as they may mar the finish.

WARNING: Handling of the battery

+ Keep the battery out of the reach of small children. If a child swallows the battery, contact a physician immediately. CAUTION: Replacing the battery + For replacement of the battery, take your watch to your dealer or Citizen Service Center. + Replace the battery as soon as possible if the service life of the battery has expired. Leaving a depleted battery in the watch may result in leakage, which can damage the watch severely. CAUTION: Operating environment + Use the watch within the operating-temperature range specified in the instruction manual. Using the watch where temperatures are outside the specified range, may result in deterioration of functions or even stoppage of the watch. + Do NOT use the watch in places where it is exposed to high temperature, such as in a sauna. Doing so may result in a skin burn. + Do NOT leave the watch in a place where it is exposed to high temperature, such as the glove compartment or dash-board of a car. Doing so may result in deterioration of the watch, such as deformation of pl:

+ Do NOT place the watch close to a magnet. Timekeeping will become inaccurate if you place the watch close to magnetic health equipment such as a magnetic necklace or a magnetic latch of a refrigerator door or handbag clasp or the earphone of a mobile phone. If this has occurred, move the watch away from the magnet and reset the time. + Do NOT place the watch close to household appliances that generate static electricity. Timekeeping may become inaccurate if the watch is exposed to strong static electricity, such as is emitted from a TV screen. + Do NOT subject the watch to a strong shock such as dropping it onto a hard floor. + Avoid using the watch in an environment where it may be exposed to chemicals or corrosive gases. If solvents, such as thinner and benzine, or substances containing such solvents come in contact with the watch, discoloration, melting, cracking, etc. may result. If the watch comes in contact with mercury used in thermometers;the case, band or other parts may become discolored. Periodical inspections Your watch needs inspection once in every two or three years for safety and long use. To keep your watch water-resistant, the packing needs to be replaced regularly. Other parts need to be inspected and replaced if necessary. Ask for Citizen geuine parts upon replacement.

Model: 6765/6766 Type: Multi-hand analog quartz watch Quartz oscillation frequency: 32,768 hertz Accuracy: +20 seconds per month at normal temperatures +5°C to +35°C Effective temperature range: -10°C to +60°C Additional features + Hand display calendar Day, date (normal display): Month, leap year display dependent on push button switching Leap year/end-of-month automatic adjustment + Alarm 1: Alarm rings once at set time (Setting is cancelled) + Alarm 2: Alarm rings every day at set time (daily alarm) + Local time: Hour, minute, AM/PM indication, 30-minute increment settings + Local time alarm: Alarm rings every day at set (local) time. Alarm 1,2, Local time alarm can all be set in one-minute increments. -+ Time signal chime (Repeater): Two different sound chimes for hour, quarter hour and minute signals are used to indicate the current time. + Sound monitor: Allows confirmation of all Alarm 1, 2, Local time alarm sound. -+ Other: Incomplete time settings warning indication Incomplete initial settings warning indication

7. Battery: 1 silver oxide cell Battery No.: 280-44 (SR927W)

about 2 years Alarm 1 (10 sec): once/1 week about 2 years Alarm 2 (16 sec): once/day Local time alarm (15 sec): once/1 week Time signal chime (17 sec): once/day The life of the battery sec is dependent on the amount of alarm use.

• Specifications are subject to change without notice.
