USER MANUAL F335 CITIZEN WATCH

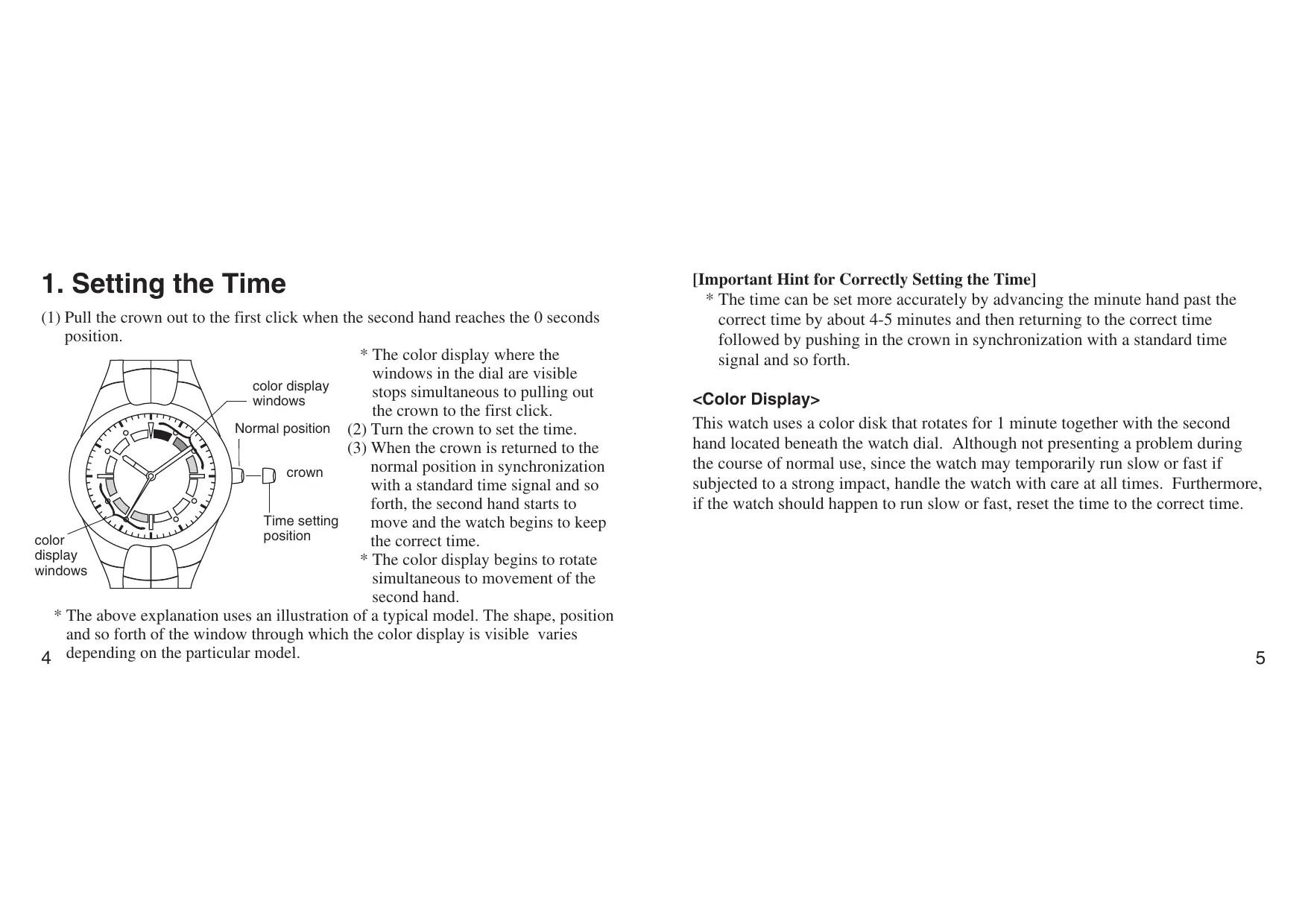

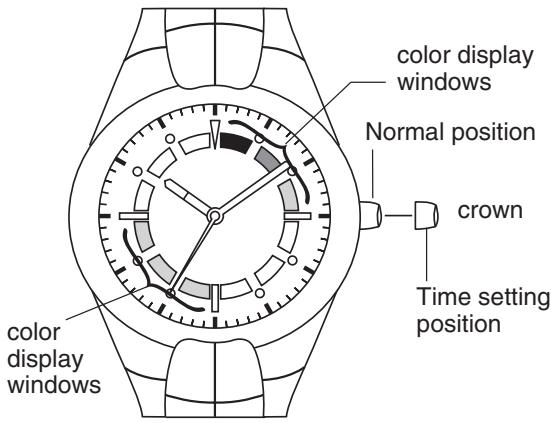

(1) Pull the crown out to the first click when the second hand reaches the 0 seconds position.

• The color display where the windows in the dial are visible stops simultaneous to pulling out the crown to the first click. Normal position (2) Turn the crown to set the time. (3) When the crown is returned to the normal position in synchronization With a standard time signal and so forth, the second hand starts to Time setting move and the watch begins to keep position color display windows color the correct time. display * The color display begins to rotate windows simultaneous to movement of the second hand.
• The above explanation uses an illustration of a typical model. The shape, position and so forth of the window through which the color display is visible varies 4 depending on the particular model. [Important Hint for Correctly Setting the Time]

• The time can be set more accurately by advancing the minute hand past the correct time by about 4-5 minutes and then returning to the correct time followed by pushing in the crown in synchronization with a standard time signal and so forth. <Color Display> This watch uses a color disk that rotates for 1 minute together with the second hand located beneath the watch dial. Although not presenting a problem during the course of normal use, since the watch may temporarily run slow or fast if subjected to a strong impact, handle the watch with care at all times. Furthermore, if the watch should happen to run slow or fast, reset the time to the correct time.

CAUTION: Water-resistance performance There are several types of water-resistant watches, as shown in the following table. The unit "bar" is roughly equal to 1 atmosphere.

• WATER RESIST (ANT) xx bar may also be indicated as For correct use within the design limits of the watch, confirm the level of water- resistance of your watch, as indicated on the dial and case, and consult the table. Examples of use Moderate exposure to water (washing, kitchen work, swimming, etc.) Marine sports (skin diving) Scuba diving Cwith air tank) Operation of the crown With moisture visible W.R. xx bar. Indication ificati Minor exposure to water _ Case Specifications Dial (case back) (washing face, rain, etc.) WATER RESIST WATER Water-resistant to or no indication RESIST(ANT) 3 atmospheres OK

+ Water-resistance for daily use (to 3 atmospheres): This type of watch is water-resi: minor exposure to water. For example, you may wear the watch while washing your face; however, it is not designed for use underwater. + Upgraded water-resistance for daily use (to 5 atmospheres): This type of watch is water- resistant to moderate exposure to water. You may wear the watch while swimming; however, it is not designed for use while skin diving. + Upgraded water-resistance for daily use (to 10/20 atmospheres): This type of watch may be used for skin diving; however, it is not designed for scuba or saturated diving using helium gas. CAUTION + Be sure to use the watch with the crown pressed in (normal position). If your watch has a screw-lock type crown, be sure to tighten the crown completely. + Do NOT operate the crown with wet fingers or when the watch is wet. Water may enter the watch and compromise water-resis + If the watch is used in seawater, rinse with fresh water afterward and wipe with a dry cloth. + If moisture has entered the watch, or if the inside of the crystal is fogged up and does not become clear within a day, immediately take the watch to your dealer or Citizen Service Center for repair. Leaving the watch in such a state will allow corrosion to form inside. + If seawater enters the watch, place the watch in a box or plastic bag and immediately take it in for repair. Otherwise, pressure inside the watch will increase, and parts (crystal, crown, buttons, etc.) may come off. CAUTION: Keep your watch clean. + Leaving dust and dirt deposited between the case and crown may result in difficulty in pulling the crown out. Rotate the crown while in its normal position, from time to time, to loosen dust and dirt and then brush it off. + Dust and dirt tend to be deposited in gaps in the back of the case or band. Deposited dust and dirt may cause corrosion and soil your clothing. Clean the watch occasionally. Cleaning the Watch + Use a soft cloth to wipe off dirt, perspiration and water from the case and crystal . + Use a soft, dry cloth to wipe off perspiration and dirt from the leather band. + To clean a metal, plastic, or rubber watchband, wash away dirt with mild soap and water. Use a soft brush to remove dust and dirt jammed in the gaps in the metal band. If your watch is not water-resistant, take it to your dealer. NOTE: Avoid using solvents (thinner, benzine, etc.), as they may mar the finish.

WARNING: Handling of the battery

+ Keep the battery out of the reach of small children. If a child swallows the battery, contact a physician immediately. CAUTION: Replacing the battery + For replacement of the battery, take your watch to your dealer or Citizen Service Center. + Replace the battery as soon as possible if the service life of the battery has expired. Leaving a depleted battery in the watch may result in leakage, which can damage the watch severely. CAUTION: Operating environment + Use the watch within the operating-temperature range specified in the instruction manual. Using the watch where temperatures are outside the specified range, may result in deterioration of functions or even stoppage of the watch. + Do NOT use the watch in places where it is exposed to high temperature, such as in a sauna. Doing so may result in a skin burn. + Do NOT leave the watch in a place where it is exposed to high temperature, such as the glove compartment or dash-board of a car. Doing so may result in deterioration of the watch, such as deformation of plastic parts.

+ Do NOT place the watch close to a magnet. Timekeeping will become inaccurate if you place the watch close to magnetic health equipment such as a magnetic necklace or a magnetic latch of a refrigerator door or handbag clasp or the earphone of a mobile phone. If this has occurred, move the watch away from the magnet and reset the time. + Do NOT place the watch close to household appliances that generate static electricity. Timekeeping may become inaccurate if the watch is exposed to strong static electricity, such as is emitted from a TV screen. + Do NOT subject the watch to a strong shock such as dropping it onto a hard floor. + Avoid using the watch in an environment where it may be exposed to chemis or corrosive gases. If solvents, such as thinner and benzine, or substances containing such solvents come in contact with the watch, discoloration, melting, cracking, etc. may result. If the watch comes in contact with mercury used in thermometers, the case, band or other parts may become discolored. Periodical inspections Your watch needs inspection once in every two or three years for safety and long use. To keep your watch water-resistant, the packing needs to be replaced regularly. Other parts need to be inspected and replaced if necessary. Ask for Citizen geuine parts upon replacement.

2. Crystal oscillation frequency: 32.768 Hz (Hz: No of oscillations per second)

3. Timekeeping accuracy: within +20 seconds per month (when worn at normal

temperatures of +5°C to +35°C/41°F to 95°F)

4. Operating temperature range: -10°C to +60°C / 14°F to 140°F

Battery life: Approx. 2 years after installing in watch

• Specifications are subject to change without notice.
