USER MANUAL PS-626 USB GEMINI

10” 3 Channel mixer with USB

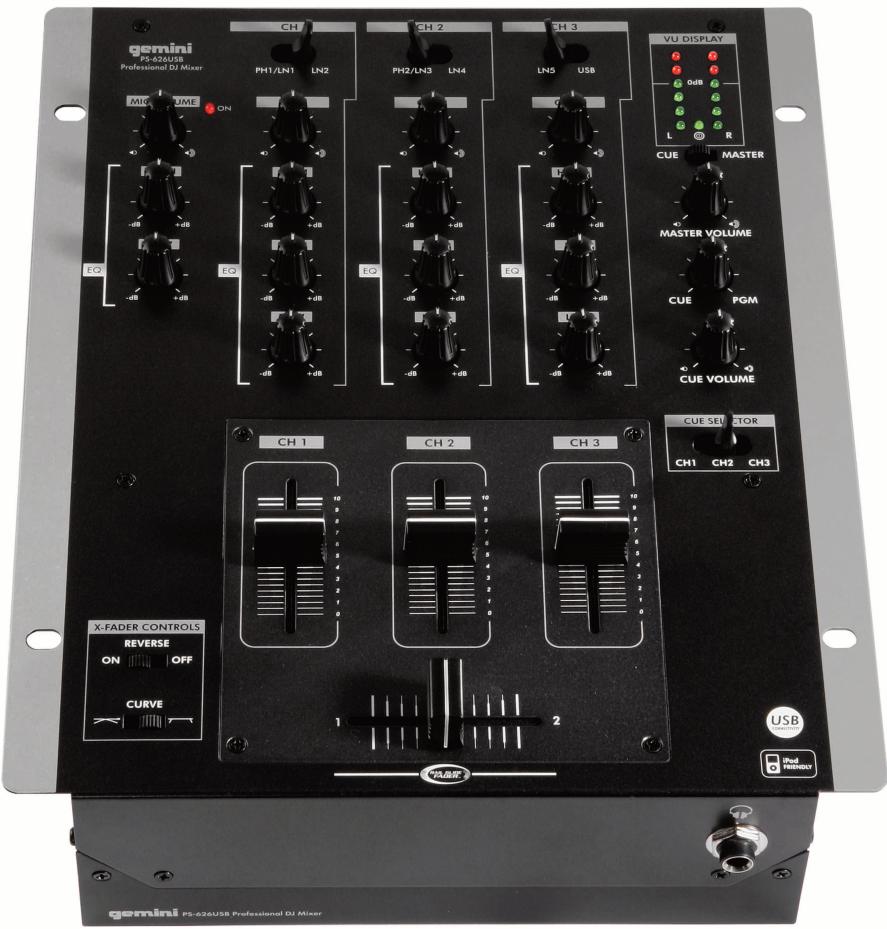

PS-626USB

OPERATIONS MANUAL

MANUEL D'INSTRUCTIONS

BEDIENUNGSHANDBUCH

FOR ENGLISH READERS

PARA LECTORES EN ESPÁÑOL

UTILISATEURS FRANCAIS

FÜR DEUTSCHE LESER

Page 2~Page 5

Págin6\~Págin9

Page 10~Page 13

Seite 14\~Seite 17

PLEASE READ BEFORE USING APPLIANCE IMPORTANT WARNING AND SAFETY INSTRUCTIONS!

CAUTION: This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The lightening flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

READ INSTRUCTIONS: All the safety and operating instructions should be read before the product is operated.

REtain INSTRUCTIONS: The safety and operating instructions should be retained for future reference.

HEED WARNINGS: All warnings on the product and in the operating instructions should be adhered to.

FOLLOW INSTRUCTIONS: All operating and use instructions should be followed.

CLEANING: The product should be cleaned only with a polishing cloth or a soft dry cloth. Never clean with furniture wax, benzine, insecticides or other volatile liquids since they may corrode the cabinet.

ATTACHMENTS: Do not use attachments not recommended by the product manufacturer as they may cause hazards.

WATER AND MOISTURE: Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

ACCESSORIES: Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.

CART: A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. See Figure A.

VENTILATION: Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

POWERSOURCES: This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.

LOCATION: The appliance should be installed in a stable location.

NON-USE PERIODS: The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.

GROUNDING OR POLARIZATION:

• If this product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other), it will fit into the outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
• If this product is equipped with a three-wire grounding type plug, a plug having a third (grounding) pin, it will only fit into a grounding type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding type plug.

Fig. A

Power-CORD PROTECTION: Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

OUTDOOR ANTENNA GROUNDING: If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure B.

Lightning: For added protection for this product during a lightening storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightening and power-line surges.

POWERS: An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

OVERLOADING: Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

OBJECT AND LIQUID ENTRY: Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

SERVICING: Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Fig.B

DAMAGE REQUIRING SERVICE: Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power-supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the product.
• If the product has been exposed to rain or water.
• If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
• If the product has been dropped or damaged in any way.
• When the product exhibits a distinct change in performance, this indicates a need for service.

REPLACEMENT PARTS: When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

SAFETY CHECK: Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operat ing condition.

WALL OR CEILING MOUNTING: The product should not be mounted to a wall or ceiling.

HEAT: The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

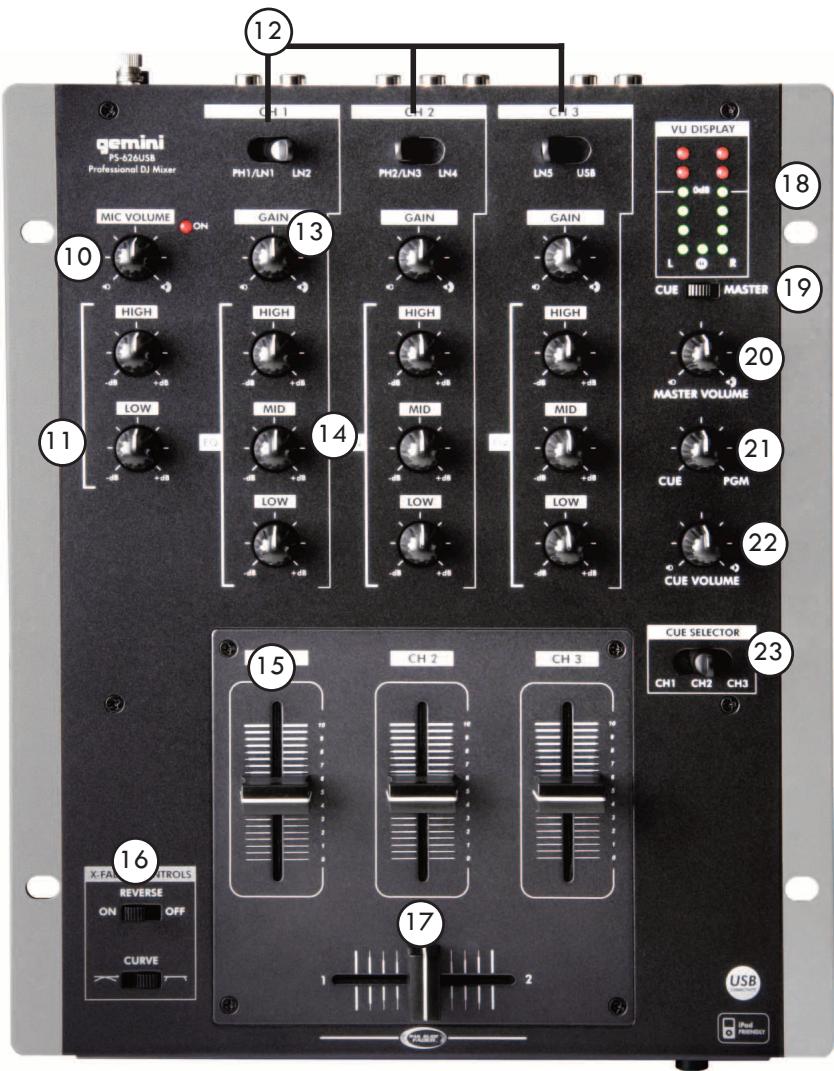

TOP

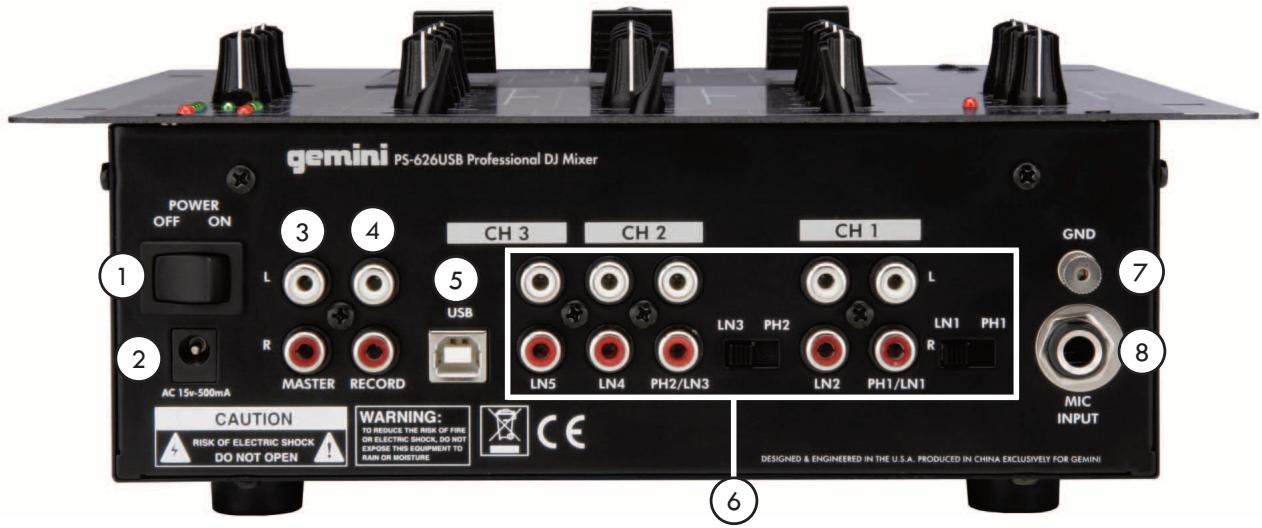

BACK

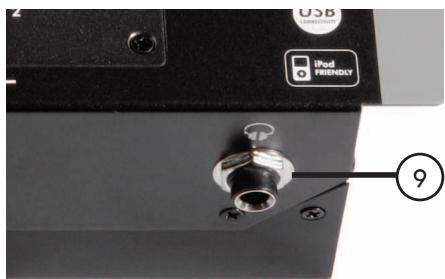

FRONT

INTRODUCTION:

Congratulations on your purchase of Gemini PS-626USB 10" 3 channel stereo mixer. This-state-of-the-art mixer features the latest technological advances and is backed by a 1 year warranty, excluding the cross fader. The cross fader is backed by a separate 90 day warranty. Prior to use we suggest that you carefully read all the instructions.

FEATURES:

• 10" 3 Stereo channel mixer
• 6 line, 2 convertible phono/line, RCA inputs, 1 USB i/o
• Removable face plate for user replaceable Rail Glide cross fader
• 3 band rotary line EQ with cut feature & rotary gain channel control
• Cue Ch1/Ch2/Ch3 switch
• Rotary cue volume, CUE/PGM rotary knob
• Dual VU display with mode switch
• Master volume rotary control

PRECAUTIONS:

1. All instructions should be read before using this equipment.
2. To reduce the risk of electrical shock, do not open the unit. Please refer all servicing needs to a Gemini-qualified service technician.

IN THE USA ~ IF YOU EXPERIENCE PROBLEMS WITH THIS UNIT CALL GEMINI CUSTOMER SERVICE AT: 1 [phone]. DO NOT ATTEMPT TO RETURN THIS EQUIPMENT TO YOUR DEALER.

1. Do not expose this unit to direct sunlight or a heat source such as a radiator or stove.
2. This unit should be cleaned only with a damp cloth. Avoid solvents or other cleaning detergents.
3. When moving this equipment it should be placed in its original carton and packaging. This will reduce the risk of damage during transit.
4. DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
5. DO NOT USE SPRAY CLEANERS OR LUBRICANTS ON CONTROLS, SURFACES OR SWITCHES.

CONNECTIONS:

Ensure that the POWER SWITCH
is in the OFF position prior to making any connections.
POWER SUPPLY
This unit comes with a POWER SUPPLY. Plug in to the rear panel POWER SUPPLY socket before plugging it in to a proper power source.
The MASTER RCA OUTPUT
⑤ connects the mixer to your main amplifier using standard audio cables with RCA-type connectors.
The RECORD RCA OUTPUT
The RECORD output jacks can be used to connect the mixer to the record input of your recording unit, thus enabling you to record your mix with RCA cables.
USB i/O
The USB i/O allows you to connect the PS-626USB to your Laptop or desktop PC/MAC. Once you have connected the standard high speed USB cable (not-included) from the PS-626USB to your computer you will be able to simultaneously playback and record out of the same USB cable, (see USB setup for instructions on how to setup your computer to work with the PS-626USB).

CONVERTIBLE PHONO/LINE INPUTS

The PS-626USB has 2 CONVERTIBLE PHONO/LINE (PH/LN) RCA INPUTS These small switches which are located to the right of the RCA inputs for channels 1 and 2 allow you to choose between a PHONO (Turntable) input or a LINE level (Mp3, CD, Tape player etc..).and require the proper switching.

When switched to the PH position you may use any Turntable with a magnetic cartridge, remember to connect your ground wire (see GROUNDING SCREW) or there may be a system hum

And when the switch is in the LN position you may connect any line level device as described before (Mp3, CD, Tape etc).

NOTE: CONNECTING A LINE LEVEL DEVICE TO A PH INPUT MAY CAUSE THAT MIXER CHANNEL TO OVERLOAD AND OR DISTORT.

Now you may plug the RCA's from your playable medium into each input to be connected to thier respective CHANNELS (CH).

GROUNDING SCREW

When using (a) turntable(s), you will need to ground the RCA cable(s) by screwing in the grounding fork(s) to the GROUNDING SCREW located on the rear panel of the PS-626USB mixer.

Attach a PHONO (Turntable) ground line to the silver GROUND THUMB SCREW that is situated at the bottom middle of the rear panel.

MIC (MICROPHONE) INPUT

The main MIC or Microphone input is located in back right hand corner of the PS-626USB and will accept a standard 1/4" connector. You can control the gain and even set the low's and the high's for the mic (See CONTROLS).

HEADPHONE OUTPUT

The HEADPHONE OUTPUT located at the front bottom right hand corner of the PS-626USB will accept any headphone with a standard 1 / 4 connector and or adaptor and will allow you to CUE your music program before you play it, you can adjust the volume and PGM mix of the HEADPHONE (see CONTROLS).

Then when all of your connections have been made turn on the mixer by pressing the POWER SWITCH.

CONTROLS:

MICROPHONE VOLUME

Allows you to adjust the volume of the microphone signal.

MICROPHONE EQ

Let's you to control the low frequency and the high frequency of the microphone signal.

MIXER CHANNEL

(NOTE: ALL 3 CHANNELS HAVE THE SAME FEATURES)

CHANNEL INPUT SELECTOR

The CHANNEL INPUT SELECTOR switches allow you to choose which input will be controlled by that channels corresponding volume FADER.

For example on CHANNEL (1) the INPUT SELECTOR allows you to choose between PHONO 1/LINE 1 and LINE 2, and also on CHANNEL (2) the INPUT SELECTOR SWITCH will let you choose between PHONO 2/LINE 3 and LINE 4 and on CHANNEL (3) you can choose between LINE 5 and the USB input.

CONTROLS: (CONTINUED)

USB SETUP:

12 CHANNEL ROTARY GAIN

The CHANNEL ROTARY GAIN allows you to boost the signal of each individual channel depending on how low or high its input level is

3 BAND EQUALIZER

The 3 BAND EQUALIZER adjust the tone of each CHANNEL by giving you a choice 3 frequencies (BANDS) to adjust, from LOW, MIDRANGE (MID) and HIGH's, you can use the adjustment knobs to higher or lower the 3 separate frequencies till the sound of the music program is appropriate for your listening environment.

CHANNEL VOLUME FADER

After you have chosen which input you will use with the INPUT SE-LECTOR the corresponding CHANNEL FADER will allow you to adjust the volume for that particular CHANNEL.

FAADER ADJUSTMENT SWITCHES

The fader adjustment switches allow you to change the functionality of the fader. The REVERSE switch when in the ON position will flip the fader so it works in REVERSE ie. channel (1) on the left and channel (2) on the right. The CURVE selector lets you choose between two fader CURVE settings, positioning the switch to the left will give you a gradual CROSSFADE and positioning the switch to the right will give you a quick CROSSFADE.

CROSS FADER

The CROSS FADER allows you to mix evenly from one source to another. On the PS-626USB The CROSS FADER is assignable between all (5) channels. The CROSS FADER on the PS-626USB is also removable and if the need arises can be replaced. The RG-45 (RAIL-GLIDE™) DUAL-RAIL CROSS FADER, which has internal dual stainless steel rails that allow the slider to ride smoothly and accurately from end to end can be purchased from your local GEMINI dealer.

NOTE: WHEN USING THE CROSS FADER LIGHTLY GLIDE THE FADER BACK AND FORTH. PRESSING DOWN ON THE CONTROLS CAN BEND CONTACTS AND CAUSE A LOSS OF SOUND.

VUMETER

The PS-626USB has a VU METER that allows you to monitor the decibel levels of the LEFT and RIGHT MASTER output.

CUE MASTER SWITCH

The VU METER has two display modes, in CUE mode it will display the level of the channel you are cueing, in MASTER mode it displays the main MASTER output.

MASTER VOLUME ROTARY

The MASTER VOLUME ROTARY knob adjust the volume of the MAIN output

CUE/PGM ROTARY

The CUE/PGM ROTARY determines the mix between the chosen CHANNEL CUE SELECTOR and the MAIN OUTPUT mix.

CUE VOLUME ROTARY KNOB

The CUE VOLUME ROTARY KNOB adjusts your HEADPHONE MONITOR OUTPUT'S volume.

CHANNEL CUE SELECTOR

The CHANNEL CUE SELECTOR allows you to choose which channel you wish to monitor in your headphones.

ONAPC

Open the START menu and go to CONTROL PANEL, once in the control panel folder click on the SOUND AND AUDIO DEVICES ICON, when the SOUND AND AUDIO DEVICES window opens click on the AUDIO pane, then under SOUND PLAYBACK choose the USB AUDIO CODEC as a DEFAULT DEVICE,then you just click on APPLY and you are ready to use the PS-626USB with your PC.

ON A MAC

Under the APPLE menu open SYSTEM PREFERENCES, and in SYSTEM PREFERENCES choose the SOUND icon, once in the SOUND window choose the OUTPUT pane and under CHOOSE A DEVICE FOR SOUND OUTPUT select USB AUDIO CODEC. Repeat the procedure for the INPUT pane, now your MAC is ready to work with the PS-626USB.

FADER REPLACEMENT:

1. UNSCREW THE FADER (B)
   SCREWS. DO NOT TOUCH INSIDE
   SCREWS (C) CAREFULLY REMOVE OLD CROSS FADER AND UNPLUG CABLE (D)
2. PLUG IN THE NEW CROSS FADER INTO CABLE (D) AND PLACE BACK INTO MIXER.
3. SCREW THE CROSS FADER TO MIXER WITH THE FADER PLATE SCREWS (B)
4. REPLACE THE FACE OF THE MIXER AND SCREW THE FOUR SCREWS BACK IN AND REPLACE THE FADER KNOBS.

SPECIFICATIONS:

INPUTS:

Phono. 3mV,47 K Ohm

Line. 150 mV, 27 K Ohm

MIC. 1.5 mV, 1 KOhm Balanced

OUTPUTS:

Max. 20V Peak-to Peak

Rec. 225 mV, 5 K Ohm

GENERAL:

Frequency Response. 20Hz - 20KHz +/- 2dB

Distortion. < 0.02%

S/N Ratio. Better than 85 dB

Headphone impedance. 8 Ohm

Power Source AC 15v 500mA

Unit dimensions. 10" x 3.3" x 12"

(254 x 84 x 304 mm)

Weight. 6.5 lbs (2.94 kg)

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTIFICATION FOR IMPROVE

MENT

Poids. 6.5 lbs (2.94 kgs)

LES SPECIFICATIONS TECHNIQUES ET LA CONCEPTION PEUVENT ETRE MODIFIÉES SANS PREAVIS DANS LE CADRE D'UN SOUCI CONSTANT D'AMÉLORATION DU PRODUIT.

In the event that you need service on your Gemini product under warranty, simply write a letter describing the problem, along with your contact information. Make sure to enclose a copy of your receipt for proof of warranty information. A return number is not required. You will be responsible for shipping charges to Gemini UK, and Gemini UK will pay to return the unit to you if it is considered under warranty.

IN SPAIN

Save postage and register your product online at www.geminidj.com and automatically be registered for great prize giveaways!

If you do not have internet access, fill out the form below and mail to the appropriate address listed at the right side of this page.

Cut along this line & keep the rest of this page for your records.

USA

GEMINI SOUND PRODUCTS

Worldwide Headquarters

1 Mayfield Ave

Edison, NJ 08837 USA

Tel: [phone]

Fax: [phone]

FRANCE

GCI TECHNOLOGIES S.A.R.L.

1, Allée d'Effiat,

GEMINI SOUND PRODUCTS

Unit C4

Hazleton Industrial Estate, P08 9JU

Waterlooville, UK

Tel: [phone]

Fax: [phone]

SPAIN

GEMINI SOUND PRODUCTS S.A.

Rosello, 516

08026 Barcelona, Spain

Tel: [phone]

Fax: [phone]

WARRANTY AND REPAIR:

All Gemini products are designed and manufactured to the highest standards in the industry. With proper care and maintenance, your product will provide years of reliable service.

LIMITED WARRANTY

A. Gemini warrants its products to be free from defects in materials and workmanship for One (1) year from the original purchase date.

Exceptions: Laser assemblies on CD Players, cartridges, and crossfaders are covered for 90 days.

B. This limited warranty does not cover damage or failure caused by abuse, misuse, abnormal use, faulty installation, improper maintenance or any repairs other than those provided by an authorized Gemini Service Center.

C. There are no obligations of liability on the part of Gemini for consequential damages arising out of or in connection with the use or performance of the product or other indirect damages with respect to loss of property, revenues, of profit, or costs of removal, installation, or reinstallation. All implied warranties for Gemini, including implied warranties for fitness, are limited in duration to One (1) year from the original date of purchase, unless otherwise mandated by local statutes.

RETURN/REPAIR

A. In the U.S.A., please call our helpful Customer Service Representatives at [phone], and they will be happy to give you a Return Authorization Number (RA#) and the address of an authorized service center closest to you.

B. After receiving an RA#, include a copy of the original sales receipt, with defective product and a description of the defect. Send by insured freight to: Gemini Sound Products Corp, and use the address provided by your customer service representative. Your RA# must be written on the outside of the package, or processing will be delayed indefinitely!

C. Service covered under warranty will be paid for by Gemini and returned to you. For non-warrantied products, Gemini will repair your unit after payment is received. Repair charges do not include return freight. Freight charges will be added to the repair charges.

D. On warranty service, you pay for shipping to Gemini, we pay for return shipping within the Continental United States. Alaska, Hawaii, Puerto Rico, Canada, Bahamas, and the Virgin Islands will be charged for freight.

E. Please allow 2-4 weeks for return of your product. Under normal circumstances your product will spend no more than 10 working days at Gemini. We are not responsible for shipping times.

IN THE USA: IF YOU EXPERIENCE PROBLEMS WITH THIS UNIT, CALL 1-732-346-0061 FOR GCI TECHNOLOGIES CUSTOMER SERVICE. DO NOT ATTEMPT RETURN THIS EQUIPMENT TO YOUR DEALER.

Parts of the design of this product may be protected by worldwide patents. Information in this manual is subject to change without notice and does not represent a commitment on the part of the vendor. GCI Technologies Corp. shall not be liable for any loss or damage whatsoever arising from the use of information or any error contained in this manual. No part of this manual may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, electrical, mechanical, optical, chemical, including photocopying and recording, for any purpose without the express written permission of GCI Technologies Corp. It is recommended that all maintenance and service on this product is performed by GCI Technologies Corp. or its authorized agents. GCI Technologies Corp. will not accept liability for loss or damage caused by maintenance or repair performed by unauthorized personnel.
